Hiho,
kann einer was zum INTEL SE7500WV2 Dual XEON Server Mainboard sagen? Also ob das Board gut ist oder schlecht und nur zusammenbricht oder sowas
Einsatzgebiet ist erstmal egal..will nur wissen wie das Board so ist bzw. ob einer damit Erfahrungen hat.
hier ein paar infos dazu

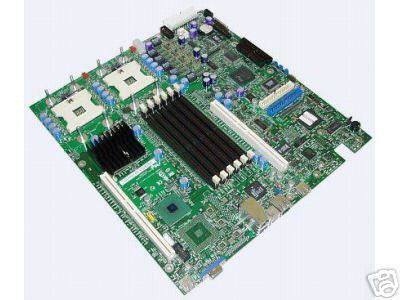

Intel SE7500WV2 Dual XEON Server System Board Rack-optimized design - 1U & 2U, EATX form factor
Intel® E7500 Chipset
Dual Intel® Xeon™ CPU's with 512-KB cache & Hyper-Threading Technology
Dual-channel ATA/100 RAID Promise PDC20277 Controller
(6) 184-Pin DIM Slots (DDR-200/DDR-266 support, ECC, Registered)
256Mb Minimum Memory Config, 12Gb Maximum Config
Dual integrated Intel® Pro/1000 XT Server Ethernet controllers
(1) PS/2, (1) VGA, (2) Ethernet, (2)USB, (1) RJ-45 Serial Ports
Integrated graphics - ATI Rage XL Graphics with 8 MB memory
8Mb SDRAM Video Memory
Triple Peer PCI-X, up to six PCI-X slots on risers in a 2U system:
Bus A: 32-bit/33-MHz, Bus B: 64-bit/66 to 100-MHz, Bus C: 64-bit/66-MHz
Advanced Intel® Server Management
Daten vom Hersteller (ohne Gewähr)
The Intel® Server Board SE7500WV2 is rack-optimized with features making it uniquely suitable for 1U and 2U systems. For example, adapter-slot locations allow for one full-height and one low-profile PCI add-in card in a 1U system, or three full-height and three low-profile cards in a 2U system. For highly demanding server workloads, the Server Board SE7500WV2 accommodates up to two Intel® Xeon™ processors with 512KB L2 Advanced Transfer Cache and Hyper-Threading Technology. Multiple integrated components provide dual PCI-X buses, dual Intel® PRO/1000 XT Server Network Connections, and up to 12 GB of Error-Correcting Code (ECC) DDR memory support. All component locations and design are thermally optimized for high-density systems
Features Benefits
Support for one or two Intel® Xeon™ processors with 512KB L2 Advanced Transfer Cache and Hyper-Threading Technology Processing performance for demanding server applications
Support for up to 12 GB of registered ECC DDR200/266 (200 MHz) SDRAM with six DIMM sockets Memory flexibility and capacity to support a wide range of server solutions
Dual (two-way) interleaved memory High-performance memory subsystem with up to 3.2 GB/sec of data transfer
Triple-peer PCI/PCI-X buses Bandwidth for intensive I/O needs
1U system: one full-length and one low-profile 64-bit/100 MHz slot on two independent PCI-X buses capable of running at 66-100 MHz depending on system configuration Room for two high-throughput adapter cards operating on separate buses
2U system: up to three full-length and three low-profile slots on two independent PCI-X buses capable of running at 66-100 MHz depending on system configuration Room for six high-throughput adapter cards with I/O balanced across multiple buses
Two integrated Intel® PRO/1000 XT Server Network Connections (Intel® 82546EB controller) High bandwidth with widespread compatibility, teaming capability, and redundant links
Optional dual-channel Ultra160 SCSI supporting modular ROMB High-performance data transfer that can easily be augmented to deliver RAID functionality
Optional dual-channel ATA/100 RAID controller Enables the use of low-cost IDE drives without sacrificing data protection
Integrated ATI* Rage* XL video controller with 8 MB of video memory High-quality video without the need for a video-adapter card
Advanced Intel® Server Management software and hardware, including serial data/ console redirection over LAN, integrated remote management, event alerting, and proactive fault management High server availability and low maintenance costs
kann einer was zum INTEL SE7500WV2 Dual XEON Server Mainboard sagen? Also ob das Board gut ist oder schlecht und nur zusammenbricht oder sowas
Einsatzgebiet ist erstmal egal..will nur wissen wie das Board so ist bzw. ob einer damit Erfahrungen hat.hier ein paar infos dazu
Intel SE7500WV2 Dual XEON Server System Board Rack-optimized design - 1U & 2U, EATX form factor
Intel® E7500 Chipset
Dual Intel® Xeon™ CPU's with 512-KB cache & Hyper-Threading Technology
Dual-channel ATA/100 RAID Promise PDC20277 Controller
(6) 184-Pin DIM Slots (DDR-200/DDR-266 support, ECC, Registered)
256Mb Minimum Memory Config, 12Gb Maximum Config
Dual integrated Intel® Pro/1000 XT Server Ethernet controllers
(1) PS/2, (1) VGA, (2) Ethernet, (2)USB, (1) RJ-45 Serial Ports
Integrated graphics - ATI Rage XL Graphics with 8 MB memory
8Mb SDRAM Video Memory
Triple Peer PCI-X, up to six PCI-X slots on risers in a 2U system:
Bus A: 32-bit/33-MHz, Bus B: 64-bit/66 to 100-MHz, Bus C: 64-bit/66-MHz
Advanced Intel® Server Management
Daten vom Hersteller (ohne Gewähr)
The Intel® Server Board SE7500WV2 is rack-optimized with features making it uniquely suitable for 1U and 2U systems. For example, adapter-slot locations allow for one full-height and one low-profile PCI add-in card in a 1U system, or three full-height and three low-profile cards in a 2U system. For highly demanding server workloads, the Server Board SE7500WV2 accommodates up to two Intel® Xeon™ processors with 512KB L2 Advanced Transfer Cache and Hyper-Threading Technology. Multiple integrated components provide dual PCI-X buses, dual Intel® PRO/1000 XT Server Network Connections, and up to 12 GB of Error-Correcting Code (ECC) DDR memory support. All component locations and design are thermally optimized for high-density systems
Features Benefits
Support for one or two Intel® Xeon™ processors with 512KB L2 Advanced Transfer Cache and Hyper-Threading Technology Processing performance for demanding server applications
Support for up to 12 GB of registered ECC DDR200/266 (200 MHz) SDRAM with six DIMM sockets Memory flexibility and capacity to support a wide range of server solutions
Dual (two-way) interleaved memory High-performance memory subsystem with up to 3.2 GB/sec of data transfer
Triple-peer PCI/PCI-X buses Bandwidth for intensive I/O needs
1U system: one full-length and one low-profile 64-bit/100 MHz slot on two independent PCI-X buses capable of running at 66-100 MHz depending on system configuration Room for two high-throughput adapter cards operating on separate buses
2U system: up to three full-length and three low-profile slots on two independent PCI-X buses capable of running at 66-100 MHz depending on system configuration Room for six high-throughput adapter cards with I/O balanced across multiple buses
Two integrated Intel® PRO/1000 XT Server Network Connections (Intel® 82546EB controller) High bandwidth with widespread compatibility, teaming capability, and redundant links
Optional dual-channel Ultra160 SCSI supporting modular ROMB High-performance data transfer that can easily be augmented to deliver RAID functionality
Optional dual-channel ATA/100 RAID controller Enables the use of low-cost IDE drives without sacrificing data protection
Integrated ATI* Rage* XL video controller with 8 MB of video memory High-quality video without the need for a video-adapter card
Advanced Intel® Server Management software and hardware, including serial data/ console redirection over LAN, integrated remote management, event alerting, and proactive fault management High server availability and low maintenance costs
