ASUS G73 - i7

RightMark Audio Analyzer test


Testing chain: External loopback (line-out - line-in)
Sampling mode: 16-bit, 44 kHz




Summary

Frequency response (from 40 Hz to 15 kHz), dB: +0.78, -1.19Average
Noise level, dB (A): -66.5Average
Dynamic range, dB (A): 66.4Average
THD, %: 0.149Average
IMD + Noise, %: 0.242Average
Stereo crosstalk, dB: -64.3Average
IMD at 10 kHz, %: 0.359Average

General performance: Average

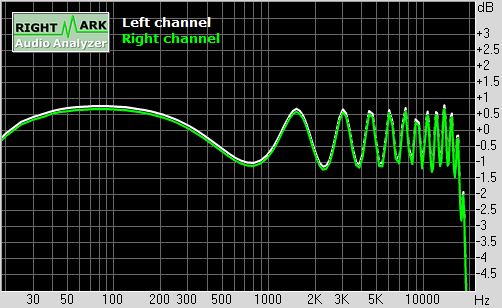

Frequency response

Spectrum graph


Frequency range Response
From 20 Hz to 20 kHz, dB-5.61, +0.78
From 40 Hz to 15 kHz, dB-1.19, +0.78




Noise level

Spectrum graph


Parameter Left Right
RMS power, dB:-63.5-63.6
RMS power (A-weighted), dB:-66.4-66.5
Peak level, dB FS:-51.1-51.4
DC offset, %:-0.00-0.00

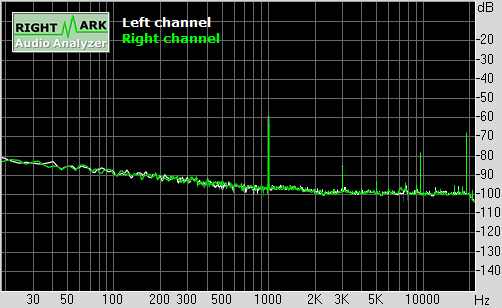

Dynamic range

Spectrum graph


Parameter Left Right
Dynamic range, dB:+63.6+63.9
Dynamic range (A-weighted), dB:+66.4+66.5
DC offset, %:-0.00-0.00

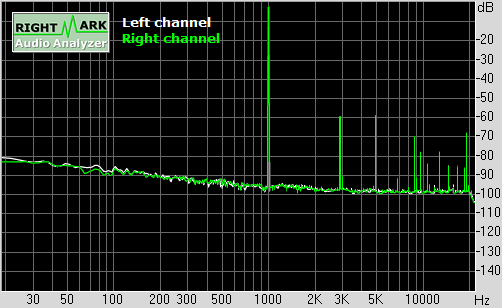

THD + Noise (at -3 dB FS)

Spectrum graph


Parameter Left Right
THD, %:0.14990.1490
THD + Noise, %:0.22770.2276
THD + Noise (A-weighted), %:0.26800.2675




Intermodulation distortion

Spectrum graph


Parameter Left Right
IMD + Noise, %:0.24290.2424
IMD + Noise (A-weighted), %:0.29130.2915

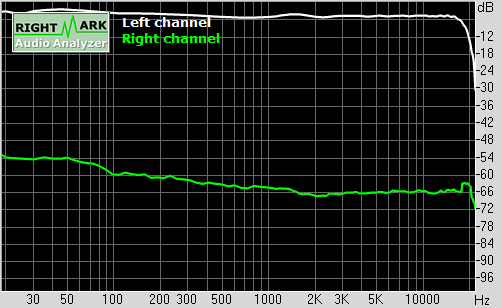

Stereo crosstalk

Spectrum graph


Parameter L <- R L -> R
Crosstalk at 100 Hz, dB:-3-59
Crosstalk at 1 kHz, dB:-4-63
Crosstalk at 10 kHz, dB:-4-64

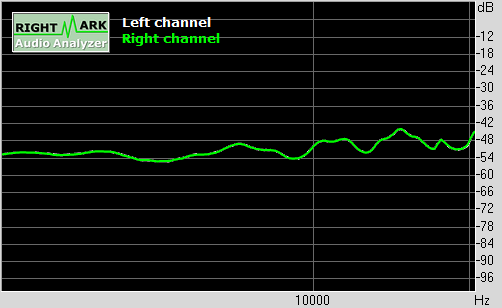

IMD (swept tones)

Spectrum graph


Parameter Left Right
IMD + Noise at 5 kHz, %:0.17570.1749
IMD + Noise at 10 kHz, %:0.32290.3195
IMD + Noise at 15 kHz, %:0.58320.5825

This report was generated by RightMark Audio Analyzer 5.5
