RightMark Audio Analyzer test report
| Testing device | ASUS N71J Realtek |
| Sampling mode | 16-bit, 44 kHz |
| Interface | |
| Testing chain | External loopback (line-out - line-in) |
| RMAA Version | 6.2.3 |
| 20 Hz - 20 kHz filter | ON |
| Normalize amplitude | ON |
| Level change | -0.1 dB / -0.0 dB |
| Mono mode | OFF |
| Calibration singal, Hz | 1000 |
| Polarity | inverted/inverted |
Summary
| Frequency response (from 40 Hz to 15 kHz), dB | +0.08, -0.13 |
Very good |
| Noise level, dB (A) | -72.0 |
Average |
| Dynamic range, dB (A) | 72.0 |
Average |
| THD, % | 0.142 |
Average |
| THD + Noise, dB (A) | -52.2 |
Poor |
| IMD + Noise, % | 0.267 |
Average |
| Stereo crosstalk, dB | -72.6 |
Good |
| IMD at 10 kHz, % | 0.332 |
Average |
| General performance | Average |
Frequency response
| From 20 Hz to 20 kHz, dB | -6.40, +0.08 |
| From 40 Hz to 15 kHz, dB | -0.13, +0.08 |

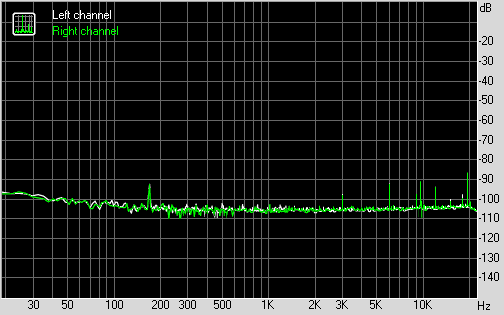

Noise level
Left |
Right |
|
| RMS power, dB | -70.9 |
-70.5 |
| RMS power (A-weighted), dB | -72.2 |
-71.9 |
| Peak level, dB FS | -56.9 |
-56.2 |
| DC offset, % | -0.0 |
-0.0 |

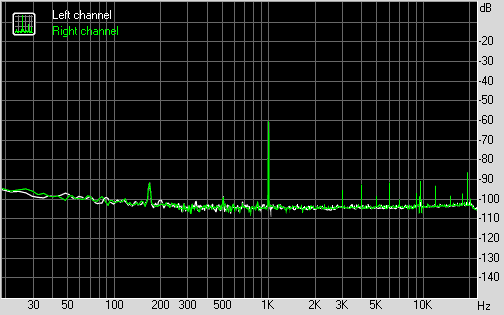

Dynamic range
Left |
Right |
|
| Dynamic range, dB | +70.8 |
+70.5 |
| Dynamic range (A-weighted), dB | +72.2 |
+71.8 |
| DC offset, % | -0.00 |
-0.00 |
THD + Noise (at -3 dB FS)
Left |
Right |
|
| THD, % | +0.1419 |
+0.1415 |
| THD + Noise, % | +0.1969 |
+0.1973 |
| THD + Noise (A-weighted), % | +0.2458 |
+0.2456 |

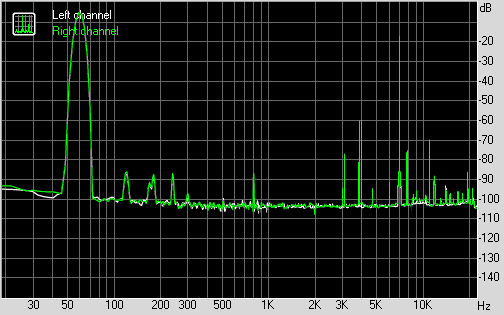

Intermodulation distortion
Left |
Right |
|
| IMD + Noise, % | +0.2665 |
+0.2669 |
| IMD + Noise (A-weighted), % | +0.3382 |
+0.3381 |

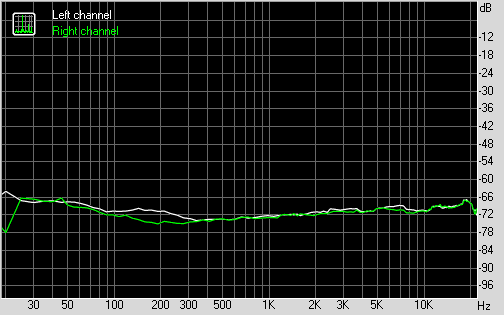

Stereo crosstalk
Left |
Right |
|
| Crosstalk at 100 Hz, dB | -70 |
-71 |
| Crosstalk at 1000 Hz, dB | -71 |
-72 |
| Crosstalk at 10000 Hz, dB | -69 |
-70 |
IMD (swept tones)
Left |
Right |
|
| IMD + Noise at 5000 Hz, | 0.1574 |
0.1579 |
| IMD + Noise at 10000 Hz, | 0.2959 |
0.2920 |
| IMD + Noise at 15000 Hz, | 0.5430 |
0.5455 |
