ASUS UL30VC

RightMark Audio Analyzer test


Testing chain: External loopback (line-out - line-in)
Sampling mode: 16-bit, 44 kHz




Summary

Frequency response (from 40 Hz to 15 kHz), dB: +0.08, -0.15Very good
Noise level, dB (A): -85.5Good
Dynamic range, dB (A): 85.2Good
THD, %: 0.131Average
IMD + Noise, %: 0.258Average
Stereo crosstalk, dB: -85.0Excellent
IMD at 10 kHz, %: 0.328Average

General performance: Good

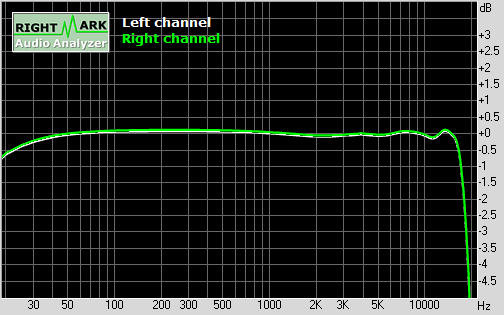

Frequency response

Spectrum graph


Frequency range Response
From 20 Hz to 20 kHz, dB-6.20, +0.08
From 40 Hz to 15 kHz, dB-0.15, +0.08




Noise level

Spectrum graph


Parameter Left Right
RMS power, dB:-83.6-83.4
RMS power (A-weighted), dB:-85.5-85.2
Peak level, dB FS:-69.6-69.5
DC offset, %:-0.000.00

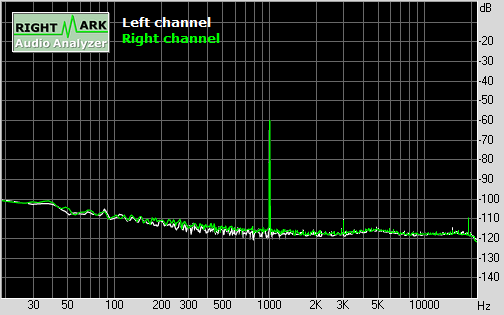

Dynamic range

Spectrum graph


Parameter Left Right
Dynamic range, dB:+83.4+83.2
Dynamic range (A-weighted), dB:+85.6+85.2
DC offset, %:0.000.00

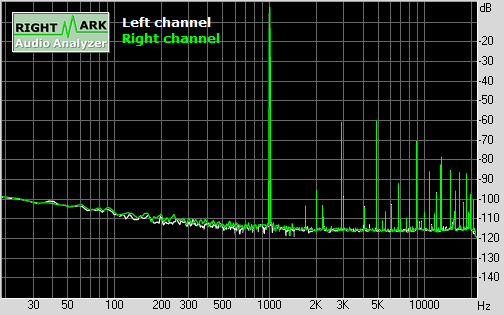

THD + Noise (at -3 dB FS)

Spectrum graph


Parameter Left Right
THD, %:0.13060.1308
THD + Noise, %:0.18100.1812
THD + Noise (A-weighted), %:0.23040.2306

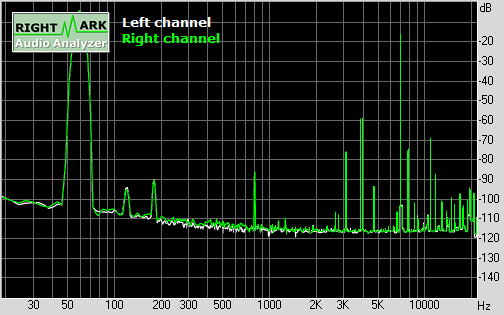

Intermodulation distortion

Spectrum graph


Parameter Left Right
IMD + Noise, %:0.25820.2583
IMD + Noise (A-weighted), %:0.33450.3347

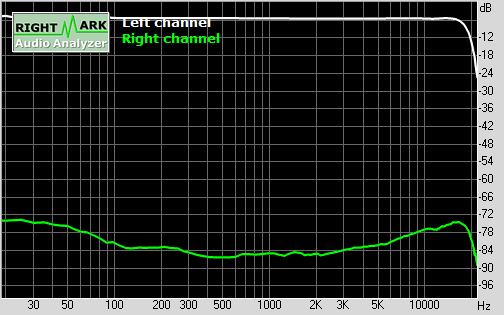

Stereo crosstalk

Spectrum graph


Parameter L <- R L -> R
Crosstalk at 100 Hz, dB:-4-81
Crosstalk at 1 kHz, dB:-4-84
Crosstalk at 10 kHz, dB:-4-76

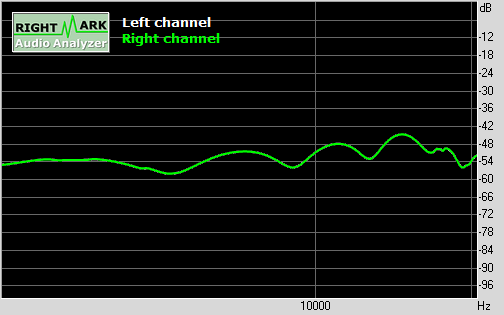

IMD (swept tones)

Spectrum graph


Parameter Left Right
IMD + Noise at 5 kHz, %:0.13490.1353
IMD + Noise at 10 kHz, %:0.28380.2837
IMD + Noise at 15 kHz, %:0.56640.5661

This report was generated by RightMark Audio Analyzer 5.5
