RightMark Audio Analyzer test report
| Testing device | Lautsprecher (Auzen X-Meridian 7.1 2G) |
| Sampling mode | 24-bit, 192 kHz |
| Interface | DirectSound |
| Testing chain | External loopback (line-out - line-in) |
| RMAA Version | 6.2.3 |
| 20 Hz - 20 kHz filter | ON |
| Normalize amplitude | ON |
| Level change | -0.6 dB / -0.6 dB |
| Mono mode | OFF |
| Calibration singal, Hz | 1000 |
| Polarity | correct/correct |
Summary
| Frequency response (from 40 Hz to 15 kHz), dB | +0.06, -0.16 |
Very good |
| Noise level, dB (A) | -104.9 |
Excellent |
| Dynamic range, dB (A) | 102.3 |
Excellent |
| THD, % | 0.0020 |
Excellent |
| THD + Noise, dB (A) | -85.2 |
Good |
| IMD + Noise, % | 0.0038 |
Excellent |
| Stereo crosstalk, dB | -97.1 |
Excellent |
| IMD at 10 kHz, % | 0.0077 |
Excellent |
| General performance | Very good |

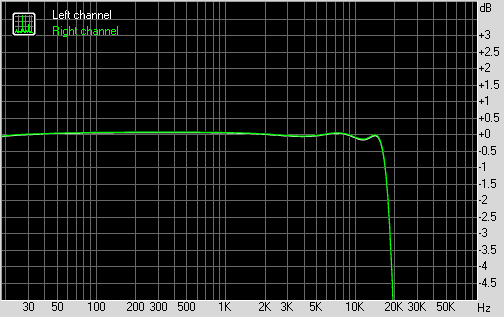

Frequency response
/fr.png)
| From 20 Hz to 20 kHz, dB | -6.12, +0.06 |
| From 40 Hz to 15 kHz, dB | -0.16, +0.06 |

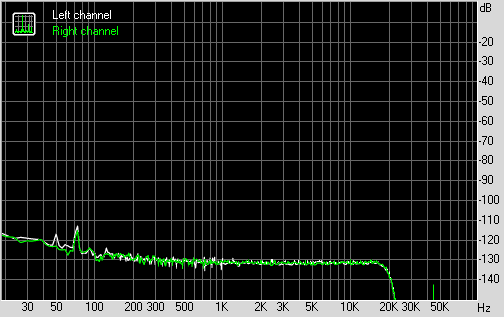

Noise level
/noise.png)
Left |
Right |
|
| RMS power, dB | -101.7 |
-101.6 |
| RMS power (A-weighted), dB | -104.6 |
-105.2 |
| Peak level, dB FS | -76.2 |
-76.3 |
| DC offset, % | -0.0 |
-0.0 |

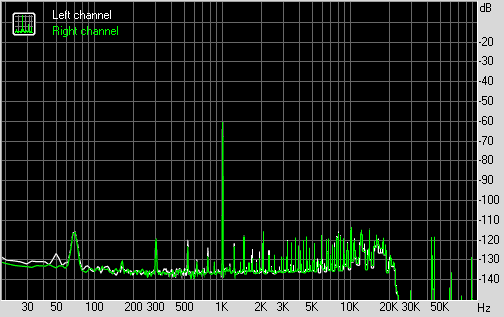

Dynamic range
/dynamics.png)
Left |
Right |
|
| Dynamic range, dB | +101.3 |
+101.2 |
| Dynamic range (A-weighted), dB | +102.2 |
+102.3 |
| DC offset, % | -0.00 |
-0.00 |

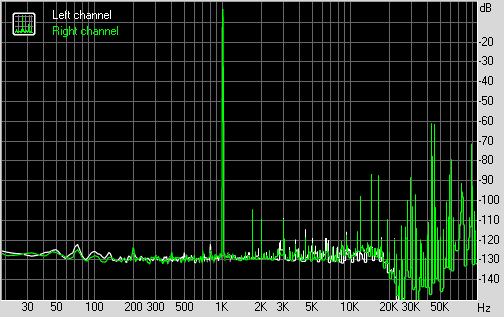

THD + Noise (at -3 dB FS)
/thd.png)
Left |
Right |
|
| THD, % | +0.0019 |
+0.0020 |
| THD + Noise, % | +0.0094 |
+0.0095 |
| THD + Noise (A-weighted), % | +0.0054 |
+0.0055 |

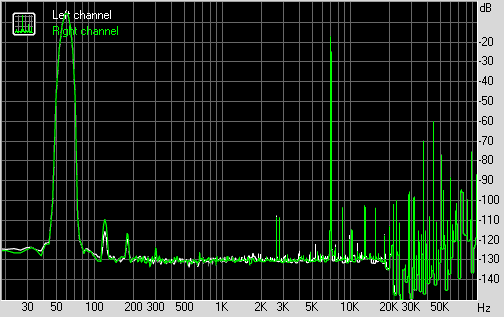

Intermodulation distortion
/imd.png)
Left |
Right |
|
| IMD + Noise, % | +0.0037 |
+0.0038 |
| IMD + Noise (A-weighted), % | +0.0032 |
+0.0032 |

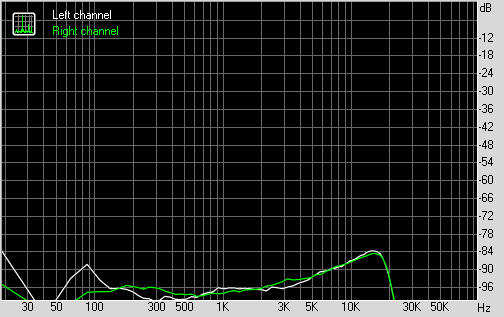

Stereo crosstalk
/cross.png)
Left |
Right |
|
| Crosstalk at 100 Hz, dB | -90 |
-96 |
| Crosstalk at 1000 Hz, dB | -95 |
-97 |
| Crosstalk at 10000 Hz, dB | -86 |
-86 |

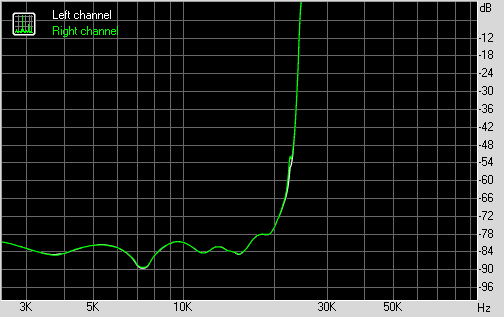

IMD (swept tones)
/imdswept.png)
Left |
Right |
|
| IMD + Noise at 5000 Hz, | 0.0082 |
0.0081 |
| IMD + Noise at 10000 Hz, | 0.0090 |
0.0090 |
| IMD + Noise at 15000 Hz, | 0.0059 |
0.0060 |
