RightMark Audio Analyzer test report
| Testing device | Lautsprecher (Auzen X-Meridian 7.1 2G) |
| Sampling mode | 16-bit, 44 kHz |
| Interface | DirectSound |
| Testing chain | External loopback (line-out - line-in) |
| RMAA Version | 6.2.3 |
| 20 Hz - 20 kHz filter | ON |
| Normalize amplitude | ON |
| Level change | -0.6 dB / -0.6 dB |
| Mono mode | OFF |
| Calibration singal, Hz | 1000 |
| Polarity | correct/correct |
Summary
| Frequency response (from 40 Hz to 15 kHz), dB | +0.02, -0.15 |
Very good |
| Noise level, dB (A) | -93.8 |
Very good |
| Dynamic range, dB (A) | 93.8 |
Very good |
| THD, % | 0.0009 |
Excellent |
| THD + Noise, dB (A) | -87.3 |
Good |
| IMD + Noise, % | 0.0058 |
Excellent |
| Stereo crosstalk, dB | -94.1 |
Excellent |
| IMD at 10 kHz, % | 0.074 |
Good |
| General performance | Very good |
Frequency response
/fr.png)
| From 20 Hz to 20 kHz, dB | -1.07, +0.02 |
| From 40 Hz to 15 kHz, dB | -0.15, +0.02 |

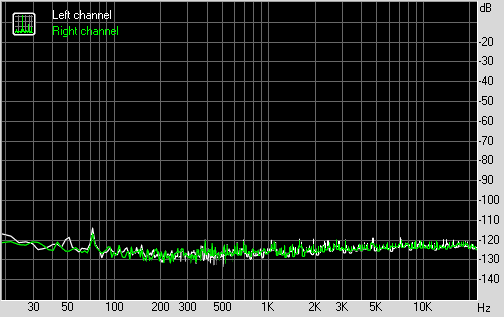

Noise level
/noise.png)
Left |
Right |
|
| RMS power, dB | -92.8 |
-92.8 |
| RMS power (A-weighted), dB | -93.8 |
-93.8 |
| Peak level, dB FS | -78.8 |
-81.6 |
| DC offset, % | -0.0 |
-0.0 |
Dynamic range
/dynamics.png)
Left |
Right |
|
| Dynamic range, dB | +92.8 |
+92.9 |
| Dynamic range (A-weighted), dB | +93.8 |
+93.9 |
| DC offset, % | -0.00 |
-0.00 |

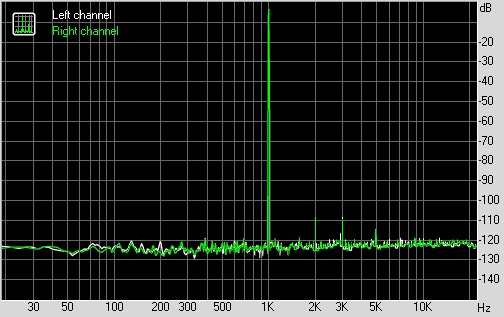

THD + Noise (at -3 dB FS)
/thd.png)
Left |
Right |
|
| THD, % | +0.0008 |
+0.0010 |
| THD + Noise, % | +0.0048 |
+0.0048 |
| THD + Noise (A-weighted), % | +0.0044 |
+0.0043 |
Intermodulation distortion
/imd.png)
Left |
Right |
|
| IMD + Noise, % | +0.0058 |
+0.0057 |
| IMD + Noise (A-weighted), % | +0.0052 |
+0.0052 |

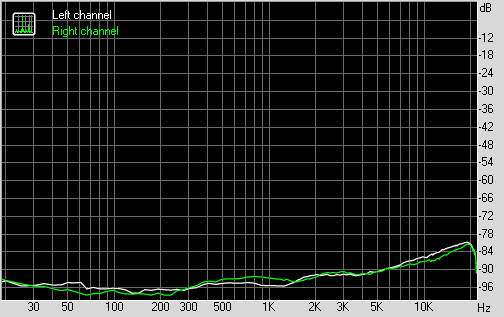

Stereo crosstalk
/cross.png)
Left |
Right |
|
| Crosstalk at 100 Hz, dB | -95 |
-96 |
| Crosstalk at 1000 Hz, dB | -94 |
-92 |
| Crosstalk at 10000 Hz, dB | -85 |
-86 |

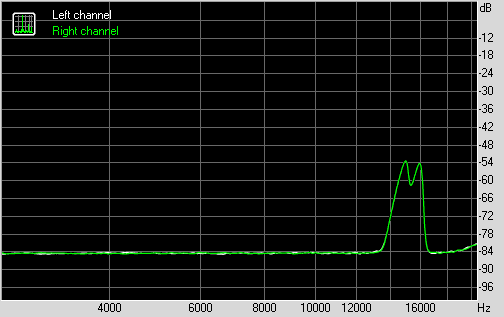

IMD (swept tones)
/imdswept.png)
Left |
Right |
|
| IMD + Noise at 5000 Hz, | 0.0059 |
0.0060 |
| IMD + Noise at 10000 Hz, | 0.0062 |
0.0061 |
| IMD + Noise at 15000 Hz, | 0.2090 |
0.2092 |
