RightMark Audio Analyzer test report
| Testing device | Lautsprecher (Auzen X-Meridian 7.1 2G) |
| Sampling mode | 24-bit, 48 kHz |
| Interface | DirectSound |
| Testing chain | External loopback (line-out - line-in) |
| RMAA Version | 6.2.3 |
| 20 Hz - 20 kHz filter | ON |
| Normalize amplitude | ON |
| Level change | -0.6 dB / -0.6 dB |
| Mono mode | OFF |
| Calibration singal, Hz | 1000 |
| Polarity | correct/correct |
Summary
| Frequency response (from 40 Hz to 15 kHz), dB | +0.06, -0.16 |
Very good |
| Noise level, dB (A) | -101.2 |
Excellent |
| Dynamic range, dB (A) | 102.1 |
Excellent |
| THD, % | 0.131 |
Average |
| THD + Noise, dB (A) | -52.8 |
Poor |
| IMD + Noise, % | 0.256 |
Average |
| Stereo crosstalk, dB | -101.1 |
Excellent |
| IMD at 10 kHz, % | 0.326 |
Average |
| General performance | Good |
Frequency response
/fr.png)
| From 20 Hz to 20 kHz, dB | -6.12, +0.06 |
| From 40 Hz to 15 kHz, dB | -0.16, +0.06 |

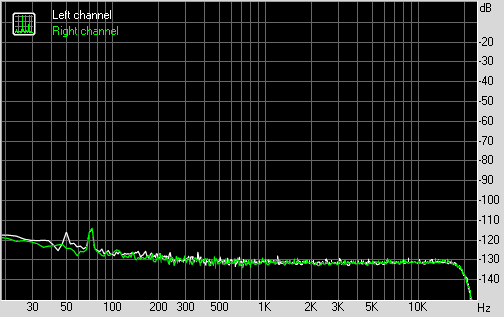

Noise level
/noise.png)
Left |
Right |
|
| RMS power, dB | -99.9 |
-100.5 |
| RMS power (A-weighted), dB | -101.0 |
-101.4 |
| Peak level, dB FS | -78.1 |
-78.8 |
| DC offset, % | -0.0 |
-0.0 |

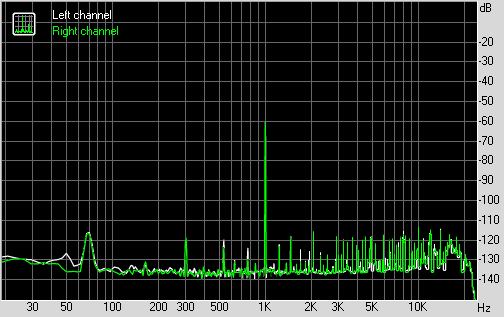

Dynamic range
/dynamics.png)
Left |
Right |
|
| Dynamic range, dB | +101.2 |
+101.2 |
| Dynamic range (A-weighted), dB | +102.0 |
+102.1 |
| DC offset, % | -0.00 |
-0.00 |

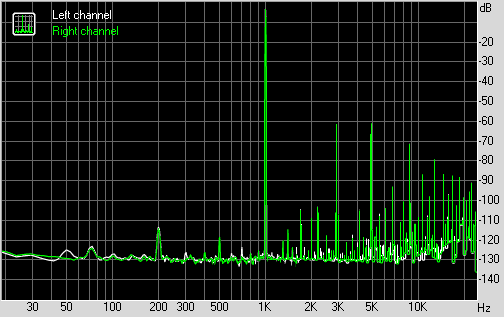

THD + Noise (at -3 dB FS)
/thd.png)
Left |
Right |
|
| THD, % | +0.1306 |
+0.1307 |
| THD + Noise, % | +0.1805 |
+0.1805 |
| THD + Noise (A-weighted), % | +0.2301 |
+0.2302 |

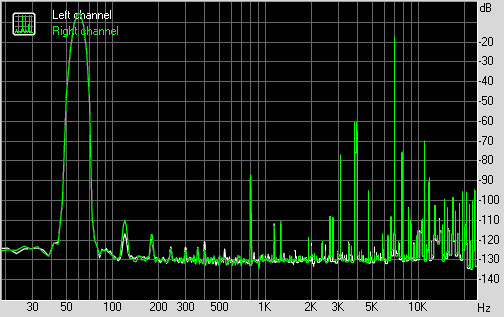

Intermodulation distortion
/imd.png)
Left |
Right |
|
| IMD + Noise, % | +0.2557 |
+0.2557 |
| IMD + Noise (A-weighted), % | +0.3315 |
+0.3315 |

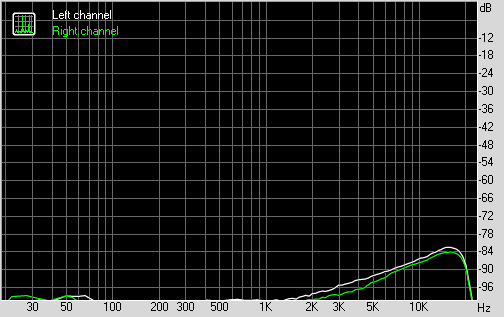

Stereo crosstalk
/cross.png)
Left |
Right |
|
| Crosstalk at 100 Hz, dB | -102 |
-103 |
| Crosstalk at 1000 Hz, dB | -100 |
-101 |
| Crosstalk at 10000 Hz, dB | -85 |
-87 |

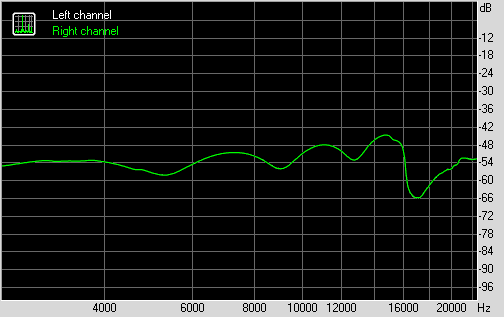

IMD (swept tones)
/imdswept.png)
Left |
Right |
|
| IMD + Noise at 5000 Hz, | 0.1344 |
0.1344 |
| IMD + Noise at 10000 Hz, | 0.2838 |
0.2838 |
| IMD + Noise at 15000 Hz, | 0.5601 |
0.5601 |
