RightMark Audio Analyzer test report
| Testing device | Auzen X-Studio |
| Sampling mode | 24-bit, 192 kHz |
| Interface | |
| Testing chain | External loopback (line-out - line-in) |
| RMAA Version | 6.0.6 |
| 20 Hz - 20 kHz filter | ON |
| Normalize amplitude | ON |
| Level change | -0.1 dB / -0.4 dB |
| Mono mode | OFF |
| Calibration singal, Hz | 1000 |
| Polarity | inverted/inverted |
Summary
| Frequency response (from 40 Hz to 15 kHz), dB | +0.21, -1.75 |
Average |
| Noise level, dB (A) | -85.6 |
Good |
| Dynamic range, dB (A) | 83.4 |
Good |
| THD, % | 0.0088 |
Very good |
| THD + Noise, dB (A) | -75.4 |
Average |
| IMD + Noise, % | 0.020 |
Very good |
| Stereo crosstalk, dB | -58.8 |
Average |
| IMD at 10 kHz, % | 0.027 |
Good |
| General performance | Good |

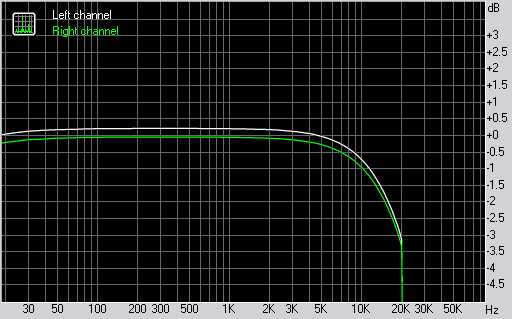

Frequency response
| From 20 Hz to 20 kHz, dB | -3.01, +0.21 |
| From 40 Hz to 15 kHz, dB | -1.75, +0.21 |

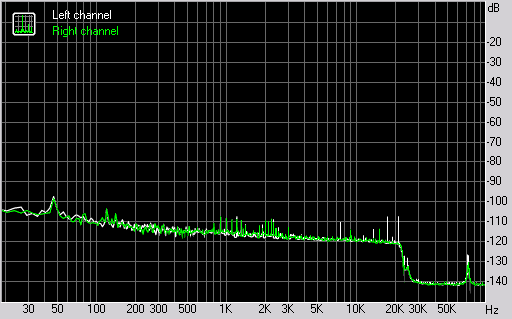

Noise level
Left |
Right |
|
| RMS power, dB | -84.7 |
-84.6 |
| RMS power (A-weighted), dB | -85.8 |
-85.4 |
| Peak level, dB FS | -67.9 |
-67.8 |
| DC offset, % | -0.0 |
+0.0 |
Dynamic range
Left |
Right |
|
| Dynamic range, dB | +82.7 |
+82.6 |
| Dynamic range (A-weighted), dB | +83.6 |
+83.1 |
| DC offset, % | +0.00 |
+0.00 |
THD + Noise (at -3 dB FS)
Left |
Right |
|
| THD, % | +0.0090 |
+0.0085 |
| THD + Noise, % | +0.0169 |
+0.0169 |
| THD + Noise (A-weighted), % | +0.0167 |
+0.0172 |

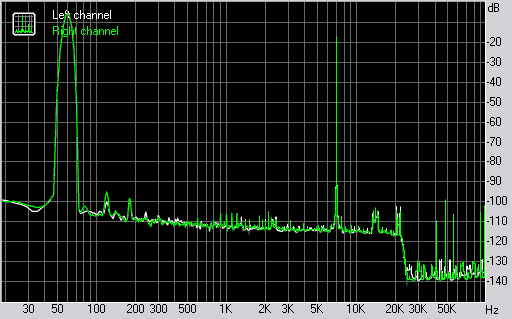

Intermodulation distortion
Left |
Right |
|
| IMD + Noise, % | +0.0195 |
+0.0201 |
| IMD + Noise (A-weighted), % | +0.0174 |
+0.0185 |

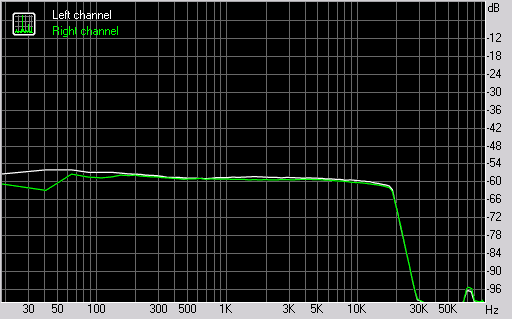

Stereo crosstalk
Left |
Right |
|
| Crosstalk at 100 Hz, dB | -56 |
-58 |
| Crosstalk at 1000 Hz, dB | -58 |
-58 |
| Crosstalk at 10000 Hz, dB | -59 |
-59 |

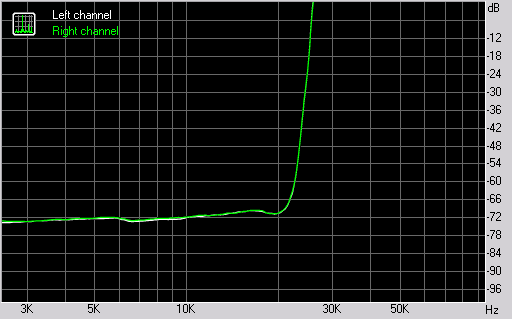

IMD (swept tones)
Left |
Right |
|
| IMD + Noise at 5000 Hz, | 0.0242 |
0.0248 |
| IMD + Noise at 10000 Hz, | 0.0253 |
0.0258 |
| IMD + Noise at 15000 Hz, | 0.0316 |
0.0312 |
