Sony Vaio F11

RightMark Audio Analyzer test


Testing chain: External loopback (line-out - line-in)
Sampling mode: 16-bit, 44 kHz




Summary

Frequency response (from 40 Hz to 15 kHz), dB: +0.09, -1.71Average
Noise level, dB (A): -70.7Average
Dynamic range, dB (A): 69.6Average
THD, %: 0.0071Very good
IMD + Noise, %: 0.085Good
Stereo crosstalk, dB: -70.6Good
IMD at 10 kHz, %: 0.075Good

General performance: Good

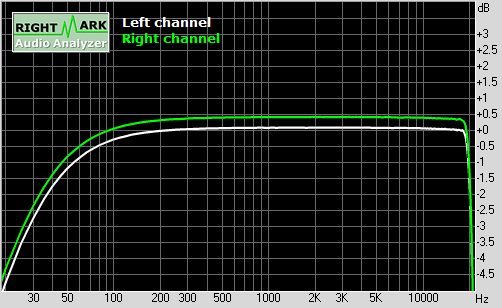

Frequency response

Spectrum graph


Frequency range Response
From 20 Hz to 20 kHz, dB-4.73, +0.09
From 40 Hz to 15 kHz, dB-1.71, +0.09




Noise level

Spectrum graph


Parameter Left Right
RMS power, dB:-69.3-69.0
RMS power (A-weighted), dB:-70.7-70.4
Peak level, dB FS:-54.9-54.5
DC offset, %:-0.00-0.00

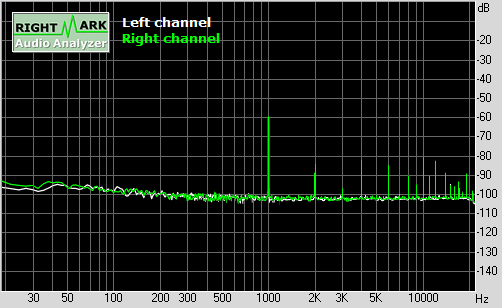

Dynamic range

Spectrum graph


Parameter Left Right
Dynamic range, dB:+68.7+68.4
Dynamic range (A-weighted), dB:+69.9+69.6
DC offset, %:-0.00-0.00




THD + Noise (at -3 dB FS)

Spectrum graph


Parameter Left Right
THD, %:0.00710.0072
THD + Noise, %:0.05940.0587
THD + Noise (A-weighted), %:0.05070.0502




Intermodulation distortion

Spectrum graph


Parameter Left Right
IMD + Noise, %:0.08560.0846
IMD + Noise (A-weighted), %:0.06830.0682

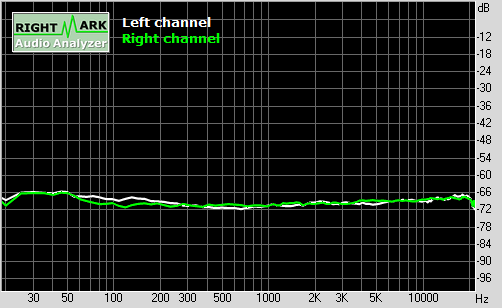

Stereo crosstalk

Spectrum graph


Parameter L <- R L -> R
Crosstalk at 100 Hz, dB:-67-69
Crosstalk at 1 kHz, dB:-69-70
Crosstalk at 10 kHz, dB:-68-67

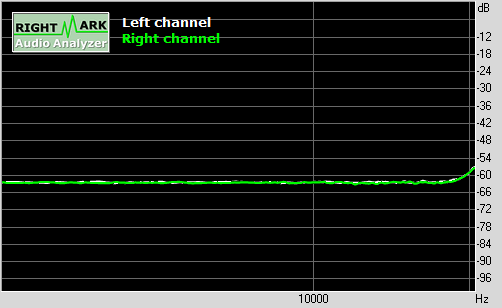

IMD (swept tones)

Spectrum graph


Parameter Left Right
IMD + Noise at 5 kHz, %:0.07670.0740
IMD + Noise at 10 kHz, %:0.07710.0753
IMD + Noise at 15 kHz, %:0.07820.0751

This report was generated by RightMark Audio Analyzer 5.5
