AMD Athlon (64)/Phenom/FX for AM2/AM2+/AM3/AM3+ ist Retro

[Sparksnl]

So I was missing this thread for a while now. Back then I was Intel all the way but I learned to like the generations afterwards.
Please fill your experiences with AM2/AM2+/AM3/AM3+ and info here. I will gladly update this first post with it.

I can kick of with my FX-4100 quick result.

AMD FX @ 7360.94 MHz - CPU-Z VALIDATOR

[z7bel5] Validated Dump by Sparks.nl (2024-10-26 13:59:51) - MB: Asus Crosshair V Formula - RAM: 620 MB

valid.x86.fr



[Firebl]

Endlich! Ich bin auch ein großer AM2-Fan. Egal ob Gigabyte 790FX-DQ6, DFI DK 790FX M2RS oder Tyan Tomcat n3400B, AM2 macht immer Spaß!



[emissary42]

To be honest, that was not was I had in mind when suggesting a separate thread for AM3 and AM3+ in my FMx Sammelthread.

Just sharing my thoughts and personal opinion:
I understand that you want a place to post your results and share your experiences with others. The likes on your post show, that there is interest in it. While most of us don't mind answering in English and foreign users are welcome in general, the main language of our forum is German. So it would probably be preferable, if a large Sammelthread is maintained in German (for the most part) as well. Maybe someone else is willing to create a proper Sammelthread with an informative first post? I would have done it myself, but my experiences with those platforms were very bland, so I really couldn't care less about them.

An alle, die selbst Interesse an einem solchen Thema hätten: Mag jemand das Ganze übernehmen? Bei Fragen zum Umsetzung und Aufbau bin ich gern behilflich.



[Sparksnl]

I can copy and paste a good German text in the first post. I am just not good enough in German myself.
So I invite all to add. I will edit my post.



[Sparksnl]

So I tested an FX-6300 for minimal voltages to boot Win 7 64b today:

4GHz at 1.075v

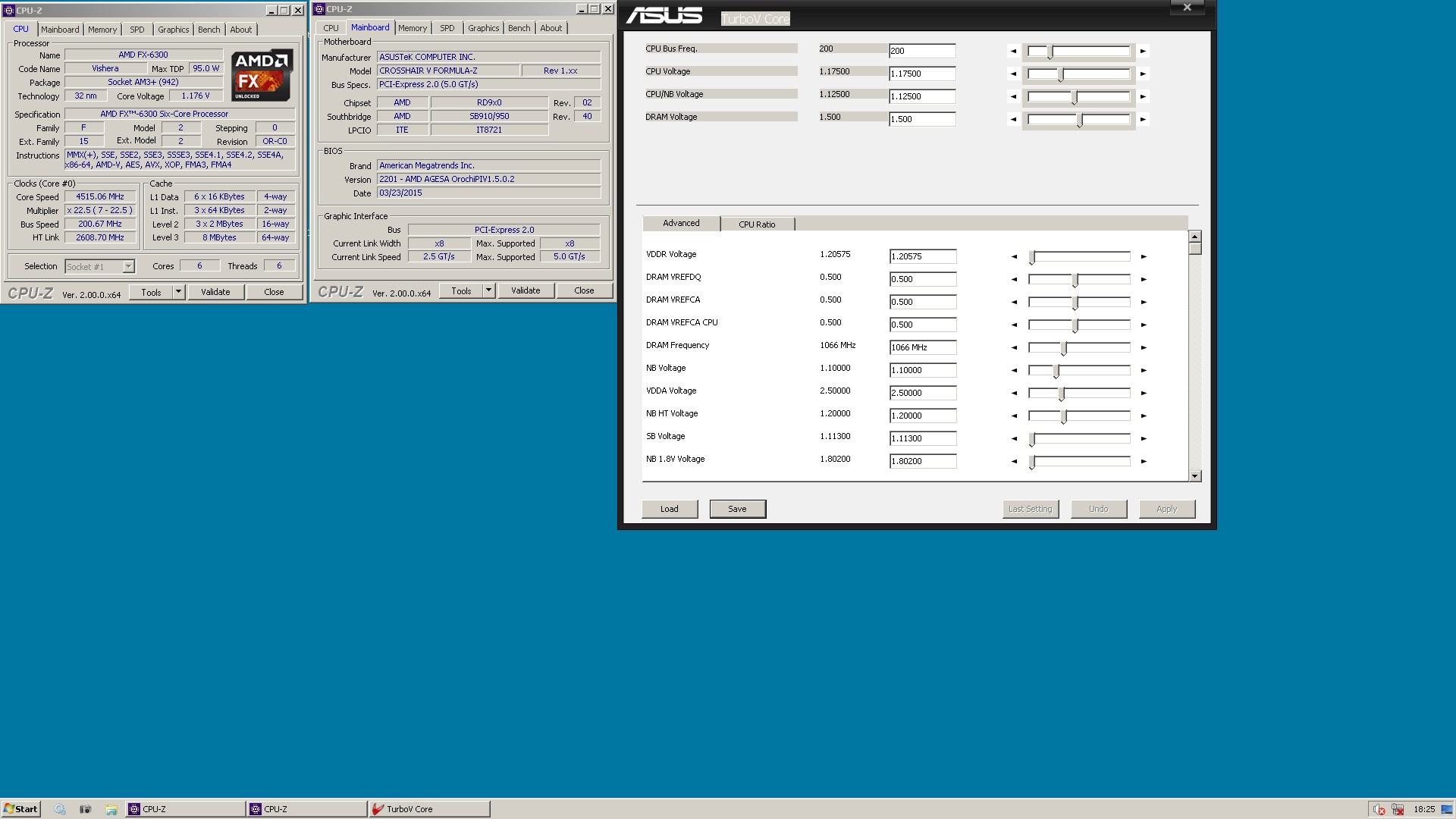

4.5GHz at 1.175v

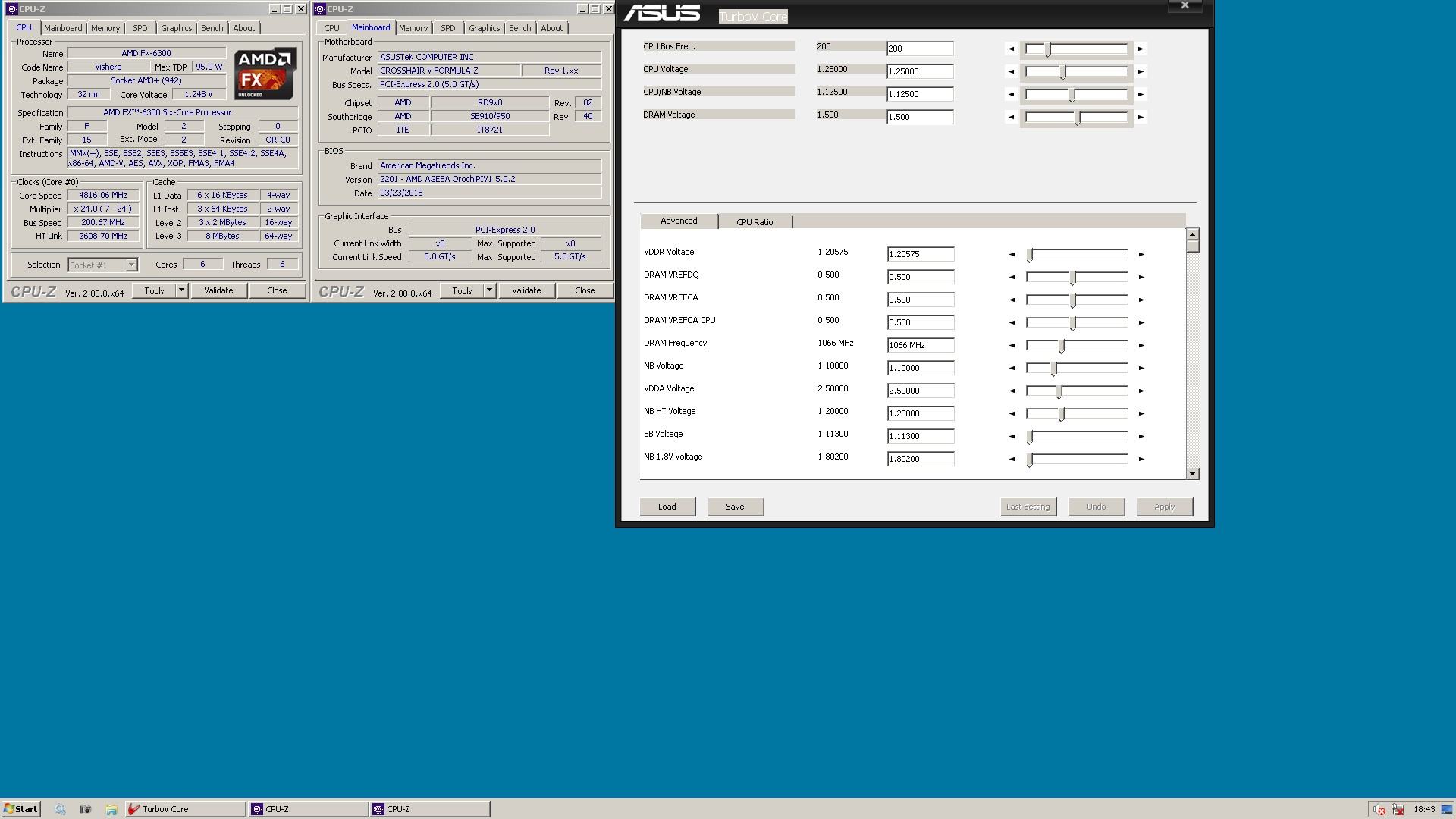

4.8GHz at 1.25v


5.0GHz at 1.2875v

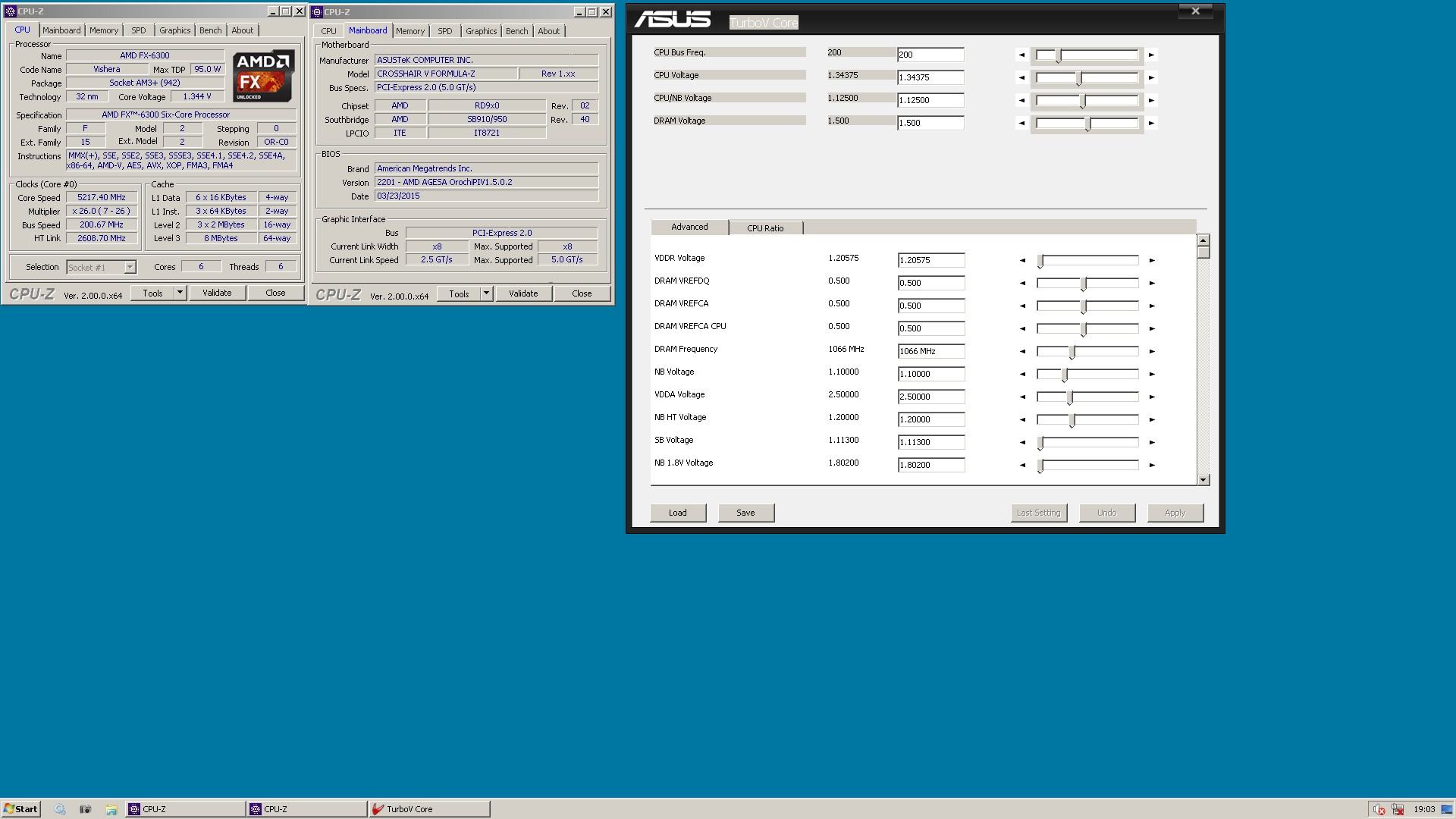

5.2GHz at 1.34375v

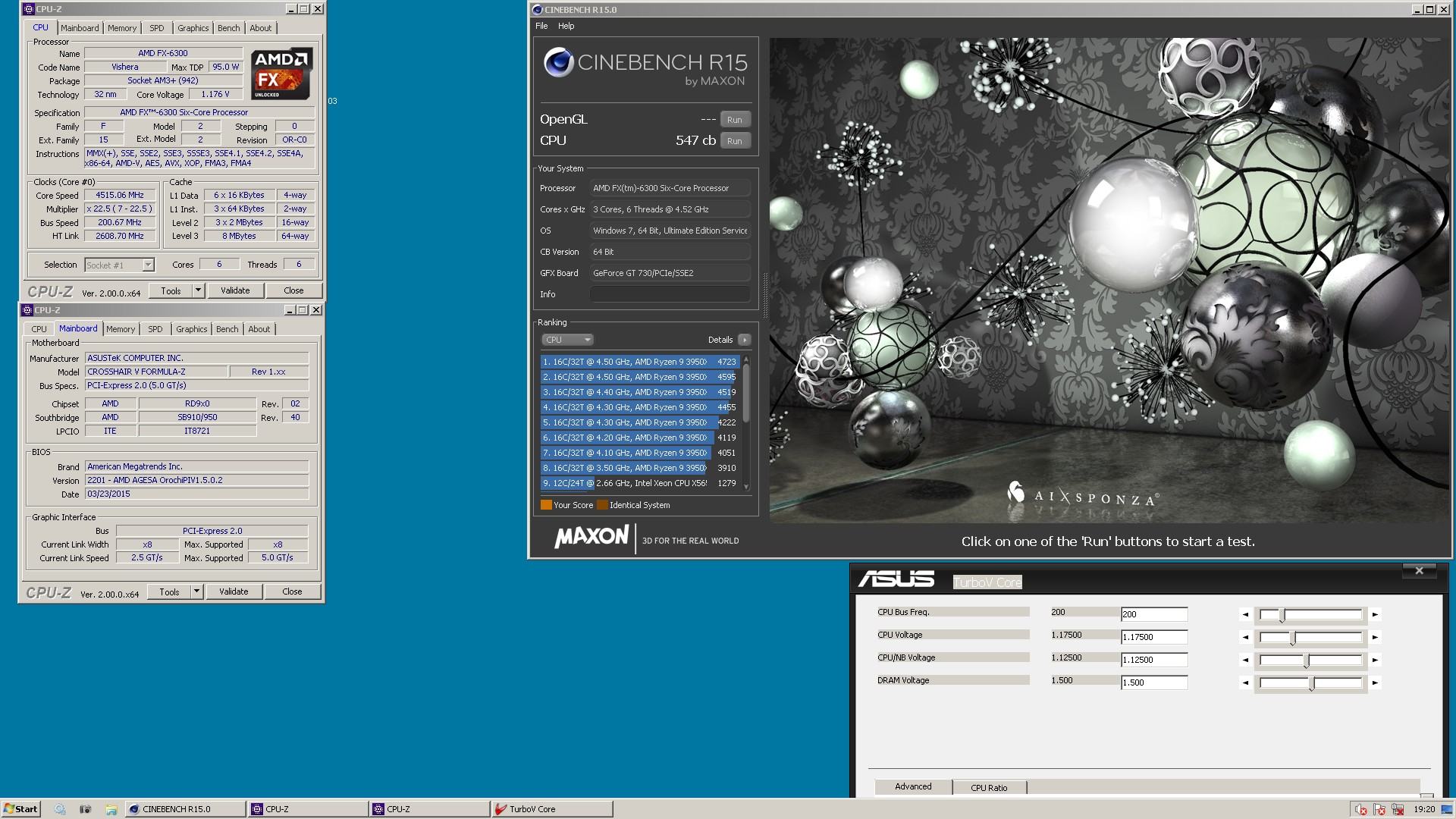

Cinebench at 4.5GHz at 1.175v



[Sparksnl]

So my first 6400+ F3 is a good one as it seems. 3626MHz at 1.4v (boot). That seems good to me. Is that correct @stunned_guy?



[stunned_guy]

Das ist ok Freue mich auf weitere Ergebnisse.



[Sparksnl]

I did a short run but my CHII went defective (after the session)…
It did do this: https://valid.x86.fr/xbvhkh

I can boot at 4150MHz.



[Sparksnl]

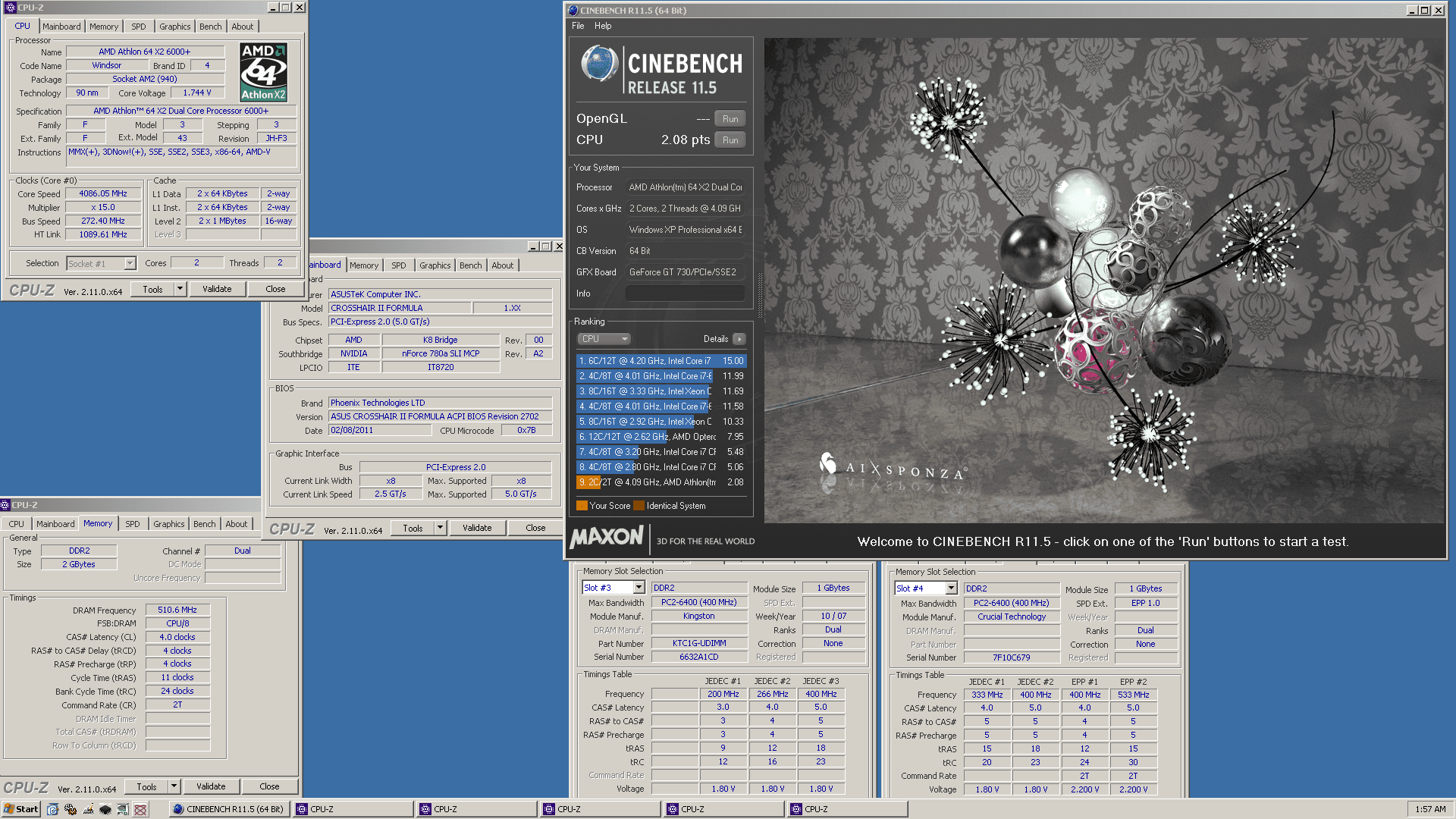

6000+ F3 Windsor "Diva" - Cinebench 11.5 - 2.08

Sparks.nl`s Cinebench - R11.5 score: 2.08 cb with a Athlon 64 X2 6000+ (Windsor)

The Athlon 64 X2 6000+ (Windsor) @ 4086MHzscores getScoreFormatted in the Cinebench - R11.5 benchmark. Sparks.nlranks #null worldwide and #1 in the hardware class. Find out more at HWBOT.

hwbot.org
