Hallo zusammen,
hab hier das Asus Board, das seit dem BIOS-Update auf Version 1003 nicht booten will.

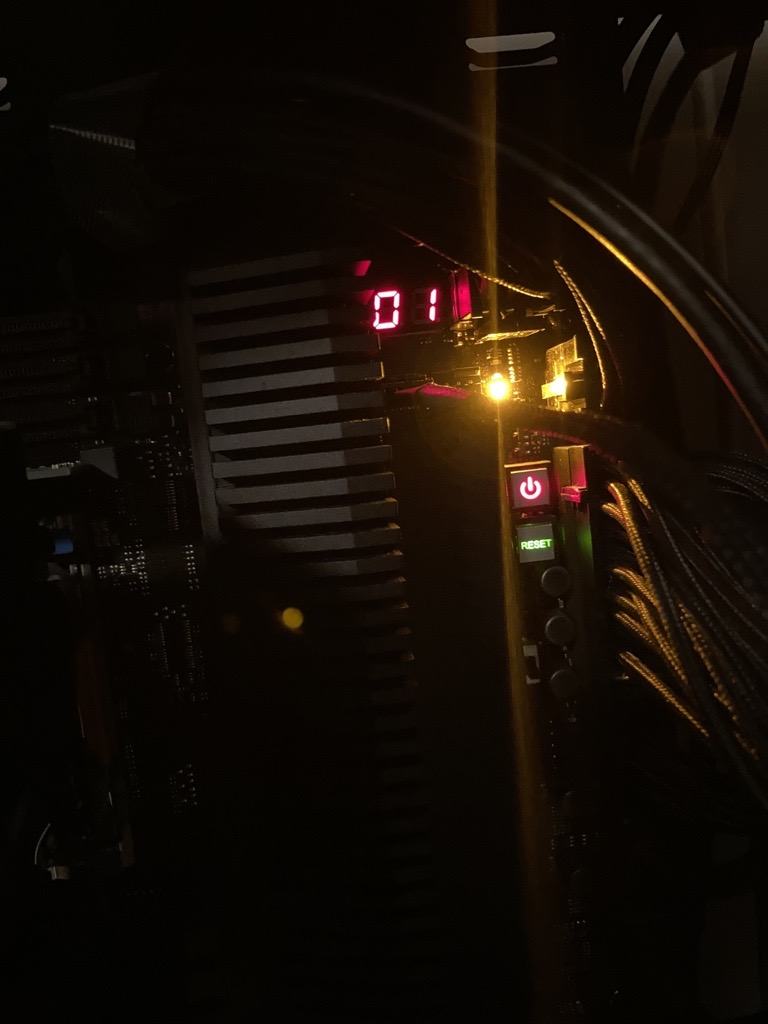

Q-Code Anzeige vom Board zeigt "01" an und die gelbe Q-LED (DRAM) leuchtet. Habe schon die RAM-Riegel rausgenommen, bis auf einen, der im Slot A1 drin steckt.
Die RAM-Riegel sind offiziell von ASUS auf QVL (2x Kingston KSM32ED8/32ME und 2xKSM32ES8/16ME), habe auch jeweils mit einem von der Sorte probiert.
Hardware:
* AMD 3955WX
* BeQuiet Dark Power Pro 12 1500W
* Corsair MP600
Habe schon BIOS-Downgrade auf 705 probiert und CMOS gelöscht, jedoch ohne Erfolg.
PS: Zuvor lief das System mit absolut derselben Hardware wochenlang ohne Probleme.
VGA-Kabel ist am Mainboard dran, Monitor zeigt jedoch keine BIOS/POST-Ausgabe, über IPMI sehe ich folgende "critical"-Fehlermeldungen:
Noch ein Paar Fehlermeldungen aus dem IPMI System Log:
hab hier das Asus Board, das seit dem BIOS-Update auf Version 1003 nicht booten will.
Q-Code Anzeige vom Board zeigt "01" an und die gelbe Q-LED (DRAM) leuchtet. Habe schon die RAM-Riegel rausgenommen, bis auf einen, der im Slot A1 drin steckt.
Die RAM-Riegel sind offiziell von ASUS auf QVL (2x Kingston KSM32ED8/32ME und 2xKSM32ES8/16ME), habe auch jeweils mit einem von der Sorte probiert.
Hardware:
* AMD 3955WX
* BeQuiet Dark Power Pro 12 1500W
* Corsair MP600
Habe schon BIOS-Downgrade auf 705 probiert und CMOS gelöscht, jedoch ohne Erfolg.
PS: Zuvor lief das System mit absolut derselben Hardware wochenlang ohne Probleme.
VGA-Kabel ist am Mainboard dran, Monitor zeigt jedoch keine BIOS/POST-Ausgabe, über IPMI sehe ich folgende "critical"-Fehlermeldungen:
ID: 51 October 28th 2022, 11:18:52 am AMIFC3497A6A644 compmanager: compmanager - - [2568 : 16841 CRITICAL][compmngramibios.c:171]ActiveHostSPIDriver(1) -
ID: 50 October 28th 2022, 11:12:59 am AMIFC3497A6A644 compmanager: compmanager - - [2568 : 2588 CRITICAL][compmngramibios.c:171]ActiveHostSPIDriver(0) -
ID: 49 October 28th 2022, 11:12:52 am AMIFC3497A6A644 compmanager: compmanager - - [2568 : 2588 CRITICAL][compmngramibios.c:171]ActiveHostSPIDriver(1) -
ID: 48 October 28th 2022, 11:12:52 am AMIFC3497A6A644 compmanager: compmanager - - [2568 : 2588 CRITICAL][hosthelper.c:225]Unable to find HOST SPI / PNOR MTD partition... -
ID: 47 October 28th 2022, 11:12:52 am AMIFC3497A6A644 compmanager: compmanager - - [2568 : 2588 CRITICAL][hosthelper.c:168]Opening /dev/host_spi_flash0 device failed -
ID: 46 October 28th 2022, 11:12:52 am AMIFC3497A6A644 compmanager: compmanager - - [2568 : 2588 CRITICAL][hosthelper.c:168]Opening /dev/host_spi_flash0 device failed -
ID: 45 October 28th 2022, 11:12:52 am AMIFC3497A6A644 compmanager: compmanager - - [2568 : 2588 CRITICAL][compmngramibios.c:171]ActiveHostSPIDriver(0) -
ID: 44 October 28th 2022, 11:12:34 am AMIFC3497A6A644 spx_restservice: spx_restservice - - [2981 : 2981 CRITICAL][maintenance_preserve_configuration.c:17]Invalid selector:17, retval:180 -
ID: 43 October 28th 2022, 11:12:34 am AMIFC3497A6A644 spx_restservice: spx_restservice - - [2981 : 2981 CRITICAL][maintenance_preserve_configuration.c:17]Invalid selector:15, retval:180 -
ID: 42 October 28th 2022, 11:12:34 am AMIFC3497A6A644 spx_restservice: spx_restservice - - [2981 : 2981 CRITICAL][maintenance_preserve_configuration.c:17]Invalid selector:13, retval:180 -
ID: 41 October 28th 2022, 11:12:34 am AMIFC3497A6A644 spx_restservice: spx_restservice - - [2981 : 2981 CRITICAL][maintenance_preserve_configuration.c:17]Invalid selector:11, retval:180 -
ID: 40 October 28th 2022, 11:11:08 am AMIFC3497A6A644 spx_restservice: spx_restservice - - [2981 : 2981 CRITICAL][maintenance_restore_configuration.c:19]Invalid selector:17, retval:180 -
ID: 39 October 28th 2022, 11:11:08 am AMIFC3497A6A644 spx_restservice: spx_restservice - - [2981 : 2981 CRITICAL][maintenance_restore_configuration.c:19]Invalid selector:15, retval:180 -
ID: 38 October 28th 2022, 11:11:08 am AMIFC3497A6A644 spx_restservice: spx_restservice - - [2981 : 2981 CRITICAL][maintenance_restore_configuration.c:19]Invalid selector:13, retval:180 -
ID: 37 October 28th 2022, 11:11:07 am AMIFC3497A6A644 spx_restservice: spx_restservice - - [2981 : 2981 CRITICAL][maintenance_restore_configuration.c:19]Invalid selector:11, retval:180 -
Beitrag automatisch zusammengeführt:
Noch ein Paar Fehlermeldungen aus dem IPMI System Log:
ID: 7 October 28th 2022, 10:43:53 am AMIFC3497A6A644 kernel: kernel - - [ 0.858070] ftgmac100 1e660000.ethernet: Error applying setting, reverse things back -
ID: 6 October 28th 2022, 10:43:53 am AMIFC3497A6A644 kernel: kernel - - [ 0.839863] aspeed-smc 1e631000.spi: Aspeed SMC probe failed -19 -
ID: 5 October 28th 2022, 10:43:53 am AMIFC3497A6A644 kernel: kernel - - [ 0.821523] aspeed-smc 1e630000.spi: Aspeed SMC probe failed -2 -
ID: 4 October 28th 2022, 10:43:53 am AMIFC3497A6A644 kernel: kernel - - [ 0.813831] aspeed-smc 1e630000.spi: unrecognized JEDEC id bytes: 0a 00 01 00 0a 0a -
ID: 3 October 28th 2022, 10:43:53 am AMIFC3497A6A644 kernel: kernel - - [ 0.629299] of_serial 1e78f000.serial: Error applying setting, reverse things back -
ID: 2 October 28th 2022, 10:43:53 am AMIFC3497A6A644 kernel: kernel - - [ 0.610726] of_serial 1e78e000.serial: Error applying setting, reverse things back -
ID: 1 October 28th 2022, 10:43:53 am AMIFC3497A6A644 kernel: kernel - - [ 0.184476] of_serial 1e783000.serial: Error applying setting, reverse things back -
ID: 91 October 28th 2022, 11:20:41 am AMIFC3497A6A644 IPMIMain: IPMIMain - - [362 : 402 WARNING][IfcSupport.c:681]Error in loading IPMI library /usr/local/lib/libipmiapml.so: cannot open shared object file: No such file or directory -
ID: 90 October 28th 2022, 11:12:59 am AMIFC3497A6A644 kernel: kernel - - [ 1876.944364] Configuring the Host SPI Clock to HCLK/16 -
ID: 89 October 28th 2022, 11:12:52 am AMIFC3497A6A644 kernel: kernel - - [ 1869.794382] host_spi_flash: not supported id 000000 -
ID: 88 October 28th 2022, 11:12:05 am AMIFC3497A6A644 IPMIMain: IPMIMain - - [362 : 402 WARNING][IfcSupport.c:681]Error in loading IPMI library /usr/local/lib/libipmiapml.so: cannot open shared object file: No such file or directory -
ID: 87 October 28th 2022, 11:08:19 am AMIFC3497A6A644 IPMIMain: IPMIMain - - [362 : 402 WARNING][IfcSupport.c:681]Error in loading IPMI library /usr/local/lib/libipmiapml.so: cannot open shared object file: No such file or directory -
ID: 86 October 28th 2022, 11:08:08 am AMIFC3497A6A644 IPMIMain: IPMIMain - - [362 : 402 WARNING][IfcSupport.c:681]Error in loading IPMI library /usr/local/lib/libipmiapml.so: cannot open shared object file: No such file or directory -
ID: 85 October 28th 2022, 11:02:43 am AMIFC3497A6A644 IPMIMain: IPMIMain - - [362 : 402 WARNING][IfcSupport.c:681]Error in loading IPMI library /usr/local/lib/libipmiapml.so: cannot open shared object file: No such file or directory -
(...)
ID: 55 October 28th 2022, 10:44:16 am AMIFC3497A6A644 kernel: kernel - - [ 153.617862] ami_videocap : Using Irq 38 from DT -
ID: 54 October 28th 2022, 10:44:16 am AMIFC3497A6A644 kernel: kernel - - [ 153.610052] AST Video Capture Driver, (c) 2009-2015 American Megatrends Inc. -
ID: 53 October 28th 2022, 10:44:13 am AMIFC3497A6A644 kernel: kernel - - [ 149.884446] UsbConfigureLS(): USB Device 3 is running in Low Speed -
ID: 52 October 28th 2022, 10:44:12 am AMIFC3497A6A644 kernel: kernel - - [ 149.870180] Loading HID Device Module... -
ID: 51 October 28th 2022, 10:43:53 am AMIFC3497A6A644 kernel: kernel - - [ 110.090833] NCSI(eth0): Config = 0x7000000 -
ID: 50 October 28th 2022, 10:43:53 am AMIFC3497A6A644 kernel: kernel - - [ 106.970463] NCSI(eth0): Config = 0x7000000 -
ID: 49 October 28th 2022, 10:43:53 am AMIFC3497A6A644 kernel: kernel - - [ 105.318294] NCSI(eth0): 100Base-TX Full Duplex -
ID: 48 October 28th 2022, 10:43:53 am AMIFC3497A6A644 kernel: kernel - - [ 105.314765] NCSI(eth0): Link is Up -
ID: 47 October 28th 2022, 10:43:53 am AMIFC3497A6A644 kernel: kernel - - [ 101.610517] NCSI(eth0): Config = 0x7000000 -
ID: 46 October 28th 2022, 10:43:53 am AMIFC3497A6A644 kernel: kernel - - [ 88.213652] NCSI(eth0):0.1 Clear Init State Failed -
ID: 45 October 28th 2022, 10:43:53 am AMIFC3497A6A644 kernel: kernel - - [ 87.733569] NCSI(eth0):0.0 Clear Init State Failed -
ID: 44 October 28th 2022, 10:43:53 am AMIFC3497A6A644 kernel: kernel - - [ 84.507719] FAT-fs (mmcblk0p1): Volume was not properly unmounted. Some data may be corrupt. Please run fsck. -
ID: 43 October 28th 2022, 10:43:53 am AMIFC3497A6A644 kernel: kernel - - [ 81.850237] NCSI(eth0): Config = 0x7000000 -
ID: 42 October 28th 2022, 10:43:53 am AMIFC3497A6A644 kernel: kernel - - [ 78.680068] NCSI(eth0): 100Base-TX Full Duplex -
ID: 41 October 28th 2022, 10:43:53 am AMIFC3497A6A644 kernel: kernel - - [ 78.676552] NCSI(eth0): Link is Up -
ID: 40 October 28th 2022, 10:43:53 am AMIFC3497A6A644 kernel: kernel - - [ 71.580519] Manufacturer ID :: (0x57010000) -
ID: 39 October 28th 2022, 10:43:53 am AMIFC3497A6A644 kernel: kernel - - [ 71.574923] Manufacturer ID :: (0x57010000) -
ID: 38 October 28th 2022, 10:43:53 am AMIFC3497A6A644 kernel: kernel - - [ 68.043763] NCSI(eth0): Detect NCSI Packages and Channels -
ID: 37 October 28th 2022, 10:43:53 am AMIFC3497A6A644 kernel: kernel - - [ 68.017841] Copyright (c) 2009-2015 American Megatrends Inc. -
ID: 36 October 28th 2022, 10:43:53 am AMIFC3497A6A644 kernel: kernel - - [ 68.013319] NCSI Interface Driver Version 1.1 -
ID: 35 October 28th 2022, 10:43:53 am AMIFC3497A6A644 kernel: kernel - - [ 22.408663] dev 1 does not connect to host -
ID: 34 October 28th 2022, 10:43:53 am AMIFC3497A6A644 kernel: kernel - - [ 21.368691] dev 0 does not connect to host -
ID: 33 October 28th 2022, 10:43:53 am AMIFC3497A6A644 kernel: kernel - - [ 20.315057] Loading Ethernet Device Module... -
ID: 32 October 28th 2022, 10:43:53 am AMIFC3497A6A644 kernel: kernel - - [ 19.302588] Loading Hdisk Device Module... -
ID: 31 October 28th 2022, 10:43:53 am AMIFC3497A6A644 kernel: kernel - - [ 17.992944] Loading CDROM Device Module... -
ID: 30 October 28th 2022, 10:43:53 am AMIFC3497A6A644 kernel: kernel - - [ 17.957208] ami_usbhub : Using Irq 37 from DT -
ID: 29 October 28th 2022, 10:43:53 am AMIFC3497A6A644 kernel: kernel - - [ 17.928262] Loading iUSB Module... -
ID: 28 October 28th 2022, 10:43:53 am AMIFC3497A6A644 kernel: kernel - - [ 17.903632] USB Driver is Successfully Initialized -
ID: 27 October 28th 2022, 10:43:53 am AMIFC3497A6A644 kernel: kernel - - [ 17.886942] Copyright 2006 American Megatrends Inc. -
ID: 26 October 28th 2022, 10:43:53 am AMIFC3497A6A644 kernel: kernel - - [ 17.882977] USB Device Endpoint Driver -
ID: 25 October 28th 2022, 10:43:53 am AMIFC3497A6A644 kernel: kernel - - [ 17.879378] Initializing USB Devices -
ID: 24 October 28th 2022, 10:43:53 am AMIFC3497A6A644 kernel: kernel - - [ 17.810116] Copyright (c) 2010 American Megatrends Inc. -
ID: 23 October 28th 2022, 10:43:53 am AMIFC3497A6A644 kernel: kernel - - [ 17.805650] AST UARTROUTE Driver Version 103.0 -
ID: 22 October 28th 2022, 10:43:53 am AMIFC3497A6A644 kernel: kernel - - [ 17.780899] Copyright (c) 2009-2015 American Megatrends Inc. -
ID: 21 October 28th 2022, 10:43:53 am AMIFC3497A6A644 kernel: kernel - - [ 17.776001] Network Interface Monitor Version 6.4.0 -
ID: 20 October 28th 2022, 10:43:53 am AMIFC3497A6A644 kernel: kernel - - [ 17.756231] ami_peci : Using Irq 36 from DT -
ID: 19 October 28th 2022, 10:43:53 am AMIFC3497A6A644 kernel: kernel - - [ 17.693541] ADC HW module loaded -
ID: 18 October 28th 2022, 10:43:53 am AMIFC3497A6A644 kernel: kernel - - [ 15.541234] Copyright (c) 2009-2015 American Megatrends Inc. -
ID: 17 October 28th 2022, 10:43:53 am AMIFC3497A6A644 kernel: kernel - - [ 15.537809] ADC Driver Version 1.0 -
ID: 16 October 28th 2022, 10:43:53 am AMIFC3497A6A644 kernel: kernel - - [ 15.526319] ami_snoop : Using Irq 30 from DT -
ID: 15 October 28th 2022, 10:43:53 am AMIFC3497A6A644 kernel: kernel - - [ 15.403822] ami_i2c : Using Irq 35 from DT -
ID: 14 October 28th 2022, 10:43:53 am AMIFC3497A6A644 kernel: kernel - - [ 15.355819] ami_kcs : Using Irq 30 from DT -
ID: 13 October 28th 2022, 10:43:53 am AMIFC3497A6A644 kernel: kernel - - [ 14.489987] ami_lpc : Using Irq 30 from DT -
ID: 12 October 28th 2022, 10:43:53 am AMIFC3497A6A644 kernel: kernel - - [ 13.361549] APSEED AST SoC GPIO HW Driver, (c) 2009-2015 American Megatrends Inc. -
ID: 11 October 28th 2022, 10:43:53 am AMIFC3497A6A644 kernel: kernel - - [ 13.350508] The GPIO Driver is loaded successfully. -
ID: 10 October 28th 2022, 10:43:53 am AMIFC3497A6A644 kernel: kernel - - [ 8.880568] platform: loading out-of-tree module taints kernel. -
ID: 9 October 28th 2022, 10:43:53 am AMIFC3497A6A644 kernel: kernel - - [ 1.025600] sdhci_slot0 : Using Irq 34 from DT -
ID: 8 October 28th 2022, 10:43:53 am AMIFC3497A6A644 kernel: kernel - - [ 0.832237] aspeed-smc: probe of 1e630000.spi failed with error -2 -
ID: 7 October 28th 2022, 10:43:53 am AMIFC3497A6A644 kernel: kernel - - [ 0.801618] mtd: partition "www" doesn't end on an erase/write block -- force read-only -
ID: 6 October 28th 2022, 10:43:53 am AMIFC3497A6A644 kernel: kernel - - [ 0.766306] MTD Partition 2 : www @ 0x1b60000 of Size 0x46a000 -
ID: 5 October 28th 2022, 10:43:53 am AMIFC3497A6A644 kernel: kernel - - [ 0.764180] vers if -
ID: 4 October 28th 2022, 10:43:53 am AMIFC3497A6A644 kernel: kernel - - [ 0.758132] MTD Partition 1 : root @ 0x160000 of Size 0x1750000 -
ID: 3 October 28th 2022, 10:43:53 am AMIFC3497A6A644 kernel: kernel - - [ 0.755999] vers if -
ID: 2 October 28th 2022, 10:43:53 am AMIFC3497A6A644 kernel: kernel - - [ 0.750173] MTD Partition 0 : conf @ 0x80000 of Size 0xc0000 -
ID: 1 October 28th 2022, 10:43:53 am AMIFC3497A6A644 kernel: kernel - - [ 0.748034] vers if -
