CORSAIR 900 D - Watercooled mmt case

[arg-ist]

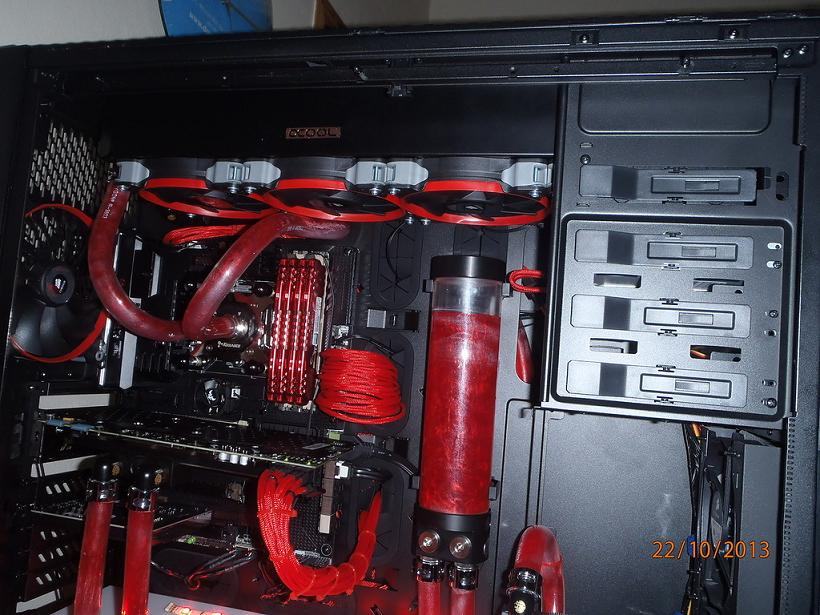

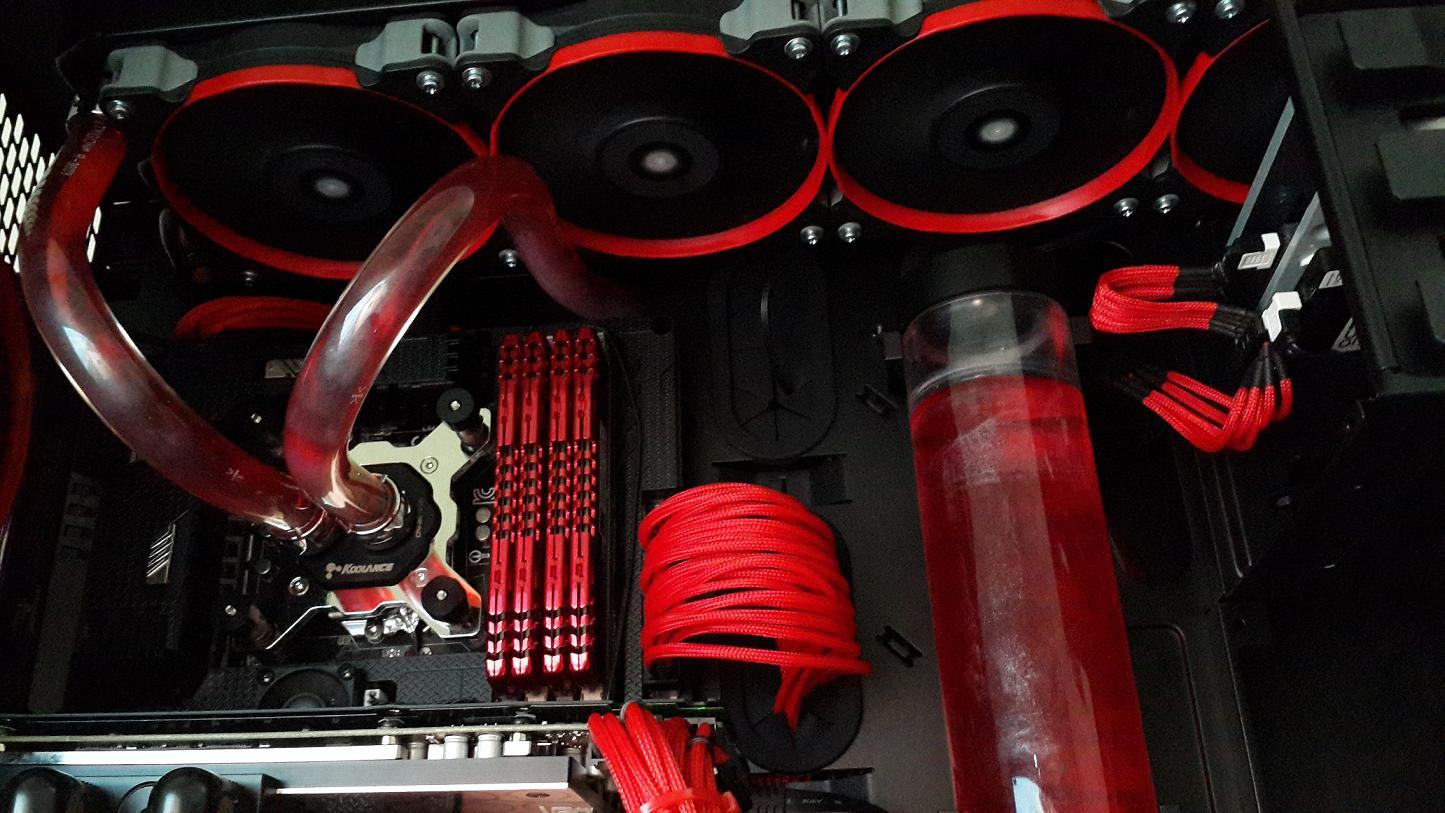

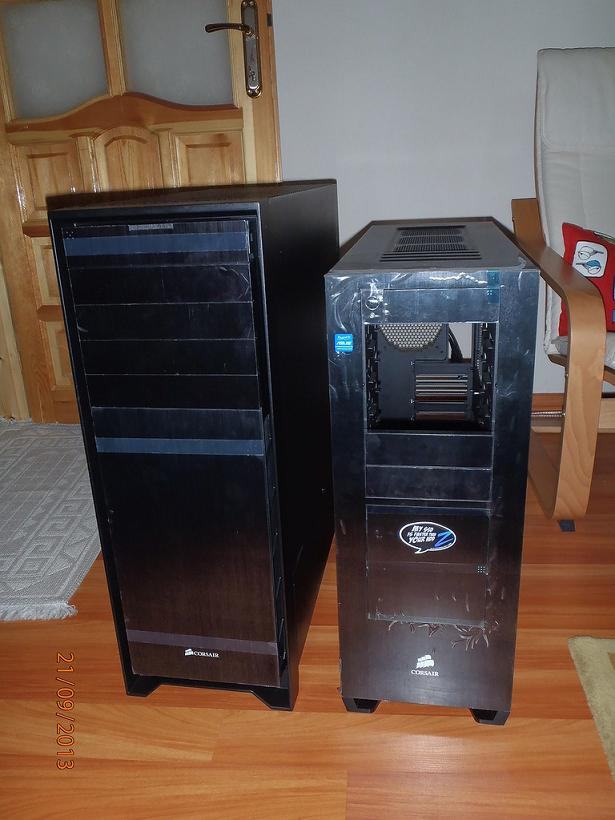

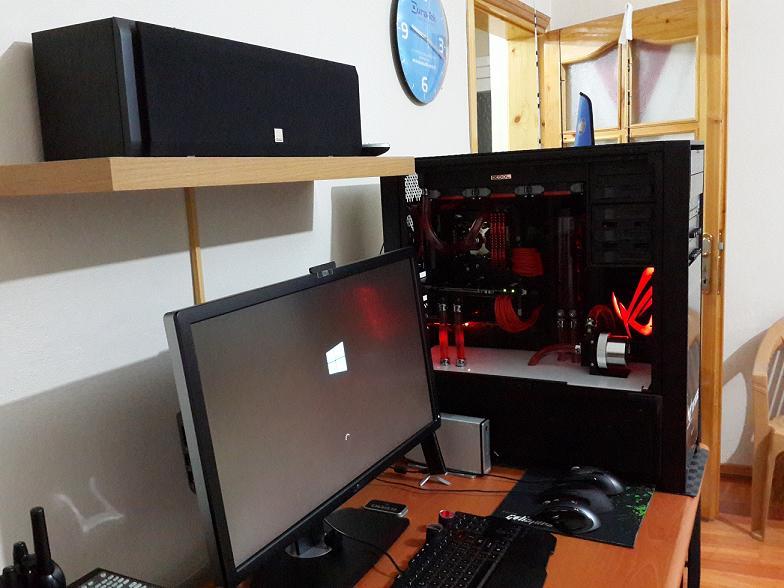

A new 900D case
but these time with;

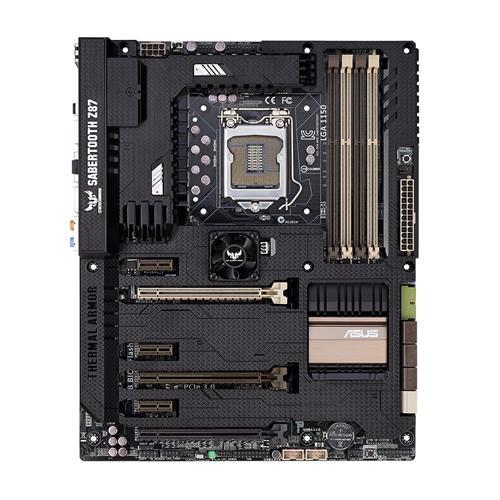

MB : ASUS Z87 Sabertooth
CPU: 4670 K
RAM: G SKİLL 16gb 2133mhz
VIDEO .: ASUS GTX780 DIRECTCU II GDDR5 3GB

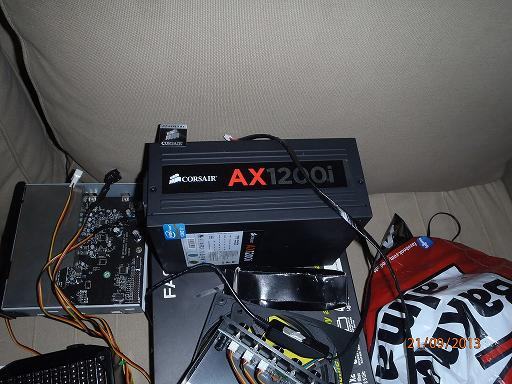

POWER: CORSAIR AX1200i

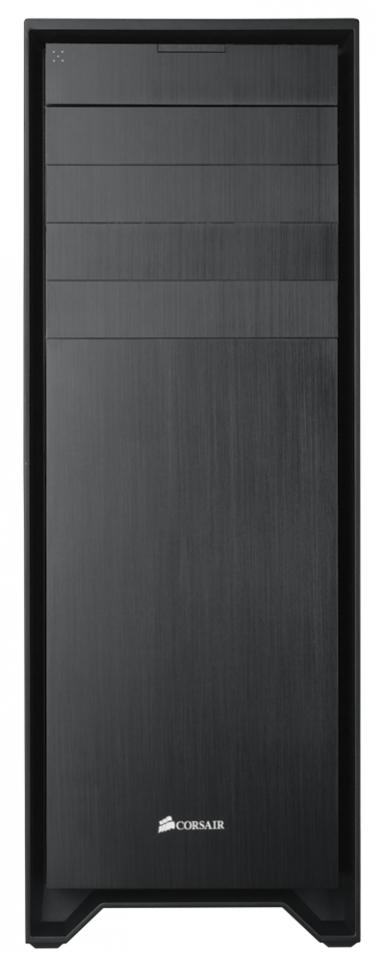

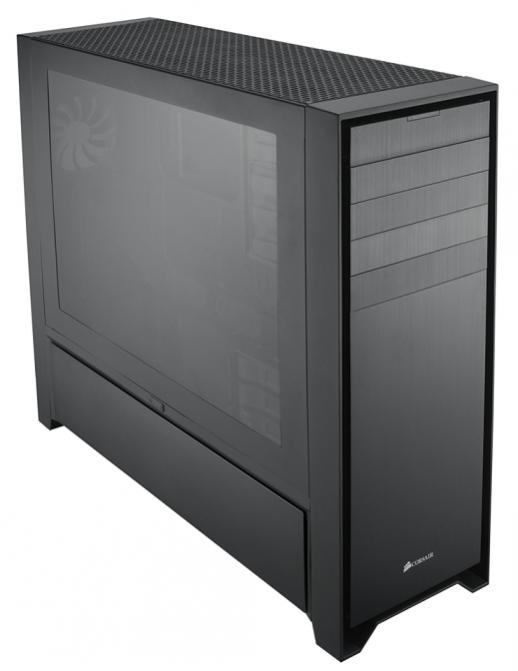

CASE: CORSAIR 900 D

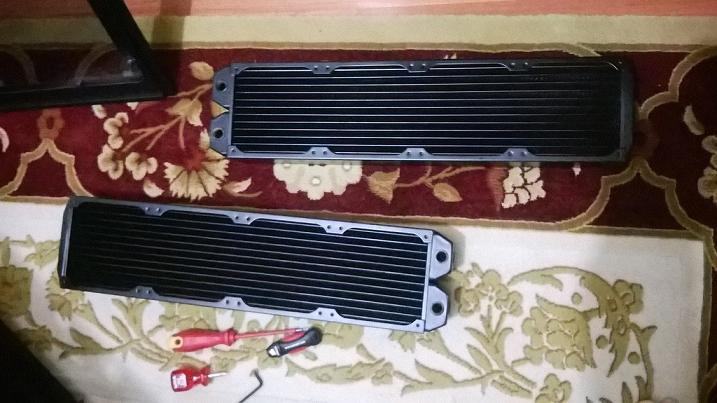

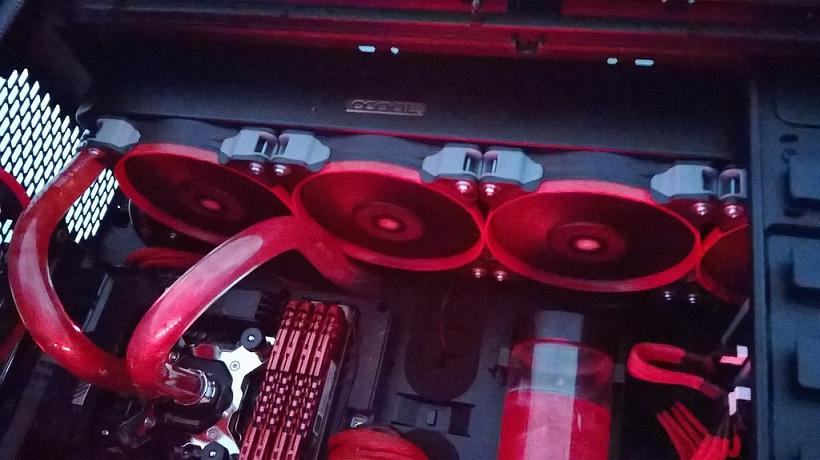

RAD: 2 X Alphacool UT 60 480

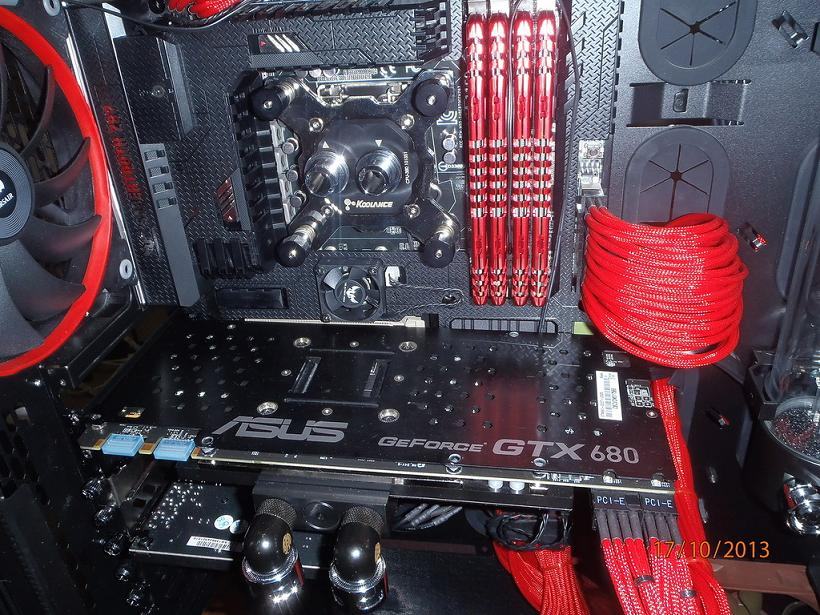

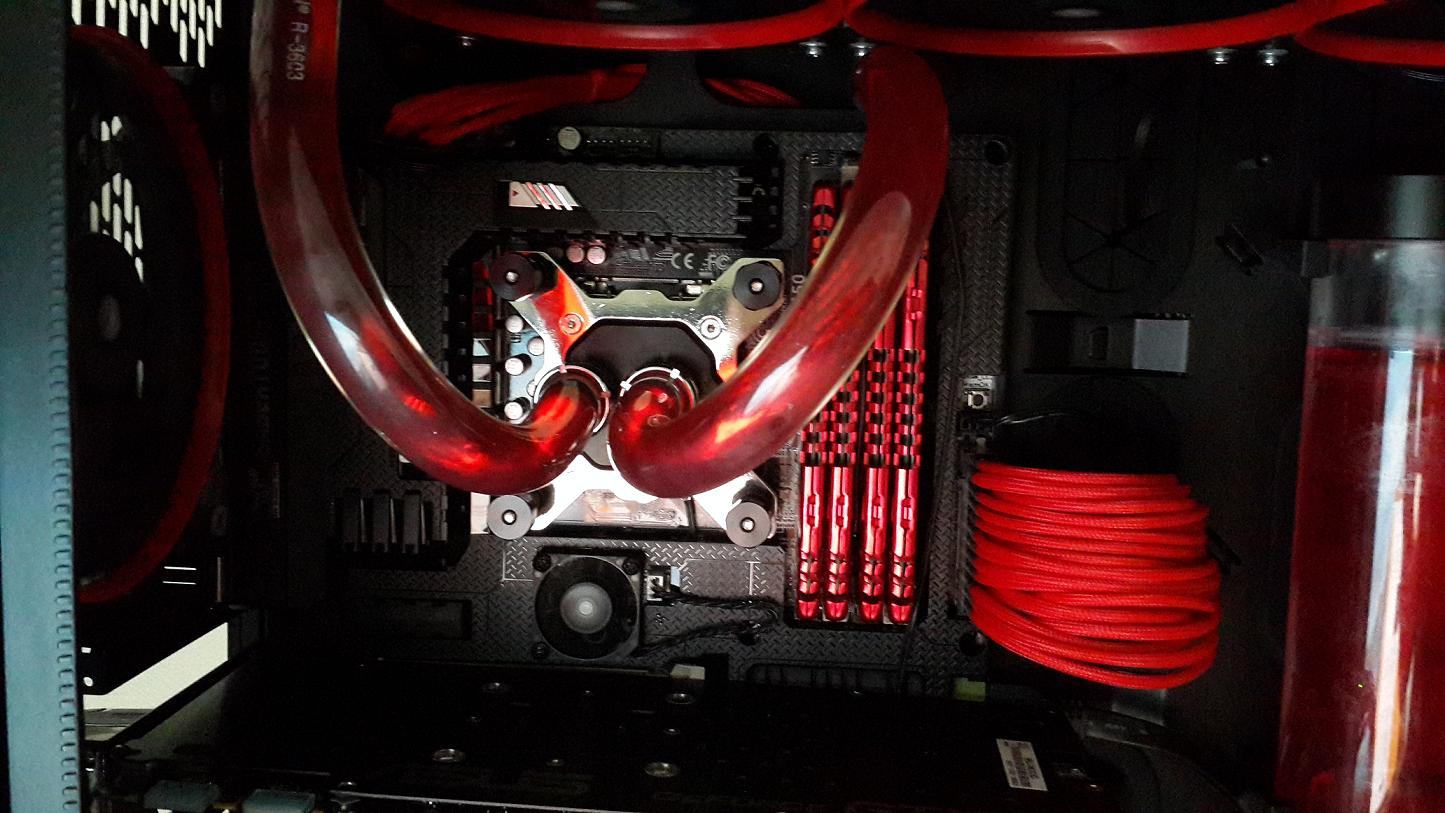

WB. CPU : Koolance 380i

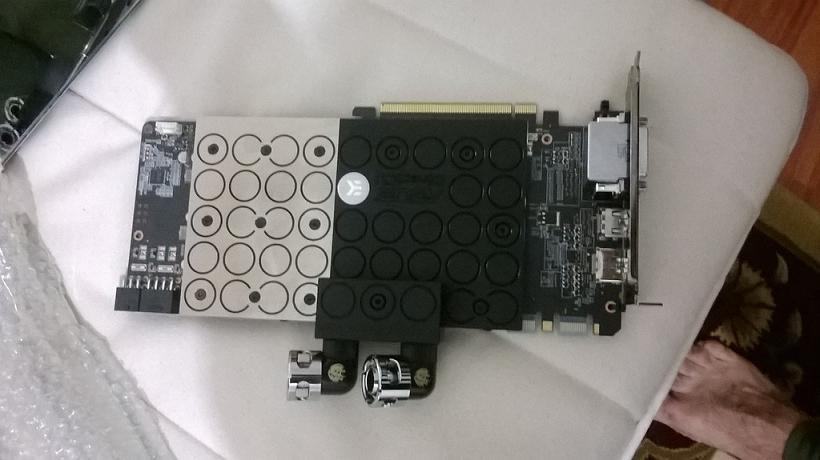

WB. GPU: EK

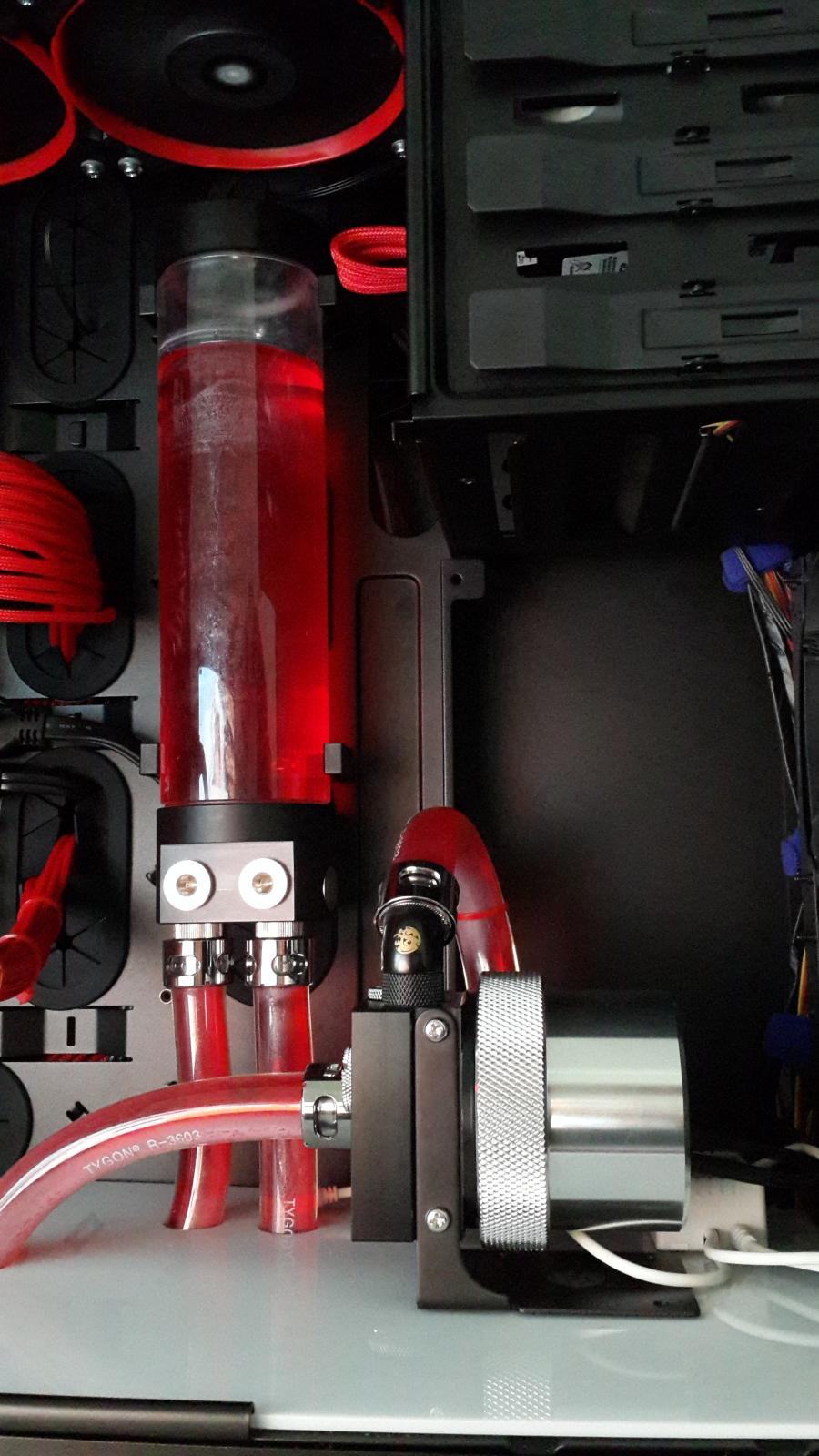

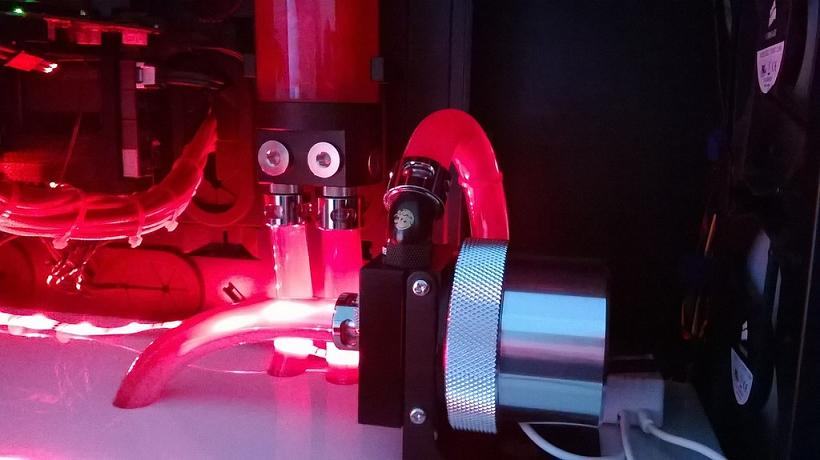

PUMP: Swiftech MCP 655 With Speed Control

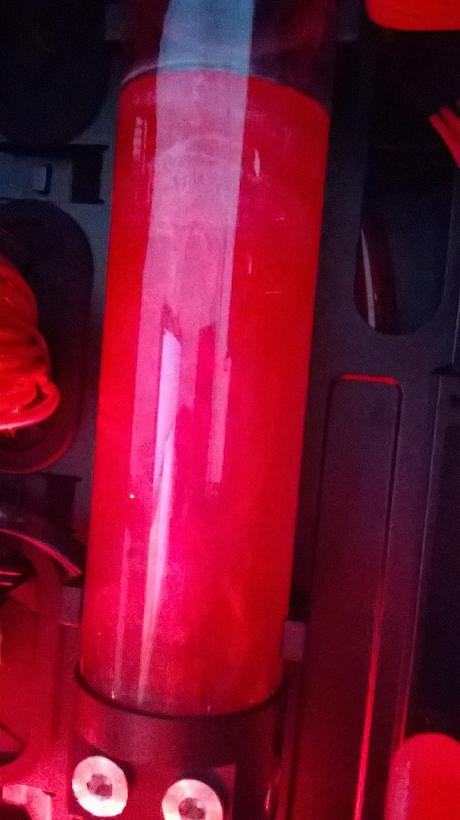

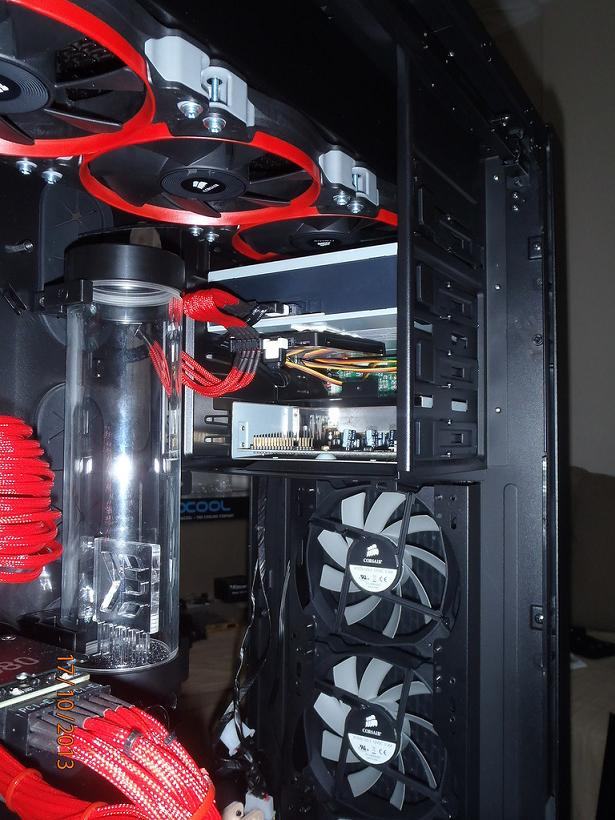

RES. : EK-RES X3 250 Reservoir
TUBİNG: Tygon E-3603 1/2" ID (3/4" OD) Clear Tubing
FITTINGS: Monsoon Compression Fittings, 1/2" x 3/4" Single - Chrome
FLUID: Mayhems Aurora Tharsis Red,


CORSAIR 900 D WATERCOOLED by ModCenter - YouTube








OTHER WORKLOGS

Worklog http://www.hardwareluxx.de/community/f143/playdoh-silverstone-tj-07-acrylic-pipe-1012476.html

Worklog http://www.hardwareluxx.de/communit...-watercooled-copper-acrylic-pipe-1028332.html

Worklog http://www.hardwareluxx.de/communit...w-edition-acrylic-tubing-upgrade-1027807.html

Worklog http://www.hardwareluxx.de/community/f143/12-angry-men-900-d-case-p1-1002736.html

Worklog http://www.hardwareluxx.de/community/f143/corsair-900-d-watercooled-mmt-case-997564.html

Worklog http://www.hardwareluxx.de/community/f143/jumbo-case-997157.html

Worklog http://www.hardwareluxx.de/community/f143/transformer-case-996669.html

Worklog http://www.hardwareluxx.de/community/f143/how-make-bench-case-old-atx-1-a-1032451.html

Worklog http://www.hardwareluxx.de/community/f143/4-way-hdd-switcher-1033308.html

Worklog http://www.hardwareluxx.de/community/f143/self-made-cosmos-ii-clear-panel-1034027.html#post22531803



[arg-ist]

These is my 3.th 900D that I have build

although CORSAIR 900D is a big case, but there are mistakes

there is no middle plate at the case.

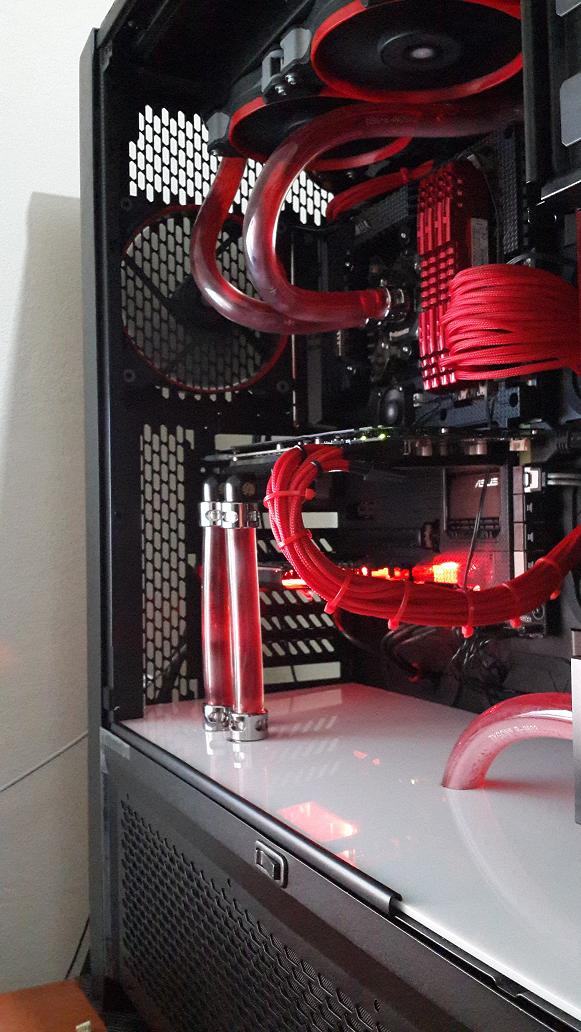

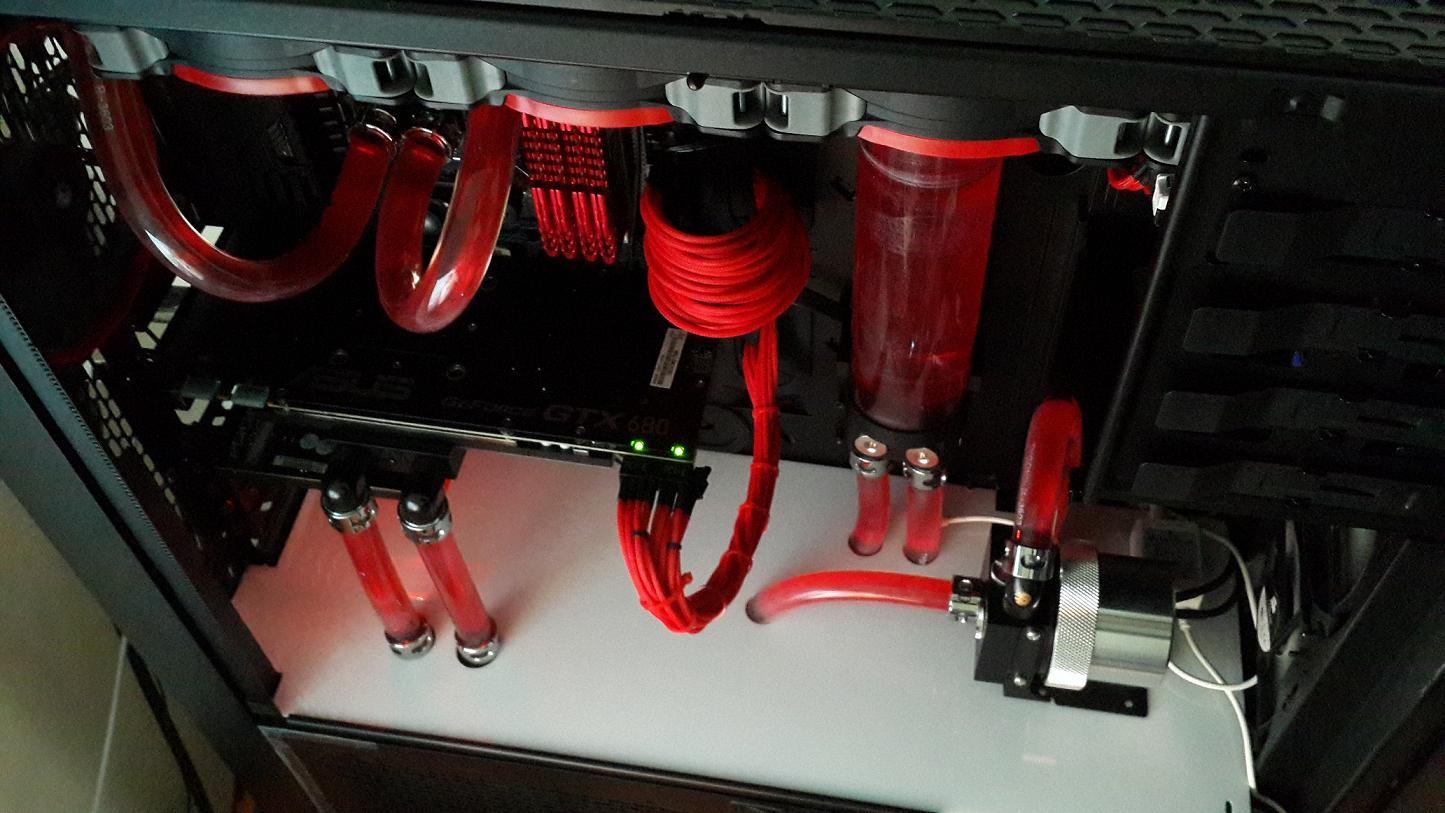

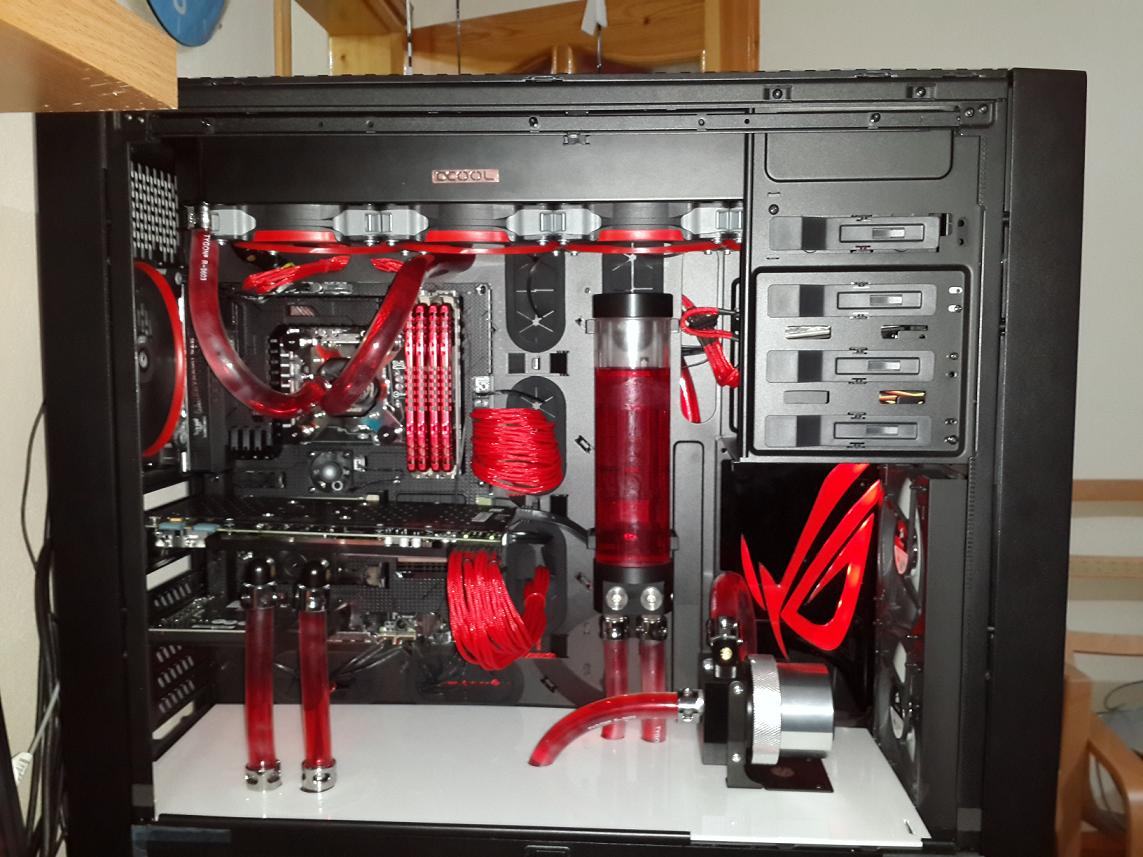

I have build one, white plexi midplate

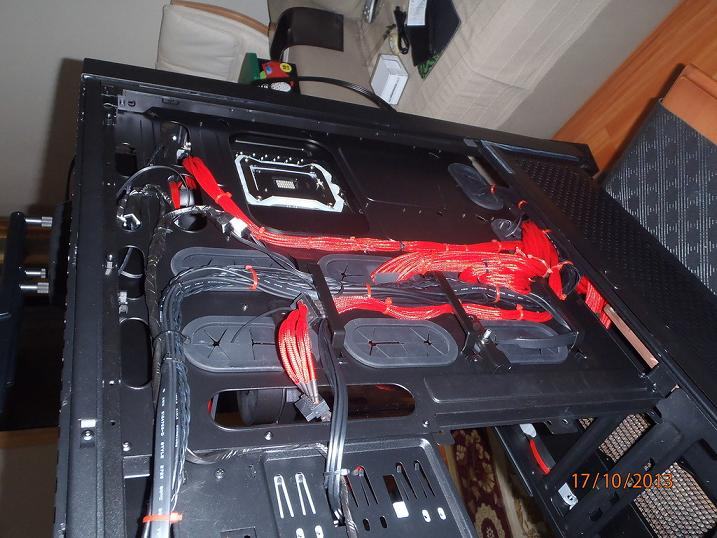

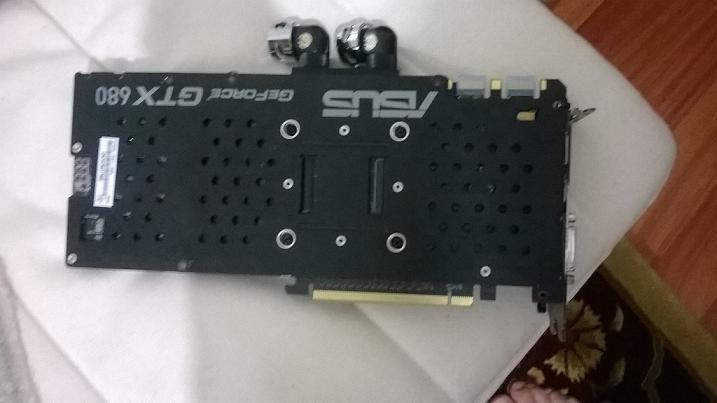

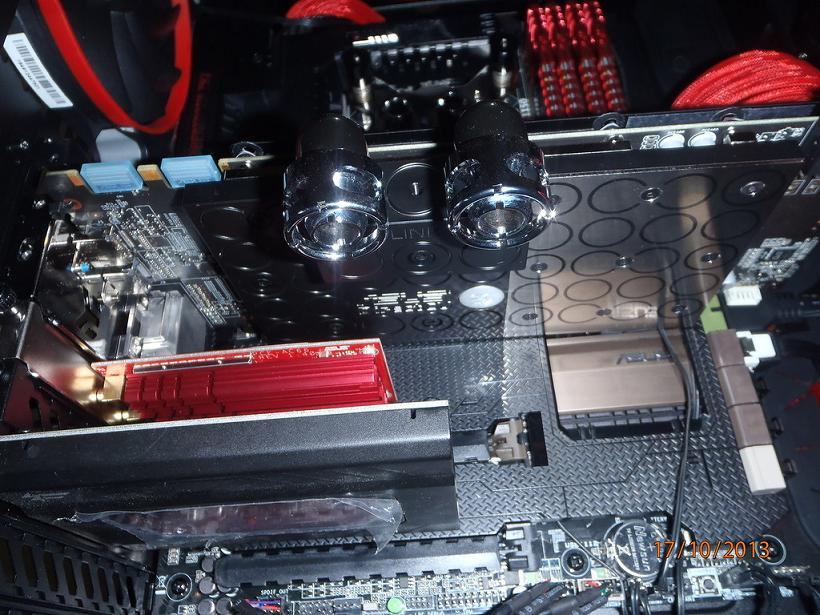

as back plate I used original Asus backplate (modified)

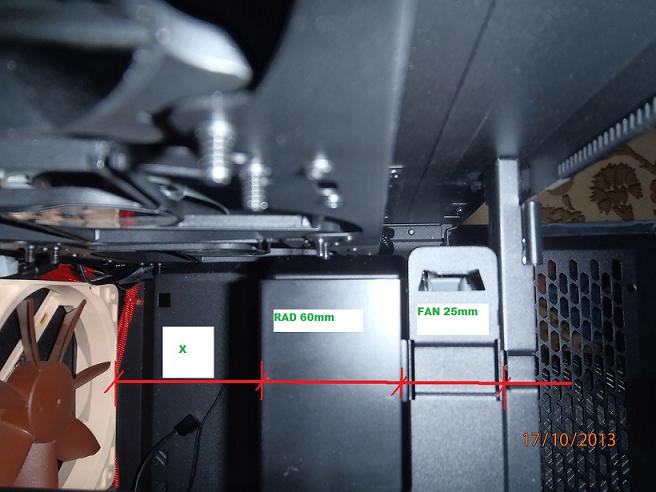

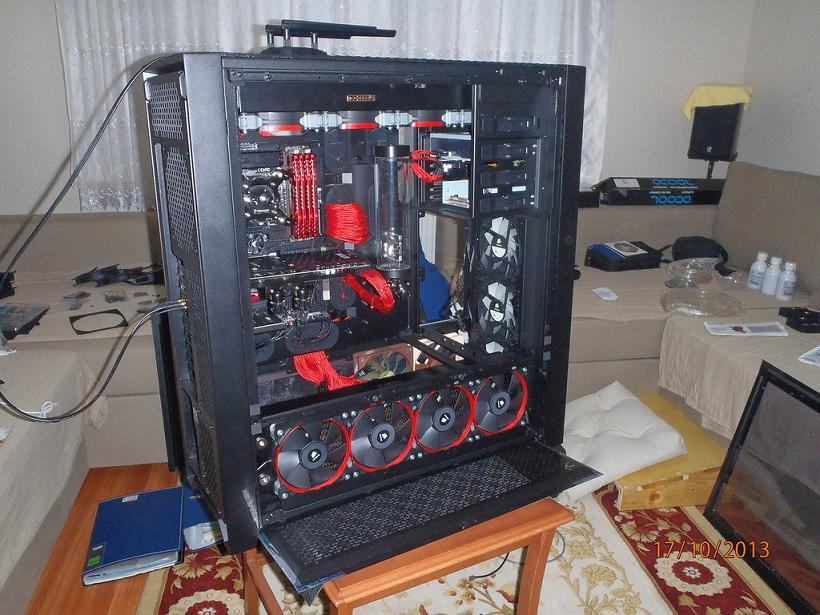

When 480th radiator is installed to the front of sub-part, there is 50mm space left except 60mm radiator+25mm fan.

It is impossible to mount a radiator and fan together in this place.
Even if a thin radiator is used, there is no place left to work and joining between radiators.

There is no free place for pumps , you must remove HDD cages.
If you remove hdd cases … the result.

…

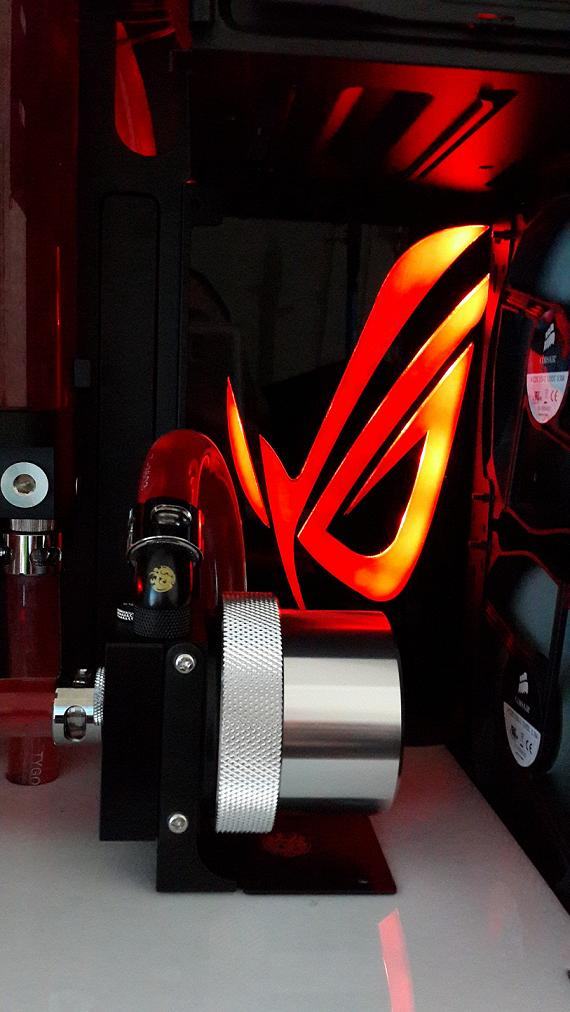

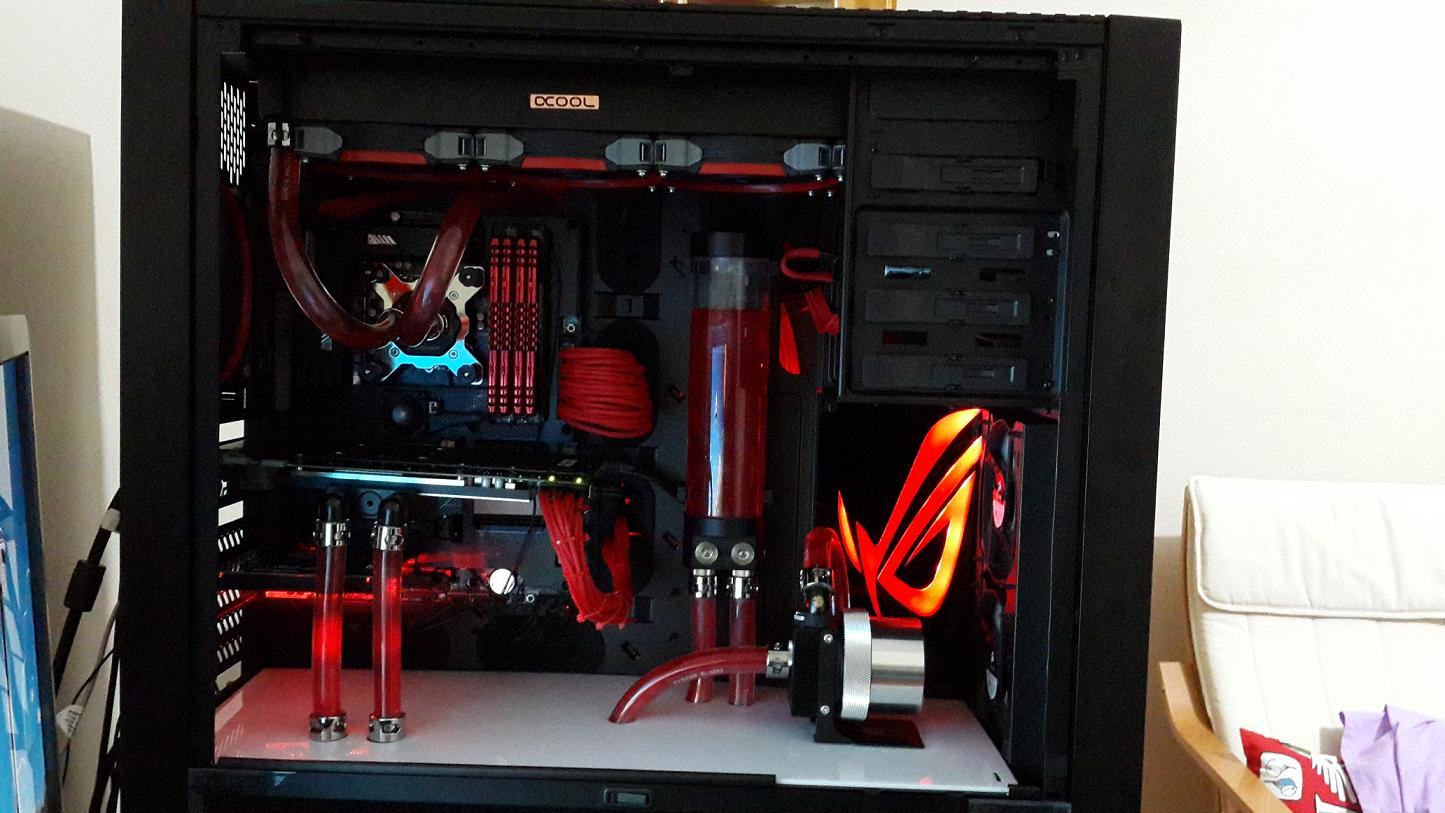

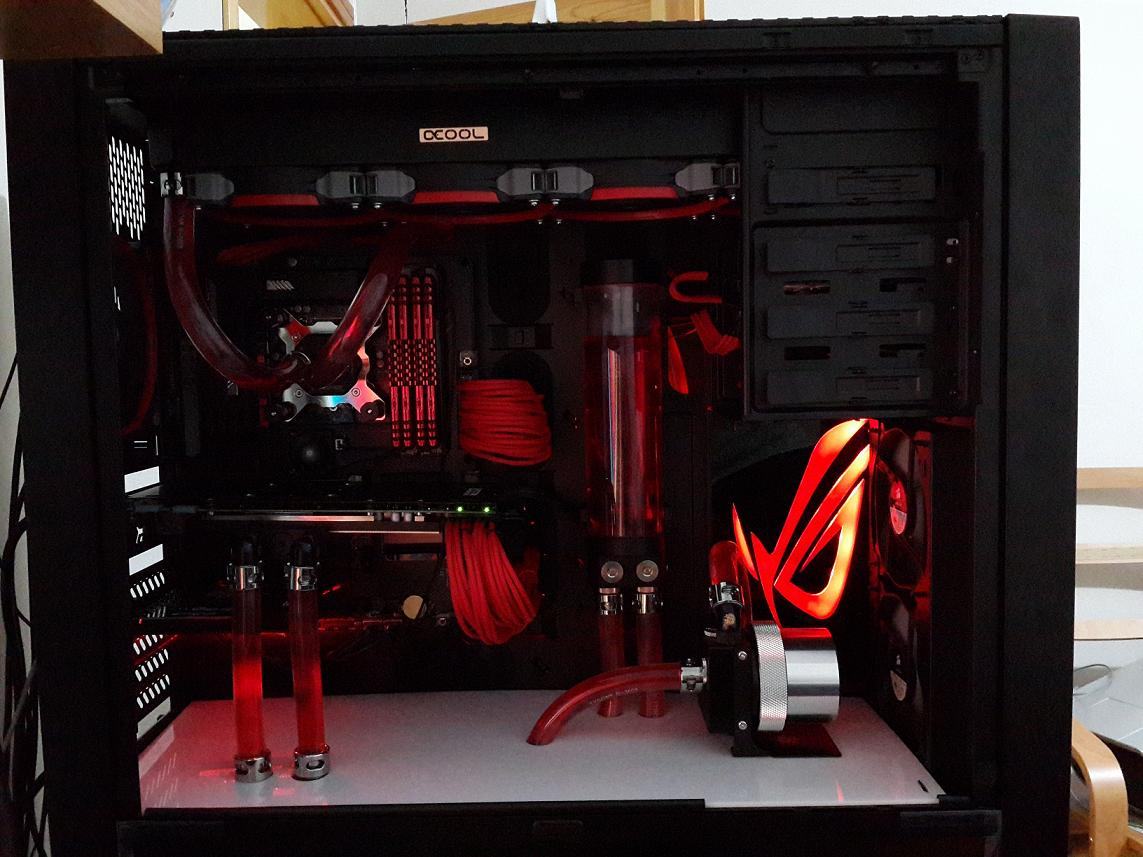

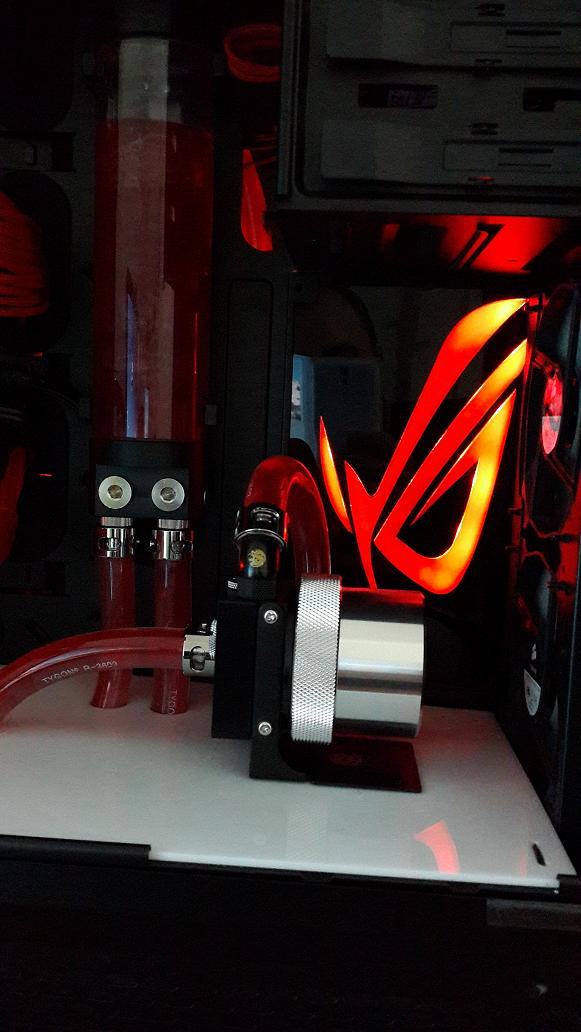

Therefore I made a plexi with Asus Rog logo.

No one can say me that 900 D is an all in one case for watercooling
Don t think ,900 D is a big Case for watercooling…It is a MINI – BIG CASE only…
,I think 900D was produced as a big case at first, later it has been minimized.
I hope Corsair 900D V1 is coming soon…



[linkplayer]

Ich will ja nicht meckern aber köntest du auch mal was dazu schreiben.

Was verbaut, welche Hardware und etc.

Nicht immer nur Bilder.



[arg-ist]

Ich will ja nicht meckern aber köntest du auch mal was dazu schreiben.

Was verbaut, welche Hardware und etc.

Nicht immer nur Bilder.

Natürlich. Aber ich wollte nicht, Leute mit mein schlect Deutsch aergern.



[Vashur]

Then write English.
