Jumbo case

[arg-ist]

JUMBO CASE - Custom build

This time not CORSAİR case and not case mod , Custom made…
And a quite big case…


At one of my friend’s request we have planned a case so;

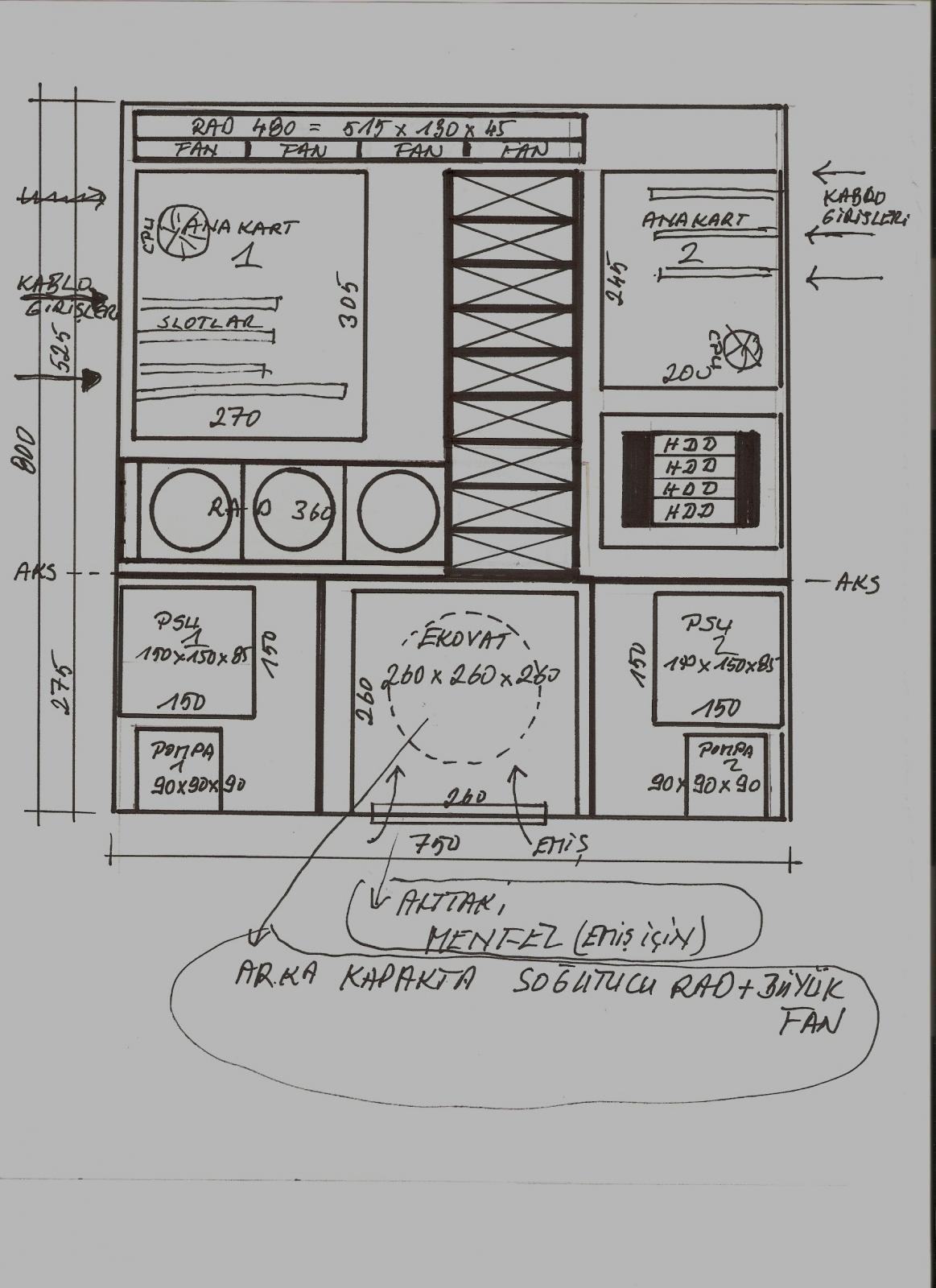

The case will be made for 2 Mainboards

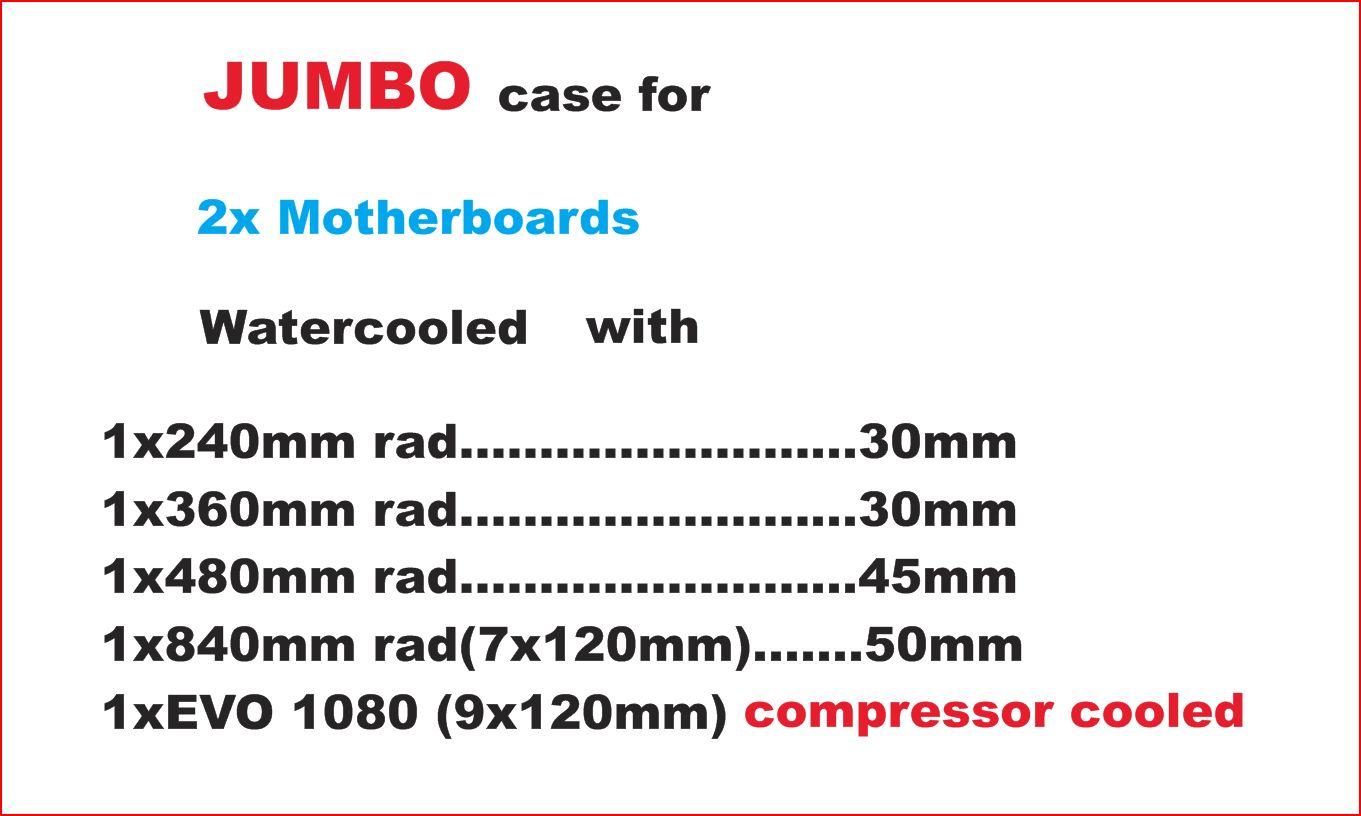

It will have the opportunity of a large watercooling(25X120 rads)

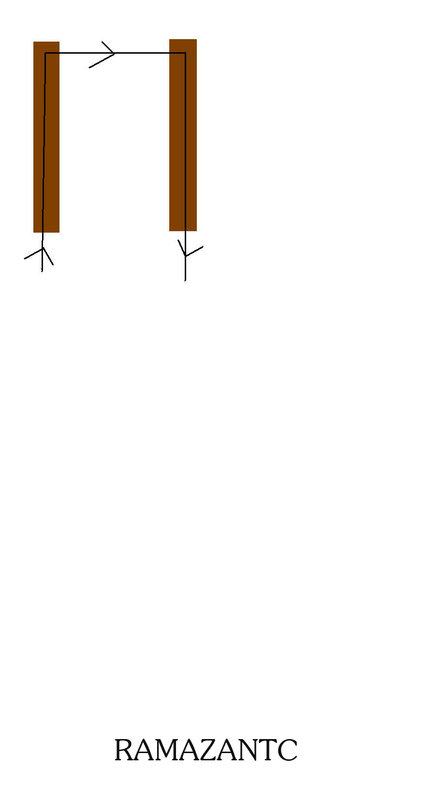

The Evo radiator which is used will be moded. From 3 channels, the one in the middle will be connected to the compressor.
With this radiator, if it is needed, by running the compressor, extra cooling can be provided.

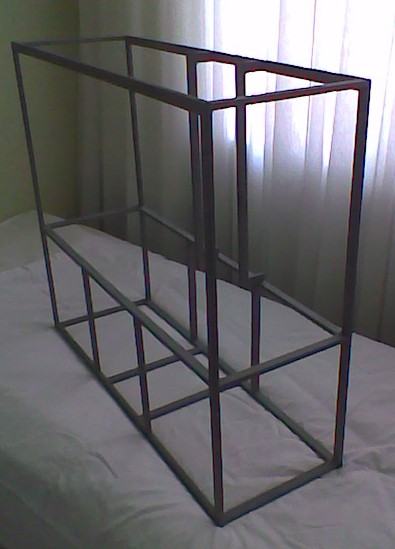

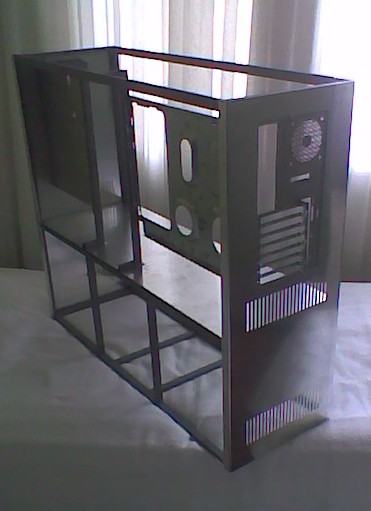

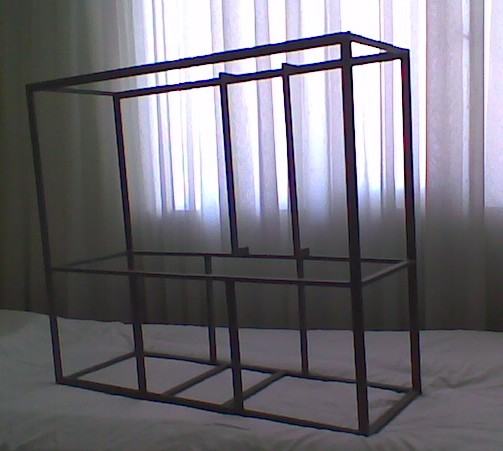

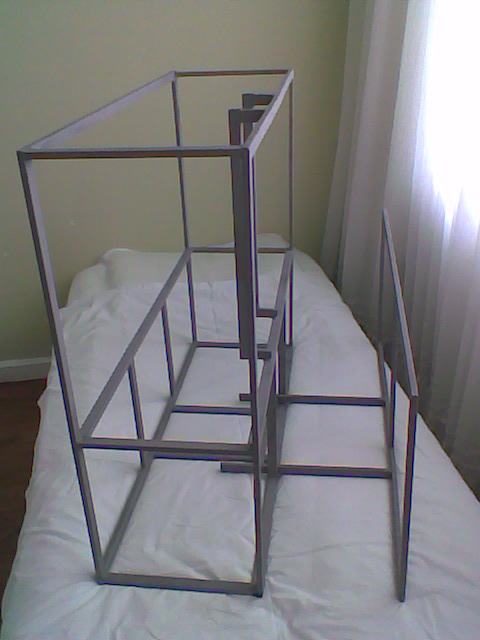

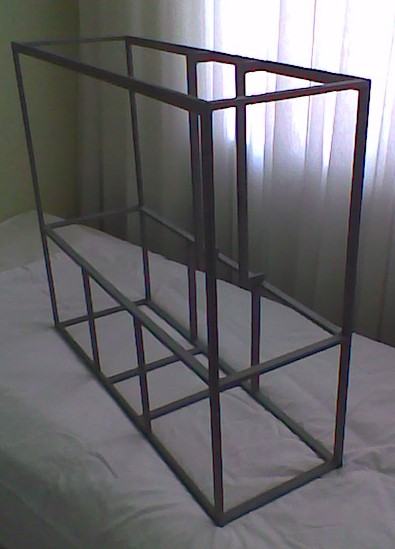

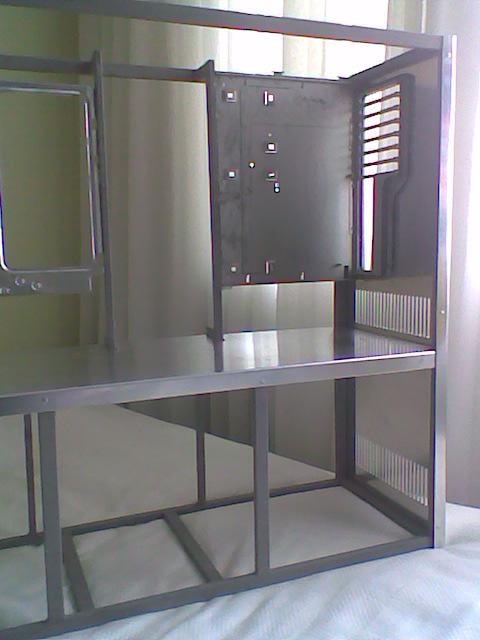

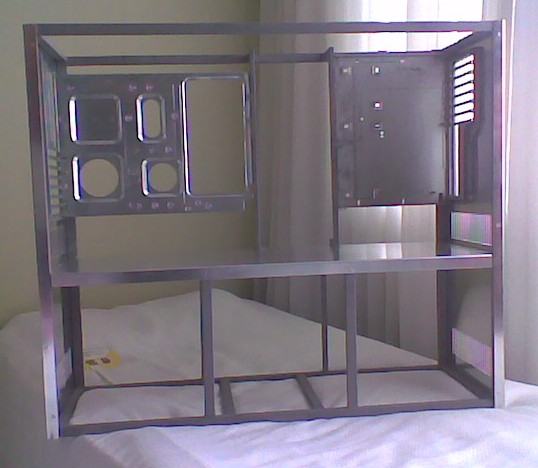

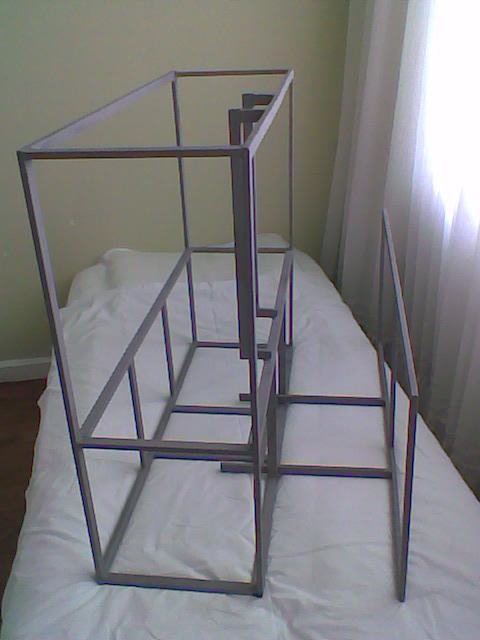

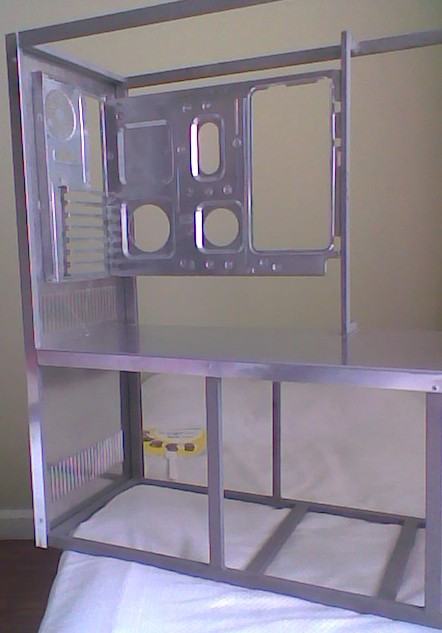

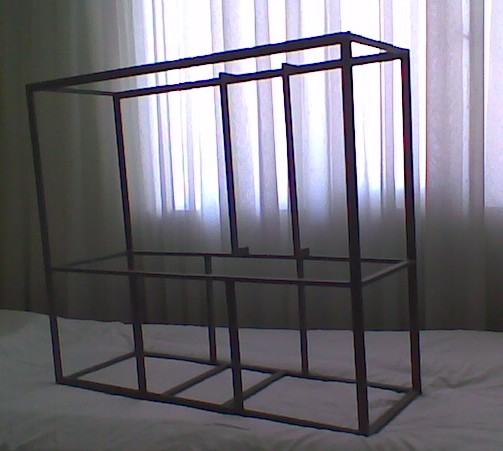

The frame of the case is sheet iron profile.

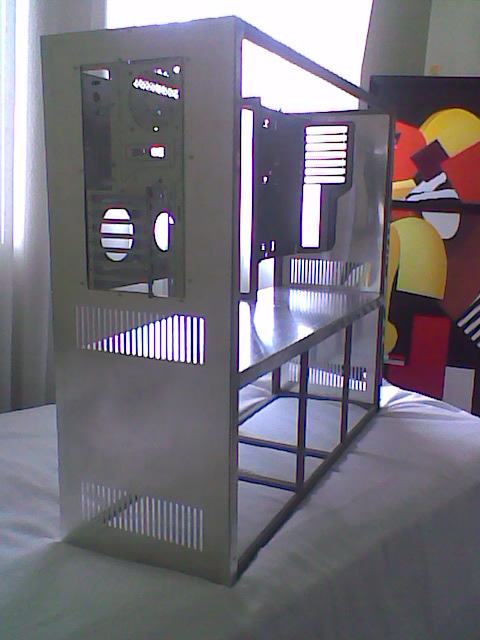

Used 2 mm aluminum plates.

Then , firstly it is undercoated with epoxy ground coat, later it is painted mat black with spray paint .

The necessary plexi pieces are self made .and it is delivered to my friend as a naked case.

After this, hardware will be established by him.
I completed my duty by making the case only.
The next phase is depend on my friend’s studies.

U[/FONT][/FONT][/FONT]







OTHER WORKLOGS

Worklog http://www.hardwareluxx.de/community/f143/playdoh-silverstone-tj-07-acrylic-pipe-1012476.html

Worklog http://www.hardwareluxx.de/communit...-watercooled-copper-acrylic-pipe-1028332.html

Worklog http://www.hardwareluxx.de/communit...w-edition-acrylic-tubing-upgrade-1027807.html

Worklog http://www.hardwareluxx.de/community/f143/12-angry-men-900-d-case-p1-1002736.html

Worklog http://www.hardwareluxx.de/community/f143/corsair-900-d-watercooled-mmt-case-997564.html

Worklog http://www.hardwareluxx.de/community/f143/corsair-900-d-watercooled-mmt-case-997564.html

Worklog http://www.hardwareluxx.de/community/f143/transformer-case-996669.html

Worklog http://www.hardwareluxx.de/community/f143/how-make-bench-case-old-atx-1-a-1032451.html

Worklog http://www.hardwareluxx.de/community/f143/4-way-hdd-switcher-1033308.html

Worklog http://www.hardwareluxx.de/community/f143/self-made-cosmos-ii-clear-panel-1034027.html#post22531803



[arg-ist]

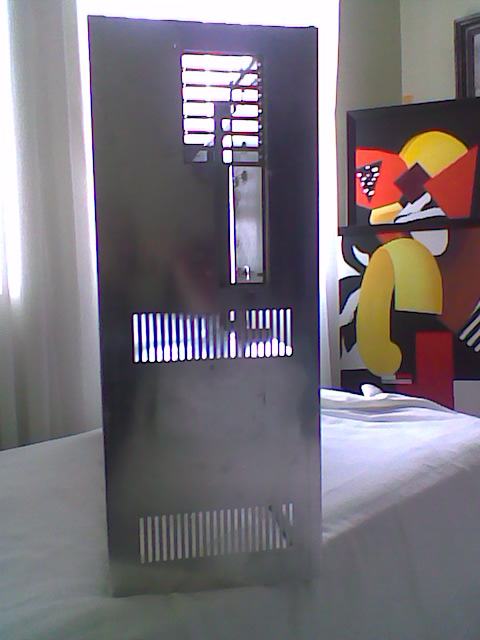

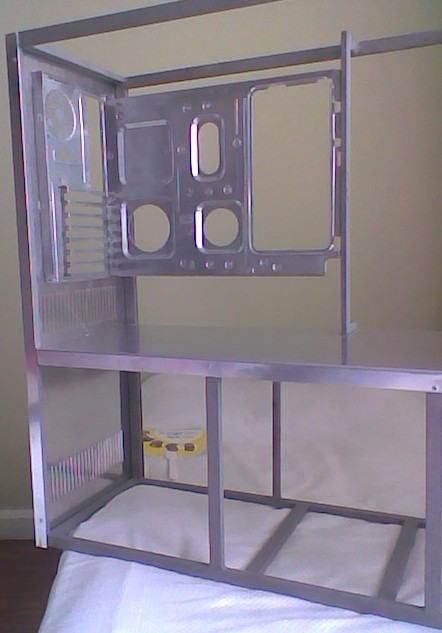

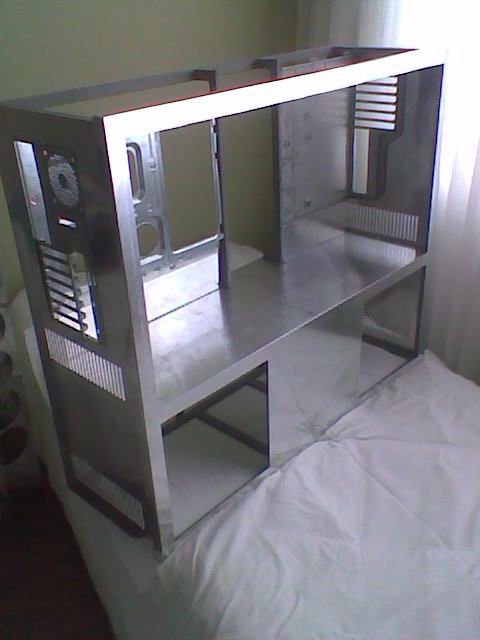

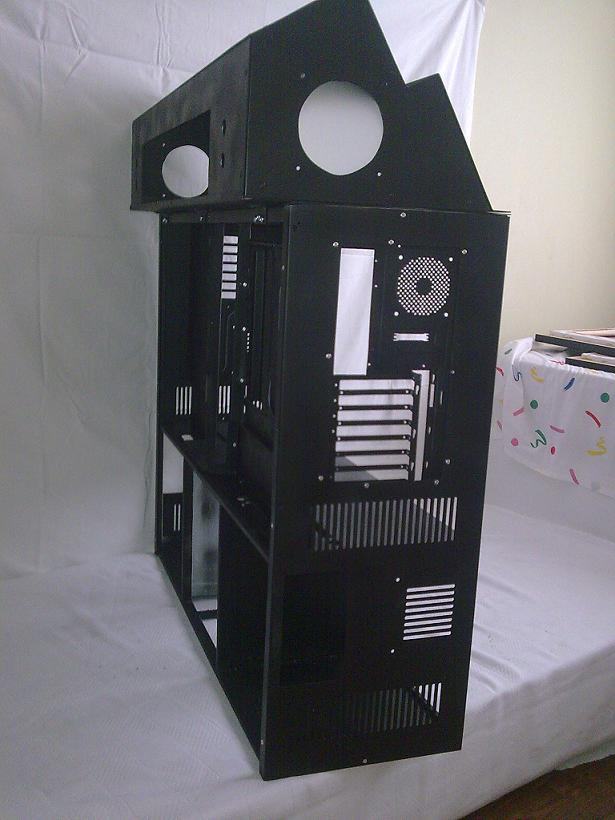

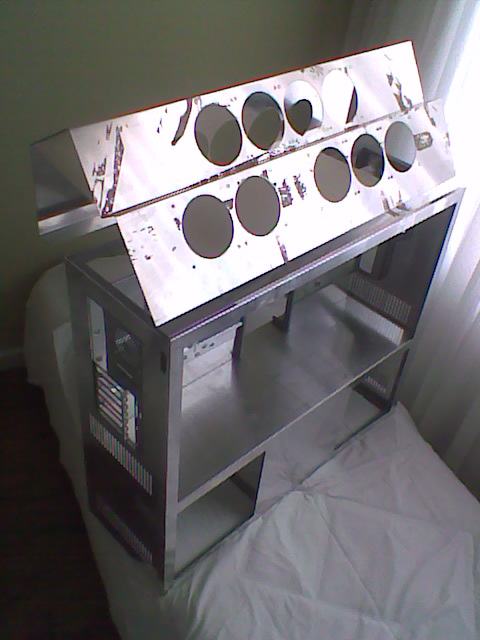

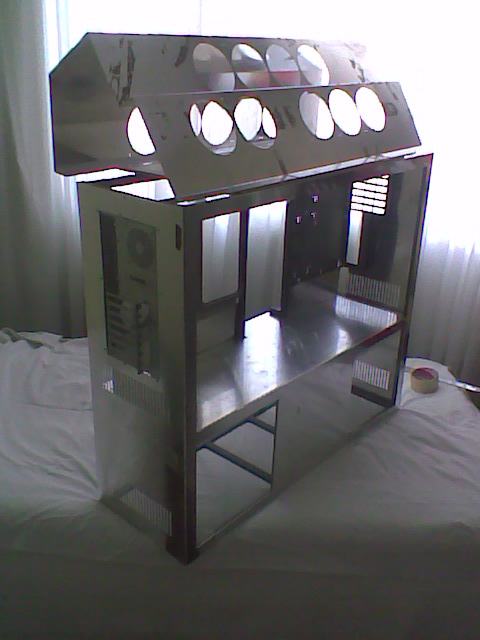

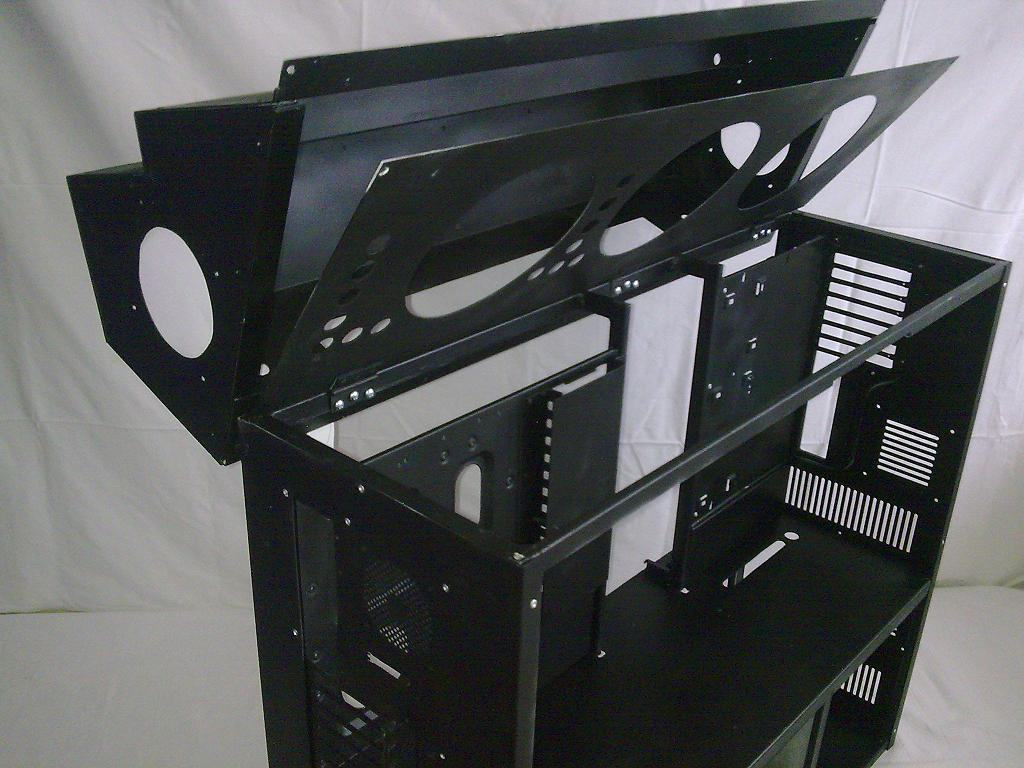

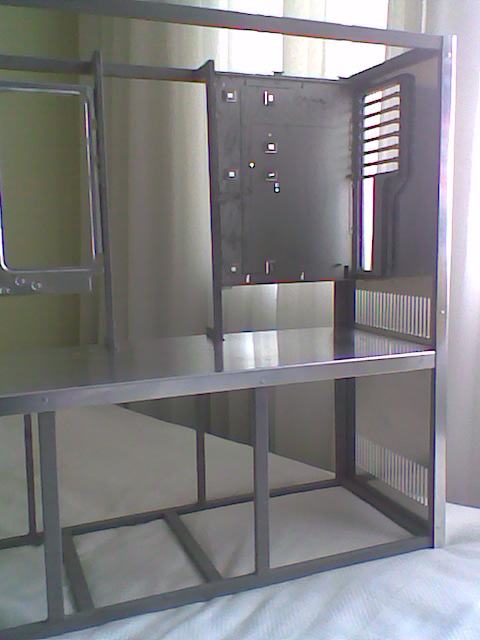

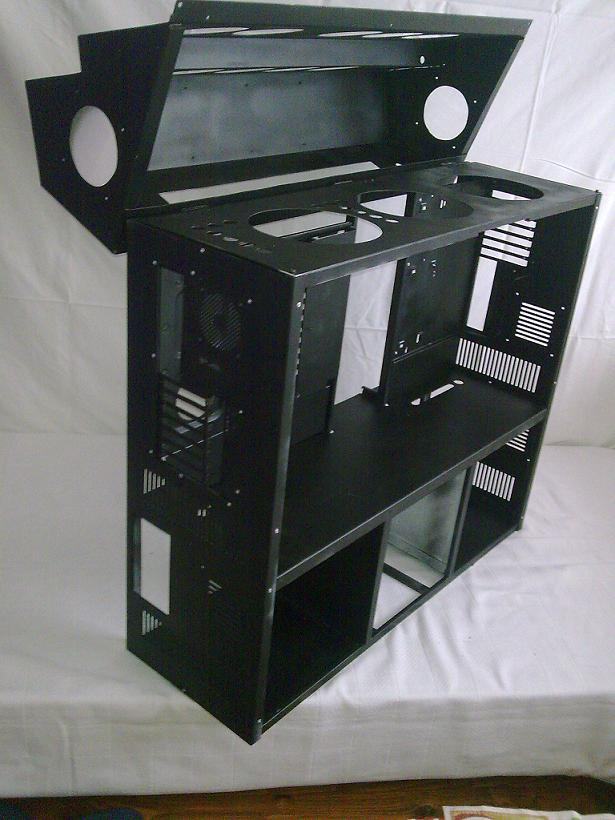

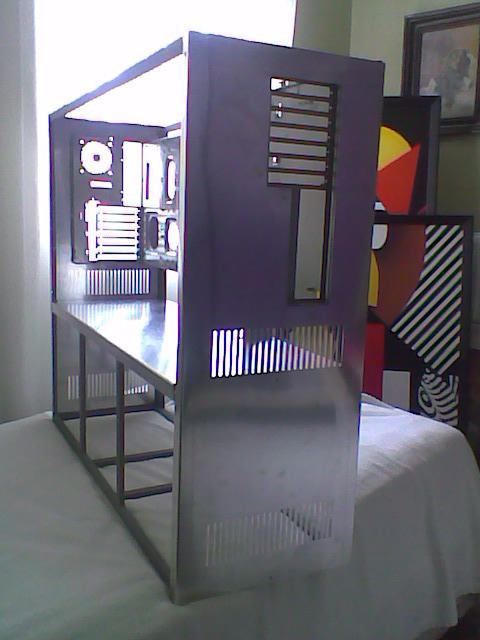

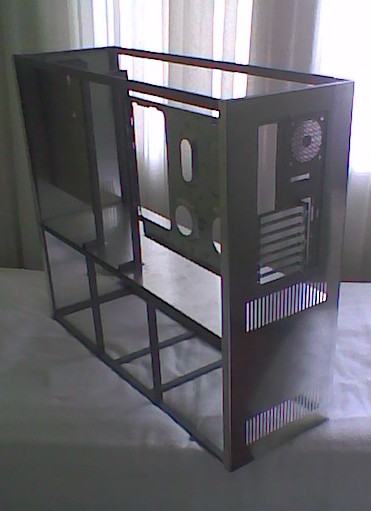

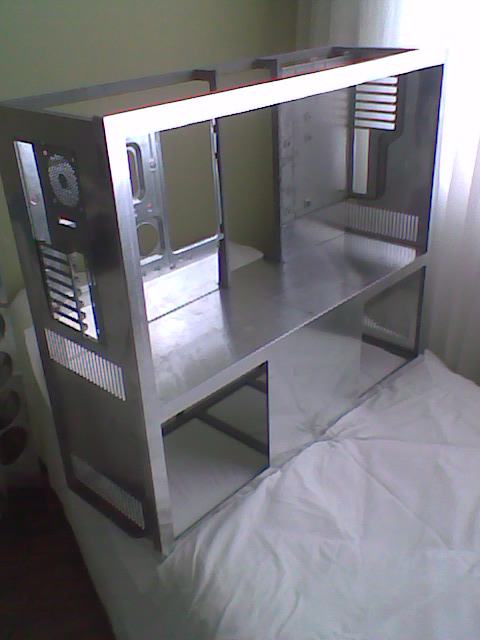

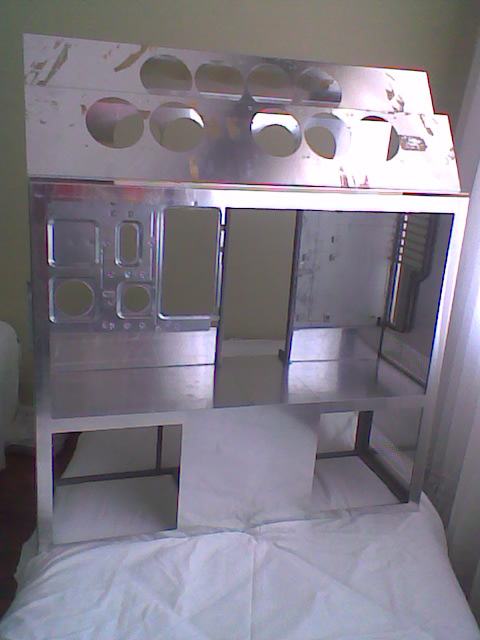

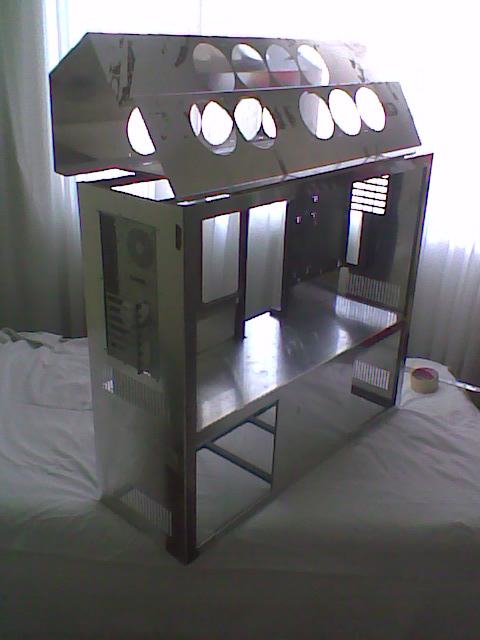

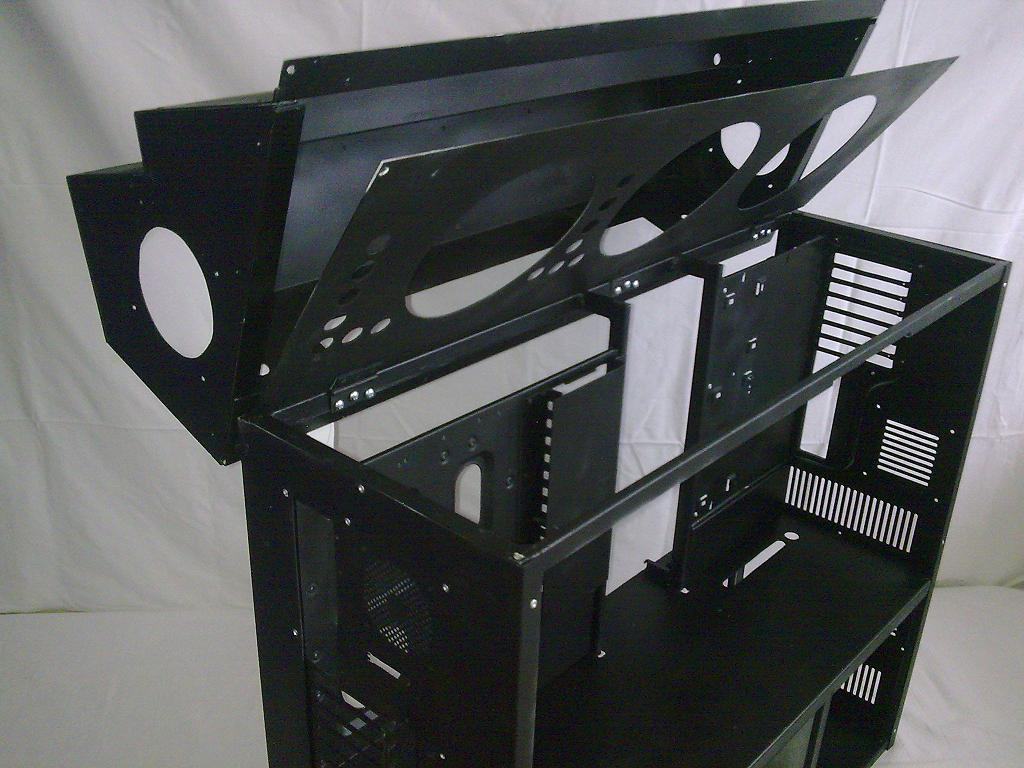

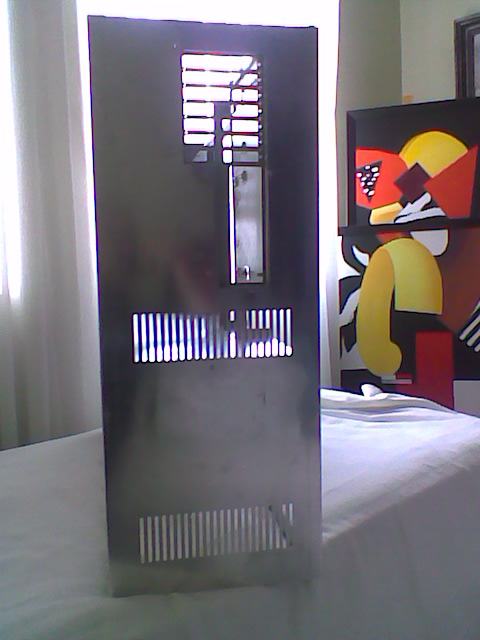

Coated with alu plates 2mm thick alu plates and with necessary grills..

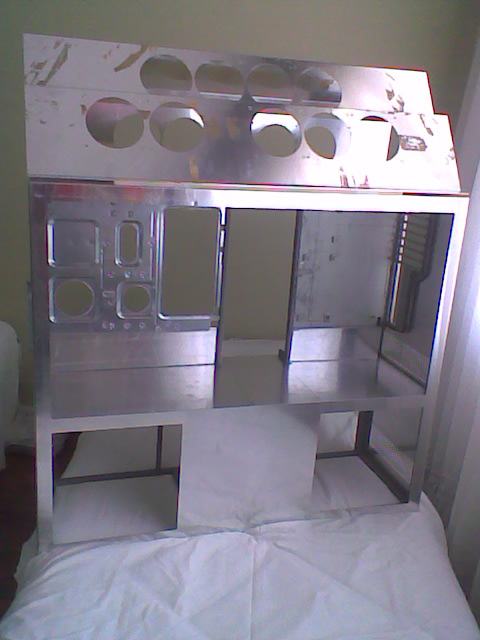

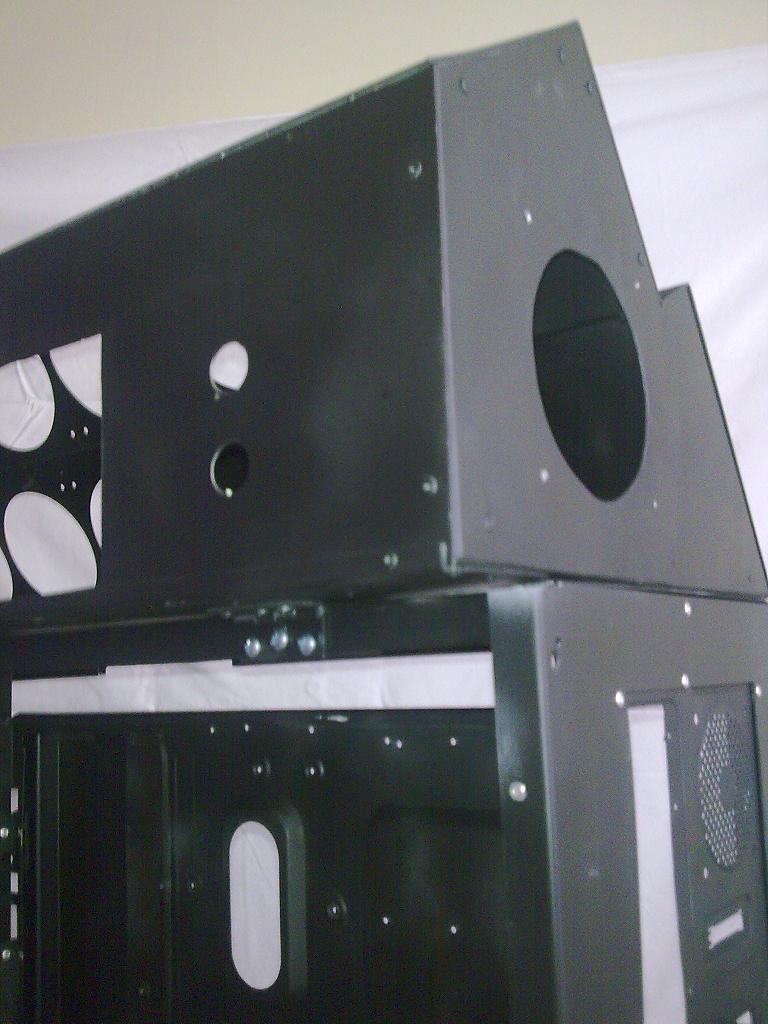

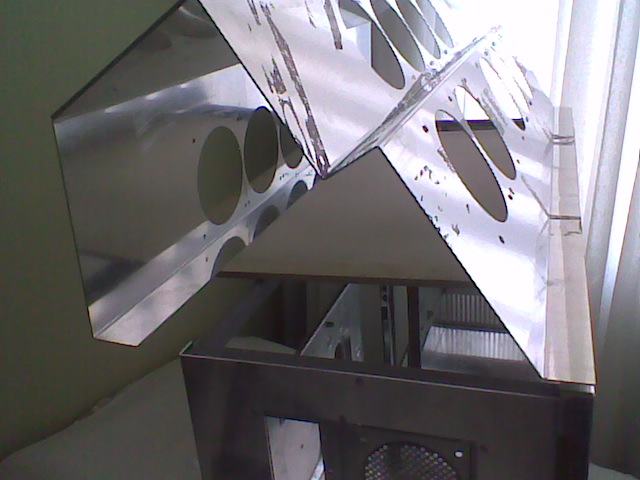

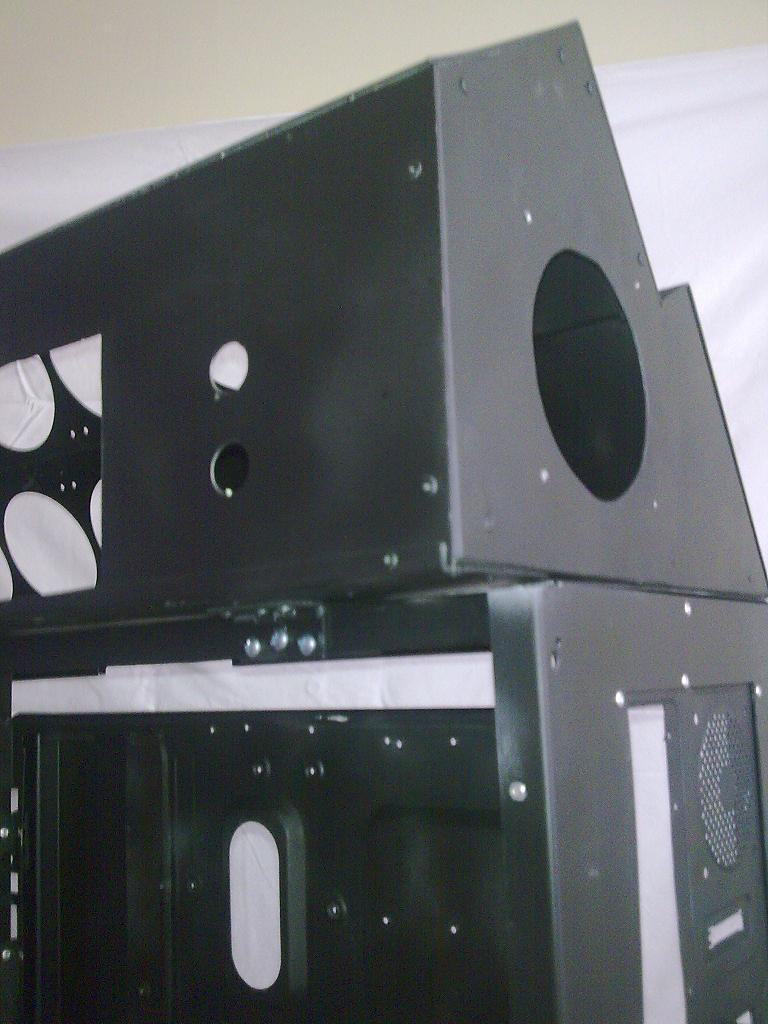

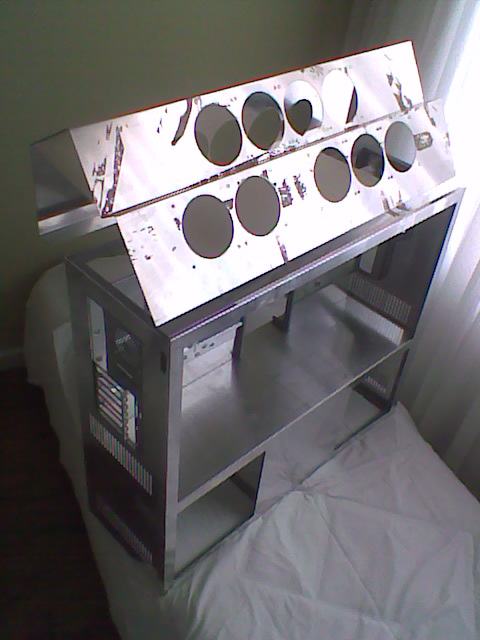

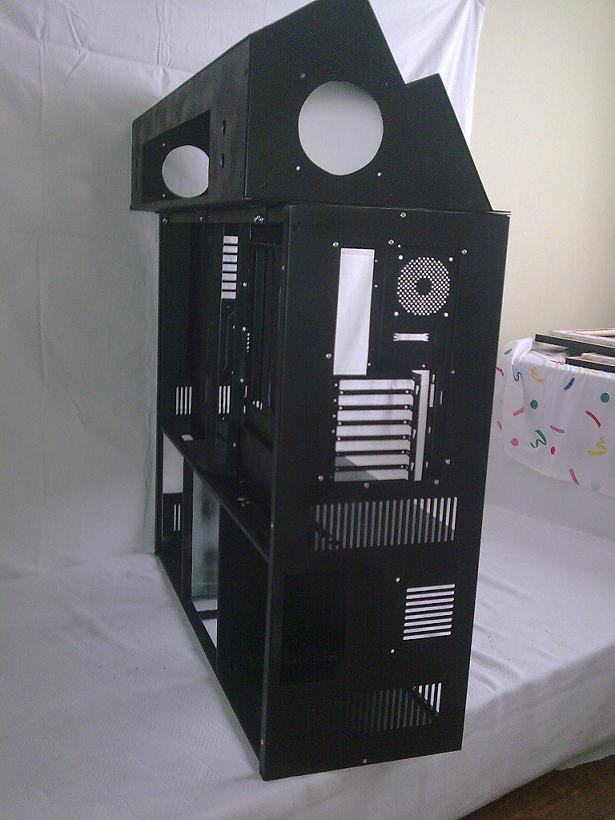

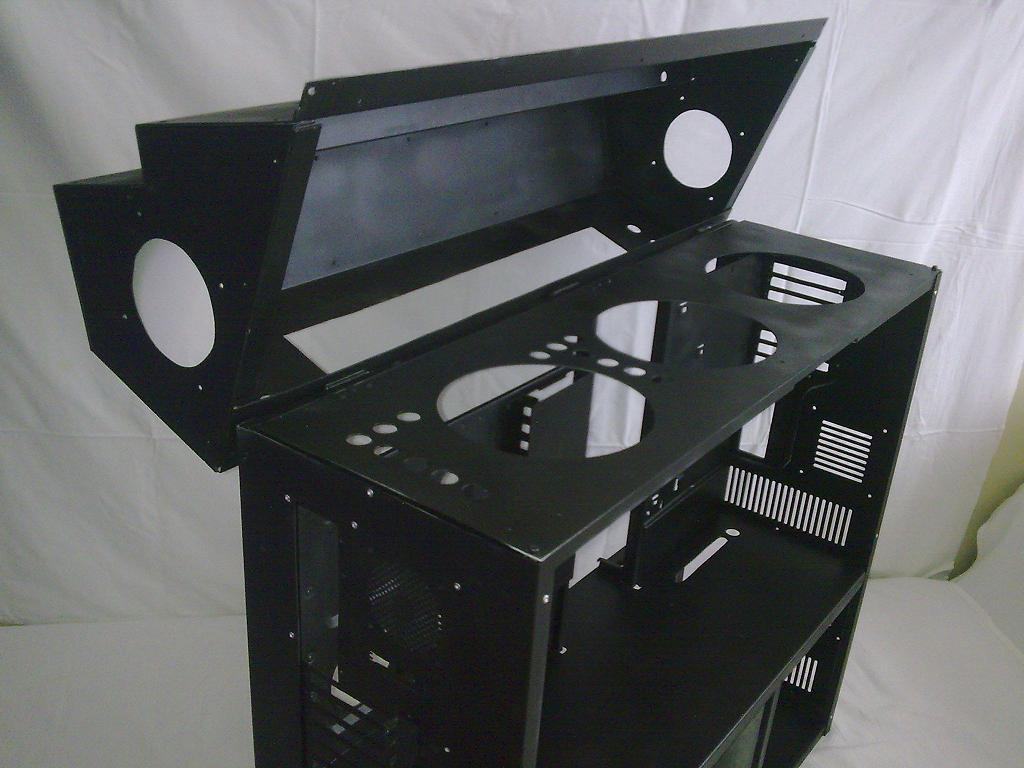

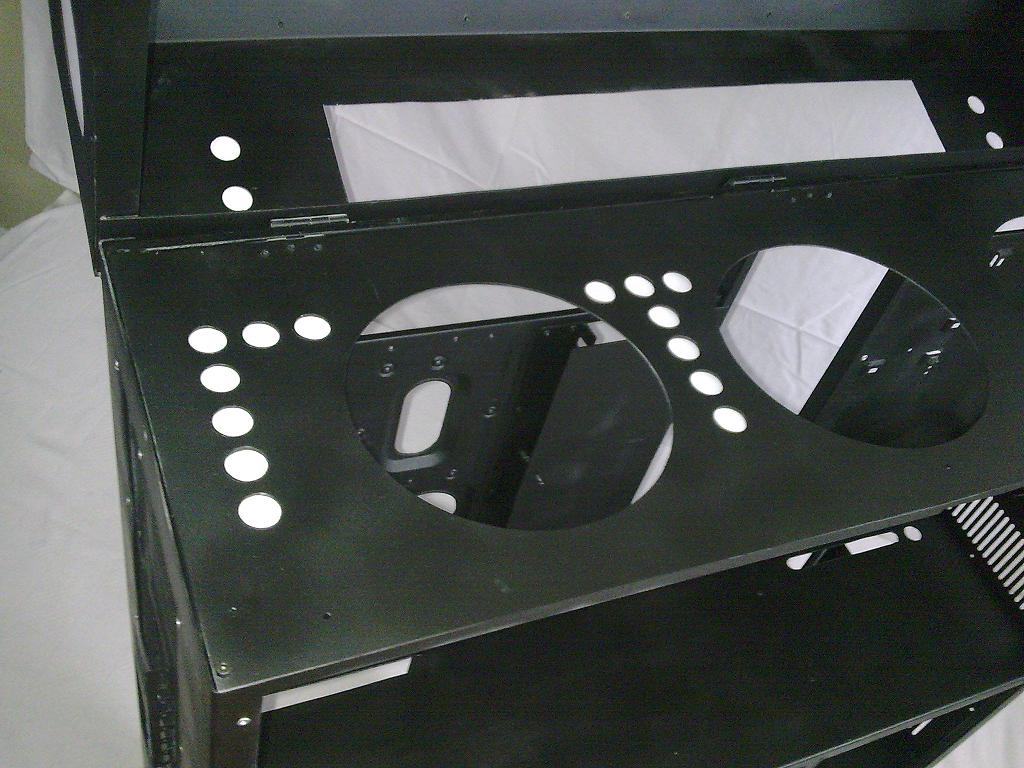

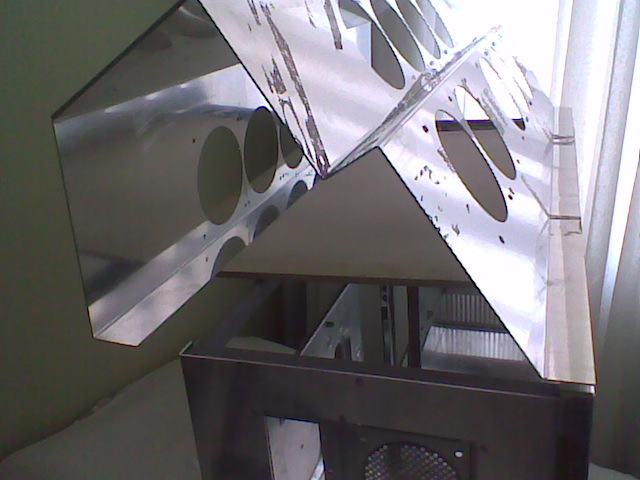

except the Evo are all rads on the top . therfore , ı made a separate upper chamber
for rads ın an anusual form .

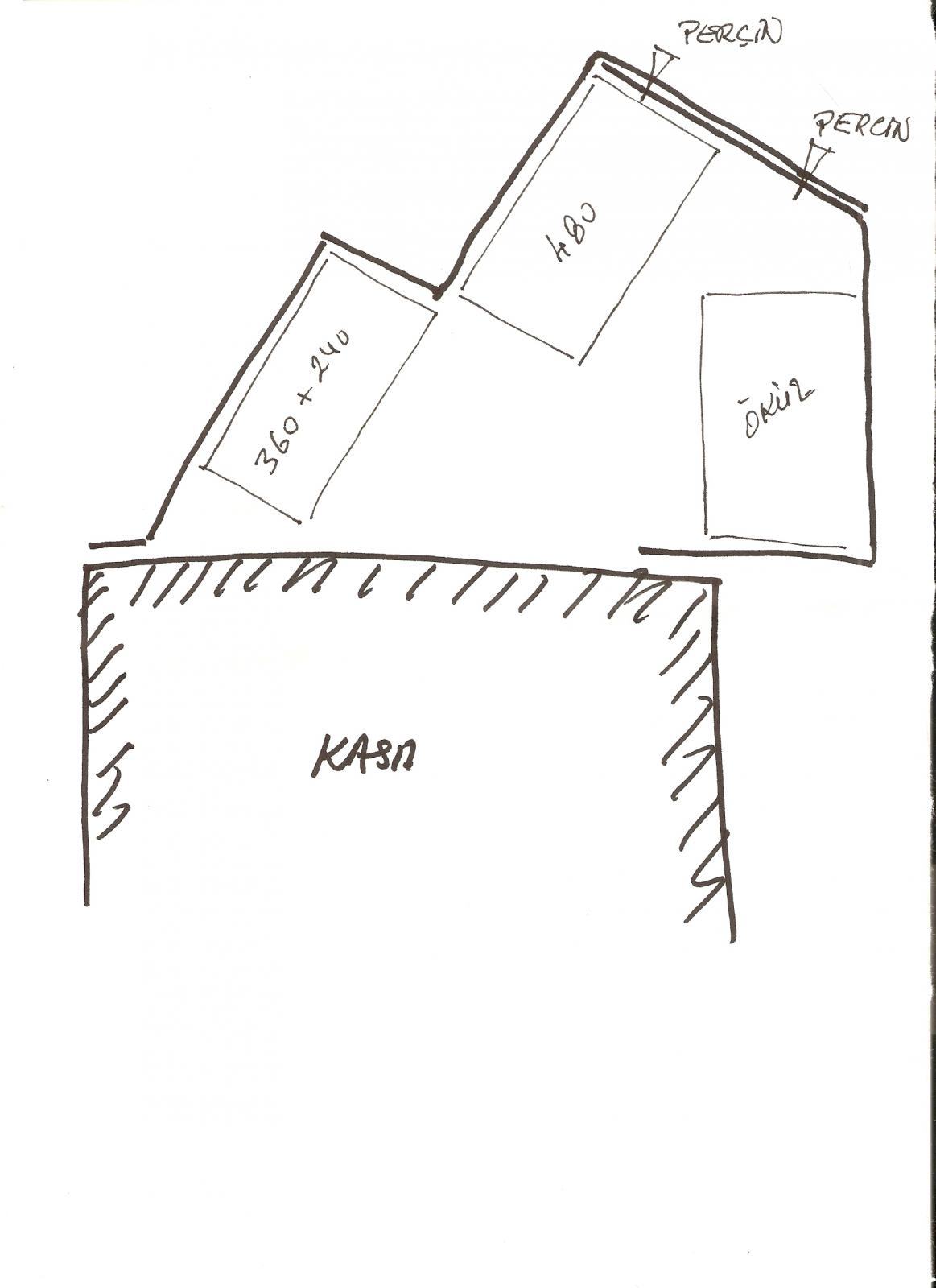

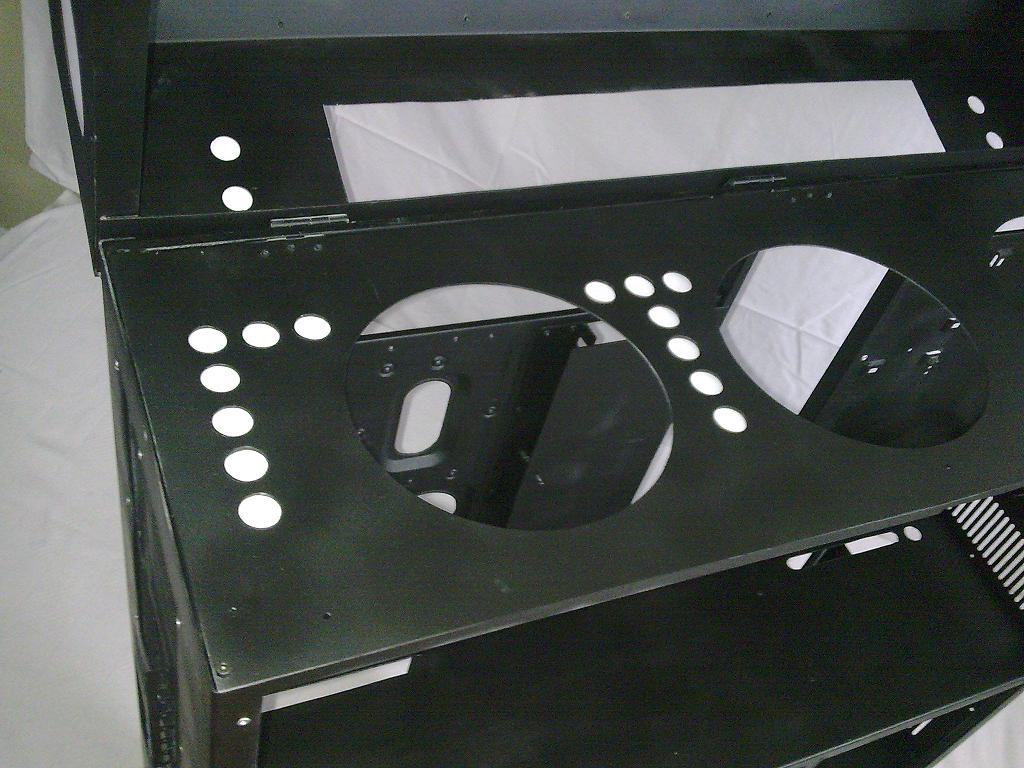

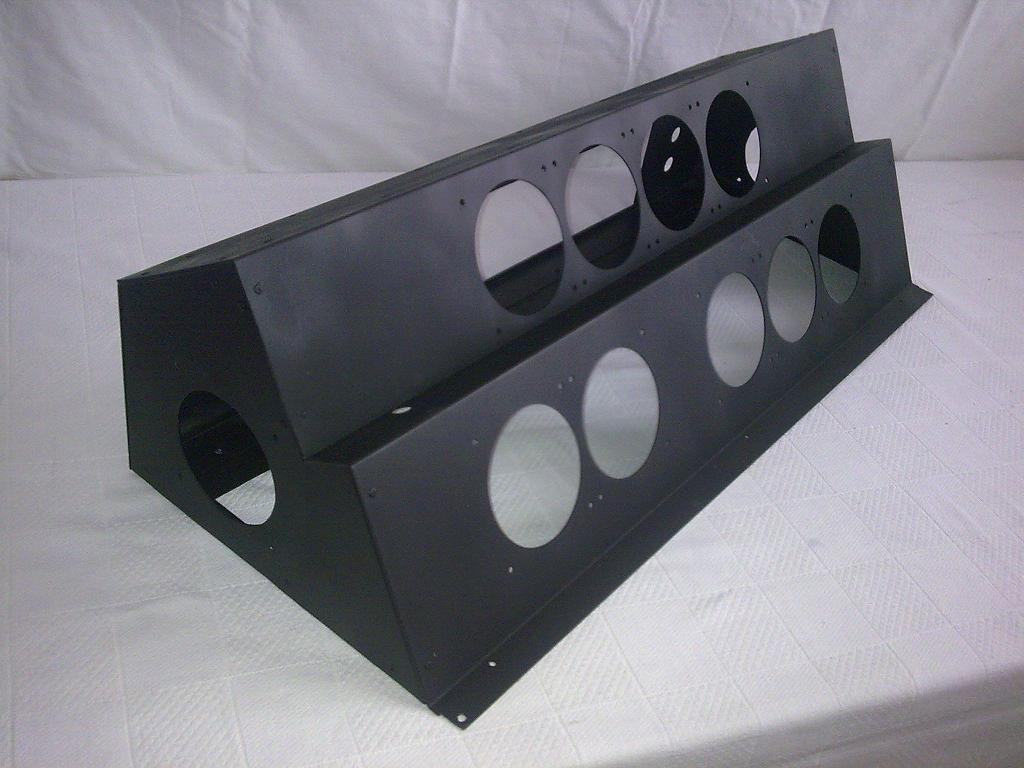

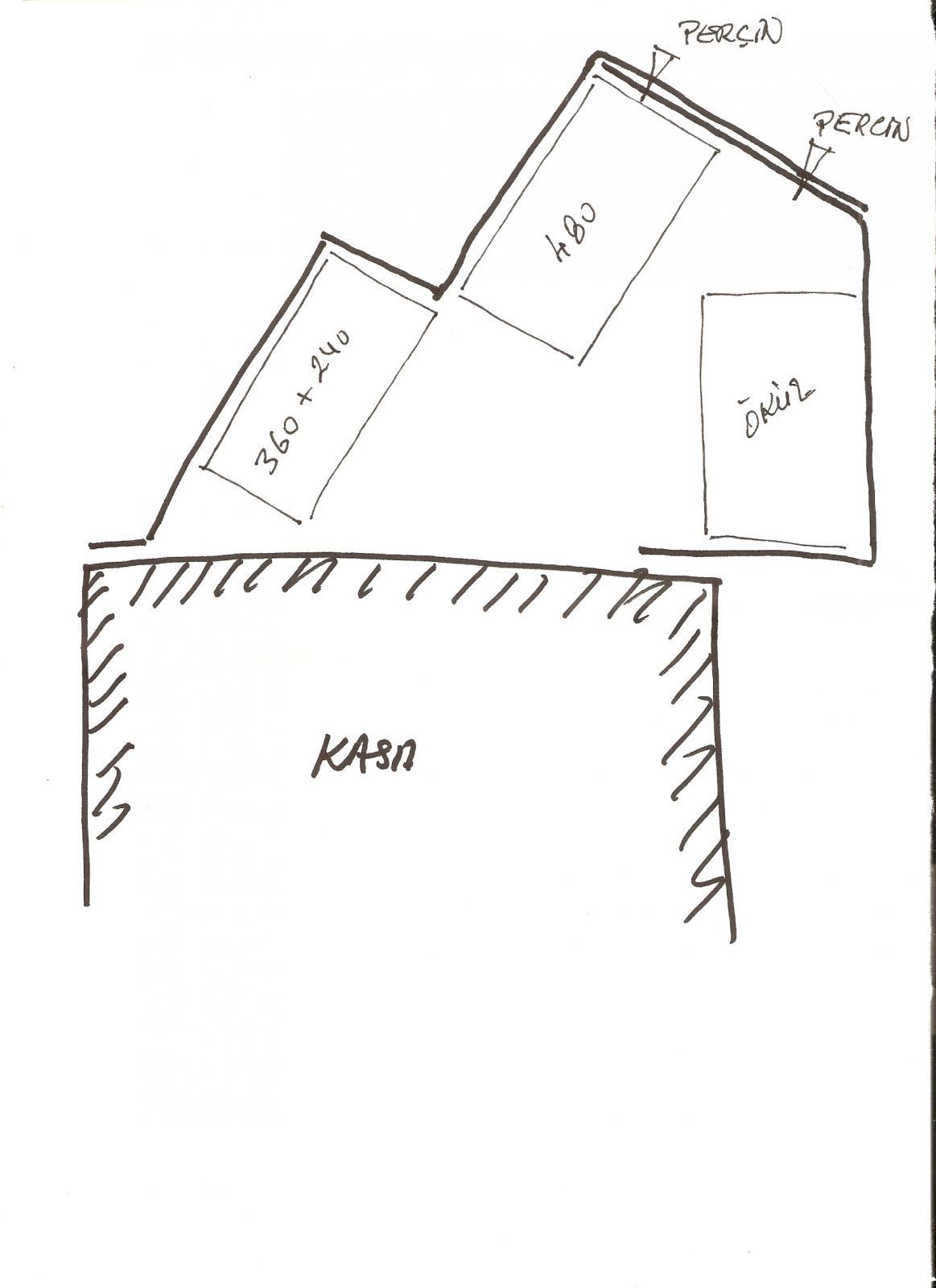

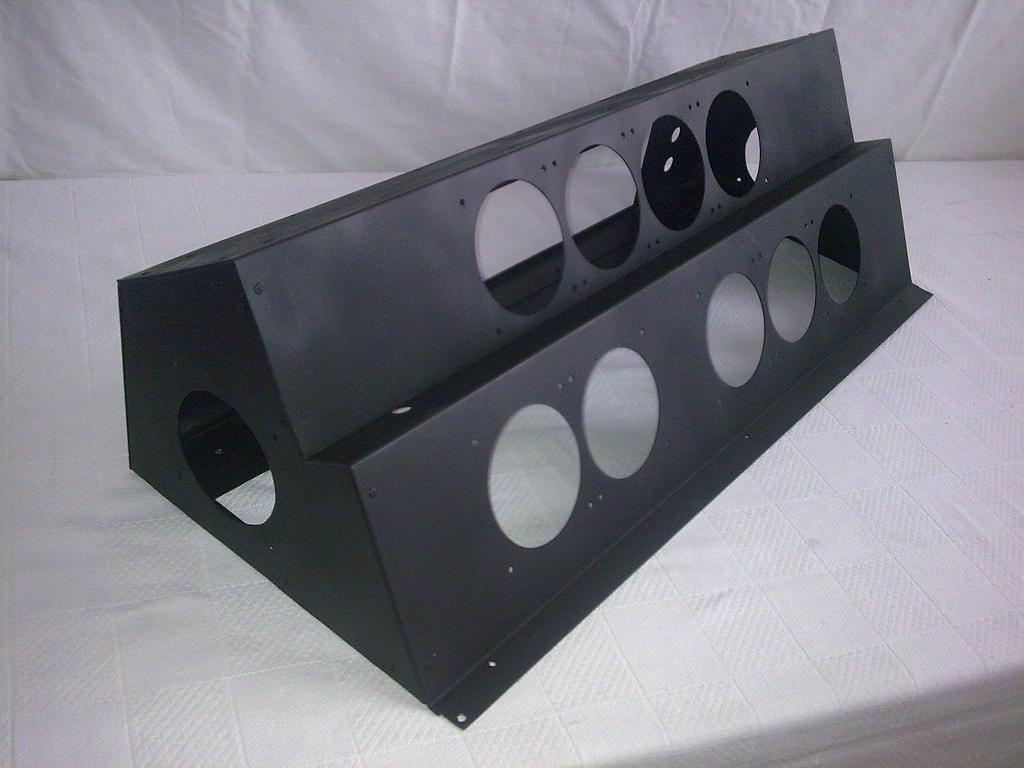

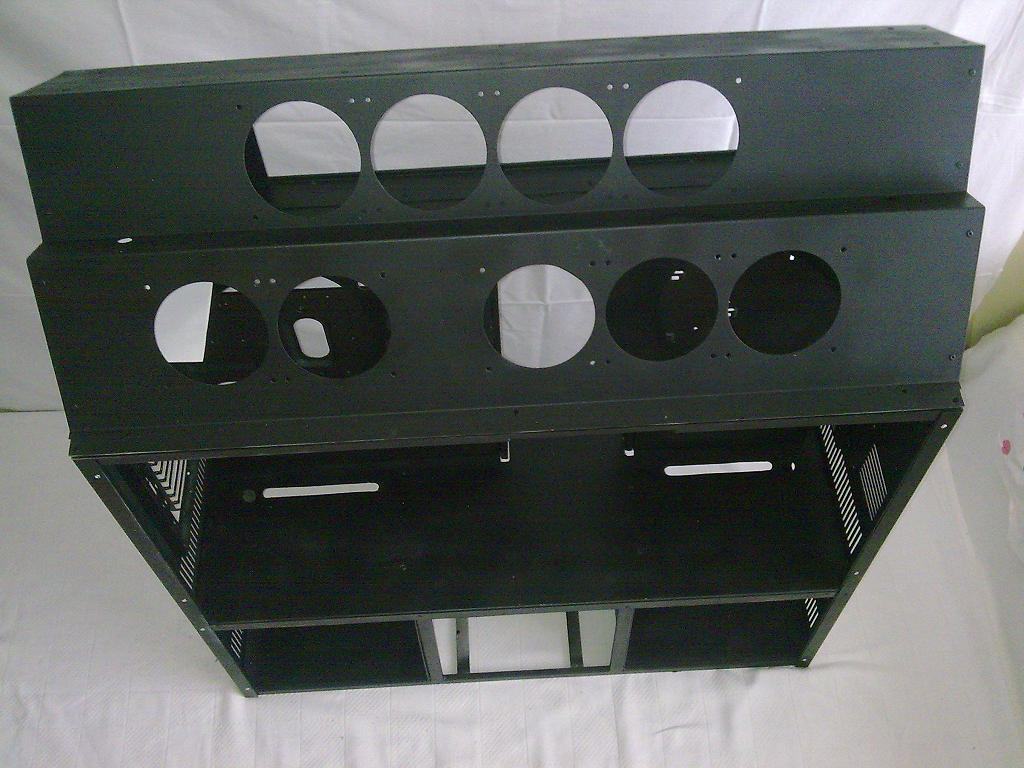

the rads are placed like terrace houses



[GM]

@: arg-ist , einen Guten Rat habe ich da mal noch an Dich schau Dir mal bitte an wie die anderen Worklogs aus sehen und ein wenig Text zu Deiner Arbeit wäre auch nicht schlecht. Vielleicht passt Du das dahingehend noch an.



[arg-ist]

@: arg-ist , einen Guten Rat habe ich da mal noch an Dich schau Dir mal bitte an wie die anderen Worklogs aus sehen und ein wenig Text zu Deiner Arbeit wäre auch nicht schlecht. Vielleicht passt Du das dahingehend noch an.

Ja gerne… aber ich will nicht mit meiner schlecter Deutsch, Leute aergern.
So wass hatte ich vor 4 Jahren erlebt , und seit der Zeit habe ich nichts mehr geschrieben .. Aber ich werde versuchen …Danke.



[Vashur]

Schreib doch einfach auf Englisch wenn es dir lieber/geläufiger ist.



[GM]

so sieht es aus, das ist hier egal ob Deutsch oder Englisch



[arg-ist]

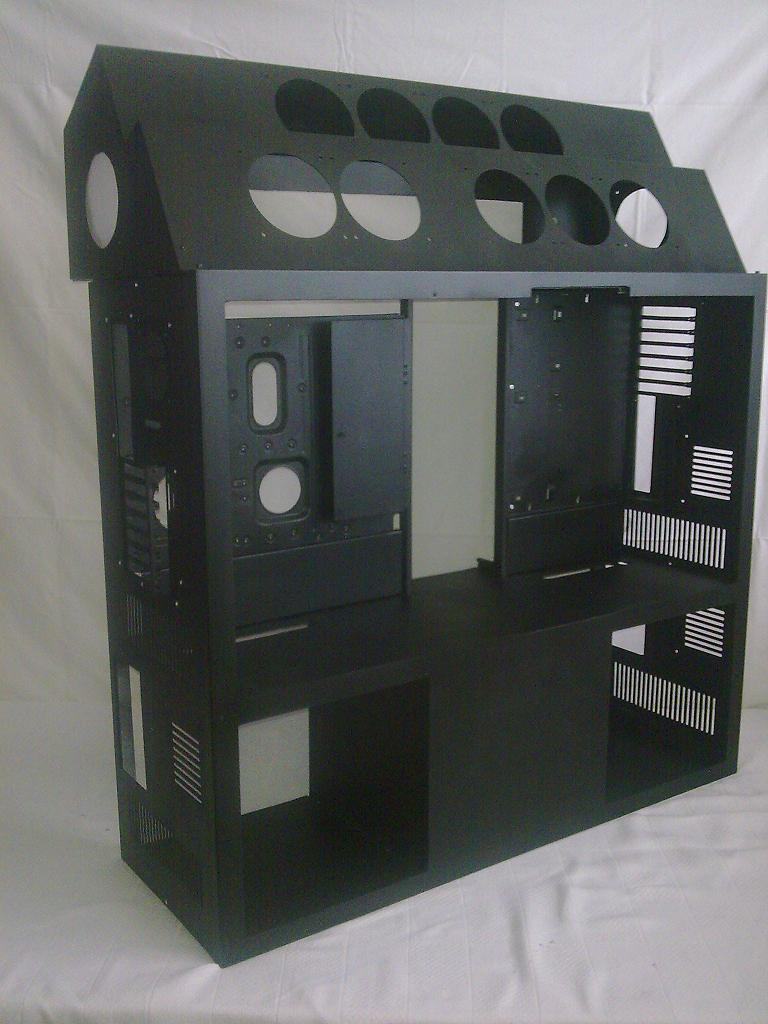

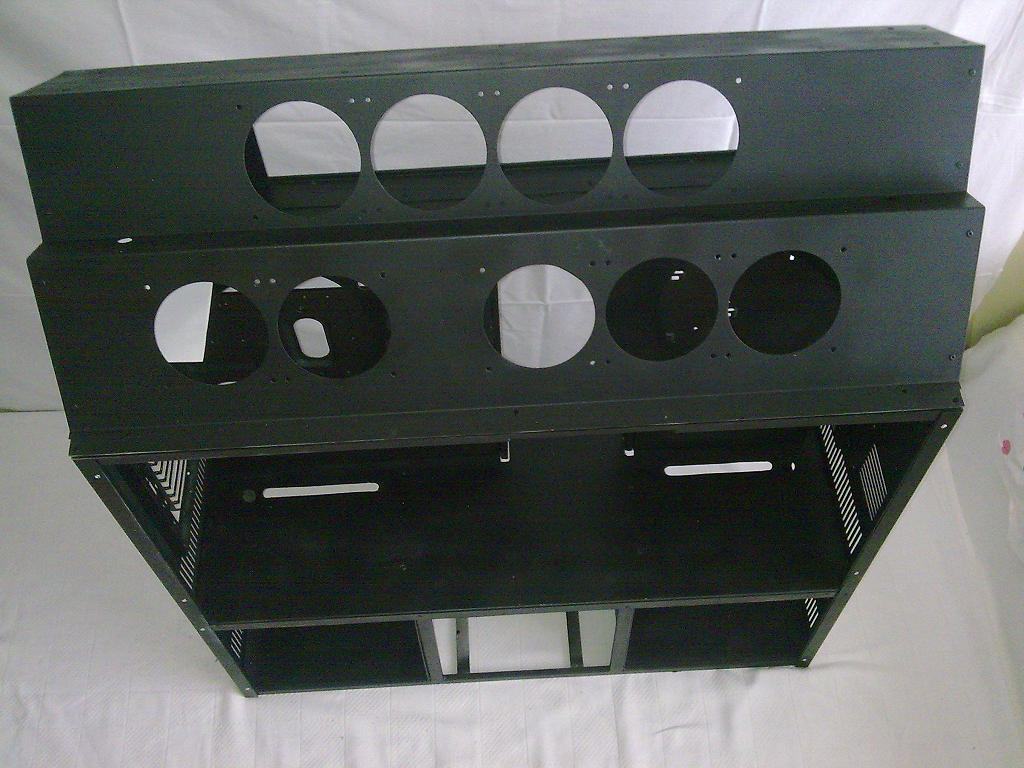

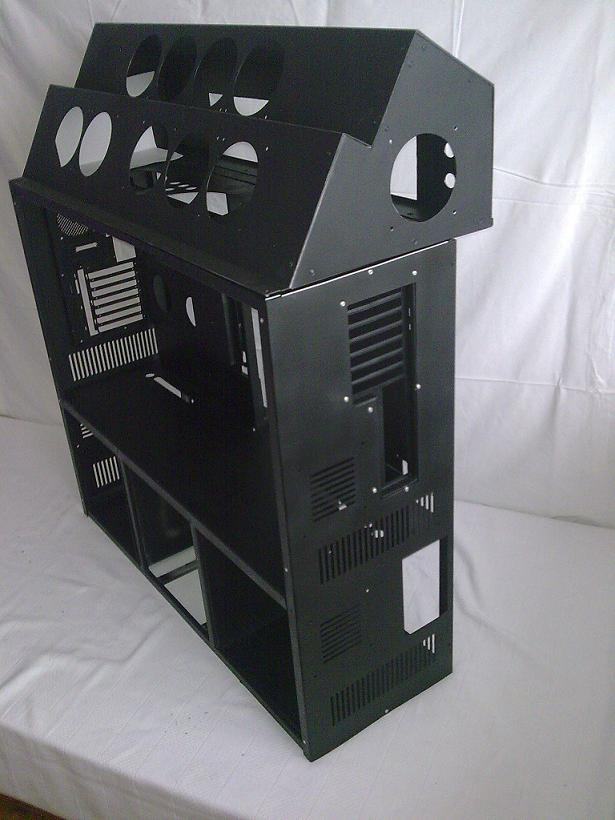

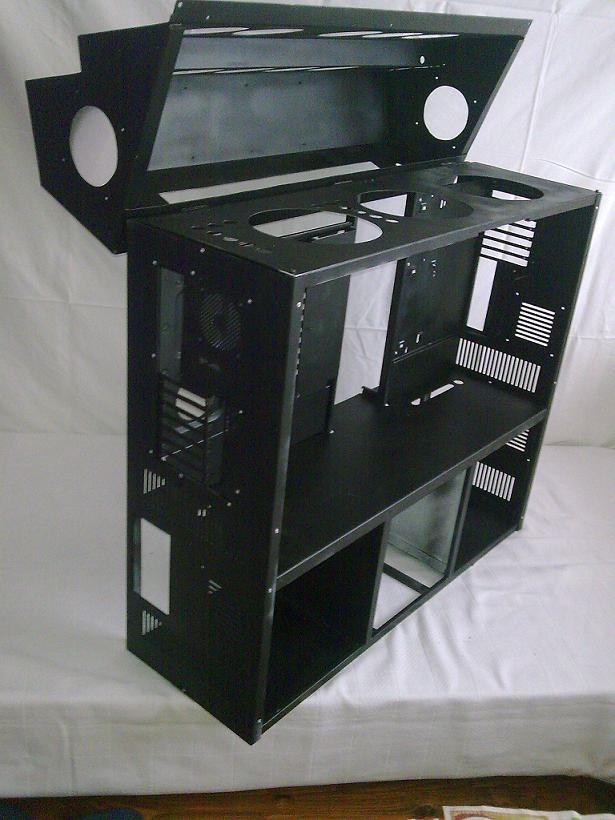

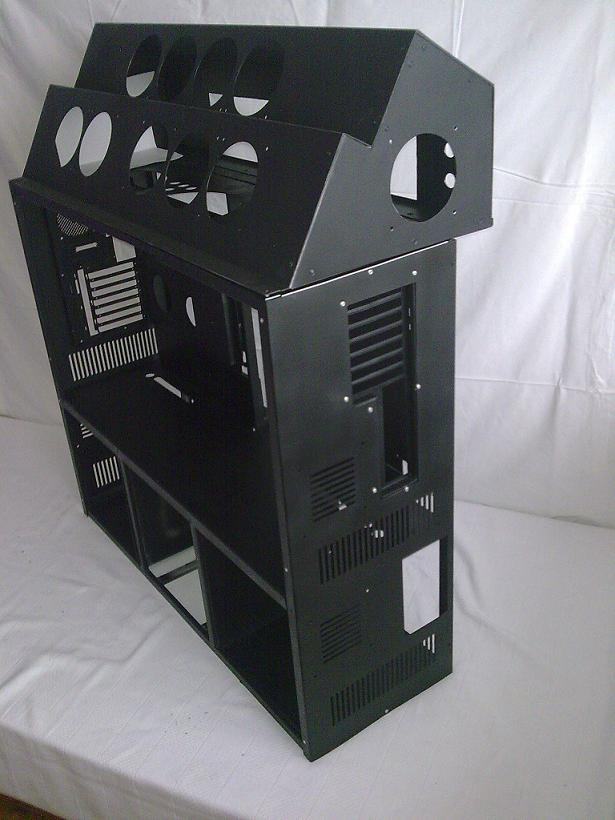

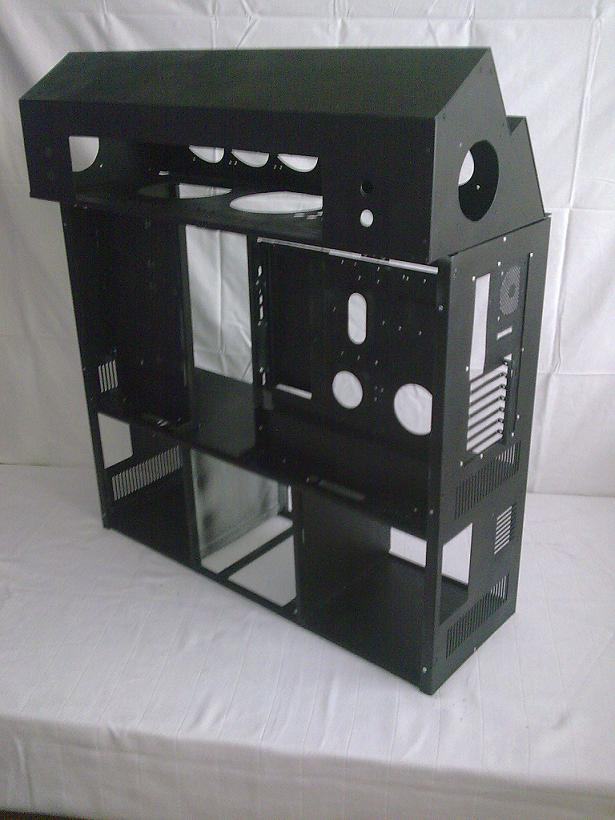

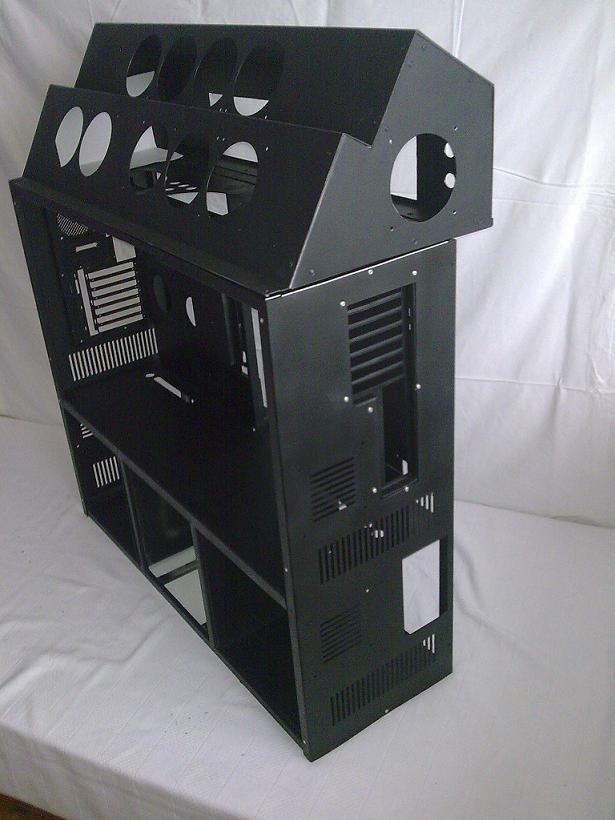

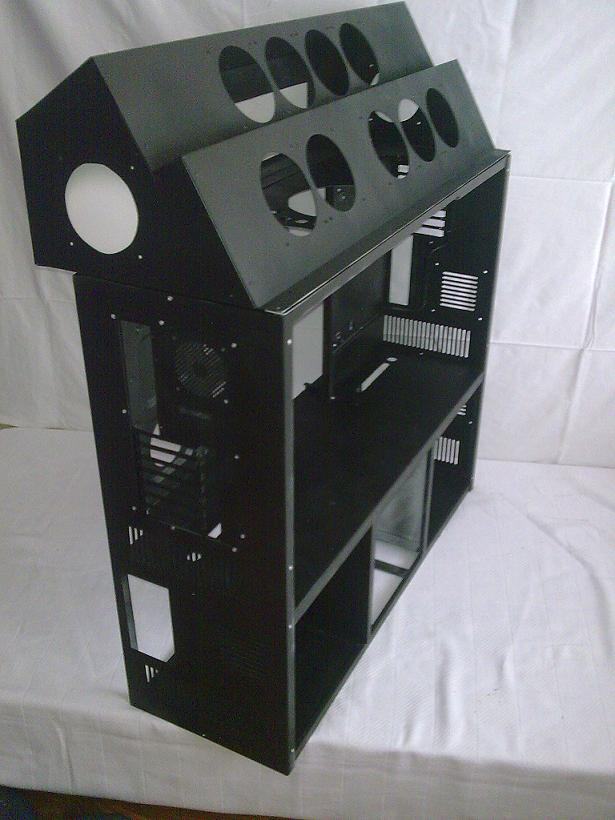

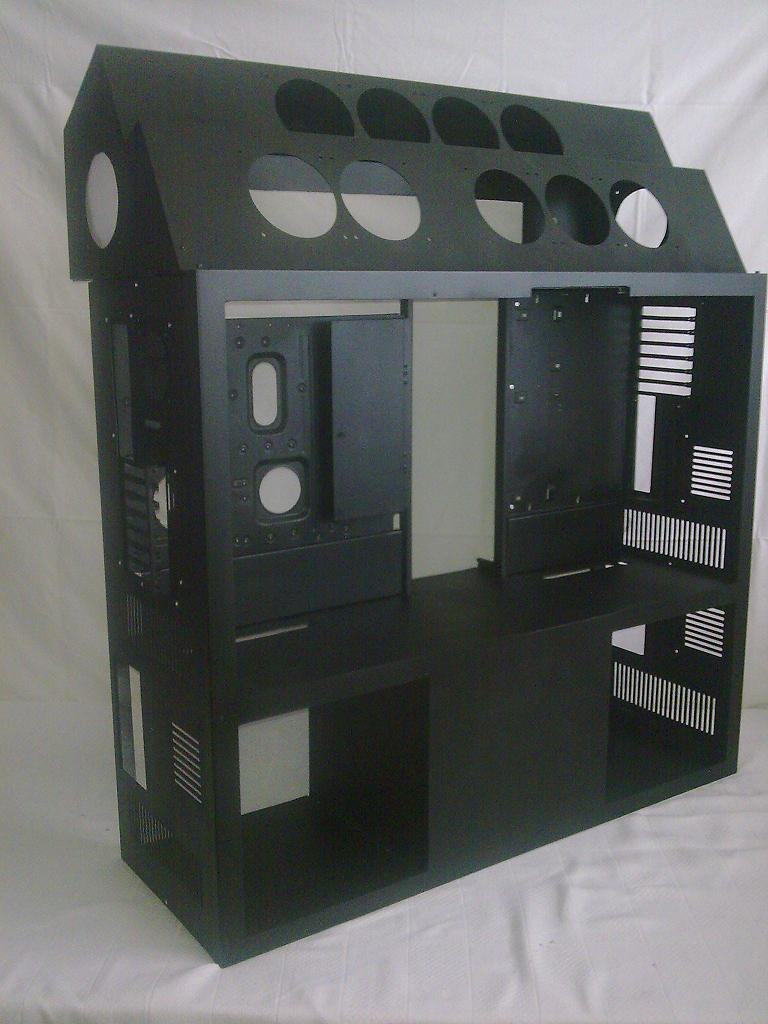

All case parts are firstly undercoated with epoxy ground coat, later it is painted mat black with spray paint .

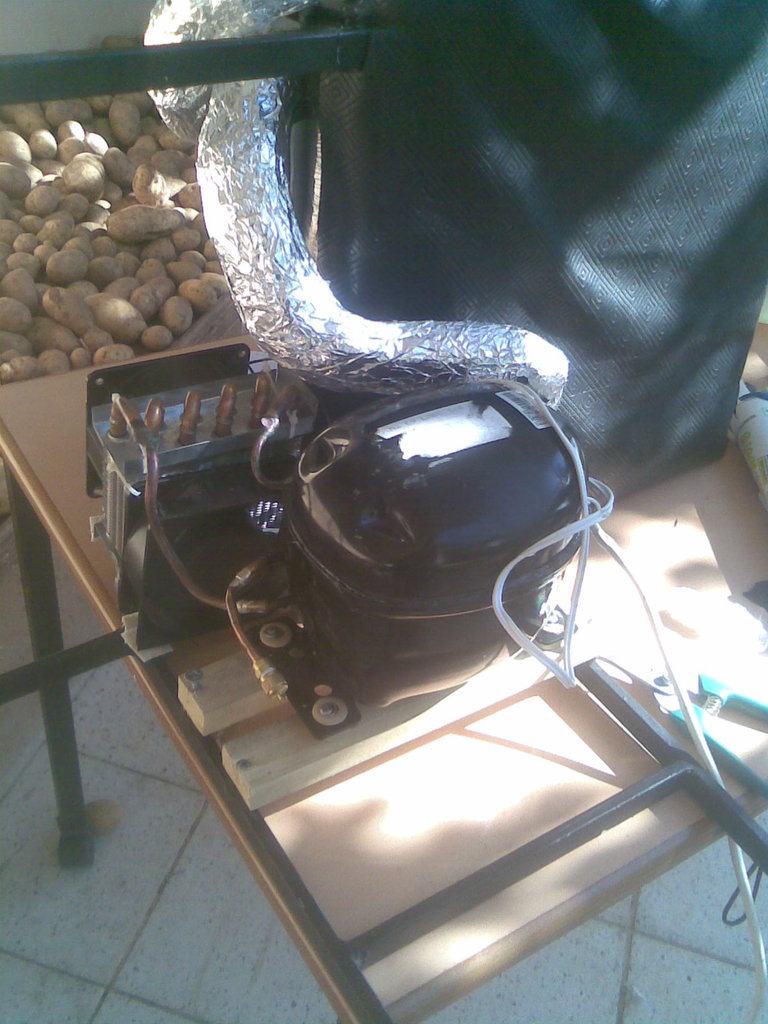

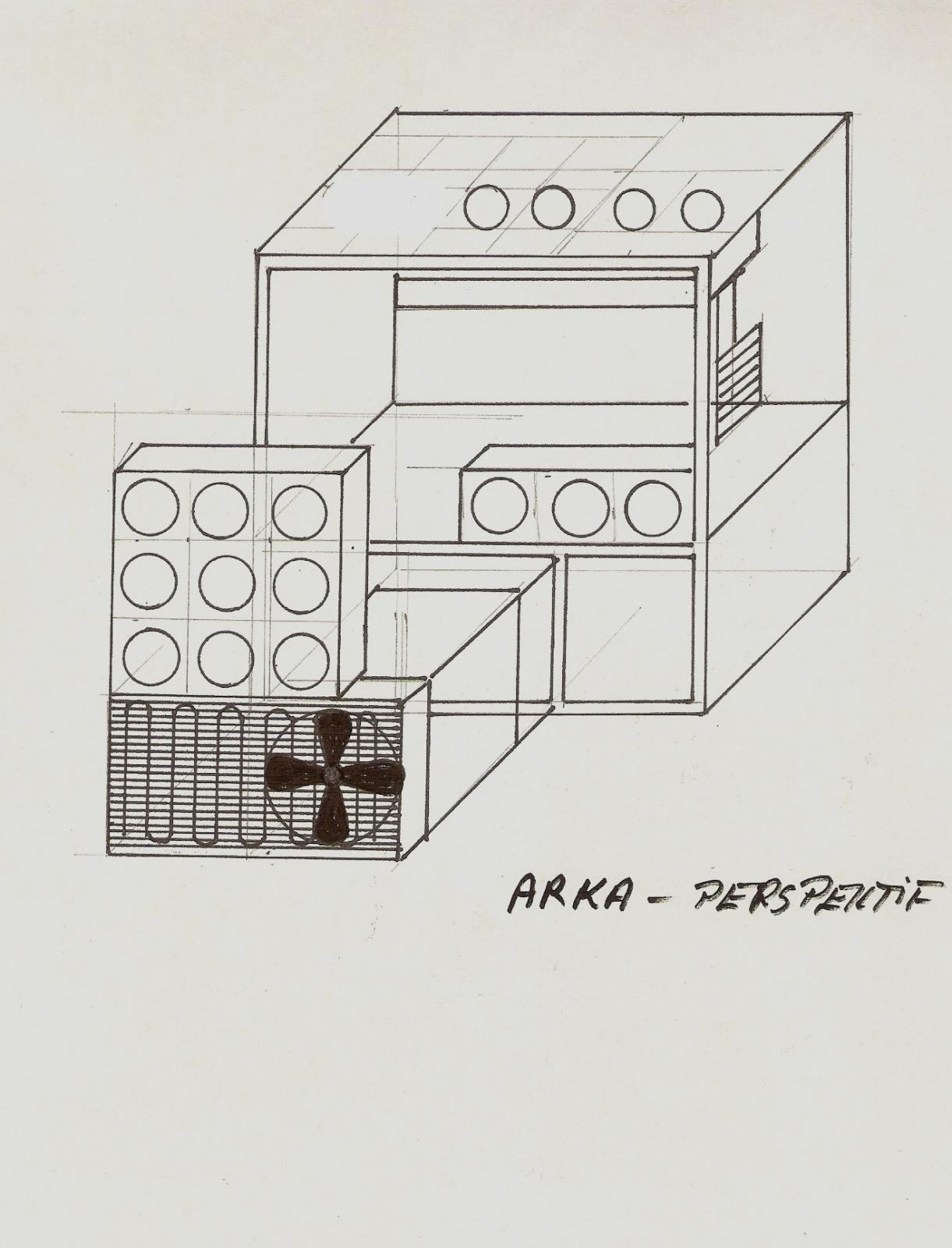

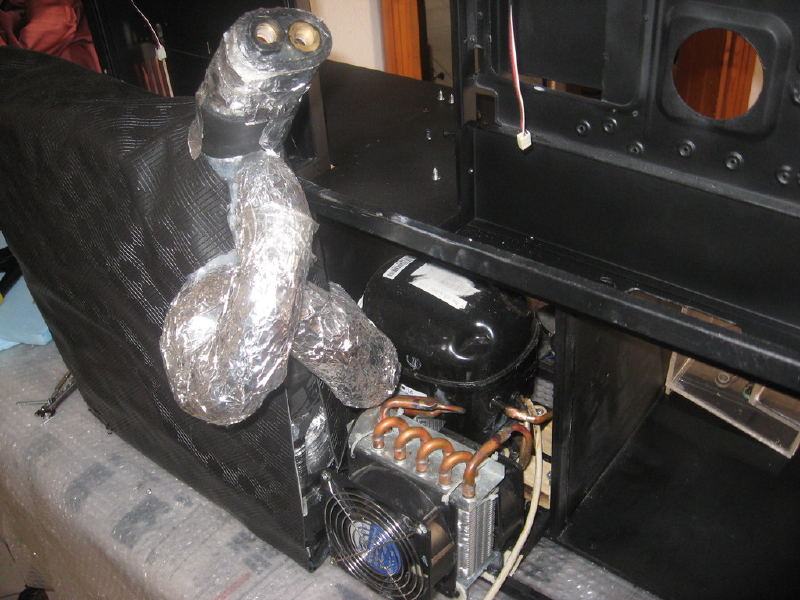

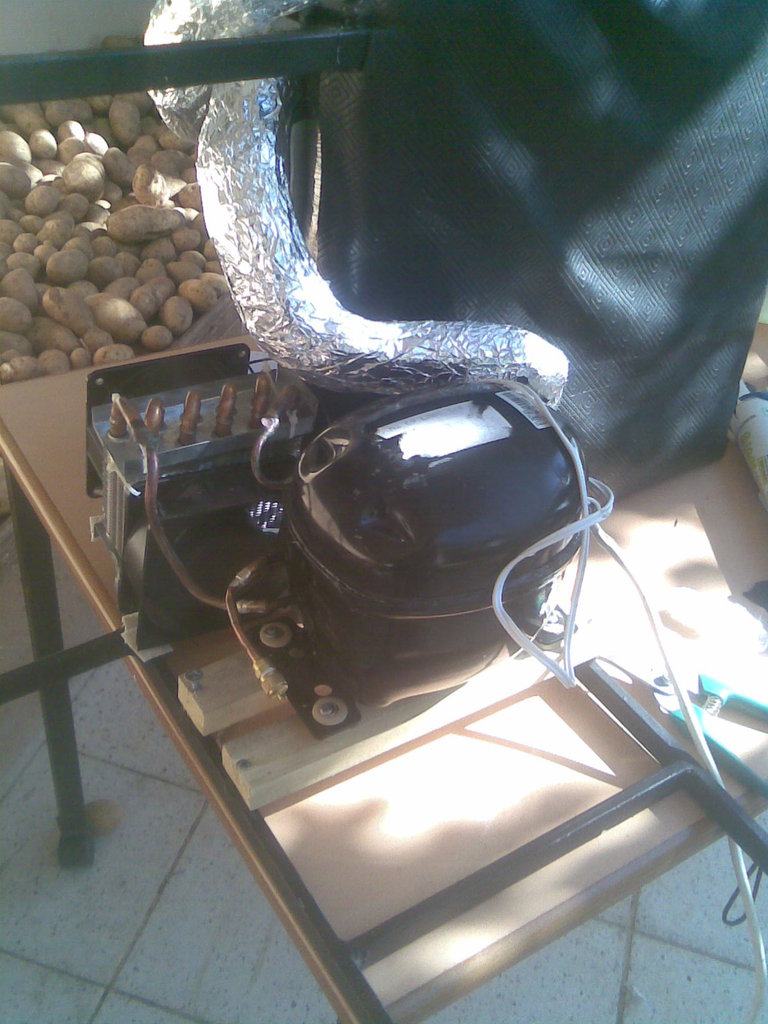

The slide at rear is for evo rad and for compressor(ecovatt)

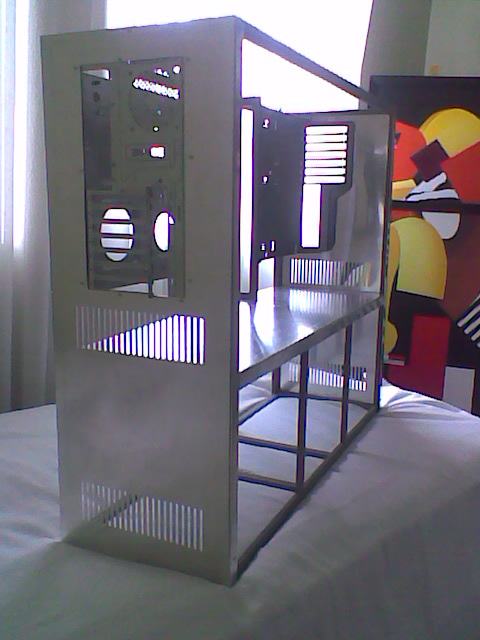

MB tray from an old case used as BTX

2.nd MB tray used in ATX form

A different cable management on the MB tray as a window and shark's tooth for cables.

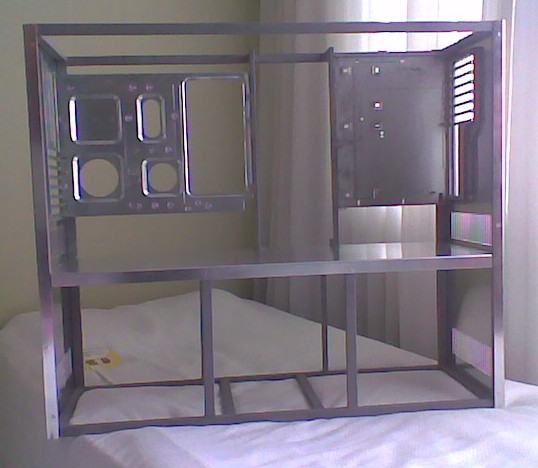

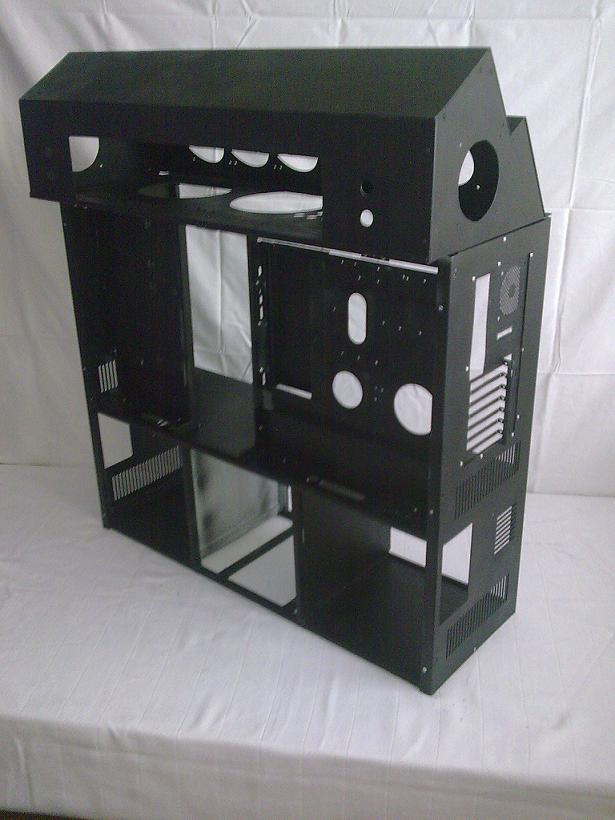

Front and back panels redy for ATX and BTX and PSU trays for 2x PSU

Mounted with rivets.

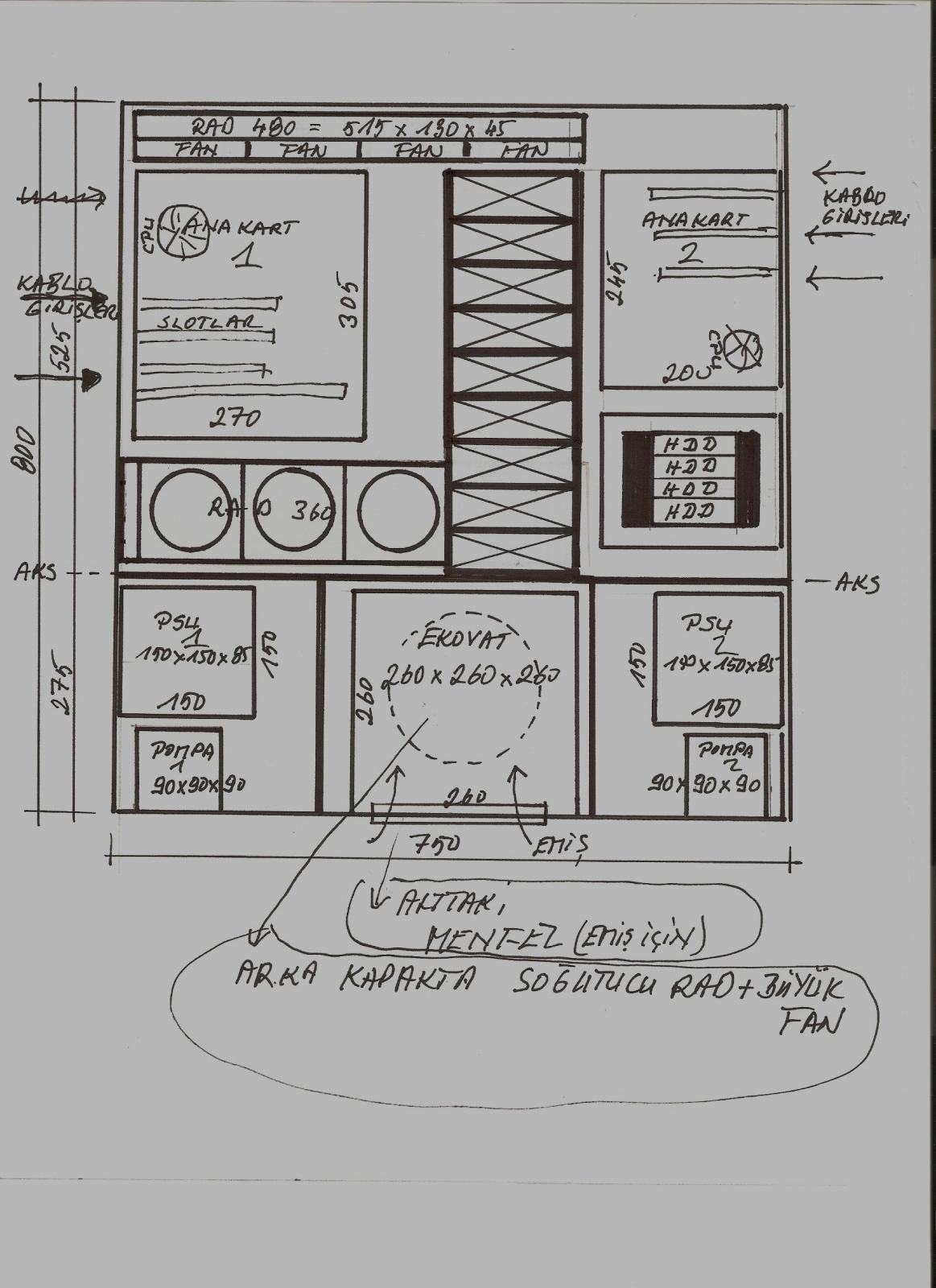

MB tray at left is for gaming PC as ATX form , and MB tray at right is for download PC in BTX form and downloading 7X24 …

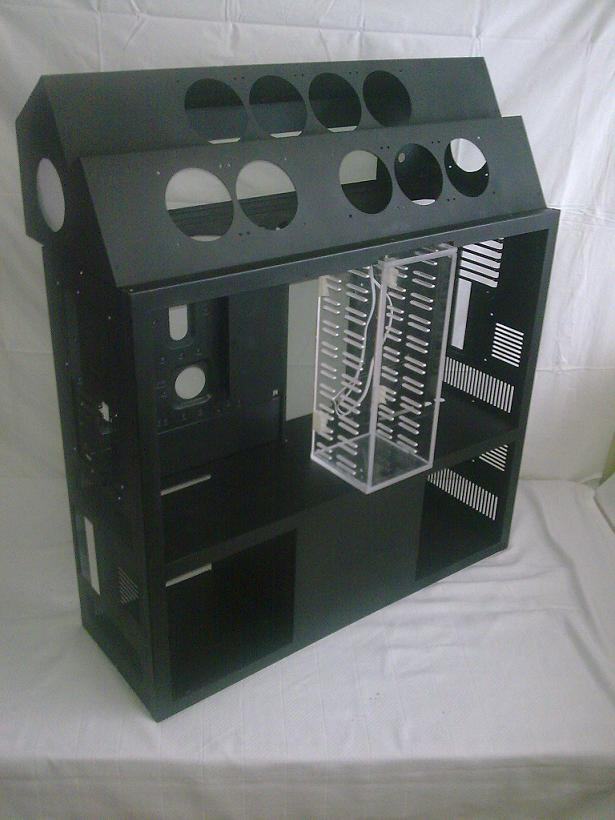

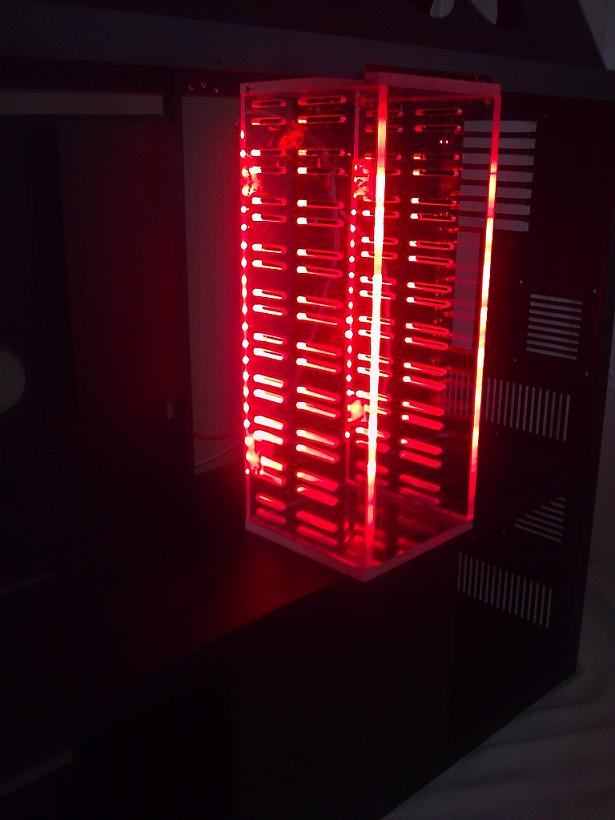

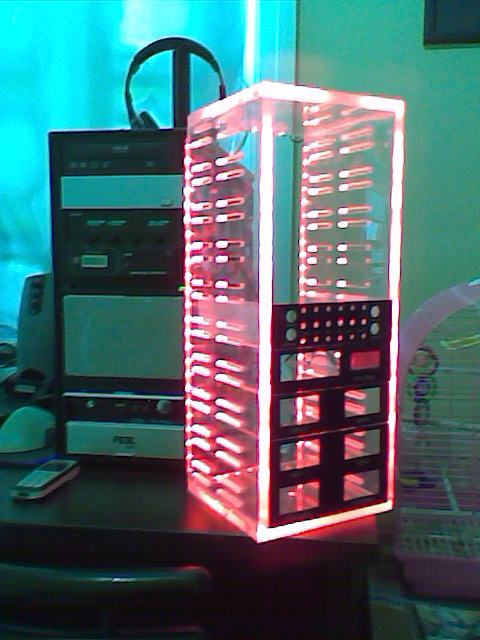

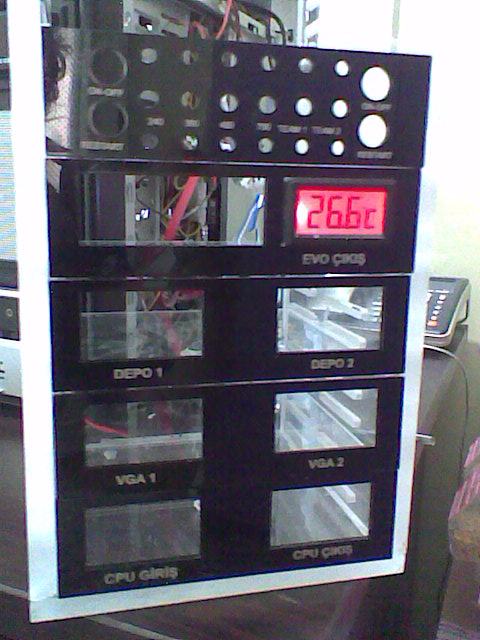

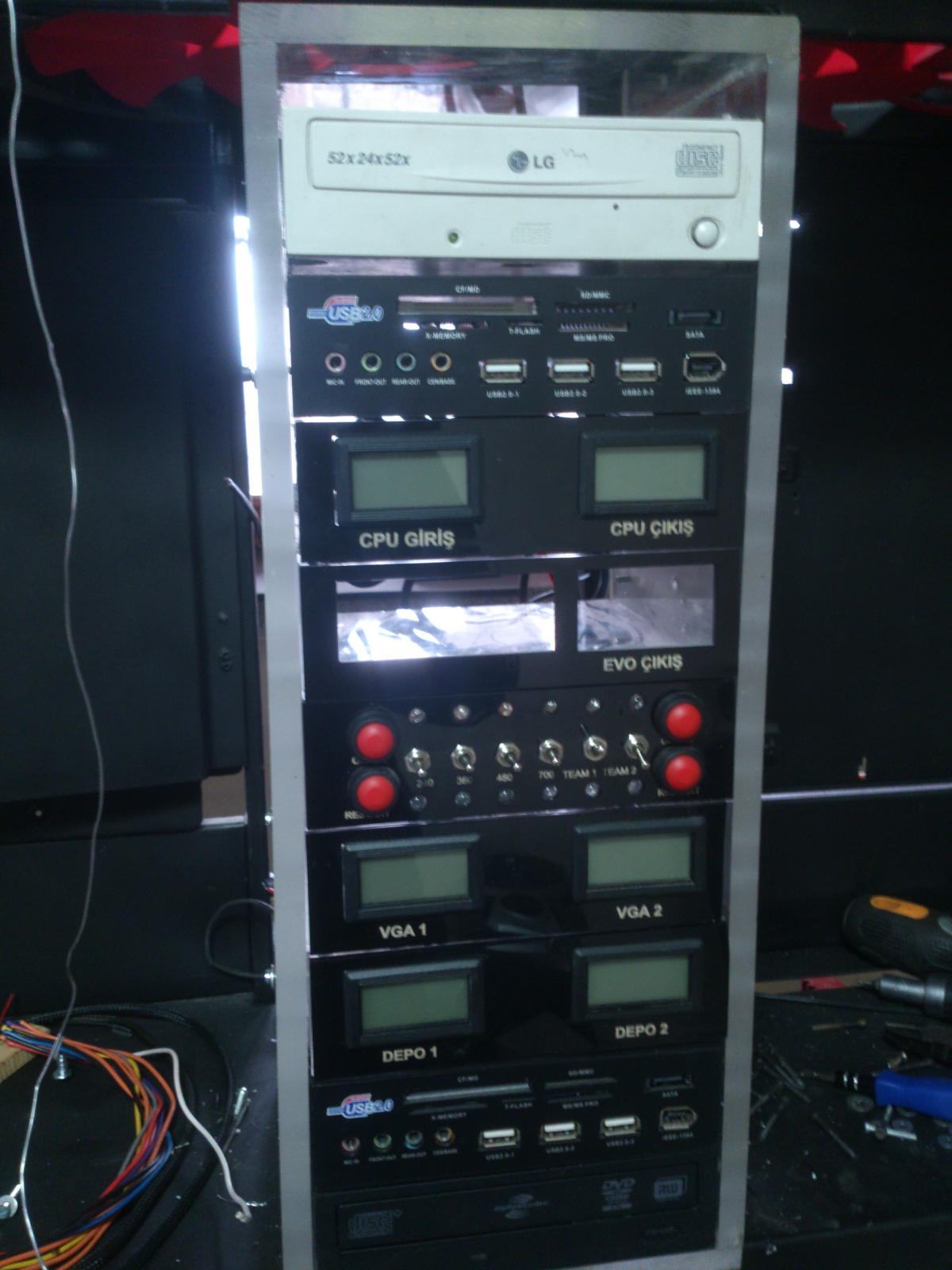

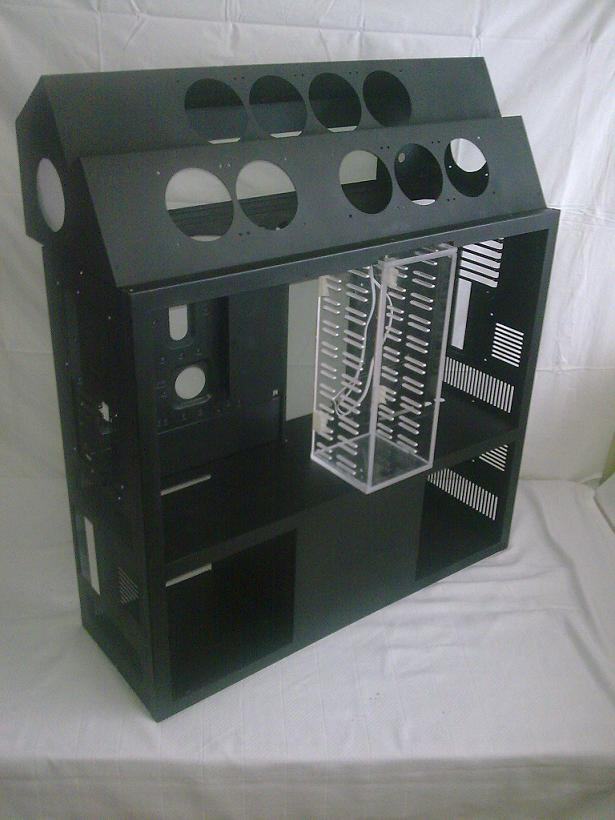

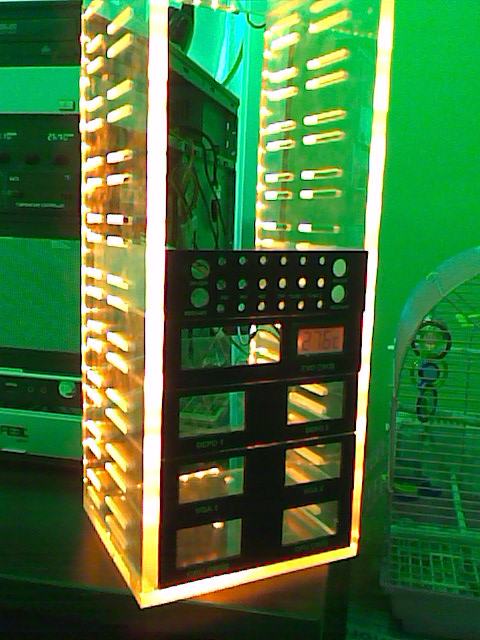

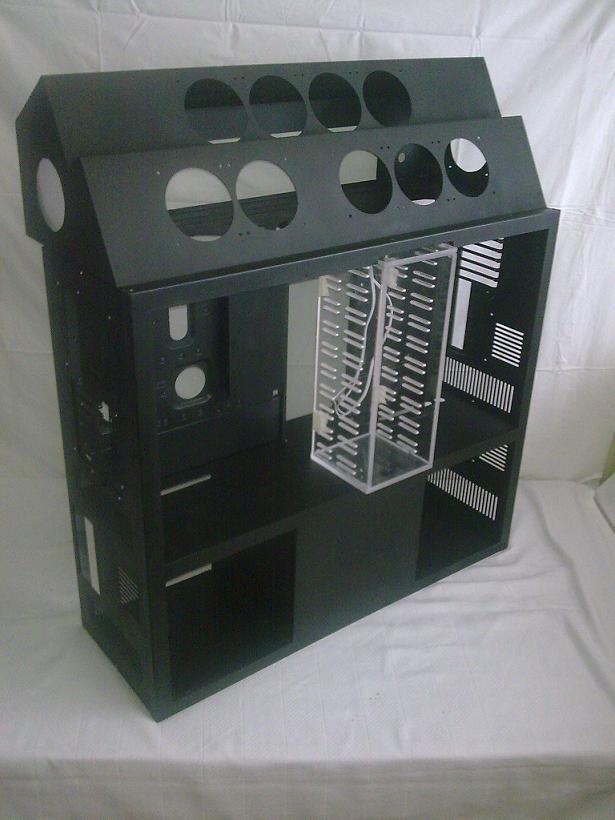

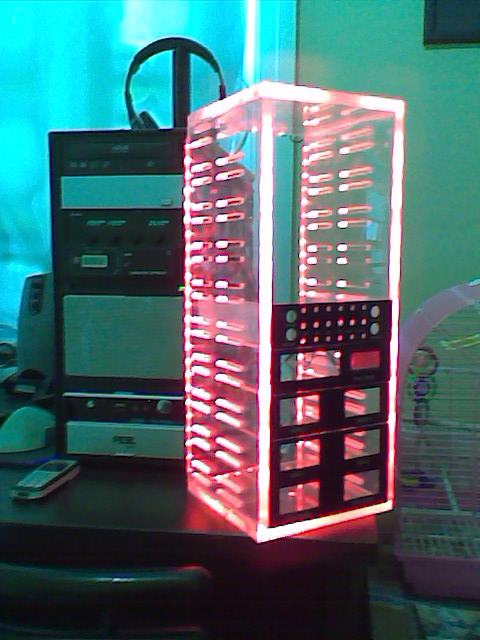

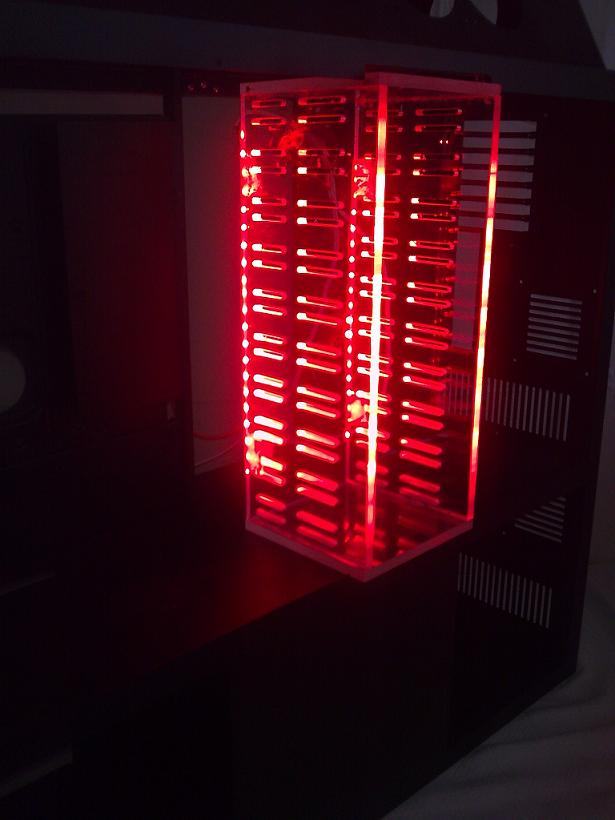

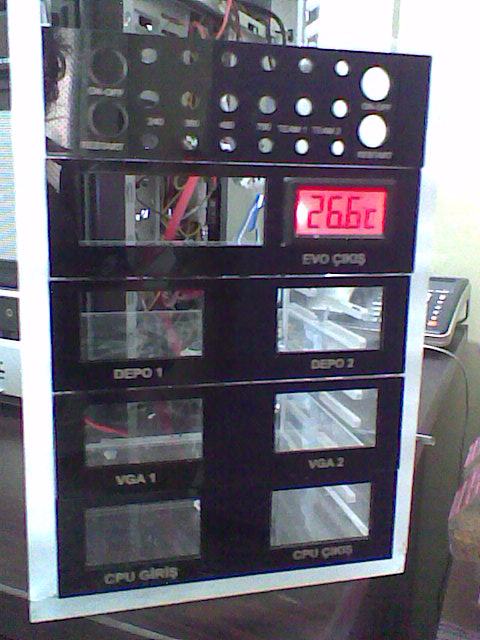

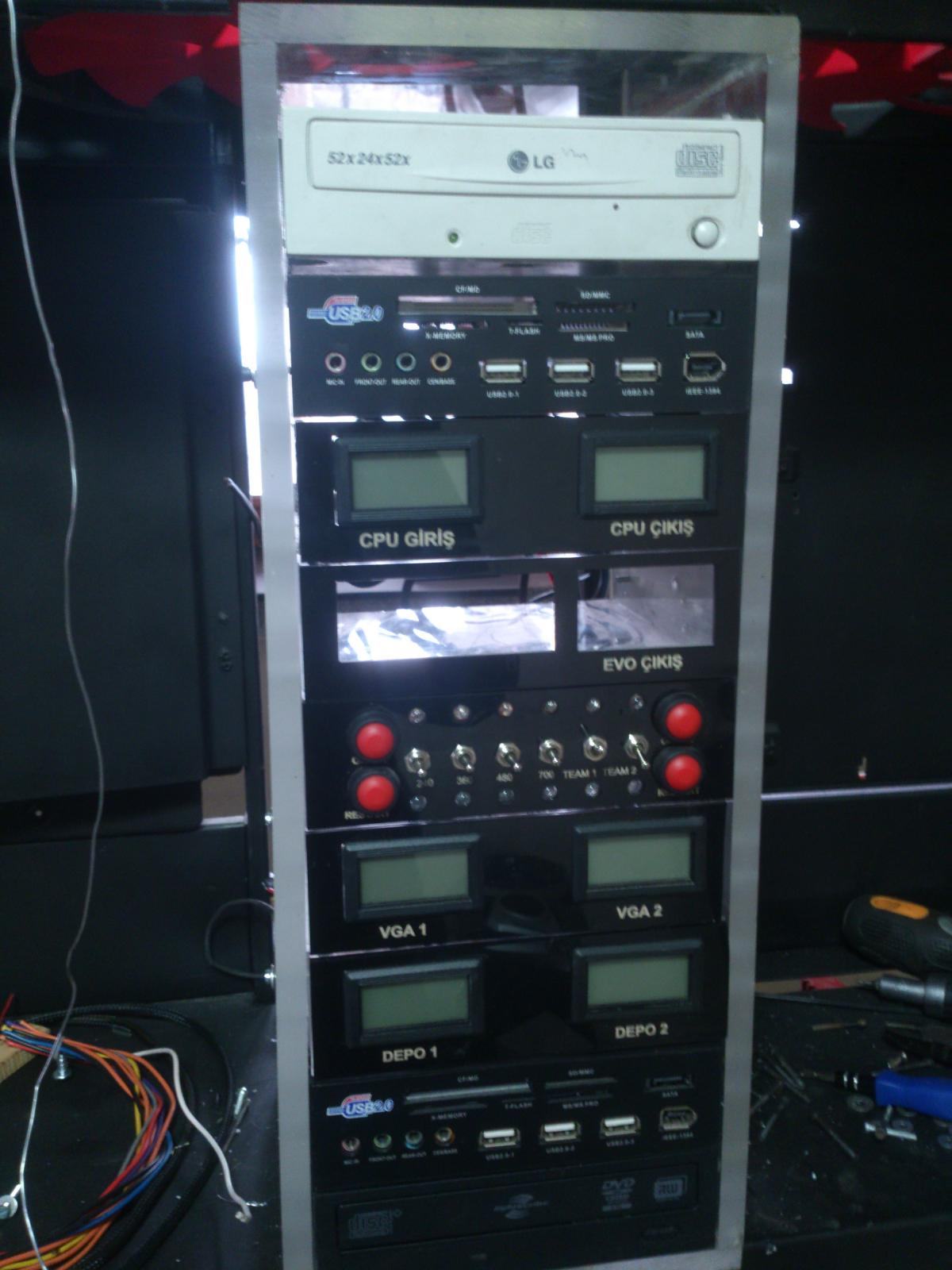

Between 2 MB an plexi self made 5.25 cage tower

The room at bottom

Left for PSU 1 at back- vertical and place for pumps
Right for PSU at back – vertical and place for pumps

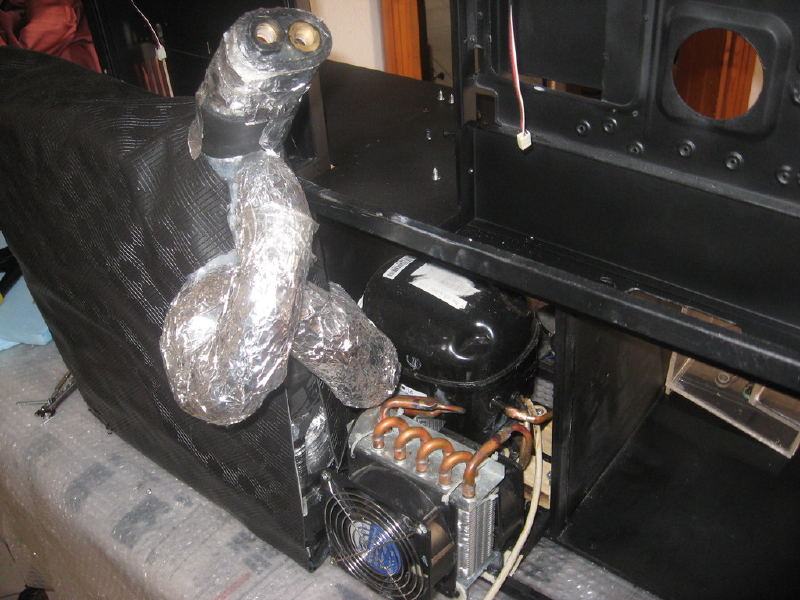

İn the middle room for compressor ( temp isolated ) and ventilated with an extra fan

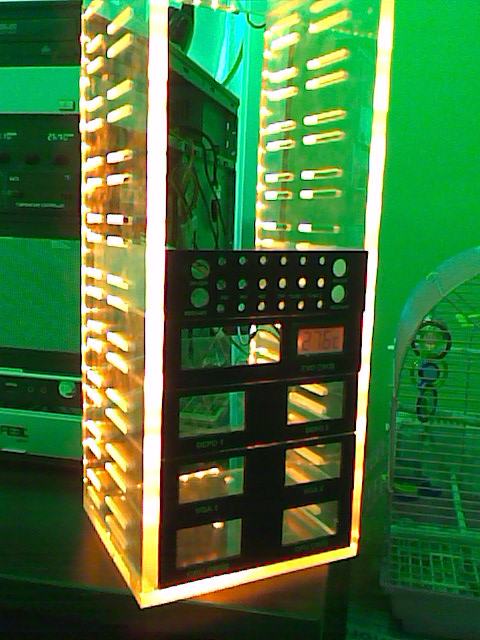

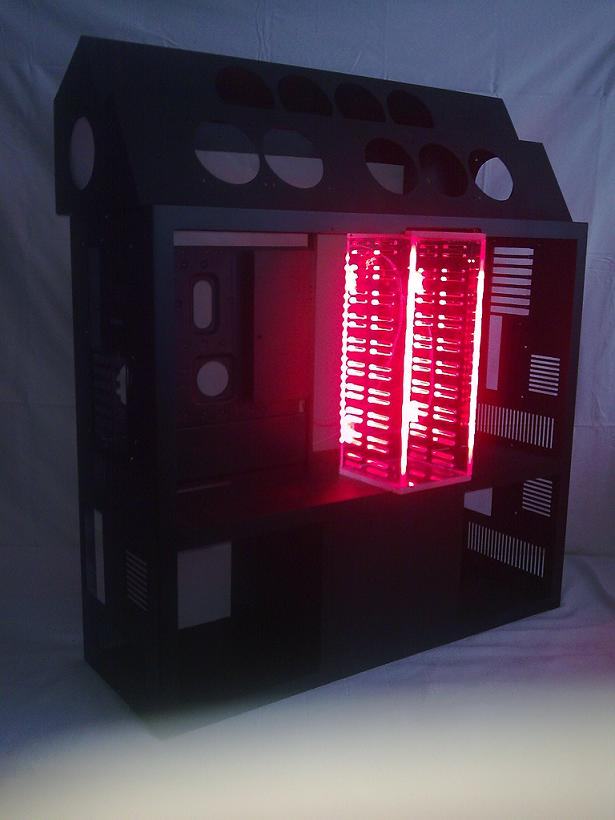

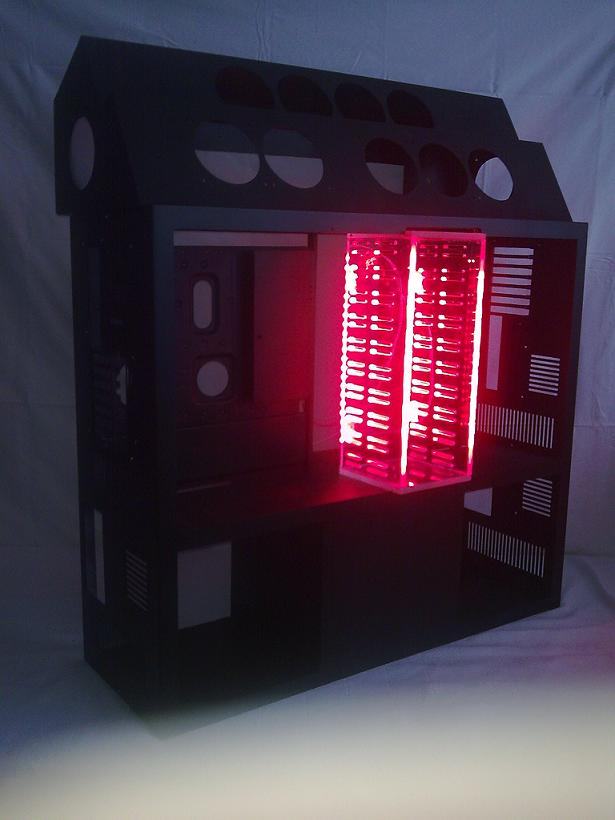

And fire logo at the front cover from plexi and illuminated

2X MB trays and enough free place over the trays and bottom the trays.

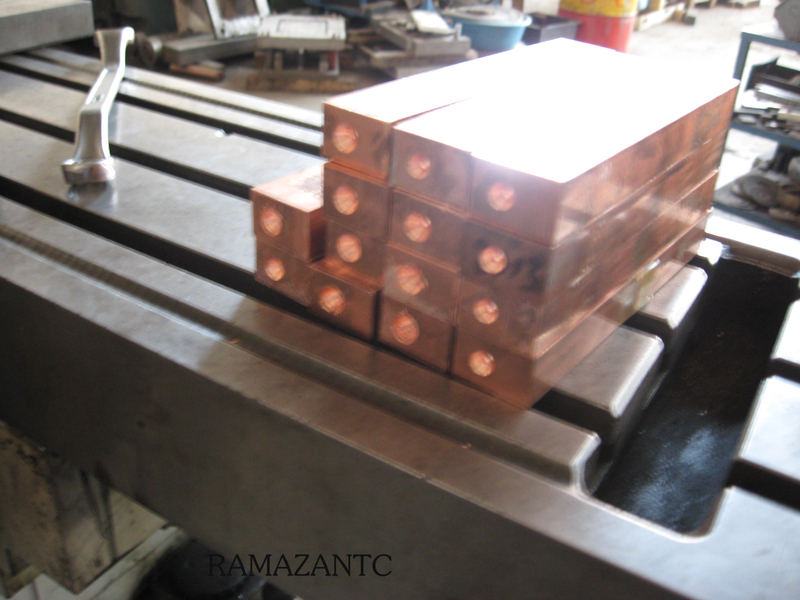

Expecially for custom watercooled HDD s.

3 great holes for Jumbo fans and many holes for grommets of tubing



[arg-ist]

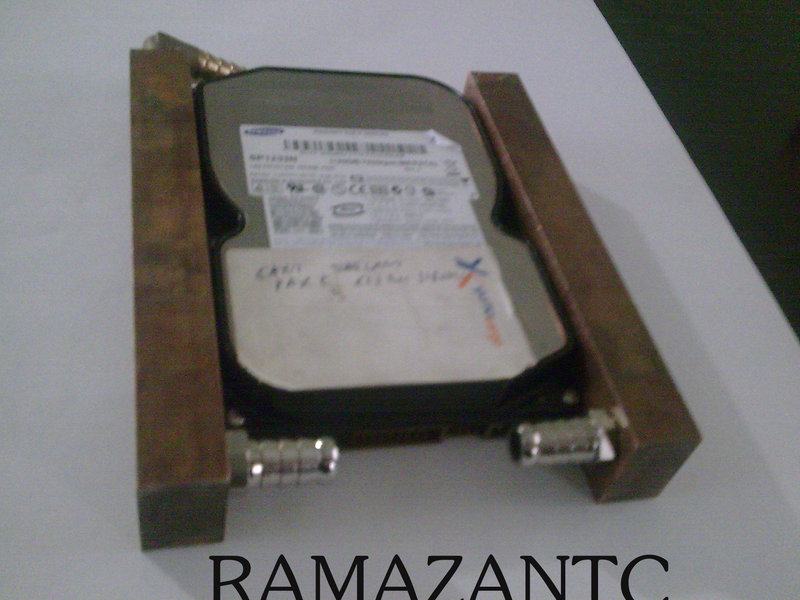

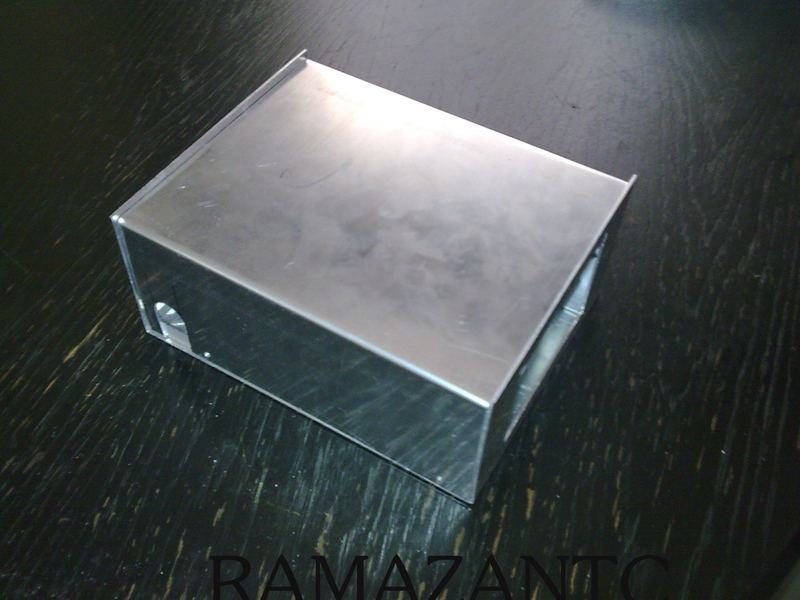

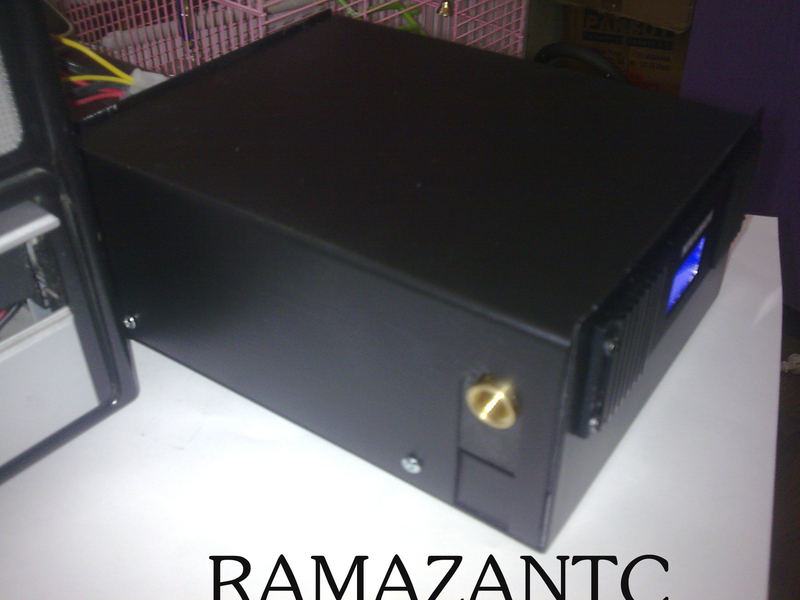

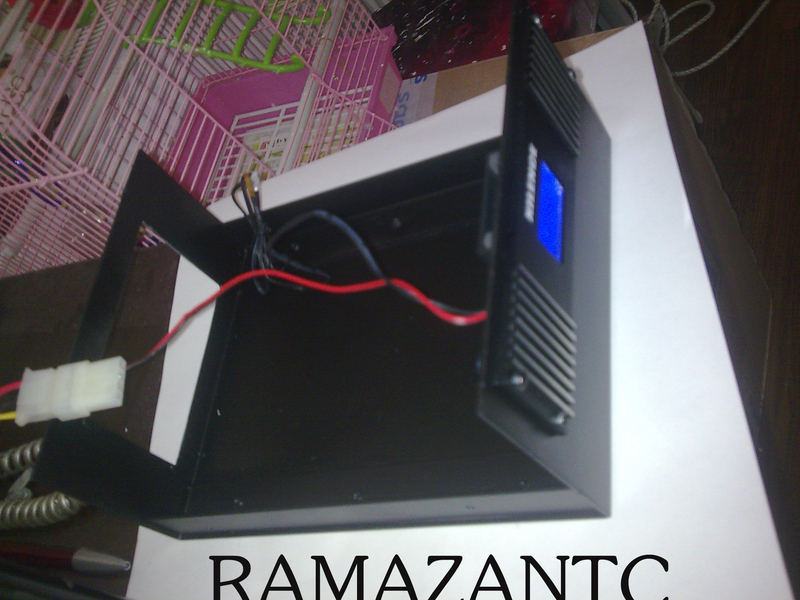

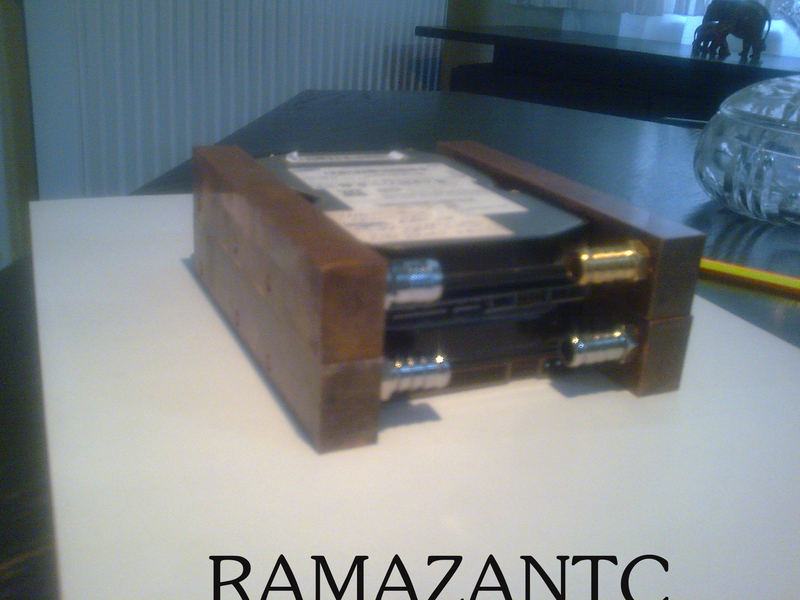

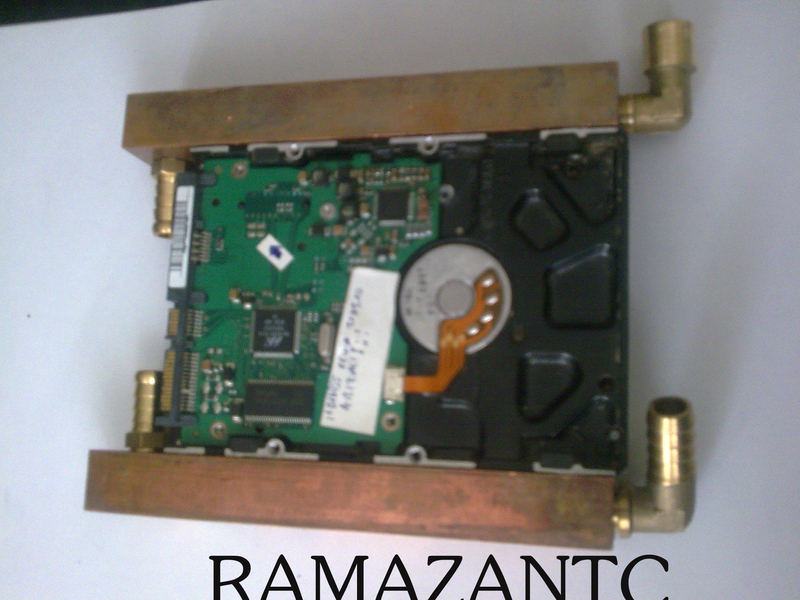

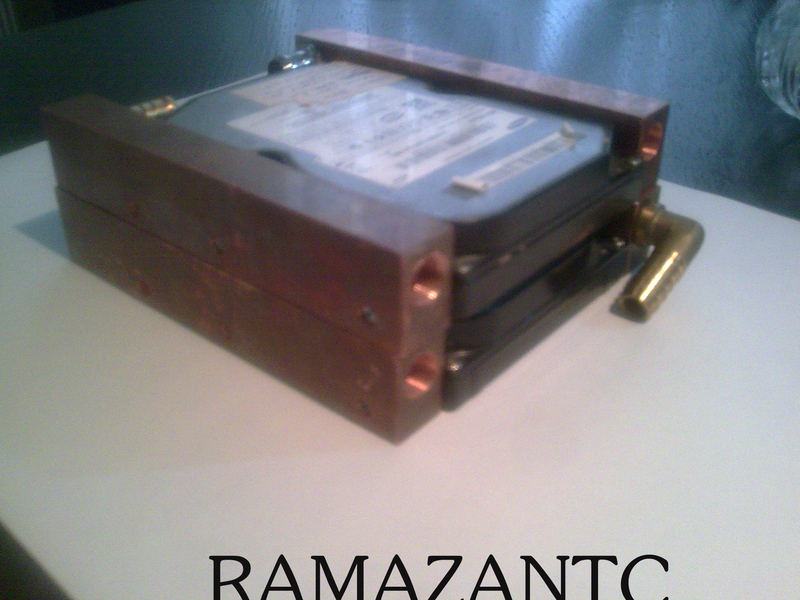

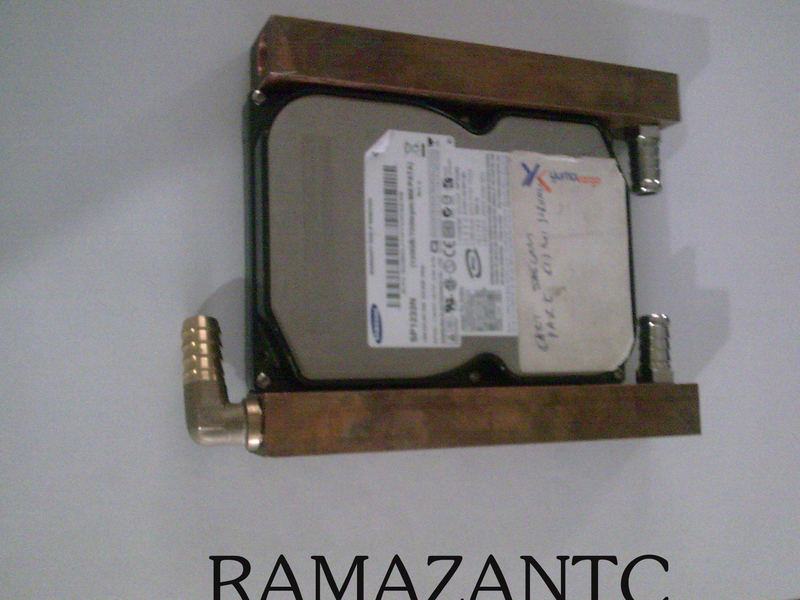

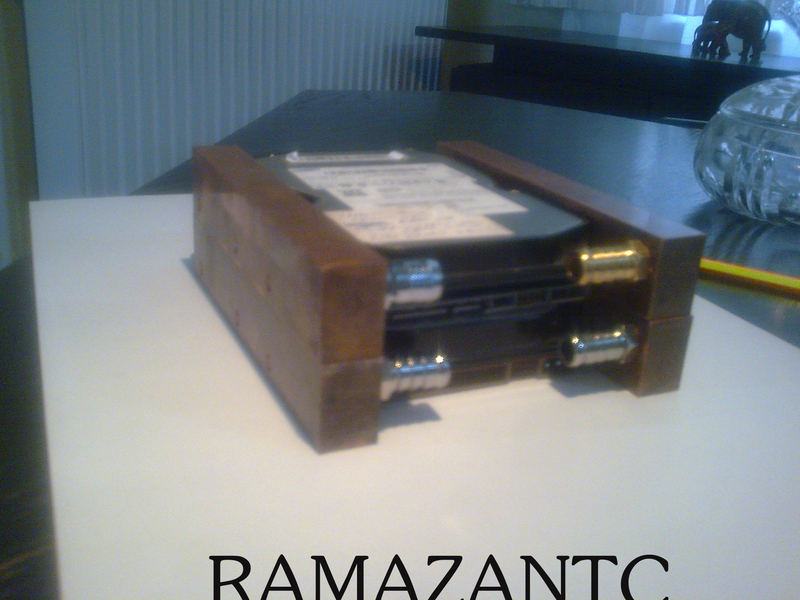

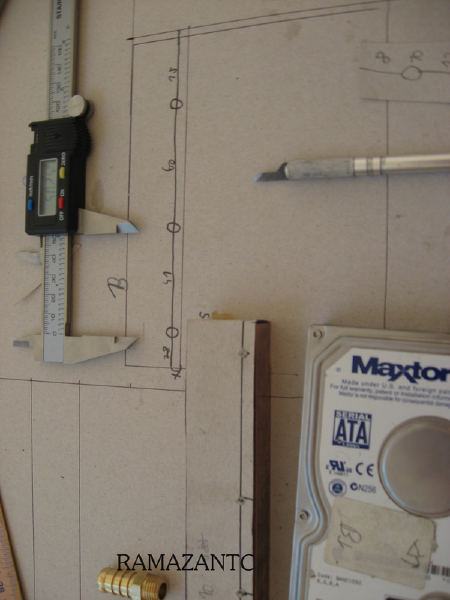

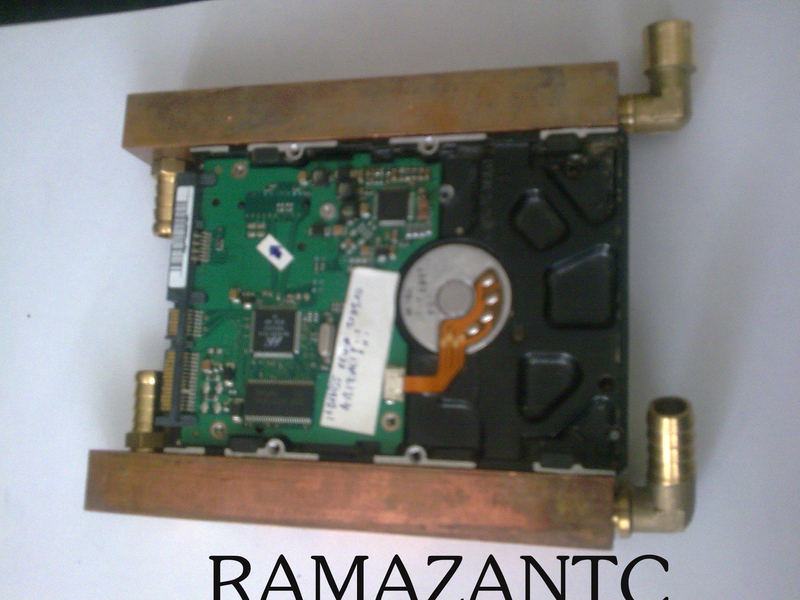

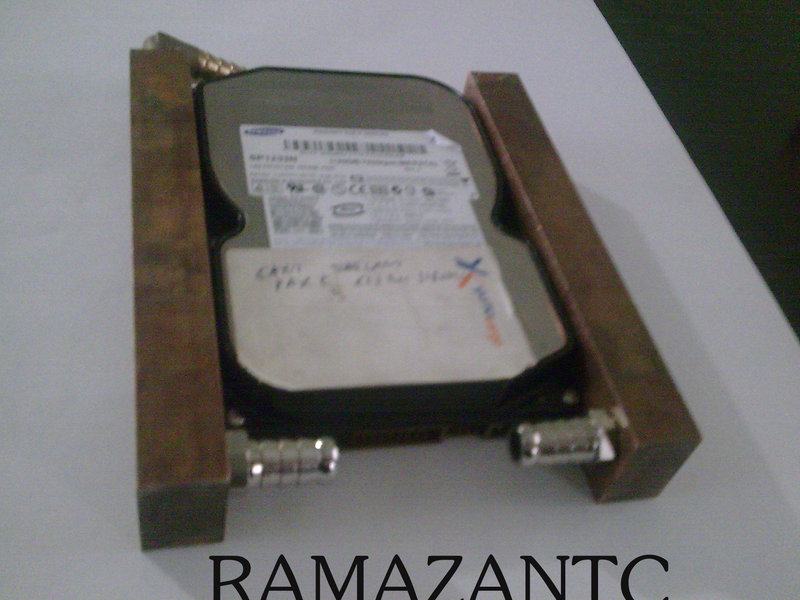

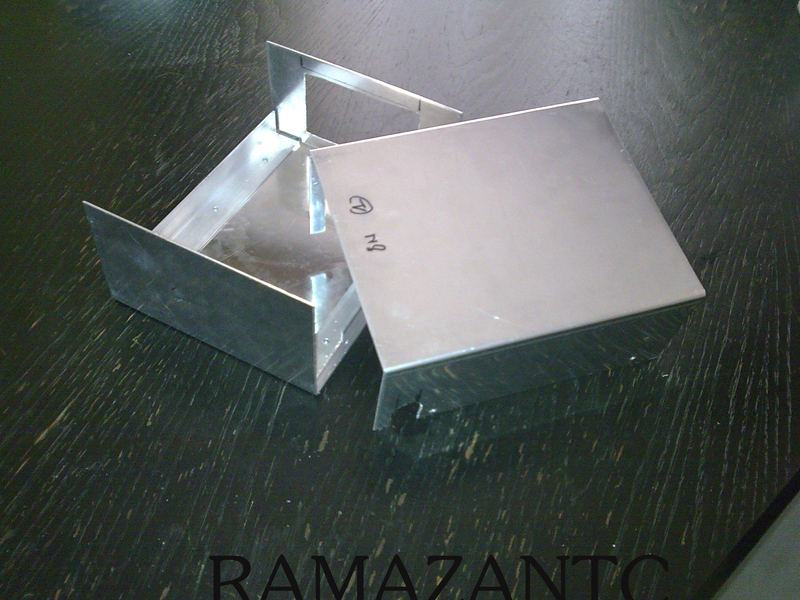

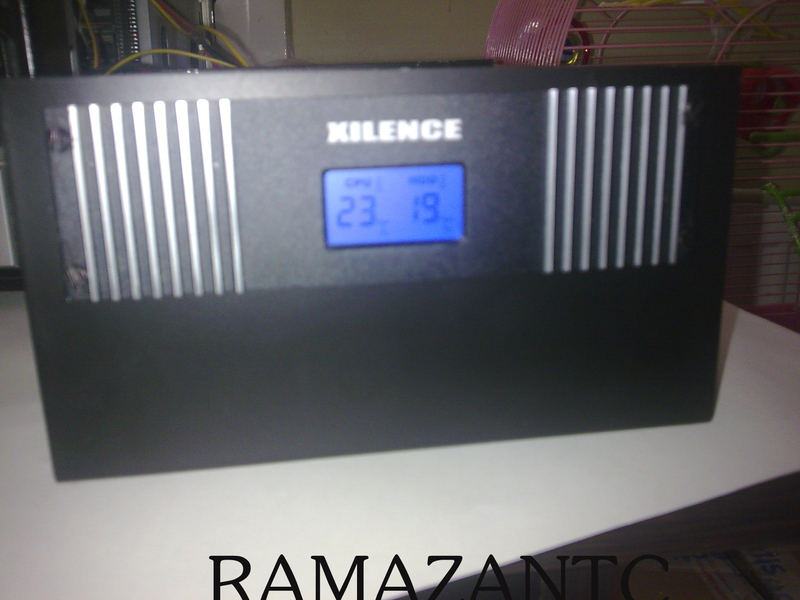

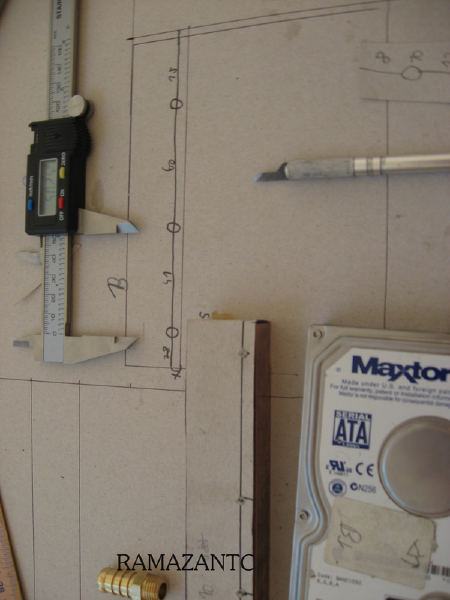

there are alot of HDD watercoolers or noise ısolated - internal hard drive enclosure,to reduce HD noise .

it is impossibele to make a passive HDD silencer and cooler together.

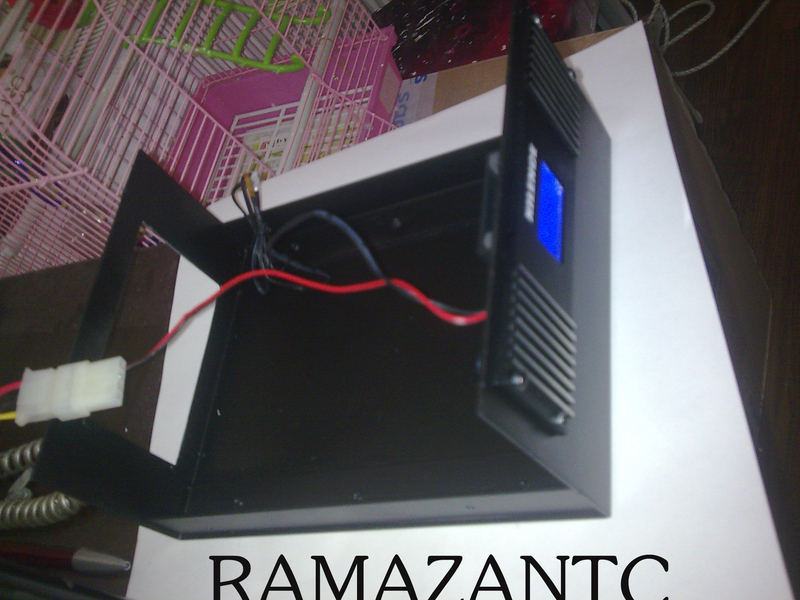

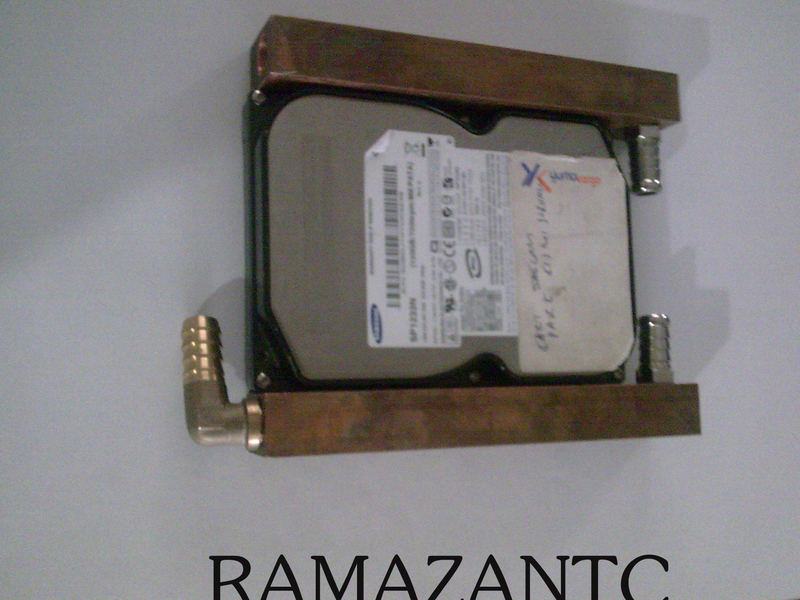

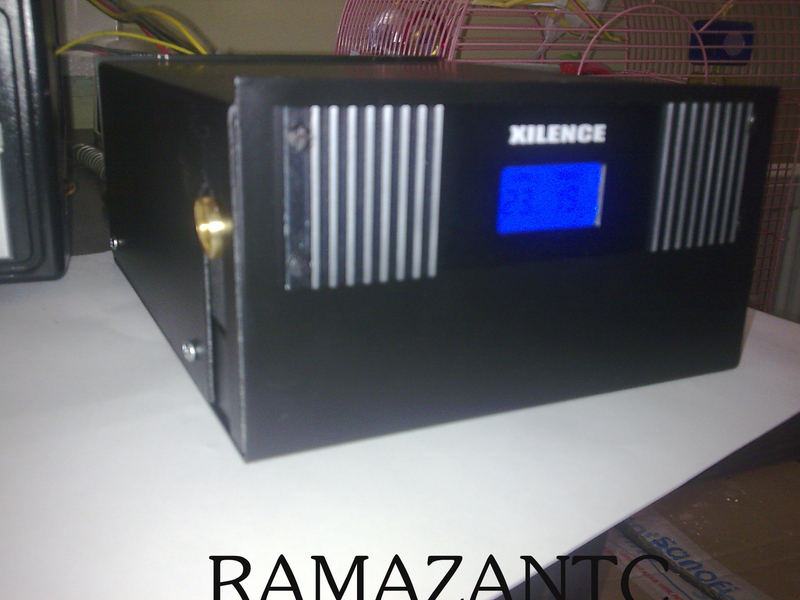

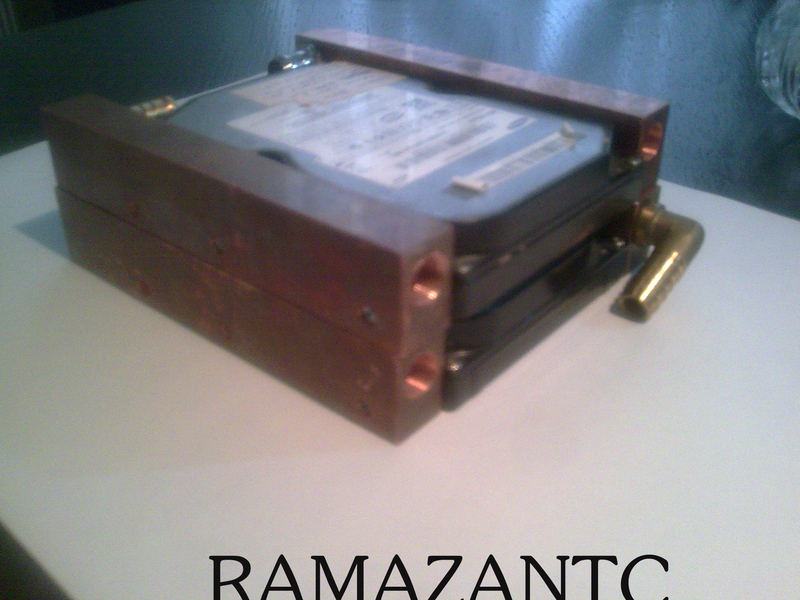

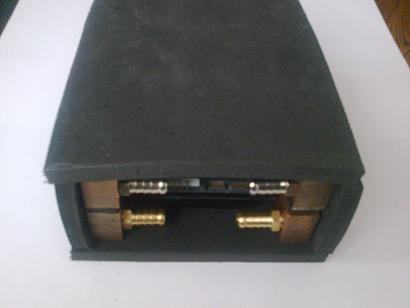

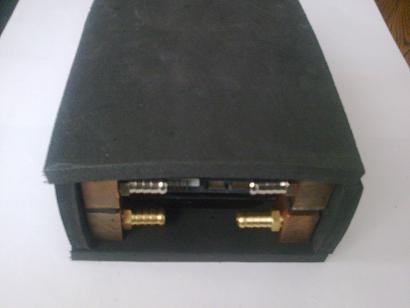

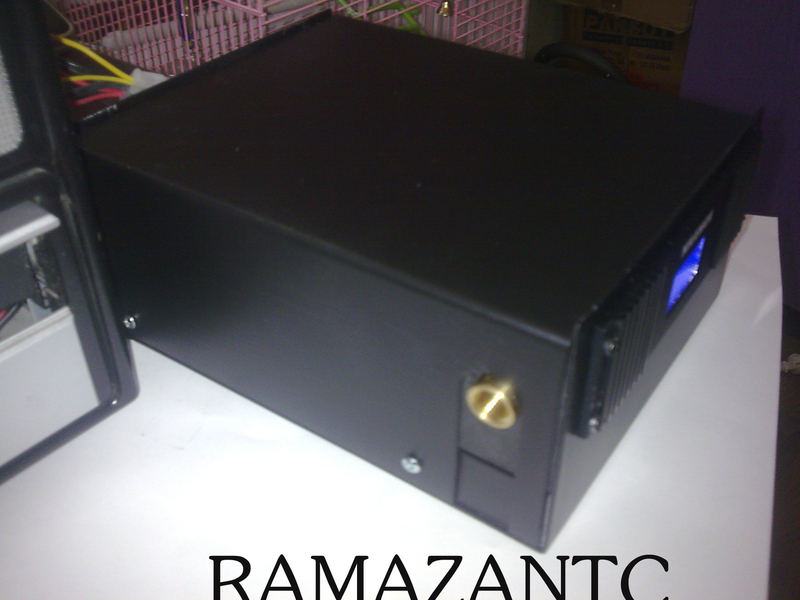

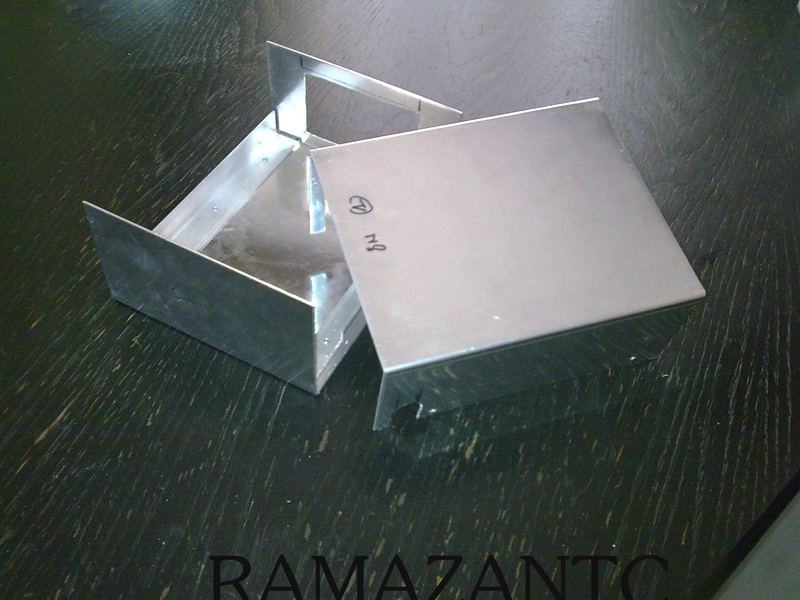

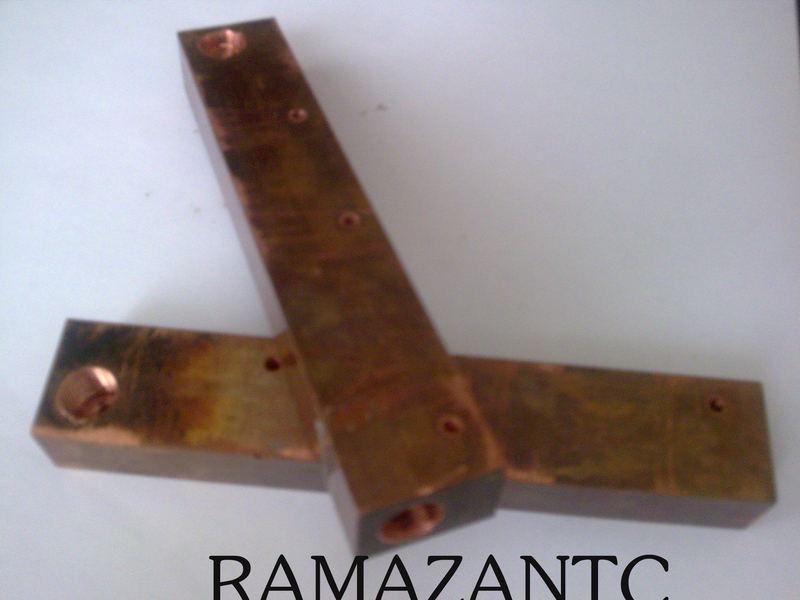

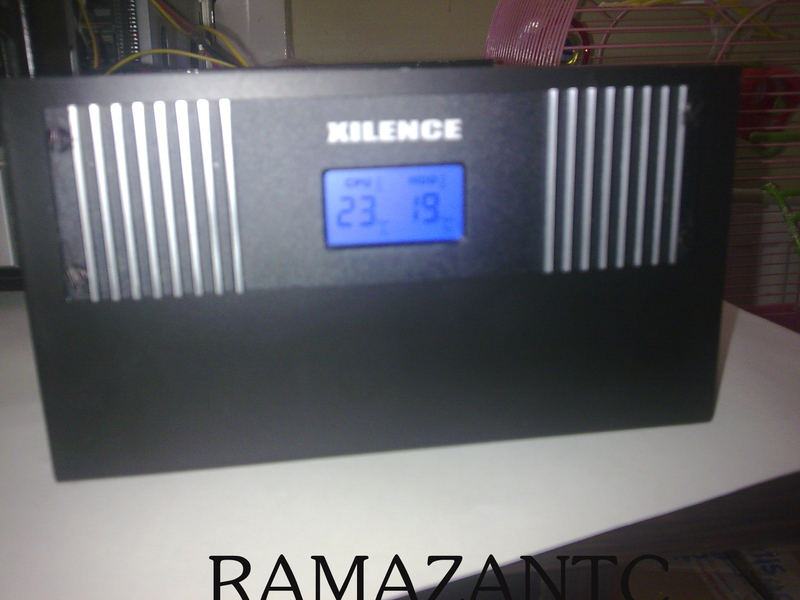

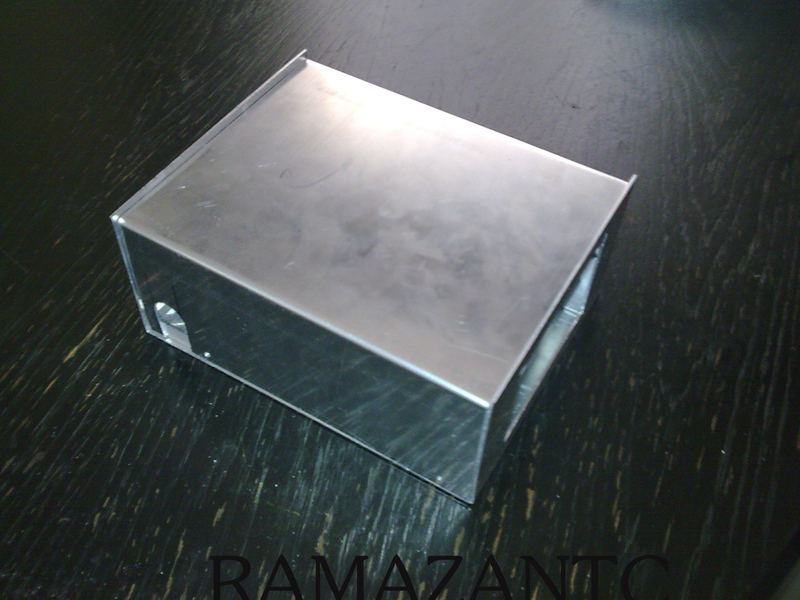

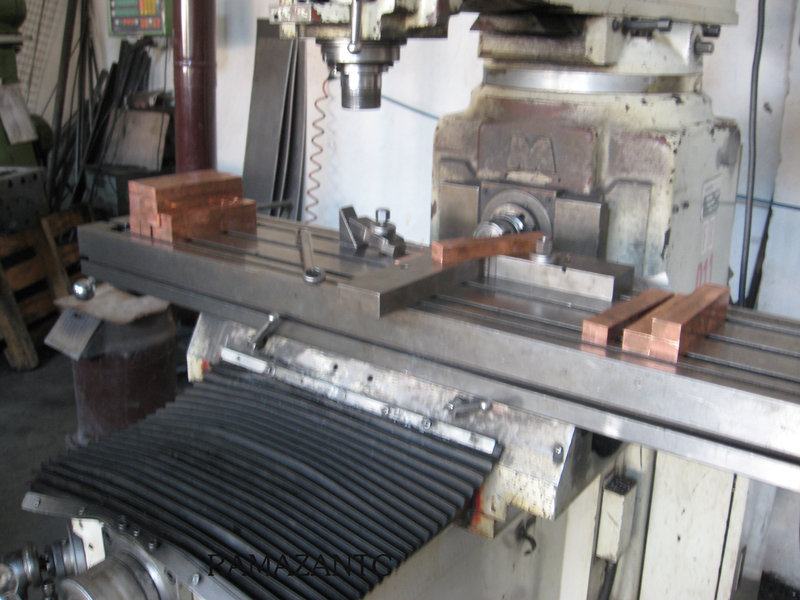

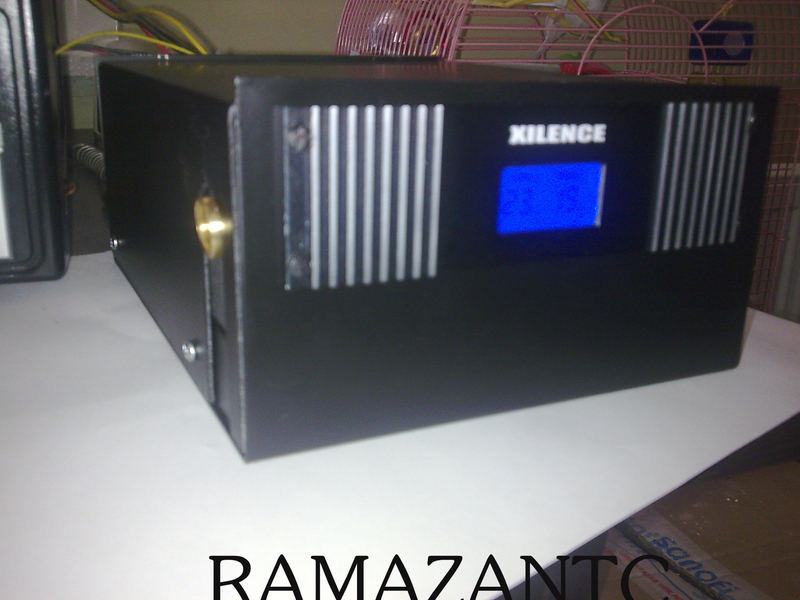

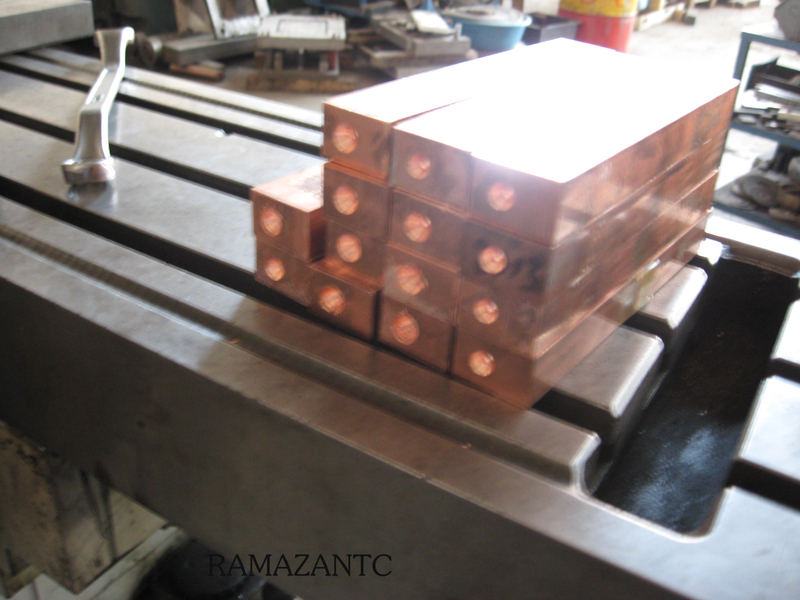

but it is possible to make noise isolated HDD watercooler. And done…
