Hallo in die Runde,
lange Rede, kurzer Sinn: Meine 12TB WD MyBook Platte hat es wohl komplett zerschossen.
Smart-Informationen:
Fehler im Log beim Mount-Versuch:
Komplett erfolgloser ddrescue-Versuch (habs nach ner Stunde abgebrochen, weiterhin ohne auch nur ein einziges wiederhergestelltes Byte):
Und so sah das Unraid-Log währenddessen aus:
Kann man die im Hinterhof verscharren, oder kann man vielleicht doch noch einen letzten Wiederherstellungsversuch starten? Da war nix drauf, was nicht ersetzt werden kann, aber es wäre natürlich schön, wenn ich nicht 10TB an Blurays wieder ausm Keller holen und erneut auf dem Server ablegen müsste.
PS: Parityplatte gibt's jetzt. Manchmal muss man sich erst die Finger verbrennen...
lange Rede, kurzer Sinn: Meine 12TB WD MyBook Platte hat es wohl komplett zerschossen.
Smart-Informationen:
Code:
[root@sysrescue ~]# smartctl -a /dev/sda
smartctl 7.3 2022-02-28 r5338 [x86_64-linux-5.15.58-2-lts] (local build)
Copyright (C) 2002-22, Bruce Allen, Christian Franke, www.smartmontools.org
=== START OF INFORMATION SECTION ===
Model Family: Western Digital Red
Device Model: WDC WD120EMFZ-11A6JA0
Serial Number: xxxxxxxx
LU WWN Device Id: 5 000cca 264d4a35b
Firmware Version: 81.00A81
User Capacity: 12,000,138,625,024 bytes [12.0 TB]
Sector Sizes: 512 bytes logical, 4096 bytes physical
Rotation Rate: 5400 rpm
Form Factor: 3.5 inches
Device is: In smartctl database 7.3/5319
ATA Version is: ACS-2, ATA8-ACS T13/1699-D revision 4
SATA Version is: SATA 3.2, 6.0 Gb/s (current: 6.0 Gb/s)
Local Time is: Tue Aug 16 19:05:56 2022 UTC
SMART support is: Available - device has SMART capability.
SMART support is: Enabled
Read SMART Thresholds failed: scsi error medium or hardware error (serious)
=== START OF READ SMART DATA SECTION ===
SMART overall-health self-assessment test result: PASSED
General SMART Values:
Offline data collection status: (0x80) Offline data collection activity
was never started.
Auto Offline Data Collection: Enabled.
Self-test execution status: ( 0) The previous self-test routine completed
without error or no self-test has ever
been run.
Total time to complete Offline
data collection: ( 101) seconds.
Offline data collection
capabilities: (0x5b) SMART execute Offline immediate.
Auto Offline data collection on/off support.
Suspend Offline collection upon new
command.
Offline surface scan supported.
Self-test supported.
No Conveyance Self-test supported.
Selective Self-test supported.
SMART capabilities: (0x0003) Saves SMART data before entering
power-saving mode.
Supports SMART auto save timer.
Error logging capability: (0x01) Error logging supported.
General Purpose Logging supported.
Short self-test routine
recommended polling time: ( 2) minutes.
Extended self-test routine
recommended polling time: (1280) minutes.
SCT capabilities: (0x003d) SCT Status supported.
SCT Error Recovery Control supported.
SCT Feature Control supported.
SCT Data Table supported.
SMART Attributes Data Structure revision number: 16
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME FLAG VALUE WORST THRESH TYPE UPDATED WHEN_FAILED RAW_VALUE
1 Raw_Read_Error_Rate 0x000b 100 100 --- Pre-fail Always - 0
2 Throughput_Performance 0x0004 135 135 --- Old_age Offline - 108
3 Spin_Up_Time 0x0007 081 081 --- Pre-fail Always - 378 (Average 385)
4 Start_Stop_Count 0x0012 095 095 --- Old_age Always - 2306
5 Reallocated_Sector_Ct 0x0033 100 100 --- Pre-fail Always - 0
7 Seek_Error_Rate 0x000a 075 075 --- Old_age Always - 65552
8 Seek_Time_Performance 0x0004 133 133 --- Old_age Offline - 18
9 Power_On_Hours 0x0012 100 100 --- Old_age Always - 4490
10 Spin_Retry_Count 0x0012 100 100 --- Old_age Always - 0
12 Power_Cycle_Count 0x0032 092 092 --- Old_age Always - 555
22 Helium_Level 0x0023 100 100 --- Pre-fail Always - 100
192 Power-Off_Retract_Count 0x0032 100 100 --- Old_age Always - 2980
193 Load_Cycle_Count 0x0012 100 100 --- Old_age Always - 2980
194 Temperature_Celsius 0x0002 054 054 --- Old_age Always - 30 (Min/Max 16/51)
196 Reallocated_Event_Count 0x0032 100 100 --- Old_age Always - 0
197 Current_Pending_Sector 0x0022 100 100 --- Old_age Always - 0
198 Offline_Uncorrectable 0x0008 100 100 --- Old_age Offline - 0
199 UDMA_CRC_Error_Count 0x000a 100 100 --- Old_age Always - 0
Read SMART Log Directory failed: scsi error medium or hardware error (serious)
Read SMART Error Log failed: scsi error medium or hardware error (serious)
Read SMART Self-test Log failed: scsi error medium or hardware error (serious)
Read SMART Selective Self-test Log failed: scsi error medium or hardware error (serious)
Fehler im Log beim Mount-Versuch:
Code:
root@sysrescue /mnt]# sudo dmesg
[...]
[ 332.890562] ata2.00: exception Emask 0x0 SAct 0x0 SErr 0x0 action 0x0
[ 332.890573] ata2.00: irq_stat 0x40000001
[ 332.890578] ata2.00: failed command: READ DMA EXT
[ 332.890580] ata2.00: cmd 25/00:08:80:ff:ff/00:00:74:05:00/e0 tag 0 dma 4096 in
res 53/40:08:80:ff:ff/00:00:74:05:00/40 Emask 0x9 (media error)
[ 332.890592] ata2.00: status: { DRDY SENSE ERR }
[ 332.890595] ata2.00: error: { UNC }
[ 332.895919] ata2.00: Read log 0x13 page 0x00 failed, Emask 0x1
[ 332.896459] ata2.00: Read log 0x12 page 0x00 failed, Emask 0x1
[ 332.907985] ata2.00: Read log 0x13 page 0x00 failed, Emask 0x1
[ 332.908512] ata2.00: Read log 0x12 page 0x00 failed, Emask 0x1
[ 332.909985] ata2.00: configured for UDMA/133
[ 332.910031] sd 1:0:0:0: [sda] tag#0 FAILED Result: hostbyte=DID_OK driverbyte=DRIVER_OK cmd_age=0s
[ 332.910037] sd 1:0:0:0: [sda] tag#0 Sense Key : Medium Error [current]
[ 332.910041] sd 1:0:0:0: [sda] tag#0 Add. Sense: Unrecovered read error - auto reallocate failed
[ 332.910046] sd 1:0:0:0: [sda] tag#0 CDB: Read(16) 88 00 00 00 00 05 74 ff ff 80 00 00 00 08 00 00
[ 332.910048] blk_update_request: I/O error, dev sda, sector 23437770624 op 0x0:(READ) flags 0x80700 phys_seg 1 prio class 0
[ 332.910071] ata2: EH complete
[ 333.020420] ata2.00: exception Emask 0x0 SAct 0x0 SErr 0x0 action 0x0
[ 333.020431] ata2.00: irq_stat 0x40000001
[ 333.020436] ata2.00: failed command: READ DMA EXT
[ 333.020438] ata2.00: cmd 25/00:08:80:ff:ff/00:00:74:05:00/e0 tag 19 dma 4096 in
res 53/40:08:80:ff:ff/00:00:74:05:00/40 Emask 0x9 (media error)
[ 333.020450] ata2.00: status: { DRDY SENSE ERR }
[ 333.020453] ata2.00: error: { UNC }
[ 333.130464] ata2.00: Read log 0x13 page 0x00 failed, Emask 0x1
[ 333.130969] ata2.00: Read log 0x12 page 0x00 failed, Emask 0x1
[ 333.142592] ata2.00: Read log 0x13 page 0x00 failed, Emask 0x1
[ 333.143100] ata2.00: Read log 0x12 page 0x00 failed, Emask 0x1
[ 333.144577] ata2.00: configured for UDMA/133
[ 333.144611] sd 1:0:0:0: [sda] tag#19 FAILED Result: hostbyte=DID_OK driverbyte=DRIVER_OK cmd_age=0s
[ 333.144616] sd 1:0:0:0: [sda] tag#19 Sense Key : Medium Error [current]
[ 333.144620] sd 1:0:0:0: [sda] tag#19 Add. Sense: Unrecovered read error - auto reallocate failed
[ 333.144625] sd 1:0:0:0: [sda] tag#19 CDB: Read(16) 88 00 00 00 00 05 74 ff ff 80 00 00 00 08 00 00
[ 333.144627] blk_update_request: I/O error, dev sda, sector 23437770624 op 0x0:(READ) flags 0x0 phys_seg 1 prio class 0
[ 333.144636] Buffer I/O error on dev sda, logical block 2929721328, async page read
[ 333.144657] ata2: EH complete
[ 333.280188] ata2.00: exception Emask 0x0 SAct 0x0 SErr 0x0 action 0x0
[ 333.280201] ata2.00: irq_stat 0x40000001
[ 333.280206] ata2.00: failed command: READ DMA
[ 333.280209] ata2.00: cmd c8/00:01:00:00:00/00:00:00:00:00/e0 tag 27 dma 512 in
res 53/40:01:00:00:00/00:00:00:00:00/40 Emask 0x9 (media error)
[ 333.280223] ata2.00: status: { DRDY SENSE ERR }
[ 333.280227] ata2.00: error: { UNC }
[ 333.285375] ata2.00: Read log 0x13 page 0x00 failed, Emask 0x1
[ 333.285888] ata2.00: Read log 0x12 page 0x00 failed, Emask 0x1
[ 333.451722] ata2.00: Read log 0x13 page 0x00 failed, Emask 0x1
[ 333.452228] ata2.00: Read log 0x12 page 0x00 failed, Emask 0x1
[ 333.453708] ata2.00: configured for UDMA/133
[ 333.453740] sd 1:0:0:0: [sda] tag#27 FAILED Result: hostbyte=DID_OK driverbyte=DRIVER_OK cmd_age=0s
[ 333.453746] sd 1:0:0:0: [sda] tag#27 Sense Key : Medium Error [current]
[ 333.453750] sd 1:0:0:0: [sda] tag#27 Add. Sense: Unrecovered read error - auto reallocate failed
[ 333.453754] sd 1:0:0:0: [sda] tag#27 CDB: Read(16) 88 00 00 00 00 00 00 00 00 00 00 00 00 01 00 00
[ 333.453757] blk_update_request: I/O error, dev sda, sector 0 op 0x0:(READ) flags 0x0 phys_seg 1 prio class 0
[ 333.453787] ata2: EH complete
[ 333.453879] FAT-fs (sda): unable to read boot sector

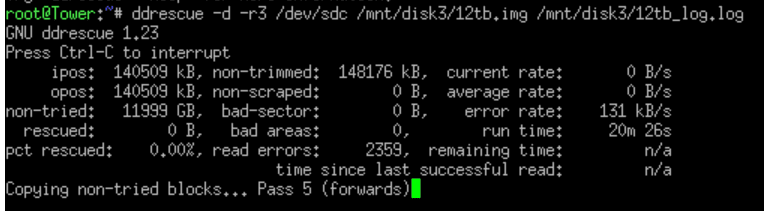

Komplett erfolgloser ddrescue-Versuch (habs nach ner Stunde abgebrochen, weiterhin ohne auch nur ein einziges wiederhergestelltes Byte):

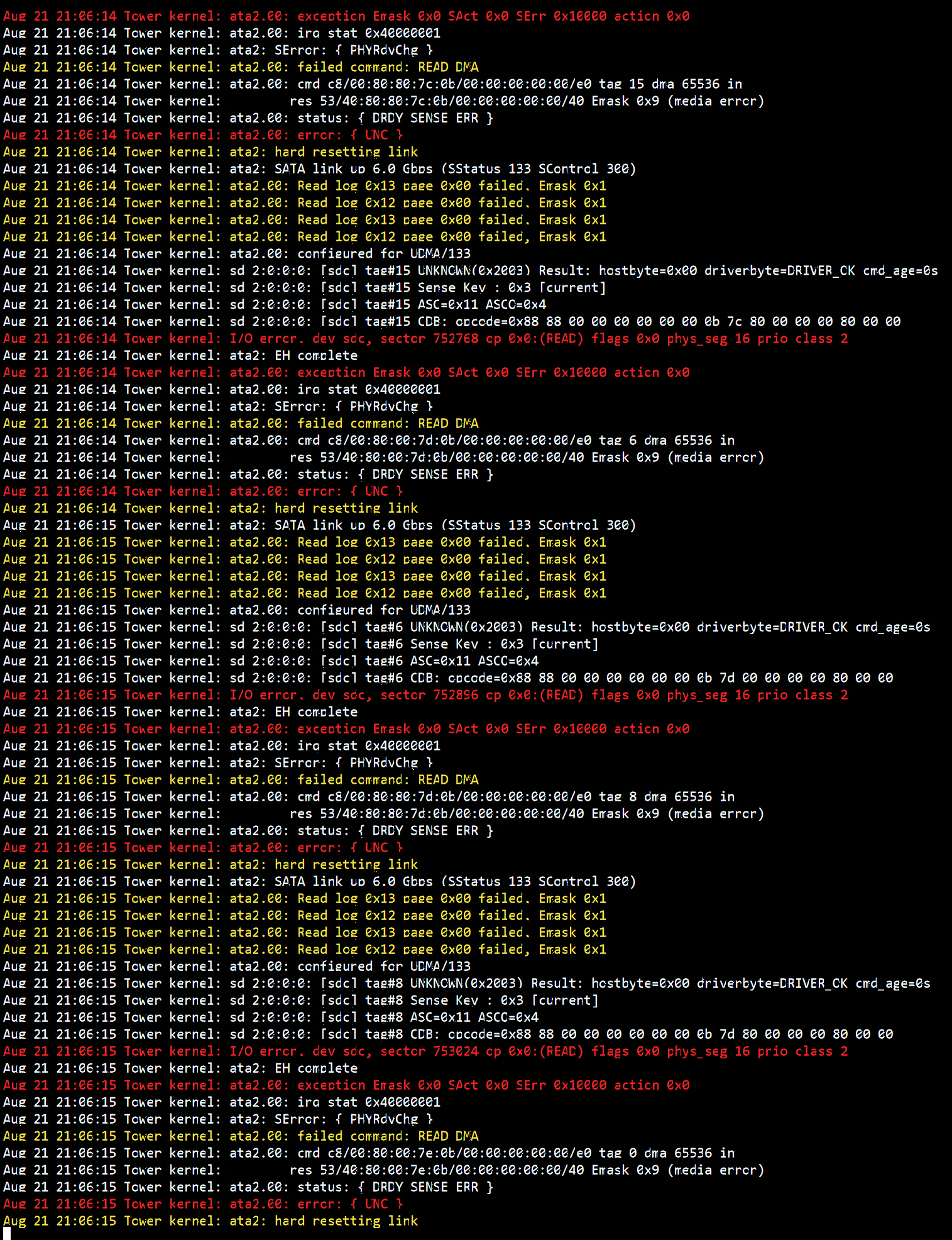

Und so sah das Unraid-Log währenddessen aus:
Kann man die im Hinterhof verscharren, oder kann man vielleicht doch noch einen letzten Wiederherstellungsversuch starten? Da war nix drauf, was nicht ersetzt werden kann, aber es wäre natürlich schön, wenn ich nicht 10TB an Blurays wieder ausm Keller holen und erneut auf dem Server ablegen müsste.
PS: Parityplatte gibt's jetzt. Manchmal muss man sich erst die Finger verbrennen...
