[Sammelthread] ASUS X570 Strix Series (X570-E Gaming, X570-E Gaming Wifi II, X570-F Gaming, X570-I Gaming)

ROG Strix X570-E Gaming
ROG Strix X570-E Gaming Wifi II
ROG Strix X570-F Gaming
ROG Strix X570-I Gaming
BIOS/UEFI Versionen
Reviews & VRM
Häufig gestellte Fragen
​

BIOS Mods

Changelog

Download

Flashing and using on your own risk!​ Added VDDP Voltage Might be helpful for CPU overclocking Added ASPM Support (Should be visible by default since v4802) PCIe Energy Saving Added Erp Ready (Strix-E only) Energy Saving Unlocked AMD PBS Hidden options unlocked Added PCH Temerature Shows the PCH Temperature in the Bios Added PCH Fan Control Gives you control over the PCH Fan Advanced (Pump) Fan Settings Min and Middle Duty Cycle can be changed to 0% Added Advanced Boot Settings Might be helpful for faster boot

Strix X570-E Gaming Download Folder​ Strix X570-E Gaming Wifi II Download Folder​ Strix X570-F Gaming Download Folder​ Strix X570-I Gaming EOL Spoiler: Old Versions BiosMod V3202I BiosMod V3001I BiosMod V2816I

ROG Strix X570-E Gaming Produktseite | Handbuch (EN) | Support-Downloads | Preisvergleich​
Spoiler: Spezifikationen CPU AMD AM4 Socket 3rd and 2nd AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors Chipset X570 Memory 3rd Gen AMD Ryzen™ Processors 4 x DIMM, Max. 128GB, DDR4 4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory * 2nd Gen AMD Ryzen™ Processors 4 x DIMM, Max. 128GB, DDR4 3600(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory * 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors 4 x DIMM, Max. 128GB, DDR4 3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory Dual Channel Memory Architecture Graphic Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors Multi-VGA output support : HDMI/DisplayPort ports - Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz - Supports DisplayPort 1.2 with max. resolution 4096 x 2160 @ 60 Hz Multi-GPU Support 3rd and 2nd Gen AMD Ryzen™ Processors Supports NVIDIA® 2-Way SLI® Technology Supports AMD 3-Way CrossFireX™ Technology 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors Supports AMD 2-Way CrossFireX™ Technology Expansion Slots 3rd Gen AMD Ryzen™ Processors 2 x PCIe 4.0 x16 (x16 or dual x8) 2nd Gen AMD Ryzen™ Processors 2 x PCIe 3.0 x16 (x16 or dual x8) 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors 1 x PCIe 3.0 x16 (x8 mode) AMD X570 chipset 1 x PCIe 4.0 x16 (max at x4 mode) *1 2 x PCIe 4.0 x1 Storage 3rd Gen AMD Ryzen™ Processors : 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support 2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors : 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support AMD X570 chipset : 1 x M.2 x4 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support 8 x SATA 6Gb/s port(s), Support Raid 0, 1, 10 LAN Intel® I211-AT, 1 x Gigabit LAN Controller(s) Realtek® RTL8125-CG 2.5G LAN Anti-surge LANGuard ROG GameFirst Technology WiFi 2 x 2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) with MU-MIMO supports dual frequency band 2.4/5GHz Bluetooth Bluetooth® 5.0 Audio SupremeFX 8-Channel High Definition Audio CODEC S1220A - Dual OP Amplifiers - Impedance sense for front and rear headphone outputs - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - SupremeFX Shielding Technology - Supports up to 32-Bit/192kHz playback *2 Audio Feature : - Optical S/PDIF out port(s) at back panel - Sonic Radar III - Sonic Studio III + Sonic Studio Link USB Ports 3rd Gen AMD RyzenTM Processors : 4 x USB 3.2 Gen 2 port(s) (4 at back panel, ) 2nd Gen AMD RyzenTM/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors : 4 x USB 3.2 Gen 1 port(s) AMD X570 chipset : 1 x USB 3.2 Gen 2 front panel connector port(s) AMD X570 chipset : 4 x USB 3.2 Gen 2 port(s) (4 at back panel, , 3 x Type-A+1 x Type-C) AMD X570 chipset : 2 x USB 3.2 Gen 1 port(s) (2 at mid-board) AMD X570 chipset : 4 x USB 2.0 port(s) (4 at mid-board) Special Features 5-Way Optimization by Dual Intelligent Processors 5 - Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages. TPU - Auto Tuning, TurboV, GPU Boost Gamer's Guardian: - DRAM Overcurrent Protection - Stainless Steel Back I/O - Highly Durable Components - DIGI+ VRM - SafeSlot - ESD Guards on LAN, Audio,and USB ports ASUS EPU : - EPU AURA : - Aura Lighting Control - Addressable Gen 2 Header ASUS Exclusive Features : - USB BIOS Flashback® - AI Suite 3 - Ai Charger - ASUS NODE : hardware control interface - BIOS Flashback® Button ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 ASUS Q-Design : - ASUS Q-Code - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM Gaming Aesthetics : - AURA-RGB Lighting Back I/O Ports 1 x DisplayPort 1 x HDMI 5 x USB 3.1 Gen 1 Type-A 8 x USB 2.0 1 x Optical S/PDIF out 5 x Audio jack(s) 1 x Anti-surge 2.5G LAN (RJ45) port 1 x USB BIOS Flashback® Button(s) 1 x ASUS Wi-Fi Module 7 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A) 1 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-C) Anti-surge LAN (RJ45) port Internal I/O Ports 1 x PCH_FAN 1 x AAFP connector 2 x Aura RGB Strip Header(s) 2 x Addressable Gen 2 header(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 2 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support 1 x SPI TPM header 8 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x W_PUMP+ connector 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Thermal sensor connector(s) 1 x Clear CMOS jumper(s) 1 x Node Connector(s) 1 x System panel connector 1 x T_Sensor Connector 1 x M.2 Fan Header 1 x USB 3.2 Gen 2 (up to 10Gbps) connector 1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports Accessories User's manual 4 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD 1 x Strix door hanger 1 x ROG Strix stickers 1 x Cable ties pack(s) 1 x Wi-Fi Antenna(s) 1 x Extension Cable for RGB strips (80 cm) 1 x Extension cable for Addressable LED 1 x Thermistor cable(s) 1 x ROG Thank you card BIOS 256 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2. Form Factor ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) Note *1 PCIeX16_3 slot shares bandwidth with PCIeX1_2. *2 Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio. Spoiler: Weitere Bilder Spoiler: UEFI Bilder Bios Version 0807 AiTweaker Advanced Monitor Boot Tool Kompatibilitätsliste Memory QVL Ryzen 3000/4000/5000 Chipsatz Modding Alternativer Chipsatz Kühler von KCX
ROG Strix X570-E Gaming WIFI II Produktseite | Handbuch (EN) | Support-Downloads | Preisvergleich
Spoiler: Spezifikationen CPU AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors Chipset X570 Memory AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors 4 x DIMM, Max. 128GB, DDR4 4600(O.C.)/4400(O.C.)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400/2133, un-buffered memory AMD Ryzen™ 5000 and 4000 G-Series Processors 4 x DIMM, Max. 128GB, DDR4 5100(O.C)/4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133, un-buffered memory AMD Ryzen™ 2000 Series Desktop Processors 4 x DIMM, max. 128GB, DDR4 3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133, un-buffered memory AMD Ryzen™ 2000 and 3000 G-Series Desktop Processors 4 x DIMM, max. 128GB, DDR4 3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133, un-buffered memory Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU Graphic 1 x HDMI 2.0 1 x DisplayPort - Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz - Supports DisplayPort 1.2 with max. resolution 4096 x 2160 @ 60 Hz Expansion Slots AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors 2 x PCIe 4.0 x16 (x16 or dual x8)* AMD Ryzen™ 5000 G Series/4000 G-Series/ 2000 Series Processor 2 x PCIe 3.0 x16 (x16 or dual x8)* AMD Ryzen™ 2000 G-Series/ 3000 G-Series Processor 1 x PCIe 3.0 x16 (x8 mode)* AMD X570 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 2 x PCIe 4.0 x1 *PCIeX16_3 slot shares bandwidth with PCIeX1_2. Storage Supports 2 x M.2 slots and 8 x SATA 6Gb/s ports AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors: M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) AMD Ryzen™ 5000 G-Series/4000 G-Series/ 3000 G-Series/ 2000 G-Series/2000 Series Processor M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes) AMD X570 Chipset M.2_2 slot (Key M), type2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) 8 x SATA 6Gb/s ports LAN 1 x Realtek 2.5Gb Ethernet 1 x Intel® I211-AT 1Gb Ethernet Anti-surge LANGuard ROG GameFirst Technology 1 x Intel® 1Gb Ethernet WiFi Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* Bluetooth Bluetooth® v5.2 Audio Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC* - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback* Audio Features - SupremeFX Shielding Technology - Gold-plated audio jacks - Rear optical S/PDIF out port - Premium audio capacitors - Audio cover USB Ports AMD RyzenTM 5000, 5000 G-Series, 4000 G-Series, and 3000 Series Desktop Processors - 4 x USB 3.2 Gen2 ports (4 ports at back panel, Type-A) AMD RyzenTM 3000 G-Series, 2000, and 2000 G-Series Desktop Processors - 4 x USB 3.2 Gen 1 ports (4 ports at back panel, Type-A) AMD X570 chipset - 1 x USB 3.2 Gen2 front panel connector - 4 x USB3.2 Gen2 (at back panel, 3x Type-A, 1x Type-C) - 2 x USB3.2 Gen1 ports (at front panel) - 4 x USB 2.0 ports (at front panel) Special Features Extreme Engine Digi+ - 5K Black Metallic Capacitors ASUS Q-Design - M.2 Q-Latch - Q-Code - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - ProCool II - Pre-mounted I/O shield - SafeSlot AURA Sync - AURA RGB headers - Addressable Gen 2 headers Back I/O Ports 8 x USB 3.2 Gen 2 ports (7 x Type-A + 1 x USB Type-C®) 1 x DisplayPort 1 x HDMI® port 1 x Wi-Fi Module 1 x Intel® I211-AT 1Gb Ethernet port 1 x Realtek 2.5Gb Ethernet port 5 x Gold-plated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button Internal I/O Ports Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 2 x 4-pin Chassis Fan headers 1 x 4-pin M.2 Fan header 1 x W_PUMP+ header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 8 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 2 x Addressable Gen 2 headers 2 x AURA RGB headers 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x SPI TPM header (14-1pin) 1 x Speaker header 1 x 10-1 pin System Panel header 1 x Thermal Sensor header Accessories Cables 4 x SATA 6Gb/s cables 1 x Thermistor cable pack Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x Cable ties pack 1 x M.2 Rubber Package 1 x M.2 Q-Latch package 1 x ROG key chain 1 x ROG Strix stickers 1 x ROG Strix thank you card Installation Media 1 x Support DVD Documentation 1 x User manual BIOS 256 Mb Flash ROM, UEFI AMI BIOS Form Factor ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) Note *1 PCIeX16_3 slot shares bandwidth with PCIeX1_2. *2 Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio. Full Specs: ROG STRIX X570-E GAMING WIFI II ASUS ROG STRIX Z590-A GAMING WIFI II Intel LGA 1200 ATX motherboard, PCIe 4.0, 14+2 power stages, WiFi 6, Intel® 2.5 Gb Ethernet, three M.2 slots, USB 3.2 Gen 2x2 USB Type-C®, SATA and Aura Sync rog.asus.com Kompatibilitätsliste Memory QVL Ryzen 3000/4000/5000
ROG Strix X570-F Gaming Produktseite | Handbuch (EN) | Support-Downloads | Preisvergleich​
Spoiler: Spezifikationen CPU AMD AM4 Socket 3rd and 2nd AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors Chipset X570 Memory 3rd Gen AMD Ryzen™ Processors 4 x DIMM, Max. 128GB, DDR4 4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory * 2nd Gen AMD Ryzen™ Processors 4 x DIMM, Max. 128GB, DDR4 3600(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory * 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors 4 x DIMM, Max. 128GB, DDR4 3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory Dual Channel Memory Architecture Graphic Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors Multi-VGA output support : HDMI/DisplayPort ports - Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz - Supports DisplayPort 1.2 with max. resolution 4096 x 2160 @ 60 Hz Multi-GPU Support 3rd and 2nd Gen AMD Ryzen™ Processors Supports NVIDIA® 2-Way SLI® Technology Supports AMD 3-Way CrossFireX™ Technology 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors Supports AMD 2-Way CrossFireX™ Technology Expansion Slots 3rd Gen AMD Ryzen™ Processors 2 x PCIe 4.0 x16 (x16 or dual x8) 2nd Gen AMD Ryzen™ Processors 2 x PCIe 3.0 x16 (x16 or dual x8) 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors 1 x PCIe 3.0 x16 (x8 mode) AMD X570 chipset 1 x PCIe 4.0 x16 (max at x4 mode) *1 2 x PCIe 4.0 x1 Storage 3rd Gen AMD Ryzen™ Processors : 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support 2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors : 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support AMD X570 chipset : 1 x M.2 x4 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support 8 x SATA 6Gb/s port(s), Support Raid 0, 1, 10 LAN Intel® I211-AT, 1 x Gigabit LAN Controller(s) Anti-surge LANGuard ROG GameFirst Technology Audio SupremeFX 8-Channel High Definition Audio CODEC S1220A - Dual OP Amplifiers - Impedance sense for front and rear headphone outputs - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - SupremeFX Shielding Technology - Supports up to 32-Bit/192kHz playback *2 Audio Feature : - Optical S/PDIF out port(s) at back panel - Sonic Radar III - Sonic Studio III + Sonic Studio Link USB Ports 3rd and 2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors : 4 x USB 3.2 Gen 1 port(s) (4 at back panel, ) AMD X570 chipset : 1 x USB 3.2 Gen 2 front panel connector port(s) AMD X570 chipset : 4 x USB 3.2 Gen 2 port(s) (4 at back panel, , 3 x Type-A+1 x Type-C) AMD X570 chipset : 2 x USB 3.2 Gen 1 port(s) (2 at mid-board) AMD X570 chipset : 4 x USB 2.0 port(s) (4 at mid-board) Special Features 5-Way Optimization by Dual Intelligent Processors 5 - Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages. TPU - Auto Tuning, TurboV, GPU Boost Gamer's Guardian: - DRAM Overcurrent Protection - Stainless Steel Back I/O - Highly Durable Components - DIGI+ VRM - SafeSlot - ESD Guards on LAN, Audio,and USB ports ASUS EPU : - EPU AURA : - Aura Lighting Control - Addressable Gen 2 Header ASUS Exclusive Features : - USB BIOS Flashback® - AI Suite 3 - Ai Charger - ASUS NODE : hardware control interface - BIOS Flashback® Button ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 ASUS Q-Design : - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM Gaming Aesthetics : - AURA-RGB Lighting Back I/O Ports 1 x DisplayPort 1 x HDMI 5 x USB 3.1 Gen 1 Type-A 8 x USB 2.0 1 x Optical S/PDIF out 5 x Audio jack(s) 1 x USB BIOS Flashback® Button(s) 4 x USB 3.2 Gen 1 (up to 5Gbps) ports 3 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A) 1 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-C) Anti-surge LAN (RJ45) port Internal I/O Ports 1 x PCH_FAN 1 x AAFP connector 2 x Aura RGB Strip Header(s) 2 x Addressable Gen 2 header(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 2 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support 1 x SPI TPM header 8 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x W_PUMP+ connector 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Thermal sensor connector(s) 1 x Clear CMOS jumper(s) 1 x Node Connector(s) 1 x System panel connector 1 x T_Sensor Connector 1 x M.2 Fan Header 1 x USB 3.2 Gen 2 (up to 10Gbps) connector 1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports Accessories User's manual 4 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD 1 x Strix door hanger 1 x ROG Strix stickers 1 x Cable ties pack(s) 1 x Extension Cable for RGB strips (80 cm) 1 x Extension cable for Addressable LED 1 x Thermistor cable(s) 1 x ROG Thank you card BIOS 256 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2. Form Factor ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) Note *1 PCIeX16_3 slot shares bandwidth with PCIeX1_2. *2 Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio. Kompatibilitätsliste Memory QVL Ryzen 3000/4000/5000 Chipsatz Modding Wasserkühler von Neo111430
ROG Strix X570-I Gaming Produktseite | Handbuch (EN) | Support-Downloads | Preisvergleich
Spoiler: Spezifikationen CPU AMD AM4 Socket 3rd and 2nd AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors Chipset X570 Memory 3rd Gen AMD Ryzen™ Processors 2 x DIMM, Max. 64GB, DDR4 4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3800(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory * 2nd Gen AMD Ryzen™ Processors 2 x DIMM, Max. 64GB, DDR4 3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory * 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors 2 x DIMM, Max. 64GB, DDR4 3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Graphic Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors Multi-VGA output support : HDMI/DisplayPort ports - Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz - Support DisplayPort 1.4 with max. resolution 8 K 7680 × 4320 @60 Hz Expansion Slots 3rd Gen AMD Ryzen™ Processors 1 x PCIe 4.0 x16 (x16 mode) 2nd Gen AMD Ryzen™ Processors 1 x PCIe 3.0 x16 (x16 mode) 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors 1 x PCIe 3.0 x16 (x8 mode) Storage 3rd Gen AMD Ryzen™ Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support 2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support AMD X570 chipset : 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support 4 x SATA 6Gb/s port(s), Support Raid 0, 1, 10 LAN Intel® I211-AT Anti-surge LANGuard ROG GameFirst Technology WiFi Supports channel bandwidth: HT20/HT40/HT80/HT160 Intel® Wi-Fi 6 AX200 2 x 2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) with MU-MIMO supports dual frequency band 2.4/5GHz Up to 2.4Gbps transfer speed Bluetooth Bluetooth® 5.0 Audio SupremeFX 8-Channel High Definition Audio CODEC S1220A - Dual OP Amplifiers - Impedance sense for front and rear headphone outputs - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/192kHz playback *2 Audio Feature : - DTS® Sound Unbound - LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path. - Sonic Radar III - Sonic Studio III + Sonic Studio Virtual Mixer USB Ports 3rd and 2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors : 4 x USB 3.2 Gen 1 port(s) (4 at back panel, blue) AMD X570 chipset : 4 x USB 3.2 Gen 2 port(s) (3 x Type-A+1 x Type-C) AMD X570 chipset : 2 x USB 3.2 Gen 1 port(s) (2 at mid-board) AMD X570 chipset : 2 x USB 2.0 port(s) Special Features 5-Way Optimization by Dual Intelligent Processors 5 - Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages. TPU - Auto Tuning, TurboV, GPU Boost ASUS EPU : - EPU AURA : - Aura Lighting Control - Addressable Gen 2 Header ASUS Exclusive Features : - AI Suite 3 - Ai Charger ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 ASUS Q-Design : - ASUS Q-Shield - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM Back I/O Ports 1 x DisplayPort 1 x HDMI 1 x ASUS Wi-Fi Module 3 x LED-illuminated audio jacks 4 x USB 3.2 Gen 1 (blue) 3 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A) 1 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-C) Anti-surge LAN (RJ45) port Internal I/O Ports 1 x HS_FAN 1 x PCH_FAN 1 x AAFP connector 1 x Aura RGB Strip Header(s) 1 x Addressable Gen 2 header(s) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 2 x M.2 Socket 3 with M Key design, type 2242/2260/2280 storage devices support (Supports both SATA & PCIE SSD) 4 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 1 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Thermal sensor connector(s) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x T_Sensor Connector 1 x Speaker connector Accessories User's manual I/O Shield 4 x SATA 6Gb/s cable(s) 2 x M.2 Screw Package 1 x Supporting DVD 1 x ROG Strix stickers 1 x M.2 bracket 1 x Cable ties pack(s) 1 x Wi-Fi Antenna(s) 1 x Extension cable for Addressable LED 1 x AAFP Extension Cable 1 x Panel cable 1 x ROG Thank you card BIOS 256 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2. Form Factor Mini ITX Form Factor 6.7 inch x 6.7 inch ( 17 cm x 17 cm ) Note *1 Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio. *2 Use a chassis with HD audio module in the front panel to support an 8-channel audio output. Kompatibilitätsliste Memory QVL Ryzen 3000/4000/5000

---

Häufig gestellte Fragen​

---

• Sound setzt aus oder knistert
  Immer wieder USB Disconnects
  Meistens tritt dieses Problem auf, wenn man einen hohen RAM Takt verwendet. In diesem Fall kann man versuchen die SOC Spannung auf 1.125V zu erhöhen. Sollte das nicht ausreichen, zusätzlich noch die VDDG CCD Spannung auf 1.00V (oder niedriger), sowie VDDG IOD Spannung auf 0.925V stellen.


• USB Disconnects
  Mit bestimmten UEFI/Agesa Versionen (v2 1.1.0.0/ 1.1.8.0) können sporadische USB Disconnects auftreten. Um dies zu umgehen bitte folgende Einstellung im Bios deaktivieren:
  UEFI -> Advanced -> AMD CBS -> Global C-States deaktivieren
  Der Verbrauch steigt dadurch um ca. 5Watt an aber ansonsten hat man keine weiteren Nachteile


• USB Flashback funktioniert nicht
  Bitte folgende Punkte ausprobieren:
  - Datei richtig umbenannt? Vorzugsweise mit dem im BIOS Download enthaltenen Renamer
  - Vor dem Flashen das BIOS auf Werkseinstellungen zurück setzen!
  - Einen anderen USB Stick ausprobieren. Vorzugsweise ein USB 2.0 Stick


• BIOS/UEFI Downgrade
  Ein UEFI Downgrade ist ohne Probleme mit USB Flashback möglich, soweit vorhanden.


• Ist der Chipsatz Lüfter regelbar?
  Nein, dieser wird automatisch, je nach vorhandener Temperatur, geregelt. Bis zu einer Temperatur von 55 Grad ist der Lüfter deaktiviert. Bei höheren Temperaturen wird er stufenweise schneller bis er letztendlich bei 93 Grad seine Höchstgeschwindigkeit erreicht. Über selbst erstellte Bios Mods kann man jedoch den Lüfter auch nach seinen Wünschen einstellen.


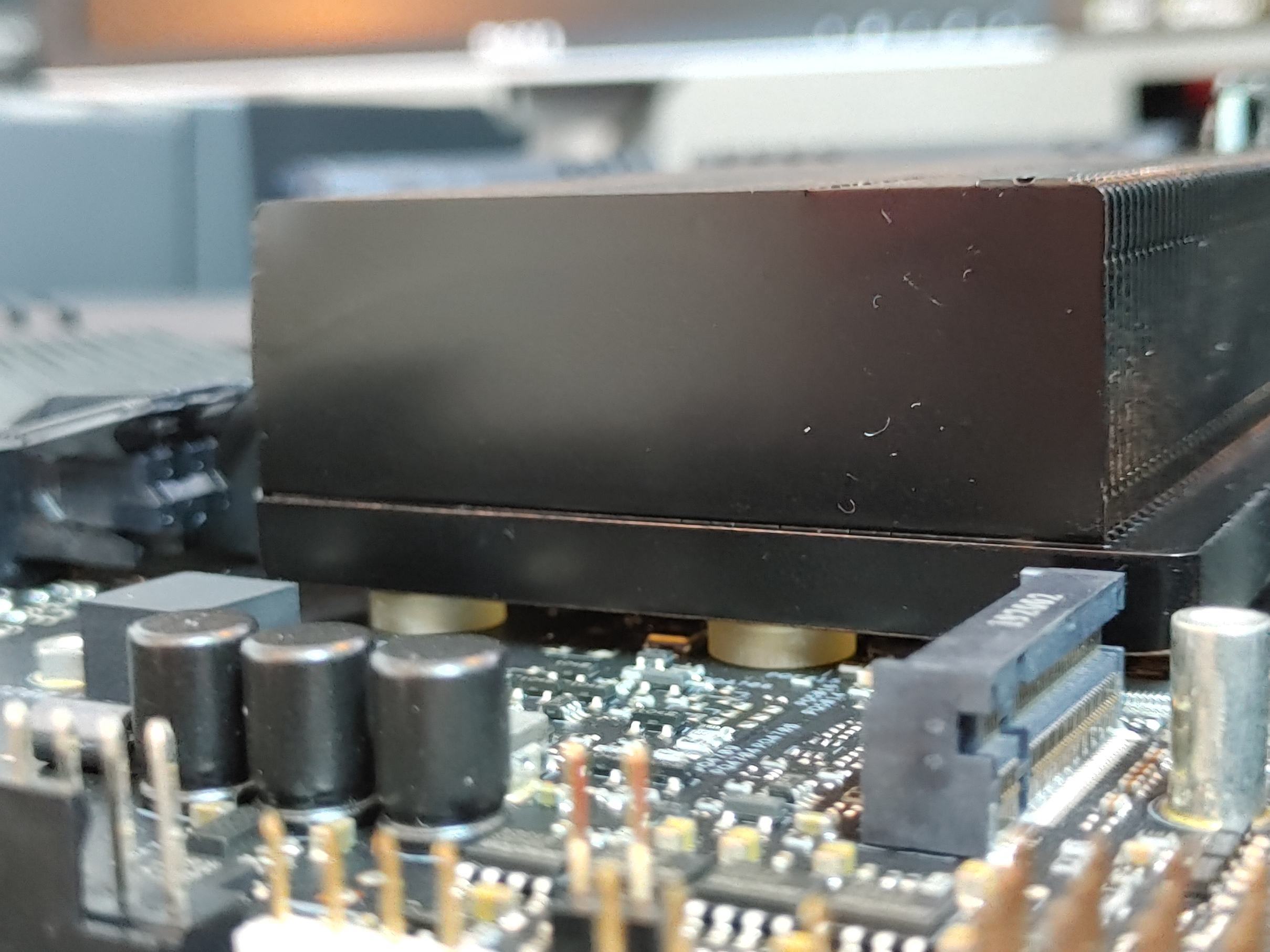

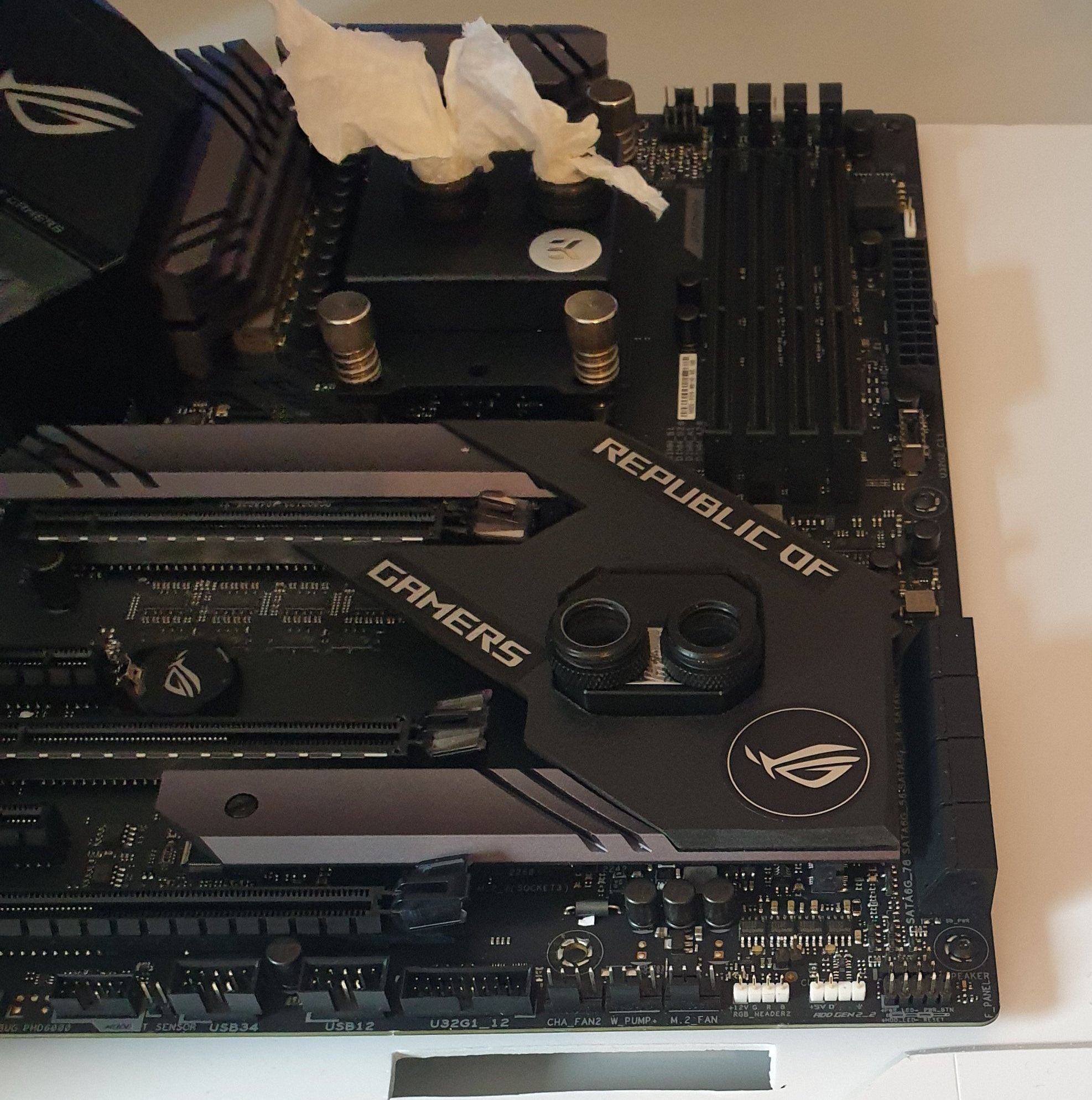

• Chipsatz Temperatur zu hoch?
  Wem das Optische nicht so wichtig ist, kann die Lüfterabdeckung vom Chipsatz beim X570-E oder x570-F entfernen. Dadurch staut sich die warme Luft nicht an, sondern kann direkt entweichen.
  Des weiteren kann man im Bios unter "Onboard Devices Configuration" die vorhandenen Steckplätze (PCIe X16, X1, M.2, SB Link) manuell auf PCIe 3.0 umstellen, sofern man keine PCIe 4.0 Karte verwendet. Bei Auto Einstellung wird automatisch PCIe 4.0 angelegt, was zu einer höheren Last führt.


• Kann ich ein altes Bios Profil mit einer neuen Bios Version nutzen?
  Nein, es ist zu empfehlen kein altes Profil mit einer neuen oder älteren Bios Version zu nutzen. Dies endet meist mit einem Blackscreen. Nach jedem Bios Flash bitte die Einstellungen neu vornehmen. Selbst wenn sich ein Profil laden lässt, kann es trotzdem zu Instabilität führen.


• Rechner bootet nicht, wenn eine Soundkarte verbaut ist
  Dieses Problem kann mit dem Bios 1404 oder höher (Agesa 1004b) auftreten. In dem Fall bitte in dem AMD CBS Menü die Option "PCIe Ten Bit Tag Support" auf Disabled stellen. Sollte das nicht ausreichen, dann zusätzlich noch unter dem Menü Advanced -> Onboard Devices Configuration -> die Option PCIEXxxx (den Slot auswählen, in der die Soundkarte steckt) von Auto auf Gen3 ändern.








[Reous]

@hemotox

Strix X570-E Gaming Wifi II 4403XII

MediaFire is a simple to use free service that lets you put all your photos, documents, music, and video in a single place so you can access them anywhere and share them everywhere.

www.mediafire.com



[Felipe Vega]

ROG Strix X570-E Gaming
ROG Strix X570-E Gaming Wifi II
ROG Strix X570-F Gaming
ROG Strix X570-I Gaming
BIOS/UEFI Versionen
Reviews & VRM
Häufig gestellte Fragen
​

BIOS Mods

Changelog

Download

Flashing and using on your own risk!​ Added VDDP Voltage Might be helpful for CPU overclocking Added ASPM Support PCIe Energy Saving Added Erp Ready (Strix-E only) Energy Saving Unlocked AMD PBS Hidden options unlocked Unlocked PBO for 5800X3D PBO Limits and CO should work Added PCH Temerature Shows the PCH Temperature in the Bios Added PCH Fan Control Gives you control over the PCH Fan Advanced Fan Settings Min and Middle Duty Cycle can be changed to 0% Added Advanced Boot Settings Might be helpful for faster boot

Strix X570-E Gaming BiosMod V4403X BiosMod V4204X BiosMod V4204XC BiosMod V4203X Spoiler: Old Versions BiosMod V4021X BiosMod V4010X BiosMod V4002X BiosMod V3604X BiosMod V3602X BiosMod V3405X BiosMod V3202X BiosMod V3001X BiosMod V2816X BiosMod V2812X BiosMod V2802X BiosMod V2606X Strix X570-E Gaming Wifi II BiosMod V4403XII BiosMod V4204XII​ Strix X570-F Gaming BiosMod V4403M BiosMod V4204M BiosMod V4203M Spoiler: Old Versions BiosMod V4021M BiosMod V4010M BiosMod V4002M BiosMod V3604M BiosMod V3602M BiosMod V3405M BiosMod V3202M BiosMod V3001M BiosMod V2802M BiosMod V2606M BiosMod V2407M BiosMod V2203M Strix X570-I Gaming EOL Spoiler: Old Versions BiosMod V3202I BiosMod V3001I BiosMod V2816I

ROG Strix X570-I Gaming Produktseite | Handbuch (EN) | Support-Downloads | Preisvergleich
ROG Strix X570-F Gaming Produktseite | Handbuch (EN) | Support-Downloads | Preisvergleich​
ROG Strix X570-E Gaming WIFI II Produktseite | Handbuch (EN) | Support-Downloads | Preisvergleich
ROG Strix X570-E Gaming Produktseite | Handbuch (EN) | Support-Downloads | Preisvergleich​
Spoiler: Spezifikationen CPU AMD AM4 Socket 3rd and 2nd AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors Chipset X570 Memory 3rd Gen AMD Ryzen™ Processors 4 x DIMM, Max. 128GB, DDR4 4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory * 2nd Gen AMD Ryzen™ Processors 4 x DIMM, Max. 128GB, DDR4 3600(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory * 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors 4 x DIMM, Max. 128GB, DDR4 3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory Dual Channel Memory Architecture Graphic Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors Multi-VGA output support : HDMI/DisplayPort ports - Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz - Supports DisplayPort 1.2 with max. resolution 4096 x 2160 @ 60 Hz Multi-GPU Support 3rd and 2nd Gen AMD Ryzen™ Processors Supports NVIDIA® 2-Way SLI® Technology Supports AMD 3-Way CrossFireX™ Technology 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors Supports AMD 2-Way CrossFireX™ Technology Expansion Slots 3rd Gen AMD Ryzen™ Processors 2 x PCIe 4.0 x16 (x16 or dual x8) 2nd Gen AMD Ryzen™ Processors 2 x PCIe 3.0 x16 (x16 or dual x8) 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors 1 x PCIe 3.0 x16 (x8 mode) AMD X570 chipset 1 x PCIe 4.0 x16 (max at x4 mode) *1 2 x PCIe 4.0 x1 Storage 3rd Gen AMD Ryzen™ Processors : 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support 2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors : 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support AMD X570 chipset : 1 x M.2 x4 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support 8 x SATA 6Gb/s port(s), Support Raid 0, 1, 10 LAN Intel® I211-AT, 1 x Gigabit LAN Controller(s) Realtek® RTL8125-CG 2.5G LAN Anti-surge LANGuard ROG GameFirst Technology WiFi 2 x 2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) with MU-MIMO supports dual frequency band 2.4/5GHz Bluetooth Bluetooth® 5.0 Audio SupremeFX 8-Channel High Definition Audio CODEC S1220A - Dual OP Amplifiers - Impedance sense for front and rear headphone outputs - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - SupremeFX Shielding Technology - Supports up to 32-Bit/192kHz playback *2 Audio Feature : - Optical S/PDIF out port(s) at back panel - Sonic Radar III - Sonic Studio III + Sonic Studio Link USB Ports 3rd Gen AMD RyzenTM Processors : 4 x USB 3.2 Gen 2 port(s) (4 at back panel, ) 2nd Gen AMD RyzenTM/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors : 4 x USB 3.2 Gen 1 port(s) AMD X570 chipset : 1 x USB 3.2 Gen 2 front panel connector port(s) AMD X570 chipset : 4 x USB 3.2 Gen 2 port(s) (4 at back panel, , 3 x Type-A+1 x Type-C) AMD X570 chipset : 2 x USB 3.2 Gen 1 port(s) (2 at mid-board) AMD X570 chipset : 4 x USB 2.0 port(s) (4 at mid-board) Special Features 5-Way Optimization by Dual Intelligent Processors 5 - Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages. TPU - Auto Tuning, TurboV, GPU Boost Gamer's Guardian: - DRAM Overcurrent Protection - Stainless Steel Back I/O - Highly Durable Components - DIGI+ VRM - SafeSlot - ESD Guards on LAN, Audio,and USB ports ASUS EPU : - EPU AURA : - Aura Lighting Control - Addressable Gen 2 Header ASUS Exclusive Features : - USB BIOS Flashback® - AI Suite 3 - Ai Charger - ASUS NODE : hardware control interface - BIOS Flashback® Button ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 ASUS Q-Design : - ASUS Q-Code - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM Gaming Aesthetics : - AURA-RGB Lighting Back I/O Ports 1 x DisplayPort 1 x HDMI 5 x USB 3.1 Gen 1 Type-A 8 x USB 2.0 1 x Optical S/PDIF out 5 x Audio jack(s) 1 x Anti-surge 2.5G LAN (RJ45) port 1 x USB BIOS Flashback® Button(s) 1 x ASUS Wi-Fi Module 7 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A) 1 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-C) Anti-surge LAN (RJ45) port Internal I/O Ports 1 x PCH_FAN 1 x AAFP connector 2 x Aura RGB Strip Header(s) 2 x Addressable Gen 2 header(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 2 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support 1 x SPI TPM header 8 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x W_PUMP+ connector 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Thermal sensor connector(s) 1 x Clear CMOS jumper(s) 1 x Node Connector(s) 1 x System panel connector 1 x T_Sensor Connector 1 x M.2 Fan Header 1 x USB 3.2 Gen 2 (up to 10Gbps) connector 1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports Accessories User's manual 4 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD 1 x Strix door hanger 1 x ROG Strix stickers 1 x Cable ties pack(s) 1 x Wi-Fi Antenna(s) 1 x Extension Cable for RGB strips (80 cm) 1 x Extension cable for Addressable LED 1 x Thermistor cable(s) 1 x ROG Thank you card BIOS 256 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2. Form Factor ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) Note *1 PCIeX16_3 slot shares bandwidth with PCIeX1_2. *2 Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio. Spoiler: Weitere Bilder Spoiler: UEFI Bilder Bios Version 0807 AiTweaker Advanced Monitor Boot Tool Kompatibilitätsliste Memory QVL Ryzen 3000/4000/5000 Chipsatz Modding Alternativer Chipsatz Kühler von KCX Anhang anzeigen 627010 Anhang anzeigen 627009
Spoiler: Spezifikationen CPU AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors Chipset X570 Memory AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors 4 x DIMM, Max. 128GB, DDR4 4600(O.C.)/4400(O.C.)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400/2133, un-buffered memory AMD Ryzen™ 5000 and 4000 G-Series Processors 4 x DIMM, Max. 128GB, DDR4 5100(O.C)/4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133, un-buffered memory AMD Ryzen™ 2000 Series Desktop Processors 4 x DIMM, max. 128GB, DDR4 3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133, un-buffered memory AMD Ryzen™ 2000 and 3000 G-Series Desktop Processors 4 x DIMM, max. 128GB, DDR4 3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133, un-buffered memory Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU Graphic 1 x HDMI 2.0 1 x DisplayPort - Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz - Supports DisplayPort 1.2 with max. resolution 4096 x 2160 @ 60 Hz Expansion Slots AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors 2 x PCIe 4.0 x16 (x16 or dual x8)* AMD Ryzen™ 5000 G Series/4000 G-Series/ 2000 Series Processor 2 x PCIe 3.0 x16 (x16 or dual x8)* AMD Ryzen™ 2000 G-Series/ 3000 G-Series Processor 1 x PCIe 3.0 x16 (x8 mode)* AMD X570 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 2 x PCIe 4.0 x1 *PCIeX16_3 slot shares bandwidth with PCIeX1_2. Storage Supports 2 x M.2 slots and 8 x SATA 6Gb/s ports AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors: M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) AMD Ryzen™ 5000 G-Series/4000 G-Series/ 3000 G-Series/ 2000 G-Series/2000 Series Processor M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes) AMD X570 Chipset M.2_2 slot (Key M), type2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) 8 x SATA 6Gb/s ports LAN 1 x Realtek 2.5Gb Ethernet 1 x Intel® I211-AT 1Gb Ethernet Anti-surge LANGuard ROG GameFirst Technology 1 x Intel® 1Gb Ethernet WiFi Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* Bluetooth Bluetooth® v5.2 Audio Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC* - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback* Audio Features - SupremeFX Shielding Technology - Gold-plated audio jacks - Rear optical S/PDIF out port - Premium audio capacitors - Audio cover USB Ports AMD RyzenTM 5000, 5000 G-Series, 4000 G-Series, and 3000 Series Desktop Processors - 4 x USB 3.2 Gen2 ports (4 ports at back panel, Type-A) AMD RyzenTM 3000 G-Series, 2000, and 2000 G-Series Desktop Processors - 4 x USB 3.2 Gen 1 ports (4 ports at back panel, Type-A) AMD X570 chipset - 1 x USB 3.2 Gen2 front panel connector - 4 x USB3.2 Gen2 (at back panel, 3x Type-A, 1x Type-C) - 2 x USB3.2 Gen1 ports (at front panel) - 4 x USB 2.0 ports (at front panel) Special Features Extreme Engine Digi+ - 5K Black Metallic Capacitors ASUS Q-Design - M.2 Q-Latch - Q-Code - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - ProCool II - Pre-mounted I/O shield - SafeSlot AURA Sync - AURA RGB headers - Addressable Gen 2 headers Back I/O Ports 8 x USB 3.2 Gen 2 ports (7 x Type-A + 1 x USB Type-C®) 1 x DisplayPort 1 x HDMI® port 1 x Wi-Fi Module 1 x Intel® I211-AT 1Gb Ethernet port 1 x Realtek 2.5Gb Ethernet port 5 x Gold-plated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button Internal I/O Ports Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 2 x 4-pin Chassis Fan headers 1 x 4-pin M.2 Fan header 1 x W_PUMP+ header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 8 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 2 x Addressable Gen 2 headers 2 x AURA RGB headers 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x SPI TPM header (14-1pin) 1 x Speaker header 1 x 10-1 pin System Panel header 1 x Thermal Sensor header Accessories Cables 4 x SATA 6Gb/s cables 1 x Thermistor cable pack Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x Cable ties pack 1 x M.2 Rubber Package 1 x M.2 Q-Latch package 1 x ROG key chain 1 x ROG Strix stickers 1 x ROG Strix thank you card Installation Media 1 x Support DVD Documentation 1 x User manual BIOS 256 Mb Flash ROM, UEFI AMI BIOS Form Factor ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) Note *1 PCIeX16_3 slot shares bandwidth with PCIeX1_2. *2 Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio. Full Specs: http://[URL]https://rog.asus.com/motherboards/rog-strix/rog-strix-x570-e-gaming-wifi-ii-model/spec [/URL] Kompatibilitätsliste Memory QVL Ryzen 3000/4000/5000
Spoiler: Spezifikationen CPU AMD AM4 Socket 3rd and 2nd AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors Chipset X570 Memory 3rd Gen AMD Ryzen™ Processors 4 x DIMM, Max. 128GB, DDR4 4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory * 2nd Gen AMD Ryzen™ Processors 4 x DIMM, Max. 128GB, DDR4 3600(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory * 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors 4 x DIMM, Max. 128GB, DDR4 3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory Dual Channel Memory Architecture Graphic Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors Multi-VGA output support : HDMI/DisplayPort ports - Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz - Supports DisplayPort 1.2 with max. resolution 4096 x 2160 @ 60 Hz Multi-GPU Support 3rd and 2nd Gen AMD Ryzen™ Processors Supports NVIDIA® 2-Way SLI® Technology Supports AMD 3-Way CrossFireX™ Technology 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors Supports AMD 2-Way CrossFireX™ Technology Expansion Slots 3rd Gen AMD Ryzen™ Processors 2 x PCIe 4.0 x16 (x16 or dual x8) 2nd Gen AMD Ryzen™ Processors 2 x PCIe 3.0 x16 (x16 or dual x8) 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors 1 x PCIe 3.0 x16 (x8 mode) AMD X570 chipset 1 x PCIe 4.0 x16 (max at x4 mode) *1 2 x PCIe 4.0 x1 Storage 3rd Gen AMD Ryzen™ Processors : 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support 2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors : 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support AMD X570 chipset : 1 x M.2 x4 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support 8 x SATA 6Gb/s port(s), Support Raid 0, 1, 10 LAN Intel® I211-AT, 1 x Gigabit LAN Controller(s) Anti-surge LANGuard ROG GameFirst Technology Audio SupremeFX 8-Channel High Definition Audio CODEC S1220A - Dual OP Amplifiers - Impedance sense for front and rear headphone outputs - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - SupremeFX Shielding Technology - Supports up to 32-Bit/192kHz playback *2 Audio Feature : - Optical S/PDIF out port(s) at back panel - Sonic Radar III - Sonic Studio III + Sonic Studio Link USB Ports 3rd and 2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors : 4 x USB 3.2 Gen 1 port(s) (4 at back panel, ) AMD X570 chipset : 1 x USB 3.2 Gen 2 front panel connector port(s) AMD X570 chipset : 4 x USB 3.2 Gen 2 port(s) (4 at back panel, , 3 x Type-A+1 x Type-C) AMD X570 chipset : 2 x USB 3.2 Gen 1 port(s) (2 at mid-board) AMD X570 chipset : 4 x USB 2.0 port(s) (4 at mid-board) Special Features 5-Way Optimization by Dual Intelligent Processors 5 - Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages. TPU - Auto Tuning, TurboV, GPU Boost Gamer's Guardian: - DRAM Overcurrent Protection - Stainless Steel Back I/O - Highly Durable Components - DIGI+ VRM - SafeSlot - ESD Guards on LAN, Audio,and USB ports ASUS EPU : - EPU AURA : - Aura Lighting Control - Addressable Gen 2 Header ASUS Exclusive Features : - USB BIOS Flashback® - AI Suite 3 - Ai Charger - ASUS NODE : hardware control interface - BIOS Flashback® Button ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 ASUS Q-Design : - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM Gaming Aesthetics : - AURA-RGB Lighting Back I/O Ports 1 x DisplayPort 1 x HDMI 5 x USB 3.1 Gen 1 Type-A 8 x USB 2.0 1 x Optical S/PDIF out 5 x Audio jack(s) 1 x USB BIOS Flashback® Button(s) 4 x USB 3.2 Gen 1 (up to 5Gbps) ports 3 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A) 1 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-C) Anti-surge LAN (RJ45) port Internal I/O Ports 1 x PCH_FAN 1 x AAFP connector 2 x Aura RGB Strip Header(s) 2 x Addressable Gen 2 header(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 2 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support 1 x SPI TPM header 8 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x W_PUMP+ connector 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Thermal sensor connector(s) 1 x Clear CMOS jumper(s) 1 x Node Connector(s) 1 x System panel connector 1 x T_Sensor Connector 1 x M.2 Fan Header 1 x USB 3.2 Gen 2 (up to 10Gbps) connector 1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports Accessories User's manual 4 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD 1 x Strix door hanger 1 x ROG Strix stickers 1 x Cable ties pack(s) 1 x Extension Cable for RGB strips (80 cm) 1 x Extension cable for Addressable LED 1 x Thermistor cable(s) 1 x ROG Thank you card BIOS 256 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2. Form Factor ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) Note *1 PCIeX16_3 slot shares bandwidth with PCIeX1_2. *2 Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio. Kompatibilitätsliste Memory QVL Ryzen 3000/4000/5000 Chipsatz Modding Wasserkühler von Neo111430 Anhang anzeigen 627011 Anhang anzeigen 627012
Spoiler: Spezifikationen CPU AMD AM4 Socket 3rd and 2nd AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors Chipset X570 Memory 3rd Gen AMD Ryzen™ Processors 2 x DIMM, Max. 64GB, DDR4 4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3800(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory * 2nd Gen AMD Ryzen™ Processors 2 x DIMM, Max. 64GB, DDR4 3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory * 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors 2 x DIMM, Max. 64GB, DDR4 3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Graphic Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors Multi-VGA output support : HDMI/DisplayPort ports - Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz - Support DisplayPort 1.4 with max. resolution 8 K 7680 × 4320 @60 Hz Expansion Slots 3rd Gen AMD Ryzen™ Processors 1 x PCIe 4.0 x16 (x16 mode) 2nd Gen AMD Ryzen™ Processors 1 x PCIe 3.0 x16 (x16 mode) 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors 1 x PCIe 3.0 x16 (x8 mode) Storage 3rd Gen AMD Ryzen™ Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support 2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support AMD X570 chipset : 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support 4 x SATA 6Gb/s port(s), Support Raid 0, 1, 10 LAN Intel® I211-AT Anti-surge LANGuard ROG GameFirst Technology WiFi Supports channel bandwidth: HT20/HT40/HT80/HT160 Intel® Wi-Fi 6 AX200 2 x 2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) with MU-MIMO supports dual frequency band 2.4/5GHz Up to 2.4Gbps transfer speed Bluetooth Bluetooth® 5.0 Audio SupremeFX 8-Channel High Definition Audio CODEC S1220A - Dual OP Amplifiers - Impedance sense for front and rear headphone outputs - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/192kHz playback *2 Audio Feature : - DTS® Sound Unbound - LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path. - Sonic Radar III - Sonic Studio III + Sonic Studio Virtual Mixer USB Ports 3rd and 2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors : 4 x USB 3.2 Gen 1 port(s) (4 at back panel, blue) AMD X570 chipset : 4 x USB 3.2 Gen 2 port(s) (3 x Type-A+1 x Type-C) AMD X570 chipset : 2 x USB 3.2 Gen 1 port(s) (2 at mid-board) AMD X570 chipset : 2 x USB 2.0 port(s) Special Features 5-Way Optimization by Dual Intelligent Processors 5 - Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages. TPU - Auto Tuning, TurboV, GPU Boost ASUS EPU : - EPU AURA : - Aura Lighting Control - Addressable Gen 2 Header ASUS Exclusive Features : - AI Suite 3 - Ai Charger ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 ASUS Q-Design : - ASUS Q-Shield - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM Back I/O Ports 1 x DisplayPort 1 x HDMI 1 x ASUS Wi-Fi Module 3 x LED-illuminated audio jacks 4 x USB 3.2 Gen 1 (blue) 3 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A) 1 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-C) Anti-surge LAN (RJ45) port Internal I/O Ports 1 x HS_FAN 1 x PCH_FAN 1 x AAFP connector 1 x Aura RGB Strip Header(s) 1 x Addressable Gen 2 header(s) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 2 x M.2 Socket 3 with M Key design, type 2242/2260/2280 storage devices support (Supports both SATA & PCIE SSD) 4 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 1 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Thermal sensor connector(s) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x T_Sensor Connector 1 x Speaker connector Accessories User's manual I/O Shield 4 x SATA 6Gb/s cable(s) 2 x M.2 Screw Package 1 x Supporting DVD 1 x ROG Strix stickers 1 x M.2 bracket 1 x Cable ties pack(s) 1 x Wi-Fi Antenna(s) 1 x Extension cable for Addressable LED 1 x AAFP Extension Cable 1 x Panel cable 1 x ROG Thank you card BIOS 256 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2. Form Factor Mini ITX Form Factor 6.7 inch x 6.7 inch ( 17 cm x 17 cm ) Note *1 Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio. *2 Use a chassis with HD audio module in the front panel to support an 8-channel audio output. Kompatibilitätsliste Memory QVL Ryzen 3000/4000/5000

---

Häufig gestellte Fragen​

---

• Sound setzt aus oder knistert
  Immer wieder USB Disconnects
  Meistens tritt dieses Problem auf, wenn man einen hohen RAM Takt verwendet. In diesem Fall kann man versuchen die SOC Spannung auf 1.125V zu erhöhen. Sollte das nicht ausreichen, zusätzlich noch die VDDG CCD Spannung auf 1.00V (oder niedriger), sowie VDDG IOD Spannung auf 0.925V stellen.


• USB Disconnects
  Mit bestimmten UEFI/Agesa Versionen (v2 1.1.0.0/ 1.1.8.0) können sporadische USB Disconnects auftreten. Um dies zu umgehen bitte folgende Einstellung im Bios deaktivieren:
  UEFI -> Advanced -> AMD CBS -> Global C-States deaktivieren
  Der Verbrauch steigt dadurch um ca. 5Watt an aber ansonsten hat man keine weiteren Nachteile


• USB Flashback funktioniert nicht
  Bitte folgende Punkte ausprobieren:
  - Datei richtig umbenannt? Vorzugsweise mit dem im BIOS Download enthaltenen Renamer
  - Vor dem Flashen das BIOS auf Werkseinstellungen zurück setzen!
  - Einen anderen USB Stick ausprobieren. Vorzugsweise ein USB 2.0 Stick


• BIOS/UEFI Downgrade
  Ein UEFI Downgrade ist ohne Probleme mit USB Flashback möglich, soweit vorhanden.


• Ist der Chipsatz Lüfter regelbar?
  Nein, dieser wird automatisch, je nach vorhandener Temperatur, geregelt. Bis zu einer Temperatur von 55 Grad ist der Lüfter deaktiviert. Bei höheren Temperaturen wird er stufenweise schneller bis er letztendlich bei 93 Grad seine Höchstgeschwindigkeit erreicht. Über selbst erstellte Bios Mods kann man jedoch den Lüfter auch nach seinen Wünschen einstellen.


• Chipsatz Temperatur zu hoch?
  Wem das Optische nicht so wichtig ist, kann die Lüfterabdeckung vom Chipsatz beim X570-E oder x570-F entfernen. Dadurch staut sich die warme Luft nicht an, sondern kann direkt entweichen.
  Des weiteren kann man im Bios unter "Onboard Devices Configuration" die vorhandenen Steckplätze (PCIe X16, X1, M.2, SB Link) manuell auf PCIe 3.0 umstellen, sofern man keine PCIe 4.0 Karte verwendet. Bei Auto Einstellung wird automatisch PCIe 4.0 angelegt, was zu einer höheren Last führt.


• Kann ich ein altes Bios Profil mit einer neuen Bios Version nutzen?
  Nein, es ist zu empfehlen kein altes Profil mit einer neuen oder älteren Bios Version zu nutzen. Dies endet meist mit einem Blackscreen. Nach jedem Bios Flash bitte die Einstellungen neu vornehmen. Selbst wenn sich ein Profil laden lässt, kann es trotzdem zu Instabilität führen.


• Rechner bootet nicht, wenn eine Soundkarte verbaut ist
  Dieses Problem kann mit dem Bios 1404 oder höher (Agesa 1004b) auftreten. In dem Fall bitte in dem AMD CBS Menü die Option "PCIe Ten Bit Tag Support" auf Disabled stellen. Sollte das nicht ausreichen, dann zusätzlich noch unter dem Menü Advanced -> Onboard Devices Configuration -> die Option PCIEXxxx (den Slot auswählen, in der die Soundkarte steckt) von Auto auf Gen3 ändern.





Thanks for your bios mod for X570-e, I have this motherboard and it works very well, but I found a detail. When I boot the system without connected sata disks after a while the sata ports (which are configured in hot) do not detect the disks that I try to connect, the only solution that I have found is to go to the device manager and in the controllers section Sata give the option to search for hardware changes and then it detects the disk that I am trying to connect. Is this normal or is there some way to correct it in the bios??



[Coumodo]

seit letztem Windowsupdate geht der Ryzen Master Curve Optimizer nicht mehr...
musste BIOS auf default setzen damit er nach dem Update überhaupt wieder bootet.
Jetzt hängt der der Curve Optimizer bei 95% mit 6:30 Min left in einem "bootloop" (~20 Neustarts) fest ohne erkennbaren Fortschritt.
5600x, x570e-gaming V4403X2 @dafault, Win11 & aktuelle Ryzen Master Version auf Precision boost & Curve Optimizer.
Vorschläge wie ich weiter komme? Vor dem Update war es kein Problem und nach 4-5 reboots hatte der C O stabile Settings gefunden.



[taborsky2004]

BIOS 4403M kann Gehäuselüfter 1 und 2 Q-Fan Control [DC Mode] nicht auf weniger als 60 % einstellen, Ich benötige Chassis Fan 1 Min. Duty Cycle (%) [40] Leider lässt es sich nicht einstellen, limit ist 60%



[Reous]

@taborsky2004
Leider scheint hier Asus Bios technisch etwas verändert zu haben. Betrifft wohl auch das Strix-E.
Wird also leider nicht funktionieren. Versuche mal wie weit du es runter stellen kannst, wenn du Fan-Tuning drüber laufen lässt.



[taborsky2004]

@taborsky2004
Leider scheint hier Asus Bios technisch etwas verändert zu haben. Betrifft wohl auch das Strix-E.
Wird also leider nicht funktionieren. Versuche mal wie weit du es runter stellen kannst, wenn du Fan-Tuning drüber laufen lässt.

Glücklicherweise funktioniert es bei der BIOS-Kalibrierung von Lüftern, nach der Kalibrierung können Chassis Fan 1 43% und Chassis Fan 2 46% eingestellt werden. Es sind nicht 40%, aber ich bin zufrieden, ich habe überlegt, zu einem älteren Bios zu wechseln



[Maghook]

Die 4403 wurde heute als final released. Hatte mir die beta nicht gezogen, kann daher keinen Hash-Vergleich durchführen. Vermutlich eine Beta, die ohne besondere Rückmeldungen dann 1:1 zur Final wurde.



[Dr4go]

Die 4403 wurde heute als final released. Hatte mir die beta nicht gezogen, kann daher keinen Hash-Vergleich durchführen. Vermutlich eine Beta, die ohne besondere Rückmeldungen dann 1:1 zur Final wurde.

Kann ich bestätigen - es ist dasselbe File. D.h. sowohl Beta als auch Final ist ein und dieselbe Datei.



[scuba2k3]

hmm 4403 für das ROG STRIX X570-E GAMING WIFI II ist nicht mehr auf der offiziellen seite zu finden



[Reous]

@scuba2k3
Dafür gibt es eine neue Version 4404

https://dlcdnets.asus.com/pub/ASUS/mb/BIOS/ROG-STRIX-X570-E-GAMING-WIFI-II-ASUS-4404.zip



[SSIOMachtSchlau]

BIOS 4403M kann Gehäuselüfter 1 und 2 Q-Fan Control [DC Mode] nicht auf weniger als 60 % einstellen, Ich benötige Chassis Fan 1 Min. Duty Cycle (%) [40] Leider lässt es sich nicht einstellen, limit ist 60%

Das Problem hatte ich auch.
Ich habe einfach nen altes Profil eingespielt, damit schreibt er den Wert rein.

Man darf den Wert anschließend aber nicht mehr anfassen, dann springt der sofort wieder hoch ^^



Anderes Problem:

Kennt jemand das Problem, das Random Bluetooth beim starten weg ist ?
Nach mehrmaligen Neustarts ist es wieder da.

Das Problem ist irgendwo zwischen | Update installiert, neue GPU eingebaut und Bios Update passiert.

Seit dem braucht mein Netzwerk auch 10sec um erkannt zu werden.

Problem besteht seit ca 1-2 monaten
verwende Windows 11



[Knarfboy]

Es gibt neue Bios Versionen auf den Asus support Seiten:
Version 4403
2022/05/31 20.64 MBytes
ROG STRIX X570-E GAMING BIOS 4403
"1. Update AMD AM4 AGESA V2 PI 1.2.0.7.
2. Fix AMD fTPM issue causes random stuttering.

Gleiche Versionsnummer, aber mit neuen Datum und nicht mehr als beta markiert.
War gestern für einige Zeit nicht auf der Asus Webseite verfügbar und nun neu da. Keine Ahnung, was Asus da treibt.



[Tenoso]

Das Problem hatte ich auch.
Ich habe einfach nen altes Profil eingespielt, damit schreibt er den Wert rein.

Man darf den Wert anschließend aber nicht mehr anfassen, dann springt der sofort wieder hoch ^^



Anderes Problem:

Kennt jemand das Problem, das Random Bluetooth beim starten weg ist ?
Nach mehrmaligen Neustarts ist es wieder da.

Das Problem ist irgendwo zwischen | Update installiert, neue GPU eingebaut und Bios Update passiert.

Seit dem braucht mein Netzwerk auch 10sec um erkannt zu werden.

Problem besteht seit ca 1-2 monaten
verwende Windows 11

Treiber aktualisiert?
Dazu zählen auch Netzwerktreiber muss man leider manuell installieren. Windows ist bei mir zu blöd den richtigen zu installieren. Kann auch an deinem alten BIOS Profil liegen, das da was verstellt wurde.



[iPain3G]

Hast du Win 11 zufällig über Win 10 drüber installiert?
Hatte das Problem auch allerdings bei einer Insider. Nach einem kompletten Cleaninstall war das Problem weg.
Win 11 22h2 läuft bei mir seit dem Cleaninstall aber generell besser. Schätze irgendwann im Laufe der Insider ist bei mir was kaputt gegangen.
Könnte bei dir halt ein ähnlich gelagerter Fall sein. Mit dem Bios oder dem Board an sich hat das wahrscheinlich nichts zu tun.
Kannst aber trotzdem mal einen Flashback versuchen und dann alles händisch setzen statt ein altes Profil wieder zu laden.



[Felipe Vega]

Reus, thanks for your bios mod for X570-e, I have this motherboard and it works very well, but I found a detail. After a while, when I boot the system with no SATA drives attached, the SATA ports (which are set to hot swap) do not recognize the drives I'm trying to connect. The only solution I've found is to go to Device Manager and the Sata under the Controllers section, click the option to scan for hardware changes, and then it detects the hard drive I'm trying to connect. Is this normal or is there a way to fix it in the bios? Sorry, I'm translating from Spanish to German on Google .



[Reous]

I don't use Hot Plug and i haven't heard about this issue. Maybe someone other can help you.



[Ne2no]

Ich habe eine Asus Ryujin 360 (AiO) auf dem Asus X570-E Gaming installiert. Leider kann ich die Pumpe in Armoury Crate nicht steuern.
Ich kann das OLED Display, die Lüfter und auch den eingebauten Mikrolüfter in Armoury Crate steuern.
Allerdings fehlt in der Lüfterlistet die Pumpe (laut Tests müsste die Pumpe auch in der Lüfterliste erscheinen und steuerbar sein).

Hat jemand einen Tipp? Vielleicht im Bios etwas einstellen?

Dankeschön.



[Ne2no]

Außerdem kann ich die auf der AiO verbauten Noctua Lüfter nicht unter 800 rpm einstellen. Laut Datenblatt sollten aber 450 rpm gehen.
Sobald ich unter 800 rpm in Armoury Crate einstelle bleiben die Lüfter stehen. Auch hier die Frage wie ich das beheben kann.



[x370Pro]

Suchmaschine schon probiert? Im Netz steht einiges. Bioseinstellungen anpassen ist bestimmt eine gute Idee. QFan mal laufen lassen.



[Ne2no]

Ja hab schon viel gegoogelt. Leider nichts dazu gefunden.
Auch Q-Fan schon laufen lassen.
Auch Armoury Crate neu installiert.

Hab mittlerweile eine Einstellung im Armoury Crate Dashboard gefunden bei der ich die Pumpe zumindest auf leise stellen kann.

Aber in den AiO Einstellungen taucht die Pumpeneinstellungen leider nicht auf.



[x370Pro]

kann dir dann auch nicht weiterhelfen- hab sowas nicht- evtl. fw- da steht noch was auf der asus seite



[Mussels]

I have an Asus Ryujin 360 (AiO) installed on the Asus X570-E Gaming. Unfortunately, I can't control the pump in Armoury Crate.
I can control the OLED display, the fans and also the built-in micro fan in Armoury Crate.
However, the pump is missing in the fan list (according to tests, the pump should also appear in the fan list and be controllable).

Does anyone have a tip? Maybe set something in the bios?

Thanks.

Many of the pump ports are NOT controllable and run at 100% all the time.
You need to use a different port and control it there.



[Tenoso]

Ja hab schon viel gegoogelt. Leider nichts dazu gefunden.
Auch Q-Fan schon laufen lassen.
Auch Armoury Crate neu installiert.

Hab mittlerweile eine Einstellung im Armoury Crate Dashboard gefunden bei der ich die Pumpe zumindest auf leise stellen kann.

Aber in den AiO Einstellungen taucht die Pumpeneinstellungen leider nicht auf.

Naja was ggf Abhilfe schaffen kann ist den tower weiter weg zu stellen. Wenn es dich zu sehr stört die Lautstärke. Ich habe meinen neben dem Schreibtisch stehen. Wäre auf dem Tisch sicherlich viel lauter. Nur so eine Idee halt.



[Ule]

Hallo, habe ein kleines, aber etwas nerviges Problem. Seit einiger Zeit funktioniert meine Funktastatur (Logit. K-800) nicht mehr im Bios. Ich Maus, die am selben Unifying Empfänger betrieben wird, funktioniert, kann also nicht an den USB legacy Einstellungen im Bios liegen.
Habt ihr eine Idee?

Gruß Uli



[Tenoso]

Hallo, habe ein kleines, aber etwas nerviges Problem. Seit einiger Zeit funktioniert meine Funktastatur (Logit. K-800) nicht mehr im Bios. Ich Maus, die am selben Unifying Empfänger betrieben wird, funktioniert, kann also nicht an den USB legacy Einstellungen im Bios liegen.
Habt ihr eine Idee?

Gruß Uli

Verschiedene USB ports ausprobiert schon? Hinten/Vorne

Wird die Tastatur im BIOS gefunden?

Bei einem Empfänger und 2 Geräten könnte es Probleme mit der Verbindung geben.



[x370Pro]

Batterie?



[Ule]

Nee, in Windows funktioniert sie ja



[SSIOMachtSchlau]

Was ist eurer Meinung nach die beste AGESA Version ?

Habe heute gelesen die 1.2.0.3C soll bessere Performance + kühlere Temps als alle neueren haben



[SSIOMachtSchlau]

hab sogar 2 mal neu installiert ^^
irgendwo im Update Prozess tritt das Problem auf.

gestern beim bios neu Flaschen war es bei einem Boot wieder normal.
irgenwo mag er den den bios mod mit meinen Settings nicht.


agesa 1.2.0.3C läuft bei mir gefüllt besser als die neueren und etwas mehr cb Punkte



[Reous]

Ein altes Profil mit aktuellem Bios nutzen ist immer kritisch und kann zu den verschiedensten Problemen führen.
Falls du also wieder auf ein aktuelles Bios gehst, würde ich es mal ohne altes Profil testen.
