[Sammelthread] Gigabyte (GA-) G1.Sniper 3 / G1.Sniper M3 (Z77)

Willkommen im Sammelthread zu den

​


Gigabyte G1.Sniper 3


Layout:



Weitere Bilder:





Spezifikationen:
CPU

  • Support for Intel[SUP]®[/SUP] Core™ i7 processors/Intel[SUP]®[/SUP] Core™ i5 processors/ Intel[SUP]®[/SUP] Core™ i3 processors/Intel[SUP]®[/SUP] Pentium[SUP]®[/SUP] processors/Intel[SUP]®[/SUP] Celeron[SUP]®[/SUP] processors in the LGA1155 package
  • L3 cache varies with CPU
(Some Intel[SUP]®[/SUP] Core™ processors require a graphic card, please refer "CPU support List" for more information.)


Chipset

  • Intel[SUP]®[/SUP] Z77 Express Chipset

Memory

  • 4 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory
  • * Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
  • Dual channel memory architecture
  • Support for DDR3 2800(OC)/1600/1333/1066 MHz memory modules
  • Support for non-ECC memory modules
  • Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)


Onboard Graphics

  • 1 x D-Sub port
  • 1 x DVI-D port, supporting a maximum resolution of 1920x1200
  • * The DVI-D port does not support D-Sub connection by adapter.
  • 1 x HDMI port, supporting a maximum resolution of 1920x1200
  • 1 x DisplayPort, supporting a maximum resolution of 2560x1600

Audio

  • Creative CA0132 chip
  • Support for Sound Blaster Recon3Di
  • High Definition Audio
  • 2/5.1-channel
  • Support for S/PDIF Out

LAN

  • 1 x Qualcomm Atheros Killer E2200 LAN chip (10/100/1000 Mbit) (LAN1)
  • 1 x Intel GbE LAN phy (10/100/1000 Mbit) (LAN2)
  • * Teaming is not supported.

Wireless Communication module

  • Wi-Fi 802.11 a/b/g/n, Supports 2.4/5 GHz Dual-Band
  • Bluetooth 4.0, 3.0+HS, 2.1+EDR

Expansion Slots

  • 2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2)
  • * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16_1 slot; if you are installing two PCI Express graphics cards, it is recommended that you install them in the PCIEX16_1 and PCIEX16_2 slots.
  • 2 x PCI Express x16 slots, running at x8 (PCIEX8_1, PCIEX8_2)
  • * The PCIEX8_1 slot shares bandwidth with the PCIEX16_1 slot and the PCIEX8_2 slot with PCIEX16_2. The PCIEX16_1/PCIEX16_2 slot will operate at up to x8 mode when the PCIEX8_1/PCIEX8_2 is populated.
  • (The PCI Express x16 slots conform to PCI Express 3.0 standard.)
  • * PCIE Gen.3 is dependent on CPU and expansion card compatibility.
  • 2 x PCI Express x1 slots
  • (The PCI Express x1 slots conform to PCI Express 2.0 standard.)
  • 1 x PCI slot

Multi-Graphics Technology

  • Support for 4-Way/3-Way/2-Way AMD CrossFireX™/NVIDIA SLI technology™

Storage Interface

Chipset:
  • 2 x SATA 6Gb/s connectors (SATA3 0/1) supporting up to 2 SATA 6Gb/s devices
  • 4 x SATA 3Gb/s connectors (SATA2 2/3/4/5) supporting up to 4 SATA 3Gb/s devices
  • 1 x mSATA connector
  • * The SATA2 5 connector will become unavailable when the mSATA connector is installed with a solid state drive.
  • Support for RAID 0, RAID 1, RAID 5, and RAID 10
  • * When a RAID set is built across the SATA 6Gb/s and SATA 3Gb/s channels, the system performance of the RAID set may vary depending on the devices being connected.
2 x Marvell 88SE9172 chips:

  • 4 x SATA 6Gb/s connectors (GSATA3 6/7/8/9) supporting up to 4 SATA 6Gb/s devices
  • Support for RAID 0 and RAID 1

USB

Chipset:

  • Up to 2 USB 3.0/2.0 ports on the back panel
  • Up to 4 USB 2.0/1.1 ports (available through the internal USB headers)
Chipset + 2 VIA VL810 Hubs:

  • Up to 8 USB 3.0/2.0 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

IEEE 1394

VIA VT6308 chip:

  • Up to 2 IEEE 1394a ports (available through the internal IEEE 1394a headers)

Internal I/O Connectors
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x PCIe power connector
  • 6 x SATA 6Gb/s connectors
  • 4 x SATA 3Gb/s connectors
  • 1 x mSATA connector
  • 1 x CPU fan header
  • 4 x system fan headers
  • 1 x front panel header
  • 1 x front panel audio header
  • 2 x USB 2.0/1.1 headers
  • 2 x USB 3.0/2.0 headers
  • 2 x IEEE 1394a headers
  • 1 x Clear CMOS jumper
  • 1 x power button
  • 1 x Clear CMOS button
  • 1 x reset button
  • Voltage measurement points
  • 1 x BIOS switch
  • 1 x Trusted Platform Module (TPM) header

Back Panel Connectors

  • 1 x PS/2 keyboard/mouse port
  • 6 x USB 3.0/2.0 ports
  • 1 x D-Sub port
  • 1 x DVI-D port
  • 1 x HDMI port
  • 1 x DisplayPort
  • 2 x RJ-45 ports
  • 1 x optical S/PDIF Out connector
  • 5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In/Mic In, Line Out, Headphone)

I/O Controller

  • iTE I/O Controller Chip

H/W Monitoring

  • System voltage detection
  • CPU/System temperature detection
  • CPU/System fan speed detection
  • CPU overheating warning
  • CPU/System fan fail warning
  • CPU/System fan speed control
  • * Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install.

BIOS

  • 2 x 64 Mbit flash
  • Use of licensed AMI EFI BIOS
  • Support for DualBIOS™
  • PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a

Unique Features

  • Support for @BIOS
  • Support for Q-Flash
  • Support for Xpress Install
  • Support for Xpress Recovery2
  • Support for EasyTune
  • * Available functions in EasyTune may differ by motherboard model.
  • Support for eXtreme Hard Drive (X.H.D)
  • Support for Auto Green
  • Support for ON/OFF Charge
  • Support for Q-Share
  • Support for 3D Power
  • Support for EZ Setup

Links:

- Preisvergleich
- Produktseite / Info beim Hersteller/ Downloads (Bios, Treiber etc.)


Gigabyte G1.Sniper M3


Layout:

Weitere Bilder:




Spezifikationen:


CPU

  • Support for Intel[SUP]®[/SUP] Core™ i7 processors/Intel[SUP]®[/SUP] Core™ i5 processors/ Intel[SUP]®[/SUP] Core™ i3 processors/Intel[SUP]®[/SUP] Pentium[SUP]®[/SUP] processors/Intel[SUP]®[/SUP] Celeron[SUP]®[/SUP] processors in the LGA1155 package
  • L3 cache varies with CPU
(Some Intel[SUP]®[/SUP] Core™ processors require a graphic card, please refer "CPU support List" for more information.)


Chipset

  • Intel[SUP]®[/SUP] Z77 Express Chipset

Memory

  • 4 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory
  • * Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
  • Dual channel memory architecture
  • Support for DDR3 2800(OC)/1600/1333/1066 MHz memory modules
  • Support for non-ECC memory modules
  • Support for Extreme Memory Profile (XMP) memory modules

Onboard Graphics

  • 1 x D-Sub port
  • 1 x DVI-D port, supporting a maximum resolution of 1920x1200
  • * The DVI-D port does not support D-Sub connection by adapter.
  • 1 x HDMI port, supporting a maximum resolution of 1920x1200
  • 1 x DisplayPort, supporting a maximum resolution of 2560x1600

Audio

  • Creative CA0132 chip
  • Support for Sound Blaster Recon3Di
  • High Definition Audio
  • 2/5.1-channel
  • Support for S/PDIF Out

LAN
  • Intel GbE LAN chip (10/100/1000 Mbit)

Expansion Slots

  • 1 x PCI Express x16 slot, running at x16 (PCIEX16)
  • * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  • 1 x PCI Express x16 slot, running at x8 (PCIEX8)
  • (The PCIEX16 and PCIEX8 slots conform to PCI Express 3.0 standard.)
  • * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot will operate at up to x8 mode.
  • * PCIE Gen.3 is dependent on CPU and expansion card compatibility.
  • 1 x PCI Express x16 slot, running at x4 (PCIEX4)
  • 1 x PCI Express x1 slot
  • (PCIEX4/PCIEX1 slots conform to PCI Express 2.0 standard.)

Multi-Graphics Technology
  • Support for 2-Way AMD CrossFireX™/NVIDIA SLI technology (PCIEX16 and PCIEX8)

Storage Interface

Chipset:
  • 2 x SATA 6Gb/s connectors (SATA3 0/1) supporting up to 2 SATA 6Gb/s devices
  • 3 x SATA 3Gb/s connectors (SATA2 2~4) supporting up to 3 SATA 3Gb/s devices
  • 1 x eSATA 3Gb/s connector on the back panel supporting up to 1 SATA 3Gb/s device
  • Support for RAID 0, RAID 1, RAID 5, and RAID 10
  • * When a RAID set is built across the SATA 6Gb/s and SATA 3Gb/s channels, the system performance of the RAID set may vary depending on the devices being connected.

USB

Chipset:
  • Up to 4 USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)
  • Up to 10 USB 2.0/1.1 ports (4 ports on the back panel, 6 ports available through the internal USB headers)

Internal I/O Connectors

  • 1 x 24-pin ATX main power connector
  • 1 x 4-pin ATX 12V power connector
  • 2 x SATA 6Gb/s connectors
  • 3 x SATA 3Gb/s connectors
  • 1 x CPU fan header
  • 3 x System fan headers
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x USB 3.0/2.0 header
  • 3 x USB 2.0/1.1 headers
  • 1 x Clear CMOS jumper
  • 1 x Trusted Platform Module (TPM) header

Back Panel Connectors

  • 1 x PS/2 keyboard/mouse port
  • 1 x D-Sub port
  • 1 x DVI-D port
  • 1 x HDMI port
  • 1 x DisplayPort
  • 1 x eSATA 3Gb/s connector
  • 2 x USB 3.0/2.0 ports
  • 4 x USB 2.0/1.1 ports
  • 1 x RJ-45 port
  • 1 x optical S/PDIF Out connector
  • 5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In/Mic In, Line Out, Headphone)

I/O Controller

  • iTE I/O Controller Chip

H/W Monitoring

  • System voltage detection
  • CPU/System temperature detection
  • CPU/System fan speed detection
  • CPU overheating warning
  • CPU/System fan fail warning
  • CPU/System fan speed control
* Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install.


BIOS

  • 2 x 64 Mbit flash
  • Use of licensed AMI EFI BIOS
  • Support for DualBIOS™
  • PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a

Unique Features

  • Support for @BIOS
  • Support for Q-Flash
  • Support for Xpress Install
  • Support for Xpress Recovery2
  • Support for EasyTune
  • * Available functions in EasyTune may differ by motherboard model.
  • Support for eXtreme Hard Drive (X.H.D)
  • Support for Auto Green
  • Support for ON/OFF Charge
  • Support for Q-Share
  • Support for 3D Power
  • Support for EZ Setup

Links:

- Preisvergleich
- Produktseite / Info beim Hersteller/ Downloads (Bios, Treiber etc.)


Kompatibilität Arbeitsspeicher:

Gigabyte G1.Sniper 3
Speicherliste:

kompatibel:

- 2*2GB

~

- 2*4GB

~

- 4*4GB

~

- 2*8GB

~


------------------------------------------------------------


inkompatibel:
Zum Vergrößern anklicken....
Gigabyte G1.Sniper M3

Speicherliste:

kompatibel:

- 2*2GB

G.SKill Ripjaws 4GB Kit DDR3 PC3-10666 CL7 (F3-10666CL7D-4GBRH)-

- 2*4GB

G.SKill Ripjaws 8GB Kit DDR3 PC3-10666 CL7 (F3-10666CL7D-8GBRH)

- 4*4GB

~

- 2*8GB

~


------------------------------------------------------------


inkompatibel:
Zum Vergrößern anklicken....

Kompatibilität CPU Kühler:

Gigabyte G1.Sniper 3
Liste mit passenden Lüftkühler:

Liste mit passenden Wasserkühler:
Zum Vergrößern anklicken....

Gigabyte G1.Sniper M3
Liste mit passenden Lüftkühler:

Liste mit passenden Wasserkühler:
Zum Vergrößern anklicken....

Reviews / Unboxing:
Unboxing:
Gigabyte G1.Sniper 3
Gigabyte G1.Sniper M3

Reviews:

Test: Gigabyte G1.Sniper 3 - mehr als ein Gaming-Mainboard
GIGABYTE G1.Sniper 3 Motherboard

Gigabyte G1.Sniper M3 Intel Z77 Express LGA 1155 Preview Review | techPowerUp
Test: Gigabyte G1.Sniper M3 - kompaktes Gamer-Mainboard

Reviews - Sniper3:
1) Overclock3D
2) HotHardware
3) ocaholic
4) Legit Reviews mit dem M3
5) X-bit labs
6) Bjorn3d
7) Pure Overclock
8) AnandTech - Four Multi-GPU Z77 Boards ft. PLX PEX 8747 Vergleichstest mit anderen High End Modellen
9) Ninjalane
10) Tweakpc
11) Sin Hardware

Reviews - Sniper M3
1) Bjorn3D
2) Custom PC Review
3) Hardware Secrets
4) PC Perspective
5) Vortez
6) Xtreme Systems
7) eTeknix
8) OverclockingStation (LN2 Benching)
Zum Vergrößern anklicken....




Zuletzt bearbeitet:
Zum Vergrößern anklicken....
Wenn Du diese Anzeige nicht sehen willst, registriere Dich und/oder logge Dich ein.
Super dankeschön. Das hat jetzt funktioniert. Sowohl im GPU-Z als auch in der Nvidia Systemsteuerung wird mir jetzt PCI-E 3.0 angezeigt. Jetzt ist nur noch das Problem mit dem zurückfahren der Lanes.

Hier mal anschaulich wie das dann aussieht.

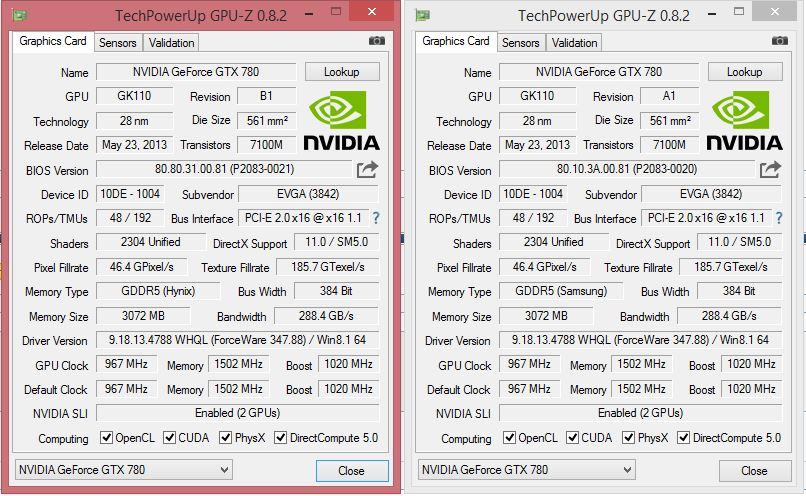

Hier läuft alles im Idle:
GPU-Z Idle.JPG

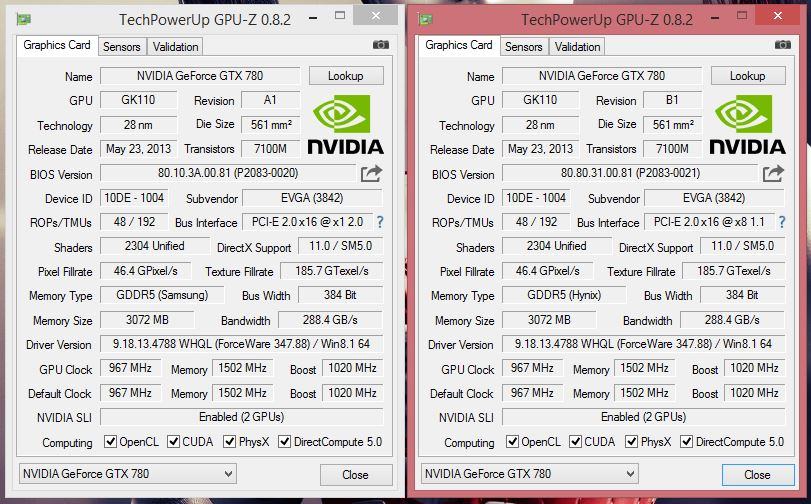

Und hier wenn die Lanes zurückschalten:
GPU-Z Crash.JPG

Nur weiß ich nicht ob das mit dem Board oder den Karten zusammenhängt.

Hat wer einen Link zur letzten verfügbaren Version des Treibers für die Recon3Di vom G1 Sniper 3 ? Ich suche wie verrückt aber der von der Gigabyte Seite aus 2012 kann ja schlecht der letzte sein oder ?

Das ist leider die Letzte. Ich habe bei win8.1 noch eine neuere über windows update bezogen (6.0.101.1027 von 27.08.2014) aber das war es dann auch.

Hi @all, mein Sniper fährt immer wieder hoch nach dem Runterfahren. Hab schon im Gerätemanager bei allen Netzwerkadaptern abgestellt, dass diese den PC aufwecken können sollen. Im BIOS ist Wake on LAN, Maus und Tastatur schon abgestellt.

Jemand eine Idee, woran das noch liegen könnte?

Danke vorab

Außerdem piept das BIOS beim Starten zwei mal (mit ca. 2 Sekunden Abstand dazwischen). Das Board funktioniert jedoch einwandfrei.

Sagt das jemand was -- in Bezug auf den unerwünschten Neustart nach dem Herunterfahren?

Windows Schnellstart deaktivieren.

OK danke werde ich probieren!

Worauf basiert der Zusammenhang zwischen Schnellstart und unerwünschtem Neustart?

Anmelden, um zu antworten.
Hardwareluxx setzt keine externen Werbe- und Tracking-Cookies ein. Auf unserer Webseite finden Sie nur noch Cookies nach berechtigtem Interesse (Art. 6 Abs. 1 Satz 1 lit. f DSGVO) oder eigene funktionelle Cookies. Durch die Nutzung unserer Webseite erklären Sie sich damit einverstanden, dass wir diese Cookies setzen. Mehr Informationen und Möglichkeiten zur Einstellung unserer Cookies finden Sie in unserer Datenschutzerklärung.


Zurück
Oben Unten refresh
