[Sammelthread]ASUS X570 Strix Series (X570-E Gaming, X570-E Gaming Wifi II, X570-F Gaming, X570-I Gaming)
AMD AM4 Socket 3rd and 2nd AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
Chipset
X570
Memory
3rd Gen AMD Ryzen™ Processors
4 x DIMM, Max. 128GB, DDR4 4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory *
2nd Gen AMD Ryzen™ Processors
4 x DIMM, Max. 128GB, DDR4 3600(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory *
2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
4 x DIMM, Max. 128GB, DDR4 3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory
Dual Channel Memory Architecture
Graphic
Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
Multi-VGA output support : HDMI/DisplayPort ports
- Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz
- Supports DisplayPort 1.2 with max. resolution 4096 x 2160 @ 60 Hz
Multi-GPU Support
3rd and 2nd Gen AMD Ryzen™ Processors
Supports NVIDIA® 2-Way SLI® Technology
Supports AMD 3-Way CrossFireX™ Technology
2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
Supports AMD 2-Way CrossFireX™ Technology
Expansion Slots
3rd Gen AMD Ryzen™ Processors
2 x PCIe 4.0 x16 (x16 or dual x8)
2nd Gen AMD Ryzen™ Processors
2 x PCIe 3.0 x16 (x16 or dual x8)
2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
1 x PCIe 3.0 x16 (x8 mode)
AMD X570 chipset
1 x PCIe 4.0 x16 (max at x4 mode) *1
2 x PCIe 4.0 x1
Storage
3rd Gen AMD Ryzen™ Processors :
1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support
2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors :
1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support
AMD X570 chipset :
1 x M.2 x4 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support
8 x SATA 6Gb/s port(s),
Support Raid 0, 1, 10
LAN
Intel® I211-AT, 1 x Gigabit LAN Controller(s)
Realtek® RTL8125-CG 2.5G LAN
Anti-surge LANGuard
ROG GameFirst Technology
WiFi
2 x 2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) with MU-MIMO supports dual frequency band 2.4/5GHz
Bluetooth
Bluetooth® 5.0
Audio
SupremeFX 8-Channel High Definition Audio CODEC S1220A
- Dual OP Amplifiers
- Impedance sense for front and rear headphone outputs
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- SupremeFX Shielding Technology
- Supports up to 32-Bit/192kHz playback *2
Audio Feature :
- Optical S/PDIF out port(s) at back panel
- Sonic Radar III
- Sonic Studio III + Sonic Studio Link
USB Ports
3rd Gen AMD RyzenTM Processors :
4 x USB 3.2 Gen 2 port(s) (4 at back panel, )
2nd Gen AMD RyzenTM/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors :
4 x USB 3.2 Gen 1 port(s)
AMD X570 chipset :
1 x USB 3.2 Gen 2 front panel connector port(s)
AMD X570 chipset :
4 x USB 3.2 Gen 2 port(s) (4 at back panel, , 3 x Type-A+1 x Type-C)
AMD X570 chipset :
2 x USB 3.2 Gen 1 port(s) (2 at mid-board)
AMD X570 chipset :
4 x USB 2.0 port(s) (4 at mid-board)
Special Features
5-Way Optimization by Dual Intelligent Processors 5
- Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages.
TPU
- Auto Tuning, TurboV, GPU Boost
Gamer's Guardian:
- DRAM Overcurrent Protection
- Stainless Steel Back I/O
- Highly Durable Components
- DIGI+ VRM
- SafeSlot
- ESD Guards on LAN, Audio,and USB ports
ASUS EPU :
- EPU
AURA :
- Aura Lighting Control
- Addressable Gen 2 Header
ASUS Exclusive Features :
- USB BIOS Flashback®
- AI Suite 3
- Ai Charger
- ASUS NODE : hardware control interface
- BIOS Flashback® Button
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
ASUS Q-Design :
- ASUS Q-Code
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
Gaming Aesthetics :
- AURA-RGB Lighting
Back I/O Ports
1 x DisplayPort
1 x HDMI
5 x USB 3.1 Gen 1 Type-A
8 x USB 2.0
1 x Optical S/PDIF out
5 x Audio jack(s)
1 x Anti-surge 2.5G LAN (RJ45) port
1 x USB BIOS Flashback® Button(s)
1 x ASUS Wi-Fi Module
7 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A)
1 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-C)
Anti-surge LAN (RJ45) port
Internal I/O Ports
1 x PCH_FAN
1 x AAFP connector
2 x Aura RGB Strip Header(s)
2 x Addressable Gen 2 header(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
2 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support
1 x SPI TPM header
8 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
2 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x W_PUMP+ connector
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Thermal sensor connector(s)
1 x Clear CMOS jumper(s)
1 x Node Connector(s)
1 x System panel connector
1 x T_Sensor Connector
1 x M.2 Fan Header
1 x USB 3.2 Gen 2 (up to 10Gbps) connector
1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports
Accessories
User's manual
4 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD
1 x Strix door hanger
1 x ROG Strix stickers
1 x Cable ties pack(s)
1 x Wi-Fi Antenna(s)
1 x Extension Cable for RGB strips (80 cm)
1 x Extension cable for Addressable LED
1 x Thermistor cable(s)
1 x ROG Thank you card
BIOS
256 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2.
Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Note
*1 PCIeX16_3 slot shares bandwidth with PCIeX1_2.
*2 Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors
4 x DIMM, Max. 128GB, DDR4 4600(O.C.)/4400(O.C.)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400/2133, un-buffered memory
AMD Ryzen™ 5000 and 4000 G-Series Processors
4 x DIMM, Max. 128GB, DDR4 5100(O.C)/4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133, un-buffered memory
AMD Ryzen™ 2000 Series Desktop Processors
4 x DIMM, max. 128GB, DDR4 3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133, un-buffered memory
AMD Ryzen™ 2000 and 3000 G-Series Desktop Processors
4 x DIMM, max. 128GB, DDR4 3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133, un-buffered memory
Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU
Graphic
1 x HDMI 2.0
1 x DisplayPort
- Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz
- Supports DisplayPort 1.2 with max. resolution 4096 x 2160 @ 60 Hz
Expansion Slots
AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors
2 x PCIe 4.0 x16 (x16 or dual x8)*
AMD Ryzen™ 5000 G Series/4000 G-Series/ 2000 Series Processor
2 x PCIe 3.0 x16 (x16 or dual x8)*
AMD Ryzen™ 2000 G-Series/ 3000 G-Series Processor
1 x PCIe 3.0 x16 (x8 mode)*
AMD X570 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
2 x PCIe 4.0 x1
*PCIeX16_3 slot shares bandwidth with PCIeX1_2.
Storage
Supports 2 x M.2 slots and 8 x SATA 6Gb/s ports
AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors:
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
AMD Ryzen™ 5000 G-Series/4000 G-Series/ 3000 G-Series/ 2000 G-Series/2000 Series Processor
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)
AMD X570 Chipset
M.2_2 slot (Key M), type2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
8 x SATA 6Gb/s ports
LAN
1 x Realtek 2.5Gb Ethernet
1 x Intel® I211-AT 1Gb Ethernet
Anti-surge LANGuard
ROG GameFirst Technology
1 x Intel® 1Gb Ethernet
WiFi
Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth
Bluetooth® v5.2
Audio
Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC*
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*
Audio Features
- SupremeFX Shielding Technology
- Gold-plated audio jacks
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover
USB Ports
AMD RyzenTM 5000, 5000 G-Series, 4000 G-Series, and 3000 Series Desktop Processors
- 4 x USB 3.2 Gen2 ports (4 ports at back panel, Type-A)
AMD RyzenTM 3000 G-Series, 2000, and 2000 G-Series Desktop Processors
- 4 x USB 3.2 Gen 1 ports (4 ports at back panel, Type-A)
AMD X570 chipset
- 1 x USB 3.2 Gen2 front panel connector
- 4 x USB3.2 Gen2 (at back panel, 3x Type-A, 1x Type-C)
- 2 x USB3.2 Gen1 ports (at front panel)
- 4 x USB 2.0 ports (at front panel)
Special Features
Extreme Engine Digi+
- 5K Black Metallic Capacitors
ASUS Q-Design
- M.2 Q-Latch
- Q-Code
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
AURA Sync
- AURA RGB headers
- Addressable Gen 2 headers
Back I/O Ports
8 x USB 3.2 Gen 2 ports (7 x Type-A + 1 x USB Type-C®)
1 x DisplayPort
1 x HDMI® port
1 x Wi-Fi Module
1 x Intel® I211-AT 1Gb Ethernet port
1 x Realtek 2.5Gb Ethernet port
5 x Gold-plated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
Internal I/O Ports
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
2 x 4-pin Chassis Fan headers
1 x 4-pin M.2 Fan header
1 x W_PUMP+ header
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
8 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
2 x Addressable Gen 2 headers
2 x AURA RGB headers
1 x Clear CMOS header
1 x Front Panel Audio header (AAFP)
1 x SPI TPM header (14-1pin)
1 x Speaker header
1 x 10-1 pin System Panel header
1 x Thermal Sensor header
Accessories
Cables
4 x SATA 6Gb/s cables
1 x Thermistor cable pack
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x Cable ties pack
1 x M.2 Rubber Package
1 x M.2 Q-Latch package
1 x ROG key chain
1 x ROG Strix stickers
1 x ROG Strix thank you card
Installation Media
1 x Support DVD
Documentation
1 x User manual
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Note
*1 PCIeX16_3 slot shares bandwidth with PCIeX1_2.
*2 Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
ASUS ROG STRIX Z590-A GAMING WIFI II Intel LGA 1200 ATX motherboard, PCIe 4.0, 14+2 power stages, WiFi 6, Intel® 2.5 Gb Ethernet, three M.2 slots, USB 3.2 Gen 2x2 USB Type-C®, SATA and Aura Sync
AMD AM4 Socket 3rd and 2nd AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
Chipset
X570
Memory
3rd Gen AMD Ryzen™ Processors
4 x DIMM, Max. 128GB, DDR4 4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory *
2nd Gen AMD Ryzen™ Processors
4 x DIMM, Max. 128GB, DDR4 3600(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory *
2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
4 x DIMM, Max. 128GB, DDR4 3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory
Dual Channel Memory Architecture
Graphic
Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
Multi-VGA output support : HDMI/DisplayPort ports
- Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz
- Supports DisplayPort 1.2 with max. resolution 4096 x 2160 @ 60 Hz
Multi-GPU Support
3rd and 2nd Gen AMD Ryzen™ Processors
Supports NVIDIA® 2-Way SLI® Technology
Supports AMD 3-Way CrossFireX™ Technology
2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
Supports AMD 2-Way CrossFireX™ Technology
Expansion Slots
3rd Gen AMD Ryzen™ Processors
2 x PCIe 4.0 x16 (x16 or dual x8)
2nd Gen AMD Ryzen™ Processors
2 x PCIe 3.0 x16 (x16 or dual x8)
2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
1 x PCIe 3.0 x16 (x8 mode)
AMD X570 chipset
1 x PCIe 4.0 x16 (max at x4 mode) *1
2 x PCIe 4.0 x1
Storage
3rd Gen AMD Ryzen™ Processors :
1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support
2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors :
1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support
AMD X570 chipset :
1 x M.2 x4 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support
8 x SATA 6Gb/s port(s),
Support Raid 0, 1, 10
LAN
Intel® I211-AT, 1 x Gigabit LAN Controller(s)
Anti-surge LANGuard
ROG GameFirst Technology
Audio
SupremeFX 8-Channel High Definition Audio CODEC S1220A
- Dual OP Amplifiers
- Impedance sense for front and rear headphone outputs
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- SupremeFX Shielding Technology
- Supports up to 32-Bit/192kHz playback *2
Audio Feature :
- Optical S/PDIF out port(s) at back panel
- Sonic Radar III
- Sonic Studio III + Sonic Studio Link
USB Ports
3rd and 2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors :
4 x USB 3.2 Gen 1 port(s) (4 at back panel, )
AMD X570 chipset :
1 x USB 3.2 Gen 2 front panel connector port(s)
AMD X570 chipset :
4 x USB 3.2 Gen 2 port(s) (4 at back panel, , 3 x Type-A+1 x Type-C)
AMD X570 chipset :
2 x USB 3.2 Gen 1 port(s) (2 at mid-board)
AMD X570 chipset :
4 x USB 2.0 port(s) (4 at mid-board)
Special Features
5-Way Optimization by Dual Intelligent Processors 5
- Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages.
TPU
- Auto Tuning, TurboV, GPU Boost
Gamer's Guardian:
- DRAM Overcurrent Protection
- Stainless Steel Back I/O
- Highly Durable Components
- DIGI+ VRM
- SafeSlot
- ESD Guards on LAN, Audio,and USB ports
ASUS EPU :
- EPU
AURA :
- Aura Lighting Control
- Addressable Gen 2 Header
ASUS Exclusive Features :
- USB BIOS Flashback®
- AI Suite 3
- Ai Charger
- ASUS NODE : hardware control interface
- BIOS Flashback® Button
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
ASUS Q-Design :
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
Gaming Aesthetics :
- AURA-RGB Lighting
Back I/O Ports
1 x DisplayPort
1 x HDMI
5 x USB 3.1 Gen 1 Type-A
8 x USB 2.0
1 x Optical S/PDIF out
5 x Audio jack(s)
1 x USB BIOS Flashback® Button(s)
4 x USB 3.2 Gen 1 (up to 5Gbps) ports
3 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A)
1 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-C)
Anti-surge LAN (RJ45) port
Internal I/O Ports
1 x PCH_FAN
1 x AAFP connector
2 x Aura RGB Strip Header(s)
2 x Addressable Gen 2 header(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
2 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support
1 x SPI TPM header
8 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
2 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x W_PUMP+ connector
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Thermal sensor connector(s)
1 x Clear CMOS jumper(s)
1 x Node Connector(s)
1 x System panel connector
1 x T_Sensor Connector
1 x M.2 Fan Header
1 x USB 3.2 Gen 2 (up to 10Gbps) connector
1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports
Accessories
User's manual
4 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD
1 x Strix door hanger
1 x ROG Strix stickers
1 x Cable ties pack(s)
1 x Extension Cable for RGB strips (80 cm)
1 x Extension cable for Addressable LED
1 x Thermistor cable(s)
1 x ROG Thank you card
BIOS
256 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2.
Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Note
*1 PCIeX16_3 slot shares bandwidth with PCIeX1_2.
*2 Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
AMD AM4 Socket 3rd and 2nd AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
Chipset
X570
Memory
3rd Gen AMD Ryzen™ Processors
2 x DIMM, Max. 64GB, DDR4 4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3800(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *
2nd Gen AMD Ryzen™ Processors
2 x DIMM, Max. 64GB, DDR4 3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *
2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
2 x DIMM, Max. 64GB, DDR4 3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Graphic
Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
Multi-VGA output support : HDMI/DisplayPort ports
- Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz
- Support DisplayPort 1.4 with max. resolution 8 K 7680 × 4320 @60 Hz
Expansion Slots
3rd Gen AMD Ryzen™ Processors
1 x PCIe 4.0 x16 (x16 mode)
2nd Gen AMD Ryzen™ Processors
1 x PCIe 3.0 x16 (x16 mode)
2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
1 x PCIe 3.0 x16 (x8 mode)
Storage
3rd Gen AMD Ryzen™ Processors :
1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support
2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors :
1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support
AMD X570 chipset :
1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support
4 x SATA 6Gb/s port(s),
Support Raid 0, 1, 10
Supports channel bandwidth: HT20/HT40/HT80/HT160
Intel® Wi-Fi 6 AX200
2 x 2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) with MU-MIMO supports dual frequency band 2.4/5GHz
Up to 2.4Gbps transfer speed
Bluetooth
Bluetooth® 5.0
Audio
SupremeFX 8-Channel High Definition Audio CODEC S1220A
- Dual OP Amplifiers
- Impedance sense for front and rear headphone outputs
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- Supports up to 32-Bit/192kHz playback *2
Audio Feature :
- DTS® Sound Unbound
- LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path.
- Sonic Radar III
- Sonic Studio III + Sonic Studio Virtual Mixer
USB Ports
3rd and 2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors :
4 x USB 3.2 Gen 1 port(s) (4 at back panel, blue)
AMD X570 chipset :
4 x USB 3.2 Gen 2 port(s) (3 x Type-A+1 x Type-C)
AMD X570 chipset :
2 x USB 3.2 Gen 1 port(s) (2 at mid-board)
AMD X570 chipset :
2 x USB 2.0 port(s)
Special Features
5-Way Optimization by Dual Intelligent Processors 5
- Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages.
TPU
- Auto Tuning, TurboV, GPU Boost
ASUS EPU :
- EPU
AURA :
- Aura Lighting Control
- Addressable Gen 2 Header
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
Back I/O Ports
1 x DisplayPort
1 x HDMI
1 x ASUS Wi-Fi Module
3 x LED-illuminated audio jacks
4 x USB 3.2 Gen 1 (blue)
3 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A)
1 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-C)
Anti-surge LAN (RJ45) port
Internal I/O Ports
1 x HS_FAN
1 x PCH_FAN
1 x AAFP connector
1 x Aura RGB Strip Header(s)
1 x Addressable Gen 2 header(s)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
2 x M.2 Socket 3 with M Key design, type 2242/2260/2280 storage devices support (Supports both SATA & PCIE SSD)
4 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Thermal sensor connector(s)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x T_Sensor Connector
1 x Speaker connector
Accessories
User's manual
I/O Shield
4 x SATA 6Gb/s cable(s)
2 x M.2 Screw Package
1 x Supporting DVD
1 x ROG Strix stickers
1 x M.2 bracket
1 x Cable ties pack(s)
1 x Wi-Fi Antenna(s)
1 x Extension cable for Addressable LED
1 x AAFP Extension Cable
1 x Panel cable
1 x ROG Thank you card
BIOS
256 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2.
Form Factor
Mini ITX Form Factor
6.7 inch x 6.7 inch ( 17 cm x 17 cm )
Note
*1 Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
*2 Use a chassis with HD audio module in the front panel to support an 8-channel audio output.
Sound setzt aus oder knistert
Immer wieder USB Disconnects
Meistens tritt dieses Problem auf, wenn man einen hohen RAM Takt verwendet. In diesem Fall kann man versuchen die SOC Spannung auf 1.125V zu erhöhen. Sollte das nicht ausreichen, zusätzlich noch die VDDG CCD Spannung auf 1.00V (oder niedriger), sowie VDDG IOD Spannung auf 0.925V stellen.
USB Disconnects
Mit bestimmten UEFI/Agesa Versionen (v2 1.1.0.0/ 1.1.8.0) können sporadische USB Disconnects auftreten. Um dies zu umgehen bitte folgende Einstellung im Bios deaktivieren:
UEFI -> Advanced -> AMD CBS -> Global C-States deaktivieren
Der Verbrauch steigt dadurch um ca. 5Watt an aber ansonsten hat man keine weiteren Nachteile
USB Flashback funktioniert nicht
Bitte folgende Punkte ausprobieren:
- Datei richtig umbenannt? Vorzugsweise mit dem im BIOS Download enthaltenen Renamer
- Vor dem Flashen das BIOS auf Werkseinstellungen zurück setzen!
- Einen anderen USB Stick ausprobieren. Vorzugsweise ein USB 2.0 Stick
BIOS/UEFI Downgrade
Ein UEFI Downgrade ist ohne Probleme mit USB Flashback möglich, soweit vorhanden.
Ist der Chipsatz Lüfter regelbar?
Nein, dieser wird automatisch, je nach vorhandener Temperatur, geregelt. Bis zu einer Temperatur von 55 Grad ist der Lüfter deaktiviert. Bei höheren Temperaturen wird er stufenweise schneller bis er letztendlich bei 93 Grad seine Höchstgeschwindigkeit erreicht. Über selbst erstellte Bios Mods kann man jedoch den Lüfter auch nach seinen Wünschen einstellen.

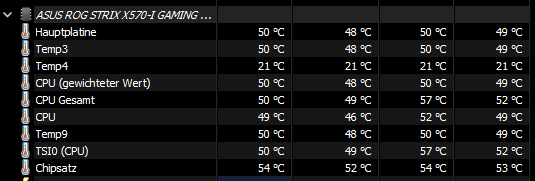

Chipsatz Temperatur zu hoch?
Wem das Optische nicht so wichtig ist, kann die Lüfterabdeckung vom Chipsatz beim X570-E oder x570-F entfernen. Dadurch staut sich die warme Luft nicht an, sondern kann direkt entweichen.
Des weiteren kann man im Bios unter "Onboard Devices Configuration" die vorhandenen Steckplätze (PCIe X16, X1, M.2, SB Link) manuell auf PCIe 3.0 umstellen, sofern man keine PCIe 4.0 Karte verwendet. Bei Auto Einstellung wird automatisch PCIe 4.0 angelegt, was zu einer höheren Last führt.
Kann ich ein altes Bios Profil mit einer neuen Bios Version nutzen?
Nein, es ist zu empfehlen kein altes Profil mit einer neuen oder älteren Bios Version zu nutzen. Dies endet meist mit einem Blackscreen. Nach jedem Bios Flash bitte die Einstellungen neu vornehmen. Selbst wenn sich ein Profil laden lässt, kann es trotzdem zu Instabilität führen.
Rechner bootet nicht, wenn eine Soundkarte verbaut ist
Dieses Problem kann mit dem Bios 1404 oder höher (Agesa 1004b) auftreten. In dem Fall bitte in dem AMD CBS Menü die Option "PCIe Ten Bit Tag Support" auf Disabled stellen. Sollte das nicht ausreichen, dann zusätzlich noch unter dem Menü Advanced -> Onboard Devices Configuration -> die Option PCIEXxxx (den Slot auswählen, in der die Soundkarte steckt) von Auto auf Gen3 ändern.
Ich kenne das Problem, durch CPU Spannung. Vielleicht durch Bios update geänderte Spannungen. Ich denk nicht das es am SOC liegt. Habe 3666 mit 1.0V . CPU Offset anheben hilft glaub ich eher.
It's an extremely common problem
My PC is stable at all load tests with 1.0v SoC at 3900, but has random black screen crashes or USB disconnect errors at low loads.
At 1.10v these happen about once a week, at 1.125+ they stop completely
I upgraded to a 5800x3D and it behaves exactly the same, and the old 5800x needed the same voltages in my x370 system for 3600

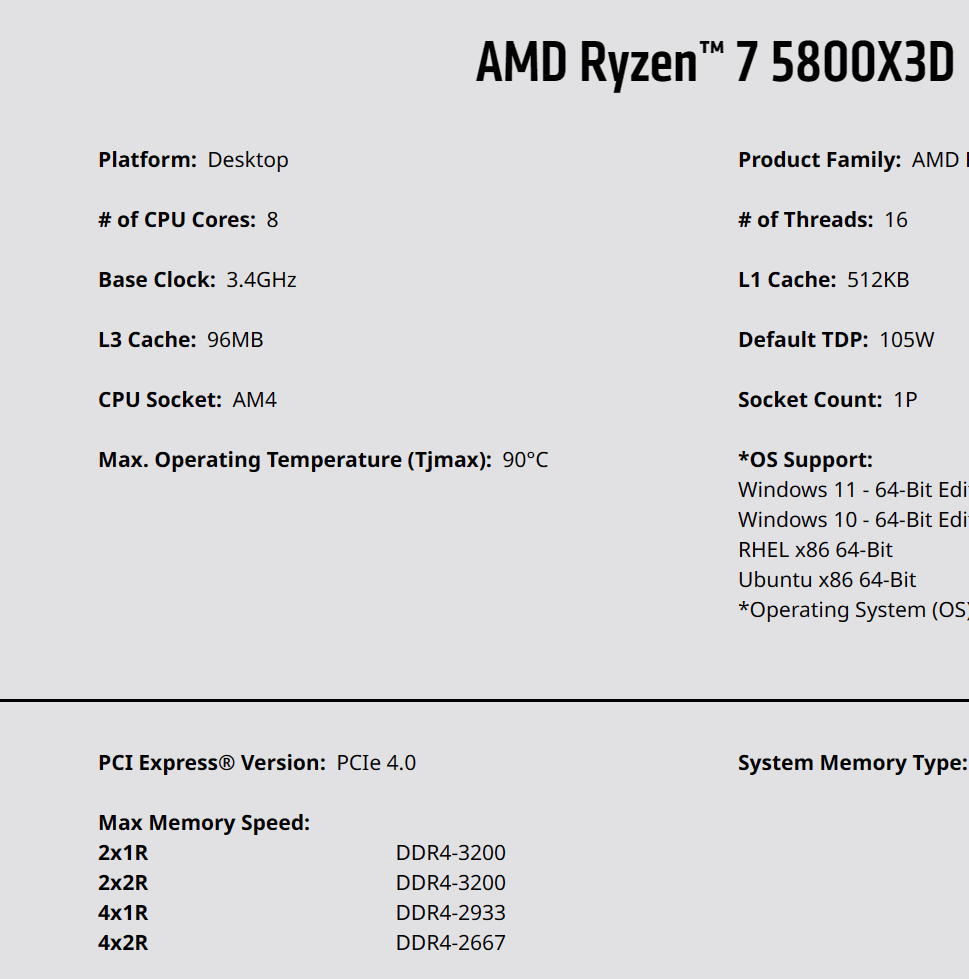

AMD are beginning to list these memory speeds on their website now, but not for all processors yet. If you wish to get above 3200 and be stable at idle and low loads, you almost always need higher SoC voltage.
Curve optimiser can give the exact same symptoms with too low an undervolt, that is completely true as well.
4601 Beta Version:
1. Update AGESA version to ComboV2PI 1208
2. Mitigate the AMD potential security vulnerabilities for AMD Athlon™ processors and Ryzen™ processors
mal ne dumme Frage, weil ich mich ungerne durch die 160 Seiten wühlen möchte und auf meine eigene Frage antworten würde "never change a running systsem"antworten würde...
System
- x570 I
- 3900X @ 1,2V fix auf allen 12 Kernen,
- 32Gb 3600er RAM 16/19/19/39 1T
- 1080Ti
... Außer GPU Treiber sind UEFI und Chipset-Treiber von 2019... alles funktioniert einwandfrei. Da ich aufgrund von Krankheit zeit habe zu fummeln, könnte ich mal alles aufn neuesten Stand bringen und bei Bedarf die voltings, timings und Takte tweaken.
Daher meine Frage... hat sich in den Chipsatz und UEFI Treibern irgendwas nennenswertes verbessert? Irgendein must have Feature? Das einzige was mich zu Beginn genervt hat war der Chipsatz Lüfter, der allerdings durch den fixen Takt von 4,2Ghz auf 1,2V nicht mehr störend bemerkbar macht. Ich frage, weil das Gamers Nexus Video zum 7900XD bis zu 30% Verbesserung in einiges CPU Benches bringt und ich mich neugierig bin, ob es derartige Besserungen auch für unsere Chips gab.
Meine Sicht als "Normalanwender" (ich bastele nicht an Voltings, Timings etx):
- die Verbesserungen in der Leistung sind nur bei den 3D-Cache CPUs. Da braucht das UEFI wohl neue "Infos" wie mit dem Cache umzugehen ist.
- bei meinem 3700x auf nem x570er-Board gab es bei den neueren UEFIs Probleme mit den XMP-Einstellungen, die es auf einer älteren Version nicht gab. Die neueren UEFIs scheinen eher für die 5000er CPUs zu sein, auch wenn in den Beschreibungen sowas nie steht. Kann aber natürlich auch ein individuelles Problem auf seiten meiner Konfiguration gewesen sein.
- bei älteren UEFIs habe ich sonst nie einen nennenswerten Unterschied in der Leistung bemerkt (als noob nutze ich zur Messung aber auch CPU-Z 🙃)
Ich konnte es nicht sein lassen und habe Treiber und UEFI auf den aktuellsten Stand gebracht… weil ich unbelehrbar bin.
Mal abgesehen davon, dass der Rechner mit neuem UEFI und altem OC/UV Profil mit 43 Millionen (ja, 43 Millionen) MHz booten wollte und ne Weile in ner Bootloop gefangen war, hat das UEFI einige neue Funktionen die ich niemals nutzen werden.
Nachdem ich mein o.g OC/UV eingerichtet habe die Ernüchterung, es hat sich rein gar nix geändert. Naja wenigstens ist nichts schlechter geworden.
Version 4602
20.68 MB 2023/03/14
"1. Update AGESA version to ComboV2PI 1208
2. Mitigate the AMD potential security vulnerabilities for AMD Athlon™ processors and Ryzen™ processors
Before running the USB flashback tool，please rename the BIOS file (SX570EG.CAP) using BIOSRenamer
Hi.
I apologize in advance that I'm posting in English since I don't understand German.
I have a ROG Strix X570-E Gaming WiFi II that I'm trying to update with the BiosMod V4408XII here. I followed the instructions which is to go to the BIOS and load the optimized defaults then to use BIOS flashback. The file is loaded to a flash drive with FAT32 format. BIOS flashback failed three times for me (BIOS flashback LED permanently turns on). I tried to update using EZ Flash 3 Utility and I'm also getting an error "selected file is not a proper BIOS!" Any ideas how to resolve this issue?
The file is loaded to a flash drive with FAT32 format. BIOS flashback failed three times for me (BIOS flashback LED permanently turns on). I tried to update using EZ Flash 3 Utility and I'm also getting an error "selected file is not a proper BIOS!" Any ideas how to resolve this issue?
1. Try to use USB 2.0 drive if you have one.
2. EZ Flash won't flash mods in any case because it checks a digital signature of the file. The only built-in option to flash modded BIOS is to use flashback.
1. Try to use USB 2.0 drive if you have one.
2. EZ Flash won't flash mods in any case because it checks a digital signature of the file. The only built-in option to flash modded BIOS is to use flashback.
Sadly I don't have a USB 2 drive but I will try it with another USB 3.0 drive that I have.
Understood. I will likely wait for the 4602 BIOS which just released.
MediaFire is a simple to use free service that lets you put all your photos, documents, music, and video in a single place so you can access them anywhere and share them everywhere.
MediaFire is a simple to use free service that lets you put all your photos, documents, music, and video in a single place so you can access them anywhere and share them everywhere.
MediaFire is a simple to use free service that lets you put all your photos, documents, music, and video in a single place so you can access them anywhere and share them everywhere.
MediaFire is a simple to use free service that lets you put all your photos, documents, music, and video in a single place so you can access them anywhere and share them everywhere.
Used a USB 2.0 drive and managed to install the latest Strix X570-E Gaming_Wifi II 4602XII mod. Had to convert the flash drive into MBR for it to work.
1. Welche Temperaturen in hwinfo bei Punkt temp3, temp4 und temp9 ausgelesen werden?
2. Wo kann ich die Daten für meinen angeschlossenen Temperatursensor finden?
3. Welche Punkte sind bei hwinfo für CPU/GPU und Spannungswandler am genausten?
4. Power Reporting Deviation hat einen roten Minimalwert von 56%. Ist das normal/unbedenklich?
1. Welche Temperaturen in hwinfo bei Punkt temp3, temp4 und temp9 ausgelesen werden?
2. Wo kann ich die Daten für meinen angeschlossenen Temperatursensor finden?
3. Welche Punkte sind bei hwinfo für CPU/GPU und Spannungswandler am genausten?
4. Power Reporting Deviation hat einen roten Minimalwert von 56%. Ist das normal/unbedenklich?
Naja.... die WD SN850 machts nicht besser!
Hatte hier mal das Problem das nach nem PC Absturz die komplette Platte unbrauchbar war. Alle daten drauf weg, nix lesbar. half nur windows neu aufzusetzten.
Bin mir nicht sicher ob das an den SSDs selbst liegt oder am PCi-E 4.0 slot für M2
Okay....
Ich hab das Damals auf ne defekte NVME SSD abgeschoben.....
ABER es ist wieder passiert! Nachdem mir die drecks WD SN850 ca 3x abgeschmiert ist, nur eine komplette neubeschreibung und reinstalltion von Windows die daraufhin wiederkehrenden Abstürze verhinder konnte habe ich es aufgegeben und die NVME SSD ausgebaut. Weiter mit der alten Sata als OS Laufwerk gelebt.
Dann vor ner weile im Angebot eine 2TB Adata SX8200 pro erschnappt...
ABER vorgestern ist mir Windows mit der Meldung "WHEA Error" im Bluescreen abgestürzt. Danach wurde die NVME SSD im BIOS nicht mehr erkannt. Nach 3x rebooten und par minuten ausgeschaltet stehenlassen wurde sie dann plötzlich wieder erkannt und Windows funktionierte wieder.
SFC scannow, Checkdsk und DISM alles mal drüber laufen lassen, aber wurde nie irgendwelche Fehler erkannt.
Trotzdem war das System instabil und crasht des öfteren, besonders bei starker SSD belastung! Beim versuch ein Backup zu erstellen ist der PC 4x abgestützt. WHEA Error und Unexpected Storage error.
1x würde ich ja noch auf schlechte Hardware tippen. Aber da es nun WIEDER passiert ist werd ich langsam Paranoid.
Hat irgendjemand sonst davon gehört das Windows auf einer NVME SSD zerschossen wird oder die SSD dauerhaft beschädigt?
Auf dem Testsystem hat es mir schon etliche Male Windows bei zu starkem RAM OC zerschossen. Auch wurde die Platte dann auch nicht mehr im Bios erkannt.
Sind es 18er, 19er oder andere WHEA Fehler wo du hast?
Auf welchen Settings läuft dein RAM?
Ist mir auf den Sata SSD's noch nie passiert Und ich hatte da auch schon fleissig Crashes und abstürze, aber Windows lief jedesmal problemlos weiter.
Das problem ist das selbst wenn ich im BIOS alles wieder auf Default umschalte und keine Probleme mit dem RAM Mehr habe (mehrere stunden Karhu) die windows installtion immernoch defekt ist und bei zu starker belastung der NVME SSD abstürzt. Sich eben ab nicht mit windows boardmitteln finden und beheben lässt.
Hab die NVME nun in den zweiten Slot verbaut, in der Hoffnung dann Windows neu installieren zu können, aber sobald die Installation fertig war un das erste mal aufgestartet war isses wieder gecrasht beim nVidia Treiber installieren, irgendwass mit process stuck, und seither wird die NMVE SSD nicht mehr erkannt. Dauerhaft.
Ram sollte glaubs letzthin mit diesen settings geloffen sein.
