[Sammelthread] EVGA P55 MicroLE/Micro/LE/SLI/FTW/FTW 200/Classified 200 (Intel P55) [2]

EVGA P55 Micro LE/Micro/LE/SLI/FTW/FTW 200/Classified 200




EVGA P55 Micro
EVGA P55 Micro(E652)


Inhaltsverzeichnis:

1. Spezifikationen
2. Features
3. Bilder/Mainboard
4. Das Bios
5. Overclocking
6. Downloads
7. Reviews

------------------------------


1. Spezifikationen

Performance
Based on Intel P55 chipset
Supports Intel Socket 1156 Processors

Memory
4 x 240-pin DIMM sockets
Dual Channel DDR3
Maximum of 16GB of DDR3 2000MHz+

Expansion Slot
2 x PCIe x8, 1 x PCIe x1
1 x 32-bit PCI, support for PCI 2.1

Storage I/O
x UltraDMA133
6 x Serial ATA 300MB/sec with support for RAID 0, RAID1, RAID 0+1, RAID5, JBOD

Integrated Peripherals
8 Channel High Definition
1 x 10/100/1000

Multi I/O
1 x PS2 Keyboard
13 x USB2.0 ports (7 external + 6 internal headers)
Audio connector (Line-in, Line-out, MIC)
FireWire

Form Factor
mATX Form Factor
Length: 9.6in - 243.84mm
Width: 9.6in - 243.84mm


2. Features

Key Features

USB 2.0 Support
A standard plug and play interface providing easy-to-use connectivity for USB devices.
PCI Express® 2.0 / 1.1 Support
Allows 500MB a lane or up to 8 GB/s at 16x speeds - allows for full support for new PCI-E 2.0 graphics cards.
Serial ATA II
Also known as SATA2, features a 3.0 Gbit/s transfer speed, faster than Standard Serial ATA.
Solid Capacitors
Offers a longer lifespan, better stability when at high frequencies, can operate at higher temperatures, and no longer runs the risk of exploding.
Passive Heatsink
Consist of a metal heatsink.
On-Board Clear CMOS Button
An onboard clear CMOS button which allows you to easily clear your BIOS without moving a jumper.
2-Way SLI® Support
Feel free to turn up the eye candy and experience the performance of 2 Graphics Cards running together.
Windows XP™ Support
Windows Vista™ Support
DDR3 Support

Full support for the latest in DDR technologies.
Dual-Channel Support
Supports Dual-Channel memory configurations for increased amounts of system memory bandwidth.
Intel® Core i7 Support
With an integrated memory controller, Intel® Core i7 (Socket 1366) processors feature amazing performance for however you use your computer.


3. Bilder/Mainboard

EVGA Bilder:




4. Das Bios

Coming soon...

5. Overclocking

Coming soon...

6. Downloads

Bios/Treiber/Manuals/Utilities

*klick*

Bios Update Anleitung

*klick*

EVGA P55 Wallpapers

*klick*

7. Previews/Reviews

Previews:



Reviews:


EVGA P55 LE
EVGA P55 LE(E653)


Inhaltsverzeichnis:

1. Spezifikationen
2. Features
3. Bilder/Mainboard
4. Das Bios
5. Overclocking
6. Downloads
7. Reviews

------------------------------


1. Spezifikationen

Performance
Based on Intel P55 chipset
Supports Intel Socket 1156 Processors

Memory
4 x 240-pin DIMM sockets
Dual Channel DDR3
Maximum of 16GB of DDR3 2000MHz+

Expansion Slot
1 x PCIe x16/x8, 1 x PCIe x4, 1 x PCIe x1
3 x 32-bit PCI, support for PCI 2.1

Storage I/O
x UltraDMA133
6 x Serial ATA 300MB/sec with support for RAID 0, RAID1, RAID 0+1, RAID5, JBOD

Integrated Peripherals
8 Channel High Definition
1 x 10/100/1000

Multi I/O
1 x PS2 Keyboard
14 x USB2.0 ports (8 external + 6 internal headers)
Audio connector (Line-in, Line-out, MIC)
FireWire

Form Factor
ATX Form Factor
Length: 12in - 304.8mm
Width: 9.6in - 243.84mm

2. Features

Key Features

USB 2.0 Support
A standard plug and play interface providing easy-to-use connectivity for USB devices.
PCI Express® 2.0 / 1.1 Support
Allows 500MB a lane or up to 8 GB/s at 16x speeds - allows for full support for new PCI-E 2.0 graphics cards.
Serial ATA II
Also known as SATA2, features a 3.0 Gbit/s transfer speed, faster than Standard Serial ATA.
Solid Capacitors
Offers a longer lifespan, better stability when at high frequencies, can operate at higher temperatures, and no longer runs the risk of exploding.
Passive Heatsink
Consist of a metal heatsink.
On-Board Clear CMOS Button
An onboard clear CMOS button which allows you to easily clear your BIOS without moving a jumper.
On-Board Power Button with Integrated Power Light
An onboard power button for easily powering on or off your system. Also shows a power indication light.
On-Board Reset Button with Integrated HDD Activity Light
An onboard reset button for easily rebooting your system as well as gives current status of your HDD via an activity light.
On-Board Diagnostics LED Readout
Helpful for when diagnosing a problem is needed.
2-Way SLI® Support
Feel free to turn up the eye candy and experience the performance of 2 Graphics Cards running together.
Windows XP™ Support
Windows Vista™ Support
DDR3 Support

Full support for the latest in DDR technologies.
Dual-Channel Support
Supports Dual-Channel memory configurations for increased amounts of system memory bandwidth.
Intel® Core i7 Support
With an integrated memory controller, Intel® Core i7 (Socket 1366) processors feature amazing performance for however you use your computer.


3. Bilder/Mainboard

EVGA Bilder:




4. Das Bios

Coming soon...

5. Overclocking

Coming soon...

6. Downloads

Bios/Treiber/Manuals/Utilities

*klick*

Bios Update Anleitung

*klick*

EVGA P55 Wallpapers

*klick*

7. Previews/Reviews

Previews:



Reviews:


EVGA P55 SLI
EVGA P55 SLI(E655)


Inhaltsverzeichnis:

1. Spezifikationen
2. Features
3. Bilder/Mainboard
4. Das Bios
5. Overclocking
6. Downloads
7. Reviews

------------------------------


1. Spezifikationen

Performance
Based on Intel P55 chipset
Supports Intel Socket 1156 Processors

Memory
4 x 240-pin DIMM sockets
Dual Channel DDR3
Maximum of 16GB of DDR3 2600MHz+

Expansion Slot
2 x PCIe x16/x8, 1 x PCIe x4, 1 x PCIe x1
2 x 32-bit PCI, support for PCI 2.1

Storage I/O
x UltraDMA133
8 x Serial ATA 300MB/sec with support for RAID 0, RAID1, RAID 0+1, RAID5, JBOD

Integrated Peripherals
8 Channel High Definition
2 x 10/100/1000

Multi I/O
1 x PS2 Keyboard
13 x USB2.0 ports (7 external + 6 internal headers)
Audio connector (Line-in, Line-out, MIC)
FireWire

Form Factor
ATX Form Factor
Length: 12in - 304.8mm
Width: 9.6in - 243.84mm

2. Features

Key Features

USB 2.0 Support
A standard plug and play interface providing easy-to-use connectivity for USB devices.
PCI Express® 2.0 / 1.1 Support
Allows 500MB a lane or up to 8 GB/s at 16x speeds - allows for full support for new PCI-E 2.0 graphics cards.
Serial ATA II
Also known as SATA2, features a 3.0 Gbit/s transfer speed, faster than Standard Serial ATA.
Solid Capacitors
Offers a longer lifespan, better stability when at high frequencies, can operate at higher temperatures, and no longer runs the risk of exploding.
Passive Heatsink
Consist of a metal heatsink.
On-Board Clear CMOS Button
An onboard clear CMOS button which allows you to easily clear your BIOS without moving a jumper.
On-Board Power Button with Integrated Power Light
An onboard power button for easily powering on or off your system. Also shows a power indication light.
On-Board Reset Button with Integrated HDD Activity Light
An onboard reset button for easily rebooting your system as well as gives current status of your HDD via an activity light.
On-Board Diagnostics LED Readout
Helpful for when diagnosing a problem is needed.
2-Way SLI® Support
Feel free to turn up the eye candy and experience the performance of 2 Graphics Cards running together.
Windows XP™ Support
Windows Vista™ Support
DDR3 Support

Full support for the latest in DDR technologies.
Dual-Channel Support
Supports Dual-Channel memory configurations for increased amounts of system memory bandwidth.
Intel® Core i7 Support
With an integrated memory controller, Intel® Core i7 (Socket 1366) processors feature amazing performance for however you use your computer.


3. Bilder/Mainboard

EVGA Bilder:




4. Das Bios

Coming soon...

5. Overclocking

Coming soon...

6. Downloads

Bios/Treiber/Manuals/Utilities

*klick*

Bios Update Anleitung

*klick*

EVGA P55 Wallpapers

*klick*

7. Previews/Reviews

Previews:



Reviews:


EVGA P55 FTW
EVGA P55 FTW(E657)


Inhaltsverzeichnis:

1. Spezifikationen
2. Features
3. Bilder/Mainboard
4. Das Bios
5. Overclocking
6. Downloads
7. Reviews

------------------------------


1. Spezifikationen

Performance
Based on Intel P55 chipset
Supports Intel Socket 1156 Processors

Memory
4 x 240-pin DIMM sockets
Dual Channel DDR3
Maximum of 16GB of DDR3 2600MHz+

Expansion Slot
2 x PCIe x16/x8, 1 x PCIe x4, 1 x PCIe x1
2 x 32-bit PCI, support for PCI 2.1

Storage I/O
x UltraDMA133
8 x Serial ATA 300MB/sec with support for RAID 0, RAID1, RAID 0+1, RAID5, JBOD

Integrated Peripherals
8 Channel High Definition
2 x 10/100/1000

Multi I/O
1 x PS2 Keyboard
13 x USB2.0 ports (7 external + 6 internal headers)
Audio connector (Line-in, Line-out, MIC)
FireWire

Form Factor
ATX Form Factor
Length: 12in - 304.8mm
Width: 9.6in - 243.84mm

2. Features

Key Features

USB 2.0 Support
A standard plug and play interface providing easy-to-use connectivity for USB devices.
PCI Express® 2.0 / 1.1 Support
Allows 500MB a lane or up to 8 GB/s at 16x speeds - allows for full support for new PCI-E 2.0 graphics cards.
Serial ATA II
Also known as SATA2, features a 3.0 Gbit/s transfer speed, faster than Standard Serial ATA.
Solid Capacitors
Offers a longer lifespan, better stability when at high frequencies, can operate at higher temperatures, and no longer runs the risk of exploding.
Passive Heatsink
Consist of a metal heatsink.
On-Board Clear CMOS Button
An onboard clear CMOS button which allows you to easily clear your BIOS without moving a jumper.
On-Board Power Button with Integrated Power Light
An onboard power button for easily powering on or off your system. Also shows a power indication light.
On-Board Reset Button with Integrated HDD Activity Light
An onboard reset button for easily rebooting your system as well as gives current status of your HDD via an activity light.
On-Board Diagnostics LED Readout
Helpful for when diagnosing a problem is needed.
2-Way SLI® Support
Feel free to turn up the eye candy and experience the performance of 2 Graphics Cards running together.
Windows XP™ Support
Windows Vista™ Support
DDR3 Support

Full support for the latest in DDR technologies.
Dual-Channel Support
Supports Dual-Channel memory configurations for increased amounts of system memory bandwidth.
Intel® Core i7 Support
With an integrated memory controller, Intel® Core i7 (Socket 1366) processors feature amazing performance for however you use your computer.
Delivers up to 600w of CPU Power


3. Bilder/Mainboard

EVGA Bilder:




4. Das Bios

Bilder von Fatal1ty



5. Overclocking

Coming soon...

6. Downloads

Bios/Treiber/Manuals/Utilities

*klick*

Bios Update Anleitung

*klick*

EVGA P55 Wallpapers

*klick*

7. Previews/Reviews

Previews:



Reviews:

Overlockerstech

Firingsquad

Anandtech

EVGA P55 FTW 200
EVGA P55 FTW 200 (E658)


Inhaltsverzeichnis:

1. Spezifikationen
2. Features
3. Bilder/Mainboard
4. Das Bios
5. Overclocking

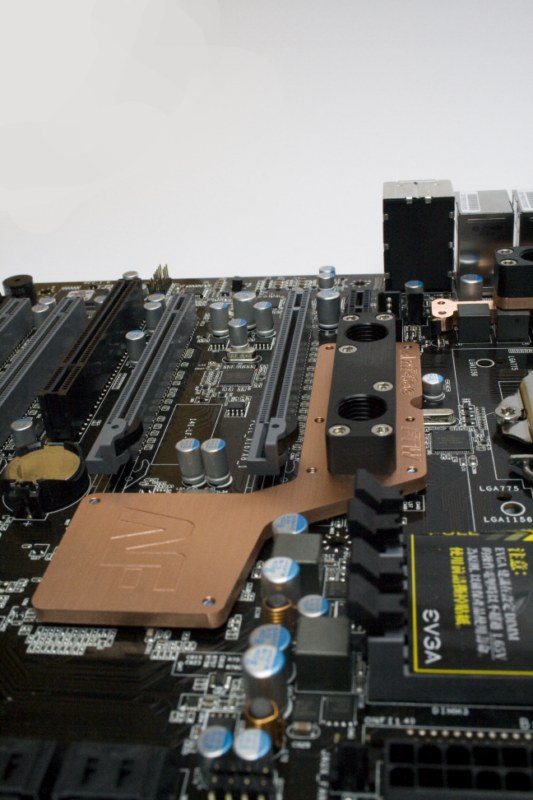

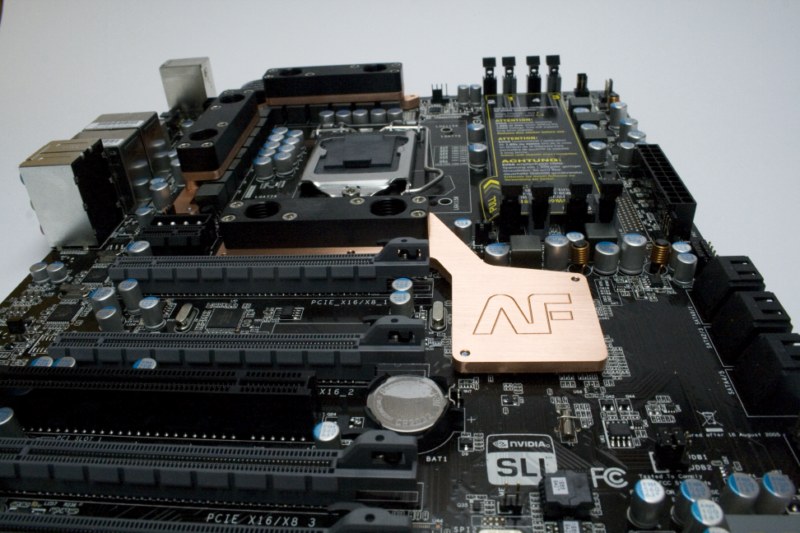

6. Wasserkühler
7. Downloads
8. Reviews

------------------------------


1. Spezifikationen

Performance
Based on Intel P55 chipset
Supports Intel Socket 1156 Processors

Memory
4 x 240-pin DIMM sockets
Dual Channel DDR3
Maximum of 16GB of DDR3 2600MHz+

Expansion Slot
3 x PCIe x16/x8, 1 x PCIe x4, 1 x PCIe x1
1 x 32-bit PCI, support for PCI 2.1

Storage I/O
x UltraDMA133
8 x Serial ATA 300MB/sec with support for RAID 0, RAID1, RAID 0+1, RAID5, JBOD

Integrated Peripherals
8 Channel High Definition
2 x 10/100/1000

Multi I/O
1 x PS2 Keyboard
13 x USB2.0 ports (7 external + 6 internal headers)
Audio connector (Line-in, Line-out, MIC)
FireWire

Form Factor
ATX Form Factor
Length: 12in - 304.8mm
Width: 9.6in - 243.84mm

2. Features

Key Features

USB 2.0 Support
A standard plug and play interface providing easy-to-use connectivity for USB devices.
PCI Express® 2.0 / 1.1 Support
Allows 500MB a lane or up to 8 GB/s at 16x speeds - allows for full support for new PCI-E 2.0 graphics cards.
Serial ATA II
Also known as SATA2, features a 3.0 Gbit/s transfer speed, faster than Standard Serial ATA.
Solid Capacitors
Offers a longer lifespan, better stability when at high frequencies, can operate at higher temperatures, and no longer runs the risk of exploding.
Passive Heatsink
Consist of a metal heatsink.
On-Board Clear CMOS Button
An onboard clear CMOS button which allows you to easily clear your BIOS without moving a jumper.
On-Board Power Button
An onboard power button for easily powering on or off your system. Also shows a power indication light.
On-Board Reset Button
An onboard reset button for easily rebooting your system as well as gives current status of your HDD via an activity light.
On-Board Diagnostics LED
Helpful for when diagnosing a problem is needed.
2-Way SLI® Support
Feel free to turn up the eye candy and experience the performance of 2 Graphics Cards running together.
3-Way SLI® Support
Experience the amazing performance that only 3 Graphics Cards can deliver, a visual experience that will take you to the next level.
Windows XP™ Support
Windows Vista™ Support
DDR3 Support

Full support for the latest in DDR technologies.
Dual-Channel Support
Supports Dual-Channel memory configurations for increased amounts of system memory bandwidth.
Intel® Core i7 Support
With an integrated memory controller, Intel® Core i7 (Socket 1366) processors feature amazing performance for however you use your computer.
Delivers up to 600w of CPU Power


3. Bilder/Mainboard

EVGA Bilder:




4. Das Bios

Coming soon...

5. Overclocking

Coming soon...

6. Wasserkühler

Anfitec

http://shop.anfi-tec.de/product_info.php/info/p125_Anfi-tec-EVGA-P55-FTW-fullcover-Waterblock.html

http://shop.anfi-tec.de/product_info.php/info/p156_Anfi-tec-PWM-028-EVGA-P55-oberer-Kuehler.html

http://shop.anfi-tec.de/product_info.php/info/p116_Anfi-tec-PWM-029-EVGA-P55-linker-Kuehler.html

Set:

http://shop.anfi-tec.de/product_info.php/info/p145_EVGA-SET01-P55-FTW.html

Bilder:

http://www.anfi-tec.de/forenbilder/P55/1.JPG
http://www.anfi-tec.de/forenbilder/P55/2.JPG
http://www.anfi-tec.de/forenbilder/P55/3.JPG
http://www.anfi-tec.de/forenbilder/P55/4.JPG
http://www.anfi-tec.de/forenbilder/P55/5.JPG
http://www.anfi-tec.de/forenbilder/P55/6.JPG
http://www.anfi-tec.de/forenbilder/P55/7.JPG
http://www.anfi-tec.de/forenbilder/P55/8.JPG

Anfitec Rabattaktion:

http://www.hardwareluxx.de/community/14026723-post132.html

7. Downloads

Bios/Treiber/Manuals/Utilities

*klick*

Bios Update Anleitung

*klick*

EVGA P55 Wallpapers

*klick*

8. Previews/Reviews

Previews:



Reviews:


EVGA P55 Classified 200
EVGA P55 Classified 200 (E659)


Inhaltsverzeichnis:

1. Spezifikationen
2. Features
3. Bilder/Mainboard
4. Das Bios
5. Overclocking
6. Downloads
7. Reviews
8. Besonderheiten

------------------------------


1. Spezifikationen

Performance
Based on Intel P55 chipset
Supports Intel Socket 1156 Processors

Memory
4 x 240-pin DIMM sockets
Dual Channel DDR3
Maximum of 16GB of DDR3 2600MHz+

Expansion Slot
5 x PCIe x16/x8, 1 x PCIe x4, 1 x PCIe x1
0 x 32-bit PCI, support for PCI 2.1

Storage I/O
x UltraDMA133
8 x Serial ATA 300MB/sec with support for RAID 0, RAID1, RAID 0+1, RAID5, JBOD

Integrated Peripherals
8 Channel High Definition
2 x 10/100/1000

Multi I/O
1 x PS2 Keyboard
13 x USB2.0 ports (7 external + 6 internal headers)
Audio connector (Line-in, Line-out, MIC)
FireWire

Form Factor
EATX Form Factor
Length: ?
Width: ?

2. Features

Key Features

USB 2.0 Support
A standard plug and play interface providing easy-to-use connectivity for USB devices.
PCI Express® 2.0 / 1.1 Support
Allows 500MB a lane or up to 8 GB/s at 16x speeds - allows for full support for new PCI-E 2.0 graphics cards.
Serial ATA II
Also known as SATA2, features a 3.0 Gbit/s transfer speed, faster than Standard Serial ATA.
Solid Capacitors
Offers a longer lifespan, better stability when at high frequencies, can operate at higher temperatures, and no longer runs the risk of exploding.
Passive Heatsink
Consist of a metal heatsink.
On-Board Clear CMOS Button
An onboard clear CMOS button which allows you to easily clear your BIOS without moving a jumper.
On-Board Power Button
An onboard power button for easily powering on or off your system. Also shows a power indication light.
On-Board Reset Button
An onboard reset button for easily rebooting your system as well as gives current status of your HDD via an activity light.
On-Board Diagnostics LED
Helpful for when diagnosing a problem is needed.
2-Way SLI® Support
Feel free to turn up the eye candy and experience the performance of 2 Graphics Cards running together.
3-Way SLI® Support
Experience the amazing performance that only 3 Graphics Cards can deliver, a visual experience that will take you to the next level.
Windows XP™ Support
Windows Vista™ Support
DDR3 Support

Full support for the latest in DDR technologies.
Dual-Channel Support
Supports Dual-Channel memory configurations for increased amounts of system memory bandwidth.
Intel® Core i7 Support
With an integrated memory controller, Intel® Core i7 (Socket 1366) processors feature amazing performance for however you use your computer.
10 Phase Digital PWM
300% more gold content in the CPU socket
Super-low ESR and ESL film capacitors

Delivers up to 600w of CPU Power


3. Bilder/Mainboard

EVGA Bilder:



Eigene Bilder:



4. Das Bios

Bilder



Video zum Bios Bios.

5. Overclocking

Coming soon...

6. Downloads

Bios/Treiber/Manuals/Utilities

*klick*

Bios Update Anleitung

*klick*

EVGA P55 Wallpapers

*klick*

7. Previews/Reviews

Previews:

Video

Hardwarecanucks

Reviews:

Anandtech

Guru 3D

8. Besonderheiten

Show Volt Feature

Das Show Volt Feature ist ein Onboard Multimeter. Damit hat man die möglichkeit
ohne ein zusätzliches MM die Spannungen des Mainboards sich direkt anzeigen
zu lassen. Dazu hier ein Beispiel Video.

------------------------------

Quellen EVGA/Hardwarecanucks/Guru 3D

Wenn Du diese Anzeige nicht sehen willst, registriere Dich und/oder logge Dich ein.
Niemand der mal das Problem hatte?
Hab nur ein Beitrag (jedoch unbeantwortet) darüber gefunden...

EDIT: Bios nochmals flashen hat wohl ausgereicht... Danke dennoch :)

EDIT2: Oder wohl doch nicht, mysteriös...

3-4 mal hat er anschließend normal gestartet.

Zuletzt bearbeitet:
Hardwareluxx setzt keine externen Werbe- und Tracking-Cookies ein. Auf unserer Webseite finden Sie nur noch Cookies nach berechtigtem Interesse (Art. 6 Abs. 1 Satz 1 lit. f DSGVO) oder eigene funktionelle Cookies. Durch die Nutzung unserer Webseite erklären Sie sich damit einverstanden, dass wir diese Cookies setzen. Mehr Informationen und Möglichkeiten zur Einstellung unserer Cookies finden Sie in unserer Datenschutzerklärung.


Zurück
Oben Unten refresh
