EVGA P55 Micro LE/Micro/LE/SLI/FTW/FTW 200/Classified 200
EVGA P55 Micro
EVGA P55 Micro(E652)
Inhaltsverzeichnis:
1. Spezifikationen
2. Features
3. Bilder/Mainboard
4. Das Bios
5. Overclocking
6. Downloads
7. Reviews
------------------------------
1. Spezifikationen
Performance
Based on Intel P55 chipset
Supports Intel Socket 1156 Processors
Memory
4 x 240-pin DIMM sockets
Dual Channel DDR3
Maximum of 16GB of DDR3 2000MHz+
Expansion Slot
2 x PCIe x8, 1 x PCIe x1
1 x 32-bit PCI, support for PCI 2.1
Storage I/O
x UltraDMA133
6 x Serial ATA 300MB/sec with support for RAID 0, RAID1, RAID 0+1, RAID5, JBOD
Integrated Peripherals
8 Channel High Definition
1 x 10/100/1000
Multi I/O
1 x PS2 Keyboard
13 x USB2.0 ports (7 external + 6 internal headers)
Audio connector (Line-in, Line-out, MIC)
FireWire
Form Factor
mATX Form Factor
Length: 9.6in - 243.84mm
Width: 9.6in - 243.84mm
2. Features
Key Features
USB 2.0 Support
A standard plug and play interface providing easy-to-use connectivity for USB devices.
PCI Express® 2.0 / 1.1 Support
Allows 500MB a lane or up to 8 GB/s at 16x speeds - allows for full support for new PCI-E 2.0 graphics cards.
Serial ATA II
Also known as SATA2, features a 3.0 Gbit/s transfer speed, faster than Standard Serial ATA.
Solid Capacitors
Offers a longer lifespan, better stability when at high frequencies, can operate at higher temperatures, and no longer runs the risk of exploding.
Passive Heatsink
Consist of a metal heatsink.
On-Board Clear CMOS Button
An onboard clear CMOS button which allows you to easily clear your BIOS without moving a jumper.
2-Way SLI® Support
Feel free to turn up the eye candy and experience the performance of 2 Graphics Cards running together.
Windows XP™ Support
Windows Vista™ Support
DDR3 Support
Full support for the latest in DDR technologies.
Dual-Channel Support
Supports Dual-Channel memory configurations for increased amounts of system memory bandwidth.
Intel® Core i7 Support
With an integrated memory controller, Intel® Core i7 (Socket 1366) processors feature amazing performance for however you use your computer.
3. Bilder/Mainboard
EVGA Bilder:
4. Das Bios
Coming soon...
5. Overclocking
Coming soon...
6. Downloads
Bios/Treiber/Manuals/Utilities
*klick*
Bios Update Anleitung
*klick*
EVGA P55 Wallpapers
*klick*
7. Previews/Reviews
Previews:
Reviews:
EVGA P55 LE
EVGA P55 LE(E653)
Inhaltsverzeichnis:
1. Spezifikationen
2. Features
3. Bilder/Mainboard
4. Das Bios
5. Overclocking
6. Downloads
7. Reviews
------------------------------
1. Spezifikationen
Performance
Based on Intel P55 chipset
Supports Intel Socket 1156 Processors
Memory
4 x 240-pin DIMM sockets
Dual Channel DDR3
Maximum of 16GB of DDR3 2000MHz+
Expansion Slot
1 x PCIe x16/x8, 1 x PCIe x4, 1 x PCIe x1
3 x 32-bit PCI, support for PCI 2.1
Storage I/O
x UltraDMA133
6 x Serial ATA 300MB/sec with support for RAID 0, RAID1, RAID 0+1, RAID5, JBOD
Integrated Peripherals
8 Channel High Definition
1 x 10/100/1000
Multi I/O
1 x PS2 Keyboard
14 x USB2.0 ports (8 external + 6 internal headers)
Audio connector (Line-in, Line-out, MIC)
FireWire
Form Factor
ATX Form Factor
Length: 12in - 304.8mm
Width: 9.6in - 243.84mm
2. Features
Key Features
USB 2.0 Support
A standard plug and play interface providing easy-to-use connectivity for USB devices.
PCI Express® 2.0 / 1.1 Support
Allows 500MB a lane or up to 8 GB/s at 16x speeds - allows for full support for new PCI-E 2.0 graphics cards.
Serial ATA II
Also known as SATA2, features a 3.0 Gbit/s transfer speed, faster than Standard Serial ATA.
Solid Capacitors
Offers a longer lifespan, better stability when at high frequencies, can operate at higher temperatures, and no longer runs the risk of exploding.
Passive Heatsink
Consist of a metal heatsink.
On-Board Clear CMOS Button
An onboard clear CMOS button which allows you to easily clear your BIOS without moving a jumper.
On-Board Power Button with Integrated Power Light
An onboard power button for easily powering on or off your system. Also shows a power indication light.
On-Board Reset Button with Integrated HDD Activity Light
An onboard reset button for easily rebooting your system as well as gives current status of your HDD via an activity light.
On-Board Diagnostics LED Readout
Helpful for when diagnosing a problem is needed.
2-Way SLI® Support
Feel free to turn up the eye candy and experience the performance of 2 Graphics Cards running together.
Windows XP™ Support
Windows Vista™ Support
DDR3 Support
Full support for the latest in DDR technologies.
Dual-Channel Support
Supports Dual-Channel memory configurations for increased amounts of system memory bandwidth.
Intel® Core i7 Support
With an integrated memory controller, Intel® Core i7 (Socket 1366) processors feature amazing performance for however you use your computer.
3. Bilder/Mainboard
EVGA Bilder:
4. Das Bios
Coming soon...
5. Overclocking
Coming soon...
6. Downloads
Bios/Treiber/Manuals/Utilities
*klick*
Bios Update Anleitung
*klick*
EVGA P55 Wallpapers
*klick*
7. Previews/Reviews
Previews:
Reviews:
EVGA P55 SLI
EVGA P55 SLI(E655)
Inhaltsverzeichnis:
1. Spezifikationen
2. Features
3. Bilder/Mainboard
4. Das Bios
5. Overclocking
6. Downloads
7. Reviews
------------------------------
1. Spezifikationen
Performance
Based on Intel P55 chipset
Supports Intel Socket 1156 Processors
Memory
4 x 240-pin DIMM sockets
Dual Channel DDR3
Maximum of 16GB of DDR3 2600MHz+
Expansion Slot
2 x PCIe x16/x8, 1 x PCIe x4, 1 x PCIe x1
2 x 32-bit PCI, support for PCI 2.1
Storage I/O
x UltraDMA133
8 x Serial ATA 300MB/sec with support for RAID 0, RAID1, RAID 0+1, RAID5, JBOD
Integrated Peripherals
8 Channel High Definition
2 x 10/100/1000
Multi I/O
1 x PS2 Keyboard
13 x USB2.0 ports (7 external + 6 internal headers)
Audio connector (Line-in, Line-out, MIC)
FireWire
Form Factor
ATX Form Factor
Length: 12in - 304.8mm
Width: 9.6in - 243.84mm
2. Features
Key Features
USB 2.0 Support
A standard plug and play interface providing easy-to-use connectivity for USB devices.
PCI Express® 2.0 / 1.1 Support
Allows 500MB a lane or up to 8 GB/s at 16x speeds - allows for full support for new PCI-E 2.0 graphics cards.
Serial ATA II
Also known as SATA2, features a 3.0 Gbit/s transfer speed, faster than Standard Serial ATA.
Solid Capacitors
Offers a longer lifespan, better stability when at high frequencies, can operate at higher temperatures, and no longer runs the risk of exploding.
Passive Heatsink
Consist of a metal heatsink.
On-Board Clear CMOS Button
An onboard clear CMOS button which allows you to easily clear your BIOS without moving a jumper.
On-Board Power Button with Integrated Power Light
An onboard power button for easily powering on or off your system. Also shows a power indication light.
On-Board Reset Button with Integrated HDD Activity Light
An onboard reset button for easily rebooting your system as well as gives current status of your HDD via an activity light.
On-Board Diagnostics LED Readout
Helpful for when diagnosing a problem is needed.
2-Way SLI® Support
Feel free to turn up the eye candy and experience the performance of 2 Graphics Cards running together.
Windows XP™ Support
Windows Vista™ Support
DDR3 Support
Full support for the latest in DDR technologies.
Dual-Channel Support
Supports Dual-Channel memory configurations for increased amounts of system memory bandwidth.
Intel® Core i7 Support
With an integrated memory controller, Intel® Core i7 (Socket 1366) processors feature amazing performance for however you use your computer.
3. Bilder/Mainboard
EVGA Bilder:
4. Das Bios
Coming soon...
5. Overclocking
Coming soon...
6. Downloads
Bios/Treiber/Manuals/Utilities
*klick*
Bios Update Anleitung
*klick*
EVGA P55 Wallpapers
*klick*
7. Previews/Reviews
Previews:
Reviews:
EVGA P55 FTW
EVGA P55 FTW(E657)
Inhaltsverzeichnis:
1. Spezifikationen
2. Features
3. Bilder/Mainboard
4. Das Bios
5. Overclocking
6. Downloads
7. Reviews
------------------------------
1. Spezifikationen
Performance
Based on Intel P55 chipset
Supports Intel Socket 1156 Processors
Memory
4 x 240-pin DIMM sockets
Dual Channel DDR3
Maximum of 16GB of DDR3 2600MHz+
Expansion Slot
2 x PCIe x16/x8, 1 x PCIe x4, 1 x PCIe x1
2 x 32-bit PCI, support for PCI 2.1
Storage I/O
x UltraDMA133
8 x Serial ATA 300MB/sec with support for RAID 0, RAID1, RAID 0+1, RAID5, JBOD
Integrated Peripherals
8 Channel High Definition
2 x 10/100/1000
Multi I/O
1 x PS2 Keyboard
13 x USB2.0 ports (7 external + 6 internal headers)
Audio connector (Line-in, Line-out, MIC)
FireWire
Form Factor
ATX Form Factor
Length: 12in - 304.8mm
Width: 9.6in - 243.84mm
2. Features
Key Features
USB 2.0 Support
A standard plug and play interface providing easy-to-use connectivity for USB devices.
PCI Express® 2.0 / 1.1 Support
Allows 500MB a lane or up to 8 GB/s at 16x speeds - allows for full support for new PCI-E 2.0 graphics cards.
Serial ATA II
Also known as SATA2, features a 3.0 Gbit/s transfer speed, faster than Standard Serial ATA.
Solid Capacitors
Offers a longer lifespan, better stability when at high frequencies, can operate at higher temperatures, and no longer runs the risk of exploding.
Passive Heatsink
Consist of a metal heatsink.
On-Board Clear CMOS Button
An onboard clear CMOS button which allows you to easily clear your BIOS without moving a jumper.
On-Board Power Button with Integrated Power Light
An onboard power button for easily powering on or off your system. Also shows a power indication light.
On-Board Reset Button with Integrated HDD Activity Light
An onboard reset button for easily rebooting your system as well as gives current status of your HDD via an activity light.
On-Board Diagnostics LED Readout
Helpful for when diagnosing a problem is needed.
2-Way SLI® Support
Feel free to turn up the eye candy and experience the performance of 2 Graphics Cards running together.
Windows XP™ Support
Windows Vista™ Support
DDR3 Support
Full support for the latest in DDR technologies.
Dual-Channel Support
Supports Dual-Channel memory configurations for increased amounts of system memory bandwidth.
Intel® Core i7 Support
With an integrated memory controller, Intel® Core i7 (Socket 1366) processors feature amazing performance for however you use your computer.
Delivers up to 600w of CPU Power
3. Bilder/Mainboard
EVGA Bilder:

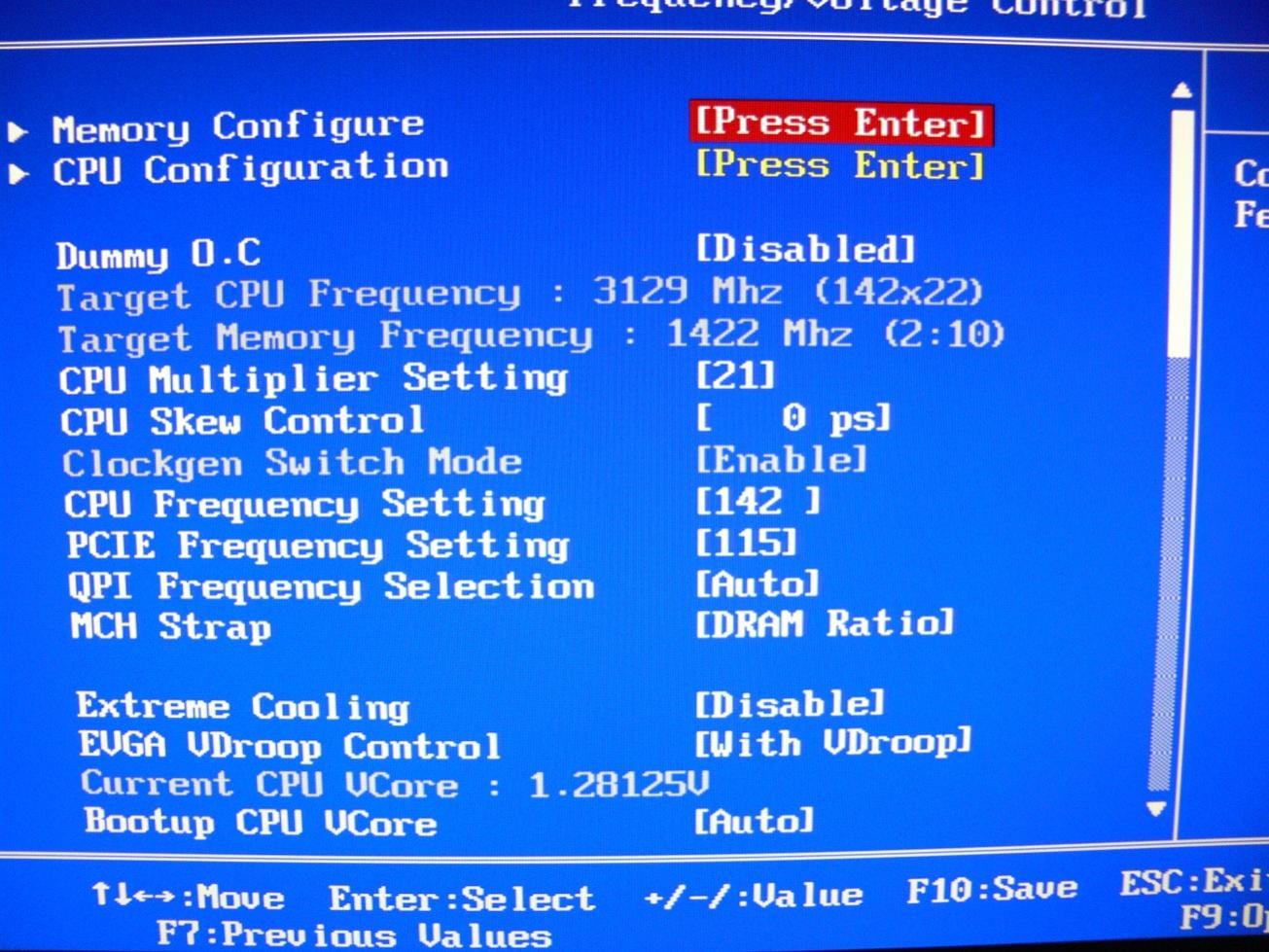

4. Das Bios
Bilder von Fatal1ty
5. Overclocking
Coming soon...
6. Downloads
Bios/Treiber/Manuals/Utilities
*klick*
Bios Update Anleitung
*klick*
EVGA P55 Wallpapers
*klick*
7. Previews/Reviews
Previews:
Reviews:
Overlockerstech
Firingsquad
Anandtech
EVGA P55 FTW 200
EVGA P55 FTW 200 (E658)
Inhaltsverzeichnis:
1. Spezifikationen
2. Features
3. Bilder/Mainboard
4. Das Bios
5. Overclocking
6. Wasserkühler
7. Downloads
8. Reviews
------------------------------
1. Spezifikationen
Performance
Based on Intel P55 chipset
Supports Intel Socket 1156 Processors
Memory
4 x 240-pin DIMM sockets
Dual Channel DDR3
Maximum of 16GB of DDR3 2600MHz+
Expansion Slot
3 x PCIe x16/x8, 1 x PCIe x4, 1 x PCIe x1
1 x 32-bit PCI, support for PCI 2.1
Storage I/O
x UltraDMA133
8 x Serial ATA 300MB/sec with support for RAID 0, RAID1, RAID 0+1, RAID5, JBOD
Integrated Peripherals
8 Channel High Definition
2 x 10/100/1000
Multi I/O
1 x PS2 Keyboard
13 x USB2.0 ports (7 external + 6 internal headers)
Audio connector (Line-in, Line-out, MIC)
FireWire
Form Factor
ATX Form Factor
Length: 12in - 304.8mm
Width: 9.6in - 243.84mm
2. Features
Key Features
USB 2.0 Support
A standard plug and play interface providing easy-to-use connectivity for USB devices.
PCI Express® 2.0 / 1.1 Support
Allows 500MB a lane or up to 8 GB/s at 16x speeds - allows for full support for new PCI-E 2.0 graphics cards.
Serial ATA II
Also known as SATA2, features a 3.0 Gbit/s transfer speed, faster than Standard Serial ATA.
Solid Capacitors
Offers a longer lifespan, better stability when at high frequencies, can operate at higher temperatures, and no longer runs the risk of exploding.
Passive Heatsink
Consist of a metal heatsink.
On-Board Clear CMOS Button
An onboard clear CMOS button which allows you to easily clear your BIOS without moving a jumper.
On-Board Power Button
An onboard power button for easily powering on or off your system. Also shows a power indication light.
On-Board Reset Button
An onboard reset button for easily rebooting your system as well as gives current status of your HDD via an activity light.
On-Board Diagnostics LED
Helpful for when diagnosing a problem is needed.
2-Way SLI® Support
Feel free to turn up the eye candy and experience the performance of 2 Graphics Cards running together.
3-Way SLI® Support
Experience the amazing performance that only 3 Graphics Cards can deliver, a visual experience that will take you to the next level.
Windows XP™ Support
Windows Vista™ Support
DDR3 Support
Full support for the latest in DDR technologies.
Dual-Channel Support
Supports Dual-Channel memory configurations for increased amounts of system memory bandwidth.
Intel® Core i7 Support
With an integrated memory controller, Intel® Core i7 (Socket 1366) processors feature amazing performance for however you use your computer.
Delivers up to 600w of CPU Power
3. Bilder/Mainboard
EVGA Bilder:
4. Das Bios
Coming soon...
5. Overclocking
Coming soon...
6. Wasserkühler
Anfitec
http://shop.anfi-tec.de/product_info.php/info/p125_Anfi-tec-EVGA-P55-FTW-fullcover-Waterblock.html
http://shop.anfi-tec.de/product_info.php/info/p156_Anfi-tec-PWM-028-EVGA-P55-oberer-Kuehler.html
http://shop.anfi-tec.de/product_info.php/info/p116_Anfi-tec-PWM-029-EVGA-P55-linker-Kuehler.html
Set:
http://shop.anfi-tec.de/product_info.php/info/p145_EVGA-SET01-P55-FTW.html
Bilder:
http://www.anfi-tec.de/forenbilder/P55/1.JPG
http://www.anfi-tec.de/forenbilder/P55/2.JPG
http://www.anfi-tec.de/forenbilder/P55/3.JPG
http://www.anfi-tec.de/forenbilder/P55/4.JPG
http://www.anfi-tec.de/forenbilder/P55/5.JPG
http://www.anfi-tec.de/forenbilder/P55/6.JPG
http://www.anfi-tec.de/forenbilder/P55/7.JPG
http://www.anfi-tec.de/forenbilder/P55/8.JPG
Anfitec Rabattaktion:
http://www.hardwareluxx.de/community/14026723-post132.html
7. Downloads
Bios/Treiber/Manuals/Utilities
*klick*
Bios Update Anleitung
*klick*
EVGA P55 Wallpapers
*klick*
8. Previews/Reviews
Previews:
Reviews:
EVGA P55 Classified 200
EVGA P55 Classified 200 (E659)
Inhaltsverzeichnis:
1. Spezifikationen
2. Features
3. Bilder/Mainboard
4. Das Bios
5. Overclocking
6. Downloads
7. Reviews
8. Besonderheiten
------------------------------
1. Spezifikationen
Performance
Based on Intel P55 chipset
Supports Intel Socket 1156 Processors
Memory
4 x 240-pin DIMM sockets
Dual Channel DDR3
Maximum of 16GB of DDR3 2600MHz+
Expansion Slot
5 x PCIe x16/x8, 1 x PCIe x4, 1 x PCIe x1
0 x 32-bit PCI, support for PCI 2.1
Storage I/O
x UltraDMA133
8 x Serial ATA 300MB/sec with support for RAID 0, RAID1, RAID 0+1, RAID5, JBOD
Integrated Peripherals
8 Channel High Definition
2 x 10/100/1000
Multi I/O
1 x PS2 Keyboard
13 x USB2.0 ports (7 external + 6 internal headers)
Audio connector (Line-in, Line-out, MIC)
FireWire
Form Factor
EATX Form Factor
Length: ?
Width: ?
2. Features
Key Features
USB 2.0 Support
A standard plug and play interface providing easy-to-use connectivity for USB devices.
PCI Express® 2.0 / 1.1 Support
Allows 500MB a lane or up to 8 GB/s at 16x speeds - allows for full support for new PCI-E 2.0 graphics cards.
Serial ATA II
Also known as SATA2, features a 3.0 Gbit/s transfer speed, faster than Standard Serial ATA.
Solid Capacitors
Offers a longer lifespan, better stability when at high frequencies, can operate at higher temperatures, and no longer runs the risk of exploding.
Passive Heatsink
Consist of a metal heatsink.
On-Board Clear CMOS Button
An onboard clear CMOS button which allows you to easily clear your BIOS without moving a jumper.
On-Board Power Button
An onboard power button for easily powering on or off your system. Also shows a power indication light.
On-Board Reset Button
An onboard reset button for easily rebooting your system as well as gives current status of your HDD via an activity light.
On-Board Diagnostics LED
Helpful for when diagnosing a problem is needed.
2-Way SLI® Support
Feel free to turn up the eye candy and experience the performance of 2 Graphics Cards running together.
3-Way SLI® Support
Experience the amazing performance that only 3 Graphics Cards can deliver, a visual experience that will take you to the next level.
Windows XP™ Support
Windows Vista™ Support
DDR3 Support
Full support for the latest in DDR technologies.
Dual-Channel Support
Supports Dual-Channel memory configurations for increased amounts of system memory bandwidth.
Intel® Core i7 Support
With an integrated memory controller, Intel® Core i7 (Socket 1366) processors feature amazing performance for however you use your computer.
10 Phase Digital PWM
300% more gold content in the CPU socket
Super-low ESR and ESL film capacitors
Delivers up to 600w of CPU Power
3. Bilder/Mainboard
EVGA Bilder:
Eigene Bilder:
4. Das Bios
Bilder
Video zum Bios Bios.
5. Overclocking
Coming soon...
6. Downloads
Bios/Treiber/Manuals/Utilities
*klick*
Bios Update Anleitung
*klick*
EVGA P55 Wallpapers
*klick*
7. Previews/Reviews
Previews:
Video
Hardwarecanucks
Reviews:
Anandtech
Guru 3D
8. Besonderheiten
Show Volt Feature
Das Show Volt Feature ist ein Onboard Multimeter. Damit hat man die möglichkeit
ohne ein zusätzliches MM die Spannungen des Mainboards sich direkt anzeigen
zu lassen. Dazu hier ein Beispiel Video.
------------------------------
Quellen EVGA/Hardwarecanucks/Guru 3D
werd ich nachher mal schauen. ich war aber gestern da und hatte überall genaustens nachgeschaut. allerdings hatte ich auch einige sachen disabled, daher konnte ich die option wahrscheinlihc nicht sehen.
