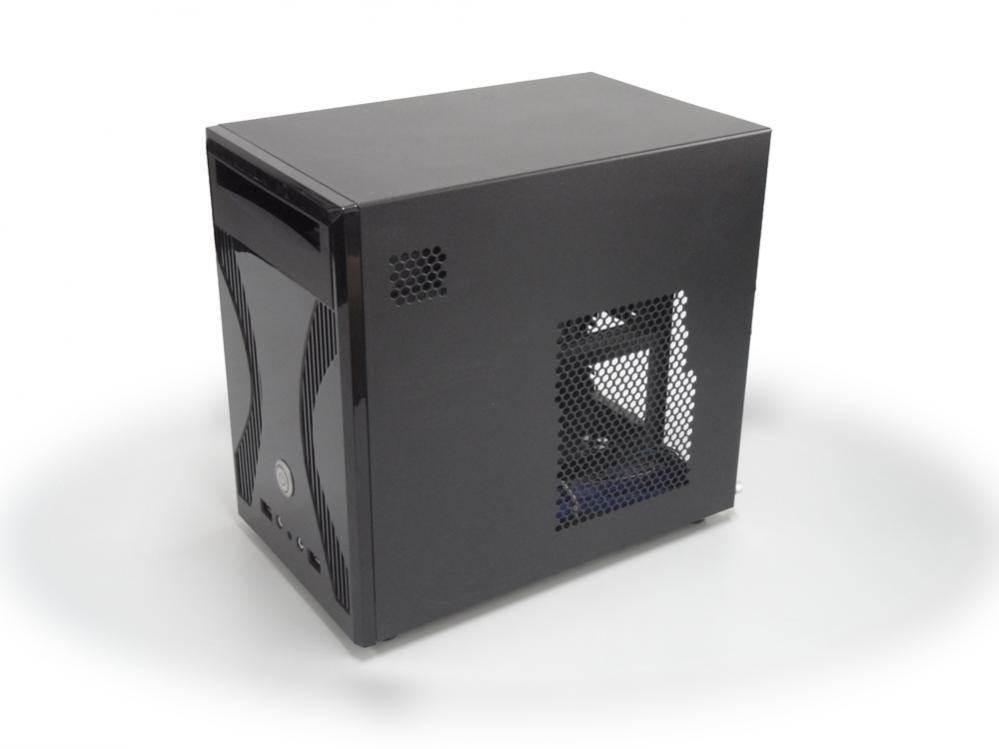

Li-Heat L-first prototype , a Mini-ITX Case

[a1684901]

Features

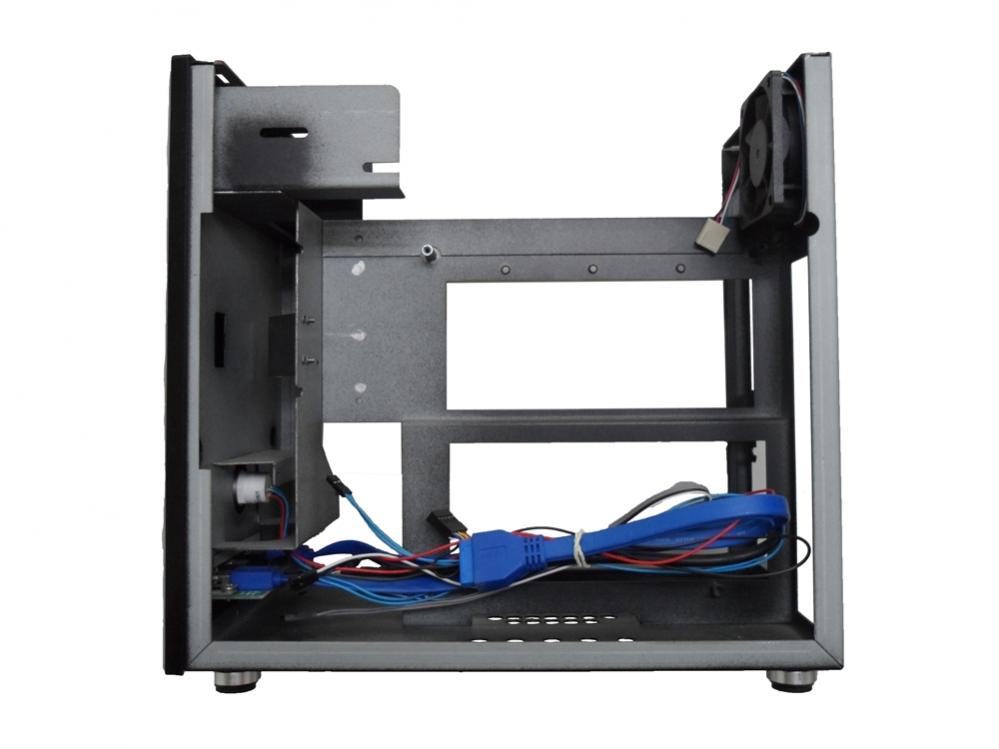

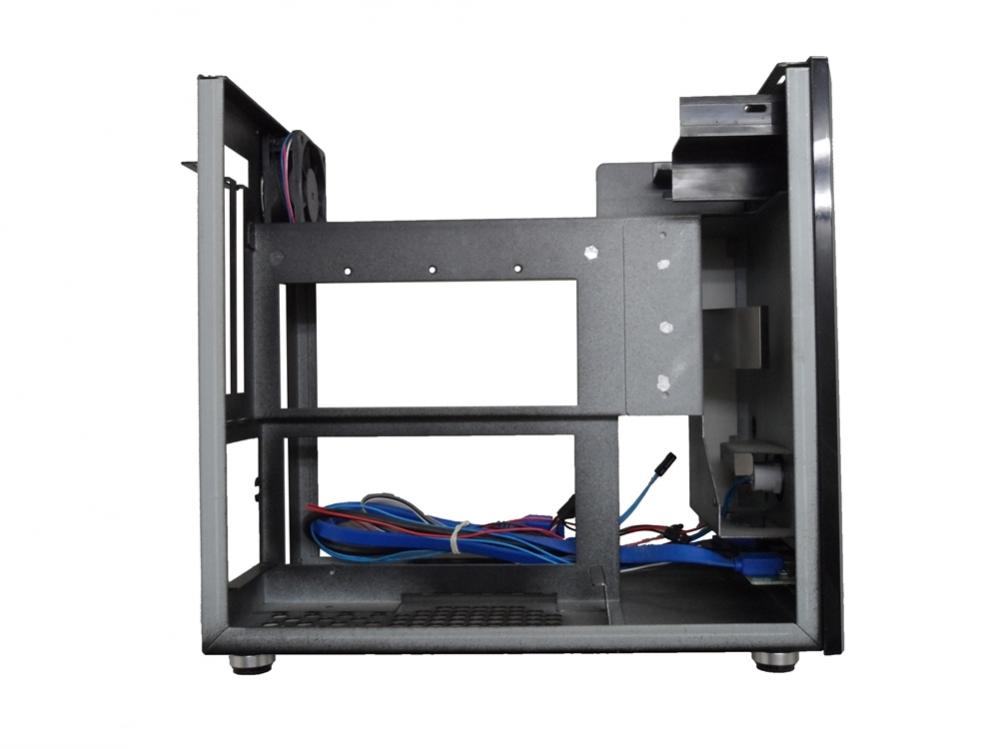

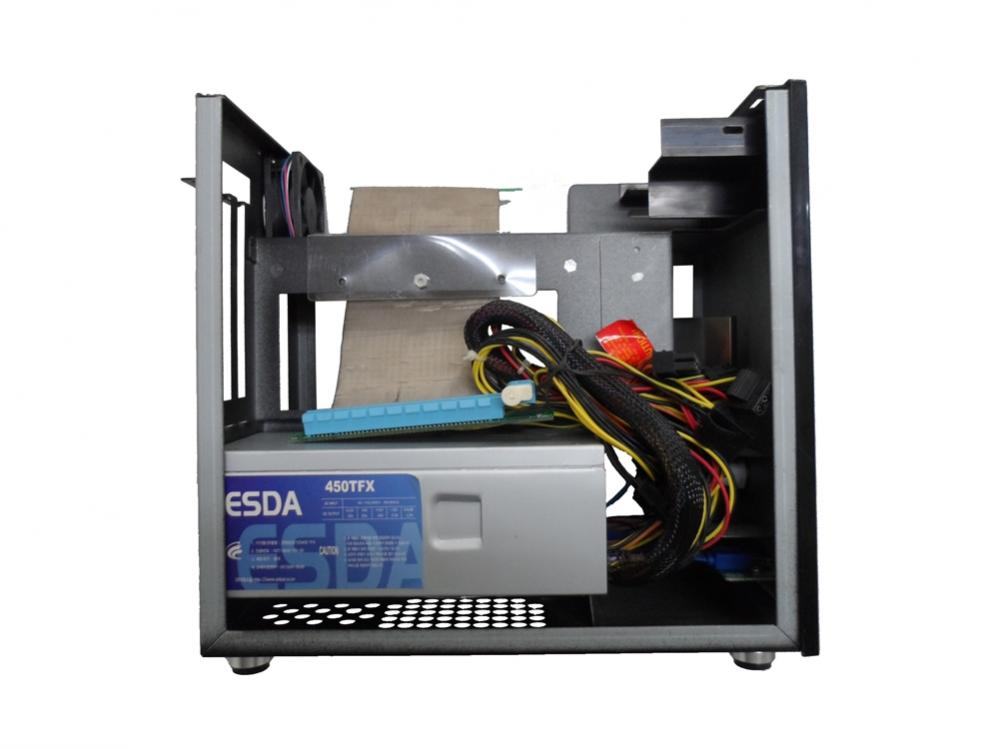

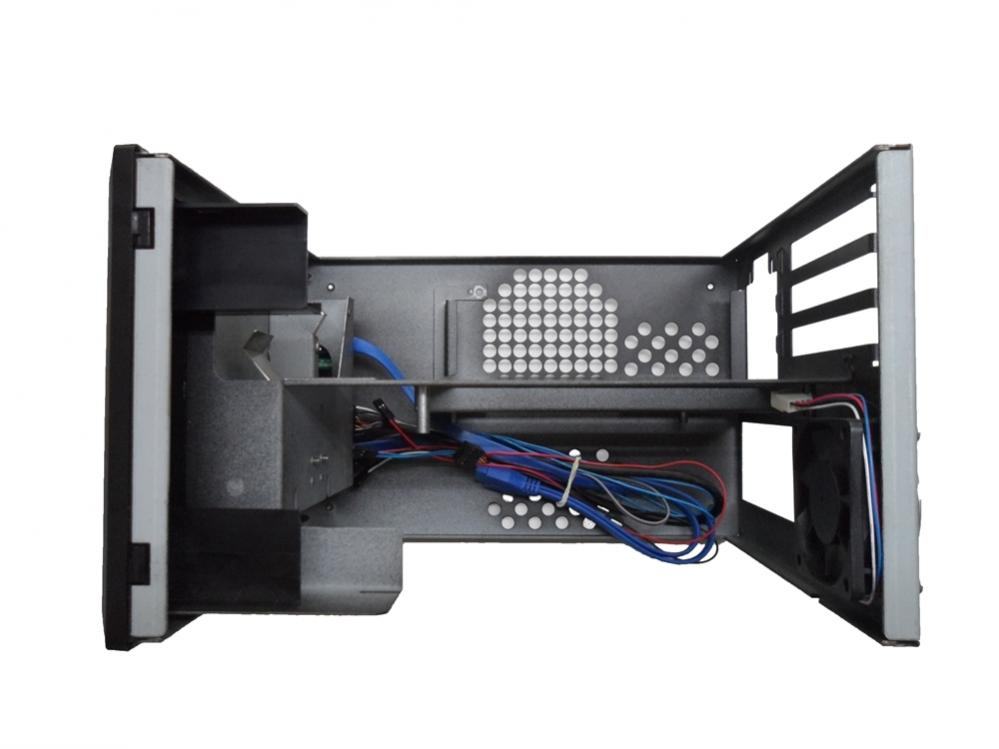

1.Exquisite, modular interior

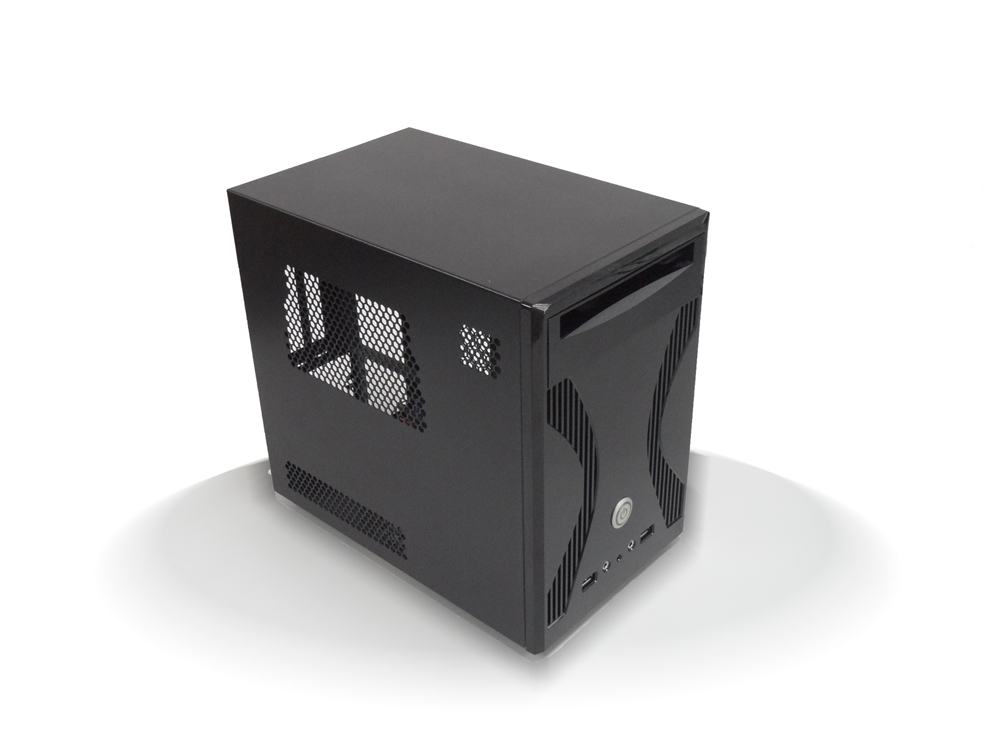

2.Minimalistic design with an elegant front panel
3.Unique new modular mounting system that accommodates up to 3 hard 4.drives(1 SSD‚2 HDD)

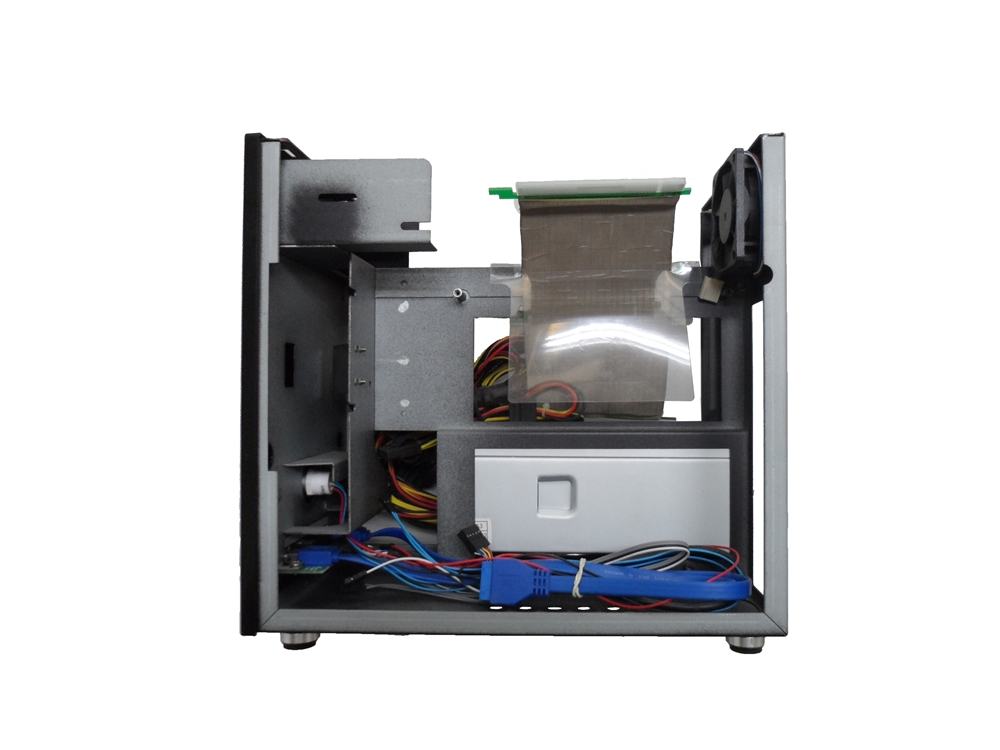

5.Accommodates TFX power supplies

Technical specifications

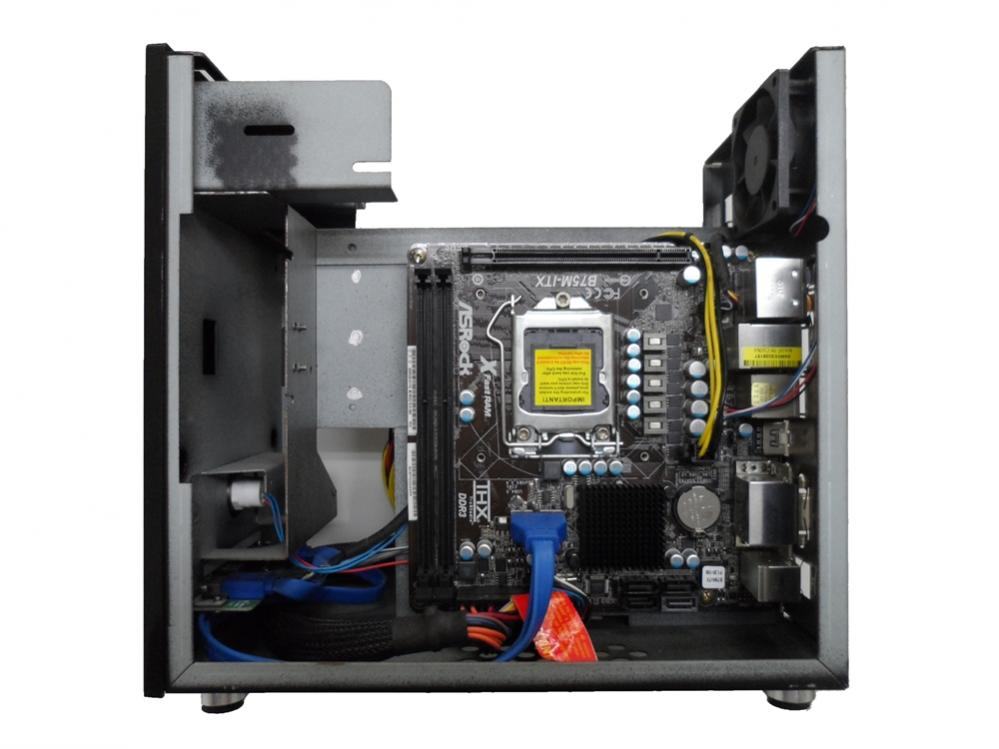

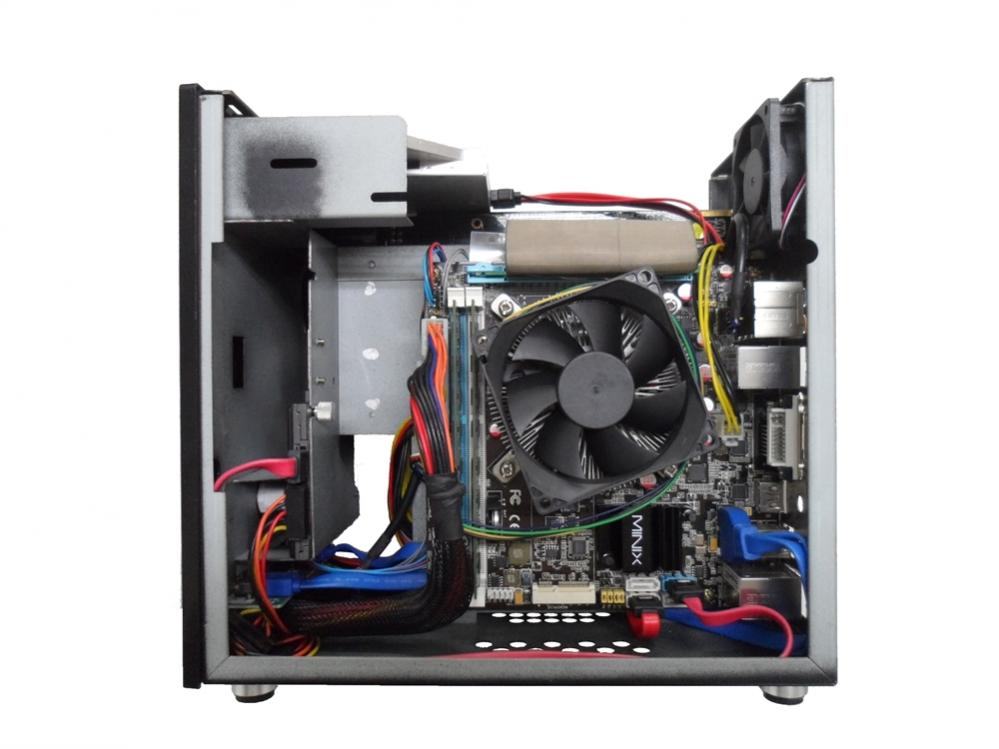

1.Mini ITX, motherboard compatibility

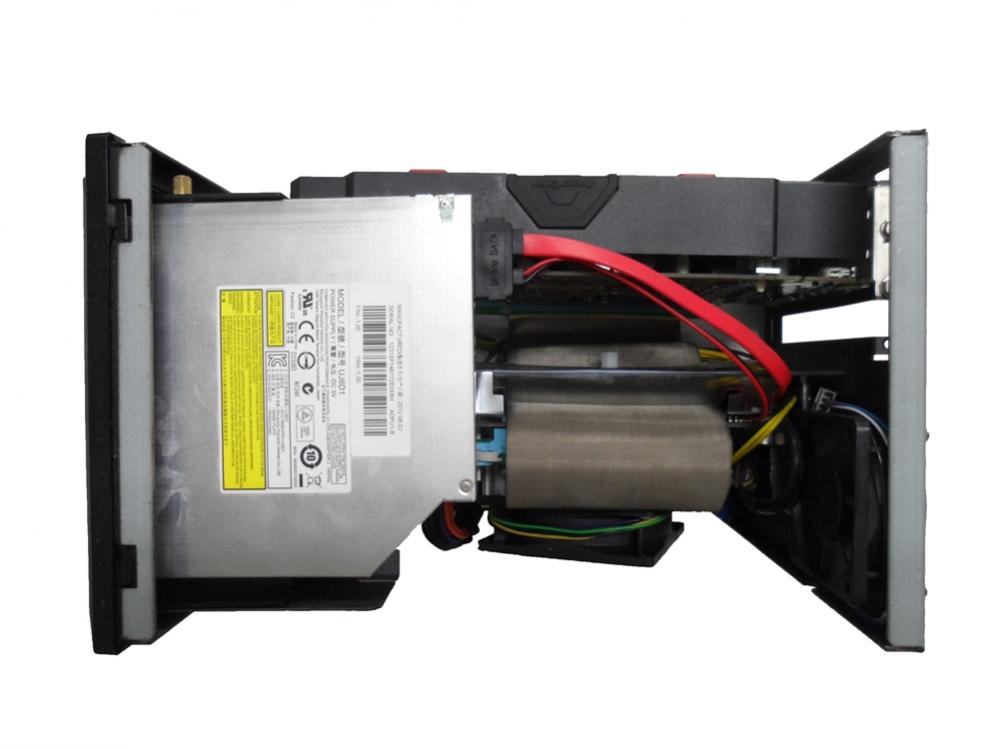

2.3–supports either two 3.5" or 2.5" HDD and one SSD
3.TFX PSUs

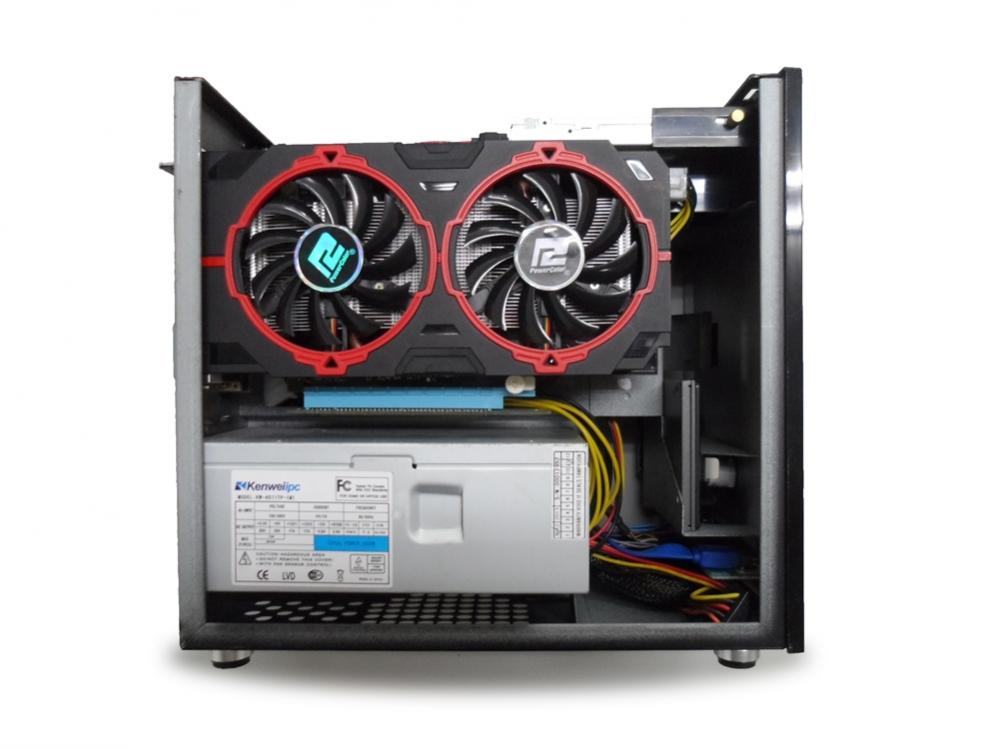

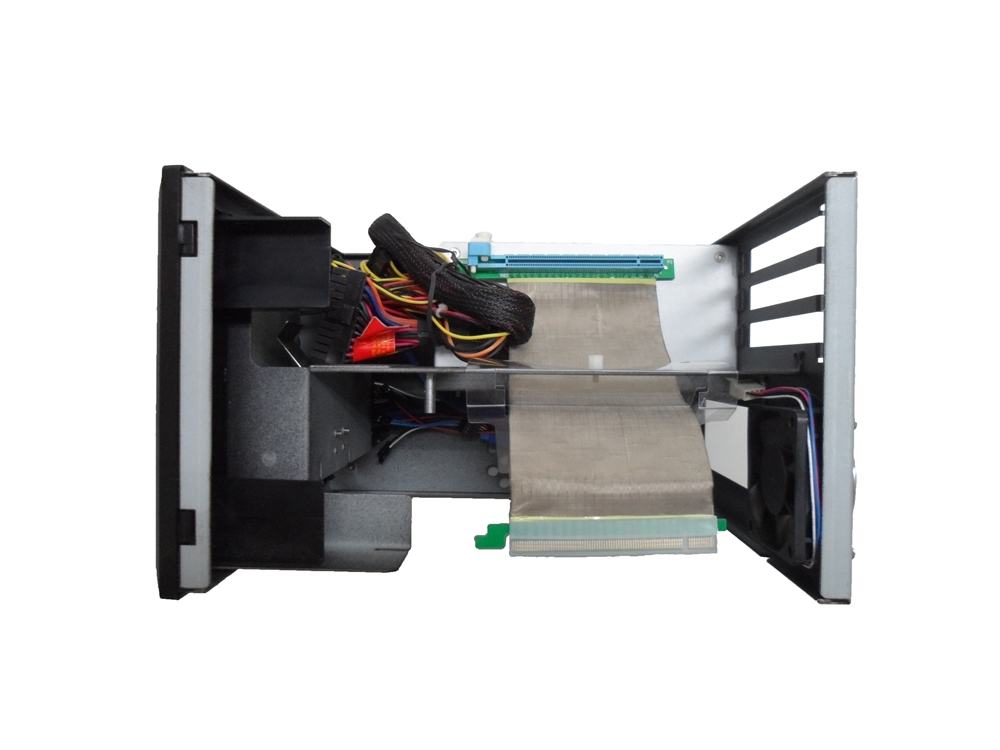

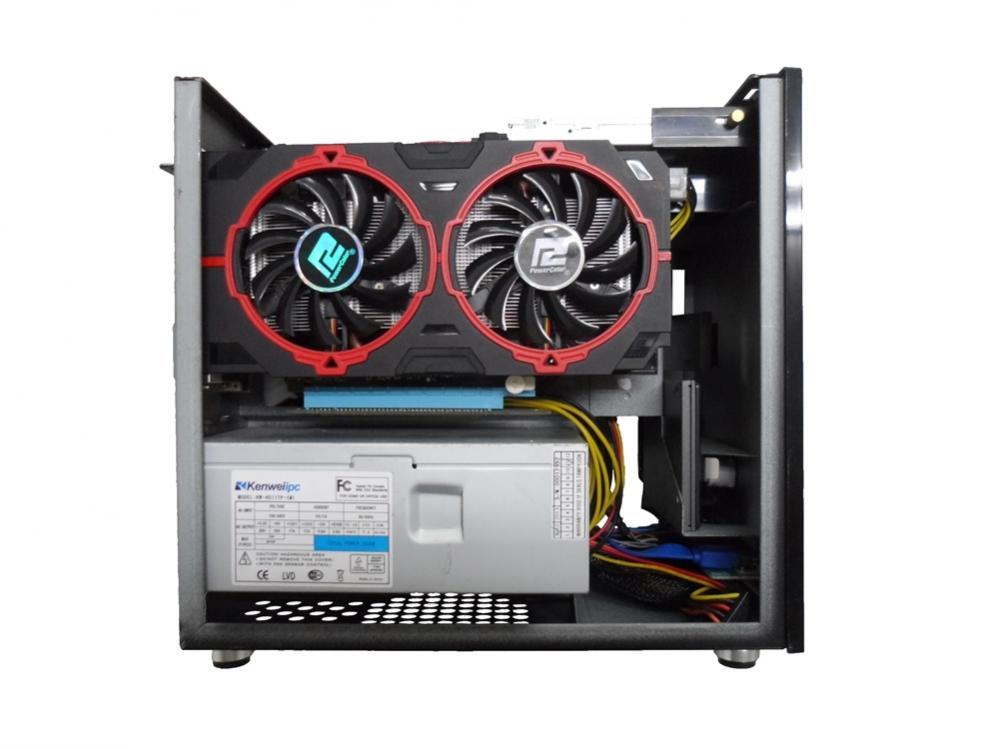

4.Graphics cards, up to 230mm in length,

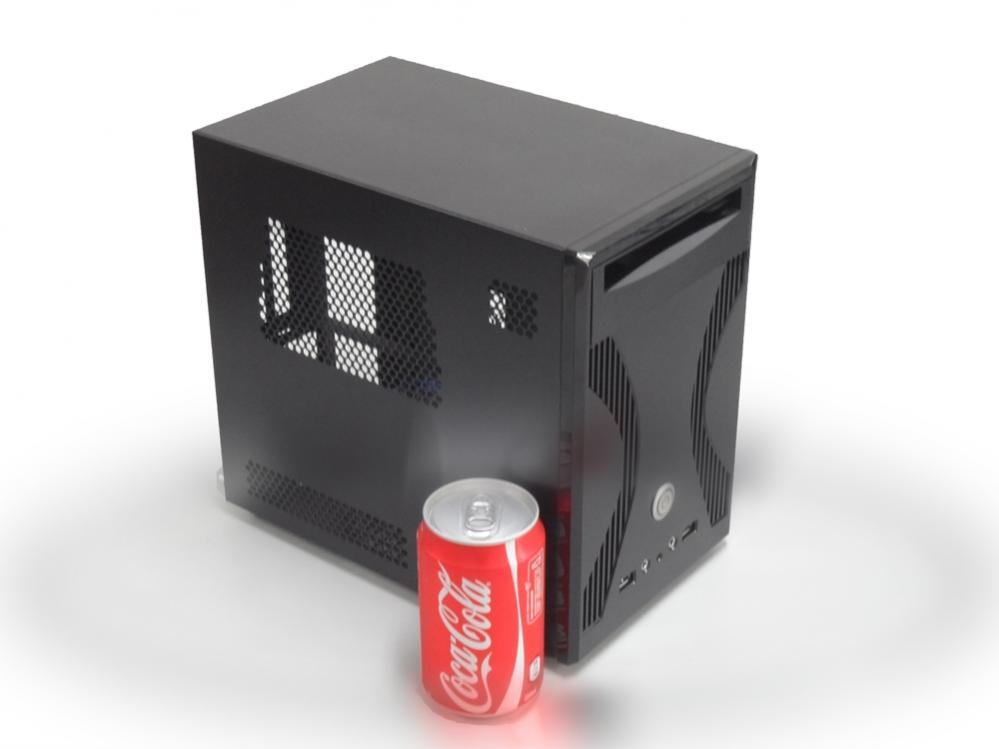

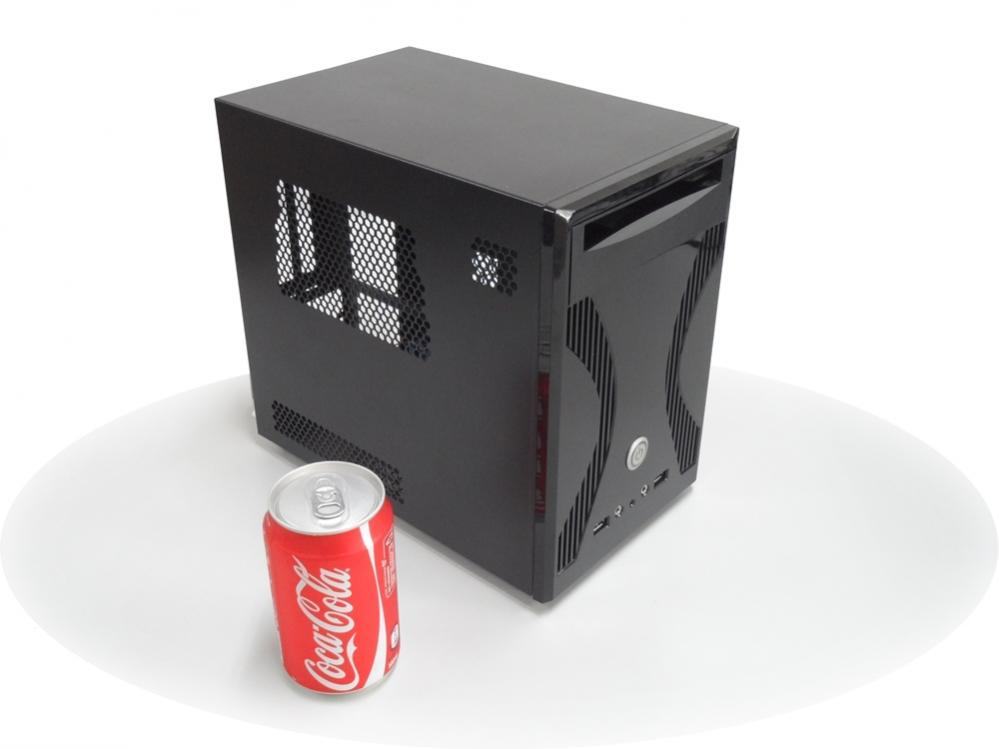

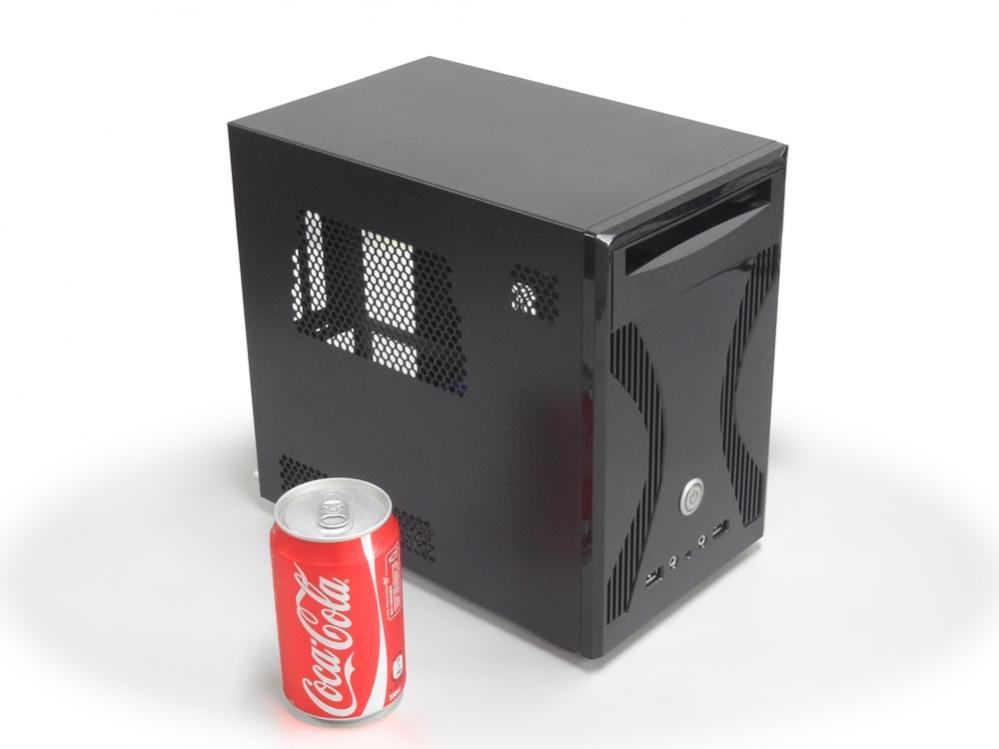

5.Case dimensions (W x H x D): 170 x 260 x 270 mm
6.Case volume: 12 Liters


Cooling / ventilation

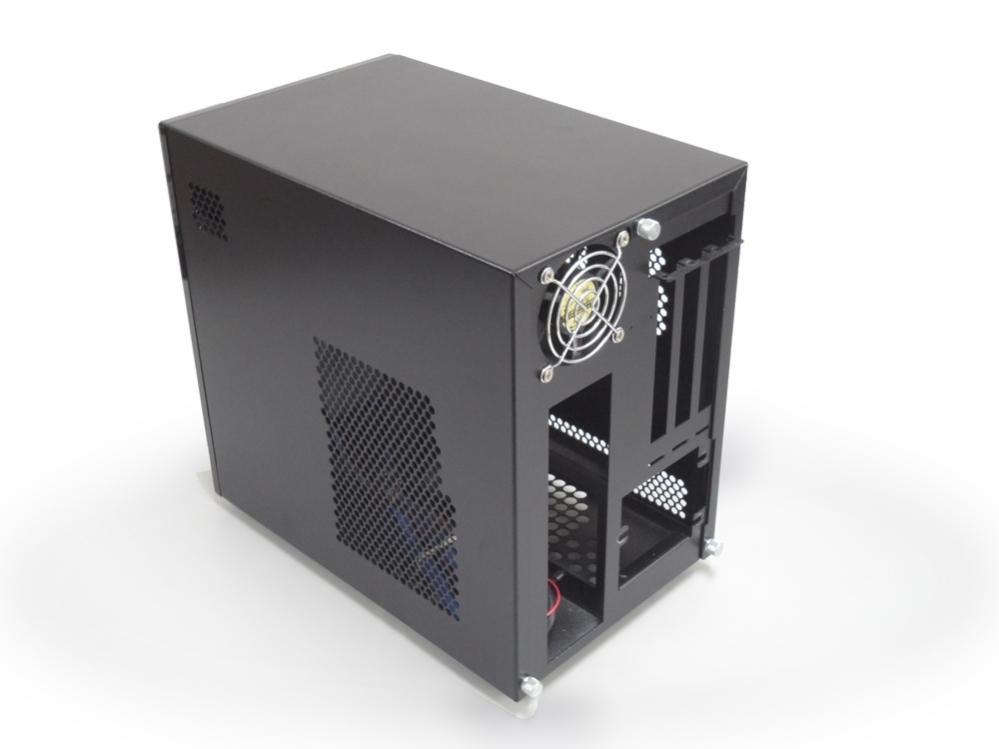

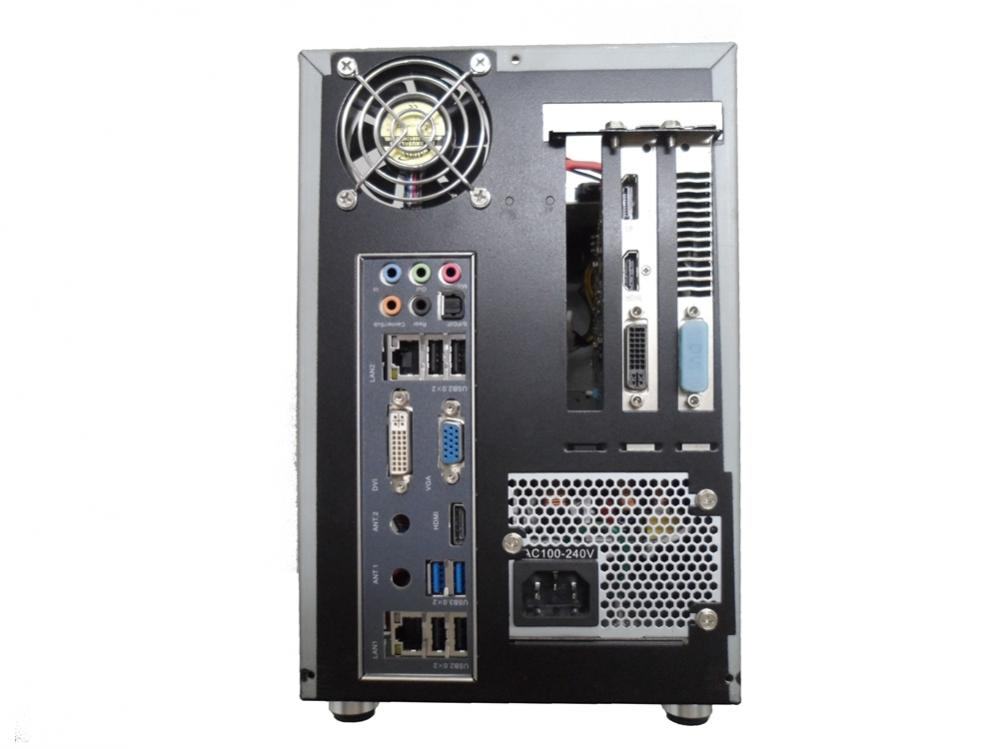

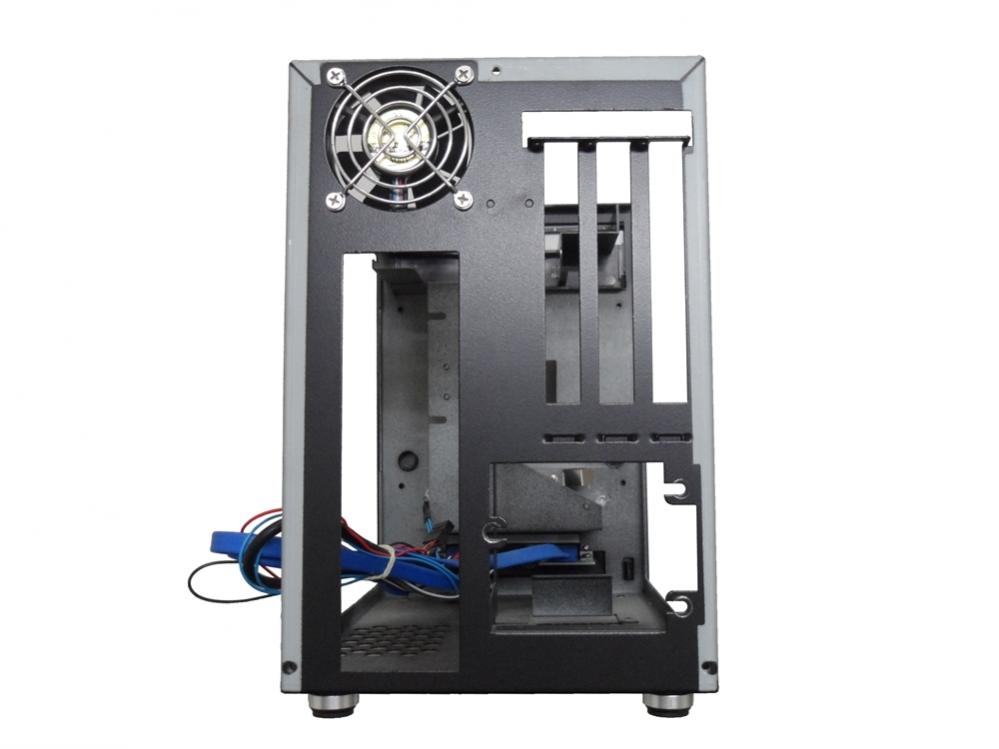

1.Rear mounted 60mm Silent Series


Front interface

1.2-USB 3.0 (Internal 3.0 to 2.0 adapter included)
2.Power button with LED
3.1-3.5mm audio in (microphone)
4.1-3.5mm audio out (headphone)
5.HDD LED
