12 Angry Men 900 D case P1

[arg-ist]

Playing with the new case 900D

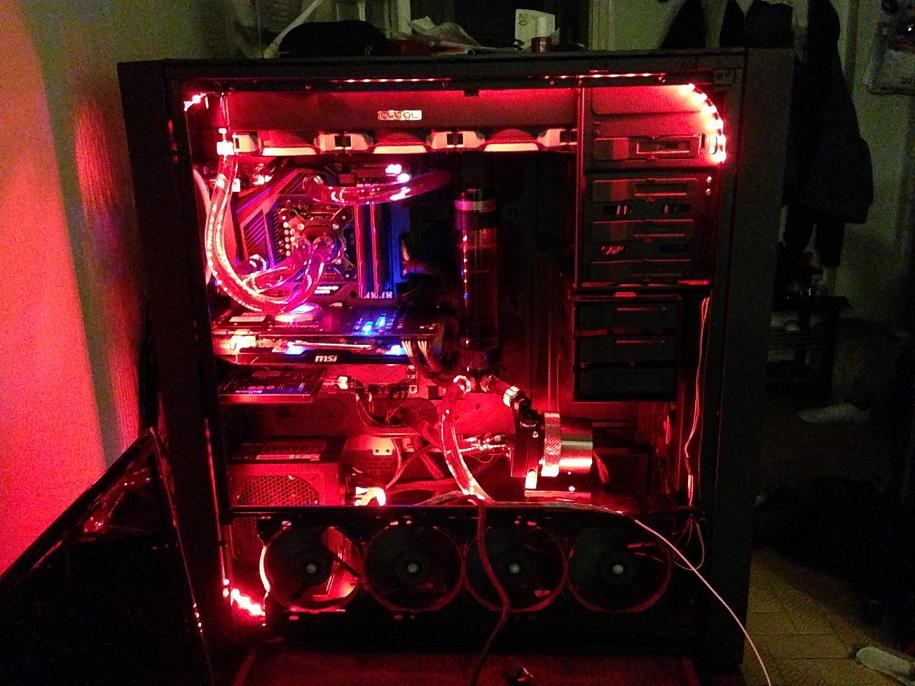

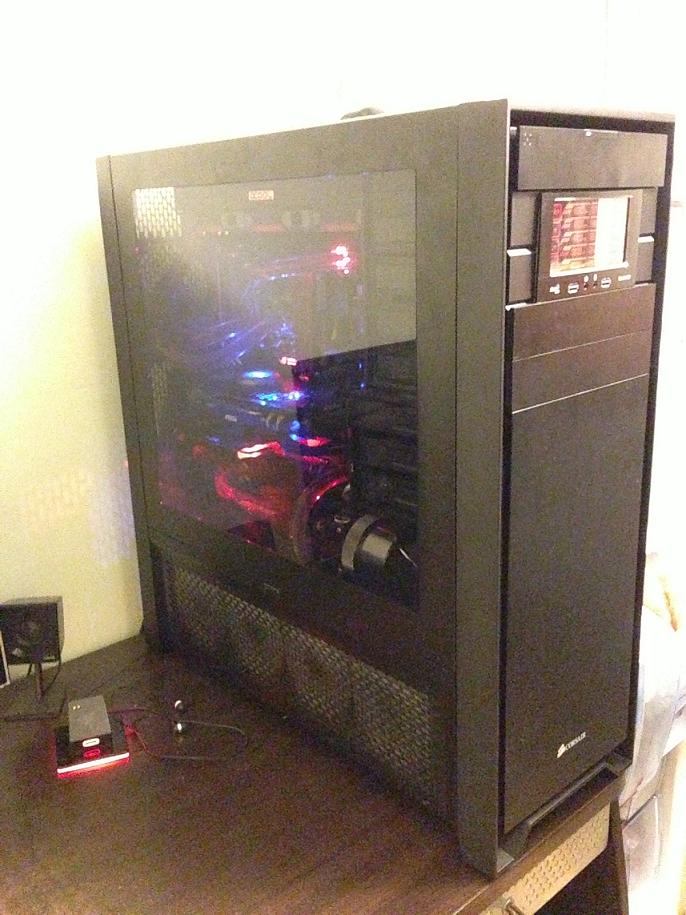

My new case is 900 D

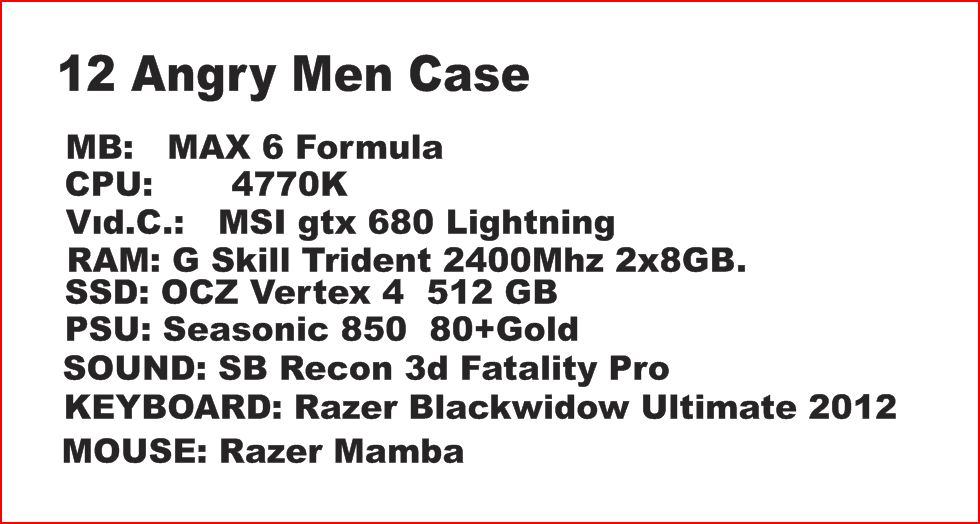

I used:

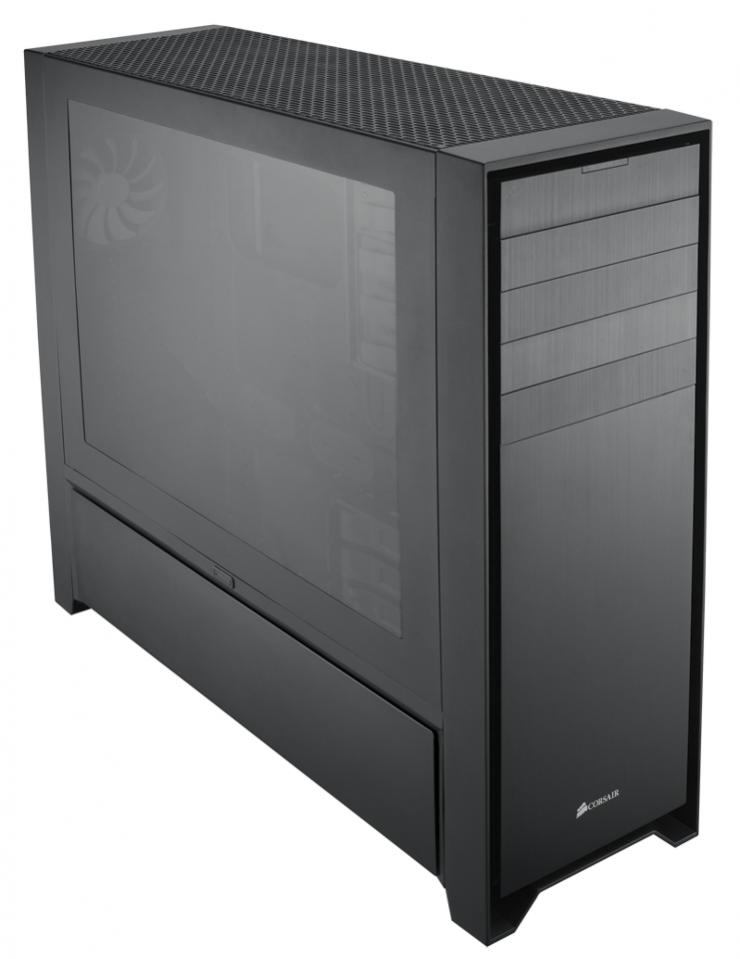

Case Corsair 900 d

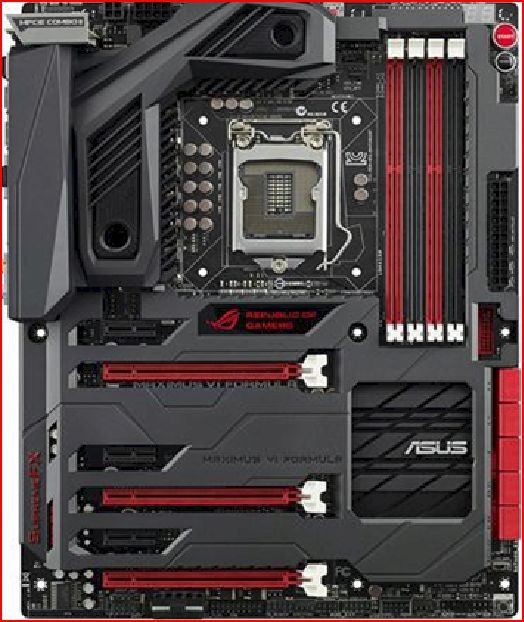

MB Asus Maximus 6 Formula
CPU 4770K

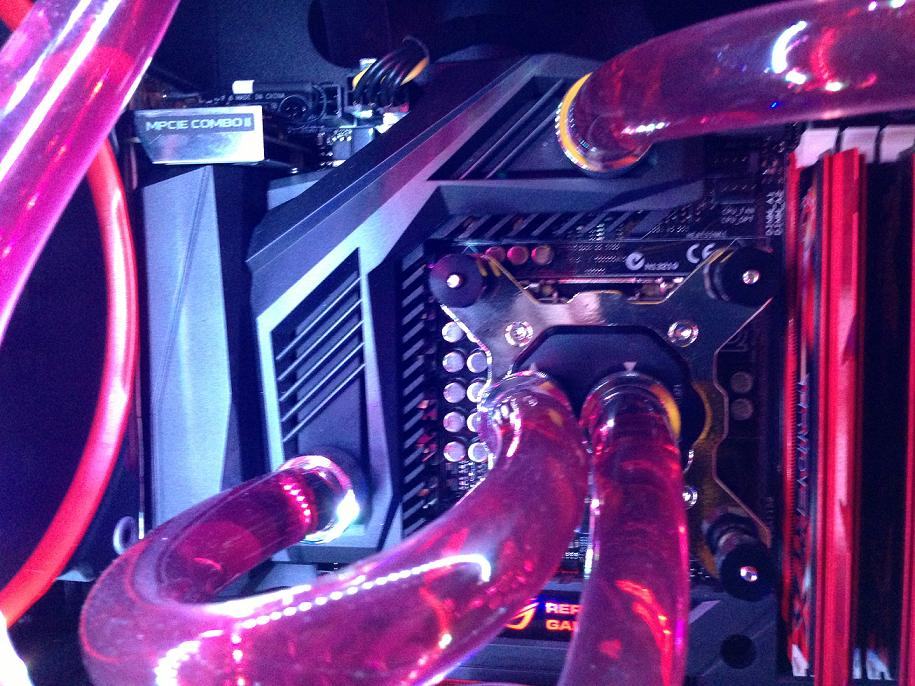

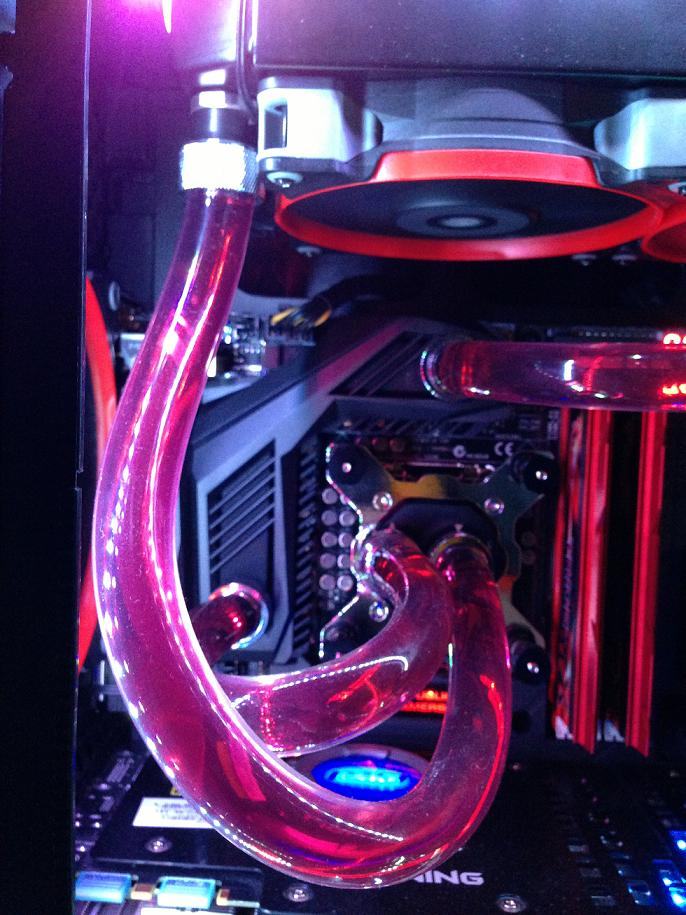

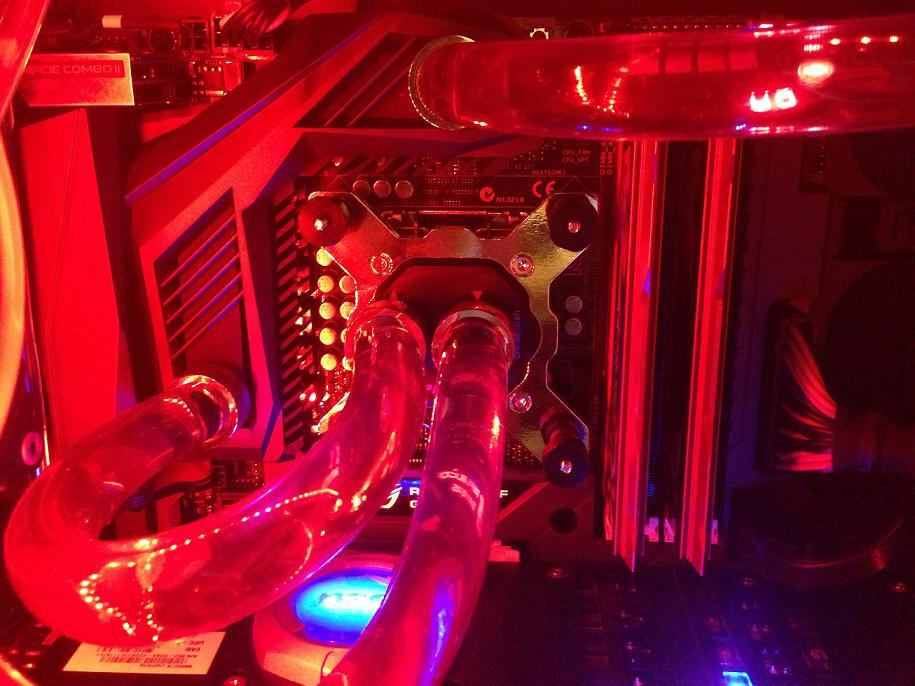

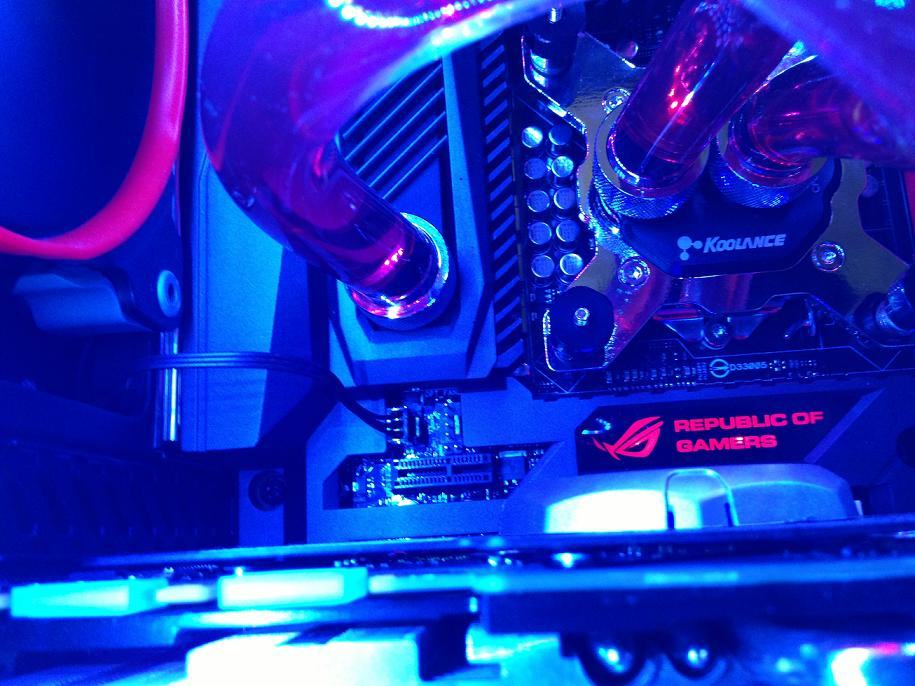

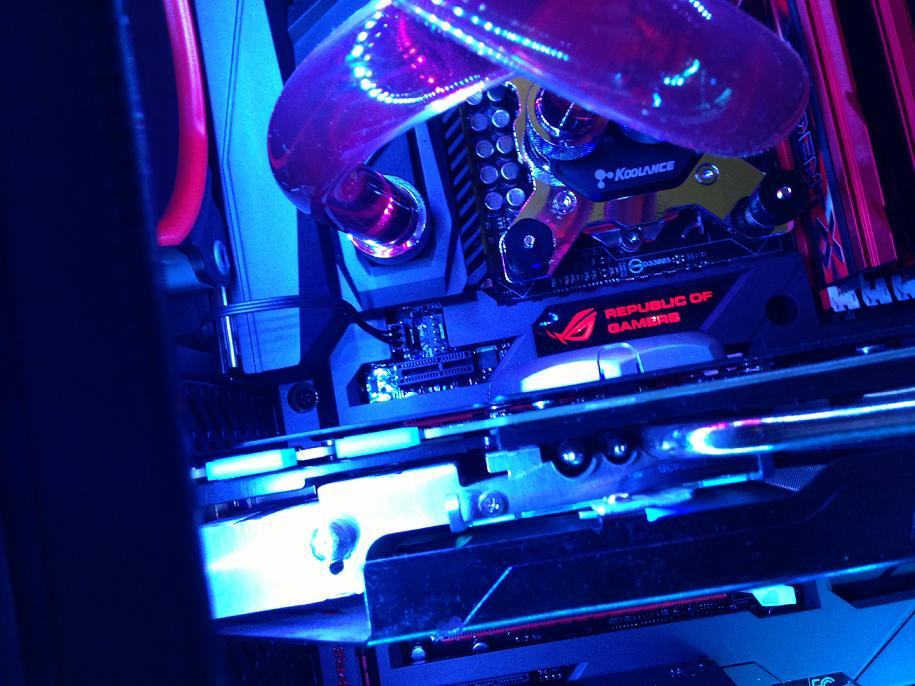

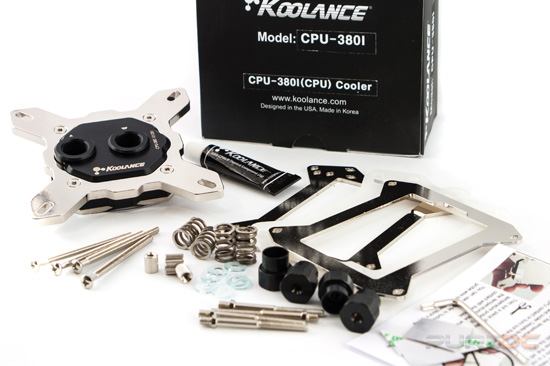

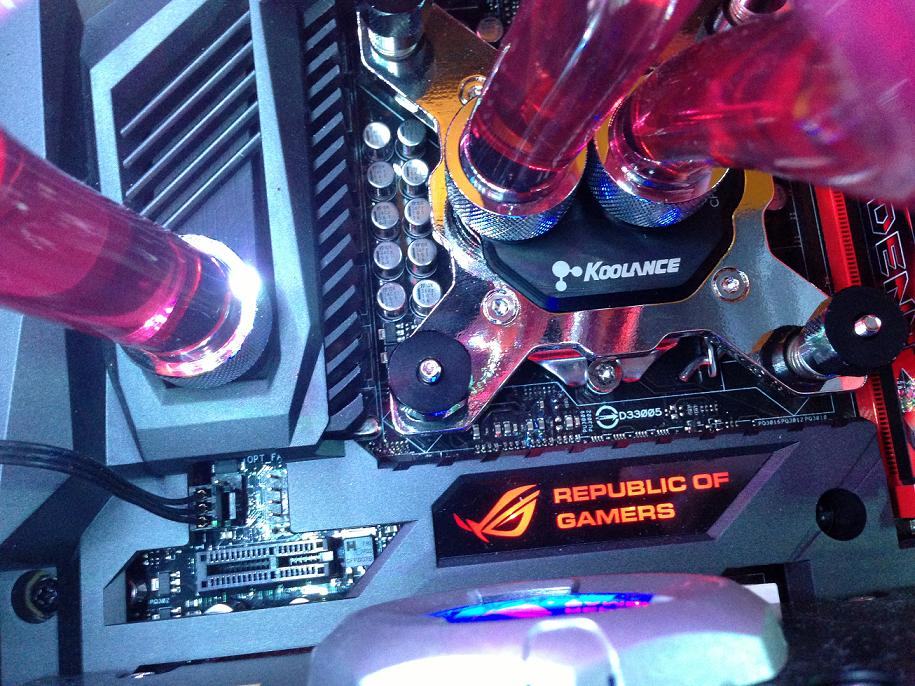

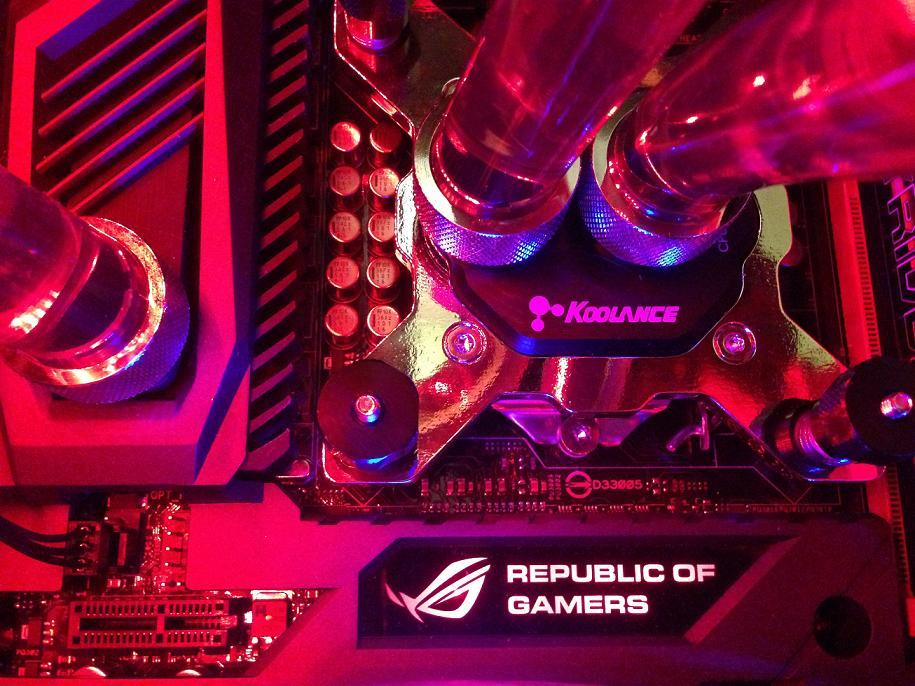

CPU WB Koolance CPU-380I Water Block

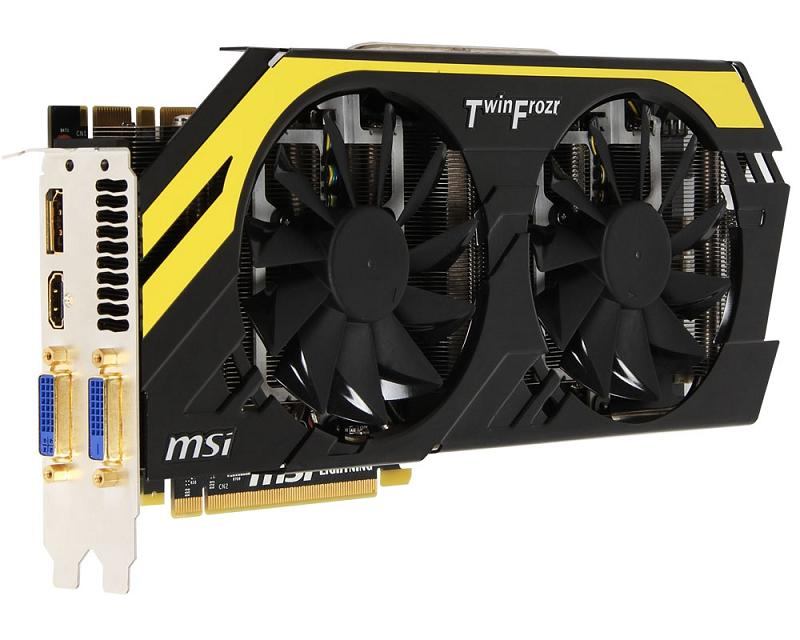

Video MSI GTX 680 Lightning
RAM G Skill Trident 2400 MHz 2X8 GB
SSD OCZ Vortex4 512 GB
Sound C. SB Recon 3D Fatality Pro
PSU Seasonic 850 80+Gold

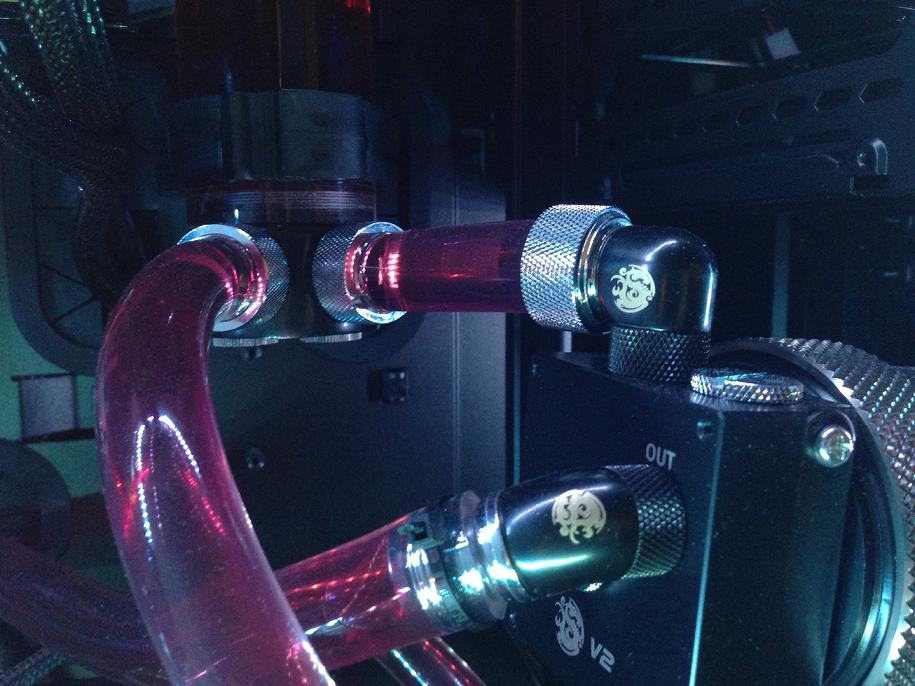

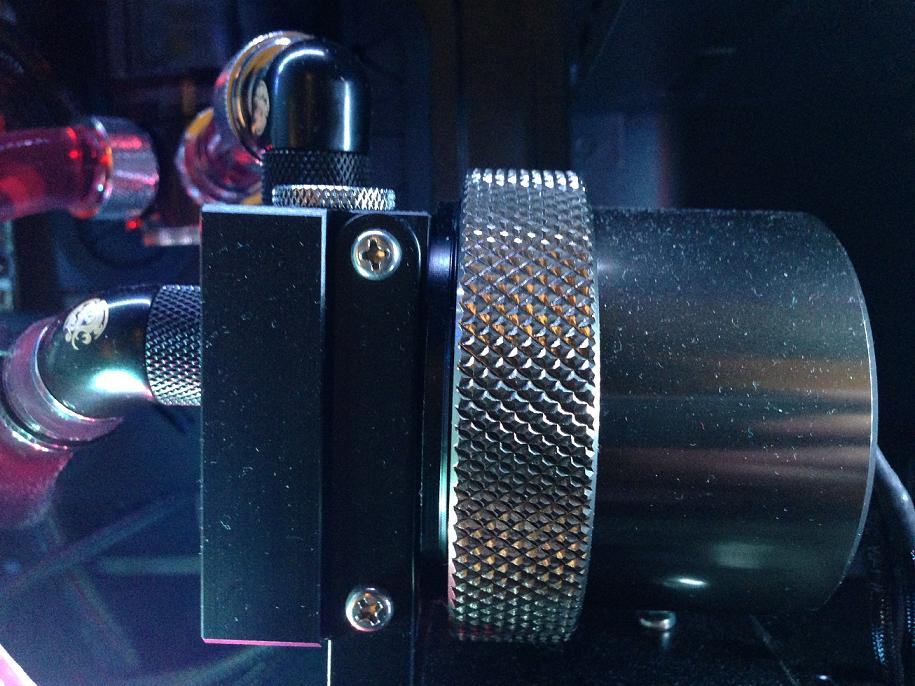

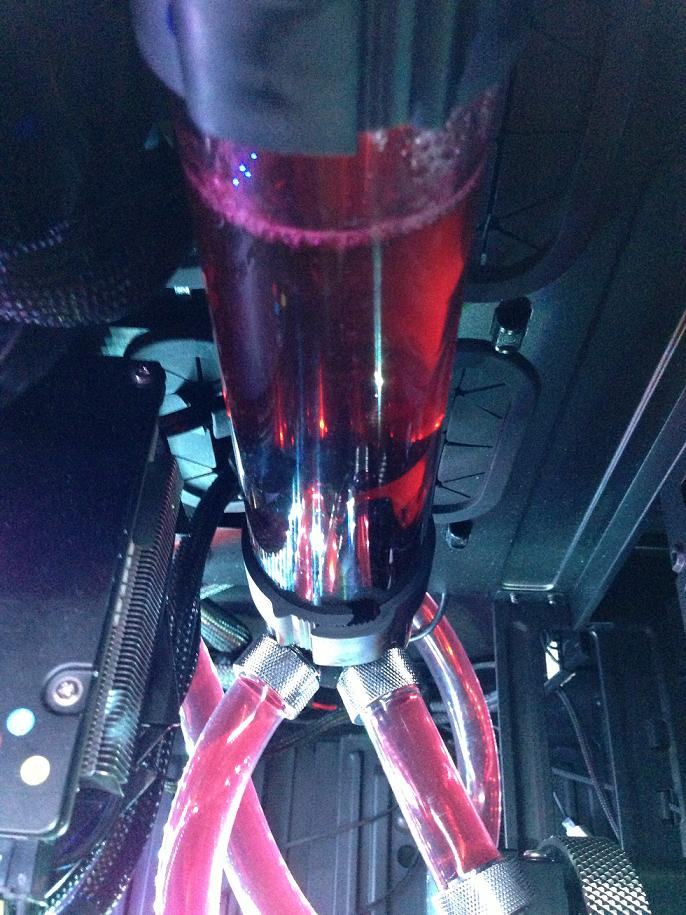

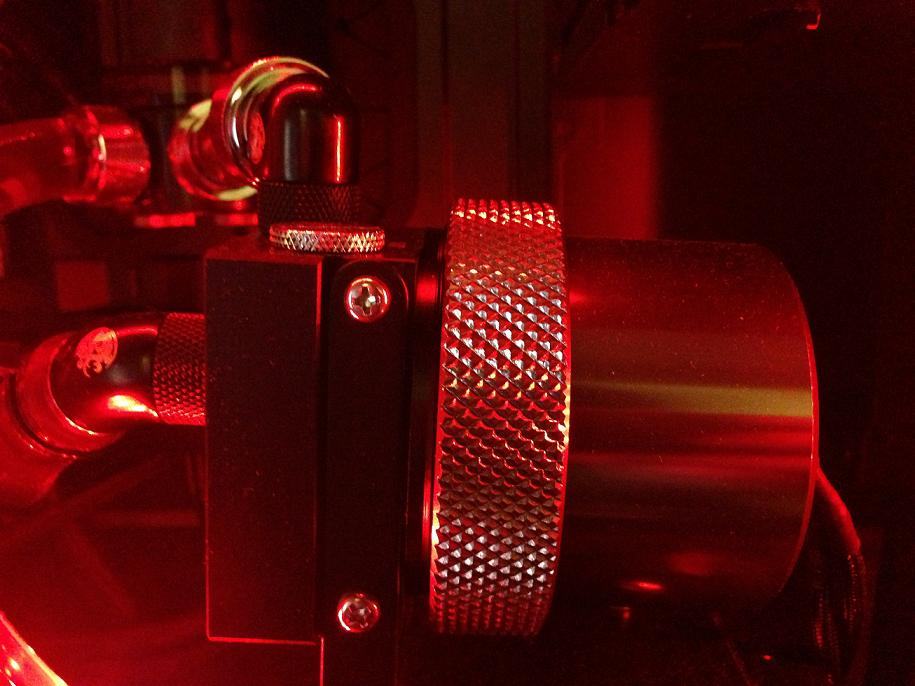

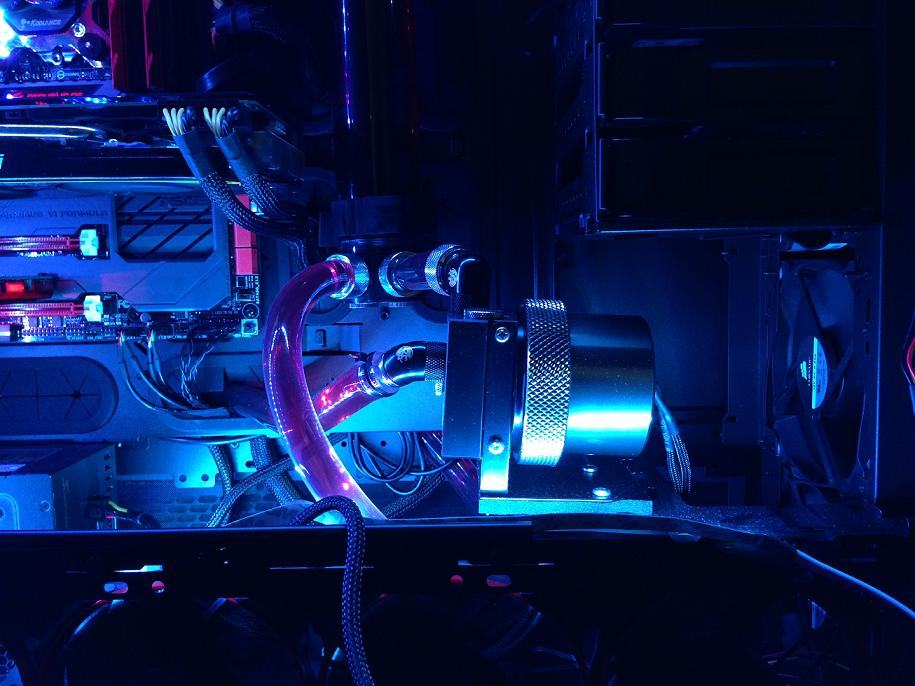

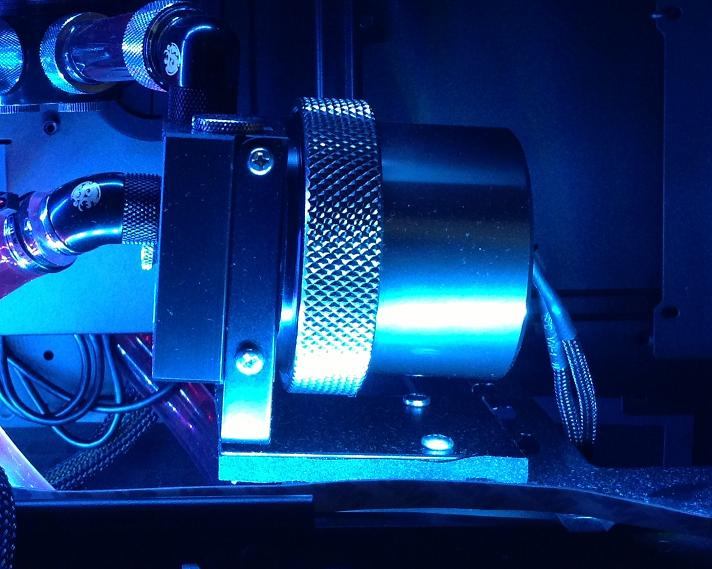

Pump Swiftech 655 + Bitspower TOP + Bitspower Mod kit
Fittings XSPC G1/4" to 1/2" ID, 3/4" OD Compression Fitting - Chrome Finish

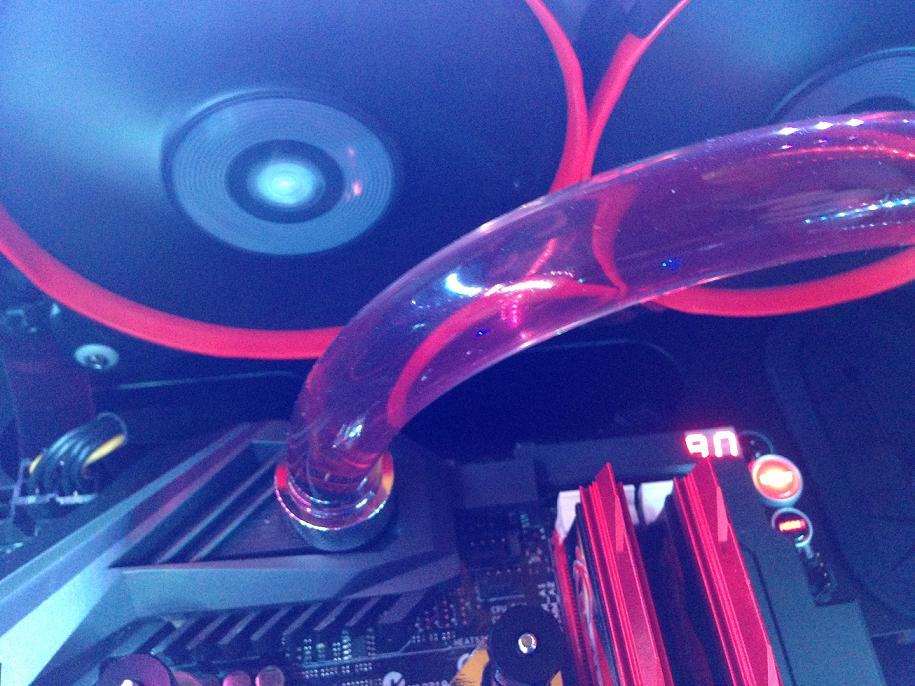

Tubing PrimoFlex Advanced LRT Tubing - 1/2in. ID X 3/4in. OD - Crystal Clear
Fluid PrimoChill Liquid Utopia Fluid Dye Pack - Blood Red
Keyboard Razer Blackwidow Ultimate 2012
Mouse Razer Mamba

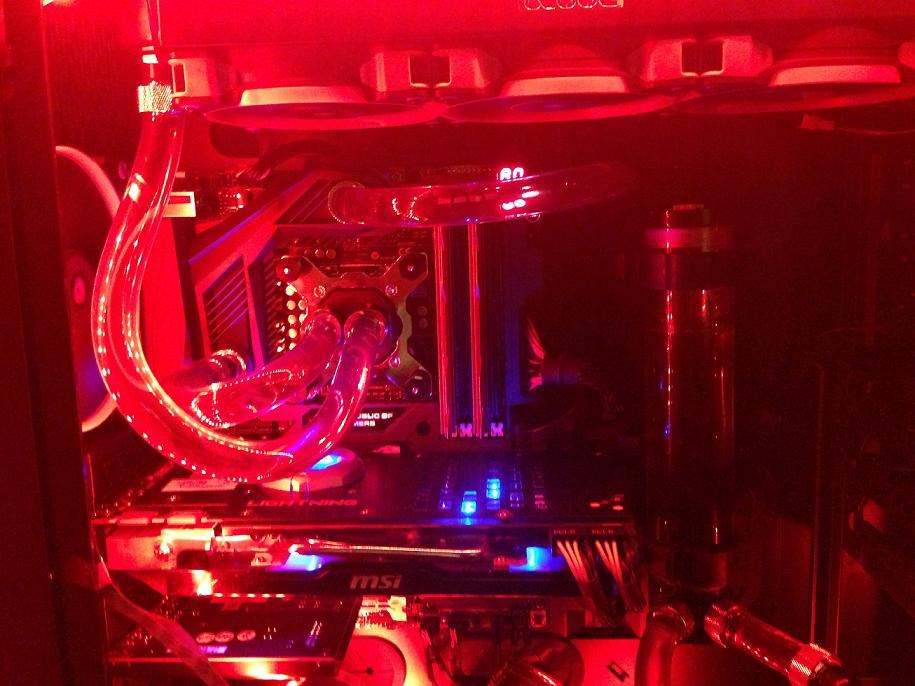

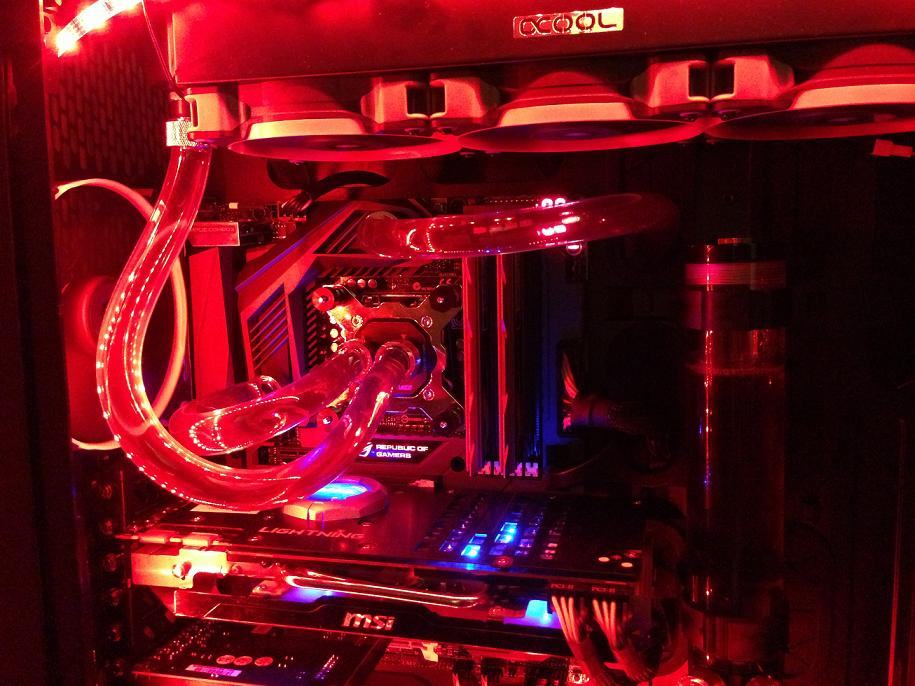

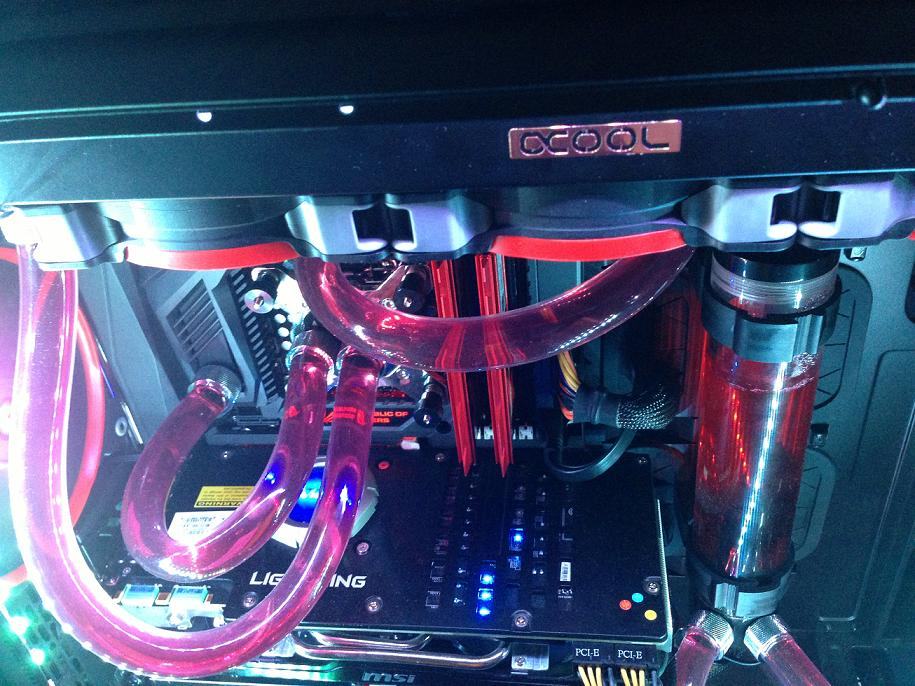

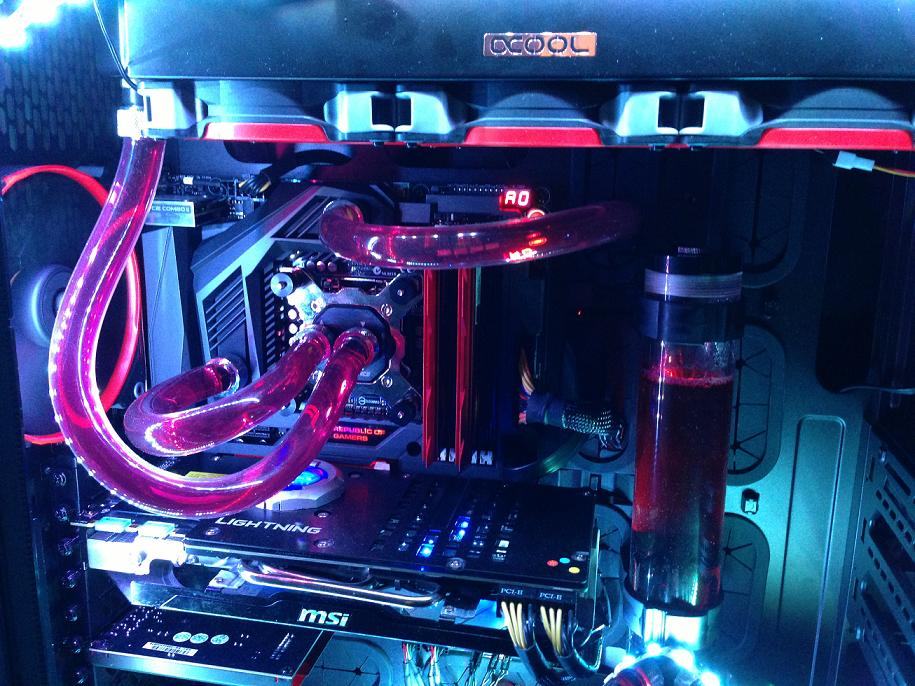

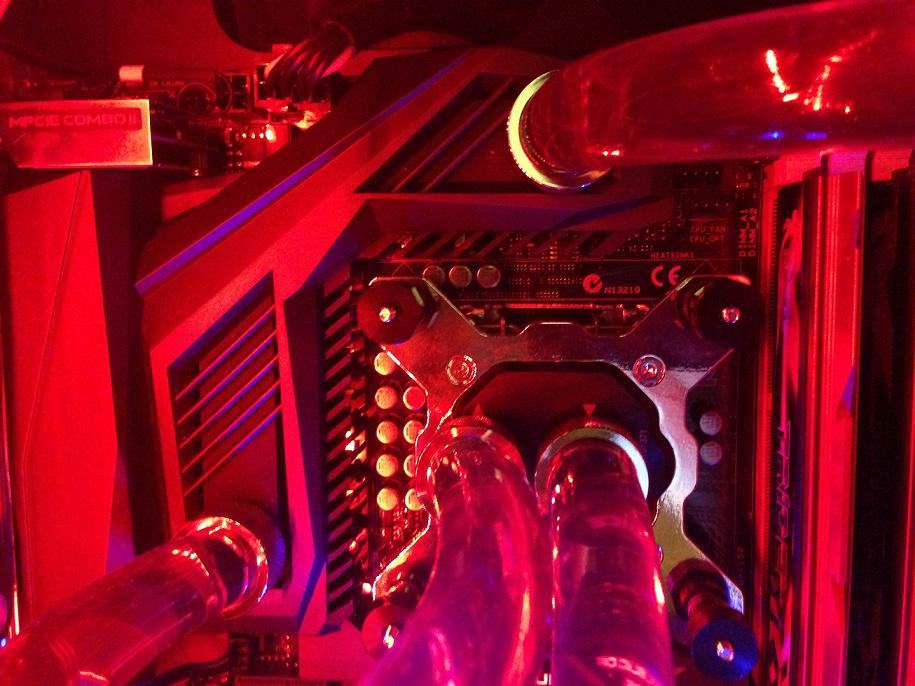

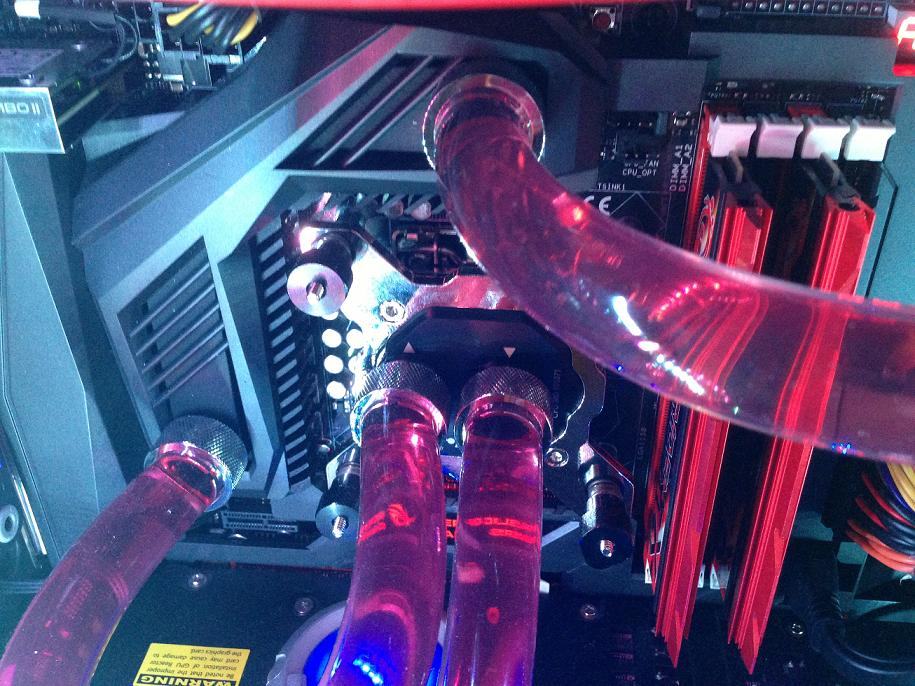

First, we used Asus Cross Chill cooler for watercooling

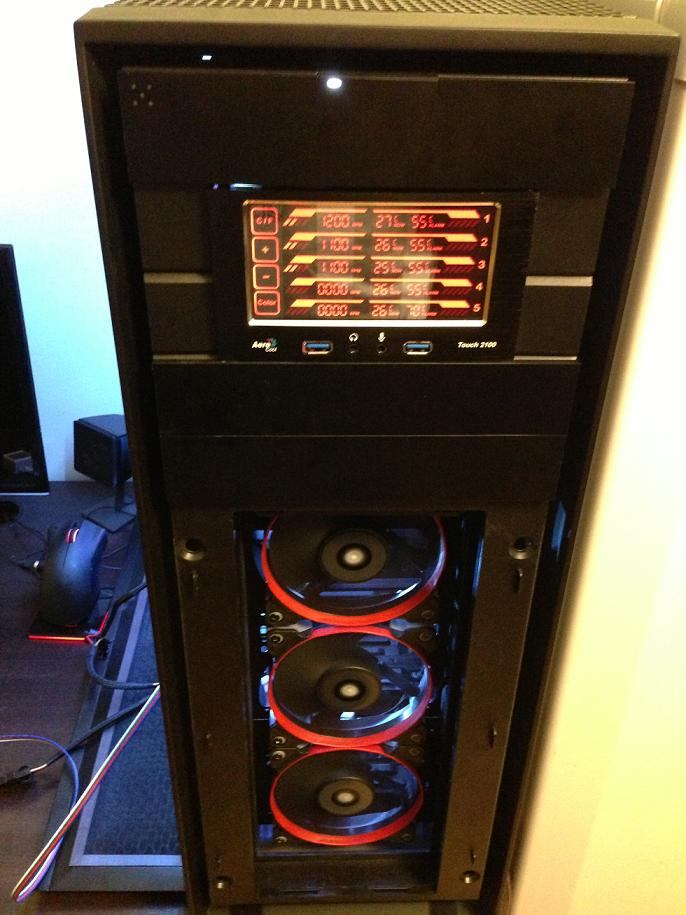

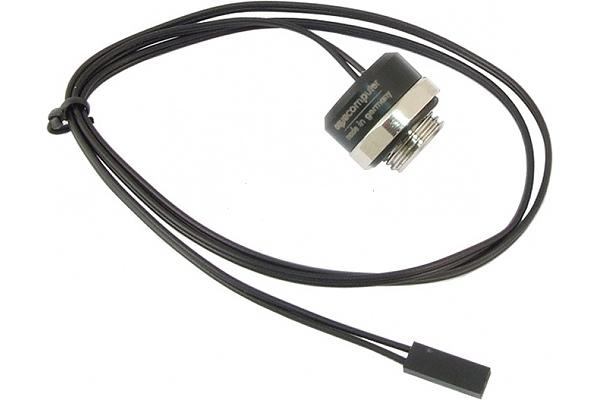

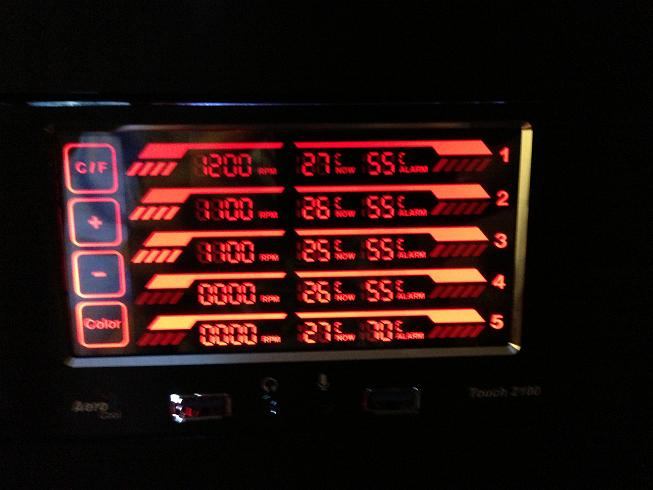

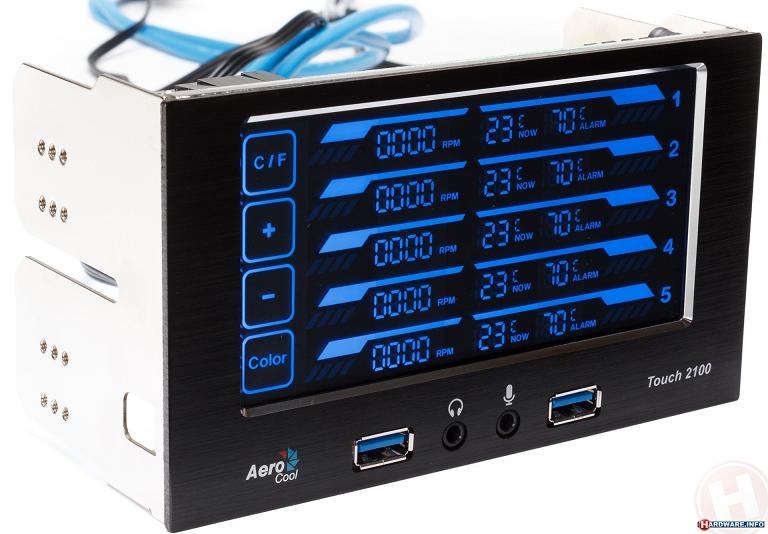

We provide the heat of liquid to stay stable at degree that we want by relating the inline sensor with aerocool fan controler alarm.

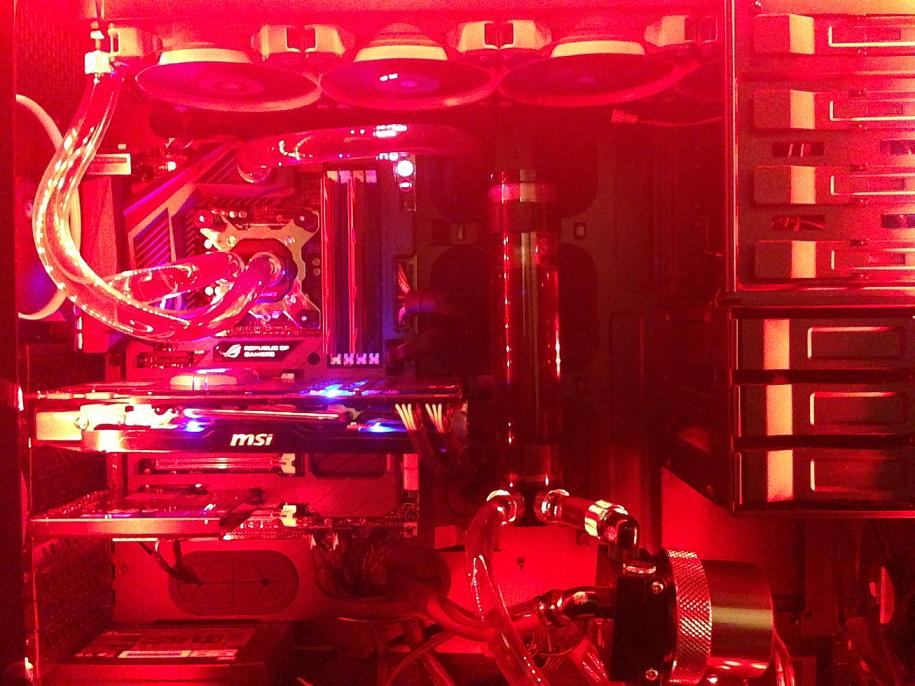

Avaible MSI videocard, is used with air cooling for now.(a Evga 780 is coming soon)

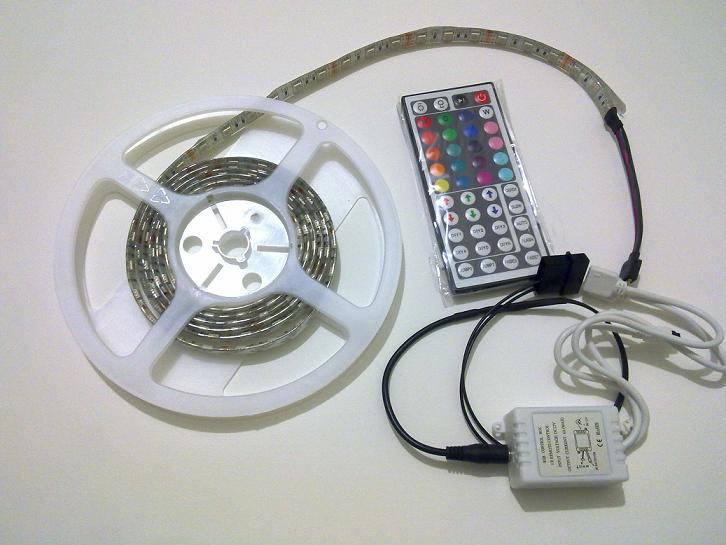

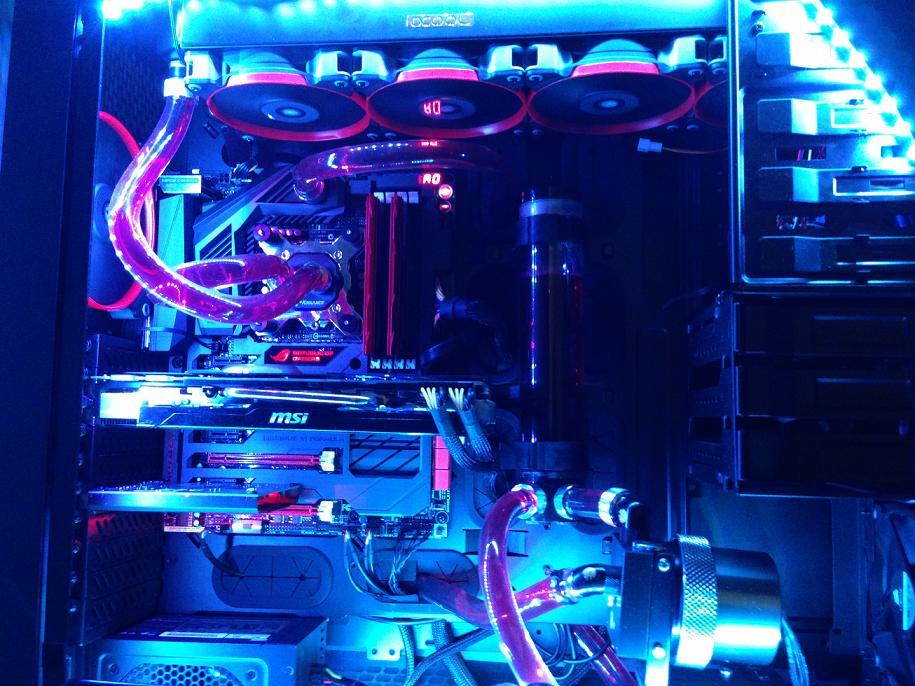

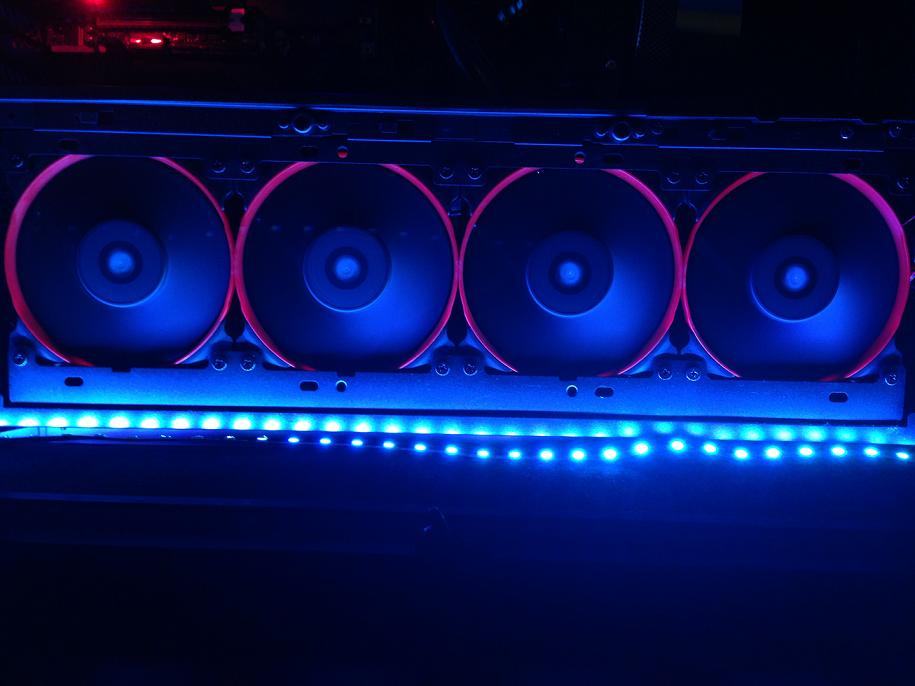

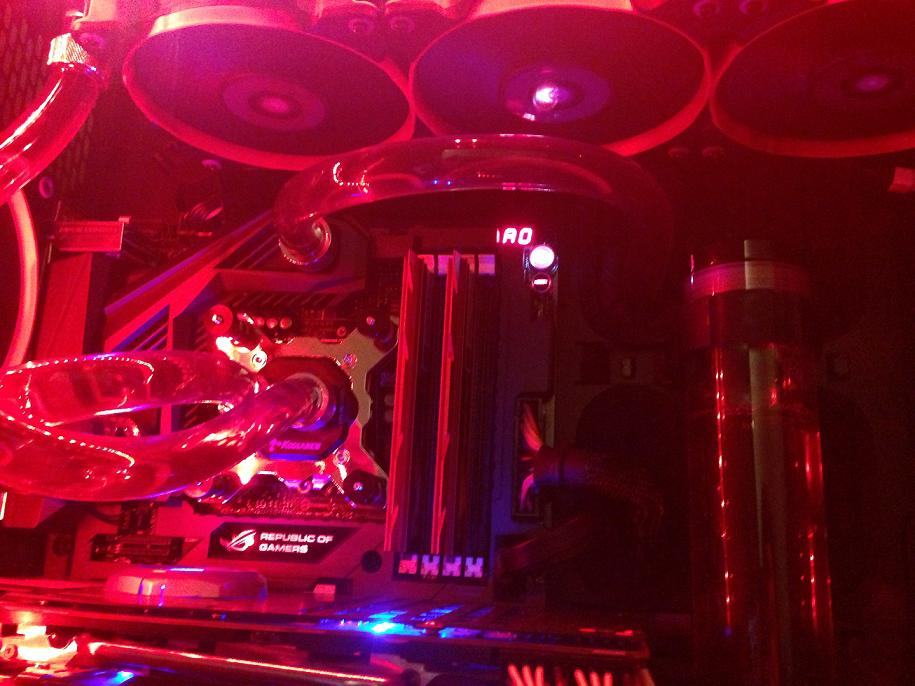

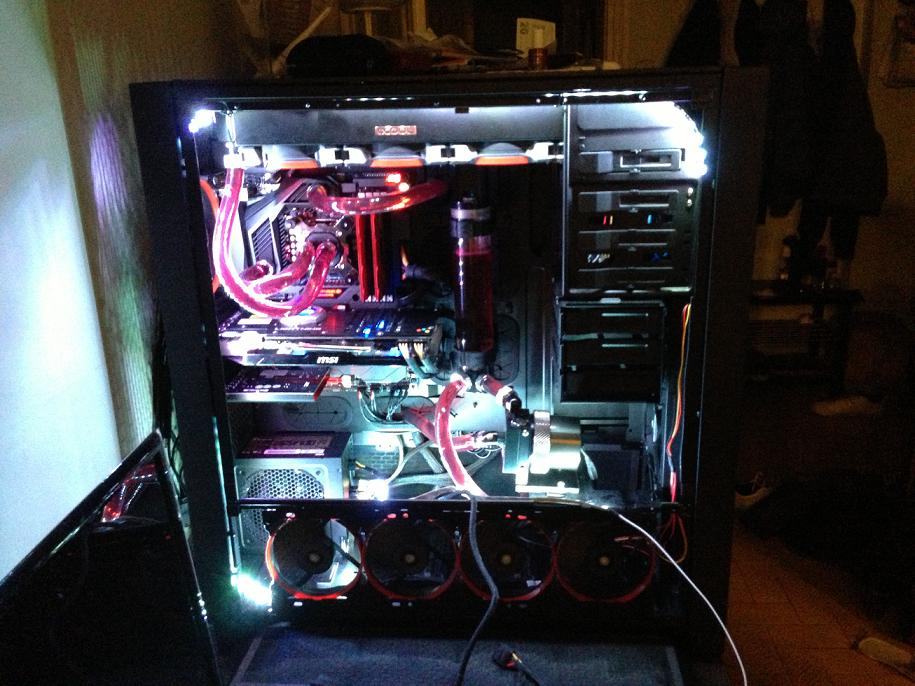

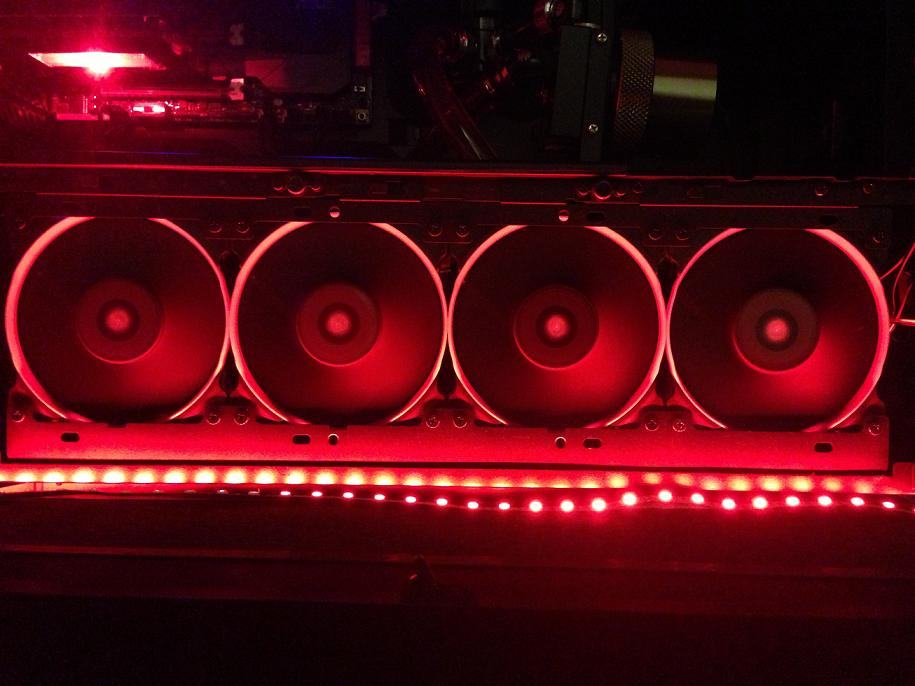

RGB led is used to find the light and colour that is wanted in the case.

The photos are trial photos which are taken for this purpose.

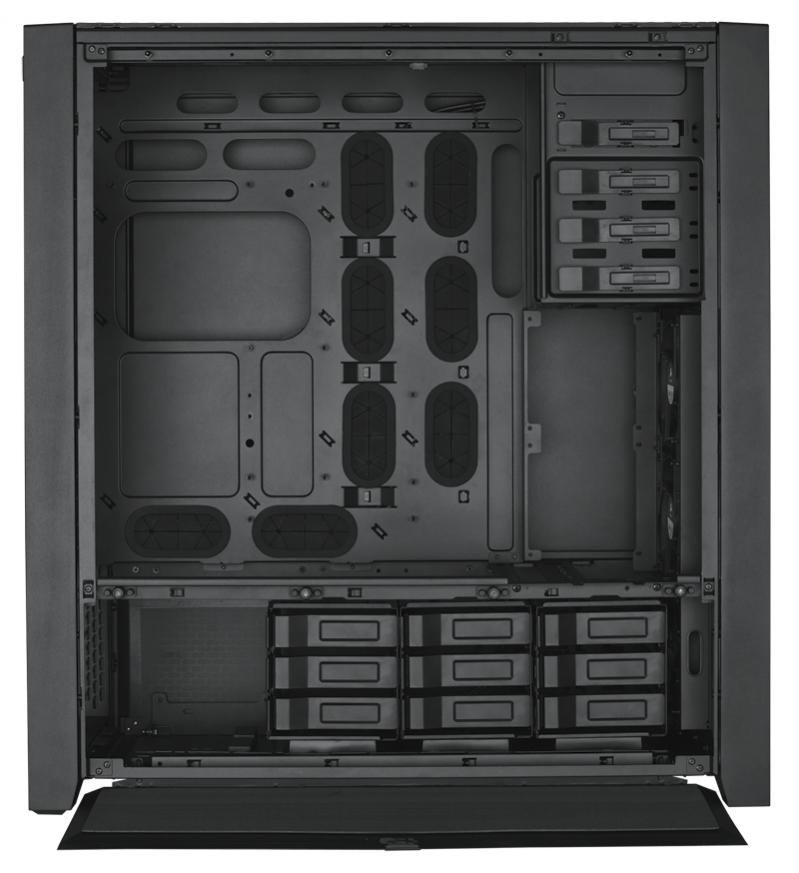

although CORSAIR 900D is a big case, but some mistakes appear.

That there is no middle plate at the case.

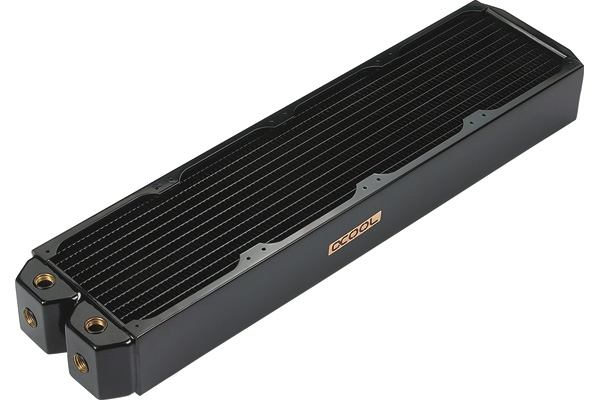

When 480th radiator is installed to the front of sub-part, there is 50mm space left except 60mm radiator+25mm fan.(photographed)

It is impossible to mount a radiator and fan together in this place.

Even if a thin radiator is used, there is no place left to work and joining between radiators.

There is no free place for pumps , you must remove HDD cages.

I think 900D was produced as a big case at first, later it has been minimized.

Don t think ,900 D is a big Case for watercooling…It is a MINI – BIG CASE only…

I hope Corsair 900D V1 is coming soon…


We are planning to change Asus MB Waterblock with an EK
And make a middle plate by next threads.
And a new Evga 780

http://www.youtube.com/watch?v=2RqF4IdZggc






OTHER WORKLOGS

Worklog http://www.hardwareluxx.de/community/f143/playdoh-silverstone-tj-07-acrylic-pipe-1012476.html

Worklog http://www.hardwareluxx.de/communit...-watercooled-copper-acrylic-pipe-1028332.html

Worklog http://www.hardwareluxx.de/communit...w-edition-acrylic-tubing-upgrade-1027807.html

Worklog http://www.hardwareluxx.de/community/f143/corsair-900-d-watercooled-mmt-case-997564.html

Worklog http://www.hardwareluxx.de/community/f143/jumbo-case-997157.html

Worklog http://www.hardwareluxx.de/community/f143/corsair-900-d-watercooled-mmt-case-997564.html

Worklog http://www.hardwareluxx.de/community/f143/transformer-case-996669.html

Worklog http://www.hardwareluxx.de/community/f143/how-make-bench-case-old-atx-1-a-1032451.html

Worklog http://www.hardwareluxx.de/community/f143/4-way-hdd-switcher-1033308.html

Worklog http://www.hardwareluxx.de/community/f143/self-made-cosmos-ii-clear-panel-1034027.html#post22531803



[arg-ist]



[Maexi]

da erblasst jedes Rotlichtviertel.



[nepToon]

da erblasst jedes Rotlichtviertel.

This setup cries for a graphics card cooler!
The red lighting is too powerful, everything else just gets flooded with it.



[arg-ist]

- - - Updated - - -

This setup cries for a graphics card cooler!
The red lighting is too powerful, everything else just gets flooded with it.

We are planning to change Asus MB Waterblock with an EK
And make a middle plate by next threads.
And a new Evga 780 Tİ

Leider sind photos nicht von mir photograhiert ,um bessere Photos zu photographieren, baue ich mir eine kleine Photoeckke.Neue Bilder kommen sicher besser.
