[Sammelthread] ASUS ROG Strix X670E-E/-F/-A/-I Gaming WIFI (AM5)

Sammelthread für die ASUS ROG Strix X670E Gaming WIFI Serie
In dem Thread geht es nur um die Strix x670E Serie. Andere Board Fragen haben hier nichts verloren, danke.


​

Herstellerseite: STRIX X670E-E / STRIX X670E-F / STRIX X670E-A / STRIX X670E-I

Support/Treiber/Bios (Hersteller): STRIX X670E-E / STRIX X670E-F / STRIX X670E-A / STRIX X670E-I

Support/Treiber/Bios (Alternative): STRIX X670E-E / STRIX X670E-F / STRIX X670E-A


Geizhals: STRIX X670E-E / STRIX X670E-F / STRIX X670E-A / STRIX X670E-I

Geizhals Vergleich: Strix X670E-E/F/A/I

Bios Übersicht: AM5 AGESA/UEFI/BIOS Info & Laberthread

AM5 Laberthread: https://www.hardwareluxx.de/community/threads/amd-am5-lga1718-mainboard-info-laberthread.1311067/

ECO Mode Guide: https://www.overclock3d.net/reviews/cpu_mainboard/amd_eco_mode_guide_for_am5/1


Reviews:

Spoiler: Strix E

ASUS ROG Strix X670E-E Gaming WiFi Motherboard Review – Design, Features & BIOS Overview - GeekaWhat

In today's review we're looking at one of ASUS' brand new top-performing E-ATX boards on the X670E chipset, the ASUS ROG STRIX X670E-E Gaming WiFi edition!

www.geekawhat.com

ASUS ROG Strix X670E-E Gaming WiFi - Planet 3DNow!

Auf Planet 3DNow! gibt es alle wichtigen Informationen fr AMD-User: News, Downloads, Support, Tests

www.planet3dnow.de

Asus ROG Strix X670-E Gaming WiFi review: Everything a gamer needs

The Asus ROG Strix X670-E Gaming WiFi motherboard comes with some fantastic next-gen features such as PCIe Gen 5 and DDR5, but lacks a few premium non-gamer-centric elements that would appeal to a wider audience.

www.pcworld.com

ASUS STRIX X670E-E Gaming WIFI review

ASUS has released their high-end X670E series motherboards for Ryzen 7000. We review the Strix X670E-E Gaming WIFI, which includes multiple M2 slots (PCIe Gen4/Gen5a), a 2.5 GigE port, and WIFI6E, as ...

www.guru3d.com

​

Reviews in anderer Sprache: https://www.hardwareluxx.de/communi...e-e-f-a-gaming-wifi-am5.1324266/post-29522793​

Spoiler: Strix F

Reviews Archive - OC3D

overclock3d.net

ASUS ROG Strix X670E-F Gaming Wifi im Test

Mit dem ROG Strix X670E-F Gaming Wifi testen wir unser erstes AM5 Mainboard und werfen einen Blick auf die Ausstattung, Leistung und Probleme.

hardware-helden.de

ASUS ROG Strix X670E-F Gaming WiFi im Test: Runde Ausstattung für Raphael - Hardwareluxx

Mit dem ROG Strix X670E-F Gaming WiFi bietet ASUS eine AM5-Platine mit runder Ausstattung an.

www.hardwareluxx.de

Spoiler: Strix I

https://einfoldtech.com/2022/10/asus-rog-strix-x670e-i-gaming-wifi-review/

ASUS ROG Strix X670E-I Gaming WiFi Motherboard Review – Features, Design & BIOS - GeekaWhat

In today's review, we're delving into the features, aesthetics, and BIOS of ASUS' Mini-ITX board, the ROG Strix X670E-I Gaming WiFi!

www.geekawhat.com

ASUS ROG Strix X670E-I Gaming WiFi review - TechGaming

Moederbord review: ASUS ROG Strix X670E-I Gaming WiFi

techgaming.nl

Besonderheiten:

• Optimiertes Kühlungsdesign: Massive VRM-Kühlkörper plus integrierte Aluminium-E/A-Abdeckung, hochleitfähiges Wärmeleitpad, L-förmige Heatpipe, M.2 Combo-Kühlkörper und M.2 Backplate für den PCIe® 5.0 M.2_1 Steckplatz, drei Onboard-M.2-Kühlkörper sowie ein massiver M.2-Kühlkörper als Zubehör
• Übertaktungstechnologien: Dynamic OC Switcher, Ryzen Core Flex, Asynchroner Takt und PBO-Verbesserung
• Hochleistungsnetzwerke: Onboard WiFi 6E, Intel® 2,5 Gb Ethernet und ASUS LANGuard
• Branchenführendes Audio: ROG SupremeFX ALC4080 mit Savitech SV3H712 Verstärker, zusammen mit DTS® Sound Unbound und Sonic Studio III
• Unübertroffene Personalisierung: ASUS-exklusive Aura Sync RGB-Beleuchtung, einschließlich eines RGB-Headers und drei adressierbaren Gen 2 RGB-Headern
• DIY-freundliches Design: Einschalttaste, vormontiertes I/O Shield, PCIe Slot Q-Release, M.2 Q-Latch, Q-Code, Q-LED, BIOS FlashBack™, Clr CMOS Button, FlexKey, SafeSlot und SafeDIMM
• Intelligente Steuerung: ASUS-exklusive Tools wie AI Cooling II, Two-Way AI Noise-Cancelation und AI Networking für eine einfache Konfiguration
• Renommierte Software: 60-Tage-Testversion von AIDA64 Extreme und intuitives UEFI BIOS-Dashboard im Lieferumfang enthalten

Spezifikationen ROG STRIX X670E-E GAMING WIFI:

Spoiler

CPU​

AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors*
* Refer to www.asus.com for CPU support list.

Chipset​

AMD X670

Memory​

4 x DIMM, Max. 128GB, DDR5
6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/
5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports AMD EXTended Profiles for Overclocking (EXPO™)
OptiMem II
* Supported memory types, data rate(Speed),
and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
* Non-ECC, Un-buffered DDR5 Memory supports
On-Die ECC function

Graphics​

1 x DisplayPort**
1 x HDMI® port***
**Supports max. 8K@60Hz as specified in DisplayPort 1.4.
***Supports 4K@60Hz as specified in HDMI 2.1.

Expansion Slots​

AMD Ryzen™ 7000 Series Desktop Processors
2 x PCIe 5.0 x16 slots (supports x16 or x8/x4 modes)
AMD X670 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)

Storage​

Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*

AMD Ryzen™ 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode))

AMD X670 Chipset
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports

*AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.

Ethernet​

1 x Intel® 2.5Gb Ethernet
ASUS LANGuard

Wireless & Bluetooth​

Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth v5.2
* WiFi 6E 6GHz regulatory may vary between
countries, and function will be ready in Windows 11 or later.
**The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications

USB​

Rear USB (Total 13 ports)
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
12 x USB 3.2 Gen 2 ports (10 x Type-A + 2 x
USB Type-C®)

Front USB (Total 9 ports)
1 x USB 3.2 Gen 2x2 connector
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
3 x USB 2.0 headers support additional 6 USB 2.0 ports

Audio​

ROG SupremeFX 7.1 Surround Sound High
Definition Audio CODEC ALC4080
- Impedance sense for front and rear
headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback
output and 113 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback

Audio Features
- Audio Shielding
- Savitech SV3H712 AMP
- Gold-plated audio jacks
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover
* A chassis with an HD audio module in the
front panel is required to support 7.1 Surround Sound audio output.

Back Panel I/O Ports​

1 x USB 3.2 Gen 2x2 port (1 x Type-C®)
12 x USB 3.2 Gen 2 ports (10 x Type-A, 2 x USB
Type-C®)
1 x DisplayPort
1 x HDMI® port
1 x Wi-Fi Module
1 x Intel® 2.5Gb Ethernet port
5 x Gold-plated audio jacks*
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button
*The rear panel Lime (Line out) port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis.

Internal I/O Connectors​

Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan header
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connector
Storage related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports
additional 2 USB 3.2 Gen 1 ports
3 x USB 2.0 headers support additional 6 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x AURA RGB header
1 x Alteration Mode Switch
1 x CPU Over Voltage jumper
1 x Front Panel Audio header (AAFP)
1 x Start button
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thermal Sensor header
1 x Thunderbolt™ header

Special Features​

Extreme Engine Digi+
- 5K Black Metallic Capacitors
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-Code
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA
[white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsink
- VRM heatsink design
- Massive M.2 Heatsink
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- Clear CMOS button
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
AURA Sync
- AURA RGB header
- Addressable Gen 2 headers

Software Features​

ROG Exclusive Software
- GameFirst VI
- ROG CPU-Z
- Sonic Studio III + Sonic Studio Virtual
Mixer + Sonic Suite Companion
- Sonic Radar III
- DTS® Sound Unbound
- Anti-virus software
ASUS Exclusive Software
Armoury Crate
- AIDA64 Extreme (60 days free trial)
- AURA Creator
- AURA Sync
- Fan Xpert 4 (with AI Cooling II)
- Power Saving
- Two-Way AI Noise Cancellation
AI Suite 3
- TPU
- DIGI+ VRM
- Turbo app
- PC Cleaner
MyAsus
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
Dynamic OC Switcher
FlexKey

BIOS​

256 MbFlash ROM, UEFI AMI BIOS

Manageability​

WOL by PME, PXE

Accessories​

Cables
2x SATA 6Gb/s cables
Additional Cooling Kit
1 x Thermal pad for M.2
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x Cable ties pack
1 x Massive M.2 Heatsink
1 x M.2 Q-Latch package for M.2 backplate
1 x M.2 Q-Latch package
1 x ROG Graphics card holder
2 x Rubber Packages for M.2
1 x Rubber Package for M.2 backplate
1 x ROG key chain
1 x ROG Strix sticker
1 x ROG Strix thank you card
Documentation
1 x User guide

Operating System​

Windows® 11 64-bit, Windows 10 64-bit

Form Factor​

ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Spezifikationen ROG STRIX X670E-F GAMING WIFI:

Spoiler

CPU​

AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors*

* Refer to www.asus.com for CPU support list.

Chipset​

AMD X670

Memory​

4 x DIMM, Max. 128GB, DDR5 6400+(OC)/6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC andNon-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports AMD EXTended Profiles for Overclocking (EXPO™)
OptiMem II
* Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
* Non-ECC, Un-buffered DDR5 Memory supports
On-Die ECC function

Graphics​

1 x DisplayPort*
1 x HDMI® port**
* Supports max. 8K@60Hz as specified in DisplayPort 1.4.
**Supports max. 4K@60Hz as specified in HDMI 2.1.

Expansion Slots​

AMD Ryzen™ 7000 Series Desktop Processors*
1 x PCIe 5.0 x16 slots (supports x16 mode)
AMD X670 Chipset**
1 x PCIe 4.0 x16 slot (supports x4 mode)
1 x PCIe 3.0 x1 slot
* Please check PCIe bifurcation table in support site (https://www.asus.com/support/FAQ/1037507/).

Storage​

Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*
AMD Ryzen™ 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280
(supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280
(supports PCIe 5.0 x4 mode)
AMD X670 Chipset
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
*AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.

Ethernet​

1 x Intel® 2.5Gb Ethernet
ASUS LANGuard

Wireless & Bluetooth​

Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band
Bluetooth v5.2
* WiFi 6E 6GHz regulatory may vary between countries.

USB​

Rear USB (Total 12 ports)
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
9 x USB 3.2 Gen 2 ports (7 x Type-A + 2 x USB Type-C®)
2 x USB 2.0 ports
Front USB (Total 7 ports)
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports

Audio​

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback"
Audio Features
- Audio Shielding
- Savitech SV3H712 AMP
- Gold-plated audio jacks
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover

Back Panel I/O Ports​

1 x USB 3.2 Gen 2x2 port (1 x Type-C®)
9 x USB 3.2 Gen 2 ports (7 x Type-A, 2 xUSB Type-C®)
2 x USB 2.0 ports
1 x DisplayPort
1 x HDMI® port
1 x Wi-Fi Module
1 x Intel® 2.5Gb Ethernet port
5 x Gold-plated audio jacks*
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button
*The rear panel Lime (Line out) port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis.

Internal I/O Connectors​

Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connector
Storage related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports USB
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x CPU Over Voltage jumper
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with
Chassis intrude function
1 x Thermal Sensor header
1 x Thunderbolt™ (USB4®) header

Special Features​

Extreme Engine Digi+
- 5K Black Metallic Capacitors
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA
[white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsinks
- M.2 heatsink backplate
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- Clear CMOS button
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
- Aura RGB header
- Addressable Gen 2 headers

Software Features​

ROG Exclusive Software
- GameFirst VI
- ROG CPU-Z
- Sonic Studio III + Sonic Studio Virtual
Mixer + Sonic Suite Companion
- Sonic Radar III
- DTS® Sound Unbound
- Anti-virus software
ASUS Exclusive Software
Armoury Crate
- AIDA64 Extreme (60 days free trial)
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- Power Saving
- Two-Way AI Noise Cancellation
AI Suite 3
TPU
DIGI+ VRM
Turbo app
PC Cleaner
MyAsus
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
Dynamic OC Switcher
FlexKey

BIOS​

256 Mb Flash ROM, UEFI AMI BIOS

Manageability​

WOL by PME, PXE

Accessories​

Cables
2 x SATA 6Gb/s cables
Additional Cooling Kit
1 x Thermal pad for M.2
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x Cable ties pack
1 x M.2 Q-Latch package for M.2 backplate
1 x M.2 Q-Latch package
1 x ROG key chain
1 x ROG Strix stickers
1 x ROG Strix thank you card
2 x Rubber Packages for M.2
1 x Rubber Package for M.2 backplate
Documentation
1 x User guide

Operating System​

Windows® 10 64-bit, Windows® 11 64-bit

Form Factor​

ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Spezifikationen ROG STRIX X670E-A GAMING WIFI:

Spoiler

CPU​

AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors*
* Refer to www.asus.com for CPU support list.

Chipset​

AMD X670

Memory​

4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory*
Dual Channel Memory ArchitectureSupports AMD EXTended Profiles for Overclocking (EXPO™)OptiMem II
* Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function

Graphics​

1 x DisplayPort*
1 x HDMI® port**
* Supports max. 8K@60Hz as specified in DisplayPort 1.4.
** Supports Supports 4K@60Hz as specified in HDMI 2.1.
*** VGA resolution support depends on processors' or graphic cards' resolution.

Expansion Slots​

AMD Ryzen™ 7000 Series Desktop Processors
1 x PCIe 5.0/4.0/3.0 x16 slot

AMD X670 Chipset
1 x PCIe 4.0/3.0 x16 slot (supports x4 mode)
1 x PCIe 3.0 x1 slot

Storage​

Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*

AMD Ryzen™ 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)

AMD X670 Chipset
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
*AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10

Ethernet​

1 x Intel® 2.5Gb Ethernet
ASUS LANGuard

Wireless & Bluetooth​

Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth v5.2
* WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later.

USB​

Rear USB (Total 12 ports)
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
8 x USB 3.2 Gen 2 ports (7 x Type-A + 1 x USB Type-C®)
1 x USB 3.2 Gen 1 port (1 x Type-A)
2 x USB 2.0 ports (2 x Type-A)

Front USB (Total 7 ports)
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® )
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports

Audio​

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback
Audio Features
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover

Back Panel I/O Ports​

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
8 x USB 3.2 Gen 2 ports (7 x Type-A, 1 x USB Type-C®)
1 x USB 3.2 Gen 1 port (1 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI® port
1 x Wi-Fi Module
1 x Intel® I225-V 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button

Internal I/O Connectors​

Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers

Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connector
Storage related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports

USB
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® )
1 x USB 3.2 Gen 1 header supports additional
2 USB 3.2 Gen 1 ports2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x CPU Over Voltage jumper
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thermal Sensor header
1 x Thunderbolt™ header

Special Features​

Extreme Engine Digi+
- 5K Black Metallic Capacitors

ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-DIMM- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot

ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsink
- VRM heatsink design

ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- Clear CMOS button
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM

AURA Sync
- AURA RGB header
- Addressable Gen 2 headers

Software Features​

ROG Exclusive Software
- GameFirst VI
- ROG CPU-Z
- Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion
- Sonic Radar III
- DTS® Sound Unbound
- Anti-virus software

ASUS Exclusive Software
Armoury Crate
- AIDA64 Extreme (60 days free trial)
- AURA Creator
- AURA Sync
- Fan Xpert 4 (with AI Cooling II)
- Power Saving
- Two-Way AI Noise Cancellation
AI Suite 3
- TPU
- DIGI+ VRM
- Turbo app
- PC Cleaner
MyAsus
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
FlexKey

BIOS​

256 Mb Flash ROM, UEFI AMI BIOS

Manageability​

WOL by PME, PXE

Accessories​

Cables
2 x SATA 6Gb/s cables

Additional Cooling Kit
1 x Thermal pad for M.2

Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x Cable ties pack
1 x M.2 Q-Latch packages for M.2 backplate
1 x M.2 Q-Latch package
1 x ROG key chain
1 x ROG Strix sticker
1 x ROG Strix thank you card
2 x Rubber Packages for M.2
1 x Rubber Package for M.2 backplate

Documentation
1 x User guide

Operating System​

Windows® 11, Windows® 10 64-bit

Form Factor​

ATX
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Spezifikationen ROG STRIX X670E-I GAMING WIFI:

Spoiler

CPU​

AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors*
* Refer to www.asus.com for CPU support list.

Chipset​

AMD X670

Memory​

2 x DIMM, Max. 64GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800MHz ECC and Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports AMD EXTended Profiles for Overclocking (EXPO™)
OptiMem II
* Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function

Graphics​

1 x HDMI® port*
2 x USB4® ports support USB Type-C® display
outputs**
*Supports 4K@60Hz as specified in HDMI
2.1.
** VGA resolution support depends on
processors' or graphic cards' resolution.

Expansion Slots​

AMD Ryzen™ 7000 Series Desktop Processors
1 x PCIe 5.0 x16 slot(s)

Storage​

Total supports 2 x M.2 slots and 2 x SATA 6Gb/s ports*
AMD Ryzen™ 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2280(supports PCIe 5.0 x4 mode)
AMD X670 Chipset
M.2_2 slot (Key M), type 2242/2260/2280
(supports PCIe 4.0 x4 mode)
2 x SATA 6Gb/s ports****
*AMD RAIDXpert2 Technology supports both
NVMe RAID 0/1 and SATA RAID 0/1.
**** Install ROG FPS-II Card to support 2 x
SATA 6Gb/s ports

Ethernet​

1 x Intel® 2.5Gb Ethernet
ASUS LANGuard

Wireless & Bluetooth​

Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth v5.2
* WiFi 6E 6GHz regulatory may vary between
countries, and function will be ready in Windows 11 or later.

USB​

Rear USB (Total 10 ports)
2 x USB4® port(s) with Intel® JHL8540 USB4®
controller (2 x USB Type-C®)
5 x USB 3.2 Gen 2 port(s) (5 x Type-A)
3 x USB 2.0 port(s) (3 x Type-A)
Front USB (Total 3 ports)
1 xUSB 3.2 Gen 2 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header(s) support(s)
additional 2 USB 3.2 Gen 1 ports
ROG STRIX HIVE (Total 2 ports)
1 x USB 3.2 Gen 2 port(s) (1 x USB Type-C®)
1 x USB 2.0 port(s) (1 x Type-A)
ROG FPS-II C (Total 3 ports)
2 x USB 2.0 header(s) additional 3 USB 2.0
ports**

Audio​

ROG High Definition Audio CODEC ALC4050
- Supports: Jack-detection
- High quality 118 dB SNR stereo playback output and 94 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback
Audio Features
- ROG Hyper-Grounding Technology
- ESS® SABRE9260Q DAC
- Silver-plated audio jacks
- Optical S/PDIF out port & USB Type-C® port with indepent power solution
- Dedicated audio PCB layers
*All audio functions on ROG STRIX X670E-I GAMING WIFI are supported through ROG STRIX HIVE

Back Panel I/O Ports​

2 x USB4® port(s) with Intel® JHL8540 USB4®
controller (2 x USB Type-C®)
5 x USB 3.2 Gen 2 port(s) (5 x Type-A) (1
port supports ROG STRIX HIVE)
3 x USB 2.0 port(s) (3 x Type-A)
1 x HDMI® port
1 x Wi-Fi Module
1 x Intel® I225-V 2.5Gb Ethernet port

Internal I/O Connectors​

Fan and Cooling related
1 x 4-pin CPU Fan header(s)
1 x 4-pin AIO Pump header(s)
1 x 4-pin Chassis Fan header(s)
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
USB
1 x USB 3.2 Gen 2 connector (support(s) USB
Type-C® )
1 x USB 3.2 Gen 1 header(s) support(s)
additional 2 USB 3.2 Gen 1 ports
Miscellaneous
1 x Addressable Gen 2 header(s)
1 x AURA RGB header(s)
1 x RTC Battery header
1 x Thermal Sensor header
1 x 2 pin Power_BTN header
2 x USB Type-C® connectors to Install ROG
FPS-II card*
ROG FPS-II card
2 x SATA 6Gb/s ports
1 x CPU Over Voltage jumper
1 x Clear CMOS header
1 x Front Panel header
1 x Alteration mode switch
2 x USB 2.0 header(s) support(s) additional
3 USB 2.0 ports

Special Features​

Extreme Engine Digi+
-5K Black Metallic Capacitors
ASUS Q-Design
- M.2 Q-Latch
- Q-DIMM
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- Aluminum backplate
- M.2 Chipset Fan
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
AURA Sync
- AURA RGB header(s)
- Addressable Gen 2 header(s)
ROG STRIX HIVE
1 x USB Type-C® connects to Motherboard
1 x USB 3.2 Gen 2 port(s) (1 x USB Type-C®)
1 x USB 2.0 port(s) (1 x Type-A with BIOS
FlashBack™)
1 x Headphone jack with Mic in
1 x Mic in jack with Optical S/PDIF out
1 x EZ mode PBO button
1 x FlexKey button
1 x BIOS FlashBack™ button
1 x Volume Control Knob with Mute Button
Q-LED (CPU [red], DRAM [yellow], VGA
[white], Boot Device [yellow green])

Software Features​

ROG Exclusive Software
- GameFirst VI
- ROG CPU-Z
- Sonic Studio III + Sonic Studio Virtual
Mixer + Sonic Suite Companion
- Sonic Radar III
- DTS® Sound Unbound
- Anti-virus software
ASUS Exclusive Software
Armoury Crate
- AIDA64 Extreme (60 days free trial)
- AURA Creator
- AURA Sync
- Fan Xpert 4 (with AI Cooling II)
- Power Saving
- Two-Way AI Noise Cancellation
AI Suite 3
- TPU
- DIGI+ VRM
- Turbo app
- PC Cleaner
MyAsus
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
Dynamic OC Switcher
FlexKey

BIOS​

256 Mb Flash ROM, UEFI AMI BIOS

Manageability​

WOL by PME, PXE

Accessories​

Cables
2 x SATA 6Gb/s cables
1 x ROG USB2.0 splitter cable
1 x Panel Cable
ROG FPS-II Card
1 x ROG FPS-II Card
ROG STRIX HIVE
1 x ROG STRIX HIVE
1 x USB Type-C® power connection cable
Additional Cooling Kit
1 x Thermal pad for M.2
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x Cable ties pack
1 x Rubber Package(s) for M.2
1 x Q-Latch package(s) for M.2
1 x ROG key chain
1 x ROG Strix stickers
1 x ROG Strix thank you card
Installation Media
1 x User guide

Operating System​

Windows® 11, Windows® 10 64-bit

Form Factor​

Mini-ITX Form Factor
6.7 inch x 6.7 inch( 17cm x 17cm)

FAQ:

Q: Wie Windows 11 22H2 installieren wenn LAN nicht erkannt wird?
A: Siehe Lösung von Asus.

Q: Im Geräte-Manger ist ein unbekanntes Gerät?
A: es handelt sich um den "Thunderbolt" (AMD I2C). Treiber

Q: Kann man das Memory Training abschalten?
A: ja in dem man in BIOS "Context Restore" auf enable stellt. Wichtig bei Context Restore, erst einschalten wenn das Ram Training 1x gemacht wurde

Tipps:
Empfohlene zusatzeinstellungen für RAM ab 6000Mhz:
1x Ram Training machen lassen, danach Context Restore aktivieren und Memory Power Down (wird automatisch aktiviert ab Bios 1004). Medium Load Boostit sollte man auch aktivieren was die Stabilität erhöht.


Sollten Änderungen oder Ergänzungen gewünscht sein bitte Informiert mich.



[Tranax]

Ja hab das jetzt in der Email nachgetragen das es bei 6000ner+ Ram auftritt.



[Scoty]

Ich bleibe beim 0802 erst mal. Mal schauen was Asus sagt bei dir wegen der zu hohen soc.



[Tranax]

ist vllt besser. Hab die Soc auf 1.28 gestellt landen tue ich bei 1.314



[Scoty]

Ja das manuelle setzen der soc wird nicht übernommen. Auch ein Fehler aktuell aber die 08xx Biose sind sonst aktuell die besten aus meiner Sicht.



[Tranax]

Naja Etwas scheint das auf Manuell ja zu ändern. Auto=1.388 ca. Auf 1.28 gestellt =1.314



[Scoty]

Ja war bei mir auch aber es setzt eben nicht das was es soll.



[Tranax]

Genau. Hat dein Forum schon was genaueres gesagt?



[Scoty]

Mein Forum?



[Tranax]

Naja der Discord wo du meintest xD



[Scoty]

Discord? Verstehe nur Bahnhof gerade, egal. Mal schauen was die nächsten Test Biose bringen.

Edit: habe den Asus Support nun auch mal geschrieben wegen der zu hohen CPU SOC Spannung ab 6000MHz. Mal schauen, was die zurückschreiben.



[Tranax]

So er hat gerade geantwortet. Er hats jetzt an die Kollegen in Taiwan weitergegeben.

Beitrag automatisch zusammengeführt: 24.10.2022

Als anmerkung der hohe Soc ist bei mir bei allem was über die Norm Ram takt ist also alles was höher wie 5600 ist.



[Scoty]

Genau ab 6000MHz, habe das dem Asus Support auch so geschrieben. Habe auch geschrieben mit welchen RAM.



[Tranax]

Ne nicht ab 6000 sondern bei mir schon alles was höher wie 5600 ist betrifft auch 5800Mhz.



[Scoty]

Aso gut ich habe nur 6000er RAM gehabt.



[Reous]

Komma statt Punkt müsste ich testen aber ich bleibe jetzt mal beim 0802 Bios.

Etwas blöd von mir ausgedrückt. Du musst ein Komma machen, Punkt wird nicht übernommen.



[Scoty]

Also Punkt wurde schon genommen, siehe Bild weiter oben. Im Asus Forum hat jemand mit 6000 genau 1.25 und nicht 1.28 wie mit dem Test Bios mit dem allersten Bios:

CPU SOC too high on Asus Boards?

I have the "Asus X670e E Gaming Wifi" with "Corsair Vengeance RGB 32GB, DDR5-6000 RAM" and when set the EXPO Profil the CPU SOC get to 1.38, without EXPO with 4800 i see only 1.048. For me the 1.38 are much to high. I get also a reboot when set to EXPO, without EXPO my System is stable. So I...

rog.asus.com



[Reous]

Hattest recht. War der Meinung das ging früher nicht mit Punkt.

Der aus dem Forum ist aber auch auf einem älteren Bios/Agesa. Das macht auch ein Unterschied.



[Scoty]

Ja genau der nutzt quasi noch das erste BIOS. Ich hatte ja gleich mit dem 07xx BIOS begonnen und nie das BIOS getestet was darauf war.



[Tranax]

So, das habe ich erstmal als Antwort bekommen.

Guten Tag Herr Listing,

ich habe einige Fragen zu den Angaben erhalten. Ich schicke Ihnen eine Übersetzung:

"Tritt dieses CPU-SOC-Problem auch im formalen BIOS 0705 auf? Oder ist das formale BIOS 0705 erfolgreich, das Problem besteht nur bei diesem speziellen BIOS?
Der RAM, den der Kunde vorher benutzt hat, kann nur bis zu 5600 unterstützen, also tauscht der Kunde jetzt einen anderen 6000er RAM aus, bitte? Wie lautet die PN? Und hat er andere Geräte im Feedback-Formular geändert, bitte?
Wie lauten die detaillierten BIOS-Einstellungen außer CPU SOC 1.28 und XMP auf 6000? Ist es möglich, das BIOS-Profil direkt zur Verfügung zu stellen? Sie können sich auf die beigefügte SOP beziehen.
Ist es möglich, ein detailliertes Video aufzunehmen?"

Original:
"Does this CPU SOC problem also appear on formal BIOS 0705? Or formal BIOS 0705 is passed, the problem only exist on this special BIOS?
The RAM customer used before can only support up to 5600, so does the customer change another 6000 RAM please? What's the PN? And did he change other devices in Feedback Form please?
What's the detailed BIOS settings except CPU SOC 1.28 and XMP to 6000? Is that possible to provide BIOS profile directly? You can refer to attached SOP.
Is that possible to take a detailed video please?"


Wenn Sie noch weitere Fragen haben sollten, können Sie sich jederzeit an uns wenden, dazu antworten Sie einfach auf diese E-Mail.


Mit freundlichen Grüßen | Kind regards


Ihr ASUS Service Team

Hab jetzt dazu geschrieben das es auch mit unter 6000 mhz so ist und das Problem mit dem 0611 bzw Agesa 1.0.0.2 nicht ist. UNd ob es vllt an der Agesa version liegen kann. Die wollen jetzt noch daten vom Bios haben die ich denen gleich schicke und gib denen noch Bilder von den Soc werten von hw info



[Scoty]

Bilder von hwinfo hatte ich bei meiner Anfrage auch geschickt gehabt. Hoffe die bekommen das endgültig gefixt.



[Tranax]

Naja wir werden es ja sehen. Irgendwann bestimmt....

Beitrag automatisch zusammengeführt: 24.10.2022

Er hat schonmal geantwortet, Bios datei muss eine Zip datein sein und Bilder von Hwinfo oder so wollen die nicht xD



[Tranax]

Könnte passieren das die mir bald nicht mehr helfen XDD. Weil laut deren aussage die halt nur das Expo bzw xmp für die Ram angaben machen. Und bei mir läuft ja bei 5600 alles richtig. Für Manuell oc sind die wohl nicht zuständig. Hab drauf nur geschrieben wenn ich einen Wert Manuell eingebe muss er diesen Ja übernehmen. Dann gibt es ja nur entweder es geht oder es geht nicht aber andere Werte ausspucken sollte nicht Sinn der Sache sein..



[Scoty]

Ja mal schauen. Bei meiner Anfrage habe ich ja mein Modell vom RAM angegeben gehabt. Ansonsten bin ich soweit zufrieden mit dem System. Alles läuft mit dem richtigen Bios. Ist schon ein gutes Board, immerhin das dritt beste im Asus Sortiment bei x670e. Und wenn man seinen Ryzen 7000 im ECO Modus betreibt macht man nichts falsch. Das gleich zu Anfang nicht alles 100% läuft wird eh jedem klar sein. Bei einer so neuen Plattform wundert mich das es es überhaupt so gut läuft wie es derzeit tut.



[Tranax]

Ja da hast du recht das mit dem wlan konnten die ja auch fixen. Dann sollen die halt nur noch schauen wieso die Werte nicht 1 zu 1 übernommen werden.

Beitrag automatisch zusammengeführt: 24.10.2022

So er hats noch mal weitergegeben xD



[Reous]

Mit dem neusten Test Bios könnt ihr doch die iGPU deaktivieren. Wo im Bios ist die entsprechende Einstellung dafür?



[Scoty]

Meinst du das Test Bios vom Asus Support oder das 0802?



[Reous]

0802 oder allgemein wo diese Option dann ist.



[Scoty]

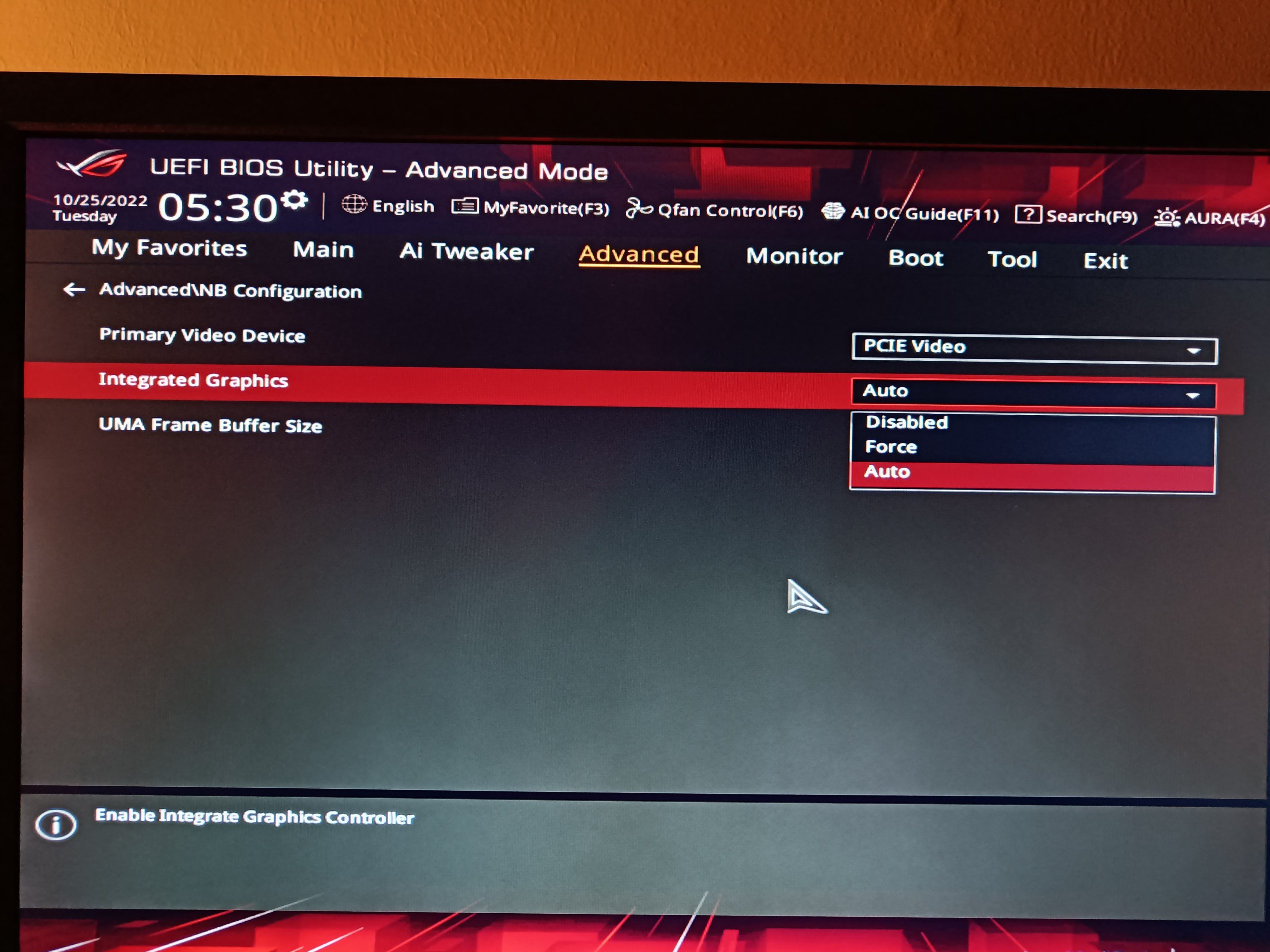

Hier bitte:



[Tranax]

Die Option gibt es im Asus test bios gerade nicht. Hab gerade extra nachgeschaut.



[Scoty]

Echt, ok. Im 0802 ist es dabei.
