ASUS Sabertooth P67 B3
1.Algemeines
1.1 Bilder
1.2 Lieferumfang
1.3 Spezifikationen
2.Information
2.1 Reviews
2.2 Preisvergleich
2.3 Kompatibele RAMs
2.4 kompatibelen LuftKühler/Wakü
3.1 Downloads
Algemeines
Bilder:
Lieferumfang:
- 1 x Mainboard
- 2 x SATA-3 Kabel
- 2 x SATA-3 Kabel
- 1 x I/O-Blende
- 1 x SLI Bridge
- 4 x Schraube für Optionnale Lüfter
- 1 x "Zuverlässigkeit-Zertifikat" für die verbauten Komponenten.
- Treiber-DVD und englischer Dokumentation
Spezifikation:
Features:
Information:
Asus site
http://www.asus.com/product.aspx?P_ID=ZYgjt71bzlh62Zk9&templete=2
Reviews
ASUS Sabertooth P67 Mainboard - Review Hartware.net
User-Review von Helios1969
http://www.hardwareluxx.de/community/f12/asus-sabertooth-p67-tuf-serie-779976.html
Preisvergleich
Hardwareluxx - Preisvergleich
Video Unboxing and first look
YouTube - Asus Sabertooth P67 Core i7 LGA1155 Motherboard Unboxing Linus Tech Tips
Kompatibele RAMs
kompatibelen LuftKühler/Wakü
Downloads
ftp server
ftp://ftp.asus.com.tw/pub/asus/mb/LGA1155/SABERTOOTH_P67/
aktuelles bios
1502
1. Enhance USB input device compatibility under UEFI interface.
2. Enhance XHCI Legacy support.
3. TPU firmware updated to enhance the effect of TPU on some processors.
1.Algemeines
1.1 Bilder
1.2 Lieferumfang
1.3 Spezifikationen
2.Information
2.1 Reviews
2.2 Preisvergleich
2.3 Kompatibele RAMs
2.4 kompatibelen LuftKühler/Wakü
3.1 Downloads
Algemeines
Bilder:
folgen
Lieferumfang:
- 1 x Mainboard
- 2 x SATA-3 Kabel
- 2 x SATA-3 Kabel
- 1 x I/O-Blende
- 1 x SLI Bridge
- 4 x Schraube für Optionnale Lüfter
- 1 x "Zuverlässigkeit-Zertifikat" für die verbauten Komponenten.
- Treiber-DVD und englischer Dokumentation
Spezifikation:
CPU Intel® Socket 1155 for Intel® 2nd Generation Core™ i7 Processor/Core™ i5 Processor/Core™ i3 Processor/
Support Intel® 32nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types
* Refer to ASUSTeK Computer for Intel CPU support list
Chipset Intel® P67(B3) Express Chipset
Memory 4 x DIMM, Max. 32 GB, DDR3 1866/1800/1600/1333/1066 Non-ECC,Un-buffered Memory
Dual Channel memory architecture
Supports Intel® Extreme Memory Profile (XMP)
* According to Intel® SPEC, the Max. 32GB memory capacity can be supported with DIMMs of 8GB (or above). ASUS will update QVL once the DIMMs are available on the market.
* Hyper DIMM support is subject to the physical characteristics of individual CPUs. Some hyper DIMMs only support one DIMM per channel. Please refer to Memory QVL for details.
* Due to CPU behavior, DDR3 1800 MHz memory module will run at DDR3 1600 MHz frequency as default.
* Please refer to ASUSTeK Computer or user manual for Memory QVL.
Expansion Slots 2 x PCIe 2.0 x16 (single at x16 or dual at x8/x8 mode)
3 x PCIe 2.0 x1
1 x PCI
Multi-GPU Support Supports NVIDIA® Quad-GPU SLI™ Technology
Supports ATI® Quad-GPU CrossFireX™ Technology
Storage Intel® P67(B3) Express Chipset
2 xSATA 6.0 Gb/s ports (brown)
4 xSATA 3Gb/s ports (black)
Intel® Rapid Storage Technology Support RAID 0,1,5,10
Marvell® PCIe SATA 6Gb/s controller
2 xSATA 6Gb/s ports (gray)
JMicron® JMB362 SATA controller
1 xPower eSATA 3Gb/s port (green)
1 xExternal SATA 3Gb/s port (red)
LAN Intel® 82579 Gigabit LAN- Dual interconnect between the Integrated LAN controller and Physical Layer (PHY)
Audio Realtek® ALC892 8-Channel High Definition Audio CODEC
- Absolute Pitch 192khz/24bit True BD Lossless Sound
- BD Audio Layer Content Protection
- Supports Jack-Detection, Multi-streaming, and Front Panel Jack-Retasking
- Optical S/PDIF out port at back I/O
IEEE 1394 VIA® VT6308P controller supports 2 x 1394a port(s) (one at mid-board; one at back panel)
USB NEC USB 3.0 controllers
- 4 x USB 3.0/2.0 ports (2 ports at mid-board for front panel support; 2 ports at back panel [blue])
Intel® P67(B3) Express Chipset
- 14 x USB 2.0/1.1 ports (6 ports at mid-board, 8 ports at back panel)
ASUS Unique Features Exclusive TUF Features
"Ultimate COOL!" Thermal Solution
- TUF Thermal Armor
- TUF Thermal Radar
"TUF ENGINE!" Power Design
- 8+2 Digital Phase Power Design
- TUF Components (Alloy choke, Cap. & MOSFET; certified by military-standard)
- ASUS DIGI+ VRM Utility
- E.S.P. : Efficient Switching Power Design
"Safe & Stable!" Guardian Angel
- ESD Guards
- MemOK!
- Anti Surge
Other Special Features
- Front Panel USB 3.0 Support
- ASUS EFI BIOS EZ Mode featuring friendly graphics user interface
- AI Suite II
- ASUS Q-Connector
- ASUS Q-Shield
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS O.C. Profile
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2
- Multi-language BIOS
Back Panel I/O Ports 1 x PS/2 Keyboard/Mouse Combo port
1 x External SATA 3Gb/s port (red)
1 x Power eSATA 3Gb/s port (green)
1 x IEEE 1394a
1 x LAN(RJ45) port(s)
2 x USB 3.0/2.0 ports (blue)
8 x USB 2.0/1.1 ports
1 x S/PDIF Out (Optical)
8 -Channel Audio I/O
Internal I/O Connectors 1 x USB 3.0/2.0 connector(s) supports additional 2 USB ports (19-pin; moss green)
3 x USB 2.0/1.1 connector(s) support additional 6 USB ports
1 x MemOK! button
4 x SATA 6.0Gb/s connectors ( 2 x gray; 2 x brown)
4 x SATA 3.0Gb/s (black)
1 x IEEE 1394a connector
1 x CPU Fan connector(s) (4-pin)
2 x Chassis Fan connector(s) (1 x 4-pin; 1 x 3-pin)
1 x Power Fan connector(s) (3-pin)
1 x Assistant Fan connector (3-pin)
1 x S/PDIF Out connector
24-pin EATX Power connector
8-pin EATX 12V Power connector
1 x Front panel audio connector
1 x COM connector
1 x System Panel (Q-Connector)
1 x Clear CMOS jumper
BIOS 32 Mb Flash ROM , EFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3
Manageability WfM 2.0,DMI 2.0,WOL by PME,WOR by PME,PXE
Accessories User's manual
2 x SATA 3.0Gb/s cables
2 x SATA 6.0Gb/s cables
1 x Q-Shield
1 x Q-Connecor (2 in 1)
1 x ASUS SLI bridge cable
1 x TUF Certification card
1 x TUF 5 Year Warranty manual (by region)
4 x screws for Assistant Fan
Support Disc Drivers
Anti-virus software (OEM version)
ASUS Update
ASUS Utilities
Form Factor ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Support Intel® 32nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types
* Refer to ASUSTeK Computer for Intel CPU support list
Chipset Intel® P67(B3) Express Chipset
Memory 4 x DIMM, Max. 32 GB, DDR3 1866/1800/1600/1333/1066 Non-ECC,Un-buffered Memory
Dual Channel memory architecture
Supports Intel® Extreme Memory Profile (XMP)
* According to Intel® SPEC, the Max. 32GB memory capacity can be supported with DIMMs of 8GB (or above). ASUS will update QVL once the DIMMs are available on the market.
* Hyper DIMM support is subject to the physical characteristics of individual CPUs. Some hyper DIMMs only support one DIMM per channel. Please refer to Memory QVL for details.
* Due to CPU behavior, DDR3 1800 MHz memory module will run at DDR3 1600 MHz frequency as default.
* Please refer to ASUSTeK Computer or user manual for Memory QVL.
Expansion Slots 2 x PCIe 2.0 x16 (single at x16 or dual at x8/x8 mode)
3 x PCIe 2.0 x1
1 x PCI
Multi-GPU Support Supports NVIDIA® Quad-GPU SLI™ Technology
Supports ATI® Quad-GPU CrossFireX™ Technology
Storage Intel® P67(B3) Express Chipset
2 xSATA 6.0 Gb/s ports (brown)
4 xSATA 3Gb/s ports (black)
Intel® Rapid Storage Technology Support RAID 0,1,5,10
Marvell® PCIe SATA 6Gb/s controller
2 xSATA 6Gb/s ports (gray)
JMicron® JMB362 SATA controller
1 xPower eSATA 3Gb/s port (green)
1 xExternal SATA 3Gb/s port (red)
LAN Intel® 82579 Gigabit LAN- Dual interconnect between the Integrated LAN controller and Physical Layer (PHY)
Audio Realtek® ALC892 8-Channel High Definition Audio CODEC
- Absolute Pitch 192khz/24bit True BD Lossless Sound
- BD Audio Layer Content Protection
- Supports Jack-Detection, Multi-streaming, and Front Panel Jack-Retasking
- Optical S/PDIF out port at back I/O
IEEE 1394 VIA® VT6308P controller supports 2 x 1394a port(s) (one at mid-board; one at back panel)
USB NEC USB 3.0 controllers
- 4 x USB 3.0/2.0 ports (2 ports at mid-board for front panel support; 2 ports at back panel [blue])
Intel® P67(B3) Express Chipset
- 14 x USB 2.0/1.1 ports (6 ports at mid-board, 8 ports at back panel)
ASUS Unique Features Exclusive TUF Features
"Ultimate COOL!" Thermal Solution
- TUF Thermal Armor
- TUF Thermal Radar
"TUF ENGINE!" Power Design
- 8+2 Digital Phase Power Design
- TUF Components (Alloy choke, Cap. & MOSFET; certified by military-standard)
- ASUS DIGI+ VRM Utility
- E.S.P. : Efficient Switching Power Design
"Safe & Stable!" Guardian Angel
- ESD Guards
- MemOK!
- Anti Surge
Other Special Features
- Front Panel USB 3.0 Support
- ASUS EFI BIOS EZ Mode featuring friendly graphics user interface
- AI Suite II
- ASUS Q-Connector
- ASUS Q-Shield
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS O.C. Profile
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2
- Multi-language BIOS
Back Panel I/O Ports 1 x PS/2 Keyboard/Mouse Combo port
1 x External SATA 3Gb/s port (red)
1 x Power eSATA 3Gb/s port (green)
1 x IEEE 1394a
1 x LAN(RJ45) port(s)
2 x USB 3.0/2.0 ports (blue)
8 x USB 2.0/1.1 ports
1 x S/PDIF Out (Optical)
8 -Channel Audio I/O
Internal I/O Connectors 1 x USB 3.0/2.0 connector(s) supports additional 2 USB ports (19-pin; moss green)
3 x USB 2.0/1.1 connector(s) support additional 6 USB ports
1 x MemOK! button
4 x SATA 6.0Gb/s connectors ( 2 x gray; 2 x brown)
4 x SATA 3.0Gb/s (black)
1 x IEEE 1394a connector
1 x CPU Fan connector(s) (4-pin)
2 x Chassis Fan connector(s) (1 x 4-pin; 1 x 3-pin)
1 x Power Fan connector(s) (3-pin)
1 x Assistant Fan connector (3-pin)
1 x S/PDIF Out connector
24-pin EATX Power connector
8-pin EATX 12V Power connector
1 x Front panel audio connector
1 x COM connector
1 x System Panel (Q-Connector)
1 x Clear CMOS jumper
BIOS 32 Mb Flash ROM , EFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3
Manageability WfM 2.0,DMI 2.0,WOL by PME,WOR by PME,PXE
Accessories User's manual
2 x SATA 3.0Gb/s cables
2 x SATA 6.0Gb/s cables
1 x Q-Shield
1 x Q-Connecor (2 in 1)
1 x ASUS SLI bridge cable
1 x TUF Certification card
1 x TUF 5 Year Warranty manual (by region)
4 x screws for Assistant Fan
Support Disc Drivers
Anti-virus software (OEM version)
ASUS Update
ASUS Utilities
Form Factor ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Features:
TUF Thermal Armor TUF Thermal Radar DIGI+ VRM E.S.P. Efficient Switching Power Design TUF-Komponenten (Chokes mit Speziallegierung, Caps & MOSFETs - zertifiziert nach Militärstandard) MemOK! ESD Guards
Information:
Asus site
http://www.asus.com/product.aspx?P_ID=ZYgjt71bzlh62Zk9&templete=2
Reviews
ASUS Sabertooth P67 Mainboard - Review Hartware.net
User-Review von Helios1969
http://www.hardwareluxx.de/community/f12/asus-sabertooth-p67-tuf-serie-779976.html
Preisvergleich
Hardwareluxx - Preisvergleich
Video Unboxing and first look
YouTube - Asus Sabertooth P67 Core i7 LGA1155 Motherboard Unboxing Linus Tech Tips
Kompatibele RAMs
Code:
Corsair 8 GB DDR3-1600 Kit (CMZ8GX3M2A1600C9, Vengeance)
Corsair 16 GB DDR3-1600 Quad-Kit (CMZ16GX3M4A1600C9, Vengeance)
G.Skill RipJaws-X DIMM Kit 16GB PC3-10667U CL7-7-7-21 (DDR3-1333) (F3-10666CL7Q-16GBXH)kompatibelen LuftKühler/Wakü
Code:
[B][U]LuftKühler
[/U][/B]Corsair Air Series A70
Zalman CNPS9900 MAX BLUE
Thermalright Silver Arrow
Thermalright HR-02
Prolimatech Megahalems
Megashadow
Super Mega

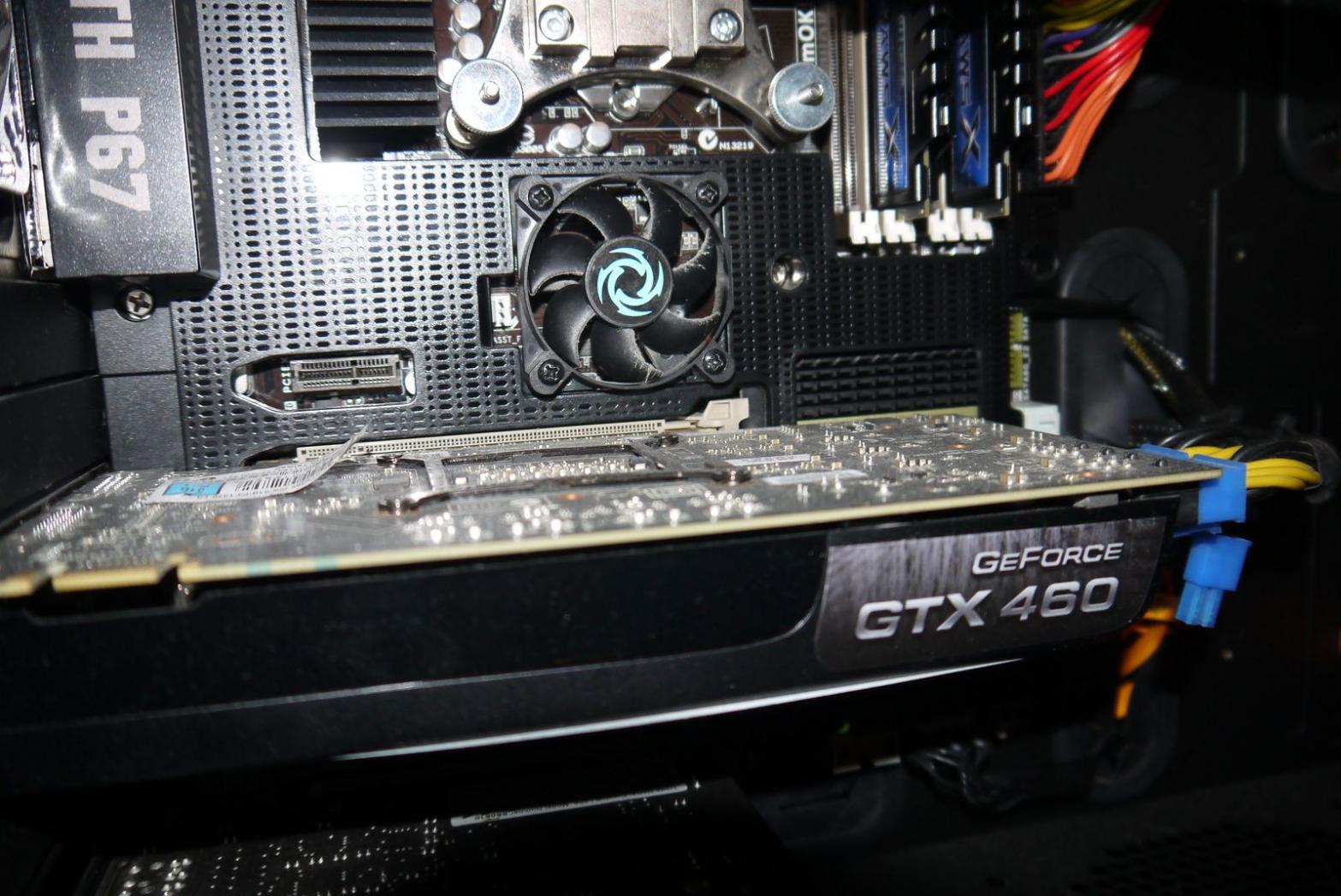

[U][B]On board Lüfter[/B][/U]
Silent Series 50mm
Revoltec "Air Guard" 50mm
[B][U]Wakü
[/U][/B]Corsair Hydro Series H50
Corsair Hydro Series H70Downloads
ftp server
ftp://ftp.asus.com.tw/pub/asus/mb/LGA1155/SABERTOOTH_P67/
aktuelles bios
1502
1. Enhance USB input device compatibility under UEFI interface.
2. Enhance XHCI Legacy support.
3. TPU firmware updated to enhance the effect of TPU on some processors.
