[Sammelthread]ASUS X570 Strix Series (X570-E Gaming, X570-E Gaming Wifi II, X570-F Gaming, X570-I Gaming)
AMD AM4 Socket 3rd and 2nd AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
Chipset
X570
Memory
3rd Gen AMD Ryzen™ Processors
4 x DIMM, Max. 128GB, DDR4 4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory *
2nd Gen AMD Ryzen™ Processors
4 x DIMM, Max. 128GB, DDR4 3600(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory *
2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
4 x DIMM, Max. 128GB, DDR4 3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory
Dual Channel Memory Architecture
Graphic
Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
Multi-VGA output support : HDMI/DisplayPort ports
- Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz
- Supports DisplayPort 1.2 with max. resolution 4096 x 2160 @ 60 Hz
Multi-GPU Support
3rd and 2nd Gen AMD Ryzen™ Processors
Supports NVIDIA® 2-Way SLI® Technology
Supports AMD 3-Way CrossFireX™ Technology
2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
Supports AMD 2-Way CrossFireX™ Technology
Expansion Slots
3rd Gen AMD Ryzen™ Processors
2 x PCIe 4.0 x16 (x16 or dual x8)
2nd Gen AMD Ryzen™ Processors
2 x PCIe 3.0 x16 (x16 or dual x8)
2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
1 x PCIe 3.0 x16 (x8 mode)
AMD X570 chipset
1 x PCIe 4.0 x16 (max at x4 mode) *1
2 x PCIe 4.0 x1
Storage
3rd Gen AMD Ryzen™ Processors :
1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support
2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors :
1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support
AMD X570 chipset :
1 x M.2 x4 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support
8 x SATA 6Gb/s port(s),
Support Raid 0, 1, 10
LAN
Intel® I211-AT, 1 x Gigabit LAN Controller(s)
Realtek® RTL8125-CG 2.5G LAN
Anti-surge LANGuard
ROG GameFirst Technology
WiFi
2 x 2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) with MU-MIMO supports dual frequency band 2.4/5GHz
Bluetooth
Bluetooth® 5.0
Audio
SupremeFX 8-Channel High Definition Audio CODEC S1220A
- Dual OP Amplifiers
- Impedance sense for front and rear headphone outputs
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- SupremeFX Shielding Technology
- Supports up to 32-Bit/192kHz playback *2
Audio Feature :
- Optical S/PDIF out port(s) at back panel
- Sonic Radar III
- Sonic Studio III + Sonic Studio Link
USB Ports
3rd Gen AMD RyzenTM Processors :
4 x USB 3.2 Gen 2 port(s) (4 at back panel, )
2nd Gen AMD RyzenTM/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors :
4 x USB 3.2 Gen 1 port(s)
AMD X570 chipset :
1 x USB 3.2 Gen 2 front panel connector port(s)
AMD X570 chipset :
4 x USB 3.2 Gen 2 port(s) (4 at back panel, , 3 x Type-A+1 x Type-C)
AMD X570 chipset :
2 x USB 3.2 Gen 1 port(s) (2 at mid-board)
AMD X570 chipset :
4 x USB 2.0 port(s) (4 at mid-board)
Special Features
5-Way Optimization by Dual Intelligent Processors 5
- Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages.
TPU
- Auto Tuning, TurboV, GPU Boost
Gamer's Guardian:
- DRAM Overcurrent Protection
- Stainless Steel Back I/O
- Highly Durable Components
- DIGI+ VRM
- SafeSlot
- ESD Guards on LAN, Audio,and USB ports
ASUS EPU :
- EPU
AURA :
- Aura Lighting Control
- Addressable Gen 2 Header
ASUS Exclusive Features :
- USB BIOS Flashback®
- AI Suite 3
- Ai Charger
- ASUS NODE : hardware control interface
- BIOS Flashback® Button
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
ASUS Q-Design :
- ASUS Q-Code
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
Gaming Aesthetics :
- AURA-RGB Lighting
Back I/O Ports
1 x DisplayPort
1 x HDMI
5 x USB 3.1 Gen 1 Type-A
8 x USB 2.0
1 x Optical S/PDIF out
5 x Audio jack(s)
1 x Anti-surge 2.5G LAN (RJ45) port
1 x USB BIOS Flashback® Button(s)
1 x ASUS Wi-Fi Module
7 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A)
1 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-C)
Anti-surge LAN (RJ45) port
Internal I/O Ports
1 x PCH_FAN
1 x AAFP connector
2 x Aura RGB Strip Header(s)
2 x Addressable Gen 2 header(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
2 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support
1 x SPI TPM header
8 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
2 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x W_PUMP+ connector
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Thermal sensor connector(s)
1 x Clear CMOS jumper(s)
1 x Node Connector(s)
1 x System panel connector
1 x T_Sensor Connector
1 x M.2 Fan Header
1 x USB 3.2 Gen 2 (up to 10Gbps) connector
1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports
Accessories
User's manual
4 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD
1 x Strix door hanger
1 x ROG Strix stickers
1 x Cable ties pack(s)
1 x Wi-Fi Antenna(s)
1 x Extension Cable for RGB strips (80 cm)
1 x Extension cable for Addressable LED
1 x Thermistor cable(s)
1 x ROG Thank you card
BIOS
256 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2.
Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Note
*1 PCIeX16_3 slot shares bandwidth with PCIeX1_2.
*2 Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors
4 x DIMM, Max. 128GB, DDR4 4600(O.C.)/4400(O.C.)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400/2133, un-buffered memory
AMD Ryzen™ 5000 and 4000 G-Series Processors
4 x DIMM, Max. 128GB, DDR4 5100(O.C)/4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133, un-buffered memory
AMD Ryzen™ 2000 Series Desktop Processors
4 x DIMM, max. 128GB, DDR4 3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133, un-buffered memory
AMD Ryzen™ 2000 and 3000 G-Series Desktop Processors
4 x DIMM, max. 128GB, DDR4 3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133, un-buffered memory
Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU
Graphic
1 x HDMI 2.0
1 x DisplayPort
- Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz
- Supports DisplayPort 1.2 with max. resolution 4096 x 2160 @ 60 Hz
Expansion Slots
AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors
2 x PCIe 4.0 x16 (x16 or dual x8)*
AMD Ryzen™ 5000 G Series/4000 G-Series/ 2000 Series Processor
2 x PCIe 3.0 x16 (x16 or dual x8)*
AMD Ryzen™ 2000 G-Series/ 3000 G-Series Processor
1 x PCIe 3.0 x16 (x8 mode)*
AMD X570 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
2 x PCIe 4.0 x1
*PCIeX16_3 slot shares bandwidth with PCIeX1_2.
Storage
Supports 2 x M.2 slots and 8 x SATA 6Gb/s ports
AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors:
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
AMD Ryzen™ 5000 G-Series/4000 G-Series/ 3000 G-Series/ 2000 G-Series/2000 Series Processor
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)
AMD X570 Chipset
M.2_2 slot (Key M), type2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
8 x SATA 6Gb/s ports
LAN
1 x Realtek 2.5Gb Ethernet
1 x Intel® I211-AT 1Gb Ethernet
Anti-surge LANGuard
ROG GameFirst Technology
1 x Intel® 1Gb Ethernet
WiFi
Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth
Bluetooth® v5.2
Audio
Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC*
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*
Audio Features
- SupremeFX Shielding Technology
- Gold-plated audio jacks
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover
USB Ports
AMD RyzenTM 5000, 5000 G-Series, 4000 G-Series, and 3000 Series Desktop Processors
- 4 x USB 3.2 Gen2 ports (4 ports at back panel, Type-A)
AMD RyzenTM 3000 G-Series, 2000, and 2000 G-Series Desktop Processors
- 4 x USB 3.2 Gen 1 ports (4 ports at back panel, Type-A)
AMD X570 chipset
- 1 x USB 3.2 Gen2 front panel connector
- 4 x USB3.2 Gen2 (at back panel, 3x Type-A, 1x Type-C)
- 2 x USB3.2 Gen1 ports (at front panel)
- 4 x USB 2.0 ports (at front panel)
Special Features
Extreme Engine Digi+
- 5K Black Metallic Capacitors
ASUS Q-Design
- M.2 Q-Latch
- Q-Code
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
AURA Sync
- AURA RGB headers
- Addressable Gen 2 headers
Back I/O Ports
8 x USB 3.2 Gen 2 ports (7 x Type-A + 1 x USB Type-C®)
1 x DisplayPort
1 x HDMI® port
1 x Wi-Fi Module
1 x Intel® I211-AT 1Gb Ethernet port
1 x Realtek 2.5Gb Ethernet port
5 x Gold-plated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
Internal I/O Ports
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
2 x 4-pin Chassis Fan headers
1 x 4-pin M.2 Fan header
1 x W_PUMP+ header
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
8 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
2 x Addressable Gen 2 headers
2 x AURA RGB headers
1 x Clear CMOS header
1 x Front Panel Audio header (AAFP)
1 x SPI TPM header (14-1pin)
1 x Speaker header
1 x 10-1 pin System Panel header
1 x Thermal Sensor header
Accessories
Cables
4 x SATA 6Gb/s cables
1 x Thermistor cable pack
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x Cable ties pack
1 x M.2 Rubber Package
1 x M.2 Q-Latch package
1 x ROG key chain
1 x ROG Strix stickers
1 x ROG Strix thank you card
Installation Media
1 x Support DVD
Documentation
1 x User manual
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Note
*1 PCIeX16_3 slot shares bandwidth with PCIeX1_2.
*2 Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
ASUS ROG STRIX Z590-A GAMING WIFI II Intel LGA 1200 ATX motherboard, PCIe 4.0, 14+2 power stages, WiFi 6, Intel® 2.5 Gb Ethernet, three M.2 slots, USB 3.2 Gen 2x2 USB Type-C®, SATA and Aura Sync
AMD AM4 Socket 3rd and 2nd AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
Chipset
X570
Memory
3rd Gen AMD Ryzen™ Processors
4 x DIMM, Max. 128GB, DDR4 4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory *
2nd Gen AMD Ryzen™ Processors
4 x DIMM, Max. 128GB, DDR4 3600(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory *
2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
4 x DIMM, Max. 128GB, DDR4 3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory
Dual Channel Memory Architecture
Graphic
Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
Multi-VGA output support : HDMI/DisplayPort ports
- Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz
- Supports DisplayPort 1.2 with max. resolution 4096 x 2160 @ 60 Hz
Multi-GPU Support
3rd and 2nd Gen AMD Ryzen™ Processors
Supports NVIDIA® 2-Way SLI® Technology
Supports AMD 3-Way CrossFireX™ Technology
2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
Supports AMD 2-Way CrossFireX™ Technology
Expansion Slots
3rd Gen AMD Ryzen™ Processors
2 x PCIe 4.0 x16 (x16 or dual x8)
2nd Gen AMD Ryzen™ Processors
2 x PCIe 3.0 x16 (x16 or dual x8)
2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
1 x PCIe 3.0 x16 (x8 mode)
AMD X570 chipset
1 x PCIe 4.0 x16 (max at x4 mode) *1
2 x PCIe 4.0 x1
Storage
3rd Gen AMD Ryzen™ Processors :
1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support
2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors :
1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support
AMD X570 chipset :
1 x M.2 x4 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support
8 x SATA 6Gb/s port(s),
Support Raid 0, 1, 10
LAN
Intel® I211-AT, 1 x Gigabit LAN Controller(s)
Anti-surge LANGuard
ROG GameFirst Technology
Audio
SupremeFX 8-Channel High Definition Audio CODEC S1220A
- Dual OP Amplifiers
- Impedance sense for front and rear headphone outputs
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- SupremeFX Shielding Technology
- Supports up to 32-Bit/192kHz playback *2
Audio Feature :
- Optical S/PDIF out port(s) at back panel
- Sonic Radar III
- Sonic Studio III + Sonic Studio Link
USB Ports
3rd and 2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors :
4 x USB 3.2 Gen 1 port(s) (4 at back panel, )
AMD X570 chipset :
1 x USB 3.2 Gen 2 front panel connector port(s)
AMD X570 chipset :
4 x USB 3.2 Gen 2 port(s) (4 at back panel, , 3 x Type-A+1 x Type-C)
AMD X570 chipset :
2 x USB 3.2 Gen 1 port(s) (2 at mid-board)
AMD X570 chipset :
4 x USB 2.0 port(s) (4 at mid-board)
Special Features
5-Way Optimization by Dual Intelligent Processors 5
- Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages.
TPU
- Auto Tuning, TurboV, GPU Boost
Gamer's Guardian:
- DRAM Overcurrent Protection
- Stainless Steel Back I/O
- Highly Durable Components
- DIGI+ VRM
- SafeSlot
- ESD Guards on LAN, Audio,and USB ports
ASUS EPU :
- EPU
AURA :
- Aura Lighting Control
- Addressable Gen 2 Header
ASUS Exclusive Features :
- USB BIOS Flashback®
- AI Suite 3
- Ai Charger
- ASUS NODE : hardware control interface
- BIOS Flashback® Button
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
ASUS Q-Design :
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
Gaming Aesthetics :
- AURA-RGB Lighting
Back I/O Ports
1 x DisplayPort
1 x HDMI
5 x USB 3.1 Gen 1 Type-A
8 x USB 2.0
1 x Optical S/PDIF out
5 x Audio jack(s)
1 x USB BIOS Flashback® Button(s)
4 x USB 3.2 Gen 1 (up to 5Gbps) ports
3 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A)
1 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-C)
Anti-surge LAN (RJ45) port
Internal I/O Ports
1 x PCH_FAN
1 x AAFP connector
2 x Aura RGB Strip Header(s)
2 x Addressable Gen 2 header(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
2 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support
1 x SPI TPM header
8 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
2 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x W_PUMP+ connector
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Thermal sensor connector(s)
1 x Clear CMOS jumper(s)
1 x Node Connector(s)
1 x System panel connector
1 x T_Sensor Connector
1 x M.2 Fan Header
1 x USB 3.2 Gen 2 (up to 10Gbps) connector
1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports
Accessories
User's manual
4 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD
1 x Strix door hanger
1 x ROG Strix stickers
1 x Cable ties pack(s)
1 x Extension Cable for RGB strips (80 cm)
1 x Extension cable for Addressable LED
1 x Thermistor cable(s)
1 x ROG Thank you card
BIOS
256 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2.
Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Note
*1 PCIeX16_3 slot shares bandwidth with PCIeX1_2.
*2 Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
AMD AM4 Socket 3rd and 2nd AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
Chipset
X570
Memory
3rd Gen AMD Ryzen™ Processors
2 x DIMM, Max. 64GB, DDR4 4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3800(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *
2nd Gen AMD Ryzen™ Processors
2 x DIMM, Max. 64GB, DDR4 3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *
2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
2 x DIMM, Max. 64GB, DDR4 3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Graphic
Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
Multi-VGA output support : HDMI/DisplayPort ports
- Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz
- Support DisplayPort 1.4 with max. resolution 8 K 7680 × 4320 @60 Hz
Expansion Slots
3rd Gen AMD Ryzen™ Processors
1 x PCIe 4.0 x16 (x16 mode)
2nd Gen AMD Ryzen™ Processors
1 x PCIe 3.0 x16 (x16 mode)
2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
1 x PCIe 3.0 x16 (x8 mode)
Storage
3rd Gen AMD Ryzen™ Processors :
1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support
2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors :
1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support
AMD X570 chipset :
1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support
4 x SATA 6Gb/s port(s),
Support Raid 0, 1, 10
Supports channel bandwidth: HT20/HT40/HT80/HT160
Intel® Wi-Fi 6 AX200
2 x 2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) with MU-MIMO supports dual frequency band 2.4/5GHz
Up to 2.4Gbps transfer speed
Bluetooth
Bluetooth® 5.0
Audio
SupremeFX 8-Channel High Definition Audio CODEC S1220A
- Dual OP Amplifiers
- Impedance sense for front and rear headphone outputs
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- Supports up to 32-Bit/192kHz playback *2
Audio Feature :
- DTS® Sound Unbound
- LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path.
- Sonic Radar III
- Sonic Studio III + Sonic Studio Virtual Mixer
USB Ports
3rd and 2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors :
4 x USB 3.2 Gen 1 port(s) (4 at back panel, blue)
AMD X570 chipset :
4 x USB 3.2 Gen 2 port(s) (3 x Type-A+1 x Type-C)
AMD X570 chipset :
2 x USB 3.2 Gen 1 port(s) (2 at mid-board)
AMD X570 chipset :
2 x USB 2.0 port(s)
Special Features
5-Way Optimization by Dual Intelligent Processors 5
- Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages.
TPU
- Auto Tuning, TurboV, GPU Boost
ASUS EPU :
- EPU
AURA :
- Aura Lighting Control
- Addressable Gen 2 Header
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
Back I/O Ports
1 x DisplayPort
1 x HDMI
1 x ASUS Wi-Fi Module
3 x LED-illuminated audio jacks
4 x USB 3.2 Gen 1 (blue)
3 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A)
1 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-C)
Anti-surge LAN (RJ45) port
Internal I/O Ports
1 x HS_FAN
1 x PCH_FAN
1 x AAFP connector
1 x Aura RGB Strip Header(s)
1 x Addressable Gen 2 header(s)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
2 x M.2 Socket 3 with M Key design, type 2242/2260/2280 storage devices support (Supports both SATA & PCIE SSD)
4 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Thermal sensor connector(s)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x T_Sensor Connector
1 x Speaker connector
Accessories
User's manual
I/O Shield
4 x SATA 6Gb/s cable(s)
2 x M.2 Screw Package
1 x Supporting DVD
1 x ROG Strix stickers
1 x M.2 bracket
1 x Cable ties pack(s)
1 x Wi-Fi Antenna(s)
1 x Extension cable for Addressable LED
1 x AAFP Extension Cable
1 x Panel cable
1 x ROG Thank you card
BIOS
256 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2.
Form Factor
Mini ITX Form Factor
6.7 inch x 6.7 inch ( 17 cm x 17 cm )
Note
*1 Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
*2 Use a chassis with HD audio module in the front panel to support an 8-channel audio output.
Sound setzt aus oder knistert
Immer wieder USB Disconnects
Meistens tritt dieses Problem auf, wenn man einen hohen RAM Takt verwendet. In diesem Fall kann man versuchen die SOC Spannung auf 1.125V zu erhöhen. Sollte das nicht ausreichen, zusätzlich noch die VDDG CCD Spannung auf 1.00V (oder niedriger), sowie VDDG IOD Spannung auf 0.925V stellen.
USB Disconnects
Mit bestimmten UEFI/Agesa Versionen (v2 1.1.0.0/ 1.1.8.0) können sporadische USB Disconnects auftreten. Um dies zu umgehen bitte folgende Einstellung im Bios deaktivieren:
UEFI -> Advanced -> AMD CBS -> Global C-States deaktivieren
Der Verbrauch steigt dadurch um ca. 5Watt an aber ansonsten hat man keine weiteren Nachteile
USB Flashback funktioniert nicht
Bitte folgende Punkte ausprobieren:
- Datei richtig umbenannt? Vorzugsweise mit dem im BIOS Download enthaltenen Renamer
- Vor dem Flashen das BIOS auf Werkseinstellungen zurück setzen!
- Einen anderen USB Stick ausprobieren. Vorzugsweise ein USB 2.0 Stick
BIOS/UEFI Downgrade
Ein UEFI Downgrade ist ohne Probleme mit USB Flashback möglich, soweit vorhanden.
Ist der Chipsatz Lüfter regelbar?
Nein, dieser wird automatisch, je nach vorhandener Temperatur, geregelt. Bis zu einer Temperatur von 55 Grad ist der Lüfter deaktiviert. Bei höheren Temperaturen wird er stufenweise schneller bis er letztendlich bei 93 Grad seine Höchstgeschwindigkeit erreicht. Über selbst erstellte Bios Mods kann man jedoch den Lüfter auch nach seinen Wünschen einstellen.
Chipsatz Temperatur zu hoch?
Wem das Optische nicht so wichtig ist, kann die Lüfterabdeckung vom Chipsatz beim X570-E oder x570-F entfernen. Dadurch staut sich die warme Luft nicht an, sondern kann direkt entweichen.
Des weiteren kann man im Bios unter "Onboard Devices Configuration" die vorhandenen Steckplätze (PCIe X16, X1, M.2, SB Link) manuell auf PCIe 3.0 umstellen, sofern man keine PCIe 4.0 Karte verwendet. Bei Auto Einstellung wird automatisch PCIe 4.0 angelegt, was zu einer höheren Last führt.
Kann ich ein altes Bios Profil mit einer neuen Bios Version nutzen?
Nein, es ist zu empfehlen kein altes Profil mit einer neuen oder älteren Bios Version zu nutzen. Dies endet meist mit einem Blackscreen. Nach jedem Bios Flash bitte die Einstellungen neu vornehmen. Selbst wenn sich ein Profil laden lässt, kann es trotzdem zu Instabilität führen.
Rechner bootet nicht, wenn eine Soundkarte verbaut ist
Dieses Problem kann mit dem Bios 1404 oder höher (Agesa 1004b) auftreten. In dem Fall bitte in dem AMD CBS Menü die Option "PCIe Ten Bit Tag Support" auf Disabled stellen. Sollte das nicht ausreichen, dann zusätzlich noch unter dem Menü Advanced -> Onboard Devices Configuration -> die Option PCIEXxxx (den Slot auswählen, in der die Soundkarte steckt) von Auto auf Gen3 ändern.
Habe 2407X draufgemacht CinebenchR20 gestartet 6423 punkte mit dem 3900x zweiter durchlauf absturz des pc dan 1405X2 draugemacht CinebenchR20 paar mal laufen gelassen 6900 punkte kein absturz gehabt ! auf dem 1201X bios hatte ich immer ein durchschnitt von 7150 punkte
Zuletzt bearbeitet:
Wenn Du diese Anzeige nicht sehen willst, registriere Dich und/oder logge Dich ein.
Hallo zusammen, muss leider nochmal in die Runde was Fragen. Habe das Asus X570-F Board mit einem Amd 3900x Ram gskill 32Gb aus der Liste von Asus. Grafikkarte Asus rx 5700 xt oc. Habe das Aktuell BIOS Update drauf. Schon ältere Versionen versucht. Das Problem was ich habe ist das mein Rechner Probleme aus dem Kaltstart hat, das er mehrmals versucht zu Starten bis es dann mal geht. In Windows ein Game z.b gestartet stützt er ab. Nach einem Neustart geht alles ohne Probleme! Habe mal Wie hier mal geschrieben Gen 3 eingestellt anstatt Auto am PciExpress Slot der Grafikkarte. Probleme sind weg mit dem Kaltstart. Meine Frage hat das Mainboard ein Defekt oder die Grafikkarte? Danke für eure Hilfe
Das Board ist nicht kaputt. Warum es genau ist kann ich auch nicht sagen. Vielleicht beist sich der Realtek-Chip. Aber das haben die meisten. Mit meiner EVGA Soundkarte habe ich das nicht. Ist aber auch ein ander chip. Hatte das mit der Asus STXII aber auch gehabt.
Das Board ist nicht kaputt. Warum es genau ist kann ich auch nicht sagen. Vielleicht beist sich der Realtek-Chip. Aber das haben die meisten. Mit meiner EVGA Soundkarte habe ich das nicht. Ist aber auch ein ander chip. Hatte das mit der Asus STXII aber auch gehabt.
Findest du Benchmarks von deinen Komponenten im Internet? Dann könntst du ja mal vergleichen was die normalen Punkte währen. Glaube das es momentan wenn behaupt, nicht viel unterschied macht in Spielen.

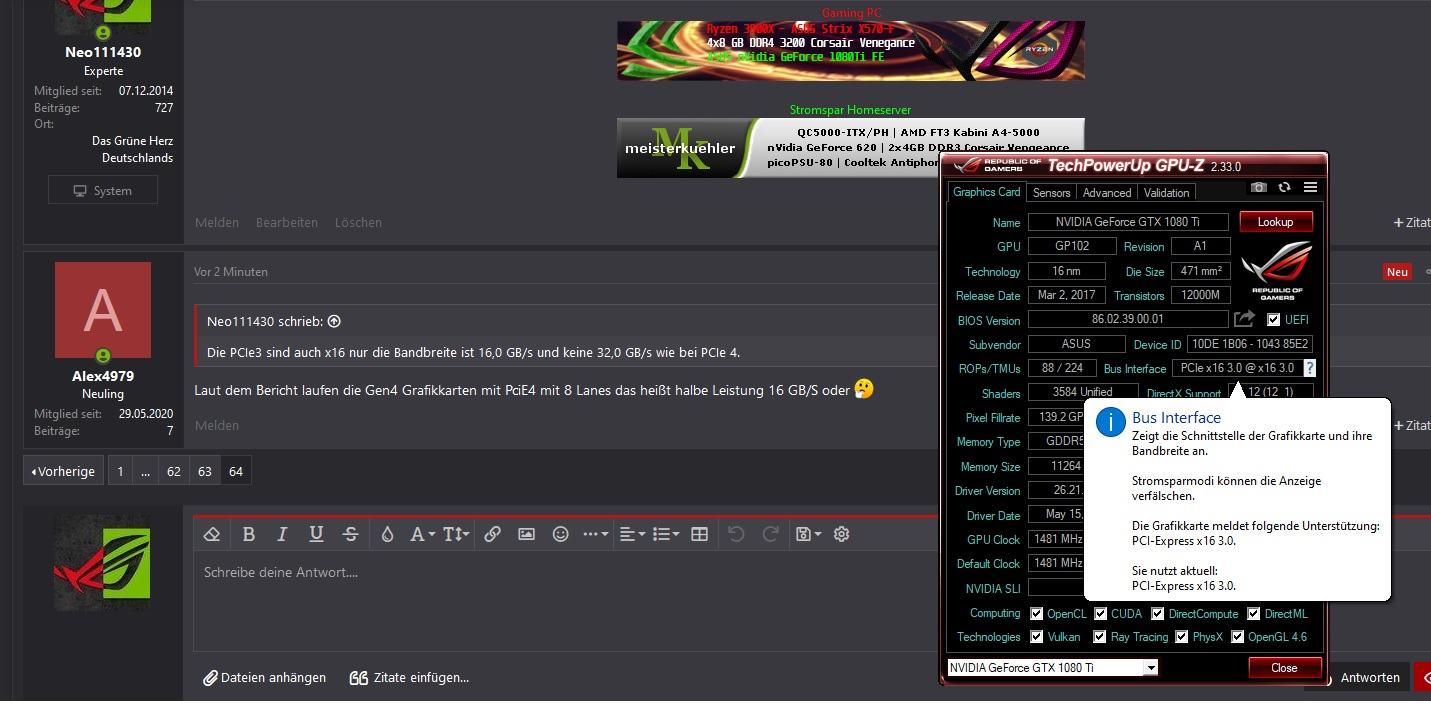

Hallo, super vielen Dank 🙏 das heißt das das Board pciE 4 kann mit 16Lanes aber die aktuelle Grafikkarten nur 8Lanes in Gen4 kann . Leistungs Verlust zu Gen3 ist ja keiner. Hoffe halt wenn die neuen Grafikkarten kommen das ich das Problem nicht weiter habe wenn Gen 4 mit 16Lanes funktioniert .
Ich habe das so verstanden das es nur 8 Lanes sind bei Gen4 weil die Grafikkarten aktuell nicht mehr hergeben😳 Und sie deswegen im Gen 3 mit 16 Lanes nicht schneller ist
Nein, die RX5700 XT besitzt volle 16 Lanes. Nur die kleinere RX5500 (XT) ist nur mit 8 Lanes angebunden. Das führt je nach Setting zu Einbußen. Deine Karte betrifft das aber nicht.
Das Umschalten von PCIe 4 auf PCIe 3 ist mitder RX5700 XT bspw. im PCIe Feature Test vom 3D Mark deutlich sehen, die Bandbreite sinkt deutlich. Bei der realen Performance in Spielen konnte ich aber keinerlei Unterschiede feststellen.
Nein, die RX5700 XT besitzt volle 16 Lanes. Nur die kleinere RX5500 (XT) ist nur mit 8 Lanes angebunden. Das führt je nach Setting zu Einbußen. Deine Karte betrifft das aber nicht.
Das Umschalten von PCIe 4 auf PCIe 3 ist mitder RX5700 XT bspw. im PCIe Feature Test vom 3D Mark deutlich sehen, die Bandbreite sinkt deutlich. Bei der realen Performance in Spielen konnte ich aber keinerlei Unterschiede feststellen.
Zu meinem FCLK-Problem: vor dem Update hatte ich das angepasst Bios von Reous in Version 2203X drauf, das lief gut.
Testweise jetzt Flashback auf 2204X gemacht (also die letzte Version vor der aktuellen), meine Settings wieder eingestellt und 30 Minuten Prime laufen lassen - problemlos.
Also irgendwas scheint jetzt nicht mehr zu passen in 2407.
Spannungsanhebung VSOC / VDDG scheinen da auch nicht zu helfen, zumindest nicht nach oben.
Vielleicht trifft ja jemand anders noch auf das Problem...
When going from DOCP to Manual the ram timings get changed, If your using manual, check the ram timings match the DOCP setting.
The trick for me was increasing vddg voltage. I think up to 1.0v is safe. DOCP v Manual made no difference in stability to me but I did eventually settle on manual as I added all the ram settings manually.
X570-f gaming, 2x16gb ballistix 3600 clocked at 3800
When going from DOCP to Manual the ram timings get changed, If your using manual, check the ram timings match the DOCP setting.
The trick for me was increasing vddg voltage. I think up to 1.0v is safe. DOCP v Manual made no difference in stability to me but I did eventually settle on manual as I added all the ram settings manually.
I’ve never updated a modded BIOS version on my new X570-E board (although have flashed 3 versions from Asus via the BIOS), and it seems that it needs to be flashed using the USB stick method via USB flashback? Using a the special file name in the root of the USB stick (FAT32) SX570EG.CAP?
Anything I forgot to mention or think about? What if the USB flashback fails, do I flash an original BIOS file via the same USB flashback method?
For me personally, the high pitched sound of the PCH fan is very annoying in combination of the high RPMs even in idle (50-60 degrees 2500RPM) and load (75-85 degrees 4000RPM).
@Neo111430
Was die Unterfläche des Kühlers angeht so ist der PCH Chip das höchste oder? Jemand ne Ahnung was das für Löcher sind aufm Mainboard? passen da M4 schrauben durch?
Hab nun nen Stück kupfer gefunden Nun fehlt nur noch nen Bissel Plexi/Polycarbonat für den Deckel.
Theoretisch sollten die 10mm höhe reichen für die Schrauben zum befestigen von Unten, und von oben noch mit Plexi deckel drauf ins gleiche Loch.
Ansonsten muss ich den Ring für die Dichtung verkleinern. Wobei der mit 25x40 Innen durchmesser schon recht weit weg ist vom Wasserloch mit 16x30
Da würden 2mm Wandstärke sicher reichen anstatt 5mm ^^ Aber so passt halt schön ein durchmesser 35 Oring rein.
I have tried this evening to oc ram with manual option.
But whatever i do it won't post. It immediately shuts off. When i set the timings from D.O.C.P it will start.
I set Dram at 1.4
VDDG at 1.0v
FCLK 1900
Dram 3800
Bclk spread disabled.
Do I oversee something?
Die CSM Option. Ich konnte erst über DisplayPort ein Bild bekommen wenn die Option aktiviert war. Du hattest das mal in einem ModBios direkt aktiviert gehabt. Ist das bei der neusten auch so?
