[Sammelthread]Intel DDR4 RAM OC Thread + Guides und Tipps
Denke das kann man so lassen. Sicherlich könnte man hier und da noch minimal was optimieren, aber ich mach mich dann mal an 3866 und Gear 2
Spannungen bei VCore/Dimm/IO(OC)/SA 1,5/1,5/1,35/1,55V
MCH Fullcheck + roundtrip enable
fast boot disable
Da kann das Board nix dafür, die CPU besser gesagt der IMC ist scheisse, hat sich Intel wieder voll die Mühe gegeben...
Gear 2 würde das Apex schon was reißen, denk ich...
Hat hier schon mal jemand Gear1/Gear2 getestet? Beispielsweise straffes Gear 1 Setting mit 3733 14-14-14-28-280-1T vs. Gear 2 4600 17-17-17-32-320-1T ?
Sieht mir ja fast schon so aus, als gäbe es keinen Grund mehr hohen RAM Takt zu fahren.
Wie war hier im Thread bisher die Taktlimit-Erfahrung mit 11th Gen und Gear 1? 3733/3800/4000 Limit bei Gear 1 erinnert mich irgendwie sehr an die rote Konkurrenz.
Wie war hier im Thread bisher die Taktlimit-Erfahrung mit 11th Gen und Gear 1? 3733/3800/4000 Limit bei Gear 1 erinnert mich irgendwie sehr an die rote Konkurrenz.
Hat hier schon mal jemand Gear1/Gear2 getestet? Beispielsweise straffes Gear 1 Setting mit 3733 14-14-14-28-280-1T vs. Gear 2 4600 17-17-17-32-320-1T ?
Sieht mir ja fast schon so aus, als gäbe es keinen Grund mehr hohen RAM Takt zu fahren.
mein 3733C14 set ist soweit mal fertig. Versuch jetzt die 5333 oder 5200 stabil zu kriegen und mein 4000C15 setting vom 9900k zu übernehmen. Dann kann ich mal paar benchmark ergebnisse teilen.
Wie war hier im Thread bisher die Taktlimit-Erfahrung mit 11th Gen und Gear 1? 3733/3800/4000 Limit bei Gear 1 erinnert mich irgendwie sehr an die rote Konkurrenz.
Mit dem 11400 und den MFR Sticks bekomme ich bisher nicht mal 3733 MHz gebootet im Gear 1 (das B560M ITX hat keinen Teiler für 3600 MHz?), Limit bisher 3466 MHz. Im Gear 2 geht es ja rauf bis 4000 MHz, die Sticks sind ergo nicht das Problem?
@Infin1tum
Du könntest mal testen inwieweit das die GameFPS pusht, wenn du mit 5000+ testest, irgendeinen CPU Gaming benchmark, ob jetzt nun TombRaider oder irgendwas anderes.
Halt irgendwas was die CPU FPS am besten direkt bencht.
Die kriegst du auch bei 3733Mhz hin in sehr straff, mich würde halt interessieren inwieweit das mit dem Copy Wert skaliert oder ob die Latenz der Sache einfach nen Ende setzt.
Beim AMD ist ja da auch mehr Latenz vor Copy, bei CML skaliert beides ganz gut, da ist es eher andersrum.
@Infin1tum

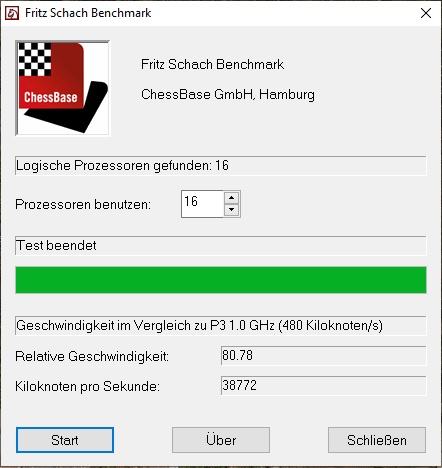

Wenn du nen schnellen vergleich machen willst, müsste auch der FritzSchach benchmark gehen, der skaliert mit dem RamOC.
Für nen schnellen Leistungsvergleich könnte der ganz gut sein, der Zen2 war da ca. 15% langsamer trotz höherer IPC http://www.jens-hartmann.at/Fritzmarks/
Hier mal meins mit dem 10900K5,2Ghz ist in etwa wie der 9900K nen Hauch, RamOC ist auch etwas höher, der nutzt auch nur max. 8Kerne HT.
Wie war hier im Thread bisher die Taktlimit-Erfahrung mit 11th Gen und Gear 1? 3733/3800/4000 Limit bei Gear 1 erinnert mich irgendwie sehr an die rote Konkurrenz.
Konnte mal xmp 4000 ins Windows mit Gear 2 natürlich. Gear 1 waren 2 Tage bei 3466 gaming stable und nun funzt nix über 2666. Echt komisch. Gear 2 wollte auch manuell nix über 3466 in Win. Kann eine CPU so schnell nachlassen bzw kaputt gehen? Der 4.0.8 TimingConfigurator zeigt mir nun auch alles korrekt an.
Ich kann nur abwarten auf Mo. wenn ein weiterer 11600k kommt, Mal sehen woran es liegt. Lieben Gruß in's Wochenende!
Beitrag automatisch zusammengeführt:
PS: Muss bei halbierter Mem.Contr.Frequenzy der IMC von CPU immer noch "so gut" sein um hohen RamTakt zu fahren? Oder "entlastet" ein gear2 den IMC einer CPU gar net?
edit: nun funzt der 2666er auch net mehr, bin auf 2400 runter mal sehen was bis montags alles über'n Jordan geht
@Infin1tum
Du könntest mal testen inwieweit das die GameFPS pusht, wenn du mit 5000+ testest, irgendeinen CPU Gaming benchmark, ob jetzt nun TombRaider oder irgendwas anderes.
Halt irgendwas was die CPU FPS am besten direkt bencht.

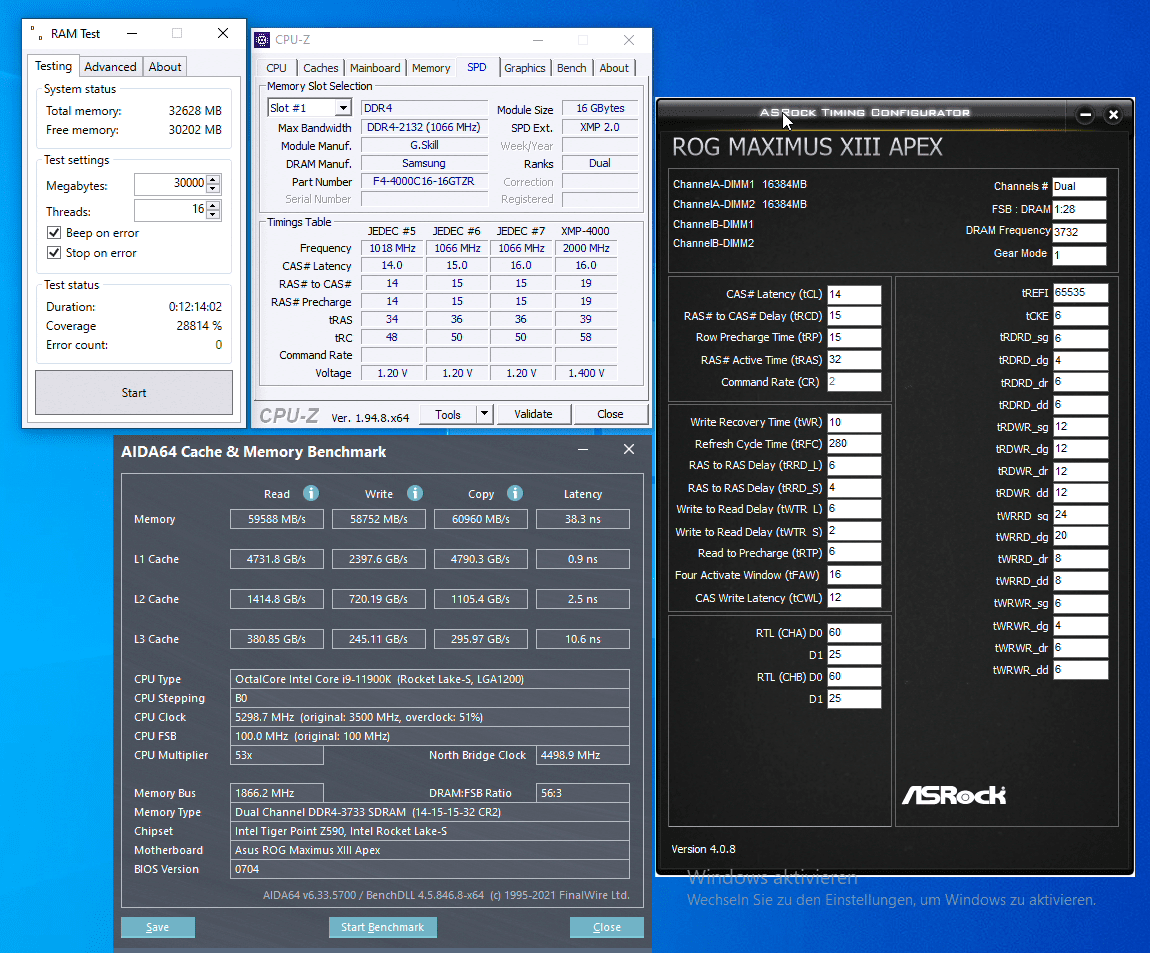

ich hab was in die Richtung mit 3733 Gear1 vs 4400 Gear2 mit CapframeX durchgeführt.
- CPU 11900K @ RAM 4400Mhz CL19 (Gear 2)
- CPU 11900K @ RAM @ 3733Mhz CL14 (Gear 1)
Hallo zusammen, hier geht es um einen CPU & Gaming Performance Vergleich zwischen CometLake 10900K und RocketLake 11900K. Die hier aufgeführten.Benchmarks habe ich mit CapframeX erstellt, Cache und Memory Benchmark wurden mit AIDA durchgeführt und die Ram Setting mit ASRock Ram Timing...
Konnte mal xmp 4000 ins Windows mit Gear 2 natürlich. Gear 1 waren 2 Tage bei 3466 gaming stable und nun funzt nix über 2666. Echt komisch. Gear 2 wollte auch manuell nix über 3466 in Win. Kann eine CPU so schnell nachlassen bzw kaputt gehen? Der 4.0.8 TimingConfigurator zeigt mir nun auch alles korrekt an.
Ich kann nur abwarten auf Mo. wenn ein weiterer 11600k kommt, Mal sehen woran es liegt. Lieben Gruß in's Wochenende!
Beitrag automatisch zusammengeführt:
PS: Muss bei halbierter Mem.Contr.Frequenzy der IMC von CPU immer noch "so gut" sein um hohen RamTakt zu fahren? Oder "entlastet" ein gear2 den IMC einer CPU gar net?
edit: nun funzt der 2666er auch net mehr, bin auf 2400 runter mal sehen was bis montags alles über'n Jordan geht
Intels neue 11.Generation von CPUs ist nun schon seit einigen Wochen käuflich zu erwerben, wenn auch seit kurzem erst offiziell. Und so habe auch ich mir einen i7 11700K ergattert und einmal vorab…
PS: Muss bei halbierter Mem.Contr.Frequenzy der IMC von CPU immer noch "so gut" sein um hohen RamTakt zu fahren? Oder "entlastet" ein gear2 den IMC einer CPU gar net?
edit: nun funzt der 2666er auch net mehr, bin auf 2400 runter mal sehen was bis montags alles über'n Jordan geht
zur Erklärung: für 3733 in gear 1 muss der IMC selbst auch bei 3733 laufen. Das ist schwierig für den IMC. Wenn der IMC in Gear 2 mit 3733 MHz liefe, müsste dein Ram mit 7466 laufen. bisschen viel oder? 4000 sind entsprechend 2000 MHz IMC Takt in Gear 2. Das ist fast die Hälfte wenn man großzügig rundet. Entsprechend muss der IMC auch nicht so schwer ackern.
zur Erklärung: für 3733 in gear 1 muss der IMC selbst auch bei 3733 laufen. Das ist schwierig für den IMC. Wenn der IMC in Gear 2 mit 3733 MHz liefe, müsste dein Ram mit 7466 laufen. bisschen viel oder? 4000 sind entsprechend 2000 MHz IMC Takt in Gear 2. Das ist fast die Hälfte wenn man großzügig rundet. Entsprechend muss der IMC auch nicht so schwer ackern.
Dachte ich mir, dennoch doppelt hält ja besser ;-) Aba wieso par tout nix mehr an RamTakt bei mir heraus kommen will ist mir absolut unerklärlich, selbst mit einem 10320 oda 10500 hab ich 4k@c14 gefahren. hab leider keinen CometLake zum Gegentesten immo.
Nun denn, montags kommt der neue und ein z590 itx...hoffe es bleibt diesmal stabil. schickes wochenende Euch!

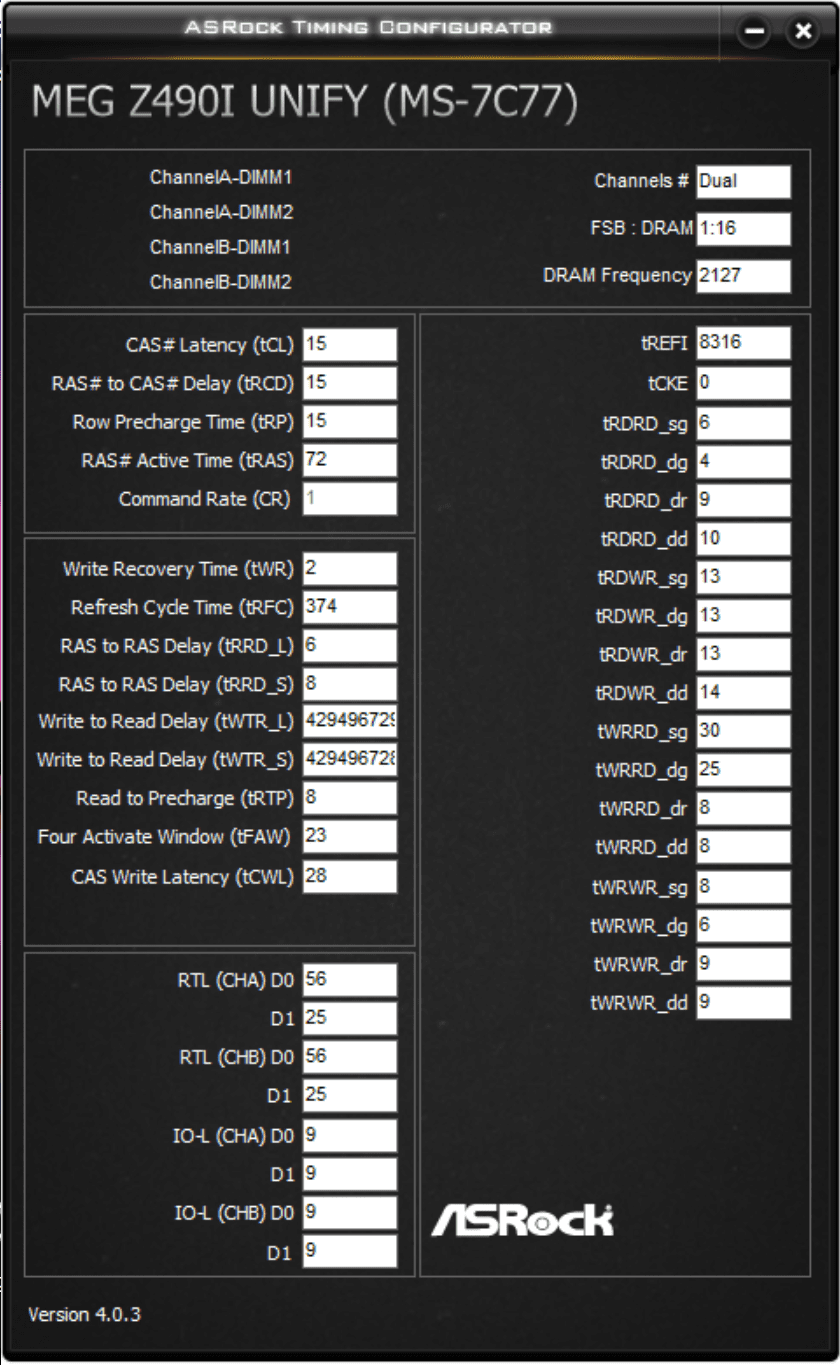

Bin jetzt hier angelangt
wenn ich alleine tcke auf 6 stelle gehen mir die IOL viel zu weit auseinander, damit lohnt es sich für mich kein KArhu Run zu starten...
Mit dem Setting bin ich aber immer noch rel. weit von 60K Aida weg... VDIMM = 1,44 ; SA= 1,32 ; IO=1,28 . Oder sollte ich SA/IO noch tiefer ansetzen , da die Rams ja unter 4000 laufen ?
Ja, gleich gestern Abend nachdem die performance anfing zu hakeln und ich somit die Lüfterkurve neu einstellen durfte. Irgendetwas hier in meinem sys wird immer schlechter...hmm 🥸

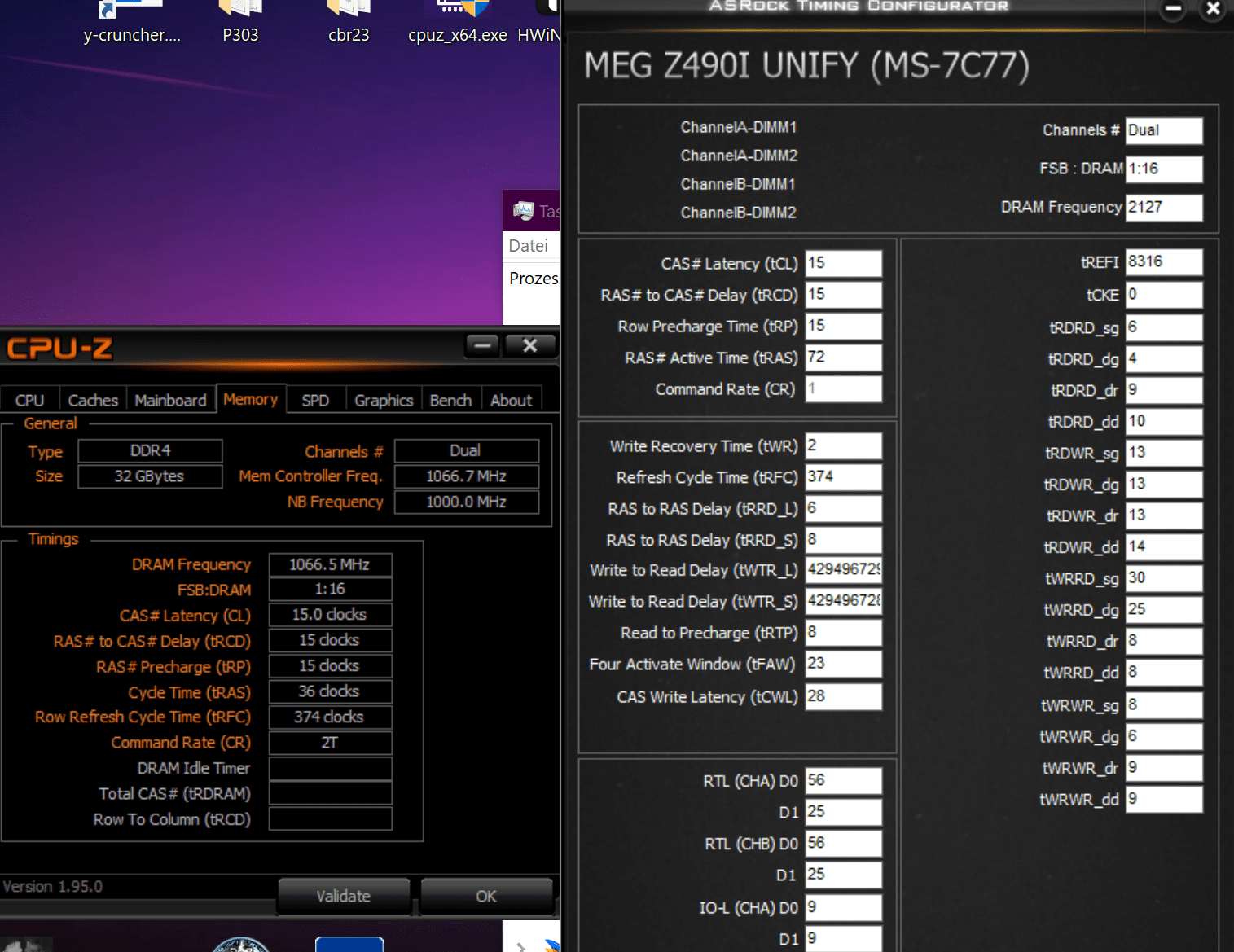

Bin jetzt hier angelangt
wenn ich alleine tcke auf 6 stelle gehen mir die IOL viel zu weit auseinander, damit lohnt es sich für mich kein KArhu Run zu starten...
Mit dem Setting bin ich aber immer noch rel. weit von 60K Aida weg... VDIMM = 1,44 ; SA= 1,32 ; IO=1,28 . Oder sollte ich SA/IO noch tiefer ansetzen , da die Rams ja unter 4000 laufen ?

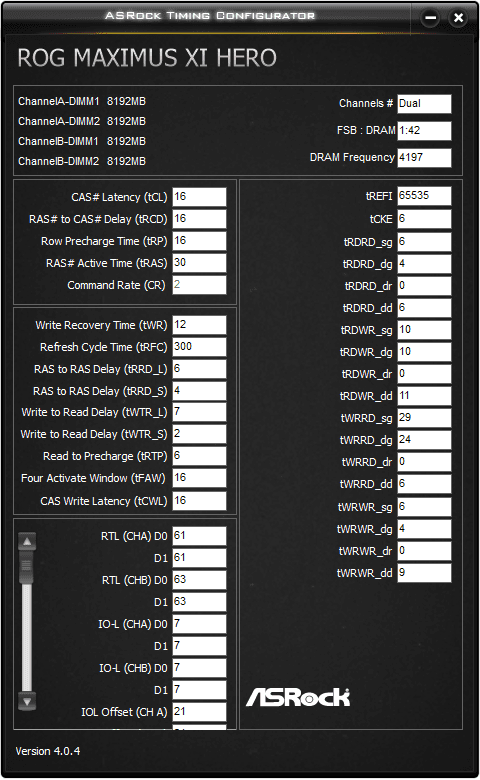

Asus stellt mit dem Beta-Bios 1901 für das Maximus XI Hero erstmals Unterstützung für Resizable BAR zur Verfügung. Da ich darauf nicht verzichten möchte, bin ich an diese Bios-Version gebunden.
Leider zickt es mit beiden meiner RAM-Settings, Starts aus stromlosem Zustand gelingen nicht. Kein Post, Code 61. Zuverlässig funktioniert aber jeder Start, bei dem das Board vorher nicht vom Strom getrennt war. Einfache Reboots gelingen ebenfalls immer.
Um nicht jedes einzelne Subtiming einzeln mit Kaltstart testen zu müssen, bitte ich hier um Tipps, was ich zuerst versuchen sollte. ODT, DLLBwEn und RTL/IOL auf Auto scheinen schon mal nicht zu helfen. Weitere Tweaks jenseits von Timings und Subtimings gibt es nicht.
Das Setting steht im Spoiler und als Text im Anhang. Alle Werte wurden von Hand neu ins Bios eingegeben.
Danke im Voraus.
[2021/04/16 21:34:23]
Ai Overclock Tuner [Manual]
BCLK Frequency [100.0000]
ASUS MultiCore Enhancement [Enabled – Remove All limits]
SVID Behavior [Auto]
AVX Instruction Core Ratio Negative Offset [0]
CPU Core Ratio [Sync All Cores]
1-Core Ratio Limit [50]
BCLK Frequency : DRAM Frequency Ratio [Auto]
DRAM Odd Ratio Mode [Enabled]
DRAM Frequency [DDR4-4200MHz]
Xtreme Tweaking [Disabled]
CPU SVID Support [Auto]
Maximus Tweak [Mode 1]
DRAM CAS# Latency [16]
DRAM RAS# to CAS# Delay [16]
DRAM RAS# ACT Time [30]
DRAM Command Rate [2N]
DRAM RAS# to RAS# Delay L [6]
DRAM RAS# to RAS# Delay S [4]
DRAM REF Cycle Time [300]
DRAM REF Cycle Time 2 [Auto]
DRAM REF Cycle Time 4 [Auto]
DRAM Refresh Interval [65535]
DRAM WRITE Recovery Time [Auto]
DRAM READ to PRE Time [Auto]
DRAM FOUR ACT WIN Time [16]
DRAM WRITE to READ Delay [Auto]
DRAM WRITE to READ Delay L [Auto]
DRAM WRITE to READ Delay S [Auto]
DRAM CKE Minimum Pulse Width [6]
DRAM Write Latency [16]
ODT RTT WR (CHA) [120 DRAM Clock]
ODT RTT PARK (CHA) [0 DRAM Clock]
ODT RTT NOM (CHA) [48 DRAM Clock]
ODT RTT WR (CHB) [120 DRAM Clock]
ODT RTT PARK (CHB) [0 DRAM Clock]
ODT RTT NOM (CHB) [48 DRAM Clock]
ODT_READ_DURATION [Auto]
ODT_READ_DELAY [Auto]
ODT_WRITE_DURATION [Auto]
ODT_WRITE_DELAY [Auto]
Data Rising Slope [Auto]
Data Rising Slope Offset [Auto]
Cmd Rising Slope [Auto]
Cmd Rising Slope Offset [Auto]
Ctl Rising Slope [Auto]
Ctl Rising Slope Offset [Auto]
Clk Rising Slope [Auto]
Clk Rising Slope Offset [Auto]
Data Falling Slope [Auto]
Data Falling Slope Offset [Auto]
Cmd Falling Slope [Auto]
Cmd Falling Slope Offset [Auto]
Ctl Falling Slope [Auto]
Ctl Falling Slope Offset [Auto]
Clk Falling Slope [Auto]
Clk Falling Slope Offset [Auto]
DRAM RTL INIT value [Auto]
DRAM RTL (CHA DIMM0 Rank0) [61]
DRAM RTL (CHA DIMM0 Rank1) [Auto]
DRAM RTL (CHA DIMM1 Rank0) [61]
DRAM RTL (CHA DIMM1 Rank1) [Auto]
DRAM RTL (CHB DIMM0 Rank0) [63]
DRAM RTL (CHB DIMM0 Rank1) [Auto]
DRAM RTL (CHB DIMM1 Rank0) [63]
DRAM RTL (CHB DIMM1 Rank1) [Auto]
DRAM IOL (CHA DIMM0 Rank0) [7]
DRAM IOL (CHA DIMM0 Rank1) [Auto]
DRAM IOL (CHA DIMM1 Rank0) [7]
DRAM IOL (CHA DIMM1 Rank1) [Auto]
DRAM IOL (CHB DIMM0 Rank0) [7]
DRAM IOL (CHB DIMM0 Rank1) [Auto]
DRAM IOL (CHB DIMM1 Rank0) [7]
DRAM IOL (CHB DIMM1 Rank1) [Auto]
CHA IO_Latency_offset [Auto]
CHB IO_Latency_offset [Auto]
CHA RFR delay [Auto]
CHB RFR delay [Auto]
Early Command Training [Auto]
SenseAmp Offset Training [Enabled]
Early ReadMPR Timing Centering 2D [Enabled]
Read MPR Training [Enabled]
Receive Enable Training [Enabled]
Jedec Write Leveling [Enabled]
Early Write Time Centering 2D [Auto]
Early Read Time Centering 2D [Auto]
Write Timing Centering 1D [Enabled]
Write Voltage Centering 1D [Auto]
Read Timing Centering 1D [Auto]
Dimm ODT Training* [Auto]
Max RTT_WR [ODT Off]
DIMM RON Training* [Auto]
Write Drive Strength/Equalization 2D* [Disabled]
Write Slew Rate Training* [Auto]
Read ODT Training* [Auto]
Read Equalization Training* [Auto]
Read Amplifier Training* [Auto]
Write Timing Centering 2D [Auto]
Read Timing Centering 2D [Auto]
Command Voltage Centering [Auto]
Write Voltage Centering 2D [Auto]
Read Voltage Centering 2D [Auto]
Late Command Training [Auto]
Round Trip Latency [Disabled]
Turn Around Timing Training [Disabled]
Rank Margin Tool [Disabled]
Memory Test [Disabled]
DIMM SPD Alias Test [Auto]
Receive Enable Centering 1D [Auto]
Retrain Margin Check [Disabled]
Write Drive Strength Up/Dn independently [Disabled]
tRDRD_sg [6]
tRDRD_dg [4]
tRDWR_sg [10]
tRDWR_dg [10]
tWRWR_sg [6]
tWRWR_dg [4]
tWRRD_sg [29]
tWRRD_dg [24]
tRDRD_dr [0]
tRDRD_dd [6]
tRDWR_dr [0]
tRDWR_dd [11]
tWRWR_dr [0]
tWRWR_dd [9]
tWRRD_dr [0]
tWRRD_dd [6]
TWRPRE [32]
TRDPRE [6]
tREFIX9 [Auto]
OREF_RI [Auto]
MRC Fast Boot [Disabled]
Delay after Train [Disabled]
DRAM CLK Period [Auto]
Memory Scrambler [Enabled]
Channel A DIMM Control [Enable both DIMMs]
Channel B DIMM Control [Enable both DIMMs]
Trace Centering [Enabled]
MCH Full Check [Enabled]
Mem Over Clock Fail Count [Auto]
Training Profile [Auto]
DLLBwEn [2]
DRAM SPD Write [Disabled]
XTU Setting [Auto]
CPU Load-line Calibration [Level 5]
Synch ACDC Loadline with VRM Loadline [Disabled]
CPU Current Capability [140%]
CPU VRM Switching Frequency [Auto]
VRM Spread Spectrum [Auto]
CPU Power Duty Control [T.Probe]
CPU Power Phase Control [Auto]
DRAM Current Capability [130%]
DRAM Switching Frequency [Auto]
CPU Core/Cache Boot Voltage [Auto]
DMI Boot Voltage [Auto]
Core PLL Boot Voltage [Auto]
CPU System Agent Boot Voltage [Auto]
CPU VCCIO Boot Voltage [Auto]
PLL Termination Boot voltage [Auto]
CPU Standby Boot Voltage [Auto]
Intel(R) SpeedStep(tm) [Auto]
Turbo Mode [Enabled]
Long Duration Package Power Limit [4095]
Package Power Time Window [127]
Short Duration Package Power Limit [4095]
IA AC Load Line [Auto]
IA DC Load Line [Auto]
TVB Voltage Optimizations [Auto]
Realtime Memory Timing [Disabled]
FCLK Frequency for Early Power On [Auto]
Initial BCLK Frequency [Auto]
BCLK Amplitude [Auto]
BCLK Slew Rate [Auto]
BCLK Spread Spectrum [Auto]
BCLK Frequency Slew Rate [Auto]
DRAM VTT Voltage [Auto]
VPPDDR Voltage [Auto]
DMI Voltage [Auto]
Core PLL Voltage [Auto]
Internal PLL Voltage [Auto]
GT PLL Voltage [Auto]
Ring PLL Voltage [Auto]
System Agent PLL Voltage [Auto]
Memory Controller PLL Voltage [Auto]
PLL Bandwidth [Auto]
Eventual DRAM Voltage [Auto]
Eventual CPU Standby Voltage [Auto]
Eventual PLL Termination Voltage [Auto]
Eventual DMI Voltage [Auto]
Package Temperature Threshold [Auto]
Regulate Frequency by above Threshold [Auto]
Cooler Efficiency Customize [Keep Training]
Cooler Re-evaluation Algorithm [Normal]
Optimism Scale [100]
CPU Core/Cache Current Limit Max. [255.75]
Ring Down Bin [Disabled]
Min. CPU Cache Ratio [Auto]
Max CPU Cache Ratio [48]
BCLK Aware Adaptive Voltage [Enabled]
CPU Core/Cache Voltage [Adaptive Mode]
- Offset Mode Sign [-]
- Additional Turbo Mode CPU Core Voltage [1.385]
- Offset Voltage [0.020]
DRAM Voltage [1.4900]
CPU VCCIO Voltage [1.30625]
CPU System Agent Voltage [1.31875]
PLL Termination Voltage [Auto]
PCH Core Voltage [Auto]
CPU Standby Voltage [Auto]
DRAM CTRL REF Voltage on CHA [Auto]
DRAM CTRL REF Voltage on CHB [Auto]
DRAM DATA REF Voltage on CHA DIMM0 Rank0 BL0 [Auto]
DRAM DATA REF Voltage on CHA DIMM0 Rank0 BL1 [Auto]
DRAM DATA REF Voltage on CHA DIMM0 Rank0 BL2 [Auto]
DRAM DATA REF Voltage on CHA DIMM0 Rank0 BL3 [Auto]
DRAM DATA REF Voltage on CHA DIMM0 Rank0 BL4 [Auto]
DRAM DATA REF Voltage on CHA DIMM0 Rank0 BL5 [Auto]
DRAM DATA REF Voltage on CHA DIMM0 Rank0 BL6 [Auto]
DRAM DATA REF Voltage on CHA DIMM0 Rank0 BL7 [Auto]
DRAM DATA REF Voltage on CHA DIMM0 Rank1 BL0 [Auto]
DRAM DATA REF Voltage on CHA DIMM0 Rank1 BL1 [Auto]
DRAM DATA REF Voltage on CHA DIMM0 Rank1 BL2 [Auto]
DRAM DATA REF Voltage on CHA DIMM0 Rank1 BL3 [Auto]
DRAM DATA REF Voltage on CHA DIMM0 Rank1 BL4 [Auto]
DRAM DATA REF Voltage on CHA DIMM0 Rank1 BL5 [Auto]
DRAM DATA REF Voltage on CHA DIMM0 Rank1 BL6 [Auto]
DRAM DATA REF Voltage on CHA DIMM0 Rank1 BL7 [Auto]
DRAM DATA REF Voltage on CHA DIMM1 Rank0 BL0 [Auto]
DRAM DATA REF Voltage on CHA DIMM1 Rank0 BL1 [Auto]
DRAM DATA REF Voltage on CHA DIMM1 Rank0 BL2 [Auto]
DRAM DATA REF Voltage on CHA DIMM1 Rank0 BL3 [Auto]
DRAM DATA REF Voltage on CHA DIMM1 Rank0 BL4 [Auto]
DRAM DATA REF Voltage on CHA DIMM1 Rank0 BL5 [Auto]
DRAM DATA REF Voltage on CHA DIMM1 Rank0 BL6 [Auto]
DRAM DATA REF Voltage on CHA DIMM1 Rank0 BL7 [Auto]
DRAM DATA REF Voltage on CHA DIMM1 Rank1 BL0 [Auto]
DRAM DATA REF Voltage on CHA DIMM1 Rank1 BL1 [Auto]
DRAM DATA REF Voltage on CHA DIMM1 Rank1 BL2 [Auto]
DRAM DATA REF Voltage on CHA DIMM1 Rank1 BL3 [Auto]
DRAM DATA REF Voltage on CHA DIMM1 Rank1 BL4 [Auto]
DRAM DATA REF Voltage on CHA DIMM1 Rank1 BL5 [Auto]
DRAM DATA REF Voltage on CHA DIMM1 Rank1 BL6 [Auto]
DRAM DATA REF Voltage on CHA DIMM1 Rank1 BL7 [Auto]
DRAM DATA REF Voltage on CHB DIMM0 Rank0 BL0 [Auto]
DRAM DATA REF Voltage on CHB DIMM0 Rank0 BL1 [Auto]
DRAM DATA REF Voltage on CHB DIMM0 Rank0 BL2 [Auto]
DRAM DATA REF Voltage on CHB DIMM0 Rank0 BL3 [Auto]
DRAM DATA REF Voltage on CHB DIMM0 Rank0 BL4 [Auto]
DRAM DATA REF Voltage on CHB DIMM0 Rank0 BL5 [Auto]
DRAM DATA REF Voltage on CHB DIMM0 Rank0 BL6 [Auto]
DRAM DATA REF Voltage on CHB DIMM0 Rank0 BL7 [Auto]
DRAM DATA REF Voltage on CHB DIMM0 Rank1 BL0 [Auto]
DRAM DATA REF Voltage on CHB DIMM0 Rank1 BL1 [Auto]
DRAM DATA REF Voltage on CHB DIMM0 Rank1 BL2 [Auto]
DRAM DATA REF Voltage on CHB DIMM0 Rank1 BL3 [Auto]
DRAM DATA REF Voltage on CHB DIMM0 Rank1 BL4 [Auto]
DRAM DATA REF Voltage on CHB DIMM0 Rank1 BL5 [Auto]
DRAM DATA REF Voltage on CHB DIMM0 Rank1 BL6 [Auto]
DRAM DATA REF Voltage on CHB DIMM0 Rank1 BL7 [Auto]
DRAM DATA REF Voltage on CHB DIMM1 Rank0 BL0 [Auto]
DRAM DATA REF Voltage on CHB DIMM1 Rank0 BL1 [Auto]
DRAM DATA REF Voltage on CHB DIMM1 Rank0 BL2 [Auto]
DRAM DATA REF Voltage on CHB DIMM1 Rank0 BL3 [Auto]
DRAM DATA REF Voltage on CHB DIMM1 Rank0 BL4 [Auto]
DRAM DATA REF Voltage on CHB DIMM1 Rank0 BL5 [Auto]
DRAM DATA REF Voltage on CHB DIMM1 Rank0 BL6 [Auto]
DRAM DATA REF Voltage on CHB DIMM1 Rank0 BL7 [Auto]
DRAM DATA REF Voltage on CHB DIMM1 Rank1 BL0 [Auto]
DRAM DATA REF Voltage on CHB DIMM1 Rank1 BL1 [Auto]
DRAM DATA REF Voltage on CHB DIMM1 Rank1 BL2 [Auto]
DRAM DATA REF Voltage on CHB DIMM1 Rank1 BL3 [Auto]
DRAM DATA REF Voltage on CHB DIMM1 Rank1 BL4 [Auto]
DRAM DATA REF Voltage on CHB DIMM1 Rank1 BL5 [Auto]
DRAM DATA REF Voltage on CHB DIMM1 Rank1 BL6 [Auto]
DRAM DATA REF Voltage on CHB DIMM1 Rank1 BL7 [Auto]
PCI Express Native Power Management [Disabled]
PCH DMI ASPM [Disabled]
ASPM 0 [Disabled]
L1 Substates [Disabled]
PCI Express Clock Gating [Enabled]
DMI Link ASPM Control [Disabled]
PEG - ASPM [Disabled]
Software Guard Extensions (SGX) [Software Controlled]
Tcc Offset Time Window [Auto]
Hardware Prefetcher [Enabled]
Adjacent Cache Line Prefetch [Enabled]
Intel (VMX) Virtualization Technology [Disabled]
Maximum CPU Core Temperature [Auto]
Active Processor Cores [All]
Hyper-Threading [Enabled]
Thermal Monitor [Enabled]
Boot performance mode [Auto]
Intel(R) SpeedStep(tm) [Auto]
Intel(R) Speed Shift Technology [Auto]
Turbo Mode [Enabled]
CPU C-states [Auto]
CFG Lock [Disabled]
VT-d [Enabled]
Above 4G Decoding [Enabled]
Memory Remap [Enabled]
Lpddr Dram Odt [Auto]
DDR4 Skip Refresh Enable [Enabled]
Late Command Training Relaxed Reset [Disabled]
Primary Display [Auto]
iGPU Multi-Monitor [Disabled]
DMI Max Link Speed [Auto]
PCIEX16_1 Link Speed [Auto]
PCIEX16_2 Link Speed [Auto]
PCIe Speed [Auto]
SATA Controller(s) [Enabled]
SATA Mode Selection [Intel RST Premium With Intel Optane System Acceleration(RAID)]
M.2_2 PCIE Storage RAID Support [RST Controlled]
Aggressive LPM Support [Disabled]
SMART Self Test [Enabled]
SATA6G_1(Black) [Enabled]
SATA6G_1 Hot Plug [Disabled]
M.2_1(Gray) [Enabled]
M.2_1 Hot Plug [Disabled]
SATA6G_3(Black) [Enabled]
SATA6G_3 Hot Plug [Disabled]
SATA6G_4(Black) [Enabled]
SATA6G_4 Hot Plug [Disabled]
SATA6G_5(Black) [Enabled]
SATA6G_5 Hot Plug [Disabled]
SATA6G_6(Black) [Enabled]
SATA6G_6 Hot Plug [Disabled]
SATA6G_7(Gray) [Enabled]
SATA6G_7 Hot Plug [Disabled]
SATA6G_8(Gray) [Enabled]
SATA6G_8 Hot Plug [Disabled]
TPM Device Selection [Discrete TPM]
HD Audio [Enabled]
Intel LAN Controller [Enabled]
Intel PXE Option ROM [Disabled]
When system is in working state [All On]
Q-Code LED Function [POST Code Only]
When system is in sleep, hibernate or soft off states [Stealth Mode]
PCIEX16_3 Bandwidth [X2 Mode]
Hyper M.2 X16: [Disable][Enable] [Disabled]
USB power delivery in Soft Off state (S5) [Enabled]
Back I/O USB Type C Power Mode [Auto]
ErP Ready [Disabled]
Restore AC Power Loss [Power Off]
Power On By PCI-E [Disabled]
Power On By RTC [Disabled]
Above 4G Decoding [Enabled]
Re-Size BAR Support [Auto]
SR-IOV Support [Disabled]
Legacy USB Support [Disabled]
XHCI Hand-off [Disabled]
U31G2_2 [Enabled]
U31G2_3 [Enabled]
U31G2_4 [Enabled]
U31G2_5 [Enabled]
U31G2_C6 [Enabled]
U31G1_7 [Enabled]
U31G1_8 [Enabled]
U31G1_9 [Enabled]
U31G1_10 [Enabled]
USB11 [Enabled]
USB12 [Enabled]
Network Stack [Disabled]
Device [CT2000MX500SSD1]
CPU Temperature [Monitor]
MotherBoard Temperature [Monitor]
PCH Temperature [Monitor]
T Sensor Temperature [Monitor]
Water In T Sensor Temperature [Monitor]
Water Out T Sensor Temperature [Monitor]
EXT_Sensor1 Temperature [Monitor]
EXT_Sensor2 Temperature [Monitor]
EXT_Sensor3 Temperature [Monitor]
CPU Fan Speed [Ignore]
CPU Optional Fan Speed [Monitor]
Chassis Fan 1 Speed [Monitor]
Chassis Fan 2 Speed [Monitor]
Chassis Fan 3 Speed [Monitor]
High Amp Fan Speed [Monitor]
W_PUMP+ Speed [Monitor]
AIO PUMP Speed [Monitor]
Extension Fan 1 Speed [Monitor]
Extension Fan 2 Speed [Monitor]
Extension Fan 3 Speed [Monitor]
Flow Rate [Monitor]
CPU Core Voltage [Monitor]
3.3V Voltage [Monitor]
5V Voltage [Monitor]
12V Voltage [Monitor]
CPU Q-Fan Control [Disabled]
Chassis Fan 1 Q-Fan Control [Auto]
Chassis Fan 1 Q-Fan Source [CPU]
Chassis Fan 1 Step Up [0 sec]
Chassis Fan 1 Step Down [0 sec]
Chassis Fan 1 Speed Low Limit [200 RPM]
Chassis Fan 1 Profile [Standard]
Chassis Fan 2 Q-Fan Control [Auto]
Chassis Fan 2 Q-Fan Source [CPU]
Chassis Fan 2 Step Up [0 sec]
Chassis Fan 2 Step Down [0 sec]
Chassis Fan 2 Speed Low Limit [200 RPM]
Chassis Fan 2 Profile [Standard]
Chassis Fan 3 Q-Fan Control [Auto]
Chassis Fan 3 Q-Fan Source [CPU]
Chassis Fan 3 Step Up [0 sec]
Chassis Fan 3 Step Down [0 sec]
Chassis Fan 3 Speed Low Limit [200 RPM]
Chassis Fan 3 Profile [Standard]
High Amp Fan Q-Fan Control [Auto]
High Amp Fan Q-Fan Source [CPU]
High Amp Fan Step Up [0 sec]
High Amp Fan Step Down [0 sec]
High Amp Fan Speed Low Limit [200 RPM]
High Amp Fan Profile [Standard]
Extension Fan 1 Q-Fan Control [DC Mode]
Extension Fan 1 Q-Fan Source [CPU]
Extension Fan 1 Speed Low Limit [200 RPM]
Extension Fan 1 Profile [Standard]
Extension Fan 2 Q-Fan Control [DC Mode]
Extension Fan 2 Q-Fan Source [CPU]
Extension Fan 2 Speed Low Limit [200 RPM]
Extension Fan 2 Profile [Standard]
Extension Fan 3 Q-Fan Control [DC Mode]
Extension Fan 3 Q-Fan Source [CPU]
Extension Fan 3 Speed Low Limit [200 RPM]
Extension Fan 3 Profile [Standard]
WATER PUMP+ Control [Disabled]
AIO PUMP Control [Disabled]
CPU Temperature LED Switch [Enabled]
Firmware Configuration [Test]
Type C Support [Platform-POR]
Fast Boot [Enabled]
Next Boot after AC Power Loss [Normal Boot]
Boot Logo Display [Enabled]
POST Delay Time [1 sec]
Bootup NumLock State [On]
Wait For 'F1' If Error [Enabled]
Option ROM Messages [Keep Current]
Interrupt 19 Capture [Disabled]
Setup Mode [Advanced Mode]
Boot Sector (MBR/GPT) Recovery Policy [Local User Control]
Next Boot Recovery Action [Skip]
Launch CSM [Disabled]
OS Type [Windows UEFI mode]
AMI Native NVMe Driver Support [Enabled]
Setup Animator [Disabled]
Load from Profile [4]
Profile Name [4200 neu]
Save to Profile [1]
DIMM Slot Number [DIMM_A1]
Download & Install ARMOURY CRATE app [Disabled]
Bus Interface [PCIEX16_1]
Asus stellt mit dem Beta-Bios 1901 für das Maximus XI Hero erstmals Unterstützung für Resizable BAR zur Verfügung. Da ich darauf nicht verzichten möchte, bin ich an diese Bios-Version gebunden.
Leider zickt es mit beiden meiner RAM-Settings, Starts aus stromlosem Zustand gelingen nicht. Kein Post, Fehler 61 oder 7F. Genauso zuverlässig funktioniert jeder Start, bei dem das Board vorher nicht vom Strom getrennt war. Reboots gelingen auch immer.
Um nicht jedes einzelne Subtiming einzeln mit Kaltstart testen zu müssen, bitte ich hier um Tipps, was ich zuerst versuchen sollte. ODT, DLLBwEn und RTL/IOL auf Auto scheinen schon mal nicht zu helfen. Weitere Tweaks jenseits von Timings und Subtimings gibt es nicht.
Das Setting steht im Spoiler und als Text im Anhang. Alle Werte wurden von Hand neu ins Bios eingegeben.
Danke im Voraus.
[2021/04/16 21:34:23]
Ai Overclock Tuner [Manual]
BCLK Frequency [100.0000]
ASUS MultiCore Enhancement [Enabled – Remove All limits]
SVID Behavior [Auto]
AVX Instruction Core Ratio Negative Offset [0]
CPU Core Ratio [Sync All Cores]
1-Core Ratio Limit [50]
BCLK Frequency : DRAM Frequency Ratio [Auto]
DRAM Odd Ratio Mode [Enabled]
DRAM Frequency [DDR4-4200MHz]
Xtreme Tweaking [Disabled]
CPU SVID Support [Auto]
Maximus Tweak [Mode 1]
DRAM CAS# Latency [16]
DRAM RAS# to CAS# Delay [16]
DRAM RAS# ACT Time [30]
DRAM Command Rate [2N]
DRAM RAS# to RAS# Delay L [6]
DRAM RAS# to RAS# Delay S [4]
DRAM REF Cycle Time [300]
DRAM REF Cycle Time 2 [Auto]
DRAM REF Cycle Time 4 [Auto]
DRAM Refresh Interval [65535]
DRAM WRITE Recovery Time [Auto]
DRAM READ to PRE Time [Auto]
DRAM FOUR ACT WIN Time [16]
DRAM WRITE to READ Delay [Auto]
DRAM WRITE to READ Delay L [Auto]
DRAM WRITE to READ Delay S [Auto]
DRAM CKE Minimum Pulse Width [6]
DRAM Write Latency [16]
ODT RTT WR (CHA) [120 DRAM Clock]
ODT RTT PARK (CHA) [0 DRAM Clock]
ODT RTT NOM (CHA) [48 DRAM Clock]
ODT RTT WR (CHB) [120 DRAM Clock]
ODT RTT PARK (CHB) [0 DRAM Clock]
ODT RTT NOM (CHB) [48 DRAM Clock]
ODT_READ_DURATION [Auto]
ODT_READ_DELAY [Auto]
ODT_WRITE_DURATION [Auto]
ODT_WRITE_DELAY [Auto]
Data Rising Slope [Auto]
Data Rising Slope Offset [Auto]
Cmd Rising Slope [Auto]
Cmd Rising Slope Offset [Auto]
Ctl Rising Slope [Auto]
Ctl Rising Slope Offset [Auto]
Clk Rising Slope [Auto]
Clk Rising Slope Offset [Auto]
Data Falling Slope [Auto]
Data Falling Slope Offset [Auto]
Cmd Falling Slope [Auto]
Cmd Falling Slope Offset [Auto]
Ctl Falling Slope [Auto]
Ctl Falling Slope Offset [Auto]
Clk Falling Slope [Auto]
Clk Falling Slope Offset [Auto]
DRAM RTL INIT value [Auto]
DRAM RTL (CHA DIMM0 Rank0) [61]
DRAM RTL (CHA DIMM0 Rank1) [Auto]
DRAM RTL (CHA DIMM1 Rank0) [61]
DRAM RTL (CHA DIMM1 Rank1) [Auto]
DRAM RTL (CHB DIMM0 Rank0) [63]
DRAM RTL (CHB DIMM0 Rank1) [Auto]
DRAM RTL (CHB DIMM1 Rank0) [63]
DRAM RTL (CHB DIMM1 Rank1) [Auto]
DRAM IOL (CHA DIMM0 Rank0) [7]
DRAM IOL (CHA DIMM0 Rank1) [Auto]
DRAM IOL (CHA DIMM1 Rank0) [7]
DRAM IOL (CHA DIMM1 Rank1) [Auto]
DRAM IOL (CHB DIMM0 Rank0) [7]
DRAM IOL (CHB DIMM0 Rank1) [Auto]
DRAM IOL (CHB DIMM1 Rank0) [7]
DRAM IOL (CHB DIMM1 Rank1) [Auto]
CHA IO_Latency_offset [Auto]
CHB IO_Latency_offset [Auto]
CHA RFR delay [Auto]
CHB RFR delay [Auto]
Early Command Training [Auto]
SenseAmp Offset Training [Enabled]
Early ReadMPR Timing Centering 2D [Enabled]
Read MPR Training [Enabled]
Receive Enable Training [Enabled]
Jedec Write Leveling [Enabled]
Early Write Time Centering 2D [Auto]
Early Read Time Centering 2D [Auto]
Write Timing Centering 1D [Enabled]
Write Voltage Centering 1D [Auto]
Read Timing Centering 1D [Auto]
Dimm ODT Training* [Auto]
Max RTT_WR [ODT Off]
DIMM RON Training* [Auto]
Write Drive Strength/Equalization 2D* [Disabled]
Write Slew Rate Training* [Auto]
Read ODT Training* [Auto]
Read Equalization Training* [Auto]
Read Amplifier Training* [Auto]
Write Timing Centering 2D [Auto]
Read Timing Centering 2D [Auto]
Command Voltage Centering [Auto]
Write Voltage Centering 2D [Auto]
Read Voltage Centering 2D [Auto]
Late Command Training [Auto]
Round Trip Latency [Disabled]
Turn Around Timing Training [Disabled]
Rank Margin Tool [Disabled]
Memory Test [Disabled]
DIMM SPD Alias Test [Auto]
Receive Enable Centering 1D [Auto]
Retrain Margin Check [Disabled]
Write Drive Strength Up/Dn independently [Disabled]
tRDRD_sg [6]
tRDRD_dg [4]
tRDWR_sg [10]
tRDWR_dg [10]
tWRWR_sg [6]
tWRWR_dg [4]
tWRRD_sg [29]
tWRRD_dg [24]
tRDRD_dr [0]
tRDRD_dd [6]
tRDWR_dr [0]
tRDWR_dd [11]
tWRWR_dr [0]
tWRWR_dd [9]
tWRRD_dr [0]
tWRRD_dd [6]
TWRPRE [32]
TRDPRE [6]
tREFIX9 [Auto]
OREF_RI [Auto]
MRC Fast Boot [Disabled]
Delay after Train [Disabled]
DRAM CLK Period [Auto]
Memory Scrambler [Enabled]
Channel A DIMM Control [Enable both DIMMs]
Channel B DIMM Control [Enable both DIMMs]
Trace Centering [Enabled]
MCH Full Check [Enabled]
Mem Over Clock Fail Count [Auto]
Training Profile [Auto]
DLLBwEn [2]
DRAM SPD Write [Disabled]
XTU Setting [Auto]
CPU Load-line Calibration [Level 5]
Synch ACDC Loadline with VRM Loadline [Disabled]
CPU Current Capability [140%]
CPU VRM Switching Frequency [Auto]
VRM Spread Spectrum [Auto]
CPU Power Duty Control [T.Probe]
CPU Power Phase Control [Auto]
DRAM Current Capability [130%]
DRAM Switching Frequency [Auto]
CPU Core/Cache Boot Voltage [Auto]
DMI Boot Voltage [Auto]
Core PLL Boot Voltage [Auto]
CPU System Agent Boot Voltage [Auto]
CPU VCCIO Boot Voltage [Auto]
PLL Termination Boot voltage [Auto]
CPU Standby Boot Voltage [Auto]
Intel(R) SpeedStep(tm) [Auto]
Turbo Mode [Enabled]
Long Duration Package Power Limit [4095]
Package Power Time Window [127]
Short Duration Package Power Limit [4095]
IA AC Load Line [Auto]
IA DC Load Line [Auto]
TVB Voltage Optimizations [Auto]
Realtime Memory Timing [Disabled]
FCLK Frequency for Early Power On [Auto]
Initial BCLK Frequency [Auto]
BCLK Amplitude [Auto]
BCLK Slew Rate [Auto]
BCLK Spread Spectrum [Auto]
BCLK Frequency Slew Rate [Auto]
DRAM VTT Voltage [Auto]
VPPDDR Voltage [Auto]
DMI Voltage [Auto]
Core PLL Voltage [Auto]
Internal PLL Voltage [Auto]
GT PLL Voltage [Auto]
Ring PLL Voltage [Auto]
System Agent PLL Voltage [Auto]
Memory Controller PLL Voltage [Auto]
PLL Bandwidth [Auto]
Eventual DRAM Voltage [Auto]
Eventual CPU Standby Voltage [Auto]
Eventual PLL Termination Voltage [Auto]
Eventual DMI Voltage [Auto]
Package Temperature Threshold [Auto]
Regulate Frequency by above Threshold [Auto]
Cooler Efficiency Customize [Keep Training]
Cooler Re-evaluation Algorithm [Normal]
Optimism Scale [100]
CPU Core/Cache Current Limit Max. [255.75]
Ring Down Bin [Disabled]
Min. CPU Cache Ratio [Auto]
Max CPU Cache Ratio [48]
BCLK Aware Adaptive Voltage [Enabled]
CPU Core/Cache Voltage [Adaptive Mode]
- Offset Mode Sign [-]
- Additional Turbo Mode CPU Core Voltage [1.385]
- Offset Voltage [0.020]
DRAM Voltage [1.4900]
CPU VCCIO Voltage [1.30625]
CPU System Agent Voltage [1.31875]
PLL Termination Voltage [Auto]
PCH Core Voltage [Auto]
CPU Standby Voltage [Auto]
DRAM CTRL REF Voltage on CHA [Auto]
DRAM CTRL REF Voltage on CHB [Auto]
DRAM DATA REF Voltage on CHA DIMM0 Rank0 BL0 [Auto]
DRAM DATA REF Voltage on CHA DIMM0 Rank0 BL1 [Auto]
DRAM DATA REF Voltage on CHA DIMM0 Rank0 BL2 [Auto]
DRAM DATA REF Voltage on CHA DIMM0 Rank0 BL3 [Auto]
DRAM DATA REF Voltage on CHA DIMM0 Rank0 BL4 [Auto]
DRAM DATA REF Voltage on CHA DIMM0 Rank0 BL5 [Auto]
DRAM DATA REF Voltage on CHA DIMM0 Rank0 BL6 [Auto]
DRAM DATA REF Voltage on CHA DIMM0 Rank0 BL7 [Auto]
DRAM DATA REF Voltage on CHA DIMM0 Rank1 BL0 [Auto]
DRAM DATA REF Voltage on CHA DIMM0 Rank1 BL1 [Auto]
DRAM DATA REF Voltage on CHA DIMM0 Rank1 BL2 [Auto]
DRAM DATA REF Voltage on CHA DIMM0 Rank1 BL3 [Auto]
DRAM DATA REF Voltage on CHA DIMM0 Rank1 BL4 [Auto]
DRAM DATA REF Voltage on CHA DIMM0 Rank1 BL5 [Auto]
DRAM DATA REF Voltage on CHA DIMM0 Rank1 BL6 [Auto]
DRAM DATA REF Voltage on CHA DIMM0 Rank1 BL7 [Auto]
DRAM DATA REF Voltage on CHA DIMM1 Rank0 BL0 [Auto]
DRAM DATA REF Voltage on CHA DIMM1 Rank0 BL1 [Auto]
DRAM DATA REF Voltage on CHA DIMM1 Rank0 BL2 [Auto]
DRAM DATA REF Voltage on CHA DIMM1 Rank0 BL3 [Auto]
DRAM DATA REF Voltage on CHA DIMM1 Rank0 BL4 [Auto]
DRAM DATA REF Voltage on CHA DIMM1 Rank0 BL5 [Auto]
DRAM DATA REF Voltage on CHA DIMM1 Rank0 BL6 [Auto]
DRAM DATA REF Voltage on CHA DIMM1 Rank0 BL7 [Auto]
DRAM DATA REF Voltage on CHA DIMM1 Rank1 BL0 [Auto]
DRAM DATA REF Voltage on CHA DIMM1 Rank1 BL1 [Auto]
DRAM DATA REF Voltage on CHA DIMM1 Rank1 BL2 [Auto]
DRAM DATA REF Voltage on CHA DIMM1 Rank1 BL3 [Auto]
DRAM DATA REF Voltage on CHA DIMM1 Rank1 BL4 [Auto]
DRAM DATA REF Voltage on CHA DIMM1 Rank1 BL5 [Auto]
DRAM DATA REF Voltage on CHA DIMM1 Rank1 BL6 [Auto]
DRAM DATA REF Voltage on CHA DIMM1 Rank1 BL7 [Auto]
DRAM DATA REF Voltage on CHB DIMM0 Rank0 BL0 [Auto]
DRAM DATA REF Voltage on CHB DIMM0 Rank0 BL1 [Auto]
DRAM DATA REF Voltage on CHB DIMM0 Rank0 BL2 [Auto]
DRAM DATA REF Voltage on CHB DIMM0 Rank0 BL3 [Auto]
DRAM DATA REF Voltage on CHB DIMM0 Rank0 BL4 [Auto]
DRAM DATA REF Voltage on CHB DIMM0 Rank0 BL5 [Auto]
DRAM DATA REF Voltage on CHB DIMM0 Rank0 BL6 [Auto]
DRAM DATA REF Voltage on CHB DIMM0 Rank0 BL7 [Auto]
DRAM DATA REF Voltage on CHB DIMM0 Rank1 BL0 [Auto]
DRAM DATA REF Voltage on CHB DIMM0 Rank1 BL1 [Auto]
DRAM DATA REF Voltage on CHB DIMM0 Rank1 BL2 [Auto]
DRAM DATA REF Voltage on CHB DIMM0 Rank1 BL3 [Auto]
DRAM DATA REF Voltage on CHB DIMM0 Rank1 BL4 [Auto]
DRAM DATA REF Voltage on CHB DIMM0 Rank1 BL5 [Auto]
DRAM DATA REF Voltage on CHB DIMM0 Rank1 BL6 [Auto]
DRAM DATA REF Voltage on CHB DIMM0 Rank1 BL7 [Auto]
DRAM DATA REF Voltage on CHB DIMM1 Rank0 BL0 [Auto]
DRAM DATA REF Voltage on CHB DIMM1 Rank0 BL1 [Auto]
DRAM DATA REF Voltage on CHB DIMM1 Rank0 BL2 [Auto]
DRAM DATA REF Voltage on CHB DIMM1 Rank0 BL3 [Auto]
DRAM DATA REF Voltage on CHB DIMM1 Rank0 BL4 [Auto]
DRAM DATA REF Voltage on CHB DIMM1 Rank0 BL5 [Auto]
DRAM DATA REF Voltage on CHB DIMM1 Rank0 BL6 [Auto]
DRAM DATA REF Voltage on CHB DIMM1 Rank0 BL7 [Auto]
DRAM DATA REF Voltage on CHB DIMM1 Rank1 BL0 [Auto]
DRAM DATA REF Voltage on CHB DIMM1 Rank1 BL1 [Auto]
DRAM DATA REF Voltage on CHB DIMM1 Rank1 BL2 [Auto]
DRAM DATA REF Voltage on CHB DIMM1 Rank1 BL3 [Auto]
DRAM DATA REF Voltage on CHB DIMM1 Rank1 BL4 [Auto]
DRAM DATA REF Voltage on CHB DIMM1 Rank1 BL5 [Auto]
DRAM DATA REF Voltage on CHB DIMM1 Rank1 BL6 [Auto]
DRAM DATA REF Voltage on CHB DIMM1 Rank1 BL7 [Auto]
PCI Express Native Power Management [Disabled]
PCH DMI ASPM [Disabled]
ASPM 0 [Disabled]
L1 Substates [Disabled]
PCI Express Clock Gating [Enabled]
DMI Link ASPM Control [Disabled]
PEG - ASPM [Disabled]
Software Guard Extensions (SGX) [Software Controlled]
Tcc Offset Time Window [Auto]
Hardware Prefetcher [Enabled]
Adjacent Cache Line Prefetch [Enabled]
Intel (VMX) Virtualization Technology [Disabled]
Maximum CPU Core Temperature [Auto]
Active Processor Cores [All]
Hyper-Threading [Enabled]
Thermal Monitor [Enabled]
Boot performance mode [Auto]
Intel(R) SpeedStep(tm) [Auto]
Intel(R) Speed Shift Technology [Auto]
Turbo Mode [Enabled]
CPU C-states [Auto]
CFG Lock [Disabled]
VT-d [Enabled]
Above 4G Decoding [Enabled]
Memory Remap [Enabled]
Lpddr Dram Odt [Auto]
DDR4 Skip Refresh Enable [Enabled]
Late Command Training Relaxed Reset [Disabled]
Primary Display [Auto]
iGPU Multi-Monitor [Disabled]
DMI Max Link Speed [Auto]
PCIEX16_1 Link Speed [Auto]
PCIEX16_2 Link Speed [Auto]
PCIe Speed [Auto]
SATA Controller(s) [Enabled]
SATA Mode Selection [Intel RST Premium With Intel Optane System Acceleration(RAID)]
M.2_2 PCIE Storage RAID Support [RST Controlled]
Aggressive LPM Support [Disabled]
SMART Self Test [Enabled]
SATA6G_1(Black) [Enabled]
SATA6G_1 Hot Plug [Disabled]
M.2_1(Gray) [Enabled]
M.2_1 Hot Plug [Disabled]
SATA6G_3(Black) [Enabled]
SATA6G_3 Hot Plug [Disabled]
SATA6G_4(Black) [Enabled]
SATA6G_4 Hot Plug [Disabled]
SATA6G_5(Black) [Enabled]
SATA6G_5 Hot Plug [Disabled]
SATA6G_6(Black) [Enabled]
SATA6G_6 Hot Plug [Disabled]
SATA6G_7(Gray) [Enabled]
SATA6G_7 Hot Plug [Disabled]
SATA6G_8(Gray) [Enabled]
SATA6G_8 Hot Plug [Disabled]
TPM Device Selection [Discrete TPM]
HD Audio [Enabled]
Intel LAN Controller [Enabled]
Intel PXE Option ROM [Disabled]
When system is in working state [All On]
Q-Code LED Function [POST Code Only]
When system is in sleep, hibernate or soft off states [Stealth Mode]
PCIEX16_3 Bandwidth [X2 Mode]
Hyper M.2 X16: [Disable][Enable] [Disabled]
USB power delivery in Soft Off state (S5) [Enabled]
Back I/O USB Type C Power Mode [Auto]
ErP Ready [Disabled]
Restore AC Power Loss [Power Off]
Power On By PCI-E [Disabled]
Power On By RTC [Disabled]
Above 4G Decoding [Enabled]
Re-Size BAR Support [Auto]
SR-IOV Support [Disabled]
Legacy USB Support [Disabled]
XHCI Hand-off [Disabled]
U31G2_2 [Enabled]
U31G2_3 [Enabled]
U31G2_4 [Enabled]
U31G2_5 [Enabled]
U31G2_C6 [Enabled]
U31G1_7 [Enabled]
U31G1_8 [Enabled]
U31G1_9 [Enabled]
U31G1_10 [Enabled]
USB11 [Enabled]
USB12 [Enabled]
Network Stack [Disabled]
Device [CT2000MX500SSD1]
CPU Temperature [Monitor]
MotherBoard Temperature [Monitor]
PCH Temperature [Monitor]
T Sensor Temperature [Monitor]
Water In T Sensor Temperature [Monitor]
Water Out T Sensor Temperature [Monitor]
EXT_Sensor1 Temperature [Monitor]
EXT_Sensor2 Temperature [Monitor]
EXT_Sensor3 Temperature [Monitor]
CPU Fan Speed [Ignore]
CPU Optional Fan Speed [Monitor]
Chassis Fan 1 Speed [Monitor]
Chassis Fan 2 Speed [Monitor]
Chassis Fan 3 Speed [Monitor]
High Amp Fan Speed [Monitor]
W_PUMP+ Speed [Monitor]
AIO PUMP Speed [Monitor]
Extension Fan 1 Speed [Monitor]
Extension Fan 2 Speed [Monitor]
Extension Fan 3 Speed [Monitor]
Flow Rate [Monitor]
CPU Core Voltage [Monitor]
3.3V Voltage [Monitor]
5V Voltage [Monitor]
12V Voltage [Monitor]
CPU Q-Fan Control [Disabled]
Chassis Fan 1 Q-Fan Control [Auto]
Chassis Fan 1 Q-Fan Source [CPU]
Chassis Fan 1 Step Up [0 sec]
Chassis Fan 1 Step Down [0 sec]
Chassis Fan 1 Speed Low Limit [200 RPM]
Chassis Fan 1 Profile [Standard]
Chassis Fan 2 Q-Fan Control [Auto]
Chassis Fan 2 Q-Fan Source [CPU]
Chassis Fan 2 Step Up [0 sec]
Chassis Fan 2 Step Down [0 sec]
Chassis Fan 2 Speed Low Limit [200 RPM]
Chassis Fan 2 Profile [Standard]
Chassis Fan 3 Q-Fan Control [Auto]
Chassis Fan 3 Q-Fan Source [CPU]
Chassis Fan 3 Step Up [0 sec]
Chassis Fan 3 Step Down [0 sec]
Chassis Fan 3 Speed Low Limit [200 RPM]
Chassis Fan 3 Profile [Standard]
High Amp Fan Q-Fan Control [Auto]
High Amp Fan Q-Fan Source [CPU]
High Amp Fan Step Up [0 sec]
High Amp Fan Step Down [0 sec]
High Amp Fan Speed Low Limit [200 RPM]
High Amp Fan Profile [Standard]
Extension Fan 1 Q-Fan Control [DC Mode]
Extension Fan 1 Q-Fan Source [CPU]
Extension Fan 1 Speed Low Limit [200 RPM]
Extension Fan 1 Profile [Standard]
Extension Fan 2 Q-Fan Control [DC Mode]
Extension Fan 2 Q-Fan Source [CPU]
Extension Fan 2 Speed Low Limit [200 RPM]
Extension Fan 2 Profile [Standard]
Extension Fan 3 Q-Fan Control [DC Mode]
Extension Fan 3 Q-Fan Source [CPU]
Extension Fan 3 Speed Low Limit [200 RPM]
Extension Fan 3 Profile [Standard]
WATER PUMP+ Control [Disabled]
AIO PUMP Control [Disabled]
CPU Temperature LED Switch [Enabled]
Firmware Configuration [Test]
Type C Support [Platform-POR]
Fast Boot [Enabled]
Next Boot after AC Power Loss [Normal Boot]
Boot Logo Display [Enabled]
POST Delay Time [1 sec]
Bootup NumLock State [On]
Wait For 'F1' If Error [Enabled]
Option ROM Messages [Keep Current]
Interrupt 19 Capture [Disabled]
Setup Mode [Advanced Mode]
Boot Sector (MBR/GPT) Recovery Policy [Local User Control]
Next Boot Recovery Action [Skip]
Launch CSM [Disabled]
OS Type [Windows UEFI mode]
AMI Native NVMe Driver Support [Enabled]
Setup Animator [Disabled]
Load from Profile [4]
Profile Name [4200 neu]
Save to Profile [1]
DIMM Slot Number [DIMM_A1]
Download & Install ARMOURY CRATE app [Disabled]
Bus Interface [PCIEX16_1]
Rank Margin Tool Enabled, Early Command Training disabled, Late command enabled,
Dram switching frequency Manuel 300khz, trace entering mal disabled, evtl. nach mal ODT nachjustieren...
Rank Margin Tool Enabled, Early Command Training disabled, Late command enabled,
Dram switching frequency Manuel 300khz, trace entering mal disabled, evtl. nach mal ODT nachjustieren...
Asus stellt mit dem Beta-Bios 1901 für das Maximus XI Hero erstmals Unterstützung für Resizable BAR zur Verfügung. Da ich darauf nicht verzichten möchte, bin ich an diese Bios-Version gebunden.
Leider zickt es mit beiden meiner RAM-Settings, Starts aus stromlosem Zustand gelingen nicht. Kein Post, Code 61. Zuverlässig funktioniert aber jeder Start, bei dem das Board vorher nicht vom Strom getrennt war. Einfache Reboots gelingen ebenfalls immer.
Um nicht jedes einzelne Subtiming einzeln mit Kaltstart testen zu müssen, bitte ich hier um Tipps, was ich zuerst versuchen sollte. ODT, DLLBwEn und RTL/IOL auf Auto scheinen schon mal nicht zu helfen. Weitere Tweaks jenseits von Timings und Subtimings gibt es nicht.
Das Setting steht im Spoiler und als Text im Anhang. Alle Werte wurden von Hand neu ins Bios eingegeben.
Danke im Voraus.
[2021/04/16 21:34:23]
Ai Overclock Tuner [Manual]
BCLK Frequency [100.0000]
ASUS MultiCore Enhancement [Enabled – Remove All limits]
SVID Behavior [Auto]
AVX Instruction Core Ratio Negative Offset [0]
CPU Core Ratio [Sync All Cores]
1-Core Ratio Limit [50]
BCLK Frequency : DRAM Frequency Ratio [Auto]
DRAM Odd Ratio Mode [Enabled]
DRAM Frequency [DDR4-4200MHz]
Xtreme Tweaking [Disabled]
CPU SVID Support [Auto]
Maximus Tweak [Mode 1]
DRAM CAS# Latency [16]
DRAM RAS# to CAS# Delay [16]
DRAM RAS# ACT Time [30]
DRAM Command Rate [2N]
DRAM RAS# to RAS# Delay L [6]
DRAM RAS# to RAS# Delay S [4]
DRAM REF Cycle Time [300]
DRAM REF Cycle Time 2 [Auto]
DRAM REF Cycle Time 4 [Auto]
DRAM Refresh Interval [65535]
DRAM WRITE Recovery Time [Auto]
DRAM READ to PRE Time [Auto]
DRAM FOUR ACT WIN Time [16]
DRAM WRITE to READ Delay [Auto]
DRAM WRITE to READ Delay L [Auto]
DRAM WRITE to READ Delay S [Auto]
DRAM CKE Minimum Pulse Width [6]
DRAM Write Latency [16]
ODT RTT WR (CHA) [120 DRAM Clock]
ODT RTT PARK (CHA) [0 DRAM Clock]
ODT RTT NOM (CHA) [48 DRAM Clock]
ODT RTT WR (CHB) [120 DRAM Clock]
ODT RTT PARK (CHB) [0 DRAM Clock]
ODT RTT NOM (CHB) [48 DRAM Clock]
ODT_READ_DURATION [Auto]
ODT_READ_DELAY [Auto]
ODT_WRITE_DURATION [Auto]
ODT_WRITE_DELAY [Auto]
Data Rising Slope [Auto]
Data Rising Slope Offset [Auto]
Cmd Rising Slope [Auto]
Cmd Rising Slope Offset [Auto]
Ctl Rising Slope [Auto]
Ctl Rising Slope Offset [Auto]
Clk Rising Slope [Auto]
Clk Rising Slope Offset [Auto]
Data Falling Slope [Auto]
Data Falling Slope Offset [Auto]
Cmd Falling Slope [Auto]
Cmd Falling Slope Offset [Auto]
Ctl Falling Slope [Auto]
Ctl Falling Slope Offset [Auto]
Clk Falling Slope [Auto]
Clk Falling Slope Offset [Auto]
DRAM RTL INIT value [Auto]
DRAM RTL (CHA DIMM0 Rank0) [61]
DRAM RTL (CHA DIMM0 Rank1) [Auto]
DRAM RTL (CHA DIMM1 Rank0) [61]
DRAM RTL (CHA DIMM1 Rank1) [Auto]
DRAM RTL (CHB DIMM0 Rank0) [63]
DRAM RTL (CHB DIMM0 Rank1) [Auto]
DRAM RTL (CHB DIMM1 Rank0) [63]
DRAM RTL (CHB DIMM1 Rank1) [Auto]
DRAM IOL (CHA DIMM0 Rank0) [7]
DRAM IOL (CHA DIMM0 Rank1) [Auto]
DRAM IOL (CHA DIMM1 Rank0) [7]
DRAM IOL (CHA DIMM1 Rank1) [Auto]
DRAM IOL (CHB DIMM0 Rank0) [7]
DRAM IOL (CHB DIMM0 Rank1) [Auto]
DRAM IOL (CHB DIMM1 Rank0) [7]
DRAM IOL (CHB DIMM1 Rank1) [Auto]
CHA IO_Latency_offset [Auto]
CHB IO_Latency_offset [Auto]
CHA RFR delay [Auto]
CHB RFR delay [Auto]
Early Command Training [Auto]
SenseAmp Offset Training [Enabled]
Early ReadMPR Timing Centering 2D [Enabled]
Read MPR Training [Enabled]
Receive Enable Training [Enabled]
Jedec Write Leveling [Enabled]
Early Write Time Centering 2D [Auto]
Early Read Time Centering 2D [Auto]
Write Timing Centering 1D [Enabled]
Write Voltage Centering 1D [Auto]
Read Timing Centering 1D [Auto]
Dimm ODT Training* [Auto]
Max RTT_WR [ODT Off]
DIMM RON Training* [Auto]
Write Drive Strength/Equalization 2D* [Disabled]
Write Slew Rate Training* [Auto]
Read ODT Training* [Auto]
Read Equalization Training* [Auto]
Read Amplifier Training* [Auto]
Write Timing Centering 2D [Auto]
Read Timing Centering 2D [Auto]
Command Voltage Centering [Auto]
Write Voltage Centering 2D [Auto]
Read Voltage Centering 2D [Auto]
Late Command Training [Auto]
Round Trip Latency [Disabled]
Turn Around Timing Training [Disabled]
Rank Margin Tool [Disabled]
Memory Test [Disabled]
DIMM SPD Alias Test [Auto]
Receive Enable Centering 1D [Auto]
Retrain Margin Check [Disabled]
Write Drive Strength Up/Dn independently [Disabled]
tRDRD_sg [6]
tRDRD_dg [4]
tRDWR_sg [10]
tRDWR_dg [10]
tWRWR_sg [6]
tWRWR_dg [4]
tWRRD_sg [29]
tWRRD_dg [24]
tRDRD_dr [0]
tRDRD_dd [6]
tRDWR_dr [0]
tRDWR_dd [11]
tWRWR_dr [0]
tWRWR_dd [9]
tWRRD_dr [0]
tWRRD_dd [6]
TWRPRE [32]
TRDPRE [6]
tREFIX9 [Auto]
OREF_RI [Auto]
MRC Fast Boot [Disabled]
Delay after Train [Disabled]
DRAM CLK Period [Auto]
Memory Scrambler [Enabled]
Channel A DIMM Control [Enable both DIMMs]
Channel B DIMM Control [Enable both DIMMs]
Trace Centering [Enabled]
MCH Full Check [Enabled]
Mem Over Clock Fail Count [Auto]
Training Profile [Auto]
DLLBwEn [2]
DRAM SPD Write [Disabled]
XTU Setting [Auto]
CPU Load-line Calibration [Level 5]
Synch ACDC Loadline with VRM Loadline [Disabled]
CPU Current Capability [140%]
CPU VRM Switching Frequency [Auto]
VRM Spread Spectrum [Auto]
CPU Power Duty Control [T.Probe]
CPU Power Phase Control [Auto]
DRAM Current Capability [130%]
DRAM Switching Frequency [Auto]
CPU Core/Cache Boot Voltage [Auto]
DMI Boot Voltage [Auto]
Core PLL Boot Voltage [Auto]
CPU System Agent Boot Voltage [Auto]
CPU VCCIO Boot Voltage [Auto]
PLL Termination Boot voltage [Auto]
CPU Standby Boot Voltage [Auto]
Intel(R) SpeedStep(tm) [Auto]
Turbo Mode [Enabled]
Long Duration Package Power Limit [4095]
Package Power Time Window [127]
Short Duration Package Power Limit [4095]
IA AC Load Line [Auto]
IA DC Load Line [Auto]
TVB Voltage Optimizations [Auto]
Realtime Memory Timing [Disabled]
FCLK Frequency for Early Power On [Auto]
Initial BCLK Frequency [Auto]
BCLK Amplitude [Auto]
BCLK Slew Rate [Auto]
BCLK Spread Spectrum [Auto]
BCLK Frequency Slew Rate [Auto]
DRAM VTT Voltage [Auto]
VPPDDR Voltage [Auto]
DMI Voltage [Auto]
Core PLL Voltage [Auto]
Internal PLL Voltage [Auto]
GT PLL Voltage [Auto]
Ring PLL Voltage [Auto]
System Agent PLL Voltage [Auto]
Memory Controller PLL Voltage [Auto]
PLL Bandwidth [Auto]
Eventual DRAM Voltage [Auto]
Eventual CPU Standby Voltage [Auto]
Eventual PLL Termination Voltage [Auto]
Eventual DMI Voltage [Auto]
Package Temperature Threshold [Auto]
Regulate Frequency by above Threshold [Auto]
Cooler Efficiency Customize [Keep Training]
Cooler Re-evaluation Algorithm [Normal]
Optimism Scale [100]
CPU Core/Cache Current Limit Max. [255.75]
Ring Down Bin [Disabled]
Min. CPU Cache Ratio [Auto]
Max CPU Cache Ratio [48]
BCLK Aware Adaptive Voltage [Enabled]
CPU Core/Cache Voltage [Adaptive Mode]
- Offset Mode Sign [-]
- Additional Turbo Mode CPU Core Voltage [1.385]
- Offset Voltage [0.020]
DRAM Voltage [1.4900]
CPU VCCIO Voltage [1.30625]
CPU System Agent Voltage [1.31875]
PLL Termination Voltage [Auto]
PCH Core Voltage [Auto]
CPU Standby Voltage [Auto]
DRAM CTRL REF Voltage on CHA [Auto]
DRAM CTRL REF Voltage on CHB [Auto]
DRAM DATA REF Voltage on CHA DIMM0 Rank0 BL0 [Auto]
DRAM DATA REF Voltage on CHA DIMM0 Rank0 BL1 [Auto]
DRAM DATA REF Voltage on CHA DIMM0 Rank0 BL2 [Auto]
DRAM DATA REF Voltage on CHA DIMM0 Rank0 BL3 [Auto]
DRAM DATA REF Voltage on CHA DIMM0 Rank0 BL4 [Auto]
DRAM DATA REF Voltage on CHA DIMM0 Rank0 BL5 [Auto]
DRAM DATA REF Voltage on CHA DIMM0 Rank0 BL6 [Auto]
DRAM DATA REF Voltage on CHA DIMM0 Rank0 BL7 [Auto]
DRAM DATA REF Voltage on CHA DIMM0 Rank1 BL0 [Auto]
DRAM DATA REF Voltage on CHA DIMM0 Rank1 BL1 [Auto]
DRAM DATA REF Voltage on CHA DIMM0 Rank1 BL2 [Auto]
DRAM DATA REF Voltage on CHA DIMM0 Rank1 BL3 [Auto]
DRAM DATA REF Voltage on CHA DIMM0 Rank1 BL4 [Auto]
DRAM DATA REF Voltage on CHA DIMM0 Rank1 BL5 [Auto]
DRAM DATA REF Voltage on CHA DIMM0 Rank1 BL6 [Auto]
DRAM DATA REF Voltage on CHA DIMM0 Rank1 BL7 [Auto]
DRAM DATA REF Voltage on CHA DIMM1 Rank0 BL0 [Auto]
DRAM DATA REF Voltage on CHA DIMM1 Rank0 BL1 [Auto]
DRAM DATA REF Voltage on CHA DIMM1 Rank0 BL2 [Auto]
DRAM DATA REF Voltage on CHA DIMM1 Rank0 BL3 [Auto]
DRAM DATA REF Voltage on CHA DIMM1 Rank0 BL4 [Auto]
DRAM DATA REF Voltage on CHA DIMM1 Rank0 BL5 [Auto]
DRAM DATA REF Voltage on CHA DIMM1 Rank0 BL6 [Auto]
DRAM DATA REF Voltage on CHA DIMM1 Rank0 BL7 [Auto]
DRAM DATA REF Voltage on CHA DIMM1 Rank1 BL0 [Auto]
DRAM DATA REF Voltage on CHA DIMM1 Rank1 BL1 [Auto]
DRAM DATA REF Voltage on CHA DIMM1 Rank1 BL2 [Auto]
DRAM DATA REF Voltage on CHA DIMM1 Rank1 BL3 [Auto]
DRAM DATA REF Voltage on CHA DIMM1 Rank1 BL4 [Auto]
DRAM DATA REF Voltage on CHA DIMM1 Rank1 BL5 [Auto]
DRAM DATA REF Voltage on CHA DIMM1 Rank1 BL6 [Auto]
DRAM DATA REF Voltage on CHA DIMM1 Rank1 BL7 [Auto]
DRAM DATA REF Voltage on CHB DIMM0 Rank0 BL0 [Auto]
DRAM DATA REF Voltage on CHB DIMM0 Rank0 BL1 [Auto]
DRAM DATA REF Voltage on CHB DIMM0 Rank0 BL2 [Auto]
DRAM DATA REF Voltage on CHB DIMM0 Rank0 BL3 [Auto]
DRAM DATA REF Voltage on CHB DIMM0 Rank0 BL4 [Auto]
DRAM DATA REF Voltage on CHB DIMM0 Rank0 BL5 [Auto]
DRAM DATA REF Voltage on CHB DIMM0 Rank0 BL6 [Auto]
DRAM DATA REF Voltage on CHB DIMM0 Rank0 BL7 [Auto]
DRAM DATA REF Voltage on CHB DIMM0 Rank1 BL0 [Auto]
DRAM DATA REF Voltage on CHB DIMM0 Rank1 BL1 [Auto]
DRAM DATA REF Voltage on CHB DIMM0 Rank1 BL2 [Auto]
DRAM DATA REF Voltage on CHB DIMM0 Rank1 BL3 [Auto]
DRAM DATA REF Voltage on CHB DIMM0 Rank1 BL4 [Auto]
DRAM DATA REF Voltage on CHB DIMM0 Rank1 BL5 [Auto]
DRAM DATA REF Voltage on CHB DIMM0 Rank1 BL6 [Auto]
DRAM DATA REF Voltage on CHB DIMM0 Rank1 BL7 [Auto]
DRAM DATA REF Voltage on CHB DIMM1 Rank0 BL0 [Auto]
DRAM DATA REF Voltage on CHB DIMM1 Rank0 BL1 [Auto]
DRAM DATA REF Voltage on CHB DIMM1 Rank0 BL2 [Auto]
DRAM DATA REF Voltage on CHB DIMM1 Rank0 BL3 [Auto]
DRAM DATA REF Voltage on CHB DIMM1 Rank0 BL4 [Auto]
DRAM DATA REF Voltage on CHB DIMM1 Rank0 BL5 [Auto]
DRAM DATA REF Voltage on CHB DIMM1 Rank0 BL6 [Auto]
DRAM DATA REF Voltage on CHB DIMM1 Rank0 BL7 [Auto]
DRAM DATA REF Voltage on CHB DIMM1 Rank1 BL0 [Auto]
DRAM DATA REF Voltage on CHB DIMM1 Rank1 BL1 [Auto]
DRAM DATA REF Voltage on CHB DIMM1 Rank1 BL2 [Auto]
DRAM DATA REF Voltage on CHB DIMM1 Rank1 BL3 [Auto]
DRAM DATA REF Voltage on CHB DIMM1 Rank1 BL4 [Auto]
DRAM DATA REF Voltage on CHB DIMM1 Rank1 BL5 [Auto]
DRAM DATA REF Voltage on CHB DIMM1 Rank1 BL6 [Auto]
DRAM DATA REF Voltage on CHB DIMM1 Rank1 BL7 [Auto]
PCI Express Native Power Management [Disabled]
PCH DMI ASPM [Disabled]
ASPM 0 [Disabled]
L1 Substates [Disabled]
PCI Express Clock Gating [Enabled]
DMI Link ASPM Control [Disabled]
PEG - ASPM [Disabled]
Software Guard Extensions (SGX) [Software Controlled]
Tcc Offset Time Window [Auto]
Hardware Prefetcher [Enabled]
Adjacent Cache Line Prefetch [Enabled]
Intel (VMX) Virtualization Technology [Disabled]
Maximum CPU Core Temperature [Auto]
Active Processor Cores [All]
Hyper-Threading [Enabled]
Thermal Monitor [Enabled]
Boot performance mode [Auto]
Intel(R) SpeedStep(tm) [Auto]
Intel(R) Speed Shift Technology [Auto]
Turbo Mode [Enabled]
CPU C-states [Auto]
CFG Lock [Disabled]
VT-d [Enabled]
Above 4G Decoding [Enabled]
Memory Remap [Enabled]
Lpddr Dram Odt [Auto]
DDR4 Skip Refresh Enable [Enabled]
Late Command Training Relaxed Reset [Disabled]
Primary Display [Auto]
iGPU Multi-Monitor [Disabled]
DMI Max Link Speed [Auto]
PCIEX16_1 Link Speed [Auto]
PCIEX16_2 Link Speed [Auto]
PCIe Speed [Auto]
SATA Controller(s) [Enabled]
SATA Mode Selection [Intel RST Premium With Intel Optane System Acceleration(RAID)]
M.2_2 PCIE Storage RAID Support [RST Controlled]
Aggressive LPM Support [Disabled]
SMART Self Test [Enabled]
SATA6G_1(Black) [Enabled]
SATA6G_1 Hot Plug [Disabled]
M.2_1(Gray) [Enabled]
M.2_1 Hot Plug [Disabled]
SATA6G_3(Black) [Enabled]
SATA6G_3 Hot Plug [Disabled]
SATA6G_4(Black) [Enabled]
SATA6G_4 Hot Plug [Disabled]
SATA6G_5(Black) [Enabled]
SATA6G_5 Hot Plug [Disabled]
SATA6G_6(Black) [Enabled]
SATA6G_6 Hot Plug [Disabled]
SATA6G_7(Gray) [Enabled]
SATA6G_7 Hot Plug [Disabled]
SATA6G_8(Gray) [Enabled]
SATA6G_8 Hot Plug [Disabled]
TPM Device Selection [Discrete TPM]
HD Audio [Enabled]
Intel LAN Controller [Enabled]
Intel PXE Option ROM [Disabled]
When system is in working state [All On]
Q-Code LED Function [POST Code Only]
When system is in sleep, hibernate or soft off states [Stealth Mode]
PCIEX16_3 Bandwidth [X2 Mode]
Hyper M.2 X16: [Disable][Enable] [Disabled]
USB power delivery in Soft Off state (S5) [Enabled]
Back I/O USB Type C Power Mode [Auto]
ErP Ready [Disabled]
Restore AC Power Loss [Power Off]
Power On By PCI-E [Disabled]
Power On By RTC [Disabled]
Above 4G Decoding [Enabled]
Re-Size BAR Support [Auto]
SR-IOV Support [Disabled]
Legacy USB Support [Disabled]
XHCI Hand-off [Disabled]
U31G2_2 [Enabled]
U31G2_3 [Enabled]
U31G2_4 [Enabled]
U31G2_5 [Enabled]
U31G2_C6 [Enabled]
U31G1_7 [Enabled]
U31G1_8 [Enabled]
U31G1_9 [Enabled]
U31G1_10 [Enabled]
USB11 [Enabled]
USB12 [Enabled]
Network Stack [Disabled]
Device [CT2000MX500SSD1]
CPU Temperature [Monitor]
MotherBoard Temperature [Monitor]
PCH Temperature [Monitor]
T Sensor Temperature [Monitor]
Water In T Sensor Temperature [Monitor]
Water Out T Sensor Temperature [Monitor]
EXT_Sensor1 Temperature [Monitor]
EXT_Sensor2 Temperature [Monitor]
EXT_Sensor3 Temperature [Monitor]
CPU Fan Speed [Ignore]
CPU Optional Fan Speed [Monitor]
Chassis Fan 1 Speed [Monitor]
Chassis Fan 2 Speed [Monitor]
Chassis Fan 3 Speed [Monitor]
High Amp Fan Speed [Monitor]
W_PUMP+ Speed [Monitor]
AIO PUMP Speed [Monitor]
Extension Fan 1 Speed [Monitor]
Extension Fan 2 Speed [Monitor]
Extension Fan 3 Speed [Monitor]
Flow Rate [Monitor]
CPU Core Voltage [Monitor]
3.3V Voltage [Monitor]
5V Voltage [Monitor]
12V Voltage [Monitor]
CPU Q-Fan Control [Disabled]
Chassis Fan 1 Q-Fan Control [Auto]
Chassis Fan 1 Q-Fan Source [CPU]
Chassis Fan 1 Step Up [0 sec]
Chassis Fan 1 Step Down [0 sec]
Chassis Fan 1 Speed Low Limit [200 RPM]
Chassis Fan 1 Profile [Standard]
Chassis Fan 2 Q-Fan Control [Auto]
Chassis Fan 2 Q-Fan Source [CPU]
Chassis Fan 2 Step Up [0 sec]
Chassis Fan 2 Step Down [0 sec]
Chassis Fan 2 Speed Low Limit [200 RPM]
Chassis Fan 2 Profile [Standard]
Chassis Fan 3 Q-Fan Control [Auto]
Chassis Fan 3 Q-Fan Source [CPU]
Chassis Fan 3 Step Up [0 sec]
Chassis Fan 3 Step Down [0 sec]
Chassis Fan 3 Speed Low Limit [200 RPM]
Chassis Fan 3 Profile [Standard]
High Amp Fan Q-Fan Control [Auto]
High Amp Fan Q-Fan Source [CPU]
High Amp Fan Step Up [0 sec]
High Amp Fan Step Down [0 sec]
High Amp Fan Speed Low Limit [200 RPM]
High Amp Fan Profile [Standard]
Extension Fan 1 Q-Fan Control [DC Mode]
Extension Fan 1 Q-Fan Source [CPU]
Extension Fan 1 Speed Low Limit [200 RPM]
Extension Fan 1 Profile [Standard]
Extension Fan 2 Q-Fan Control [DC Mode]
Extension Fan 2 Q-Fan Source [CPU]
Extension Fan 2 Speed Low Limit [200 RPM]
Extension Fan 2 Profile [Standard]
Extension Fan 3 Q-Fan Control [DC Mode]
Extension Fan 3 Q-Fan Source [CPU]
Extension Fan 3 Speed Low Limit [200 RPM]
Extension Fan 3 Profile [Standard]
WATER PUMP+ Control [Disabled]
AIO PUMP Control [Disabled]
CPU Temperature LED Switch [Enabled]
Firmware Configuration [Test]
Type C Support [Platform-POR]
Fast Boot [Enabled]
Next Boot after AC Power Loss [Normal Boot]
Boot Logo Display [Enabled]
POST Delay Time [1 sec]
Bootup NumLock State [On]
Wait For 'F1' If Error [Enabled]
Option ROM Messages [Keep Current]
Interrupt 19 Capture [Disabled]
Setup Mode [Advanced Mode]
Boot Sector (MBR/GPT) Recovery Policy [Local User Control]
Next Boot Recovery Action [Skip]
Launch CSM [Disabled]
OS Type [Windows UEFI mode]
AMI Native NVMe Driver Support [Enabled]
Setup Animator [Disabled]
Load from Profile [4]
Profile Name [4200 neu]
Save to Profile [1]
DIMM Slot Number [DIMM_A1]
Download & Install ARMOURY CRATE app [Disabled]
Bus Interface [PCIEX16_1]
Ich habe auch gestern das Bios draufgespielt. Genau das gleiche bei mir. Gleiche Settings wie mit 1302 laufen problemlos, aber ein Kaltstart wird immer mit einem "b1" quittiert.
RTL auf Auto hilft nicht, weiter leider nicht getestet.
mal sehen was bis montags alles über'n Jordan geht
www.hardwareluxx.de
www.igorslab.de
