Sammelthread Asrock X370 Taichi / Fatal1ty X370 Professional Gaming
X370 Taichi
-Herstellerlink- -Handbuch- -Preisvergleich-
Fatal1ty X370 Professional Gaming
-Herstellerlink- -Handbuch- -Preisvergleich-
X370 Taichi
-Herstellerlink- -Handbuch- -Preisvergleich-
Fatal1ty X370 Professional Gaming
-Herstellerlink- -Handbuch- -Preisvergleich-
Inhaltsverzeichnis:
- Spezifikationen
- Links & Reviews
- UEFI History
- Q&A
- Ram & Kühler Kompabilitäts-Liste
- OC
Technische Daten / Spezifikationen:
Gemeinsame Technische Spezifikationen:
- CPU:
AMD AM4 Socket Ryzen Series (Summit Ridge) - Chipsatz:
AMD X370 Promontory - Memory:
Supports DDR4 3200+ (OC) - Expansion-Slots:
2 PCIe 3.0 x16 (16/0 - 8/8), 1 PCIe 2.0 x16, 2 PCIe 2.0 x1, 1 M.2 (Key E - belegt mit WiFI-BT-Modul) - Storage:
10 Sata3, 1 UltraM.2 (PCIe Gen3 x4 & Sata3), 1 M.2 (PCIe Gen2 x4) - USB:
2 USB 3.1 (Type-A, Type-C), 10 USB 3.0 (4 Front, 6 Rear) - Network :
1 Intel Gigabit Lan (10|100|1000 Mb/s - Intel I211AT), 1 Intel 802.11ac (IEEE 802.11a/b/g/n/ac, Dual-Band (2,4|5Ghz)) - Audio:
7.1 Channel HD Audio (Realtek ALC 1220)
- Others:
1 PS/2 Maose/Keyboard-Port (with Y-Cable Support), 1 Clear CMOS Switch
- Audio-Software:
Purity Sound 4 - Vollständige Spezifikationen:
Code:Einzigartige Features ASRock USB 3.1 - ASRock USB 3.1 Type-A Port (10 Gb/s) - ASRock USB 3.1 Type-C Port (10 Gb/s) ASRock Super Alloy - XXL Aluminum Alloy Heatsink - Premium 60A Power Choke - Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke) - Dual-Stack MOSFET (DSM) - Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors) - I/O Armor - Matte Black PCB - High Density Glass Fabric PCB - 2oz Copper PCB Intel® 802.11ac WiFi ASRock Steel Slots ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop CPU - Supports AMD AM4 Socket Ryzen Series CPUs (Summit Ridge) - IR Digital PWM - 16 Power Phase design - Supports 300W EX OC - Supports ASRock Hyper BCLK Engine II Chipsatz - AMD Promontory X370 Arbeitsspeicher - Dual Channel DDR4 Memory Technology - 4 x DDR4 DIMM Slots - Supports DDR4 3200+(OC)/2933(OC)/2667/2400/2133 ECC and non-ECC, un-buffered memory* - Max. capacity of system memory: 64GB** - 15μ Gold Contact in DIMM Slots *Please refer to Memory Support List on ASRock's website for more information. Please refer to below table for DDR4 UDIMM maximum frequency support. Ryzen Series CPUs: UDIMM Memory Slot Frequency(MHZ) A1 A2 B1 B2 - SR - - 2667 - DR - - 2667 - SR - SR 2667 - DR - DR 2400-2667 SR SR SR SR 2133-2400 SR/DR DR SR/DR DR 1866-2133 SR: Single rank DIMM, 1Rx4 or 1Rx8 on DIMM module label DR: Dual rank DIMM, 2Rx4 or 2Rx8 on DIMM module label **Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation. BIOS - 128Mb AMI UEFI Legal BIOS with GUI support - Supports "Plug and Play" - ACPI 5.1 compliance wake up events - Supports jumperfree - SMBIOS 2.3 support - CPU, VCORE_NB, DRAM, VPPM, PCH 1.05V, +1.8V, VDDP, PROM 2.5V, Voltage Multi-adjustment Grafik - n/a Audio - 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) - Premium Blu-ray Audio support - Supports Surge Protection - Supports Purity Sound™ 4 - Nichicon Fine Gold Series Audio Caps - 120dB SNR DAC with Differential Amplifier - TI NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets) - Pure Power-In - Direct Drive Technology - PCB isolate shielding - Impedance Sensing on Line Out port - Individual PCB Layers for R/L Audio Channel - Gold Audio Jacks - 15μ Gold Audio Connector - Supports DTS Connect LAN - Gigabit LAN 10/100/1000 Mb/s - GigaLAN Intel® I211AT - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports PXE Drahtloses LAN - Intel® 802.11ac WiFi Module (Free Bundle) - Supports IEEE 802.11a/b/g/n/ac - Supports Dual-Band (2.4/5 GHz) - Supports high speed wireless connections up to 433Mbps - Supports Bluetooth 4.2 / 3.0 + High speed class II Steckplätze - 2 x PCI Express 3.0 x16 Slots (single at x16 (PCIE2); dual at x8 (PCIE2) / x8 (PCIE3))* - 1 x PCI Express 2.0 x16 Slot (PCIE5 @ x4 mode)** - 2 x PCI Express 2.0 x1 Slots - Supports AMD Quad CrossFireX™ and CrossFireX™ - Supports NVIDIA® Quad SLI™ and SLI™ - 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac module (on the rear I/O) - 15μ Gold Contact in VGA PCIe Slot (PCIE2) *Supports NVMe SSD as boot disks **If PCIE5 slot is occupied, M2_2 will be disabled Storage - 8 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug - 2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug - 1 x Ultra M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) - 1 x M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280 M.2 PCI Express module up to Gen2 x4 (20 Gb/s)* *If M2_2 is occupied, PCIE5 slot will be disabled Supports NVMe SSD as boot disks Supports ASRock U.2 Kit Anschluss - 1 x Power LED and Speaker Header - 1 x AMD Fan LED Header - 2 x RGB LED Headers* - 1 x CPU Fan Connector (4-pin)** - 1 x CPU Optional/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** - 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)**** - 1 x Chassis Optional/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***** - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector (15μ Gold Audio Connector) - 1 x AMD LED Fan USB Header - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) - 2 x USB 3.0 Headers (Support 4 USB 3.0 ports) (Supports ESD Protection) - 1 x Dr. Debug with LED *Supports up to 12V/3A, 36W LED Strip **The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. ***The CPU Optional/Water Pump Fan supports the water cooler fan of maximum 1.5A (18W) fan power. ****The Chassis Optional/Water Pump Fan supports the water cooler fan of maximum 1.5A (18W) fan power. *****CPU_FAN1, CHA_FAN1, CHA_FAN2 can auto detect if 3-pin or 4-pin fan is in use. Blende - 2 x Antenna Ports - 1 x PS/2 Mouse/Keyboard Port - 1 x Optical SPDIF Out Port - 1 x USB 3.1 Type-A Port (10 Gb/s) (Supports ESD Protection) - 1 x USB 3.1 Type-C Port (10 Gb/s) (Supports ESD Protection) - 6 x USB 3.0 Ports (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - 1 x Clear CMOS Switch - HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks) Software und UEFI Software - ASRock A-Tuning - ASRock RGB LED - ASRock APP Charger - ASRock XFast LAN* UEFI - ASRock Full HD UEFI - ASRock Instant Flash - ASRock Internet Flash - ASRock Crashless BIOS - ASRock Easy RAID Installer *These utilities can be downloaded from ASRock Live Update & APP Shop. Support-CD - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar Produktzubehör - Quick Installation Guide, Support CD, I/O Shield - 4 x SATA Data Cables - 1 x ASRock SLI_HB_Bridge_2S Card - 2 x ASRock WiFi 2.4/5 GHz Antennas - 2 x Screws for M.2 Sockets Hardware überwachung - Temperature Sensing: CPU, CPU Optional/Water Pump, Chassis, Chassis Optional/Water Pump Fans - Fan Tachometer: CPU, CPU Optional/Water Pump, Chassis, Chassis Optional/Water Pump Fans - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU Optional/Water Pump, Chassis, Chassis Optional/Water Pump Fans - Fan Multi-Speed Control: CPU, CPU Optional/Water Pump, Chassis, Chassis Optional/Water Pump Fans - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, VCORE_NB, DRAM, PCH 1.05V, +1.8V, VDDP Formfaktor - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm Betriebssystem - Microsoft® Windows® 10 64-bit* *For the updated Windows® 10 driver, please visit ASRock's website for details. Zertifizierungen - FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required)
Fatal1ty X370 Professional Gaming
- Audio-Software:
Creative Sound Blaster Cinema 3 - Network zusätzlich:
1 Aquantia 5 Gigabit Lan (10|100|1000|2500|5000 Mb/s - Aquantia AQC108) - Onboard:
1 COM Port Header, 1 TPM Header, 1 Power Switch, 1 Reset Switch - Vollständige Spezifikationen:
Code:Gaming Armor Power - Hi-Density Power Connectors (24 pin and 8 pin) Memory - 15μ Gold Contact in DIMM Slots VGA Card - 15μ Gold Contact in VGA PCIe Slot (PCIE2) Internet - AQUANTIA 5G LAN - Intel® LAN Cooling - XXL Aluminum Alloy Heatsink - Heat Pipe Design Audio - Creative Sound Blaster™ Cinema 3 Einzigartige Features ASRock USB 3.1 - ASRock USB 3.1 Type-A Port (10 Gb/s) - ASRock USB 3.1 Type-C Port (10 Gb/s) ASRock Super Alloy - XXL Aluminum Alloy Heatsink - Premium 60A Power Choke - Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke) - Dual-Stack MOSFET (DSM) - Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors) - I/O Armor - Matte Black PCB - High Density Glass Fabric PCB - 2oz Copper PCB AQUANTIA 5G LAN Intel® 802.11ac WiFi ASRock Steel Slots ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3) ASRock Ultra USB Power ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop CPU - Supports AMD AM4 Socket Ryzen Series CPUs (Summit Ridge) - IR Digital PWM - 16 Power Phase design - Supports 300W EX OC - Supports ASRock Hyper BCLK Engine II Chipsatz - AMD Promontory X370 Arbeitsspeicher - Dual Channel DDR4 Memory Technology - 4 x DDR4 DIMM Slots - Supports DDR4 3200+(OC)/2933(OC)/2667/2400/2133 ECC & non-ECC, un-buffered memory* - Max. capacity of system memory: 64GB** - 15μ Gold Contact in DIMM Slots *Please refer to Memory Support List on ASRock's website for more information. Please refer to below table for DDR4 UDIMM maximum frequency support. Ryzen Series CPUs: UDIMM Memory Slot Frequency(MHZ) A1 A2 B1 B2 - SR - - 2667 - DR - - 2667 - SR - SR 2667 - DR - DR 2400-2667 SR SR SR SR 2133-2400 SR/DR DR SR/DR DR 1866-2133 SR: Single rank DIMM, 1Rx4 or 1Rx8 on DIMM module label DR: Dual rank DIMM, 2Rx4 or 2Rx8 on DIMM module label **Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation. BIOS - 128Mb AMI UEFI Legal BIOS with GUI support - Supports "Plug and Play" - ACPI 5.1 compliance wake up events - Supports jumperfree - SMBIOS 2.3 support - CPU, VCORE_NB, DRAM, VPPM, PCH 1.05V, +1.8V, VDDP, PROM 2.5V, Voltage Multi-adjustment Grafik - n/a Audio - 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) - Premium Blu-ray Audio support - Supports Surge Protection - Nichicon Fine Gold Series Audio Caps - 120dB SNR DAC with Differential Amplifier - TI NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets) - Pure Power-In - Direct Drive Technology - PCB Isolate Shielding - Impedance Sensing on Line Out port - Individual PCB Layers for R/L Audio Channel - RGB LED - Gold Audio Jacks - 15μ Gold Audio Connector - Supports Creative Sound Blaster™ Cinema 3 LAN 1 x 5 Gigabit LAN 100/1000/2500/5000 Mb/s (AQUANTIA AQC108): - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports PXE 1 x Intel® Gigabit LAN 10/100/1000 Mb/s (1 x Intel® I211AT): - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports PXE Drahtloses LAN - Intel® 802.11ac WiFi Module (Free Bundle) - Supports IEEE 802.11a/b/g/n/ac - Supports Dual-Band (2.4/5 GHz) - Supports high speed wireless connections up to 433Mbps - Supports Bluetooth 4.2 / 3.0 + High speed class II Steckplätze - 2 x PCI Express 3.0 x16 Slots (single at x16 (PCIE2); dual at x8 (PCIE2) / x8 (PCIE3))* - 1 x PCI Express 2.0 x16 Slot (PCIE5 @ x4 mode) - 2 x PCI Express 2.0 x1 Slots - Supports AMD Quad CrossFireX™ and CrossFireX™ - Supports NVIDIA® Quad SLI™ and SLI™ - 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac module (on the rear I/O) - 15μ Gold Contact in VGA PCIe Slot (PCIE2) *Supports NVMe SSD as boot disks If PCIE5 slot is occupied, M2_2 will be disabled Storage - 8 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug - 2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug - 1 x Ultra M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)* - 1 x M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280 M.2 PCI Express module up to Gen2 x4 (20 Gb/s)* *If M2_2 is occupied, PCIE5 slot will be disabled Supports NVMe SSD as boot disks Supports ASRock U.2 Kit Anschluss - 1 x COM Port Header - 1 x TPM Header - 1 x Power LED and Speaker Header - 1 x AMD Fan LED Header - 2 x RGB LED Headers* - 1 x CPU Fan Connector (4-pin)** - 1 x CPU Optional/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** - 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control) - 1 x Chassis Optional/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector (15μ Gold Audio Connector) - 1 x AMD LED Fan USB Header - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) - 2 x USB 3.0 Headers (Support 4 USB 3.0 ports) (Supports ESD Protection) - 1 x Dr. Debug with LED - 1 x Power Switch with LED - 1 x Reset Switch with LED *Supports up to 12V/3A, 36W LED Strip **The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. ***The CPU Optional/Water Pump Fan supports the water cooler fan of maximum 1.5A (18W) fan power. ****The Chassis Optional/Water Pump Fan supports the water cooler fan of maximum 1.5A (18W) fan power. CPU_FAN1, CHA_FAN1, CHA_FAN2 can auto detect if 3-pin or 4-pin fan is in use. Blende - 2 x Antenna Ports - 1 x PS/2 Mouse/Keyboard Port - 1 x Optical SPDIF Out Port - 1 x USB 3.1 Type-A Port (10 Gb/s) (Supports ESD Protection) - 1 x USB 3.1 Type-C Port (10 Gb/s) (Supports ESD Protection)* - 6 x USB 3.0 Ports (Supports ESD Protection)** - 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED) - 1 x Clear CMOS Switch - HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks) *Ultra USB Power is supported on USB3_5_6 ports. ACPI wake-up function is not supported on USB3_5_6 ports. **1 x Fatal1ty Mouse Port (USB 3.0) is included Software und UEFI Software - ASRock F-Stream - ASRock RGB LED - ASRock Key Master - ASRock APP Charger - ASRock XFast LAN* UEFI - ASRock Full HD UEFI - ASRock Instant Flash - ASRock Internet Flash - ASRock Crashless BIOS - ASRock Easy RAID Installer *These utilities can be downloaded from ASRock Live Update & APP Shop. Support-CD - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar Produktzubehör - Quick Installation Guide, Support CD, I/O Shield - 4 x SATA Data Cables - 1 x ASRock SLI_HB_Bridge_2S Card - 2 x ASRock WiFi 2.4/5 GHz Antennas - 2 x Screws for M.2 Sockets Hardware überwachung - Temperature Sensing: CPU, CPU Optional/Water Pump, Chassis, Chassis Optional/Water Pump Fans - Fan Tachometer: CPU, CPU Optional/Water Pump, Chassis, Chassis Optional/Water Pump Fans - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU Optional/Water Pump, Chassis, Chassis Optional/Water Pump Fans - Fan Multi-Speed Control: CPU, CPU Optional/Water Pump, Chassis, Chassis Optional/Water Pump Fans - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, VCORE_NB, DRAM, PCH 1.05V, +1.8V, VDDP Formfaktor - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm Betriebssystem - Microsoft® Windows® 10 64-bit* *For the updated Windows® 10 driver, please visit ASRock's website for details. Zertifizierungen - FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required)
Links & Reviews:
Allgemeine Links
- [Übersicht] AMD AM4 Mainboards - News, Specs, Reviews & Bilder (alle Plattformen) - HWLUXX
- [Übersicht]AM4 B350 / X370 VRM Liste - HWLUXX
X370 Taichi:
- ocinside.de
- techpowerup.com
- tomshardware.com
- kitguru.net
- tweaktown.com
- hardwarecanucks.com
- vortez.net
- Level1Techs - Youtube
- Mobo PCB Breakdown: Asrock X370 Taichi - Youtube
- overclock.net (OC-Forum X370 Taichi)
- overclock3d.net
Fatal1ty X370 Professional Gaming
- tweaktown
- techtesters.eu
- guru3d.com
- reviewstudio.net
- play3r.net
- madboxpc.com
- reviewstudio.net
- overclock.net (OC-Forum Fatal1ty X370 Prof Gaming)
- tweak.dk
UEFI History:
X370 Taichi:
Link Asrock
- 2.00
Update AGESA to 1.0.0.4a, Precision Boost - Adjusts clock speeds in 25MHz increments in BIOS setup - 2.20
Update Agesa Version string "SummitPI-AM4 1.0.0.4a - 2.30
Enhance OC setting for advanced Overclocker - 2.40
Update AGESA to 1.0.0.6 - 3.00
Update AGESA to 1.0.0.6a - 3.10
Update AGESA to 1.0.0.6b. No memory ABL(AGESA Boot Loader) or training changes. Add setup options to select SMART fan temperature source. Change default to monitor external CPU temperature. Windows update is available for version P3.00 or later. - 3.20
With JEDEC 2666MHz DDR4 module, default set DDR4 frequency to 2666MHz. Test with SANMAX SMD4-U8G48MH-26VR and SMD4-U16G48MH-26VR. - 3.30
Bridge BIOS - 4.40
Update AGESA for future coming processors.
* Before updating this BIOS, please update the BIOS to P3.30 firstly - 4.60
Update AMD AGESA to PinnaclePI-AM4_1.0.0.1a.
* Before updating this BIOS, please update the BIOS to P3.30 firstly (Einwurf: Wenn nicht das 4.40 schon drauf ist) - 4.70
Enhance compatibility for Raven CPU with Intel WiFi.
* Before updating this BIOS, please update the BIOS to P3.30 firstly (Einwurf: Wenn nicht das 4.40 oder höher schon drauf ist) - 4.80
Update PinnaclePI-AM4_1.0.0.4
* Before updating this BIOS, please update the BIOS to P3.30 firstly (Einwurf: Wenn nicht das 4.40 oder höher schon drauf ist)
Fatal1ty X370 Professional Gaming
Link Asrock
- 2.00
Update AGESA to 1.0.0.4a, Precision Boost - Adjusts clock speeds in 25MHz increments in BIOS setup - 2.20
Update Agesa Version string "SummitPI-AM4 1.0.0.4a - 2.30
Enhance OC setting for advanced Overclocker - 2.40
Update AGESA to 1.0.0.6 - 3.00
Update AGESA to 1.0.0.6a - 3.10
Update AGESA to 1.0.0.6b. No memory ABL(AGESA Boot Loader) or training changes. Add setup options to select SMART fan temperature source. Change default to monitor external CPU temperature. Windows update is available for version P3.00 or later. - 3.30
Bridge BIOS - 4.40
Update AGESA for future coming processors.
* Before updating this BIOS, please update the BIOS to P3.30 firstly - 4.60
Update AMD AGESA to PinnaclePI-AM4_1.0.0.1a.
* Before updating this BIOS, please update the BIOS to P3.30 firstly (Einwurf: Wenn nicht das 4.40 schon drauf ist) - 4.70
Enhance compatibility for Raven CPU with Intel WiFi.
* Before updating this BIOS, please update the BIOS to P3.30 firstly (Einwurf: Wenn nicht das 4.40 oder höher schon drauf ist) - 4.80
Update PinnaclePI-AM4_1.0.0.4
* Before updating this BIOS, please update the BIOS to P3.30 firstly (Einwurf: Wenn nicht das 4.40 oder höher schon drauf ist)
Q&A:
Allgemeingültige Q&A:
- Spannungsversorgung Bios
It is our BIOS extra setting instead of a bug.
Normally, users could only modify CPU internal voltage.
But on this model, we mounted with extra PWM IC to let users control CPU external voltage.
In BIOS \ OC Tweaker \ CPU Configuration \ CPU Voltage, this option is to adjust CPU internal voltage.
In BIOS \ OC Tweaker \ Voltage Configuration \ Fixed (Offset) Voltage, this option is to adjust CPU external voltage.
Note: If users set CPU internal voltage and CPU external voltage at the same time, CPU voltage would only change based on CPU external voltage setting.
Quelle - Offizelle AMD Ram-Support Liste Agesia 1.0.0.6 (06-2017)
X370 Taichi:
- folgt, sobald was gesammelt wird
Fatal1ty X370 Professional Gaming
- folgt, sobald was gesammelt wird
CPU-Kühler & Ram Kompabilitäts-Liste
X370 Taichi:
Ram:
- Hersteller Modell @ Preisvergleich | Anzahl Module x Größe | Ranks | Quelle | kompatibel | Einschränkungen / Anmerkungen
- Hersteller Modell @ Preisvergleich | Anzahl Module x Größe | Ranks | Quelle | inkompatibel | Grund
- Curical Ballistix Tactical BLT2C8G4D30AETA |2 x 8GB | DR | darkpope| kompatibel | Bios 2.30 @2667 14-14-14-32
- Curical Ballistix Tactical BLT2C8G4D30AETA |2 x 8GB | DR | darkpope| kompatibel | Bios 2.40 @2993 14-16-16-35
- Corsair Vengeance LPX 32GB CMK32GX4M4A2400 |4 x 8GB | DR | Toadward | kompatibel |keine Einschränkungen, BIOS P2.20 XMP-Profil aktiviert@2400 14-16-16-31
- Corsair Vengeance LPX 3000(CMK16GX4M2B3000C15) Version 5.30 | 2 x 8 GB | SR | Kullberg | kompatibel | @2933 CL16 | läuft erst seit BIOS 2.2, hat Hynix Chips
- Corsair Vengeance LPX 3200(CMK16GX4M2B3200C16) Version 5.39 | 2 x 8 GB | SR | Kullberg | kompatibel | @3200 CL16 | läuft erst seit BIOS 2.2, hat Hynix Chips
- Crucial Ballistix Tactical 2666 (BLT2C8G4D26AFTA) | 2 x 8 GB | DR | Kullberg | kompatibel | @2666 CL16 | keine Einschränkungen
- Kingston ValueRAM DIMM 16GB 2400 ECC (KVR24E17D8/16) | 2 x 16 GB | DR | Kullberg | kompatibel | @2400 | 2 Einzel-Module, ECC funktioniert, OC bis 2666 möglic
- Crucial VLP 2400 ECC (CT2K16G4XFD824A) | 2 x 16 GB | DR | Kullberg | kompatibel | @2400 | ECC funktioniert, OC bis 2933 möglich
- G.Skill Trident Z silber/rot DIMM Kit 16GB, DDR4-3400, CL16-18-18-38 (F4-3400C16D-16GTZ) | 2 x 8 GB | DR | baronvonvestholm | kompatibel | Bios 2.4 @3200 16-18-18-38
- G.Skill Trident Z RGB DIMM Kit 32GB, DDR4-3200, CL14-14-14-34 (F4-3200C14D-32GTZR)| 2 x 16GB | DR | jc110 | kompatibel | Bios 2.40@3200 mit XPM Profil
- G.Skill Trident Z silber/rot DIMM Kit 32GB, DDR4-3200, CL14-14-14-34 (F4-3200C14D-32GTZ) |2 x 16GB | DR | bonecrusherxes | kompatibel | Bios 2.40 @ 1,35V 3200 @ XMP CL14-14-14-34-48 1T GearDown Enabled
- G.Skill Trident Z schwarz/weiß DIMM Kit 16GB, DDR4-3600, CL16-16-16-36 (F4-3600C16D-16GTZKW) |2 x 8GB | SR | HW-Mann | kompatibel | Bios 2.40 @ 1,40V 3466 @ XMP CL16-16-16-36-52 1T GearDown Enabled
- G.Skill Trident Z silber/rot DIMM Kit 16GB, DDR4-3600, CL15-15-15-35 (F4-3600C15D-16GTZ) |2 x 8GB | SR | Muffin-Man | kompatibel | Bios 2.40 @ 1,35V 3333@ XMP CL14-14-14-35-50 1T GearDown Enabled
- G.Skill Trident Z silber/rot DIMM Kit 16GB, DDR4-3400, CL16-18-18-38 (F4-3400C16D-16GTZ) |2 x 8GB | DR | Nimrais | kompatibel | Bios 2.4 @2666 16-18-18-38
- Corsair Vengeance LED rot DIMM Kit 32GB, DDR4-3200, CL16-18-18-36 (CMU32GX4M2C3200C16R) | 2 x 16GB | DR | m0p3d | kompatibel | Bios 3.00 @2933 16-18-18-36
- G.Skill Trident Z silber/rot DIMM Kit 16GB, DDR4-3200, CL14-14-14-34 (F4-3200C14D-16GTZ) | 2 x 8GB | SR | 4Stroke | kompatibel | Bios 3.10 @3200 14-14-14-28-42 1T 1.36V
- TeamGroup Xtreem schwarz DIMM Kit 16GB, DDR4-3600, CL18-20-20-39 (TXD416G3600HC18ADC01) | 2 x 8GB | SR | reinhardrudi | kompatibel | Bios 3.20 2933@18-20-20-39-58 (hier fehlt noch das fein tunning)
CPU-Kühler:
- Hersteller Modell @ Preisvergleich | Quelle | kompatibel | Einschränkungen / Anmerkungen
- Hersteller Modell @ Preisvergleich | Quelle | inkompatibel | Einschränkungen / Anmerkungen
- Cryorig R1 Ultimate (CR-R1A) | Toadward| kompatibel | keine Einschränkungen
- Noctua NH-U12S | maggus_zuki| kompatibel | keine Einschränkungen
- Noctua NH-U12P | darkpope| kompatibel | Noctua AM4 Mounting Kit erforderlich
- Noctua NH-D15 SE AM4 | jc110 | kompatibel | da der Speicher recht hoch ist, muss der vordere Lüfter versetzt montiert werden, was der Leistung aber keinen Abbruch tut
- Noctua NH-D15 SE AM4 | 4Stroke | kompatibel | keine Einschränkungen
- Alphacool Eisblock XPX, Schwarz (12565) | reinhardrudi | kompatibel | AM4 mounting Kit included
Fatal1ty X370 Professional Gaming
Ram:
- Hersteller Modell @ Preisvergleich | Anzahl Module x Größe | Ranks | Quelle | kompatibel | Einschränkungen / Anmerkungen
- Hersteller Modell @ Preisvergleich | Anzahl Module x Größe | Ranks | Quelle | inkompatibel | Grund
- Corsair Dominator Platinum 16GB, DDR4-3200, CL16-18-18-36 (CMD16GX4M2B3200C16) V4.24 | 2 x 8GB | DR | immortuos | kompatibel | Bios 2.00 @1,2V 2666 CL16 Samsung-Dies
- Corsair Dominator Platinum 16GB, DDR4-3200, CL16-18-18-36 (CMD16GX4M2B3200C16) V4.24 | 2 x 8GB | DR | immortuos | kompatibel | Bios 2.40 @3200 16-18-18-36
- G.Skill Trident Z RGB DIMM Kit 16GB, DDR4-3600, CL16-16-16-36 (F4-3600C16D-16GTZR) | 2 x 8GB | SR | Tanatos| kompatibel | ab Bios 2.20 3264@1,35V CL16
- G.Skill Trident Z silber/rot DIMM Kit 16GB, DDR4-3200, CL16-16-16-36 (F4-3200C16D-16GTZ) | 4 x 8GB | DR | SuLux| kompatibel | Bios 2.30 @1,35V 2666 CL14-14-14-34 1T
- G.Skill Trident Z silber/rot DIMM Kit 16GB, DDR4-3200, CL16-16-16-36 (F4-3200C16D-16GTZ) | 4 x 8GB | DR | SuLux| kompatibel | Bios 2.30 @1,35V 2933 CL14-14-14-34 1T ( BLCK 110x36,5 )
- G.Skill Trident Z silber/rot DIMM Kit 32GB, DDR4-3400, CL16-16-16-36 (F4-3400C16D-32GTZ) | 2 x 16GB | DR | plainvanilla| kompatibel | Bios 2.10 @1,35V 2666 CL16-16-16-36 1T
- Corsair Vengeance LPX schwarz DIMM Kit 32GB, DDR4-3000, CL15-17-17-35 (CMK32GX4M2B3000C15) | 2 x 16GB | DR | Ray| kompatibel |@2400 CL15 mit XPM Profil | BIOS 2.0, Hynix Chips
CPU-Kühler:
- Hersteller Modell @ Preisvergleich | Quelle | kompatibel | Einschränkungen / Anmerkungen
- Hersteller Modell @ Preisvergleich | Quelle | inkompatibel | Einschränkungen / Anmerkungen
- Watercool Heatkiller AMD CPU Rev. 4.0 | immortuos | kompatibel | keine Einschränkungen
- Watercool Heatkiller CPU Rev. 3.0| Tanatos | kompatibel | AM4 Umrüstkit
- Scythe SCMG-5000 Mugen 5 | Ray | kompatibel | keine Einschränkungen, AM4 mounting Kit included
OC:
- AMD Ryzen Processor and AMD Ryzen Master Over-clocking User’s Guide
- Overclockers Ryzen Overclocking Guide
- AMD Ryzen (Zen) "Summit Ridge" Socket AM4 OC Thread
- AMDs Community Update #4: Let's Talk DRAM! (RamSpecs)
- P-State Values:
Code:
Values for P State Overclocking - FID (Clock Speed) 90 - 3600mhz, 91 = 3625, 92 = 3650, 93 = 3675, 94 = 3700, 95 = 3725, 96 = 3750, 97 = 3775, 98 = 3800, 99 = 3825, 9a = 3850, 9b = 3875, 9c = 3900, 9d = 3925, 9e = 3950, 9f = 3975 a0 = 4000, a1 = 4025 (my max sweetspot OC), a2 = 4050, a3 = 4075, a4 = 4100, a5 = 4125, a6 = 4150, a7 = 4175, a8 = 4200 = a9 = 4225, aa = 4250, ab = 4275, ac = 4300, ad = ugh you win the lottery. Values for DID (Increment adjustment adjuster and or bclk adjustments, not too sure what it does TBH, as I found an overclock that I was already comfortable with and have not spent much time with this yet, though looking at it more closely, here are the values) - 8 = 25 mhz increments, 9 =22.2196, a = 20 b = 18.18, c = 16.667, d (final recommendation) = 15.384mhz - 3943mhz cap). Values for VID Voltage Control = 30 = 1.25v, 2f = 1.256v, 2e, 1.2562v, 2d = 1.268, 2c = 1.275v, 2b = 1.2812v, 2a = 1.287v, 29 = 1.293v, 28 = 1.3v, 27 = 1.3062v, 26 = 1.3125v, 25 = 1.318v, 24 = 1.325v, 23 = 1.3312v, 22 = 1.3375v, 21 = 1.343v, 20 = 1.35v, 1f = 1.356v, 1e = 1.3625v, 1d = 1.368v, 1c = 1.375v, 1b = 1.3812v, 1a = 1.3875v, 19 = 1.3937v, 18 = 1.4v, 17 = 1.406v, 16 = 1.4125v, 15 = 1.418v, 14 = 1.425v, 13 = 1.4321v, 12 = 1.4375v, 11 = 1.443v, 10 = 1.45v, *next set is from f - a, 9 - 9 (1.45 - 1.55v), though be very careful overclocking in this voltage range*.

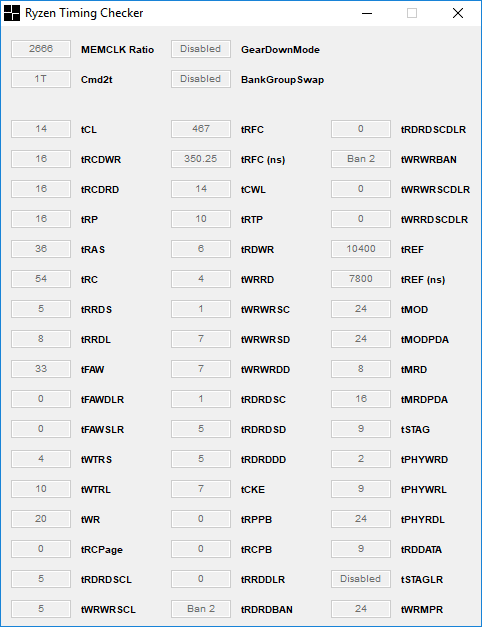

- Ryzen Timing Checker
- AMD Memory OC Showdown: Frequency vs. Memory Timings
- Ryzen DRAM Calculator
Ergbenisse:
(Blau = Taichi | Rot = Prof Gamnig)
- Ryzen Modell | Quelle | Geschwindigkeit | Spannung | LLC | Bios
- R7 1700 | immortuos | 3,9Ghz | 1,35V| 3 | 2.00
- R5 1600 | darkpope| 3,85Ghz| 1,28V | 3 | 2.40
- R7 1800X | jc110 | 4,05Ghz| 1,3925V | 3 | 2.40
- R7 1700 | Nimrais | 3,50 Ghz| 1,2V | 3 | 2.40
- R7 1700x | HW-Mann | 4,075 Ghz| 1,488V | ? | 3.00
- R7 1600x | 4Stroke | 4,09 Ghz| ca. 1,4V | ? | 3.20
- R7 1600x | reinhardrudi | 4,0Ghz | 1,376V| 3 | 3.20
- R7 1600x | 4Stroke | 3,9 Ghz | 1,256V | ? | 3.10
to be continued
