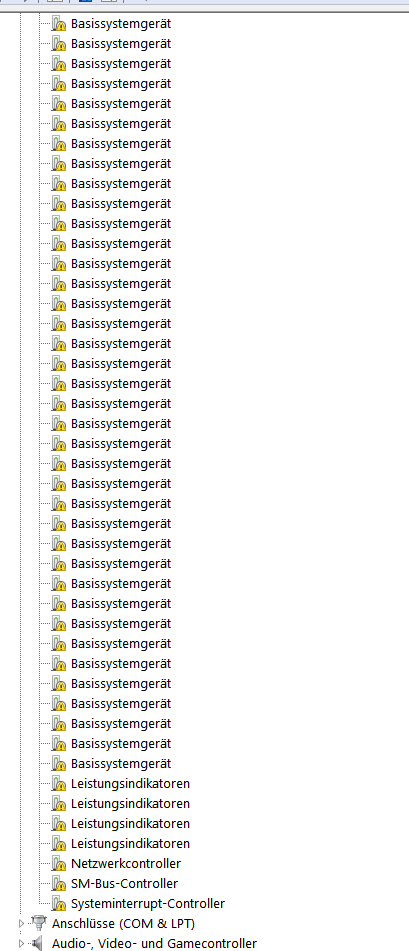

| X79-UD3 | X79-UD5 |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm | E-ATX Form Factor; 30.5cm x 26.4cm |
| Prozessor | Support for Intel® Core™ i7 processors in the LGA2011 package | Support for Intel® Core™ i7 processors in the LGA2011 package |
| Chipsatz | Intel® X79 Express Chipset | Intel® X79 Express Chipset |
| Arbeitsspeicher |
- 4 x 1.5V DDR3 DIMM sockets
- supporting up to 32 GB of system memory
- quad channel memory architecture
- Support for DDR3 2133/1866/1600/1333/1066 MHz memory modules
- Support for non-ECC memory modules
- Support for Extreme Memory Profile (XMP) memory modules
|
- 8 x 1.5V DDR3 DIMM sockets
- supporting up to 64 GB of system memory
- quad channel memory architecture
- Support for DDR3 2133/1866/1600/1333/1066 MHz memory modules
- Support for non-ECC memory modules
- Support for Extreme Memory Profile (XMP) memory modules
|
| Audio |
- Realtek ALC898 codec
- High Definition Audio
- 2/4/5.1/7.1-channel
- Support for Dolby® Home Theater
- Support for S/PDIF Out
|
- Realtek ALC898 codec
- High Definition Audio
- 2/4/5.1/7.1-channel
- Support for Dolby® Home Theater
- Support for S/PDIF Out
|
| LAN | 1 x Intel GbE LAN (10/100/1000 Mbit) |
- 1 x Intel GbE LAN (10/100/1000 Mbit)
- Bluetooth 4.0 und WiFi Karte 150 Mbps Transferraten, unterstützt 802.11n
|
| Erweiterungssteckplätze |
- 2 x PCI Express x16 slots, running at x16 (PCIEX16_1/PCIEX16_2)
- 2 x PCI Express x16 slot, running at x8 (PCIEX8_1, PCIEX8_2) (All PCI Express x16 slots conform to PCI Express 3.0 standard.)
- 2 x PCI Express x1 slots (All PCI Express x1 slots conform to PCI Express 2.0 standard)
- 1 x PCI slot
- Support for 4-Way/3-Way/2-Way AMD CrossFireX™/NVIDIA SLI technology (The PCIEX16 slots operate at up to x8 mode when 4-Way/3-Way AMD CrossFireX™/NVIDIA SLI is enabled.)
|
- 2 x PCI Express x16 slots, running at x16 (PCIEX16_1/PCIEX16_2)
- 1 x PCI Express x16 slot, running at x8 (PCIEX8) (All PCI Express x16 slots conform to PCI Express 3.0 standard.)
- 2 x PCI Express x1 slots (All PCI Express x1 slots conform to PCI Express 2.0 standard)
- 1 x PCI slot
- Support for 3-Way/2-Way AMD CrossFireX™ / NVIDIA SLI technology (The PCIEX16_1/PCIEX16_2 slots operate at up to x8 mode when 3-Way AMD CrossFireX™/NVIDIA SLI is enabled.)
|
| SATA | Chipset:
- 2 x SATA 6Gb/s connectors (SATA3 0/SATA3 1) supporting up to 2 SATA 6Gb/s devices
- 4 x SATA 3Gb/s connectors (SATA2 2~SATA2 5) supporting up to 4 SATA 3Gb/s devices
- Support for RAID 0, RAID 1, RAID 5, and RAID 10
3 x Marvell 88SE9172 chips:
- 4 x SATA 6Gb/s connectors (GSATA3 6~GSATA3 9) supporting up to 4 SATA 6Gb/s devices
- 2 x eSATA 6Gb/s connectors on the back panel, supporting up to 2 SATA 6Gb/s devices
- Support for SATA RAID 0 and RAID 1
| Chipset:
- 2 x SATA 6Gb/s connectors (SATA3 0/SATA3 1) supporting up to 2 SATA 6Gb/s devices
- 4 x SATA 3Gb/s connectors (SATA2 2~SATA2 5) supporting up to 4 SATA 3Gb/s devices
- Support for RAID 0, RAID 1, RAID 5, and RAID 10
3 x Marvell 88SE9172 chips:
- 4 x SATA 6Gb/s connectors (GSATA3 6~GSATA3 9) supporting up to 4 SATA 6Gb/s devices
- 2 x eSATA 6Gb/s connectors (including 1 eSATA/USB Combo) on the back panel supporting up to 2 SATA 6Gb/s devices
- Support for SATA RAID 0 and RAID 1
|
| USB | Chipset:
- Up to 14 USB 2.0/1.1 ports (8 ports on the back panel, 6 ports available through the internal USB headers)
2 x Fresco FL1009 chips:
- Up to 4 USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB headers)
| Chipset:
- Up to 14 USB 2.0/1.1 ports (8 ports on the back panel, including 1 eSATA/USB Combo, 6 ports available through the internal USB headers)
2 x Fresco FL1009 chips:
- Up to 4 USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB headers)
|
| IEEE 1394 | | VIA VT6308 chip:
- Up to 2 IEEE 1394a ports (1 port on the back panel, 1 port available through the internal IEEE 1394a header)
|
| Interne I/O Anschlüsse |
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 6 x SATA 6Gb/s connectors
- 4 x SATA 3Gb/s connectors
- 1 x CPU fan header
- 4 x system fan headers
- 1 x front panel header
- 1 x front panel audio header
- 1 x S/PDIF Out header
- 3 x USB 2.0/1.1 headers
- 1 x USB 3.0/2.0 header
- 1 x serial port header
- 1 x Clear CMOS jumper
- 1 x Trusted Platform Module (TPM) header
|
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 6 x SATA 6Gb/s connectors
- 4 x SATA 3Gb/s connectors
- 1 x CPU fan header
- 4 x system fan headers
- 1 x front panel header
- 1 x front panel audio header
- 1 x S/PDIF Out header
- 3 x USB 2.0/1.1 headers
- 1 x USB 3.0/2.0 header
- 1 x IEEE 1394a header
- 1 x Clear CMOS jumper
- 1 x Trusted Platform Module (TPM) header
|
| Rear Panel I/O |
- 1 x PS/2 keyboard/mouse port
- 1 x optical S/PDIF Out connector
- 1 x coaxial S/PDIF Out connector
- 8 x USB 2.0/1.1 ports
- 2 x USB 3.0/2.0 ports
- 2 x eSATA 6Gb/s connectors
- 1 x RJ-45 port
- 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)
|
- 1 x PS/2 keyboard/mouse port
- 1 x CPU overclocking button
- 1 x BIOS switch button
- 1 x Clear CMOS button
- 1 x IEEE 1394 port
- 7 x USB 2.0/1.1 ports
- 2 x USB 3.0/2.0 ports
- 1 x eSATA/USB Combo connector
- 1 x eSATA 6Gb/s connector
- 1 x RJ-45 port
- 1 x optical S/PDIF Out connector
- 5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In/Mic In, Line Out)
|
