[Sammelthread] Gigabyte X570 Aorus Series – Informationssammlung, Erfahrungen, Tips und Tricks (AM4)

Die X570 Motherboards der Gigabyte Aorus Serie bestehen momentan aus 8 Modellen. Darunter gibt es das Modell Aorus X570 XTreme, das speziell für eine Wasserkühlung entwickelt wurde. In Verbindung mit Prozessoren der dritten Generation (Ryzen 3000) stehen mehrere PCIe 4.0 Steckplätze zur Verfügung.

Die Serie besteht aus folgenden Modellen:

Name und Link zur Website	X570 AORUS ELITE	X570 AORUS ELITE WIFI	X570 AORUS MASTER	X570 AORUS PRO	X570 AORUS PRO WIFI	X570 AORUS ULTRA	X570 AORUS XTREME	X570 GAMING X	X570 I AORUS PRO WIFI	X570 UD
Preisvergleich	Aktuelle Preise		Aktuelle Preise	Aktuelle Preise		Aktuelle Preise	Aktuelle Preise	Aktuelle Preise	Aktuelle Preise	Aktuelle Preise
Formfaktor	ATX; 30.5cm x 24.4cm	ATX; 30.5cm x 24.4cm	ATX; 30.5cm x 24.4cm	ATX; 30.5cm x 24.4cm	ATX; 30.5cm x 24.4cm	ATX; 30.5cm x 24.4cm	E-ATX; 30.5cm x 27.0cm	ATX; 30.5cm x 24.4cm	Mini-ITX; 17.0cm x 17.0cm	ATX; 30.5cm x 24.4cm
Unterstützte Prozessoren	Ryzen 3000 Ryzen 3000G Ryzen 2000 Ryzen 2000G TDP-Limit: 105W (Hersteller)	Ryzen 3000 Ryzen 3000G Ryzen 2000 Ryzen 2000G TDP-Limit: 105W (Hersteller)	Ryzen 3000 Ryzen 3000G Ryzen 2000 Ryzen 2000G TDP-Limit: 105W (Hersteller)	Ryzen 3000 Ryzen 3000G Ryzen 2000 Ryzen 2000G TDP-Limit: 105W (Hersteller)	Ryzen 3000 Ryzen 3000G Ryzen 2000 Ryzen 2000G TDP-Limit: 105W (Hersteller)	Ryzen 3000 Ryzen 3000G Ryzen 2000 Ryzen 2000G TDP-Limit: 105W (Hersteller)	Ryzen 3000 Ryzen 3000G Ryzen 2000 Ryzen 2000G TDP-Limit: 105W (Hersteller)	Ryzen 3000 Ryzen 3000G Ryzen 2000 Ryzen 2000G TDP-Limit: 105W (Hersteller)	Ryzen 3000 Ryzen 3000G Ryzen 2000 Ryzen 2000G TDP-Limit: 105W (Hersteller)	Ryzen 3000 Ryzen 3000G Ryzen 2000 Ryzen 2000G TDP-Limit: 105W (Hersteller)
VRM	7 reale Phasen (6+1), PWM-Controller: ISL69138 (max. 7 Phasen)		14 reale Phasen (12+2), PWM-Controller: XDPE132G5C (max. 16 Phasen)	8 reale Phasen (6+2), PWM-Controller: IR35201 (max. 8 Phasen)		8 reale Phasen (6+2), PWM-Controller: IR35201 (max. 8 Phasen)	16 reale Phasen (14+2), PWM-Controller: XDPE132G5C (max. 16 Phasen)	7 reale Phasen (5+2), PWM-Controller: ISL69147 (max. 7 Phasen)	8 reale Phasen (6+2), PWM-Controller: IR35201 (max. 8 Phasen)	7 reale Phasen (5+2), PWM-Controller: ISL69147 (max. 7 Phasen)
MOSFETs CPU	12x 50A SIC634		12x 50A IR3556	12x 40A IR3553		12x 40A IR3553	14x 70A TDA21472	10x 46A 4C10N/20x 4C06N	6x 70A TDA21472	10x 46A 4C10N/20x 4C06N
MOSFETs SoC	2x 46A 4C10N/4C06N		2x 50A IR3556	2x 46A 4C10N/4C06N		4x 46A 4C10N/4C06N	2x 70A TDA21472	4x 46A 4C10N/4C06N	2x 40A IR3553	4x 46A 4C10N/4C06N
Arbeitsspeicher	Ryzen 3000 Support for DDR4 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules Ryzen 3000G/Ryzen 2000/Ryzen 2000G Support for DDR4 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules	Ryzen 3000 Support for DDR4 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules Ryzen 3000G/Ryzen 2000/Ryzen 2000G Support for DDR4 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules	Ryzen 3000 Support for DDR4 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules Ryzen 3000G/Ryzen 2000/Ryzen 2000G Support for DDR4 3600(O.C.) / 3400(O.C.) / 3333(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules	Ryzen 3000 Support for DDR4 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules Ryzen 3000G/Ryzen 2000/Ryzen 2000G Support for DDR4 3600(O.C.) / 3400(O.C.) / 3333(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules	Ryzen 3000 Support for DDR4 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules Ryzen 3000G/Ryzen 2000/Ryzen 2000G Support for DDR4 3600(O.C.) / 3400(O.C.) / 3333(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules	Ryzen 3000 Support for DDR4 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules Ryzen 3000G/Ryzen 2000/Ryzen 2000G Support for DDR4 3600(O.C.) / 3400(O.C.) / 3333(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules	Ryzen 3000 Support for DDR4 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules Ryzen 3000G/Ryzen 2000/Ryzen 2000G Support for DDR4 3600(O.C.) / 3400(O.C.) / 3333(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules	Ryzen 3000 Support for DDR4 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules Ryzen 3000G/Ryzen 2000/Ryzen 2000G Support for DDR4 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules	Ryzen 3000 Support for DDR4 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules Ryzen 3000G/Ryzen 2000/Ryzen 2000G Support for DDR4 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules	Ryzen 3000 Support for DDR4 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules Ryzen 3000G/Ryzen 2000/Ryzen 2000G Support for DDR4 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Onboard Grafik	Integrated Graphics Processor: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version, HDCP 2.2, and HDR. Maximum shared memory of 16 GB Note: For 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors only.	Integrated Graphics Processor: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version, HDCP 2.2, and HDR. Maximum shared memory of 16 GB Note: For 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors only.		Integrated Graphics Processor: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version, HDCP 2.2, and HDR. Maximum shared memory of 16 GB Note: For 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors only.	Integrated Graphics Processor: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version, HDCP 2.2, and HDR. Maximum shared memory of 16 GB Note: For 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors only.	Integrated Graphics Processor: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version, HDCP 2.2, and HDR. Maximum shared memory of 16 GB Note: For 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors only.		Integrated Graphics Processor: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version, HDCP 2.2, and HDR. Maximum shared memory of 16 GB Note: For 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors only.	Integrated Graphics Processor: 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version. 2 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version, HDCP 2.2, and HDR. Support for up to 3 displays at the same time Maximum shared memory of 16 GB * For 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors only.	Integrated Graphics Processor: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version, HDCP 2.2, and HDR. Maximum shared memory of 16 GB Note: For 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors only.
Audio	Realtek® ALC1200 codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out	Realtek® ALC1200 codec High Definition Audio 2/4/5.1-channel Support for S/PDIF Out	Realtek® ALC1220-VB codec * The front panel line out jack supports DSD audio. ESS SABRE9118 DAC chip High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out	Realtek® ALC1220-VB codec * The back panel line out jack supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out	Realtek® ALC1220-VB codec * The back panel line out jack supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out	Realtek® ALC1220-VB codec * The back panel line out jack supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out	Realtek® ALC1220-VB codec * The front panel line out jack supports DSD audio. ESS SABRE9218 DAC chip High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out	Realtek® ALC887 codec High Definition Audio 2/4/5.1-channel	Realtek® ALC1220-VB codec * The back panel line out jack supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.	Realtek® ALC887 codec High Definition Audio 2/4/5.1-channel
LAN	Intel® GbE LAN chip (10/100/1000 Mbit)	Intel® GbE LAN chip (10/100/1000 Mbit)	1 x Intel® GbE LAN chip (10/100/1000 Mbit) (LAN1) 1 x Realtek® 2.5GbE LAN chip (10/100/1000/2500 Mbit) (LAN2)	Intel® GbE LAN chip (10/100/1000 Mbit)	Intel® GbE LAN chip (10/100/1000 Mbit)	Intel® GbE LAN chip (10/100/1000 Mbit)	1 x Aquantia GbE LAN chip (10 Gbit/5 Gbit/2.5 Gbit/1000 Mbit/100 Mbit) (LAN1) 1 x Intel® GbE LAN phy (10/100/1000 Mbit) (LAN2)	Realtek® GbE LAN chip (10/100/1000 Mbit)	Intel® GbE LAN chip (10/100/1000 Mbit)	Realtek® GbE LAN chip (10/100/1000 Mbit)
Wireless Communication Module		Wi-Fi 802.11 a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band BLUETOOTH 4.2 Support for 11ac wireless standard and up to 433 Mbps data rate * Actual data rate may vary depending on environment and equipment.	Wi-Fi 802.11a/b/g/n/ac/ax, supporting 2.4/5 GHz Dual-Band BLUETOOTH 5.0 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate * Actual data rate may vary depending on environment and equipment.		Wi-Fi 802.11a/b/g/n/ac/ax, supporting 2.4/5 GHz Dual-Band BLUETOOTH 5.0 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate * Actual data rate may vary depending on environment and equipment.	Wi-Fi 802.11a/b/g/n/ac/ax, supporting 2.4/5 GHz Dual-Band BLUETOOTH 5.0 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate * Actual data rate may vary depending on environment and equipment.	Wi-Fi 802.11a/b/g/n/ac/ax, supporting 2.4/5 GHz Dual-Band BLUETOOTH 5.0 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate * Actual data rate may vary depending on environment and equipment.		Wi-Fi 802.11a/b/g/n/ac/ax, supporting 2.4/5 GHz Dual-Band BLUETOOTH 5.0 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate * Actual data rate may vary depending on environment and equipment.
Erweiterungssteckplätze	Integrated in the CPU (PCIEX16): · 3rd Generation AMD Ryzen™ processors: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 · 2nd Generation AMD Ryzen™ processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. · 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 Integrated in the Chipset (PCIEX4/PCIEX1): 1 x PCI Express x16 slot, supporting PCIe 4.0*/3.0 and running at x4 (PCIEX4) * For 3rd Generation AMD Ryzen™ processors only. 2 x PCI Express x1 slots, supporting PCIe 4.0*/3.0 * For 3rd Generation AMD Ryzen™ processors only.	Integrated in the CPU (PCIEX16): · 3rd Generation AMD Ryzen™ processors: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 · 2nd Generation AMD Ryzen™ processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. · 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 Integrated in the Chipset (PCIEX4/PCIEX1): 1 x PCI Express x16 slot, supporting PCIe 4.0*/3.0 and running at x4 (PCIEX4) * For 3rd Generation AMD Ryzen™ processors only. 2 x PCI Express x1 slots, supporting PCIe 4.0*/3.0 * For 3rd Generation AMD Ryzen™ processors only.	Integrated in the CPU (PCIEX16/PCIEX8): 3rd Generation AMD Ryzen™ processors: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x8 (PCIEX8) 2nd Generation AMD Ryzen™ processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 (PCIEX16) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX8) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When using the 3rd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ processors, the PCIEX16 slot operates at up to x8 mode. 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX16) Integrated in the Chipset (PCIEX4/PCIEX1): 1 x PCI Express x16 slot, supporting PCIe 4.0*/3.0 and running at x4 (PCIEX4) * For 3rd Generation AMD Ryzen™ processors only. 1 x PCI Express x1 slot, supporting PCIe 4.0*/3.0 * For 3rd Generation AMD Ryzen™ processors only.	Integrated in the CPU (PCIEX16/PCIEX8): · 3rd Generation AMD Ryzen™ processors: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x8 (PCIEX8) · 2nd Generation AMD Ryzen™ processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 (PCIEX16) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX8) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When using the 3rd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ processors, the PCIEX16 slot operates at up to x8 mode. · 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX16) Integrated in the Chipset (PCIEX4/PCIEX1): 1 x PCI Express x16 slot, supporting PCIe 4.0*/3.0 and running at x4 (PCIEX4) * For 3rd Generation AMD Ryzen™ processors only. 2 x PCI Express x1 slots, supporting PCIe 4.0*/3.0 * For 3rd Generation AMD Ryzen™ processors only.	Integrated in the CPU (PCIEX16/PCIEX8): · 3rd Generation AMD Ryzen™ processors: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x8 (PCIEX8) · 2nd Generation AMD Ryzen™ processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 (PCIEX16) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX8) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When using the 3rd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ processors, the PCIEX16 slot operates at up to x8 mode. · 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX16) Integrated in the Chipset (PCIEX4/PCIEX1): 1 x PCI Express x16 slot, supporting PCIe 4.0*/3.0 and running at x4 (PCIEX4) * For 3rd Generation AMD Ryzen™ processors only. 2 x PCI Express x1 slots, supporting PCIe 4.0*/3.0 * For 3rd Generation AMD Ryzen™ processors only.	3rd Generation AMD Ryzen™ processors: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x8 (PCIEX8) 2nd Generation AMD Ryzen™ processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 (PCIEX16) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX8) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When using the 3rd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ processors, the PCIEX16 slot operates at up to x8 mode. 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX16) Integrated in the Chipset (PCIEX4/PCIEX1): 1 x PCI Express x16 slot, supporting PCIe 4.0*/3.0 and running at x4 (PCIEX4) * For 3rd Generation AMD Ryzen™ processors only. 2 x PCI Express x1 slots, supporting PCIe 4.0*/3.0 * For 3rd Generation AMD Ryzen™ processors only.	Integrated in the CPU (PCIEX16/PCIEX8): 3rd Generation AMD Ryzen™ processors: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x8 (PCIEX8) 2nd Generation AMD Ryzen™ processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 (PCIEX16) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX8) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When using the 3rd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ processors, the PCIEX16 slot operates at up to x8 mode. 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX16) Integrated in the Chipset (PCIEX4): 1 x PCI Express x16 slot, supporting PCIe 4.0*/3.0 and running at x4 * For 3rd Generation AMD Ryzen™ processors only.	Integrated in the CPU (PCIEX16): · 3rd Generation AMD Ryzen™ processors: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 · 2nd Generation AMD Ryzen™ processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. · 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 Integrated in the Chipset (PCIEX4/PCIEX1) 1 x PCI Express x16 slot, supporting PCIe 4.0*/3.0 and running at x4 (PCIEX4) * For 3rd Generation AMD Ryzen™ processors only. 3 x PCI Express x1 slots, supporting PCIe 4.0*/3.0 * For 3rd Generation AMD Ryzen™ processors only.	Integrated in the CPU (PCIEX16): 3rd Generation AMD Ryzen™ processors: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) 2nd Generation AMD Ryzen™ processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 (PCIEX16) 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX16) Integrated in the Chipset: 1 x M.2 Socket 1 connector for the wireless communication module (M2_WIFI)	Integrated in the CPU (PCIEX16): · 3rd Generation AMD Ryzen™ processors: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 · 2nd Generation AMD Ryzen™ processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. · 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 Integrated in the Chipset (PCIEX4/PCIEX1) 2 x PCI Express x16 slots, supporting PCIe 4.0*/3.0 and running at x4 (PCIEX4) * For 3rd Generation AMD Ryzen™ processors only. 2 x PCI Express x1 slots, supporting PCIe 4.0*/3.0 * For 3rd Generation AMD Ryzen™ processors only.
Multi-Graphics Technology	Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies Note: For 3rd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ processors only.	Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies Note: For 3rd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ processors only.	Support for NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI™ technologies Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies For 3rd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ processors only.	Support for NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI™ technologies Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies Note: For 3rd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ processors only.	Support for NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI™ technologies Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies Note: For 3rd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ processors only.	Support for NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI™ technologies Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies For 3rd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ processors only.	Support for NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI™ technologies Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies For 3rd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ processors only.	Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies Note: For 3rd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ processors only.		Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies Note: For 3rd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ processors only.
Storage Interface	Integrated in the CPU (M2A_SOCKET): · 3rd Generation AMD Ryzen™ processors: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) · 2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) Integrated in the Chipset (M2B_SOCKET): 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0*/3.0 x4/x2 SSD support) * For 3rd Generation AMD Ryzen™ processors only. 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10	Integrated in the CPU (M2A_SOCKET): · 3rd Generation AMD Ryzen™ processors: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) · 2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) Integrated in the Chipset (M2B_SOCKET): 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0*/3.0 x4/x2 SSD support) * For 3rd Generation AMD Ryzen™ processors only. 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10	Integrated in the CPU (M2A_SOCKET): 3rd Generation AMD Ryzen™ processors: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) 2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) Integrated in the Chipset (M2B_SOCKET/M2C_SOCKET): 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0*/3.0 x4/x2 SSD support) (M2B_SOCKET) * For 3rd Generation AMD Ryzen™ processors only. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 4.0*/3.0 x4/x2 SSD support) (M2C_SOCKET) * For 3rd Generation AMD Ryzen™ processors only. 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10 * Refer to "1-9 Internal Connectors," for the installation notices for the M.2 and SATA connectors.	Integrated in the CPU (M2A_SOCKET): · 3rd Generation AMD Ryzen™ processors: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) · 2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) Integrated in the Chipset (M2B_SOCKET): 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0*/3.0 x4/x2 SSD support) * For 3rd Generation AMD Ryzen™ processors only. 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10	Integrated in the CPU (M2A_SOCKET): · 3rd Generation AMD Ryzen™ processors: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) · 2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) Integrated in the Chipset (M2B_SOCKET): 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0*/3.0 x4/x2 SSD support) * For 3rd Generation AMD Ryzen™ processors only. 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10	Integrated in the CPU (M2A_SOCKET): 3rd Generation AMD Ryzen™ processors: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) 2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) Integrated in the Chipset (M2B_SOCKET/M2C_SOCKET): 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0*/3.0 x4/x2 SSD support) (M2B_SOCKET) * For 3rd Generation AMD Ryzen™ processors only. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 4.0*/3.0 x2 SSD support) (M2C_SOCKET) * For 3rd Generation AMD Ryzen™ processors only. 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10 * Refer to "1-8 Internal Connectors," for the installation notices for the M.2 and SATA connectors.	Integrated in the CPU (M2A_SOCKET): 3rd Generation AMD Ryzen™ processors: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) 2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) Integrated in the Chipset (M2B_SOCKET/M2C_SOCKET): 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0*/3.0 x4/x2 SSD support) (M2B_SOCKET) * For 3rd Generation AMD Ryzen™ processors only. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0*/3.0 x4/x2 SSD support) (M2C_SOCKET) * For 3rd Generation AMD Ryzen™ processors only. 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10 * Refer to "1-9 Internal Connectors," for the installation notices for the M.2 and SATA connectors.	Integrated in the CPU (M2A_SOCKET): · 3rd Generation AMD Ryzen™ processors: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) · 2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) Integrated in the Chipset (M2B_SOCKET): 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0*/3.0 x4/x2 SSD support) * For 3rd Generation AMD Ryzen™ processors only. 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10	Integrated in the CPU (M2A_SOCKET): 3rd Generation AMD Ryzen™ processors: 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 4.0 x4/x2 SSD support) 2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/x2 SSD support) Integrated in the Chipset (M2B_SOCKET): 1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2260/2280 SATA and PCIe* x4/x2 SSD support) * For 3rd Generation AMD Ryzen™ processors only. 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10	Integrated in the CPU: · 3rd Generation AMD Ryzen™ processors: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) · 2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) Integrated in the Chipset: 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10
USB	Integrated in the CPU: 4 x USB 3.2 Gen 1 ports on the back panel Chipset: 1 x USB Type-C™ port with USB 3.2 Gen 2 support, available through the internal USB header 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 4 x USB 3.2 Gen 1 ports available through the internal USB headers Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)	Integrated in the CPU: 4 x USB 3.2 Gen 1 ports on the back panel Chipset: 1 x USB Type-C™ port with USB 3.2 Gen 2 support, available through the internal USB header 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 4 x USB 3.2 Gen 1 ports available through the internal USB headers Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)	Integrated in the CPU: 2 x USB 3.2 Gen 2*/Gen 1 Type-A ports (red) on the back panel * For 3rd Generation AMD Ryzen™ processors only. 2 x USB 3.2 Gen 1 ports on the back panel Integrated in the Chipset: 1 x USB Type-C™ port with USB 3.2 Gen 2 support, available through the internal USB header 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 4 x USB 3.2 Gen 1 ports available through the internal USB headers Chipset+USB 2.0 Hub: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)	Integrated in the CPU: 3 x USB 3.2 Gen 1 ports on the back panel 1 x USB 3.2 Gen 2*/Gen 1 Type-A port (red) on the back panel * For 3rd Generation AMD Ryzen™ processors only. Chipset: 1 x USB Type-C™ port with USB 3.2 Gen 2 support, available through the internal USB header 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 4 x USB 3.2 Gen 1 ports available through the internal USB headers Chipset+USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)	Integrated in the CPU: 3 x USB 3.2 Gen 1 ports on the back panel 1 x USB 3.2 Gen 2*/Gen 1 Type-A port (red) on the back panel * For 3rd Generation AMD Ryzen™ processors only. Chipset: 1 x USB Type-C™ port with USB 3.2 Gen 2 support, available through the internal USB header 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 4 x USB 3.2 Gen 1 ports available through the internal USB headers Chipset+USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)	Integrated in the CPU: 3 x USB 3.2 Gen 1 ports on the back panel 1 x USB 3.2 Gen 2*/Gen 1 Type-A port (red) on the back panel * For 3rd Generation AMD Ryzen™ processors only. Chipset: 1 x USB Type-C™ port with USB 3.2 Gen 2 support, available through the internal USB header 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 4 x USB 3.2 Gen 1 ports available through the internal USB headers Chipset+USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)	Integrated in the CPU: 2 x USB 3.2 Gen 2*/Gen 1 Type-A ports (red) on the back panel * For 3rd Generation AMD Ryzen™ processors only. 2 x USB 3.2 Gen 1 ports on the back panel Integrated in the Chipset: 1 x USB Type-C™ port with USB 3.2 Gen 2 support, available through the internal USB header 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support 3 x USB 3.2 Gen 2 Type-A port (red) on the back panel 2 x USB 3.2 Gen 1 ports available through the internal USB header Chipset+USB 3.2 Gen 1 Hub: 2 x USB 3.2 Gen 1 ports available through the internal USB header 2 x USB 2.0/1.1 ports available through the internal USB header Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports on the back panel	Integrated in the CPU: 4 x USB 3.2 Gen 1 ports on the back panel Chipset: 4 x USB 3.2 Gen 1 ports available through the internal USB headers 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)	Integrated in the CPU: 4 x USB 3.2 Gen 1 ports on the back panel Integrated in the Chipset: 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 2 x USB 3.2 Gen 1 ports available through the internal USB header 2 x USB 2.0/1.1 ports available through the internal USB header	Integrated in the CPU: 4 x USB 3.2 Gen 1 ports on the back panel Chipset: 4 x USB 3.2 Gen 1 ports available through the internal USB headers 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Interne I/O Anschlüsse	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 2 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 2 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C™ port, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper 1 x Q-Flash Plus button	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 2 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 2 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C™ port, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper 1 x Q-Flash Plus button	1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 2 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 3 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C™ port, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x noise detection header 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 2 x temperature sensor headers 1 x power button 1 x reset button 2 x BIOS switches 1 x Clear CMOS jumper Voltage Measurement Points	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 2 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 2 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C™ port, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper 2 x temperature sensor headers 1 x Q-Flash Plus button	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 2 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 2 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C™ port, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper 2 x temperature sensor headers 1 x Q-Flash Plus button	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 2 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 3 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C™ port, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper 2 x temperature sensor headers 1 x Q-Flash Plus button	1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x OC PEG power connector 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 2 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 3 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C™ port, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 1 headers 1 x USB 2.0/1.1 header 1 x noise detection header 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 2 x temperature sensor headers 1 x power button 1 x reset button 2 x BIOS switches Voltage Measurement Points	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 2 x system fan headers 1 x CPU cooler LED strip/RGB LED strip header 2 x addressable LED strip headers 2 x RGB LED strip headers 6 x SATA 6Gb/s connectors 2 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper 1 x Q-Flash Plus button	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x addressable LED strip header 1 x RGB LED strip header 4 x SATA 6Gb/s connectors 2 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x speaker header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 2 x system fan headers 1 x RGB LED strip header 6 x SATA 6Gb/s connectors 1 x M.2 Socket 3 connector 1 x front panel header 1 x front panel audio header 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper
Rückseite I/O Panel	4 x USB 2.0/1.1 ports 1 x HDMI port 4 x USB 3.2 Gen 1 ports 2 x USB 3.2 Gen 2 Type-A ports (red) 1 x RJ-45 port 1 x optical S/PDIF Out connector 5 x audio jacks	4 x USB 2.0/1.1 ports 2 x SMA antenna connectors (1T1R) 1 x HDMI port 4 x USB 3.2 Gen 1 ports 2 x USB 3.2 Gen 2 Type-A ports (red) 1 x RJ-45 port 1 x optical S/PDIF Out connector 5 x audio jacks	1 x Q-Flash Plus button 1 x Clear CMOS button 2 x SMA antenna connectors (2T2R) 1 x USB Type-C™ port, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 2*/Gen 1 Type-A ports (red) * For 3rd Generation AMD Ryzen™ processors only. 1 x USB 3.2 Gen 2 Type-A port (red) 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 2 x RJ-45 ports 1 x optical S/PDIF Out connector 5 x audio jacks	1 x HDMI port 1 x USB Type-C™ port, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2*/Gen 1 Type-A port (red) * For 3rd Generation AMD Ryzen™ processors only. 1 x USB 3.2 Gen 2 Type-A port (red) 3 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 1 x optical S/PDIF Out connector 5 x audio jacks	2 x SMA antenna connectors (2T2R) 1 x HDMI port 1 x USB Type-C™ port, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2*/Gen 1 Type-A port (red) * For 3rd Generation AMD Ryzen™ processors only. 1 x USB 3.2 Gen 2 Type-A port (red) 3 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 1 x optical S/PDIF Out connector 5 x audio jacks	2 x SMA antenna connectors (2T2R) 1 x HDMI port 1 x USB Type-C™ port, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2*/Gen 1 Type-A port (red) * For 3rd Generation AMD Ryzen™ processors only. 1 x USB 3.2 Gen 2 Type-A port (red) 3 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 1 x optical S/PDIF Out connector 5 x audio jacks	1 x Q-Flash Plus button 1 x Clear CMOS button 2 x SMA antenna connectors (2T2R) 1 x USB Type-C™ port, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 2*/Gen 1 Type-A ports (red) * For 3rd Generation AMD Ryzen™ processors only. 3 x USB 3.2 Gen 2 Type-A ports (red) 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 2 x RJ-45 ports 1 x optical S/PDIF Out connector 5 x audio jacks	1 x PS/2 keyboard port 1 x PS/2 mouse port 1 x HDMI port 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks	1 x DisplayPort 2 x HDMI ports 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 3.2 Gen 1 ports 1 x USB Type-C™ port, with USB 3.2 Gen 2 support 1 x Q-Flash Plus button 1 x RJ-45 port 2 x SMA antenna connectors (2T2R) 3 x audio jacks	1 x PS/2 keyboard/mouse port 1 x HDMI port 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x Q-Flash Plus button 1 x RJ-45 port 3 x audio jacks
H/W Überwachung	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Overheating warning Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the fan you install.	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Overheating warning Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the fan you install.	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Overheating warning Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. Noise detection	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Overheating warning Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Overheating warning Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Overheating warning Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Overheating warning Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. Noise detection	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Overheating warning Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.	Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install.	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Overheating warning Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the fan you install.
BIOS	1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0	1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0	2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0	2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0	2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0	2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0	2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0	1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0	1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0	1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Sonstiges	Support for APP Center Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install	Support for APP Center Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install	Support for APP Center Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install	Support for APP Center Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install	Support for APP Center Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install	Support for APP Center Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install	Support for APP Center Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install	Support for APP Center Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install	Support for APP Center Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install	Support for APP Center Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install
User	blackbandt, derFireBird, Frankie36, kami1205, Machete, MrDanielVie, Talliostro, WombatMS		Child, Cyberbernd, Daniel N, DonGeilo, GuruSMI, Nightmare86, scrush	Alex2710, Daniel N, DerBayer89, Grainger, HSW, iTzMineCore, KopfWand, Marcool, Sepuko,		buyman, InkognitoGER, oNyX`, tStorm	Rabauke81		SeelBreaker
Testberichte	hothardware.com: Gigabyte Aorus X570 Motherboard And PCIe 4.0 SSD Preview: Ready To Rock Ryzen 3000	hothardware.com: Gigabyte Aorus X570 Motherboard And PCIe 4.0 SSD Preview: Ready To Rock Ryzen 3000	HW-LUXX: Gigabyte übertaktet den Ryzen 9 3950X auf 4,4 GHz und gibt Ausblick auf die Leistung hothardware.com: Gigabyte Aorus X570 Motherboard And PCIe 4.0 SSD Preview: Ready To Rock Ryzen 3000 gamezoom.net: Gigabyte X570 Aorus Master - Test/Review kitguru.net: Gigabyte X570 Aorus Master Motherboard Review guru3d.com: X570 Aorus Master motherboard tweaktown.com: GIGABYTE X570 Aorus Master (AMD X570) Motherboard Review bit-tech.net: Gigabyte X570 Aorus Master Review thinkcomputers.org: Gigabyte X570 AORUS Master Motherboard Review overclock3d.net: Gigabyte X570 Aorus Master Review	hothardware.com: Gigabyte Aorus X570 Motherboard And PCIe 4.0 SSD Preview: Ready To Rock Ryzen 3000 overclock3d.net: Gigabyte X570 Aorus Pro Review eteknix.com: Gigabyte X570 AORUS Pro Motherboard Review	hothardware.com: Gigabyte Aorus X570 Motherboard And PCIe 4.0 SSD Preview: Ready To Rock Ryzen 3000 overclockers.com: GIGABYTE X570 AORUS PRO WiFi Review proclockers.com: Gigabyte X570 AORUS Pro WIFI Motherboard Review	hothardware.com: Gigabyte Aorus X570 Motherboard And PCIe 4.0 SSD Preview: Ready To Rock Ryzen 3000	hothardware.com: Gigabyte Aorus X570 Motherboard And PCIe 4.0 SSD Preview: Ready To Rock Ryzen 3000 anandtech.com: The GIGABYTE X570 Aorus Xtreme Motherboard Review: Fanless AM4 hexus.net: Review: X570 Aorus Xtreme Motherboard tweaktown.com: GIGABYTE X570 Aorus Xtreme (AMD X570) Motherboard Review	hothardware.com: Gigabyte Aorus X570 Motherboard And PCIe 4.0 SSD Preview: Ready To Rock Ryzen 3000	HW Luxx: PCIe 4.0 im Kleinstformat: Gigabyte X570 I AORUS Pro WiFi im Test hothardware.com: Gigabyte Aorus X570 Motherboard And PCIe 4.0 SSD Preview: Ready To Rock Ryzen 3000 overclock3d.net: Gigabyte X570i ITX Aorus Pro WiFi Review bit-tech.net: Gigabyte X570 I Aorus Pro WiFi Review	hothardware.com: Gigabyte Aorus X570 Motherboard And PCIe 4.0 SSD Preview: Ready To Rock Ryzen 3000

Die aktuellen BIOS Versionen findet man entweder auf der jeweiligen Modellseite von Gigabyte oder in der Ultimativen AM4 UEFI/BIOS/AGESA Übersicht (15.11.19).

Ich hoffe auf rege Beteiligung. Es handelt sich um einen dynamischen Informationsprozess, der diesem Eingangspost auch erweitern soll. Deshalb bitte ich um Information, wenn bestimmte Informationen bereits in diesem Eingangspost erscheinen sollen.

FAQ:
1. BIOS Nomenklatur: Bei Gigabyte kann man anhand der Versionsnummer direkt erkennen, ob es sich um ein Release oder um eine Testversion handelt. Bei letzterer endet die Versionsnummer mit einem Buchstaben. (oNyX`)

2. meine NVMe PCIe 3.0 SSD geht nicht
Das Problem läßt sich im Allgemeinen dadurch beheben, daß man dem Board explizit mitteilt, daß es PCIe 3.0 zu verwenden hat. Der Eintrag nennt sich "PCI Slot Configuration) und kann manuell auf Gen1 bis Gen4 sowie Auto gestellt werden. Bitte beachtet, daß die Systemweit gilt und so z.B. auch eine 5700 unter dem eingestellten Wert läuft.

3. Meine PCIe x1 Karte geht nicht
Das ist momentan noch ein Bug im BIOS. Vereinzelt kann es auch zu Bootproblemen führen. Momentan ist der einzige Workaround, die Karte zu entfernen

4. PBO funktioniert nicht
Auch dies ist ein Bug um BIOS. Er tritt seit BIOS F10A/AGESA 1.0.0.4 auf. Das BIOS liest hierbei die Boardwerte für EDC nicht aus und deaktiviert daraufhin den PBO-Boost. Man kann dies momentan umgehen, indem man den EDC-Wert explizit auf 0 setzt. Bei den AMD-Performance -> PBO Einstelllungen muß eine EDC von Null eingetragen werden.

5. Ich habe ein CMOS Clear durchgeführt, aber es werden weiterhin die alten Settings verwendet.
Bei einem CMOS Clear sollten eigentlich alle Einstellungen auf Default zurückgesetzt werden. Das passiert auch fast komplett. Jedoch bleiben die Einstellungen im AMD-Overclocking Menübereich komplett erhalten und werden nach Start des Systems auch verwendet. Man muß dort die Werte händisch löschen!

6. Seriennummer-Nomenklatur:
Man kann anhand der Seriennummer das Produktionsdatum des Boards ermitteln. Lautet die Seriennummer am Beginn z.B. SN1928xxxxxxxx besagen die Stellen 3&4 (19) das Produktionsjahr, die Stellen 5&6 hingegen die Produktionswoche. Das Board mit obiger Seriennummer wurde alsoo in der Woche 28 des Jahres 2019 produziert.

Ich bitte dabei zu berücksichtigen, daß in Deutschland die erste Kalenderwoche unterschiedlich zu den USA ermittelt wird.

7. Wem das Sägen des CPU-Kühlers auf den Nerv geht, kann diesen an die Leine nehmen. Bei oNyX` zeigten sich folgende Werte als besonders hilfreich
1. 27% default
2. 30% 60c
3. 50% 70c
4. 75% 75c
5. 100% 80c
Diese Werte können direkt im Bios oder via SIV eingetragen werden.

8. Ich möchte hier darauf hinweisen, daß das Schreiben von Werten im Ryzen Master mit größter Vorsicht zu genießen ist. Es werden z.B. bei RAM-Werten Dinge direkt in den AGESA Bereich geschrieben, der für Mainboardhersteller gesperrt ist. Es kann und kam dabei dazu kommen, daß das Board nicht mehr lauffähig ist. Hat man bereits Werte geschrieben, kann man mit der Prozedur:
- BIOS inkl. Agesa neu flashen
- BIOS Hardware-Reset
das Board wieder in einen lauffähigen Zustand versetzen. Dies ist aber nicht garantiert. Auf OCN musstem mehrere Nutzer ihr Board trotz der Prozedur zurücksenden. Diese Warnung betrifft mWn ALLE X570 Boards.

9. AMD hat für hwInfo festgelegt, daß das Interwall zum Auslesen der Werte alle 500ms erfolgen soll. Standardmäßig sind hier 2 Sekunden parametrisiert. Ich bitte dies bei Benchmarks etc. zu berücksichtigen

10. Sollte das BIOS bei der Nutzung von Tastatur und/oder Maus ruckeln, kann man im BIOS mit dem Tastaturkürzel "Strg-Alt-F6 " die Auflösung bis zum nächsten Reboot auf den VGA Modus limitieren. Dies sollte den Eingabe-Lag beheben.

Hilfreiche Links:
1. Neben dem Einstieg über die Gigabyteseite kann man den Downloadbereich auch via Aorus.com erreichen.
2. ein weiterer guter Anlaufpunkt für die neueste Beta ist TweakTon's Forum GIGABYTE Latest Beta BIOS
3. Wer ein X570 Master besitzt und seinen Ryzen 3000 übertakten will, findet im Gigabyte X570 AORUS Master Overclocking Thread eine umfangreiche Anleitung
4. Eine weitere Anleitung zum Übertakten der Ryzen 3000 auf einem Gigabyte Board findet Ihr im GIGABYTE AMD X570 Ryzen Overclocking Guide

Danksagung:
Einen großen Dank an oNyX` und Dan Hot für die wertvollen Hints und Tips

--- History ---
2019 11 16 | GuruSMI | Initiale Version
2019 11 30 | GuruSMI | Anpassung wegen Kompatibilitätserweiterung (Ryzen 2000G)
2020 01 09 | GuruSMI | Einfügen hilfreicher Links, Aktualisierung der FAQ
2020 01 22 | GuruSMI | Änderung des Threadtitels
2020 01 22 | Emissary42 | Verschieben des Threads in das Unterforum "Mainboard-Sammelthreads"
2020 08 27 | GuruSMI | Erweiterung der FAQ



[The Professor]

Hab den Adapter unter Damit verlinkt. Bevor du es wegwirfst, ich nehme es.

Mainboard ist ganz frisch aus der RMA noch mit Folie etc, bringt mir nur nichts, weil das Kabel halt nicht dabei ist. Na mal schauen, was Gigabyte mir dazu erzählt.



[Seadersn]

Moin moin,

gibt es hier Leute mit nem X570 Arous Xtreme? Hab eines vom Kumpel günstig bekommen, nur leider komplett ohne Zubehör. Und merke nun das Gigabyte, da wieder nen eigenes Würstchen wegen den Front Panel Anschlüssen gedreht hat. Da es da ja ein spezielles Adapter Kabel gibt, um Power, Reset und sowas an zuschließen, geht das auch ohne das Kabel oder muss ich hoffe, dass Gigabyte mir eines zusenden kann?

weiss jetzt nicht, wie das auf dem extreme aussieht, aber ich habe auf meinem master die reset / power und led's direkt auf die anschlüsse gesetzt ohne dieses adapter ding. sollte das das selbe sein, kannst du meinen adapter gerne haben.
anm.: meine stecker für power etc sind alle einzeln, sprich keine zwei kabel in einem stecker, sondern für jedes kabel einen stecker. funktioniert wunderbar, warum auch nicht.



[The Professor]

Kannst du mal ein Bild davon mache? Oder den Stecker Fotografieren?



[GuruSMI]

Ich hab an meinem Master wie auch am Asus C7H den Adapter verwendet. Ist halt einfacher auf's Board zu stecken.



[Seadersn]

Kannst du mal ein Bild davon mache? Oder den Stecker Fotografieren?

jap, beides am mo. oder morgen abend vllt. schon, sind noch im urlaub



[The Professor]

Ich glaube wir reden von verschiedenen Adaptern, das zum daraufstecken kenne ich von früher.
Diesen Adapter meine ich



[GuruSMI]

Das sind definitiv unterschiedliche Adapter.



[The Professor]

Ich hoffe, dass Gigabyte sowas anbietet, sonst ist das Board wirklich nutzlos -.-
Der Vorbesitzer hatte es halt aufm Benchtable, dann RMA und der Adapter war vorher schon weg, hatte er nie gebraucht. Karton da aber kein Adapter



[Seadersn]

Ich glaube wir reden von verschiedenen Adaptern, das zum daraufstecken kenne ich von früher.
Diesen Adapter meine ich

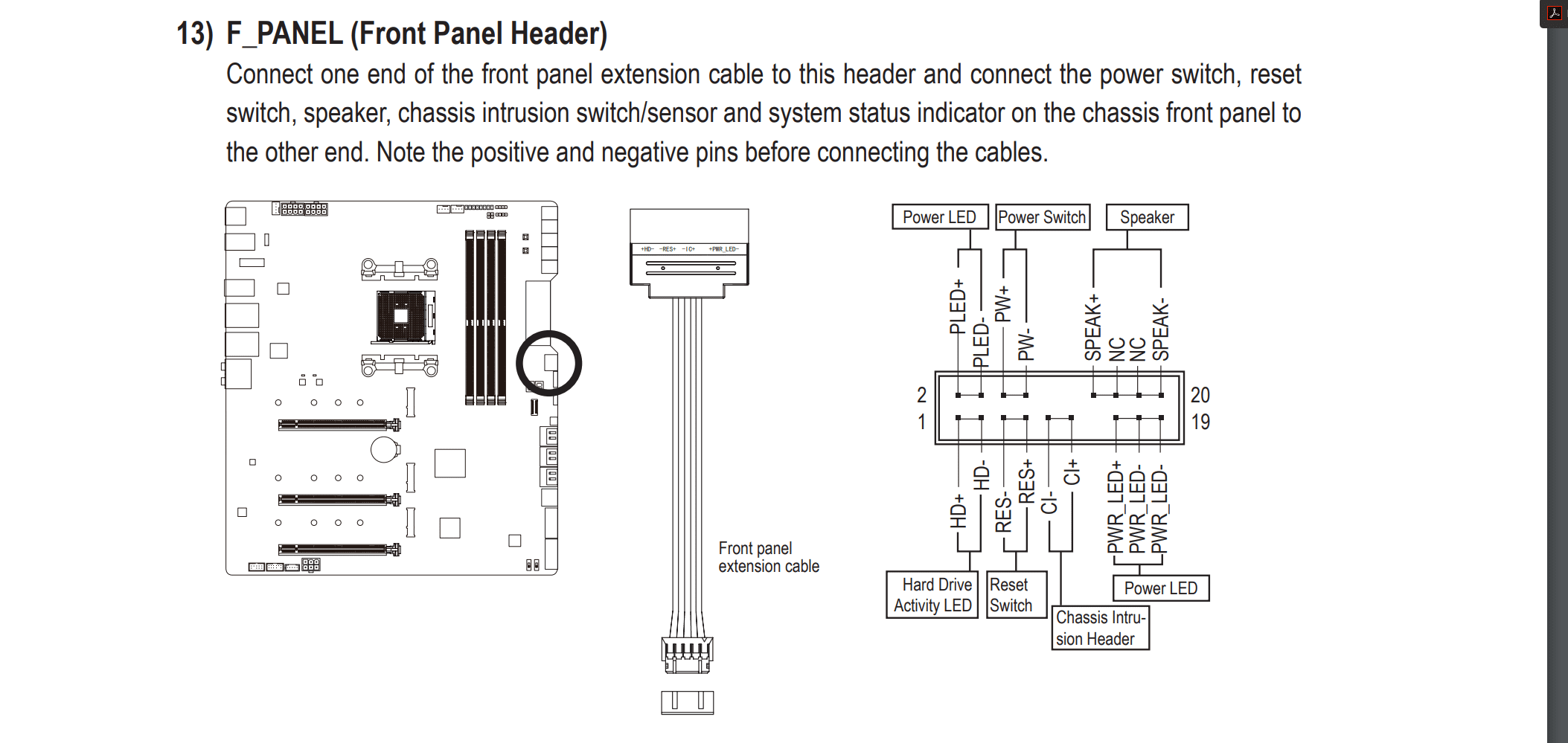

Anhang anzeigen 524908

allerdings: zumindest was dieses kabel betrifft. der adapter stecker ansich müsste aber auch bei dir passen, die belegung ist ja die selbe. hmm, momentchen, das untere schmalere ende dieses adapterkabels landet im board und am breiteren ende werden die gehäuse stecker angepopelt?

schick doch mal pic von deinen front panel anschlüssen, die dort drauf müssen. ist das dann ein kabelstrang, der in dem unteren ende des adapterkabels sitzt? die dinger kenn ich nichtmal, ist wohl nur bei hochwertigen gehäusen verbaut



[The Professor]

allerdings: zumindest was dieses kabel betrifft. der adapter stecker ansich müsste aber auch bei dir passen, die belegung ist ja die selbe.

schick doch mal pic von deinen front panel anschlüssen, die dirt deauf müssen. ist das dann ein kabelstrang, der in dem unteren ende des adapterkabels sitzt? die dinger kenn ich nichtmal, ist wohl nur bei hochwertigen gehäusen verbaut

Hab nen Fractal R6, alles so einzelne PIN Stecker, vielleicht passt das, aber wie eine Seite vorher schon gesagt wurde, sind die PINs etwas dicht beieinander. Ich warte mal auf nächste Woche, schauen, was Gigabyte sagt und dann sehe ich weiter, ob ich was basteln muss, es passt, oder das Board direkt wieder weg kommt.



[Seadersn]

kleiner edit im post über dir. ich kenn diese variante glaub ich echt ned. und mit schreienden kindern im auto krieg ich auch keine saubere antwort hin atm, sry



[The Professor]

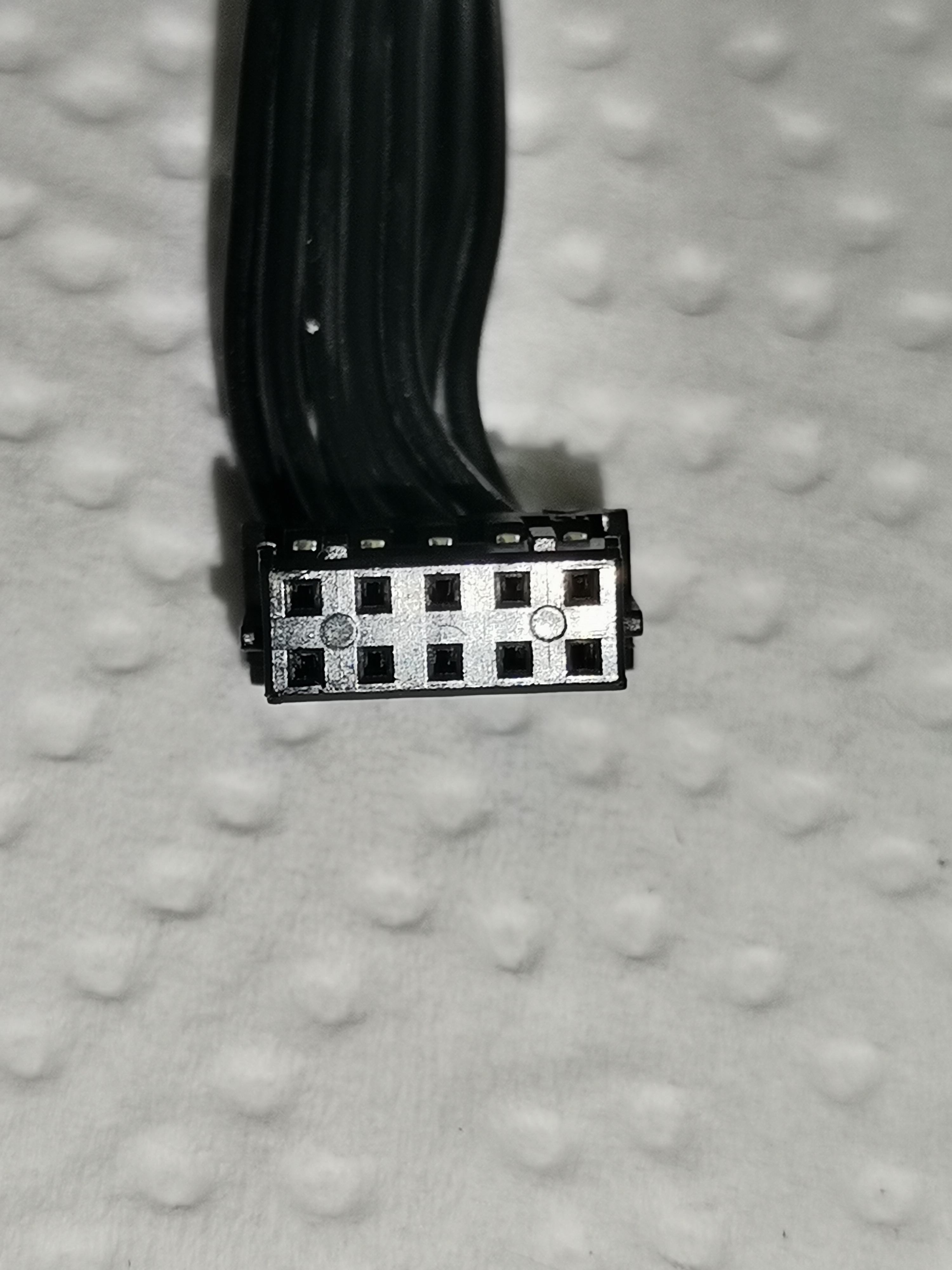

Die Stecker vom Gehäuse passen definitiv nicht. Hab eben genau nachgeschaut ( Stecker abgezogen ) die Pins sind viel kleiner und dichter zusammen. Foto hab ich leider keins gemacht, aber hast ja selber das Board.

Na dann bleibt mir nur zu hoffen, dass Gigabyte das so vertreibt.



[Rabauke81]

Ich drück die Daumen, gib dann bitte Rückmeldung.



[Child]

... oder rausfinden was für ne Steckverbindung Gigabyte da benutzt und selber nen Adapter basteln. Wär ja schade um das Board ...



[The Professor]

... oder rausfinden was für ne Steckverbindung Gigabyte da benutzt und selber nen Adapter basteln. Wär ja schade um das Board ...

Ich würde sagen, das ist nur ne Art Verlängerung, weil sind ja 10 Pins, auf meinem ASUS X570 C8H sinds nur 9 Pins für den Frontpanel.



[Child]

Ja - ich weiß genau was das ist. Muss ich meinen ersten Post nochmal langsamer tippen?



[The Professor]

Ich hab schon nach allen möglichen "Begriffen" gegoogelt, also ebay und Aliexpress gibt nichts her. Außer das Ding hat nen ganz besonderen Namen.
Nen Gigabyte Ersatzteile Shops gibts ja auch nicht, muss man also auf Kulanz von Gigabyte hoffen, ASUS zb bietet überhaupt kein Ersatz an, hatte mal die Waküdeckel für ne Formula gesucht, ASUS konnte nicht helfen.



[Seadersn]

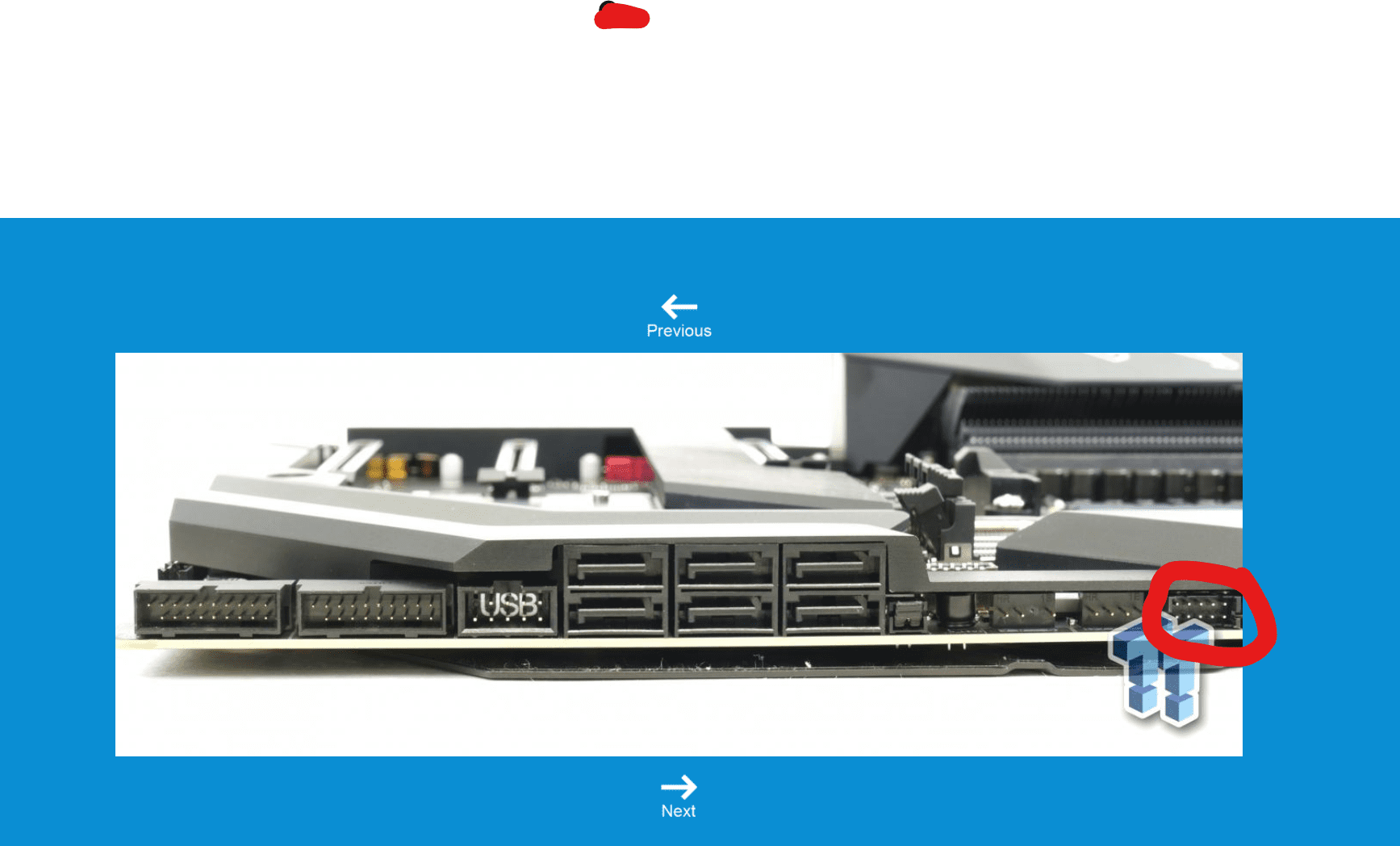

man findet auch nirgendwo ein detailbild dieser mainboard-aufnahme, kannst pls mal eins machen?



[The Professor]

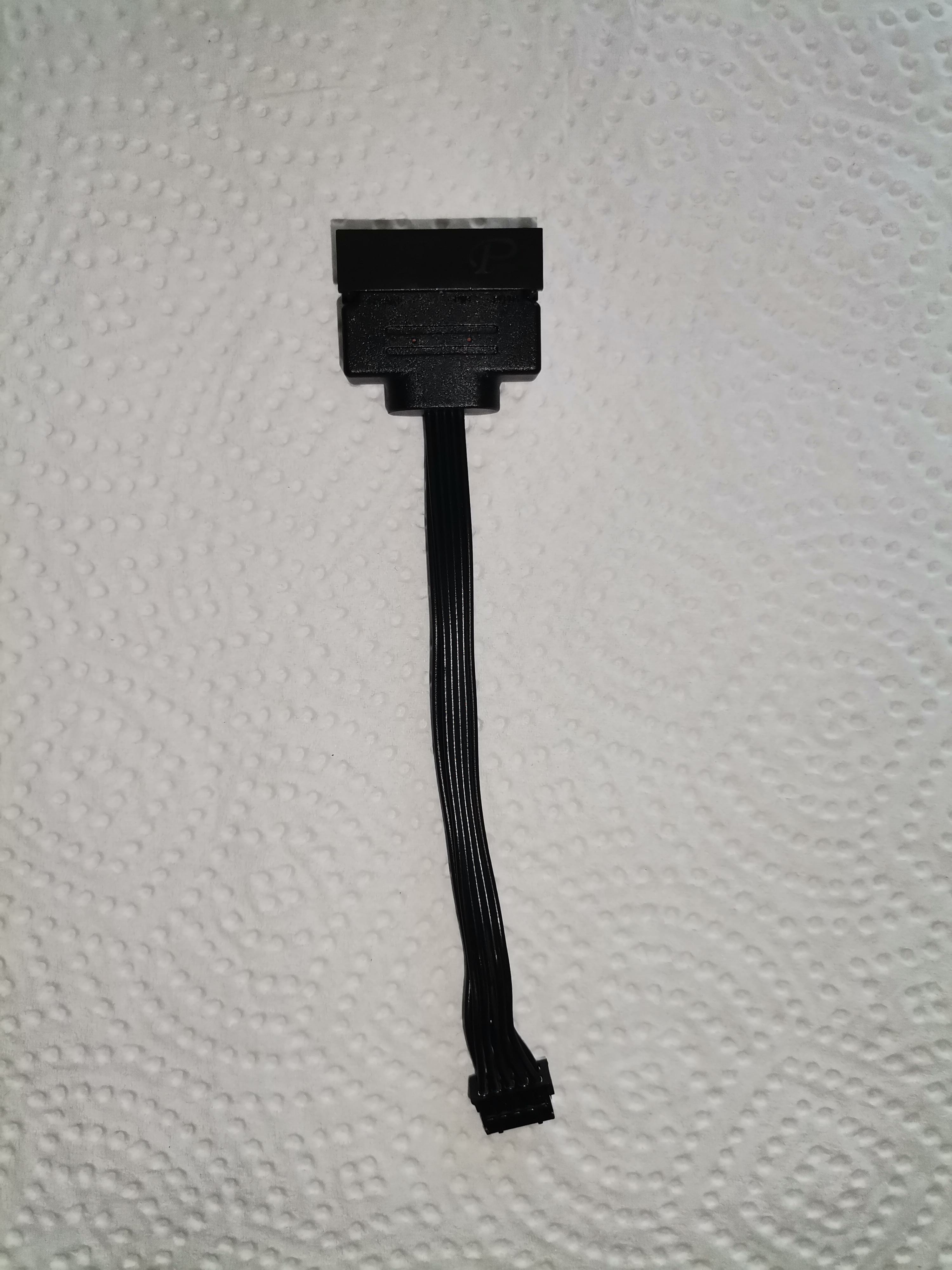

Da ich unterwegs bin, gibts nur dieses Bild



[Seadersn]

na, das sollte doch aber ohne probleme hinzubekommen sein. zumindest von der größe her, aber was die belegung betrifft tappt man im dunkeln? oder lässt die sich durch das adapterkabel ableiten? das könnte ja jmd für dich erledigen. echt'ne blöde postition für den anschluss...



[coolhead]

Wer hat bei Win7 das Problem mit usb power(shutdown) gelöst? ...Elite



[Rabauke81]

Ich bau den Adapter heute mal aus und messe die Kabel durch. Wenn die Frontpanel-Stecker einzeln sind geht das. Hatte ihn zwar schon raus hab dann aber auf den falschen Anschluss geschaut. Fotos mache ich dann auch.



[The Professor]

Ich bau den Adapter heute mal aus und messe die Kabel durch. Wenn die Frontpanel-Stecker einzeln sind geht das. Hatte ihn zwar schon raus hab dann aber auf den falschen Anschluss geschaut. Fotos mache ich dann auch.

Sehr cool, würde erwarten, dass das ne 1:1 Durchleitung ist.



[Rabauke81]

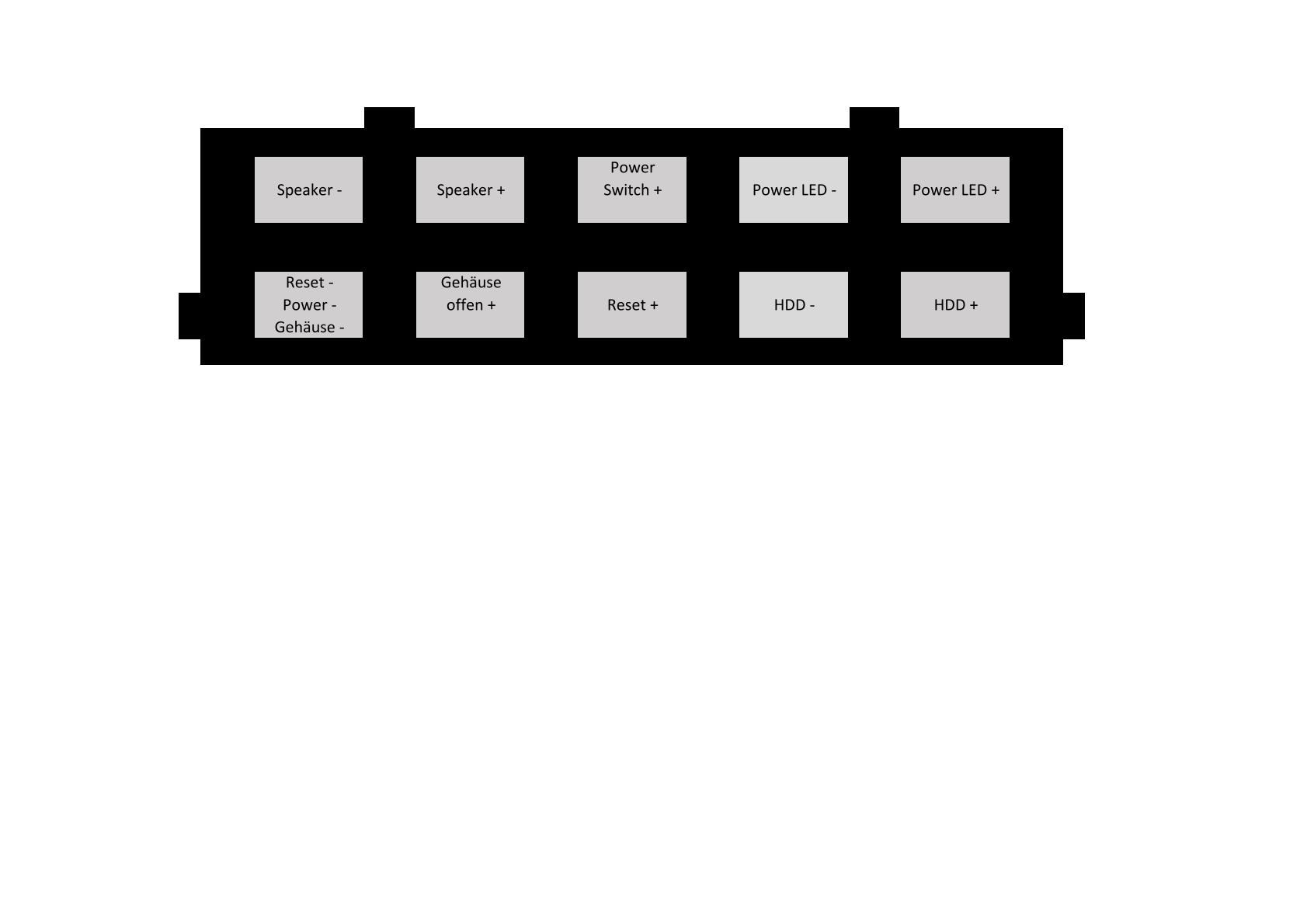

Es handelt sich fast um eine 1:1 Durchschleifung. 2 Anschlüsse fehlen völlig und 3 wurden auf einen Pin zusammengelegt aber seht selbst.



[The Professor]

Es handelt sich fast um eine 1:1 Durchschleifung. 2 Anschlüsse fehlen völlig und 3 wurden auf einen Pin zusammengelegt aber seht selbst.

Sehr cool, heißt wenn Gigabyte dumm macht, könnte man sich sowas ggf auch selbst "bastlen" bsw ein anderes Kabel, was passen könnte dafür opfern.



[Rabauke81]

Sehr cool, heißt wenn Gigabyte dumm macht, könnte man sich sowas ggf auch selbst "bastlen" bsw ein anderes Kabel, was passen könnte dafür opfern.

Ja sofern die Kabel einen einzelnen Stecker haben könnte das so passen, blöd halt das die 3x Minus auf einen Pin gelegt haben. Das ist dann die größte Bastelei.

Edit sagt: Den Pin aus dem Stecker ziehen und Schrumpfschlauch drüber, da die Pins auf dem Board etwas enger zusammen stehen. Das ist die Firma die den Adapter baut.



[GuruSMI]

Aber auch nur auf einer Seite. Der der Einzelkabel. Und auch dort hat man nur zwei Kabel an einem Pin. Haben ja alle zu jedem Zeitpunkt das gleiche Potential.



[Rabauke81]

Aber auch nur auf einer Seite. Der der Einzelkabel. Und auch dort hat man nur zwei Kabel an einem Pin. Haben ja alle zu jedem Zeitpunkt das gleiche Potential.

Ja das sollte reichen.



[GuruSMI]

Die haben einen gemeinsamen Massepunkt. Zuderm ist die Optik an diesem Ende des Adapters egal, denn das ist eigentlich versteckt.



[The Professor]

Ich sehe schon selbst machen, könnte gefrickel werden
