[Kaufberatung] Neuer PC, eure Hilfe ist gefragt
- Ersteller rodeoric
- Erstellt am
der verbrauch steigt natürlich an, allerdings kommt es dabei auch auf die spannung an.
10-20% mehr vielleicht...
10-20% mehr vielleicht...
Ich würd mir bei den Haswells lieber Gedanken über die Kühlung machen ... lass mal die neueste LinX-Version mit AVX2 laufen und achte staunend auf die Temperaturen *G*
Hab nen Link hier gefunden:
https://mega.co.nz/#!MFhX2IxI!VKJ0UBRa4XfwCuU1FO6VL2p-s9xXzS9xnOBtYhtIqPU
(Ohne Gewähr)
Und welches Board hast Du nun genommen? Den 4770K kann man eigentlich nur mit Z-Mainboards übertakten, aber letztens kamen ein paar BIOS-Versionen raus, die es auch auf anderen Boards ermöglichen, aber das ist etwas inoffiziell ... naja, kannst DU ja auch noch testen ^^
Hab nen Link hier gefunden:
https://mega.co.nz/#!MFhX2IxI!VKJ0UBRa4XfwCuU1FO6VL2p-s9xXzS9xnOBtYhtIqPU
(Ohne Gewähr)
Und welches Board hast Du nun genommen? Den 4770K kann man eigentlich nur mit Z-Mainboards übertakten, aber letztens kamen ein paar BIOS-Versionen raus, die es auch auf anderen Boards ermöglichen, aber das ist etwas inoffiziell ... naja, kannst DU ja auch noch testen ^^
Das wären - falls das OC des Xeon geht - nur 300-500 MHz mehr, für mich keine "Welten", die den Aufpreis rechtferigen würden. Wenn Du die Kohle hast kannst Du Dir gerne den K-kaufen.
Zuletzt bearbeitet:
Sodele,
hier mal die bisherigen Benchmarks.
SSD Versuch Nr. 1 - Seltsam 200 Points mehr als jetzt :/
SSD Aktuell
CPU-Z
Hier der Leistungsindex

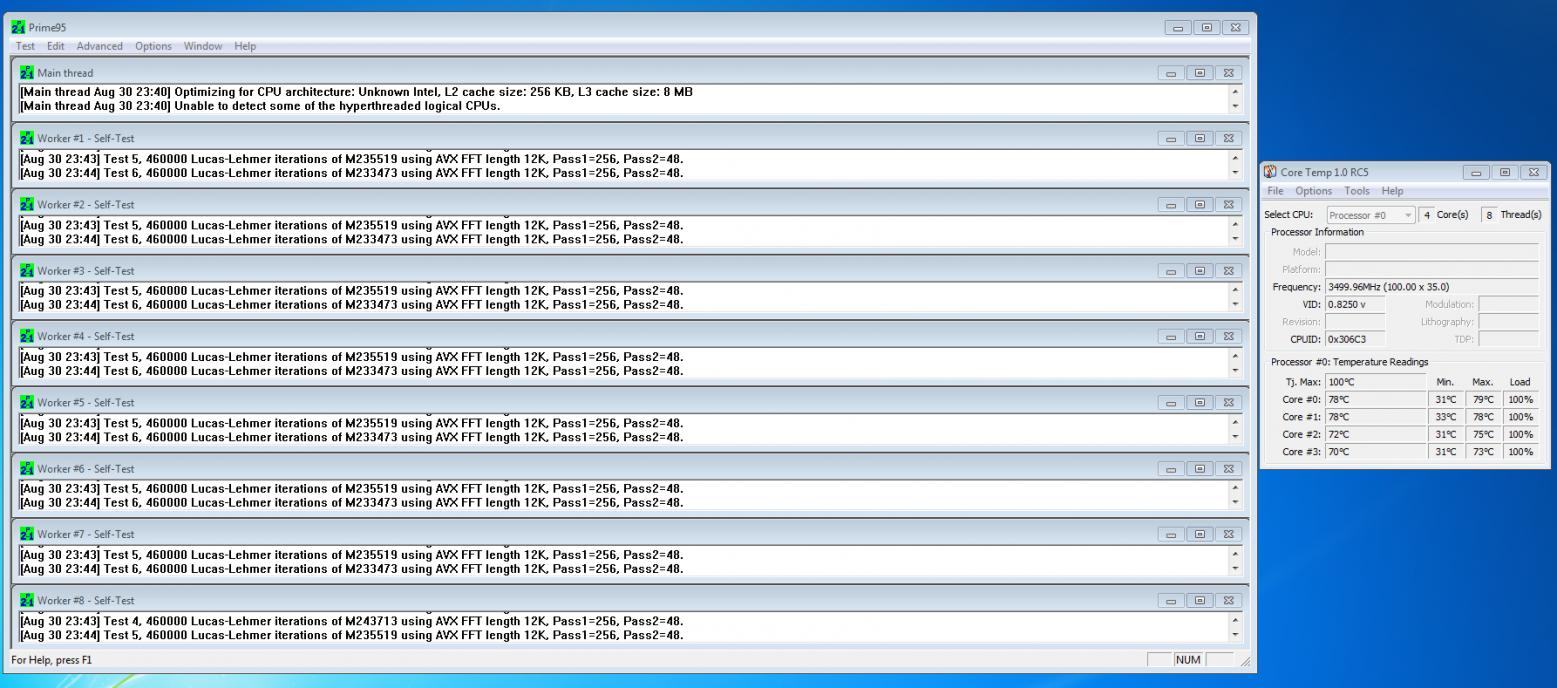

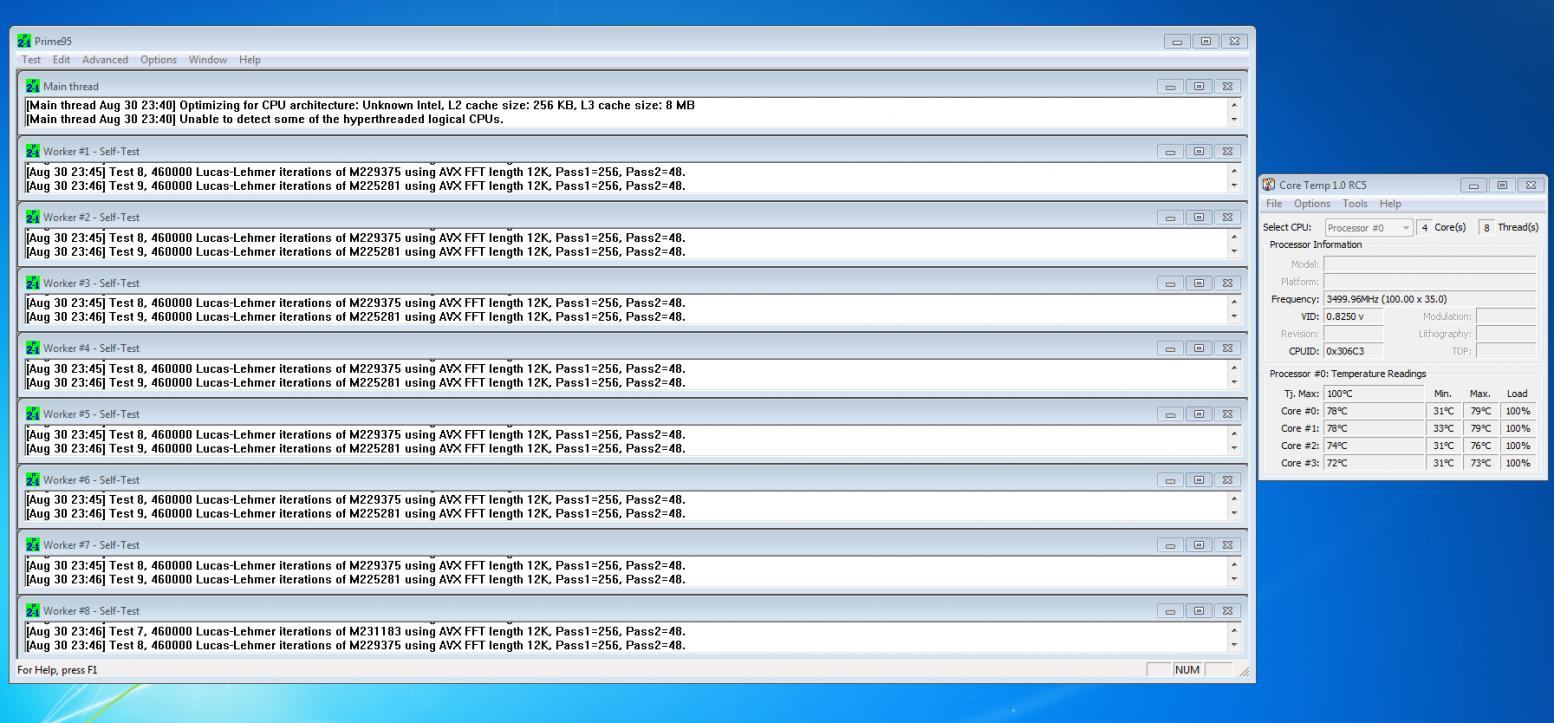

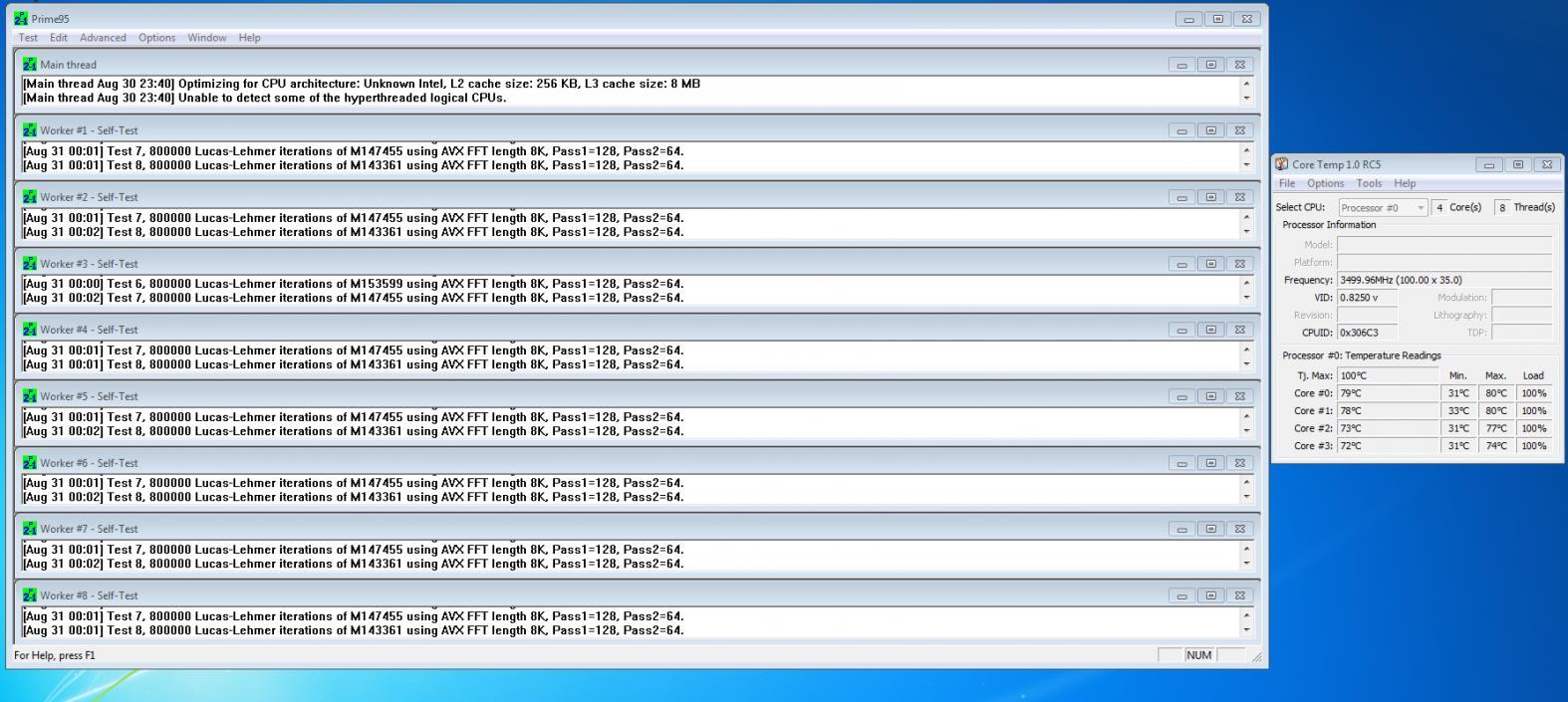

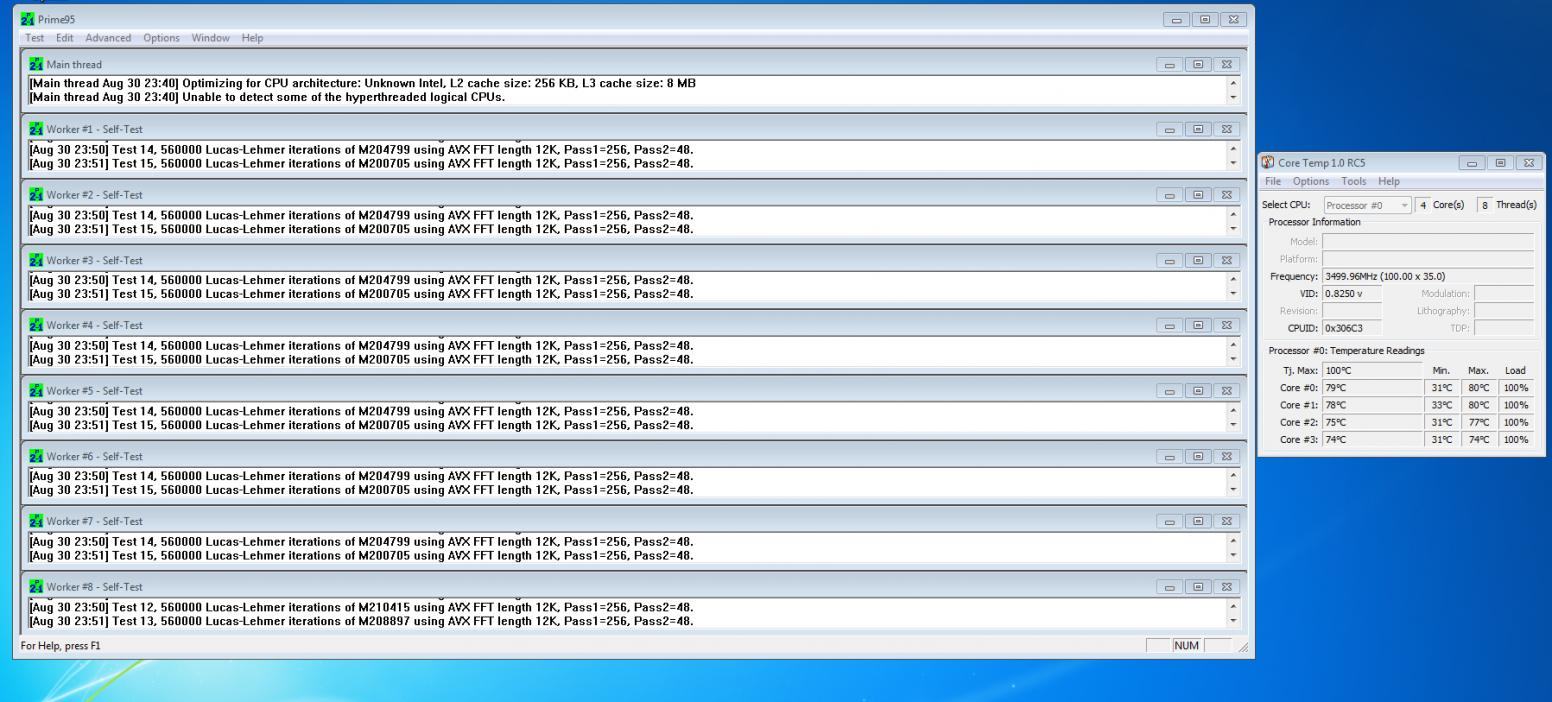

Hier mal CPU Auslastung mit Prime getestet. 68 Grad war das maximum auch nach 30 Minuten Dauertest.
CPU -Z TXT Report
Vielleicht schaut Ihr mal drüber und sagt mir was ich evtl. noch verbessern könnte, das ist kein OC, also rein so wie es jetzt momentan ist. Werde schauen das ich noch Bios Screens Hochlade
hier mal die bisherigen Benchmarks.
SSD Versuch Nr. 1 - Seltsam 200 Points mehr als jetzt :/
SSD Aktuell
CPU-Z
Hier der Leistungsindex
Hier mal CPU Auslastung mit Prime getestet. 68 Grad war das maximum auch nach 30 Minuten Dauertest.
CPU -Z TXT Report
