[Sammelthread] Gigabyte X570 Aorus Series – Informationssammlung, Erfahrungen, Tips und Tricks (AM4)

Die X570 Motherboards der Gigabyte Aorus Serie bestehen momentan aus 8 Modellen. Darunter gibt es das Modell Aorus X570 XTreme, das speziell für eine Wasserkühlung entwickelt wurde. In Verbindung mit Prozessoren der dritten Generation (Ryzen 3000) stehen mehrere PCIe 4.0 Steckplätze zur Verfügung.

Die Serie besteht aus folgenden Modellen:

Name und Link zur Website	X570 AORUS ELITE	X570 AORUS ELITE WIFI	X570 AORUS MASTER	X570 AORUS PRO	X570 AORUS PRO WIFI	X570 AORUS ULTRA	X570 AORUS XTREME	X570 GAMING X	X570 I AORUS PRO WIFI	X570 UD
Preisvergleich	Aktuelle Preise		Aktuelle Preise	Aktuelle Preise		Aktuelle Preise	Aktuelle Preise	Aktuelle Preise	Aktuelle Preise	Aktuelle Preise
Formfaktor	ATX; 30.5cm x 24.4cm	ATX; 30.5cm x 24.4cm	ATX; 30.5cm x 24.4cm	ATX; 30.5cm x 24.4cm	ATX; 30.5cm x 24.4cm	ATX; 30.5cm x 24.4cm	E-ATX; 30.5cm x 27.0cm	ATX; 30.5cm x 24.4cm	Mini-ITX; 17.0cm x 17.0cm	ATX; 30.5cm x 24.4cm
Unterstützte Prozessoren	Ryzen 3000 Ryzen 3000G Ryzen 2000 Ryzen 2000G TDP-Limit: 105W (Hersteller)	Ryzen 3000 Ryzen 3000G Ryzen 2000 Ryzen 2000G TDP-Limit: 105W (Hersteller)	Ryzen 3000 Ryzen 3000G Ryzen 2000 Ryzen 2000G TDP-Limit: 105W (Hersteller)	Ryzen 3000 Ryzen 3000G Ryzen 2000 Ryzen 2000G TDP-Limit: 105W (Hersteller)	Ryzen 3000 Ryzen 3000G Ryzen 2000 Ryzen 2000G TDP-Limit: 105W (Hersteller)	Ryzen 3000 Ryzen 3000G Ryzen 2000 Ryzen 2000G TDP-Limit: 105W (Hersteller)	Ryzen 3000 Ryzen 3000G Ryzen 2000 Ryzen 2000G TDP-Limit: 105W (Hersteller)	Ryzen 3000 Ryzen 3000G Ryzen 2000 Ryzen 2000G TDP-Limit: 105W (Hersteller)	Ryzen 3000 Ryzen 3000G Ryzen 2000 Ryzen 2000G TDP-Limit: 105W (Hersteller)	Ryzen 3000 Ryzen 3000G Ryzen 2000 Ryzen 2000G TDP-Limit: 105W (Hersteller)
VRM	7 reale Phasen (6+1), PWM-Controller: ISL69138 (max. 7 Phasen)		14 reale Phasen (12+2), PWM-Controller: XDPE132G5C (max. 16 Phasen)	8 reale Phasen (6+2), PWM-Controller: IR35201 (max. 8 Phasen)		8 reale Phasen (6+2), PWM-Controller: IR35201 (max. 8 Phasen)	16 reale Phasen (14+2), PWM-Controller: XDPE132G5C (max. 16 Phasen)	7 reale Phasen (5+2), PWM-Controller: ISL69147 (max. 7 Phasen)	8 reale Phasen (6+2), PWM-Controller: IR35201 (max. 8 Phasen)	7 reale Phasen (5+2), PWM-Controller: ISL69147 (max. 7 Phasen)
MOSFETs CPU	12x 50A SIC634		12x 50A IR3556	12x 40A IR3553		12x 40A IR3553	14x 70A TDA21472	10x 46A 4C10N/20x 4C06N	6x 70A TDA21472	10x 46A 4C10N/20x 4C06N
MOSFETs SoC	2x 46A 4C10N/4C06N		2x 50A IR3556	2x 46A 4C10N/4C06N		4x 46A 4C10N/4C06N	2x 70A TDA21472	4x 46A 4C10N/4C06N	2x 40A IR3553	4x 46A 4C10N/4C06N
Arbeitsspeicher	Ryzen 3000 Support for DDR4 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules Ryzen 3000G/Ryzen 2000/Ryzen 2000G Support for DDR4 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules	Ryzen 3000 Support for DDR4 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules Ryzen 3000G/Ryzen 2000/Ryzen 2000G Support for DDR4 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules	Ryzen 3000 Support for DDR4 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules Ryzen 3000G/Ryzen 2000/Ryzen 2000G Support for DDR4 3600(O.C.) / 3400(O.C.) / 3333(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules	Ryzen 3000 Support for DDR4 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules Ryzen 3000G/Ryzen 2000/Ryzen 2000G Support for DDR4 3600(O.C.) / 3400(O.C.) / 3333(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules	Ryzen 3000 Support for DDR4 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules Ryzen 3000G/Ryzen 2000/Ryzen 2000G Support for DDR4 3600(O.C.) / 3400(O.C.) / 3333(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules	Ryzen 3000 Support for DDR4 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules Ryzen 3000G/Ryzen 2000/Ryzen 2000G Support for DDR4 3600(O.C.) / 3400(O.C.) / 3333(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules	Ryzen 3000 Support for DDR4 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules Ryzen 3000G/Ryzen 2000/Ryzen 2000G Support for DDR4 3600(O.C.) / 3400(O.C.) / 3333(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules	Ryzen 3000 Support for DDR4 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules Ryzen 3000G/Ryzen 2000/Ryzen 2000G Support for DDR4 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules	Ryzen 3000 Support for DDR4 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules Ryzen 3000G/Ryzen 2000/Ryzen 2000G Support for DDR4 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules	Ryzen 3000 Support for DDR4 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules Ryzen 3000G/Ryzen 2000/Ryzen 2000G Support for DDR4 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Onboard Grafik	Integrated Graphics Processor: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version, HDCP 2.2, and HDR. Maximum shared memory of 16 GB Note: For 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors only.	Integrated Graphics Processor: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version, HDCP 2.2, and HDR. Maximum shared memory of 16 GB Note: For 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors only.		Integrated Graphics Processor: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version, HDCP 2.2, and HDR. Maximum shared memory of 16 GB Note: For 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors only.	Integrated Graphics Processor: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version, HDCP 2.2, and HDR. Maximum shared memory of 16 GB Note: For 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors only.	Integrated Graphics Processor: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version, HDCP 2.2, and HDR. Maximum shared memory of 16 GB Note: For 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors only.		Integrated Graphics Processor: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version, HDCP 2.2, and HDR. Maximum shared memory of 16 GB Note: For 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors only.	Integrated Graphics Processor: 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version. 2 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version, HDCP 2.2, and HDR. Support for up to 3 displays at the same time Maximum shared memory of 16 GB * For 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors only.	Integrated Graphics Processor: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version, HDCP 2.2, and HDR. Maximum shared memory of 16 GB Note: For 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors only.
Audio	Realtek® ALC1200 codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out	Realtek® ALC1200 codec High Definition Audio 2/4/5.1-channel Support for S/PDIF Out	Realtek® ALC1220-VB codec * The front panel line out jack supports DSD audio. ESS SABRE9118 DAC chip High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out	Realtek® ALC1220-VB codec * The back panel line out jack supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out	Realtek® ALC1220-VB codec * The back panel line out jack supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out	Realtek® ALC1220-VB codec * The back panel line out jack supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out	Realtek® ALC1220-VB codec * The front panel line out jack supports DSD audio. ESS SABRE9218 DAC chip High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out	Realtek® ALC887 codec High Definition Audio 2/4/5.1-channel	Realtek® ALC1220-VB codec * The back panel line out jack supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.	Realtek® ALC887 codec High Definition Audio 2/4/5.1-channel
LAN	Intel® GbE LAN chip (10/100/1000 Mbit)	Intel® GbE LAN chip (10/100/1000 Mbit)	1 x Intel® GbE LAN chip (10/100/1000 Mbit) (LAN1) 1 x Realtek® 2.5GbE LAN chip (10/100/1000/2500 Mbit) (LAN2)	Intel® GbE LAN chip (10/100/1000 Mbit)	Intel® GbE LAN chip (10/100/1000 Mbit)	Intel® GbE LAN chip (10/100/1000 Mbit)	1 x Aquantia GbE LAN chip (10 Gbit/5 Gbit/2.5 Gbit/1000 Mbit/100 Mbit) (LAN1) 1 x Intel® GbE LAN phy (10/100/1000 Mbit) (LAN2)	Realtek® GbE LAN chip (10/100/1000 Mbit)	Intel® GbE LAN chip (10/100/1000 Mbit)	Realtek® GbE LAN chip (10/100/1000 Mbit)
Wireless Communication Module		Wi-Fi 802.11 a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band BLUETOOTH 4.2 Support for 11ac wireless standard and up to 433 Mbps data rate * Actual data rate may vary depending on environment and equipment.	Wi-Fi 802.11a/b/g/n/ac/ax, supporting 2.4/5 GHz Dual-Band BLUETOOTH 5.0 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate * Actual data rate may vary depending on environment and equipment.		Wi-Fi 802.11a/b/g/n/ac/ax, supporting 2.4/5 GHz Dual-Band BLUETOOTH 5.0 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate * Actual data rate may vary depending on environment and equipment.	Wi-Fi 802.11a/b/g/n/ac/ax, supporting 2.4/5 GHz Dual-Band BLUETOOTH 5.0 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate * Actual data rate may vary depending on environment and equipment.	Wi-Fi 802.11a/b/g/n/ac/ax, supporting 2.4/5 GHz Dual-Band BLUETOOTH 5.0 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate * Actual data rate may vary depending on environment and equipment.		Wi-Fi 802.11a/b/g/n/ac/ax, supporting 2.4/5 GHz Dual-Band BLUETOOTH 5.0 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate * Actual data rate may vary depending on environment and equipment.
Erweiterungssteckplätze	Integrated in the CPU (PCIEX16): · 3rd Generation AMD Ryzen™ processors: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 · 2nd Generation AMD Ryzen™ processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. · 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 Integrated in the Chipset (PCIEX4/PCIEX1): 1 x PCI Express x16 slot, supporting PCIe 4.0*/3.0 and running at x4 (PCIEX4) * For 3rd Generation AMD Ryzen™ processors only. 2 x PCI Express x1 slots, supporting PCIe 4.0*/3.0 * For 3rd Generation AMD Ryzen™ processors only.	Integrated in the CPU (PCIEX16): · 3rd Generation AMD Ryzen™ processors: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 · 2nd Generation AMD Ryzen™ processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. · 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 Integrated in the Chipset (PCIEX4/PCIEX1): 1 x PCI Express x16 slot, supporting PCIe 4.0*/3.0 and running at x4 (PCIEX4) * For 3rd Generation AMD Ryzen™ processors only. 2 x PCI Express x1 slots, supporting PCIe 4.0*/3.0 * For 3rd Generation AMD Ryzen™ processors only.	Integrated in the CPU (PCIEX16/PCIEX8): 3rd Generation AMD Ryzen™ processors: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x8 (PCIEX8) 2nd Generation AMD Ryzen™ processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 (PCIEX16) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX8) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When using the 3rd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ processors, the PCIEX16 slot operates at up to x8 mode. 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX16) Integrated in the Chipset (PCIEX4/PCIEX1): 1 x PCI Express x16 slot, supporting PCIe 4.0*/3.0 and running at x4 (PCIEX4) * For 3rd Generation AMD Ryzen™ processors only. 1 x PCI Express x1 slot, supporting PCIe 4.0*/3.0 * For 3rd Generation AMD Ryzen™ processors only.	Integrated in the CPU (PCIEX16/PCIEX8): · 3rd Generation AMD Ryzen™ processors: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x8 (PCIEX8) · 2nd Generation AMD Ryzen™ processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 (PCIEX16) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX8) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When using the 3rd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ processors, the PCIEX16 slot operates at up to x8 mode. · 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX16) Integrated in the Chipset (PCIEX4/PCIEX1): 1 x PCI Express x16 slot, supporting PCIe 4.0*/3.0 and running at x4 (PCIEX4) * For 3rd Generation AMD Ryzen™ processors only. 2 x PCI Express x1 slots, supporting PCIe 4.0*/3.0 * For 3rd Generation AMD Ryzen™ processors only.	Integrated in the CPU (PCIEX16/PCIEX8): · 3rd Generation AMD Ryzen™ processors: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x8 (PCIEX8) · 2nd Generation AMD Ryzen™ processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 (PCIEX16) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX8) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When using the 3rd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ processors, the PCIEX16 slot operates at up to x8 mode. · 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX16) Integrated in the Chipset (PCIEX4/PCIEX1): 1 x PCI Express x16 slot, supporting PCIe 4.0*/3.0 and running at x4 (PCIEX4) * For 3rd Generation AMD Ryzen™ processors only. 2 x PCI Express x1 slots, supporting PCIe 4.0*/3.0 * For 3rd Generation AMD Ryzen™ processors only.	3rd Generation AMD Ryzen™ processors: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x8 (PCIEX8) 2nd Generation AMD Ryzen™ processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 (PCIEX16) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX8) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When using the 3rd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ processors, the PCIEX16 slot operates at up to x8 mode. 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX16) Integrated in the Chipset (PCIEX4/PCIEX1): 1 x PCI Express x16 slot, supporting PCIe 4.0*/3.0 and running at x4 (PCIEX4) * For 3rd Generation AMD Ryzen™ processors only. 2 x PCI Express x1 slots, supporting PCIe 4.0*/3.0 * For 3rd Generation AMD Ryzen™ processors only.	Integrated in the CPU (PCIEX16/PCIEX8): 3rd Generation AMD Ryzen™ processors: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x8 (PCIEX8) 2nd Generation AMD Ryzen™ processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 (PCIEX16) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX8) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When using the 3rd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ processors, the PCIEX16 slot operates at up to x8 mode. 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX16) Integrated in the Chipset (PCIEX4): 1 x PCI Express x16 slot, supporting PCIe 4.0*/3.0 and running at x4 * For 3rd Generation AMD Ryzen™ processors only.	Integrated in the CPU (PCIEX16): · 3rd Generation AMD Ryzen™ processors: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 · 2nd Generation AMD Ryzen™ processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. · 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 Integrated in the Chipset (PCIEX4/PCIEX1) 1 x PCI Express x16 slot, supporting PCIe 4.0*/3.0 and running at x4 (PCIEX4) * For 3rd Generation AMD Ryzen™ processors only. 3 x PCI Express x1 slots, supporting PCIe 4.0*/3.0 * For 3rd Generation AMD Ryzen™ processors only.	Integrated in the CPU (PCIEX16): 3rd Generation AMD Ryzen™ processors: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) 2nd Generation AMD Ryzen™ processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 (PCIEX16) 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX16) Integrated in the Chipset: 1 x M.2 Socket 1 connector for the wireless communication module (M2_WIFI)	Integrated in the CPU (PCIEX16): · 3rd Generation AMD Ryzen™ processors: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 · 2nd Generation AMD Ryzen™ processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. · 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 Integrated in the Chipset (PCIEX4/PCIEX1) 2 x PCI Express x16 slots, supporting PCIe 4.0*/3.0 and running at x4 (PCIEX4) * For 3rd Generation AMD Ryzen™ processors only. 2 x PCI Express x1 slots, supporting PCIe 4.0*/3.0 * For 3rd Generation AMD Ryzen™ processors only.
Multi-Graphics Technology	Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies Note: For 3rd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ processors only.	Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies Note: For 3rd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ processors only.	Support for NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI™ technologies Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies For 3rd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ processors only.	Support for NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI™ technologies Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies Note: For 3rd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ processors only.	Support for NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI™ technologies Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies Note: For 3rd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ processors only.	Support for NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI™ technologies Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies For 3rd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ processors only.	Support for NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI™ technologies Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies For 3rd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ processors only.	Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies Note: For 3rd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ processors only.		Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies Note: For 3rd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ processors only.
Storage Interface	Integrated in the CPU (M2A_SOCKET): · 3rd Generation AMD Ryzen™ processors: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) · 2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) Integrated in the Chipset (M2B_SOCKET): 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0*/3.0 x4/x2 SSD support) * For 3rd Generation AMD Ryzen™ processors only. 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10	Integrated in the CPU (M2A_SOCKET): · 3rd Generation AMD Ryzen™ processors: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) · 2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) Integrated in the Chipset (M2B_SOCKET): 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0*/3.0 x4/x2 SSD support) * For 3rd Generation AMD Ryzen™ processors only. 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10	Integrated in the CPU (M2A_SOCKET): 3rd Generation AMD Ryzen™ processors: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) 2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) Integrated in the Chipset (M2B_SOCKET/M2C_SOCKET): 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0*/3.0 x4/x2 SSD support) (M2B_SOCKET) * For 3rd Generation AMD Ryzen™ processors only. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 4.0*/3.0 x4/x2 SSD support) (M2C_SOCKET) * For 3rd Generation AMD Ryzen™ processors only. 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10 * Refer to "1-9 Internal Connectors," for the installation notices for the M.2 and SATA connectors.	Integrated in the CPU (M2A_SOCKET): · 3rd Generation AMD Ryzen™ processors: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) · 2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) Integrated in the Chipset (M2B_SOCKET): 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0*/3.0 x4/x2 SSD support) * For 3rd Generation AMD Ryzen™ processors only. 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10	Integrated in the CPU (M2A_SOCKET): · 3rd Generation AMD Ryzen™ processors: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) · 2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) Integrated in the Chipset (M2B_SOCKET): 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0*/3.0 x4/x2 SSD support) * For 3rd Generation AMD Ryzen™ processors only. 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10	Integrated in the CPU (M2A_SOCKET): 3rd Generation AMD Ryzen™ processors: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) 2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) Integrated in the Chipset (M2B_SOCKET/M2C_SOCKET): 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0*/3.0 x4/x2 SSD support) (M2B_SOCKET) * For 3rd Generation AMD Ryzen™ processors only. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 4.0*/3.0 x2 SSD support) (M2C_SOCKET) * For 3rd Generation AMD Ryzen™ processors only. 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10 * Refer to "1-8 Internal Connectors," for the installation notices for the M.2 and SATA connectors.	Integrated in the CPU (M2A_SOCKET): 3rd Generation AMD Ryzen™ processors: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) 2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) Integrated in the Chipset (M2B_SOCKET/M2C_SOCKET): 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0*/3.0 x4/x2 SSD support) (M2B_SOCKET) * For 3rd Generation AMD Ryzen™ processors only. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0*/3.0 x4/x2 SSD support) (M2C_SOCKET) * For 3rd Generation AMD Ryzen™ processors only. 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10 * Refer to "1-9 Internal Connectors," for the installation notices for the M.2 and SATA connectors.	Integrated in the CPU (M2A_SOCKET): · 3rd Generation AMD Ryzen™ processors: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) · 2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) Integrated in the Chipset (M2B_SOCKET): 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0*/3.0 x4/x2 SSD support) * For 3rd Generation AMD Ryzen™ processors only. 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10	Integrated in the CPU (M2A_SOCKET): 3rd Generation AMD Ryzen™ processors: 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 4.0 x4/x2 SSD support) 2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/x2 SSD support) Integrated in the Chipset (M2B_SOCKET): 1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2260/2280 SATA and PCIe* x4/x2 SSD support) * For 3rd Generation AMD Ryzen™ processors only. 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10	Integrated in the CPU: · 3rd Generation AMD Ryzen™ processors: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) · 2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) Integrated in the Chipset: 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10
USB	Integrated in the CPU: 4 x USB 3.2 Gen 1 ports on the back panel Chipset: 1 x USB Type-C™ port with USB 3.2 Gen 2 support, available through the internal USB header 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 4 x USB 3.2 Gen 1 ports available through the internal USB headers Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)	Integrated in the CPU: 4 x USB 3.2 Gen 1 ports on the back panel Chipset: 1 x USB Type-C™ port with USB 3.2 Gen 2 support, available through the internal USB header 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 4 x USB 3.2 Gen 1 ports available through the internal USB headers Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)	Integrated in the CPU: 2 x USB 3.2 Gen 2*/Gen 1 Type-A ports (red) on the back panel * For 3rd Generation AMD Ryzen™ processors only. 2 x USB 3.2 Gen 1 ports on the back panel Integrated in the Chipset: 1 x USB Type-C™ port with USB 3.2 Gen 2 support, available through the internal USB header 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 4 x USB 3.2 Gen 1 ports available through the internal USB headers Chipset+USB 2.0 Hub: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)	Integrated in the CPU: 3 x USB 3.2 Gen 1 ports on the back panel 1 x USB 3.2 Gen 2*/Gen 1 Type-A port (red) on the back panel * For 3rd Generation AMD Ryzen™ processors only. Chipset: 1 x USB Type-C™ port with USB 3.2 Gen 2 support, available through the internal USB header 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 4 x USB 3.2 Gen 1 ports available through the internal USB headers Chipset+USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)	Integrated in the CPU: 3 x USB 3.2 Gen 1 ports on the back panel 1 x USB 3.2 Gen 2*/Gen 1 Type-A port (red) on the back panel * For 3rd Generation AMD Ryzen™ processors only. Chipset: 1 x USB Type-C™ port with USB 3.2 Gen 2 support, available through the internal USB header 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 4 x USB 3.2 Gen 1 ports available through the internal USB headers Chipset+USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)	Integrated in the CPU: 3 x USB 3.2 Gen 1 ports on the back panel 1 x USB 3.2 Gen 2*/Gen 1 Type-A port (red) on the back panel * For 3rd Generation AMD Ryzen™ processors only. Chipset: 1 x USB Type-C™ port with USB 3.2 Gen 2 support, available through the internal USB header 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 4 x USB 3.2 Gen 1 ports available through the internal USB headers Chipset+USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)	Integrated in the CPU: 2 x USB 3.2 Gen 2*/Gen 1 Type-A ports (red) on the back panel * For 3rd Generation AMD Ryzen™ processors only. 2 x USB 3.2 Gen 1 ports on the back panel Integrated in the Chipset: 1 x USB Type-C™ port with USB 3.2 Gen 2 support, available through the internal USB header 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support 3 x USB 3.2 Gen 2 Type-A port (red) on the back panel 2 x USB 3.2 Gen 1 ports available through the internal USB header Chipset+USB 3.2 Gen 1 Hub: 2 x USB 3.2 Gen 1 ports available through the internal USB header 2 x USB 2.0/1.1 ports available through the internal USB header Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports on the back panel	Integrated in the CPU: 4 x USB 3.2 Gen 1 ports on the back panel Chipset: 4 x USB 3.2 Gen 1 ports available through the internal USB headers 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)	Integrated in the CPU: 4 x USB 3.2 Gen 1 ports on the back panel Integrated in the Chipset: 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 2 x USB 3.2 Gen 1 ports available through the internal USB header 2 x USB 2.0/1.1 ports available through the internal USB header	Integrated in the CPU: 4 x USB 3.2 Gen 1 ports on the back panel Chipset: 4 x USB 3.2 Gen 1 ports available through the internal USB headers 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Interne I/O Anschlüsse	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 2 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 2 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C™ port, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper 1 x Q-Flash Plus button	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 2 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 2 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C™ port, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper 1 x Q-Flash Plus button	1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 2 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 3 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C™ port, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x noise detection header 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 2 x temperature sensor headers 1 x power button 1 x reset button 2 x BIOS switches 1 x Clear CMOS jumper Voltage Measurement Points	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 2 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 2 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C™ port, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper 2 x temperature sensor headers 1 x Q-Flash Plus button	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 2 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 2 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C™ port, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper 2 x temperature sensor headers 1 x Q-Flash Plus button	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 2 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 3 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C™ port, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper 2 x temperature sensor headers 1 x Q-Flash Plus button	1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x OC PEG power connector 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 2 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 3 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C™ port, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 1 headers 1 x USB 2.0/1.1 header 1 x noise detection header 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 2 x temperature sensor headers 1 x power button 1 x reset button 2 x BIOS switches Voltage Measurement Points	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 2 x system fan headers 1 x CPU cooler LED strip/RGB LED strip header 2 x addressable LED strip headers 2 x RGB LED strip headers 6 x SATA 6Gb/s connectors 2 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper 1 x Q-Flash Plus button	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x addressable LED strip header 1 x RGB LED strip header 4 x SATA 6Gb/s connectors 2 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x speaker header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 2 x system fan headers 1 x RGB LED strip header 6 x SATA 6Gb/s connectors 1 x M.2 Socket 3 connector 1 x front panel header 1 x front panel audio header 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper
Rückseite I/O Panel	4 x USB 2.0/1.1 ports 1 x HDMI port 4 x USB 3.2 Gen 1 ports 2 x USB 3.2 Gen 2 Type-A ports (red) 1 x RJ-45 port 1 x optical S/PDIF Out connector 5 x audio jacks	4 x USB 2.0/1.1 ports 2 x SMA antenna connectors (1T1R) 1 x HDMI port 4 x USB 3.2 Gen 1 ports 2 x USB 3.2 Gen 2 Type-A ports (red) 1 x RJ-45 port 1 x optical S/PDIF Out connector 5 x audio jacks	1 x Q-Flash Plus button 1 x Clear CMOS button 2 x SMA antenna connectors (2T2R) 1 x USB Type-C™ port, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 2*/Gen 1 Type-A ports (red) * For 3rd Generation AMD Ryzen™ processors only. 1 x USB 3.2 Gen 2 Type-A port (red) 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 2 x RJ-45 ports 1 x optical S/PDIF Out connector 5 x audio jacks	1 x HDMI port 1 x USB Type-C™ port, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2*/Gen 1 Type-A port (red) * For 3rd Generation AMD Ryzen™ processors only. 1 x USB 3.2 Gen 2 Type-A port (red) 3 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 1 x optical S/PDIF Out connector 5 x audio jacks	2 x SMA antenna connectors (2T2R) 1 x HDMI port 1 x USB Type-C™ port, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2*/Gen 1 Type-A port (red) * For 3rd Generation AMD Ryzen™ processors only. 1 x USB 3.2 Gen 2 Type-A port (red) 3 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 1 x optical S/PDIF Out connector 5 x audio jacks	2 x SMA antenna connectors (2T2R) 1 x HDMI port 1 x USB Type-C™ port, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2*/Gen 1 Type-A port (red) * For 3rd Generation AMD Ryzen™ processors only. 1 x USB 3.2 Gen 2 Type-A port (red) 3 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 1 x optical S/PDIF Out connector 5 x audio jacks	1 x Q-Flash Plus button 1 x Clear CMOS button 2 x SMA antenna connectors (2T2R) 1 x USB Type-C™ port, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 2*/Gen 1 Type-A ports (red) * For 3rd Generation AMD Ryzen™ processors only. 3 x USB 3.2 Gen 2 Type-A ports (red) 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 2 x RJ-45 ports 1 x optical S/PDIF Out connector 5 x audio jacks	1 x PS/2 keyboard port 1 x PS/2 mouse port 1 x HDMI port 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks	1 x DisplayPort 2 x HDMI ports 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 3.2 Gen 1 ports 1 x USB Type-C™ port, with USB 3.2 Gen 2 support 1 x Q-Flash Plus button 1 x RJ-45 port 2 x SMA antenna connectors (2T2R) 3 x audio jacks	1 x PS/2 keyboard/mouse port 1 x HDMI port 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x Q-Flash Plus button 1 x RJ-45 port 3 x audio jacks
H/W Überwachung	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Overheating warning Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the fan you install.	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Overheating warning Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the fan you install.	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Overheating warning Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. Noise detection	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Overheating warning Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Overheating warning Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Overheating warning Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Overheating warning Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. Noise detection	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Overheating warning Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.	Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install.	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Overheating warning Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the fan you install.
BIOS	1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0	1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0	2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0	2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0	2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0	2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0	2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0	1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0	1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0	1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Sonstiges	Support for APP Center Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install	Support for APP Center Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install	Support for APP Center Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install	Support for APP Center Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install	Support for APP Center Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install	Support for APP Center Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install	Support for APP Center Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install	Support for APP Center Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install	Support for APP Center Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install	Support for APP Center Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install
User	blackbandt, derFireBird, Frankie36, kami1205, Machete, MrDanielVie, Talliostro, WombatMS		Child, Cyberbernd, Daniel N, DonGeilo, GuruSMI, Nightmare86, scrush	Alex2710, Daniel N, DerBayer89, Grainger, HSW, iTzMineCore, KopfWand, Marcool, Sepuko,		buyman, InkognitoGER, oNyX`, tStorm	Rabauke81		SeelBreaker
Testberichte	hothardware.com: Gigabyte Aorus X570 Motherboard And PCIe 4.0 SSD Preview: Ready To Rock Ryzen 3000	hothardware.com: Gigabyte Aorus X570 Motherboard And PCIe 4.0 SSD Preview: Ready To Rock Ryzen 3000	HW-LUXX: Gigabyte übertaktet den Ryzen 9 3950X auf 4,4 GHz und gibt Ausblick auf die Leistung hothardware.com: Gigabyte Aorus X570 Motherboard And PCIe 4.0 SSD Preview: Ready To Rock Ryzen 3000 gamezoom.net: Gigabyte X570 Aorus Master - Test/Review kitguru.net: Gigabyte X570 Aorus Master Motherboard Review guru3d.com: X570 Aorus Master motherboard tweaktown.com: GIGABYTE X570 Aorus Master (AMD X570) Motherboard Review bit-tech.net: Gigabyte X570 Aorus Master Review thinkcomputers.org: Gigabyte X570 AORUS Master Motherboard Review overclock3d.net: Gigabyte X570 Aorus Master Review	hothardware.com: Gigabyte Aorus X570 Motherboard And PCIe 4.0 SSD Preview: Ready To Rock Ryzen 3000 overclock3d.net: Gigabyte X570 Aorus Pro Review eteknix.com: Gigabyte X570 AORUS Pro Motherboard Review	hothardware.com: Gigabyte Aorus X570 Motherboard And PCIe 4.0 SSD Preview: Ready To Rock Ryzen 3000 overclockers.com: GIGABYTE X570 AORUS PRO WiFi Review proclockers.com: Gigabyte X570 AORUS Pro WIFI Motherboard Review	hothardware.com: Gigabyte Aorus X570 Motherboard And PCIe 4.0 SSD Preview: Ready To Rock Ryzen 3000	hothardware.com: Gigabyte Aorus X570 Motherboard And PCIe 4.0 SSD Preview: Ready To Rock Ryzen 3000 anandtech.com: The GIGABYTE X570 Aorus Xtreme Motherboard Review: Fanless AM4 hexus.net: Review: X570 Aorus Xtreme Motherboard tweaktown.com: GIGABYTE X570 Aorus Xtreme (AMD X570) Motherboard Review	hothardware.com: Gigabyte Aorus X570 Motherboard And PCIe 4.0 SSD Preview: Ready To Rock Ryzen 3000	HW Luxx: PCIe 4.0 im Kleinstformat: Gigabyte X570 I AORUS Pro WiFi im Test hothardware.com: Gigabyte Aorus X570 Motherboard And PCIe 4.0 SSD Preview: Ready To Rock Ryzen 3000 overclock3d.net: Gigabyte X570i ITX Aorus Pro WiFi Review bit-tech.net: Gigabyte X570 I Aorus Pro WiFi Review	hothardware.com: Gigabyte Aorus X570 Motherboard And PCIe 4.0 SSD Preview: Ready To Rock Ryzen 3000

Die aktuellen BIOS Versionen findet man entweder auf der jeweiligen Modellseite von Gigabyte oder in der Ultimativen AM4 UEFI/BIOS/AGESA Übersicht (15.11.19).

Ich hoffe auf rege Beteiligung. Es handelt sich um einen dynamischen Informationsprozess, der diesem Eingangspost auch erweitern soll. Deshalb bitte ich um Information, wenn bestimmte Informationen bereits in diesem Eingangspost erscheinen sollen.

FAQ:
1. BIOS Nomenklatur: Bei Gigabyte kann man anhand der Versionsnummer direkt erkennen, ob es sich um ein Release oder um eine Testversion handelt. Bei letzterer endet die Versionsnummer mit einem Buchstaben. (oNyX`)

2. meine NVMe PCIe 3.0 SSD geht nicht
Das Problem läßt sich im Allgemeinen dadurch beheben, daß man dem Board explizit mitteilt, daß es PCIe 3.0 zu verwenden hat. Der Eintrag nennt sich "PCI Slot Configuration) und kann manuell auf Gen1 bis Gen4 sowie Auto gestellt werden. Bitte beachtet, daß die Systemweit gilt und so z.B. auch eine 5700 unter dem eingestellten Wert läuft.

3. Meine PCIe x1 Karte geht nicht
Das ist momentan noch ein Bug im BIOS. Vereinzelt kann es auch zu Bootproblemen führen. Momentan ist der einzige Workaround, die Karte zu entfernen

4. PBO funktioniert nicht
Auch dies ist ein Bug um BIOS. Er tritt seit BIOS F10A/AGESA 1.0.0.4 auf. Das BIOS liest hierbei die Boardwerte für EDC nicht aus und deaktiviert daraufhin den PBO-Boost. Man kann dies momentan umgehen, indem man den EDC-Wert explizit auf 0 setzt. Bei den AMD-Performance -> PBO Einstelllungen muß eine EDC von Null eingetragen werden.

5. Ich habe ein CMOS Clear durchgeführt, aber es werden weiterhin die alten Settings verwendet.
Bei einem CMOS Clear sollten eigentlich alle Einstellungen auf Default zurückgesetzt werden. Das passiert auch fast komplett. Jedoch bleiben die Einstellungen im AMD-Overclocking Menübereich komplett erhalten und werden nach Start des Systems auch verwendet. Man muß dort die Werte händisch löschen!

6. Seriennummer-Nomenklatur:
Man kann anhand der Seriennummer das Produktionsdatum des Boards ermitteln. Lautet die Seriennummer am Beginn z.B. SN1928xxxxxxxx besagen die Stellen 3&4 (19) das Produktionsjahr, die Stellen 5&6 hingegen die Produktionswoche. Das Board mit obiger Seriennummer wurde alsoo in der Woche 28 des Jahres 2019 produziert.

Ich bitte dabei zu berücksichtigen, daß in Deutschland die erste Kalenderwoche unterschiedlich zu den USA ermittelt wird.

7. Wem das Sägen des CPU-Kühlers auf den Nerv geht, kann diesen an die Leine nehmen. Bei oNyX` zeigten sich folgende Werte als besonders hilfreich
1. 27% default
2. 30% 60c
3. 50% 70c
4. 75% 75c
5. 100% 80c
Diese Werte können direkt im Bios oder via SIV eingetragen werden.

8. Ich möchte hier darauf hinweisen, daß das Schreiben von Werten im Ryzen Master mit größter Vorsicht zu genießen ist. Es werden z.B. bei RAM-Werten Dinge direkt in den AGESA Bereich geschrieben, der für Mainboardhersteller gesperrt ist. Es kann und kam dabei dazu kommen, daß das Board nicht mehr lauffähig ist. Hat man bereits Werte geschrieben, kann man mit der Prozedur:
- BIOS inkl. Agesa neu flashen
- BIOS Hardware-Reset
das Board wieder in einen lauffähigen Zustand versetzen. Dies ist aber nicht garantiert. Auf OCN musstem mehrere Nutzer ihr Board trotz der Prozedur zurücksenden. Diese Warnung betrifft mWn ALLE X570 Boards.

9. AMD hat für hwInfo festgelegt, daß das Interwall zum Auslesen der Werte alle 500ms erfolgen soll. Standardmäßig sind hier 2 Sekunden parametrisiert. Ich bitte dies bei Benchmarks etc. zu berücksichtigen

10. Sollte das BIOS bei der Nutzung von Tastatur und/oder Maus ruckeln, kann man im BIOS mit dem Tastaturkürzel "Strg-Alt-F6 " die Auflösung bis zum nächsten Reboot auf den VGA Modus limitieren. Dies sollte den Eingabe-Lag beheben.

Hilfreiche Links:
1. Neben dem Einstieg über die Gigabyteseite kann man den Downloadbereich auch via Aorus.com erreichen.
2. ein weiterer guter Anlaufpunkt für die neueste Beta ist TweakTon's Forum GIGABYTE Latest Beta BIOS
3. Wer ein X570 Master besitzt und seinen Ryzen 3000 übertakten will, findet im Gigabyte X570 AORUS Master Overclocking Thread eine umfangreiche Anleitung
4. Eine weitere Anleitung zum Übertakten der Ryzen 3000 auf einem Gigabyte Board findet Ihr im GIGABYTE AMD X570 Ryzen Overclocking Guide

Danksagung:
Einen großen Dank an oNyX` und Dan Hot für die wertvollen Hints und Tips

--- History ---
2019 11 16 | GuruSMI | Initiale Version
2019 11 30 | GuruSMI | Anpassung wegen Kompatibilitätserweiterung (Ryzen 2000G)
2020 01 09 | GuruSMI | Einfügen hilfreicher Links, Aktualisierung der FAQ
2020 01 22 | GuruSMI | Änderung des Threadtitels
2020 01 22 | Emissary42 | Verschieben des Threads in das Unterforum "Mainboard-Sammelthreads"
2020 08 27 | GuruSMI | Erweiterung der FAQ



[Cyberbernd]

Hi

So...Win ist auf der Crucial 500 MB ssd SATA .

Echt kein Unterschied zur 960evo NVMe beim booten.

Installiere gerade den Steam Ordner neu auf der 980 Pro.

Also Horizon Zero Dawn bootet locker doppelt so schnell wie vorher auf der WD Blue 2 TB ssd....

Klar...wohl eher ein Einzelfall. Hoffe doch auf etwas bessere ladezeiten beim FS2020. Obwohl da die verzögerungen bei der Onlineverbindung liegen.

Gruß Bernd .....Hoffe immer noch auf ein ordentliches ! Bios Version F37



[RedF]

Ich bin jezt wieder auf 3C beim Master x570s zurück weil ich mit der 4b immer wieder Blackscreens mit total ausfall hatte.
Also Rechner aus.



[Seadersn]

nur kurze meldung: hatte mir dieses tp-modul für's master 1.1 bestellt, funktioniert einwandfrei nur, falls jmd ebenfalls auf der suche nach sowas ist, weil auch keine lust, auf den fTPM stutter fix von amd zu warten...



[minimii]

Hallo,

Bin aktuell bei meinem Aorus X570 Pro bei F34/Agesa 3b.

So wie ich das bisher lese macht es auch aktuell Sinn dort zu bleiben?
CPU ist ein 5600x



[RedF]

Hallo,

Bin aktuell bei meinem Aorus X570 Pro bei F34/Agesa 3b.

So wie ich das bisher lese macht es auch aktuell Sinn dort zu bleiben?
CPU ist ein 5600x

Ja, ich habe mit AGESA 1.2.0.6 B abstürze.

Beitrag automatisch zusammengeführt: 03.04.2022

nur kurze meldung: hatte mir dieses tp-modul für's master 1.1 bestellt, funktioniert einwandfrei nur, falls jmd ebenfalls auf der suche nach sowas ist, weil auch keine lust, auf den fTPM stutter fix von amd zu warten...

Habe auch so ein teil, nur sagt win das ich die Firmware updaten soll. Siemens verweist aber auf die hersteller.



[minimii]

Ja, ich habe mit AGESA 1.2.0.6 B abstürze.

Dann scheine ich ja bisher Glück zu haben



[Seadersn]

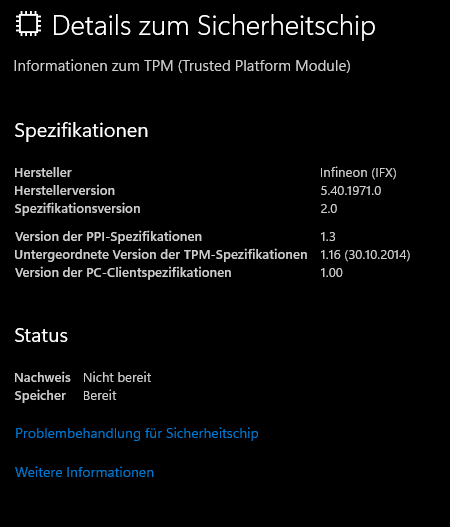

Habe auch so ein teil, nur sagt win das ich die Firmware updaten soll. Siemens verweist aber auf die hersteller.

Anhang anzeigen 745774

tatsache, da gibt es unterschiede; ich denk aber fast, dass der verkäufer da gar nicht bescheid wissen wird, wie was wo von wem passieren muss, in terms of updates. na herzlichen glückwunsch, muss man sich damit auch noch beschäftigen

die originale von gb selber gibt es scheinbar ja nicht, zumindest sind sie mir nirgendwo kaufbar begegnet. wann hast du denn gekauft und von wem? über windows optionale updates wird dafür wohl nix kommen.

Ja, ich habe mit AGESA 1.2.0.6 B abstürze.

Dann scheine ich ja bisher Glück zu haben

ändert sich irgwas spezielles ggüber f33? irgein verhalten oder sonst was neues (außer re-aktivierungen von verlorengegangenen features )? hier werkelt mittlerweile ein 5950x, muss "system" mal updaten.



[Induktor]

Bin seit ca. drei Wochen mit der Version F36b - AGESA V2 1.2.0.6 B (Aorus Master Rev. 1.2) unterwegs. Soweit keine Probleme. SIV läd nun auch deutlich schneller.



[Seadersn]

... SIV läd nun ...

siv...? sry



[RedF]

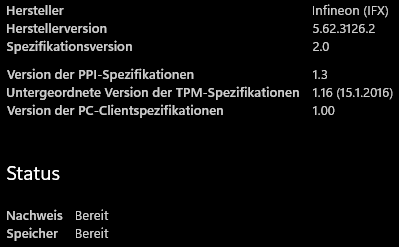

tatsache, da gibt es unterschiede; ich denk aber fast, dass der verkäufer da gar nicht bescheid wissen wird, wie was wo von wem passieren muss, in terms of updates. na herzlichen glückwunsch, muss man sich damit auch noch beschäftigen

Anhang anzeigen 745846

die originale von gb selber gibt es scheinbar ja nicht, zumindest sind sie mir nirgendwo kaufbar begegnet. wann hast du denn gekauft und von wem? über windows optionale updates wird dafür wohl nix kommen.

Hab auch über ebay...



[Induktor]

siv...? sry

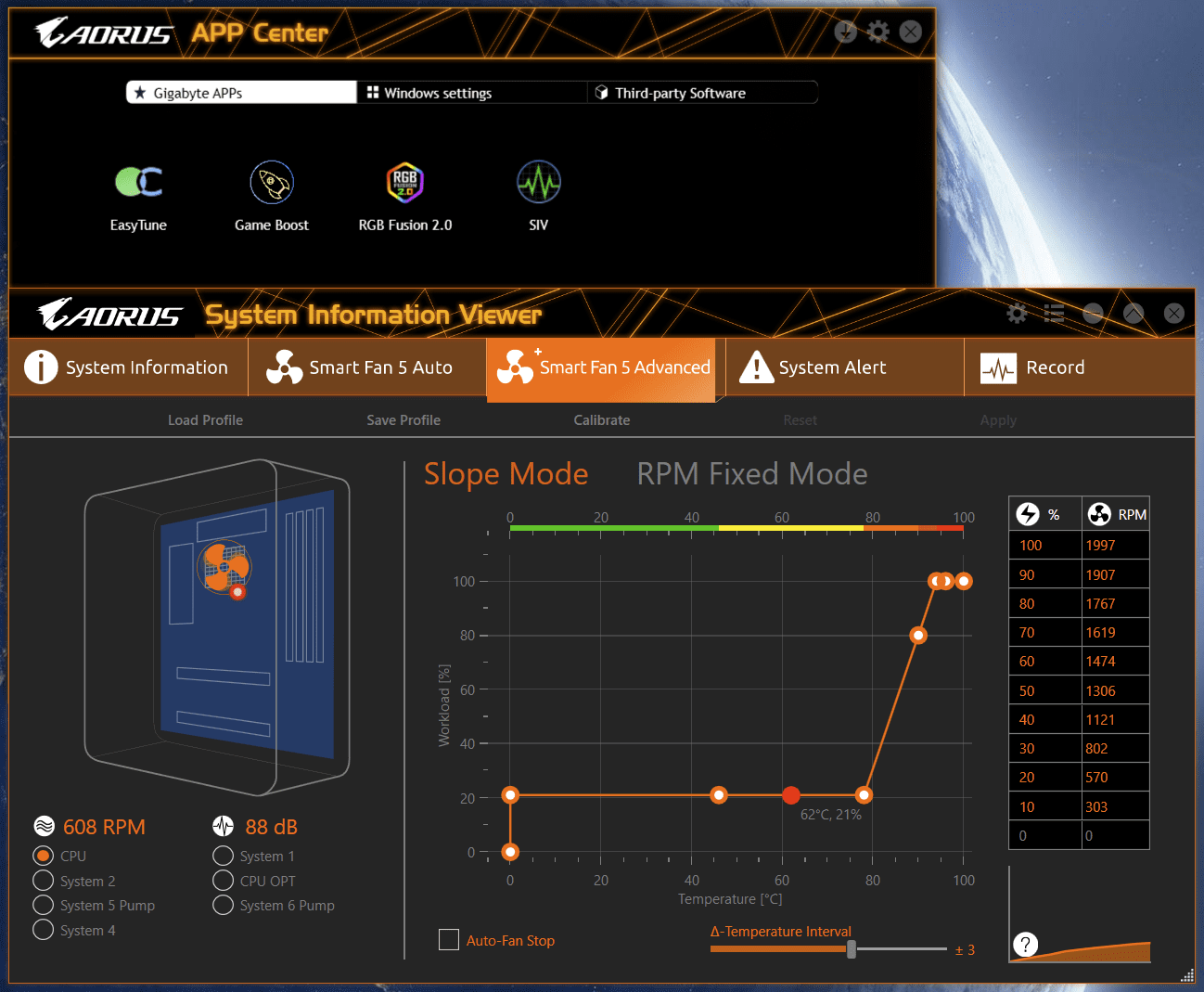

SIV = System Information Viewer. Die Mainboard-Software von Gigabyte, wo man unter anderem die Lüfterprofile einstellt (Smart Fan 5 Advanced). Nutze zum Arbeiten und Zocken verschiedene Lüfterprofile und damals hat das hin und wieder ewig gedauert bis mal CPU usw. erkannt wurde, um die App zu nutzen.



* benutze nur gelegentlich die RGB-Software für die Beleuchtung und SIV für die Lüfter. Der Rest ist relativ nutzlos, denk ich.



[RedF]

Habe Updates für TPM module gefunden, leider nicht für meine Uraltversion.



[Seadersn]

nice, magst link posten? steht dort dabei, wie das updated wird? nehme eh mal an, da ist ein flasher bei der firmware dabei.

edit: für infineon / IFX:
das hab ich nun gefunden. https://www.supermicro.com/wdl/driver/TPM/
edit 2: im asus forum gibt es eine anleitung dazu: https://rog.asus.com/forum/showthread.php?96727-Asus-Infineon-TPM-firmware-update/page5#post698201
edit 3: msi boards bieten die möglichkeit, die uefi shell zu booten. weiß jmd, ob das bei gb auch irgwie geht? würd das gern von da aus machen, nicht aus windoze...



[RedF]

Infineon TPM updates 4.43.259.0 & 5.63.3353.0 are now on http://premamod.team for all you W11 buffs out there! PW is http://premamod.com ENJOY!

Kommt auch aus dem ASUS Forum. sind am ende die dateien von Supermicro. Inhalt der Zip auf einen leeren USB und von Booten.
Vorher TPM im Windows Löschen, Clear TPM im Bios, wieder ins bios und TPM Deaktivieren, dann vom usb booten.



[Seadersn]

Kommt auch aus dem ASUS Forum. sind am ende die dateien von Supermicro. Inhalt der Zip auf einen leeren USB und von Booten.
Vorher TPM im Windows Löschen, Clear TPM im Bios, wieder ins bios und TPM Deaktivieren, dann vom usb booten.

hmm, wieder was gelernt, auch wenn's ned schmeckt: am besten bei sowas nur original kram kaufen. meine fw version endet ja auf .2: das ist dann auch gleichzeitig das problem, das ein update verhindert. zu dieser version findet man auch nix im netz. fehler wirft dieses modul gl.weise nicht, aber trotzdem doof, es ned updaten zu können



[RedF]

Gibt halt nix originales zu kaufen. Hatte sogar den GB support angeschrieben, die haben mit nem Link zu Alternate geantwortet -_-



[Seadersn]

joa nervt(e) ziemlich.



[RedF]

Support hat mir die Beta F4c ( Master x570S ) zukommen lassen. Angeblich ist damit der VDDG bug behoben. Bin gespannt.



[RedF]

VDDG geht schonmal mit dem F4C.



[Cyberbernd]

Hi

Das hört sich doch gut an !

Jetzt "nur" noch für die normalen X570 Boards.

Sonst läuft bei mir kein Ram mit 3800 mhz. bin da schon mit der F35 Bios Version auf die Nase gefallen.

Gruß Bernd



[Induktor]

Sonst läuft bei mir kein Ram mit 3800 mhz. bin da schon mit der F35 Bios Version auf die Nase gefallen.

3800 MHz (4x CL16-16-16-32) lief bei mir bislang bei jedem BIOS problemlos. Hab (glaub ich) seit dem F32 jedes BIOS inkl. Betas mitgenommen. Wo 3800 Mhz nicht ging, war beim hochgelobten 5900X mit B2-Stepping. Mein alter 5900X macht das anstandslos bei jeder BIOS-Version.



[Cyberbernd]

Hi

nee....mein alter 5900X braucht da etwas Saft für......

Sonst hagelt es WHEAs..............

Ist eher ein schlechter Witz mit den Bios Versionen...wie kann man denn solche Optionen einfach weglassen ?

F34 läuft aber perfekt.

Gruß Bernd



[stadti80]

Hallo zusammen,

ich bin bei meinem Aorus X570 Elite seit Mitte März auf F37a. Das läuft in der Tat weitgehend problemlos.
Einige seltsame On/Offs im Ernergiesparmodus sobald der Rechner nicht genutzt wird, denen ich nochmal auf den Grund gehen muss.


Gigabyte Aorus X570 Elite (F37a)
AMD Ryzen 5900X @ ECO
2x32 GB RAM Crucial Ballistix 3200 CL16-18-18-18 @stock
ROG-STRIX-RTX2080-A8G-GAMING@stock



[RedF]

Habe mir mal einen WHEA blocker drauf gemacht und lasse seit gestern mit 1933 laufen. Bisher keine probleme.



[Seegurke]

X570 Master 1.0 : Umbau von 3900x auf 5950x und 2x16GB auf 2x32GB Crucial lief mit vorherigem Bios Update von F22 auf F34 ohne Probleme.
Nur leider der später erfolgende Tausch von einer Logitech G402 Maus auf Razer Basilisk V3 nicht. Blieb konsequent beim Ladebildschirm von Windows 11 hängen
und ging in einen nicht mehr erweckbaren Blackscreen über. Auch der Rücktausch auf Logitech hat an diesem Verhalten nichts geändert.
Lösung: PC für 3 Stunden komplett vom Stromnetz getrennt. Erst dann lief er wieder an und hat auch die Maus gefressen.
Bin mir noch unschlüssig ob es an Razer oder Gigabyte liegt.



[RedF]

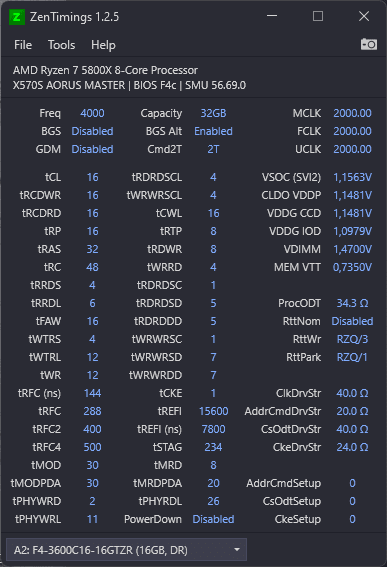

Jetzt wo ich endlich die Spannungen anpassen kann gibt es auch resultate : )

Nur der L3 Cache schwankt zwischen 280 und 700 GB/s.

Da habe ich noch keine abhilfe gefunden. Falls jemand ne idee hat.
Gut ist auch Win 11, soll zwar gepacht sein aber weiß der Kuckuk.

Und irgendwie bin ich der meinung das Read höher ausfallen sollte.
Ist auch noch nicht fertig getunt.



[Seadersn]

Jetzt wo ich endlich die Spannungen anpassen kann gibt es auch resultate : )

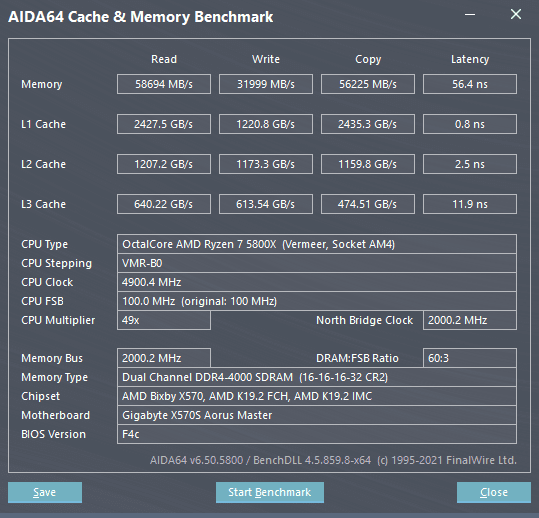

Anhang anzeigen 750266Anhang anzeigen 750267

Nur der L3 Cache schwankt zwischen 280 und 700 GB/s.

Da habe ich noch keine abhilfe gefunden. Falls jemand ne idee hat.
Gut ist auch Win 11, soll zwar gepacht sein aber weiß der Kuckuk.

Und irgendwie bin ich der meinung das Read höher ausfallen sollte.
Ist auch noch nicht fertig getunt.

zwischen win 10 und win 11 ist mittlerweile der performance unterschied kaum noch vorhanden. hab mal schnell für dich drei runs laufen lassen, ohne die jeweils besten ergebnisse herauszukitzeln, sprich einfach nur auf "start benchmark" clicked. 1x win 10 usb bench und backup platte, 2x win 11 mit dem default work profile und dem game profile, in welchem ein paar services deaktiviert sind.

4x16gb cl14 3733mhz und 5950x:

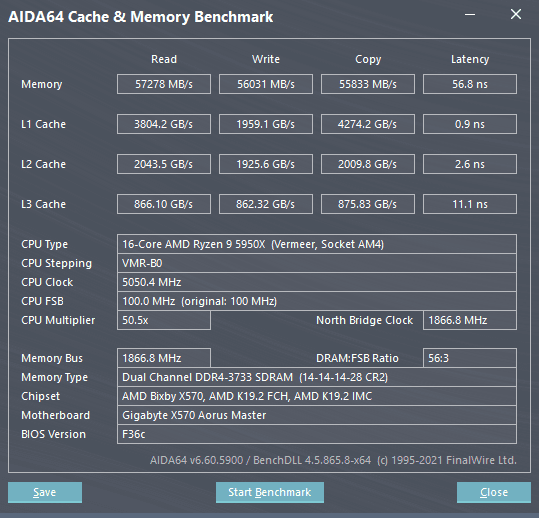

win 10:

win 11 default work profile mit aquasuite, soundblaster sw, teamviewer, macrium reflect service, ..., ...., .....:

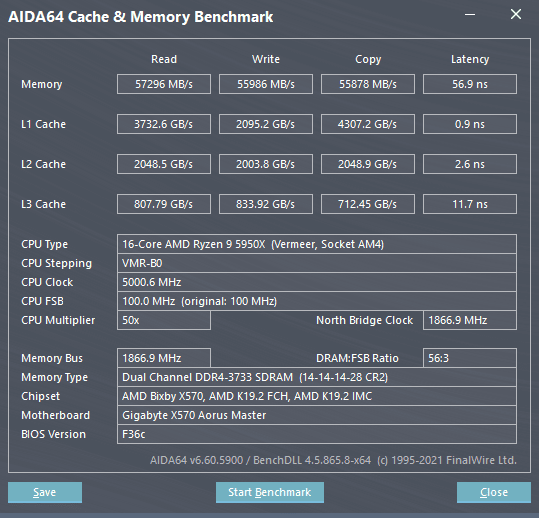

win 11 game profile:

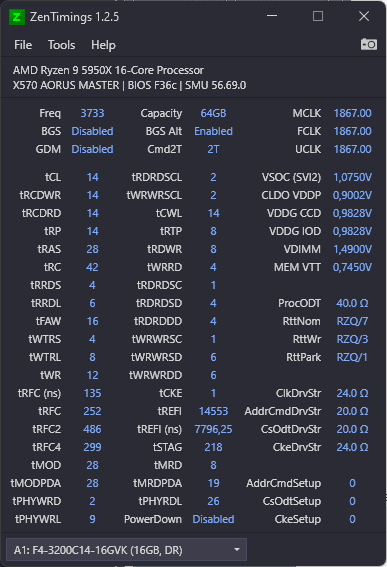

ram settings:

da sieht man aber leider auch, dass bei dir was ned stimmen kann nutzt du den whea blocker noch? ist pbo aktiviert? gut, hier ist 5950x vs 5800x verglichen, bei mir ohne pbo (mit pbo lande ich bei 56,1 latenz), aber trotzdem sieht man ja, dass da scheinbar bei deinem 4000er setting einfach was fehlt. schau noch mal weiter irgwas stimmt da ned



[RedF]

Ja vorallem der L3.

Beitrag automatisch zusammengeführt: 18.04.2022

Bei reddit gefunden : On most motherboard Zen3 L3 cache is running around 350GB/s（5600X&5800X）or 650GB/s(5900X&5950X) ,its a bug and it should be double that speed.by setting EDC up to 500 or above manually could fix this problem.

ich teste mal

Beitrag automatisch zusammengeführt: 18.04.2022

Taugt nix. Mal schöne werte mal schlechte.

Hab mal irgendwo gelesen das das mit dem Boost zusammen hängt weiß aber nicht mehr wo.



[Seadersn]

eha ja, berichte mal; das ist mir neu, hab leider nicht mehr im kopf was mit pbo da rauskam. ich schau mal kurz nach ist ja abgespeichert als profil. beim 3900x lag das bei rund 1000gb/s...

edit: krass... liegt mit dem ausgeloteten "mittel-setup" hier (160 / 118 / 165) ja schon bei eher gewohnten ~1100gb/s. puh... wat nu? lass ich pbo doch an? das muss man mal weiter verfolgen mit anderen benches (und nicht nur stability tests).

edit 2: dann ist was generell unpassend / nicht sauber laufend bei deinem setup, zumindest liegt diese vermutung nahe.



[RedF]

So in Win 10 siehts bis auf Bandbreite schon ganz anders aus.

Beitrag automatisch zusammengeführt: 18.04.2022

Mit nem Festen Takt sollte das L3 problem weg sein. Aber ist es überhaupt eines? Mal ists gut mal schlecht.
