[Sammelthread] Gigabyte X570 Aorus Series – Informationssammlung, Erfahrungen, Tips und Tricks (AM4)

Die X570 Motherboards der Gigabyte Aorus Serie bestehen momentan aus 8 Modellen. Darunter gibt es das Modell Aorus X570 XTreme, das speziell für eine Wasserkühlung entwickelt wurde. In Verbindung mit Prozessoren der dritten Generation (Ryzen 3000) stehen mehrere PCIe 4.0 Steckplätze zur Verfügung.

Die Serie besteht aus folgenden Modellen:

Name und Link zur Website	X570 AORUS ELITE	X570 AORUS ELITE WIFI	X570 AORUS MASTER	X570 AORUS PRO	X570 AORUS PRO WIFI	X570 AORUS ULTRA	X570 AORUS XTREME	X570 GAMING X	X570 I AORUS PRO WIFI	X570 UD
Preisvergleich	Aktuelle Preise		Aktuelle Preise	Aktuelle Preise		Aktuelle Preise	Aktuelle Preise	Aktuelle Preise	Aktuelle Preise	Aktuelle Preise
Formfaktor	ATX; 30.5cm x 24.4cm	ATX; 30.5cm x 24.4cm	ATX; 30.5cm x 24.4cm	ATX; 30.5cm x 24.4cm	ATX; 30.5cm x 24.4cm	ATX; 30.5cm x 24.4cm	E-ATX; 30.5cm x 27.0cm	ATX; 30.5cm x 24.4cm	Mini-ITX; 17.0cm x 17.0cm	ATX; 30.5cm x 24.4cm
Unterstützte Prozessoren	Ryzen 3000 Ryzen 3000G Ryzen 2000 Ryzen 2000G TDP-Limit: 105W (Hersteller)	Ryzen 3000 Ryzen 3000G Ryzen 2000 Ryzen 2000G TDP-Limit: 105W (Hersteller)	Ryzen 3000 Ryzen 3000G Ryzen 2000 Ryzen 2000G TDP-Limit: 105W (Hersteller)	Ryzen 3000 Ryzen 3000G Ryzen 2000 Ryzen 2000G TDP-Limit: 105W (Hersteller)	Ryzen 3000 Ryzen 3000G Ryzen 2000 Ryzen 2000G TDP-Limit: 105W (Hersteller)	Ryzen 3000 Ryzen 3000G Ryzen 2000 Ryzen 2000G TDP-Limit: 105W (Hersteller)	Ryzen 3000 Ryzen 3000G Ryzen 2000 Ryzen 2000G TDP-Limit: 105W (Hersteller)	Ryzen 3000 Ryzen 3000G Ryzen 2000 Ryzen 2000G TDP-Limit: 105W (Hersteller)	Ryzen 3000 Ryzen 3000G Ryzen 2000 Ryzen 2000G TDP-Limit: 105W (Hersteller)	Ryzen 3000 Ryzen 3000G Ryzen 2000 Ryzen 2000G TDP-Limit: 105W (Hersteller)
VRM	7 reale Phasen (6+1), PWM-Controller: ISL69138 (max. 7 Phasen)		14 reale Phasen (12+2), PWM-Controller: XDPE132G5C (max. 16 Phasen)	8 reale Phasen (6+2), PWM-Controller: IR35201 (max. 8 Phasen)		8 reale Phasen (6+2), PWM-Controller: IR35201 (max. 8 Phasen)	16 reale Phasen (14+2), PWM-Controller: XDPE132G5C (max. 16 Phasen)	7 reale Phasen (5+2), PWM-Controller: ISL69147 (max. 7 Phasen)	8 reale Phasen (6+2), PWM-Controller: IR35201 (max. 8 Phasen)	7 reale Phasen (5+2), PWM-Controller: ISL69147 (max. 7 Phasen)
MOSFETs CPU	12x 50A SIC634		12x 50A IR3556	12x 40A IR3553		12x 40A IR3553	14x 70A TDA21472	10x 46A 4C10N/20x 4C06N	6x 70A TDA21472	10x 46A 4C10N/20x 4C06N
MOSFETs SoC	2x 46A 4C10N/4C06N		2x 50A IR3556	2x 46A 4C10N/4C06N		4x 46A 4C10N/4C06N	2x 70A TDA21472	4x 46A 4C10N/4C06N	2x 40A IR3553	4x 46A 4C10N/4C06N
Arbeitsspeicher	Ryzen 3000 Support for DDR4 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules Ryzen 3000G/Ryzen 2000/Ryzen 2000G Support for DDR4 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules	Ryzen 3000 Support for DDR4 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules Ryzen 3000G/Ryzen 2000/Ryzen 2000G Support for DDR4 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules	Ryzen 3000 Support for DDR4 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules Ryzen 3000G/Ryzen 2000/Ryzen 2000G Support for DDR4 3600(O.C.) / 3400(O.C.) / 3333(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules	Ryzen 3000 Support for DDR4 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules Ryzen 3000G/Ryzen 2000/Ryzen 2000G Support for DDR4 3600(O.C.) / 3400(O.C.) / 3333(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules	Ryzen 3000 Support for DDR4 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules Ryzen 3000G/Ryzen 2000/Ryzen 2000G Support for DDR4 3600(O.C.) / 3400(O.C.) / 3333(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules	Ryzen 3000 Support for DDR4 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules Ryzen 3000G/Ryzen 2000/Ryzen 2000G Support for DDR4 3600(O.C.) / 3400(O.C.) / 3333(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules	Ryzen 3000 Support for DDR4 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules Ryzen 3000G/Ryzen 2000/Ryzen 2000G Support for DDR4 3600(O.C.) / 3400(O.C.) / 3333(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules	Ryzen 3000 Support for DDR4 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules Ryzen 3000G/Ryzen 2000/Ryzen 2000G Support for DDR4 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules	Ryzen 3000 Support for DDR4 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules Ryzen 3000G/Ryzen 2000/Ryzen 2000G Support for DDR4 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules	Ryzen 3000 Support for DDR4 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules Ryzen 3000G/Ryzen 2000/Ryzen 2000G Support for DDR4 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Onboard Grafik	Integrated Graphics Processor: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version, HDCP 2.2, and HDR. Maximum shared memory of 16 GB Note: For 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors only.	Integrated Graphics Processor: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version, HDCP 2.2, and HDR. Maximum shared memory of 16 GB Note: For 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors only.		Integrated Graphics Processor: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version, HDCP 2.2, and HDR. Maximum shared memory of 16 GB Note: For 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors only.	Integrated Graphics Processor: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version, HDCP 2.2, and HDR. Maximum shared memory of 16 GB Note: For 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors only.	Integrated Graphics Processor: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version, HDCP 2.2, and HDR. Maximum shared memory of 16 GB Note: For 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors only.		Integrated Graphics Processor: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version, HDCP 2.2, and HDR. Maximum shared memory of 16 GB Note: For 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors only.	Integrated Graphics Processor: 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version. 2 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version, HDCP 2.2, and HDR. Support for up to 3 displays at the same time Maximum shared memory of 16 GB * For 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors only.	Integrated Graphics Processor: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version, HDCP 2.2, and HDR. Maximum shared memory of 16 GB Note: For 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors only.
Audio	Realtek® ALC1200 codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out	Realtek® ALC1200 codec High Definition Audio 2/4/5.1-channel Support for S/PDIF Out	Realtek® ALC1220-VB codec * The front panel line out jack supports DSD audio. ESS SABRE9118 DAC chip High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out	Realtek® ALC1220-VB codec * The back panel line out jack supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out	Realtek® ALC1220-VB codec * The back panel line out jack supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out	Realtek® ALC1220-VB codec * The back panel line out jack supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out	Realtek® ALC1220-VB codec * The front panel line out jack supports DSD audio. ESS SABRE9218 DAC chip High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out	Realtek® ALC887 codec High Definition Audio 2/4/5.1-channel	Realtek® ALC1220-VB codec * The back panel line out jack supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.	Realtek® ALC887 codec High Definition Audio 2/4/5.1-channel
LAN	Intel® GbE LAN chip (10/100/1000 Mbit)	Intel® GbE LAN chip (10/100/1000 Mbit)	1 x Intel® GbE LAN chip (10/100/1000 Mbit) (LAN1) 1 x Realtek® 2.5GbE LAN chip (10/100/1000/2500 Mbit) (LAN2)	Intel® GbE LAN chip (10/100/1000 Mbit)	Intel® GbE LAN chip (10/100/1000 Mbit)	Intel® GbE LAN chip (10/100/1000 Mbit)	1 x Aquantia GbE LAN chip (10 Gbit/5 Gbit/2.5 Gbit/1000 Mbit/100 Mbit) (LAN1) 1 x Intel® GbE LAN phy (10/100/1000 Mbit) (LAN2)	Realtek® GbE LAN chip (10/100/1000 Mbit)	Intel® GbE LAN chip (10/100/1000 Mbit)	Realtek® GbE LAN chip (10/100/1000 Mbit)
Wireless Communication Module		Wi-Fi 802.11 a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band BLUETOOTH 4.2 Support for 11ac wireless standard and up to 433 Mbps data rate * Actual data rate may vary depending on environment and equipment.	Wi-Fi 802.11a/b/g/n/ac/ax, supporting 2.4/5 GHz Dual-Band BLUETOOTH 5.0 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate * Actual data rate may vary depending on environment and equipment.		Wi-Fi 802.11a/b/g/n/ac/ax, supporting 2.4/5 GHz Dual-Band BLUETOOTH 5.0 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate * Actual data rate may vary depending on environment and equipment.	Wi-Fi 802.11a/b/g/n/ac/ax, supporting 2.4/5 GHz Dual-Band BLUETOOTH 5.0 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate * Actual data rate may vary depending on environment and equipment.	Wi-Fi 802.11a/b/g/n/ac/ax, supporting 2.4/5 GHz Dual-Band BLUETOOTH 5.0 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate * Actual data rate may vary depending on environment and equipment.		Wi-Fi 802.11a/b/g/n/ac/ax, supporting 2.4/5 GHz Dual-Band BLUETOOTH 5.0 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate * Actual data rate may vary depending on environment and equipment.
Erweiterungssteckplätze	Integrated in the CPU (PCIEX16): · 3rd Generation AMD Ryzen™ processors: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 · 2nd Generation AMD Ryzen™ processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. · 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 Integrated in the Chipset (PCIEX4/PCIEX1): 1 x PCI Express x16 slot, supporting PCIe 4.0*/3.0 and running at x4 (PCIEX4) * For 3rd Generation AMD Ryzen™ processors only. 2 x PCI Express x1 slots, supporting PCIe 4.0*/3.0 * For 3rd Generation AMD Ryzen™ processors only.	Integrated in the CPU (PCIEX16): · 3rd Generation AMD Ryzen™ processors: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 · 2nd Generation AMD Ryzen™ processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. · 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 Integrated in the Chipset (PCIEX4/PCIEX1): 1 x PCI Express x16 slot, supporting PCIe 4.0*/3.0 and running at x4 (PCIEX4) * For 3rd Generation AMD Ryzen™ processors only. 2 x PCI Express x1 slots, supporting PCIe 4.0*/3.0 * For 3rd Generation AMD Ryzen™ processors only.	Integrated in the CPU (PCIEX16/PCIEX8): 3rd Generation AMD Ryzen™ processors: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x8 (PCIEX8) 2nd Generation AMD Ryzen™ processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 (PCIEX16) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX8) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When using the 3rd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ processors, the PCIEX16 slot operates at up to x8 mode. 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX16) Integrated in the Chipset (PCIEX4/PCIEX1): 1 x PCI Express x16 slot, supporting PCIe 4.0*/3.0 and running at x4 (PCIEX4) * For 3rd Generation AMD Ryzen™ processors only. 1 x PCI Express x1 slot, supporting PCIe 4.0*/3.0 * For 3rd Generation AMD Ryzen™ processors only.	Integrated in the CPU (PCIEX16/PCIEX8): · 3rd Generation AMD Ryzen™ processors: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x8 (PCIEX8) · 2nd Generation AMD Ryzen™ processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 (PCIEX16) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX8) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When using the 3rd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ processors, the PCIEX16 slot operates at up to x8 mode. · 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX16) Integrated in the Chipset (PCIEX4/PCIEX1): 1 x PCI Express x16 slot, supporting PCIe 4.0*/3.0 and running at x4 (PCIEX4) * For 3rd Generation AMD Ryzen™ processors only. 2 x PCI Express x1 slots, supporting PCIe 4.0*/3.0 * For 3rd Generation AMD Ryzen™ processors only.	Integrated in the CPU (PCIEX16/PCIEX8): · 3rd Generation AMD Ryzen™ processors: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x8 (PCIEX8) · 2nd Generation AMD Ryzen™ processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 (PCIEX16) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX8) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When using the 3rd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ processors, the PCIEX16 slot operates at up to x8 mode. · 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX16) Integrated in the Chipset (PCIEX4/PCIEX1): 1 x PCI Express x16 slot, supporting PCIe 4.0*/3.0 and running at x4 (PCIEX4) * For 3rd Generation AMD Ryzen™ processors only. 2 x PCI Express x1 slots, supporting PCIe 4.0*/3.0 * For 3rd Generation AMD Ryzen™ processors only.	3rd Generation AMD Ryzen™ processors: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x8 (PCIEX8) 2nd Generation AMD Ryzen™ processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 (PCIEX16) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX8) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When using the 3rd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ processors, the PCIEX16 slot operates at up to x8 mode. 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX16) Integrated in the Chipset (PCIEX4/PCIEX1): 1 x PCI Express x16 slot, supporting PCIe 4.0*/3.0 and running at x4 (PCIEX4) * For 3rd Generation AMD Ryzen™ processors only. 2 x PCI Express x1 slots, supporting PCIe 4.0*/3.0 * For 3rd Generation AMD Ryzen™ processors only.	Integrated in the CPU (PCIEX16/PCIEX8): 3rd Generation AMD Ryzen™ processors: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x8 (PCIEX8) 2nd Generation AMD Ryzen™ processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 (PCIEX16) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX8) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When using the 3rd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ processors, the PCIEX16 slot operates at up to x8 mode. 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX16) Integrated in the Chipset (PCIEX4): 1 x PCI Express x16 slot, supporting PCIe 4.0*/3.0 and running at x4 * For 3rd Generation AMD Ryzen™ processors only.	Integrated in the CPU (PCIEX16): · 3rd Generation AMD Ryzen™ processors: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 · 2nd Generation AMD Ryzen™ processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. · 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 Integrated in the Chipset (PCIEX4/PCIEX1) 1 x PCI Express x16 slot, supporting PCIe 4.0*/3.0 and running at x4 (PCIEX4) * For 3rd Generation AMD Ryzen™ processors only. 3 x PCI Express x1 slots, supporting PCIe 4.0*/3.0 * For 3rd Generation AMD Ryzen™ processors only.	Integrated in the CPU (PCIEX16): 3rd Generation AMD Ryzen™ processors: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) 2nd Generation AMD Ryzen™ processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 (PCIEX16) 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX16) Integrated in the Chipset: 1 x M.2 Socket 1 connector for the wireless communication module (M2_WIFI)	Integrated in the CPU (PCIEX16): · 3rd Generation AMD Ryzen™ processors: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 · 2nd Generation AMD Ryzen™ processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. · 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 Integrated in the Chipset (PCIEX4/PCIEX1) 2 x PCI Express x16 slots, supporting PCIe 4.0*/3.0 and running at x4 (PCIEX4) * For 3rd Generation AMD Ryzen™ processors only. 2 x PCI Express x1 slots, supporting PCIe 4.0*/3.0 * For 3rd Generation AMD Ryzen™ processors only.
Multi-Graphics Technology	Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies Note: For 3rd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ processors only.	Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies Note: For 3rd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ processors only.	Support for NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI™ technologies Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies For 3rd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ processors only.	Support for NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI™ technologies Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies Note: For 3rd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ processors only.	Support for NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI™ technologies Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies Note: For 3rd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ processors only.	Support for NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI™ technologies Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies For 3rd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ processors only.	Support for NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI™ technologies Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies For 3rd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ processors only.	Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies Note: For 3rd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ processors only.		Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies Note: For 3rd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ processors only.
Storage Interface	Integrated in the CPU (M2A_SOCKET): · 3rd Generation AMD Ryzen™ processors: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) · 2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) Integrated in the Chipset (M2B_SOCKET): 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0*/3.0 x4/x2 SSD support) * For 3rd Generation AMD Ryzen™ processors only. 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10	Integrated in the CPU (M2A_SOCKET): · 3rd Generation AMD Ryzen™ processors: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) · 2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) Integrated in the Chipset (M2B_SOCKET): 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0*/3.0 x4/x2 SSD support) * For 3rd Generation AMD Ryzen™ processors only. 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10	Integrated in the CPU (M2A_SOCKET): 3rd Generation AMD Ryzen™ processors: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) 2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) Integrated in the Chipset (M2B_SOCKET/M2C_SOCKET): 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0*/3.0 x4/x2 SSD support) (M2B_SOCKET) * For 3rd Generation AMD Ryzen™ processors only. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 4.0*/3.0 x4/x2 SSD support) (M2C_SOCKET) * For 3rd Generation AMD Ryzen™ processors only. 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10 * Refer to "1-9 Internal Connectors," for the installation notices for the M.2 and SATA connectors.	Integrated in the CPU (M2A_SOCKET): · 3rd Generation AMD Ryzen™ processors: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) · 2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) Integrated in the Chipset (M2B_SOCKET): 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0*/3.0 x4/x2 SSD support) * For 3rd Generation AMD Ryzen™ processors only. 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10	Integrated in the CPU (M2A_SOCKET): · 3rd Generation AMD Ryzen™ processors: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) · 2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) Integrated in the Chipset (M2B_SOCKET): 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0*/3.0 x4/x2 SSD support) * For 3rd Generation AMD Ryzen™ processors only. 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10	Integrated in the CPU (M2A_SOCKET): 3rd Generation AMD Ryzen™ processors: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) 2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) Integrated in the Chipset (M2B_SOCKET/M2C_SOCKET): 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0*/3.0 x4/x2 SSD support) (M2B_SOCKET) * For 3rd Generation AMD Ryzen™ processors only. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 4.0*/3.0 x2 SSD support) (M2C_SOCKET) * For 3rd Generation AMD Ryzen™ processors only. 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10 * Refer to "1-8 Internal Connectors," for the installation notices for the M.2 and SATA connectors.	Integrated in the CPU (M2A_SOCKET): 3rd Generation AMD Ryzen™ processors: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) 2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) Integrated in the Chipset (M2B_SOCKET/M2C_SOCKET): 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0*/3.0 x4/x2 SSD support) (M2B_SOCKET) * For 3rd Generation AMD Ryzen™ processors only. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0*/3.0 x4/x2 SSD support) (M2C_SOCKET) * For 3rd Generation AMD Ryzen™ processors only. 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10 * Refer to "1-9 Internal Connectors," for the installation notices for the M.2 and SATA connectors.	Integrated in the CPU (M2A_SOCKET): · 3rd Generation AMD Ryzen™ processors: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) · 2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) Integrated in the Chipset (M2B_SOCKET): 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0*/3.0 x4/x2 SSD support) * For 3rd Generation AMD Ryzen™ processors only. 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10	Integrated in the CPU (M2A_SOCKET): 3rd Generation AMD Ryzen™ processors: 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 4.0 x4/x2 SSD support) 2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/x2 SSD support) Integrated in the Chipset (M2B_SOCKET): 1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2260/2280 SATA and PCIe* x4/x2 SSD support) * For 3rd Generation AMD Ryzen™ processors only. 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10	Integrated in the CPU: · 3rd Generation AMD Ryzen™ processors: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) · 2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) Integrated in the Chipset: 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10
USB	Integrated in the CPU: 4 x USB 3.2 Gen 1 ports on the back panel Chipset: 1 x USB Type-C™ port with USB 3.2 Gen 2 support, available through the internal USB header 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 4 x USB 3.2 Gen 1 ports available through the internal USB headers Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)	Integrated in the CPU: 4 x USB 3.2 Gen 1 ports on the back panel Chipset: 1 x USB Type-C™ port with USB 3.2 Gen 2 support, available through the internal USB header 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 4 x USB 3.2 Gen 1 ports available through the internal USB headers Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)	Integrated in the CPU: 2 x USB 3.2 Gen 2*/Gen 1 Type-A ports (red) on the back panel * For 3rd Generation AMD Ryzen™ processors only. 2 x USB 3.2 Gen 1 ports on the back panel Integrated in the Chipset: 1 x USB Type-C™ port with USB 3.2 Gen 2 support, available through the internal USB header 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 4 x USB 3.2 Gen 1 ports available through the internal USB headers Chipset+USB 2.0 Hub: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)	Integrated in the CPU: 3 x USB 3.2 Gen 1 ports on the back panel 1 x USB 3.2 Gen 2*/Gen 1 Type-A port (red) on the back panel * For 3rd Generation AMD Ryzen™ processors only. Chipset: 1 x USB Type-C™ port with USB 3.2 Gen 2 support, available through the internal USB header 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 4 x USB 3.2 Gen 1 ports available through the internal USB headers Chipset+USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)	Integrated in the CPU: 3 x USB 3.2 Gen 1 ports on the back panel 1 x USB 3.2 Gen 2*/Gen 1 Type-A port (red) on the back panel * For 3rd Generation AMD Ryzen™ processors only. Chipset: 1 x USB Type-C™ port with USB 3.2 Gen 2 support, available through the internal USB header 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 4 x USB 3.2 Gen 1 ports available through the internal USB headers Chipset+USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)	Integrated in the CPU: 3 x USB 3.2 Gen 1 ports on the back panel 1 x USB 3.2 Gen 2*/Gen 1 Type-A port (red) on the back panel * For 3rd Generation AMD Ryzen™ processors only. Chipset: 1 x USB Type-C™ port with USB 3.2 Gen 2 support, available through the internal USB header 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 4 x USB 3.2 Gen 1 ports available through the internal USB headers Chipset+USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)	Integrated in the CPU: 2 x USB 3.2 Gen 2*/Gen 1 Type-A ports (red) on the back panel * For 3rd Generation AMD Ryzen™ processors only. 2 x USB 3.2 Gen 1 ports on the back panel Integrated in the Chipset: 1 x USB Type-C™ port with USB 3.2 Gen 2 support, available through the internal USB header 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support 3 x USB 3.2 Gen 2 Type-A port (red) on the back panel 2 x USB 3.2 Gen 1 ports available through the internal USB header Chipset+USB 3.2 Gen 1 Hub: 2 x USB 3.2 Gen 1 ports available through the internal USB header 2 x USB 2.0/1.1 ports available through the internal USB header Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports on the back panel	Integrated in the CPU: 4 x USB 3.2 Gen 1 ports on the back panel Chipset: 4 x USB 3.2 Gen 1 ports available through the internal USB headers 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)	Integrated in the CPU: 4 x USB 3.2 Gen 1 ports on the back panel Integrated in the Chipset: 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 2 x USB 3.2 Gen 1 ports available through the internal USB header 2 x USB 2.0/1.1 ports available through the internal USB header	Integrated in the CPU: 4 x USB 3.2 Gen 1 ports on the back panel Chipset: 4 x USB 3.2 Gen 1 ports available through the internal USB headers 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Interne I/O Anschlüsse	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 2 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 2 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C™ port, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper 1 x Q-Flash Plus button	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 2 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 2 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C™ port, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper 1 x Q-Flash Plus button	1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 2 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 3 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C™ port, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x noise detection header 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 2 x temperature sensor headers 1 x power button 1 x reset button 2 x BIOS switches 1 x Clear CMOS jumper Voltage Measurement Points	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 2 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 2 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C™ port, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper 2 x temperature sensor headers 1 x Q-Flash Plus button	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 2 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 2 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C™ port, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper 2 x temperature sensor headers 1 x Q-Flash Plus button	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 2 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 3 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C™ port, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper 2 x temperature sensor headers 1 x Q-Flash Plus button	1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x OC PEG power connector 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 2 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 3 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C™ port, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 1 headers 1 x USB 2.0/1.1 header 1 x noise detection header 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 2 x temperature sensor headers 1 x power button 1 x reset button 2 x BIOS switches Voltage Measurement Points	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 2 x system fan headers 1 x CPU cooler LED strip/RGB LED strip header 2 x addressable LED strip headers 2 x RGB LED strip headers 6 x SATA 6Gb/s connectors 2 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper 1 x Q-Flash Plus button	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x addressable LED strip header 1 x RGB LED strip header 4 x SATA 6Gb/s connectors 2 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x speaker header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 2 x system fan headers 1 x RGB LED strip header 6 x SATA 6Gb/s connectors 1 x M.2 Socket 3 connector 1 x front panel header 1 x front panel audio header 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper
Rückseite I/O Panel	4 x USB 2.0/1.1 ports 1 x HDMI port 4 x USB 3.2 Gen 1 ports 2 x USB 3.2 Gen 2 Type-A ports (red) 1 x RJ-45 port 1 x optical S/PDIF Out connector 5 x audio jacks	4 x USB 2.0/1.1 ports 2 x SMA antenna connectors (1T1R) 1 x HDMI port 4 x USB 3.2 Gen 1 ports 2 x USB 3.2 Gen 2 Type-A ports (red) 1 x RJ-45 port 1 x optical S/PDIF Out connector 5 x audio jacks	1 x Q-Flash Plus button 1 x Clear CMOS button 2 x SMA antenna connectors (2T2R) 1 x USB Type-C™ port, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 2*/Gen 1 Type-A ports (red) * For 3rd Generation AMD Ryzen™ processors only. 1 x USB 3.2 Gen 2 Type-A port (red) 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 2 x RJ-45 ports 1 x optical S/PDIF Out connector 5 x audio jacks	1 x HDMI port 1 x USB Type-C™ port, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2*/Gen 1 Type-A port (red) * For 3rd Generation AMD Ryzen™ processors only. 1 x USB 3.2 Gen 2 Type-A port (red) 3 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 1 x optical S/PDIF Out connector 5 x audio jacks	2 x SMA antenna connectors (2T2R) 1 x HDMI port 1 x USB Type-C™ port, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2*/Gen 1 Type-A port (red) * For 3rd Generation AMD Ryzen™ processors only. 1 x USB 3.2 Gen 2 Type-A port (red) 3 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 1 x optical S/PDIF Out connector 5 x audio jacks	2 x SMA antenna connectors (2T2R) 1 x HDMI port 1 x USB Type-C™ port, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2*/Gen 1 Type-A port (red) * For 3rd Generation AMD Ryzen™ processors only. 1 x USB 3.2 Gen 2 Type-A port (red) 3 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 1 x optical S/PDIF Out connector 5 x audio jacks	1 x Q-Flash Plus button 1 x Clear CMOS button 2 x SMA antenna connectors (2T2R) 1 x USB Type-C™ port, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 2*/Gen 1 Type-A ports (red) * For 3rd Generation AMD Ryzen™ processors only. 3 x USB 3.2 Gen 2 Type-A ports (red) 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 2 x RJ-45 ports 1 x optical S/PDIF Out connector 5 x audio jacks	1 x PS/2 keyboard port 1 x PS/2 mouse port 1 x HDMI port 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks	1 x DisplayPort 2 x HDMI ports 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 3.2 Gen 1 ports 1 x USB Type-C™ port, with USB 3.2 Gen 2 support 1 x Q-Flash Plus button 1 x RJ-45 port 2 x SMA antenna connectors (2T2R) 3 x audio jacks	1 x PS/2 keyboard/mouse port 1 x HDMI port 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x Q-Flash Plus button 1 x RJ-45 port 3 x audio jacks
H/W Überwachung	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Overheating warning Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the fan you install.	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Overheating warning Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the fan you install.	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Overheating warning Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. Noise detection	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Overheating warning Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Overheating warning Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Overheating warning Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Overheating warning Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. Noise detection	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Overheating warning Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.	Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install.	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Overheating warning Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the fan you install.
BIOS	1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0	1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0	2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0	2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0	2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0	2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0	2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0	1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0	1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0	1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Sonstiges	Support for APP Center Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install	Support for APP Center Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install	Support for APP Center Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install	Support for APP Center Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install	Support for APP Center Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install	Support for APP Center Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install	Support for APP Center Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install	Support for APP Center Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install	Support for APP Center Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install	Support for APP Center Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install
User	blackbandt, derFireBird, Frankie36, kami1205, Machete, MrDanielVie, Talliostro, WombatMS		Child, Cyberbernd, Daniel N, DonGeilo, GuruSMI, Nightmare86, scrush	Alex2710, Daniel N, DerBayer89, Grainger, HSW, iTzMineCore, KopfWand, Marcool, Sepuko,		buyman, InkognitoGER, oNyX`, tStorm	Rabauke81		SeelBreaker
Testberichte	hothardware.com: Gigabyte Aorus X570 Motherboard And PCIe 4.0 SSD Preview: Ready To Rock Ryzen 3000	hothardware.com: Gigabyte Aorus X570 Motherboard And PCIe 4.0 SSD Preview: Ready To Rock Ryzen 3000	HW-LUXX: Gigabyte übertaktet den Ryzen 9 3950X auf 4,4 GHz und gibt Ausblick auf die Leistung hothardware.com: Gigabyte Aorus X570 Motherboard And PCIe 4.0 SSD Preview: Ready To Rock Ryzen 3000 gamezoom.net: Gigabyte X570 Aorus Master - Test/Review kitguru.net: Gigabyte X570 Aorus Master Motherboard Review guru3d.com: X570 Aorus Master motherboard tweaktown.com: GIGABYTE X570 Aorus Master (AMD X570) Motherboard Review bit-tech.net: Gigabyte X570 Aorus Master Review thinkcomputers.org: Gigabyte X570 AORUS Master Motherboard Review overclock3d.net: Gigabyte X570 Aorus Master Review	hothardware.com: Gigabyte Aorus X570 Motherboard And PCIe 4.0 SSD Preview: Ready To Rock Ryzen 3000 overclock3d.net: Gigabyte X570 Aorus Pro Review eteknix.com: Gigabyte X570 AORUS Pro Motherboard Review	hothardware.com: Gigabyte Aorus X570 Motherboard And PCIe 4.0 SSD Preview: Ready To Rock Ryzen 3000 overclockers.com: GIGABYTE X570 AORUS PRO WiFi Review proclockers.com: Gigabyte X570 AORUS Pro WIFI Motherboard Review	hothardware.com: Gigabyte Aorus X570 Motherboard And PCIe 4.0 SSD Preview: Ready To Rock Ryzen 3000	hothardware.com: Gigabyte Aorus X570 Motherboard And PCIe 4.0 SSD Preview: Ready To Rock Ryzen 3000 anandtech.com: The GIGABYTE X570 Aorus Xtreme Motherboard Review: Fanless AM4 hexus.net: Review: X570 Aorus Xtreme Motherboard tweaktown.com: GIGABYTE X570 Aorus Xtreme (AMD X570) Motherboard Review	hothardware.com: Gigabyte Aorus X570 Motherboard And PCIe 4.0 SSD Preview: Ready To Rock Ryzen 3000	HW Luxx: PCIe 4.0 im Kleinstformat: Gigabyte X570 I AORUS Pro WiFi im Test hothardware.com: Gigabyte Aorus X570 Motherboard And PCIe 4.0 SSD Preview: Ready To Rock Ryzen 3000 overclock3d.net: Gigabyte X570i ITX Aorus Pro WiFi Review bit-tech.net: Gigabyte X570 I Aorus Pro WiFi Review	hothardware.com: Gigabyte Aorus X570 Motherboard And PCIe 4.0 SSD Preview: Ready To Rock Ryzen 3000

Die aktuellen BIOS Versionen findet man entweder auf der jeweiligen Modellseite von Gigabyte oder in der Ultimativen AM4 UEFI/BIOS/AGESA Übersicht (15.11.19).

Ich hoffe auf rege Beteiligung. Es handelt sich um einen dynamischen Informationsprozess, der diesem Eingangspost auch erweitern soll. Deshalb bitte ich um Information, wenn bestimmte Informationen bereits in diesem Eingangspost erscheinen sollen.

FAQ:
1. BIOS Nomenklatur: Bei Gigabyte kann man anhand der Versionsnummer direkt erkennen, ob es sich um ein Release oder um eine Testversion handelt. Bei letzterer endet die Versionsnummer mit einem Buchstaben. (oNyX`)

2. meine NVMe PCIe 3.0 SSD geht nicht
Das Problem läßt sich im Allgemeinen dadurch beheben, daß man dem Board explizit mitteilt, daß es PCIe 3.0 zu verwenden hat. Der Eintrag nennt sich "PCI Slot Configuration) und kann manuell auf Gen1 bis Gen4 sowie Auto gestellt werden. Bitte beachtet, daß die Systemweit gilt und so z.B. auch eine 5700 unter dem eingestellten Wert läuft.

3. Meine PCIe x1 Karte geht nicht
Das ist momentan noch ein Bug im BIOS. Vereinzelt kann es auch zu Bootproblemen führen. Momentan ist der einzige Workaround, die Karte zu entfernen

4. PBO funktioniert nicht
Auch dies ist ein Bug um BIOS. Er tritt seit BIOS F10A/AGESA 1.0.0.4 auf. Das BIOS liest hierbei die Boardwerte für EDC nicht aus und deaktiviert daraufhin den PBO-Boost. Man kann dies momentan umgehen, indem man den EDC-Wert explizit auf 0 setzt. Bei den AMD-Performance -> PBO Einstelllungen muß eine EDC von Null eingetragen werden.

5. Ich habe ein CMOS Clear durchgeführt, aber es werden weiterhin die alten Settings verwendet.
Bei einem CMOS Clear sollten eigentlich alle Einstellungen auf Default zurückgesetzt werden. Das passiert auch fast komplett. Jedoch bleiben die Einstellungen im AMD-Overclocking Menübereich komplett erhalten und werden nach Start des Systems auch verwendet. Man muß dort die Werte händisch löschen!

6. Seriennummer-Nomenklatur:
Man kann anhand der Seriennummer das Produktionsdatum des Boards ermitteln. Lautet die Seriennummer am Beginn z.B. SN1928xxxxxxxx besagen die Stellen 3&4 (19) das Produktionsjahr, die Stellen 5&6 hingegen die Produktionswoche. Das Board mit obiger Seriennummer wurde alsoo in der Woche 28 des Jahres 2019 produziert.

Ich bitte dabei zu berücksichtigen, daß in Deutschland die erste Kalenderwoche unterschiedlich zu den USA ermittelt wird.

7. Wem das Sägen des CPU-Kühlers auf den Nerv geht, kann diesen an die Leine nehmen. Bei oNyX` zeigten sich folgende Werte als besonders hilfreich
1. 27% default
2. 30% 60c
3. 50% 70c
4. 75% 75c
5. 100% 80c
Diese Werte können direkt im Bios oder via SIV eingetragen werden.

8. Ich möchte hier darauf hinweisen, daß das Schreiben von Werten im Ryzen Master mit größter Vorsicht zu genießen ist. Es werden z.B. bei RAM-Werten Dinge direkt in den AGESA Bereich geschrieben, der für Mainboardhersteller gesperrt ist. Es kann und kam dabei dazu kommen, daß das Board nicht mehr lauffähig ist. Hat man bereits Werte geschrieben, kann man mit der Prozedur:
- BIOS inkl. Agesa neu flashen
- BIOS Hardware-Reset
das Board wieder in einen lauffähigen Zustand versetzen. Dies ist aber nicht garantiert. Auf OCN musstem mehrere Nutzer ihr Board trotz der Prozedur zurücksenden. Diese Warnung betrifft mWn ALLE X570 Boards.

9. AMD hat für hwInfo festgelegt, daß das Interwall zum Auslesen der Werte alle 500ms erfolgen soll. Standardmäßig sind hier 2 Sekunden parametrisiert. Ich bitte dies bei Benchmarks etc. zu berücksichtigen

10. Sollte das BIOS bei der Nutzung von Tastatur und/oder Maus ruckeln, kann man im BIOS mit dem Tastaturkürzel "Strg-Alt-F6 " die Auflösung bis zum nächsten Reboot auf den VGA Modus limitieren. Dies sollte den Eingabe-Lag beheben.

Hilfreiche Links:
1. Neben dem Einstieg über die Gigabyteseite kann man den Downloadbereich auch via Aorus.com erreichen.
2. ein weiterer guter Anlaufpunkt für die neueste Beta ist TweakTon's Forum GIGABYTE Latest Beta BIOS
3. Wer ein X570 Master besitzt und seinen Ryzen 3000 übertakten will, findet im Gigabyte X570 AORUS Master Overclocking Thread eine umfangreiche Anleitung
4. Eine weitere Anleitung zum Übertakten der Ryzen 3000 auf einem Gigabyte Board findet Ihr im GIGABYTE AMD X570 Ryzen Overclocking Guide

Danksagung:
Einen großen Dank an oNyX` und Dan Hot für die wertvollen Hints und Tips

--- History ---
2019 11 16 | GuruSMI | Initiale Version
2019 11 30 | GuruSMI | Anpassung wegen Kompatibilitätserweiterung (Ryzen 2000G)
2020 01 09 | GuruSMI | Einfügen hilfreicher Links, Aktualisierung der FAQ
2020 01 22 | GuruSMI | Änderung des Threadtitels
2020 01 22 | Emissary42 | Verschieben des Threads in das Unterforum "Mainboard-Sammelthreads"
2020 08 27 | GuruSMI | Erweiterung der FAQ



[Dan Hot]

@tsw|Syrus weißt du welche Board revision du hast?
Also ich hab 1.0 aber selbst default settings war kein stabiler Betrieb möglich also nicht mal im UEFI war es stabil.



[tsw|Syrus]

@Dan Hot Ist die Rev 1.0, habe im Bios beide Chips geflashed, zurück gesetzt und es läuft...



[fdiskc2000]

@ Dan Hot: leiderwar es bereits aus. AN/AUS macht keinen Unterschied :-(

@fdiskc2000 ErP auf aus stellen, ist ein weit verbreitetes Problem auf X570!

War leider bereits aus. Das ist es also leider auch nicht :-(

Ich habe 4*16GB ECC Riegel von Samsung @3400MHz im Einsatz auf meinem AORUS Ultra (F11). Settings
Also grundsätzlich geht OC bei Vollbestückung mit ECCs schon.

Magst Du verraten welches Modell? Liebäugele aktuell mit diesen hier. Sollten ebenfalls passen, oder?
Die von Crucial mit 32GB@3200MHz scheinen zu neu. Die sind nirgends lieferbar.



[Schnurzel]

Guten Morgen!
Bei mir läuft das F20a auf einem Aorus Elite 1.0 ebenfalls reibungslos.

Meine internen Festplatten werden unter "Hardware sicher entfernen" angezeigt. Hat jemand eine Idee, wie ich das abstellen kann?



[TheOpenfield]

Hotplug für SATA Anschlüsse deaktivieren im BIOS sollte helfen



[Schnurzel]

Kannst Du mir sagen, was ich genau deaktivieren muss? Die SATA-Einstellungen geben nicht viel her



[TheOpenfield]

IO Ports - SATA - SATA Hot Plug



[Schnurzel]

Vielen Dank!

Werde ich mir nachher ansehen.



[2Stoned]

Magst Du verraten welches Modell?

Samsung M391A2K43BB1-CTD

Schau einfach, dass du nicht versehentlich registered ECC nimmst



[fdiskc2000]

Samsung M391A2K43BB1-CTD

Schau einfach, dass du nicht versehentlich registered ECC nimmst

Ne den unterschied kenne ich schon ;-) Bin bei der neuen Ryzen-Welt nur noch ein wenig misstrauisch wie sehr sich die Boards bei nicht HCL-Speicher anstellen ;-)
Danke für Deine Antwort!



[mattiii]

moinsen,

wenn man die Cpu manuell auf 4 Ghz allcore taktet, was stellt man bei der Spannung ein, damit diese auch im Idle gesenkt wird?



[Seadersn]

nur den multi und ein offset bei der voltage, wenn überhaupt, glaub ich? hab mich da auch immer geärgert, das aber nie getestet vllt weiss es ja ein anderer definitiv: wollte mich eigtl. nur kurz als neu-besitzer eines master-boards "vorstellen", bin schon gespannt! für mich waren hauptsächlich die pcie 4.0 lanes und v.a. die drei m.2 slots ausschlaggebend. wird dann mit dem rest des bestehenden systems aufgebaut, bissl hoffnung hab ich auch bei dem thema 1900fclk. hoffe ja, dass das momentane x470 board das verhindert und es nicht die cpu ist, die es verweigert... chance ist gering, aber vllt. hilft ja daumendruck von euch auch noch ein wenig müsste nächste woche kommen: amazon hat es lieferbar für atm 357€ :bigshot: da musste ich einfach...



[mattiii]

und ich bin auf B550 umgestiegen. Günstiger, kein Chipsatzlüfter, sparsamer.
Bei MSI war das ja einfach, die Voltage auf amd overclocking und fertig.
Bin nämlich gerade dabei, die Spannung für 4 Ghz allcore zu setzen.



[TheOpenfield]

AMD Overclocking - Manual Overclocking - MHz und VID (mV) eingeben , fertig

Der Chipsatz selbst verbraucht übrigens kaum weniger - hängt wie so oft eher am Board als am Chipsatz, was an Ende aus der Dose gezogen wird. Komme mit meinem X570 Elite auf knapp über 40W im Idle.



[mattiii]

ja, das Elite ist auch ein geiles Board. Aber das Unify hat mit meinen Komponenten mind. 70W gezogen. Das war (mir persönlich!) zu viel.
Das B550 Aorus Pro hat zudem noch eine ordentliche Ausstattung, genug Lüfteranschlüsse. Passt für mich also.

Ich mach das jetzt mit dem offset, da geht dann im Idle auch die Spannung und Temperatur runter. Wenn ich das manuell eingebe, da passiert dann mit der Spannung nicht wirklich viel.
Habe aktuell die 4 Ghz allcore mit 1.08V am Laufen. Das Gigabyte droppt dann noch leicht die Spannung unter Volllast, was ich aber in Ordnung finde. An der LLC will ich deswegen nicht großartig rumspielen.



[def]

Was verbraucht denn das B550 im Vergleich dazu im Idle? Wäre mal interessant. Power Consumption Tests sind ja quasi nicht wirklich vorhanden bei den Boards, wenns überhaupt mal Tests gibt... Bin echt schwer Enttäuscht von den Hardware Seiten was das angeht, als wär B550 sone Randerscheinung.
Aber User-Reviews gibts ja auch keine brauchbaren... bzw. das sich überhaupt jemand B550 Boards kauft.



[TheOpenfield]

Ich mach das jetzt mit dem offset, da geht dann im Idle auch die Spannung und Temperatur runter. Wenn ich das manuell eingebe, da passiert dann mit der Spannung nicht wirklich viel.

Bringt halt bei Zen 2 nichts, da die Kerne ohnehin "abschalten" - was auch der Grund dafür ist, weshalb in den Ryzen Powerplans eine hohe min. Freq. eingestellt ist. Hier zählt nur die C6-Residency für den Idle-Verbrauch und das bleibt auch bei "fixed Allcore" aktiv. Sollte beim Surfen dann so aussehen (nur ein Kern aktiv):

Verbrauchsmessung von deinem B550 Aorus (im Vergleich zum Unify) würde mich auch interessieren - nicht mal Igor (s Lab) hat hier anständige Werte geliefert (obwohl diese eigentlich gemessen wurden). Vdroop sollte übrigens immer vorhanden sein, egal ob Unify oder kleines B550 Board. Macht den Spannungswandlern das Leben ungemein einfacher.



[def]

Evlt hilft dir das sonst zur Erklärung



[mattiii]

im Vergleich zum Unify hab ich mit meinen Komponenten knappe 60W im absoluten Idle, beim Unify waren das schon knapp 75W.
Beim youtuben usw. bin ich bei knappen 90W, mit dem Unify waren es um die 115W. Zocken und Volllast waren dann wieder in etwa gleich.
Für mich persönlich ist das schon eine deutliche Verbesserung, da meine Kiste auch viel idlet. ^^

Und noch mal zurück zur Frage. Es reicht also wirklich, wenn ich die Spannung fix einstell? Weil akutell hab ich wie gesagt mit offset und da gehen eben auch die Temps im Idle runter.
Geil auch, wenn aida kaum was ausliest auf B550, muss ich hwinfo nutzen.



[TheOpenfield]

Das ist doch schon mal eine Ansage - ordentlicher Sprung beim Verbrauch. Das es bei YT etc. soviel höher ist, kann eigentlich nur am Powerplan bzw. Boostmechanismus/Boardpreset liegen (je nach AGESA). Der Chipsatz selbst (X570 vs X470~B550) liegt bei fixen 3-4 Watt Mehrverbrauch (ggf. sogar weniger mit den aktuellen Updates). Der Rest kommt von den Boardfeatures.

Am Messgerät und in HWiNFO solltest du eigentlich sofort sehen, dass es mit "fixer" Spannung ebenbürtig läuft



[mattiii]

muss ich mal probieren^^
und die Grafikkarte nicht vergessen.
Aber ich sag ja, mir bringt der Wechsel auf B550 schon was und ich vermisse auch nix vom X570.



[Cyberbernd]

hi zusammen

Mit OC im AMD Overclocking menu nervt mich das die Taktraten bei FIX eingestelltem Takt eben NICHT in GAMES anliegen.....

4500 Mhz FIX , bei 1,4 Volt z.b.

CB20 oder andere Benches liegen die 4500 MHZ an ....Aber alle Games takten da munter herum....teilweise runter auf 4000 Mhz...und NIE auf die vollen 4500 Mhz.

Gibt es echt keinen Trick ? Aktuell nutze ich den EDC Bug. Damit taktet die CPu am höchsten..leider auch mit zuviel Vcore.

Gruß Bernd



[TheOpenfield]

Was denn nu? Willst du fixes Allcore OC oder PBO (mit EDC Bug) nutzen? Beim CPB hängt der Takt je nach Last überwiegend vom Energiesparplan ab.



[Cyberbernd]

Hi

Es ist ja eben NICHt fix. leider......

Ich will 4500 Mhz in Games wenn ich sie im Bios per AMD OC einstelle.

DA bin ich voll drauf reingefallen. Schön 4500 und 1400 eingestellt,....per Cinebench kontrolliert...alles gut.

Dann später aus Spaß mal Games im Fenster laufengelassen und kontrolliert...und es liegen nur 4000~4400 Mhz an....

Gruß Bernd



[TheOpenfield]

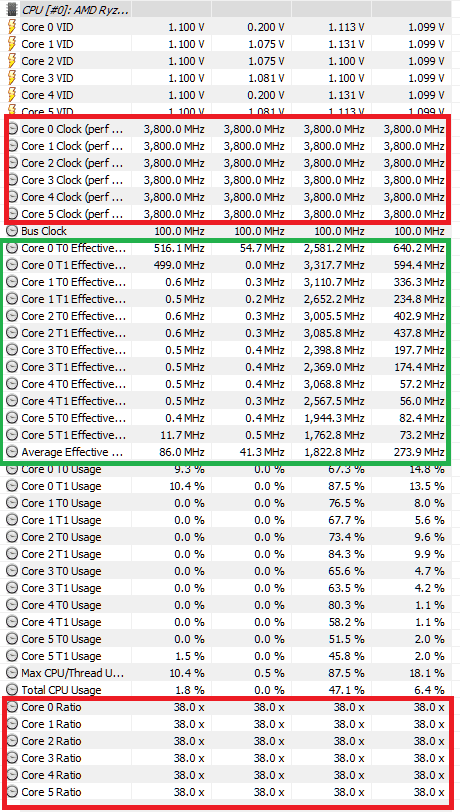

An was orientierst du dich dabei - mit welchem Tool was ausgelesen? Effective Clock geht logischerweise auch weiterhin runter, die Kerne werden eben nicht dauerhaft ausgelastet - dann schalten die auch für ein paar ms runter. Verändert sich allerdings auch mit dem Energiesparplan.

Rot sollte konstant sein, Grün je nach Last variieren:



[Cyberbernd]

Hi

Dann ist "grün" der Takt der echt anliegt...Kommt bei mir aber max auf 4450 mhz...taktet meistens von 4000 bis 4350 mhz rum...

IN Forza Horizon 4 im Benchmark sollte doch ein relativ fixer Takt anliegen oder ? Ist aber nicht.

Der effective Takt zeigt dolle 4550~4600 Mhz an...lol...

Der einzige Weg wären Game-Benchmarks. Wenn ich mal Bock habe probiere ich es mal aus.

Fixe 4400 und 4500 und dann noch mit EDC Bug.

Oder ist meine 1080TI am Limit ?

Gruß Bernd



[StarGeneral]

Beim X570 Aorus Pro habe ich mit F20a bisher keine Probleme. XMP und alles andere lief auf Knopfdruck...



[TheOpenfield]

Hi

Dann ist "grün" der Takt der echt anliegt...Kommt bei mir aber max auf 4450 mhz...taktet meistens von 4000 bis 4350 mhz rum...

IN Forza Horizon 4 im Benchmark sollte doch ein relativ fixer Takt anliegen oder ? Ist aber nicht.

Der effective Takt zeigt dolle 4550~4600 Mhz an...lol...

Der einzige Weg wären Game-Benchmarks. Wenn ich mal Bock habe probiere ich es mal aus.

Fixe 4400 und 4500 und dann noch mit EDC Bug.

Oder ist meine 1080TI am Limit ?

Gruß Bernd

Die CPU kennt halt nur maximal Takt und Sleep - schaltet dazwischen je nach bedarf hin und her. Daraus ergibt sich dann der durchschnittliche effektive Takt über ein Messinterval.

FH4 lastet nichtmal meinen Sechskerner sonderlich hoch aus, erst recht bei normalen "Gaming Settings".



[Cyberbernd]

Hi

***** Die CPU kennt halt nur maximal Takt und Sleep - schaltet dazwischen je nach bedarf hin und her. Daraus ergibt sich dann der durchschnittliche effektive Takt über ein Messinterval. ****

Ahh...wieder was gelernt !

Danke für die Rückmeldungen !

Gruß Bernd



[mischi71]

Hat jemand auch schon mal beobachtet, dass die CPU abhängig von den gestarteten Programmen nicht mehr den package C6 State erreicht? (HWinfo).
Das tritt bei mir z.B. bei GOG Galaxy, Rdesktop (mstsc.exe) und Firefox auf. Ziemlich komisch. Hat jemand eine Idee, woran das liegt?
Das Verhalten ist absolut reproduzierbar.
Bios Version ist F11
