Frage
Greift eigentlich der Grafiktreiber schon beim booten in Windows 10
Laptop HP 450 G2 Probook meiner Schwester im Uefi Modus beim booten zeigt er statt einem Ladekreis mehrere an
*******************************************************************************
* *
* Bugcheck Analysis *
* *
*******************************************************************************
IRQL_NOT_LESS_OR_EQUAL (a)
An attempt was made to access a pageable (or completely invalid) address at an
interrupt request level (IRQL) that is too high. This is usually
caused by drivers using improper addresses.
If a kernel debugger is available get the stack backtrace.
Arguments:
Arg1: 0000008000000770, memory referenced
Arg2: 0000000000000002, IRQL
Arg3: 0000000000000000, bitfield :
bit 0 : value 0 = read operation, 1 = write operation
bit 3 : value 0 = not an execute operation, 1 = execute operation (only on chips which support this level of status)
Arg4: fffff8000d530cf1, address which referenced memory
Debugging Details:
------------------
DUMP_CLASS: 1
DUMP_QUALIFIER: 401
BUILD_VERSION_STRING: 15063.0.amd64fre.rs2_release.170317-1834
DUMP_TYPE: 1
BUGCHECK_P1: 8000000770
BUGCHECK_P2: 2
BUGCHECK_P3: 0
BUGCHECK_P4: fffff8000d530cf1
READ_ADDRESS: 0000008000000770
CURRENT_IRQL: 2
FAULTING_IP:
nt!MiInsertPageInFreeOrZeroedList+291
fffff800`0d530cf1 410fb70400 movzx eax,word ptr [r8+rax]
CPU_COUNT: c
CPU_MHZ: 101d
CPU_VENDOR: GenuineIntel
CPU_FAMILY: 6
CPU_MODEL: 3f
CPU_STEPPING: 2
CPU_MICROCODE: 6,3f,2,0 (F,M,S,R) SIG: 38'00000000 (cache) 38'00000000 (init)
DEFAULT_BUCKET_ID: WIN8_DRIVER_FAULT
BUGCHECK_STR: AV
PROCESS_NAME: Origin.exe
ANALYSIS_SESSION_HOST: SONOFABITCH
ANALYSIS_SESSION_TIME: 07-18-2017 18:35:59.0090
ANALYSIS_VERSION: 10.0.15063.468 amd64fre
TRAP_FRAME: ffffa200e87e60f0 -- (.trap 0xffffa200e87e60f0)
NOTE: The trap frame does not contain all registers.
Some register values may be zeroed or incorrect.
rax=0000008000000000 rbx=0000000000000000 rcx=0000000000000402
rdx=0000000000000400 rsi=0000000000000000 rdi=0000000000000000
rip=fffff8000d530cf1 rsp=ffffa200e87e6280 rbp=ffffa200e87e6319
r8=0000000000000770 r9=fffff8000d805758 r10=0000000000000077
r11=0000000000000000 r12=0000000000000000 r13=0000000000000000
r14=0000000000000000 r15=0000000000000000
iopl=0 nv up ei pl nz na pe nc
nt!MiInsertPageInFreeOrZeroedList+0x291:
fffff800`0d530cf1 410fb70400 movzx eax,word ptr [r8+rax] ds:00000080`00000770=????
Resetting default scope
LAST_CONTROL_TRANSFER: from fffff8000d6128a9 to fffff8000d6074c0
STACK_TEXT:
ffffa200`e87e5fa8 fffff800`0d6128a9 : 00000000`0000000a 00000080`00000770 00000000`00000002 00000000`00000000 : nt!KeBugCheckEx
ffffa200`e87e5fb0 fffff800`0d610e7d : 00000000`00000000 00000000`00000000 00000000`00000000 00000000`00000000 : nt!KiBugCheckDispatch+0x69
ffffa200`e87e60f0 fffff800`0d530cf1 : 00000000`007f3570 00000000`00000001 00000000`fffffffe ffffdb00`17da0500 : nt!KiPageFault+0x23d
ffffa200`e87e6280 fffff800`0d53075c : 00000000`007f3577 ffffe080`00154fd8 ffffa200`e87e6900 00000000`00000001 : nt!MiInsertPageInFreeOrZeroedList+0x291
ffffa200`e87e6380 fffff800`0d52fff4 : 00000000`00000000 80000005`fb660867 ffffa200`e87e6900 00000000`00000001 : nt!MiPfnShareCountIsZero+0xcc
ffffa200`e87e63d0 fffff800`0d51fcc2 : 00000000`00000000 ffffe080`00154880 00000000`000000f0 ffffe080`00153ff8 : nt!MiDeletePteRun+0x2b4
ffffa200`e87e6540 fffff800`0d51a5bd : ffffe285`33880648 ffffe285`33ba4080 ffffe285`33880648 ffffe285`33880080 : nt!MiDeleteVirtualAddresses+0x972
ffffa200`e87e67f0 fffff800`0d587991 : 00000000`2b0fdfff 00000000`2b0fdfff 00000000`2a500000 ffffe285`32910fc0 : nt!MiDeleteVad+0x3ad
ffffa200`e87e6970 fffff800`0d951dea : 00000000`00000000 00000000`00000000 00000000`00000000 00000000`2a500000 : nt!MiFreeVadRange+0x4d
ffffa200`e87e69b0 fffff800`0d612413 : ffffe285`33ba4080 00000000`1c278b80 ffffa200`00000000 ffffe285`4e9935a0 : nt!NtFreeVirtualMemory+0x42a
ffffa200`e87e6b00 00007ffe`42a55764 : 00000000`00000000 00000000`00000000 00000000`00000000 00000000`00000000 : nt!KiSystemServiceCopyEnd+0x13
00000000`19a2e798 00000000`00000000 : 00000000`00000000 00000000`00000000 00000000`00000000 00000000`00000000 : 0x00007ffe`42a55764
STACK_COMMAND: kb
THREAD_SHA1_HASH_MOD_FUNC: 14500457caf099e4fc2ccc7a51a7fef525959c4d
THREAD_SHA1_HASH_MOD_FUNC_OFFSET: 022656f48389c18614ec75fb431cfb3eb443e279
THREAD_SHA1_HASH_MOD: b28610981796779b4ac02f58898fde25728a775c
FOLLOWUP_IP:
nt!MiInsertPageInFreeOrZeroedList+291
fffff800`0d530cf1 410fb70400 movzx eax,word ptr [r8+rax]
FAULT_INSTR_CODE: 4b70f41
SYMBOL_STACK_INDEX: 3
SYMBOL_NAME: nt!MiInsertPageInFreeOrZeroedList+291
FOLLOWUP_NAME: MachineOwner
MODULE_NAME: nt
DEBUG_FLR_IMAGE_TIMESTAMP: 595f24eb
IMAGE_NAME: memory_corruption
BUCKET_ID_FUNC_OFFSET: 291
FAILURE_BUCKET_ID: AV_nt!MiInsertPageInFreeOrZeroedList
BUCKET_ID: AV_nt!MiInsertPageInFreeOrZeroedList
PRIMARY_PROBLEM_CLASS: AV_nt!MiInsertPageInFreeOrZeroedList
TARGET_TIME: 2017-07-18T16:20:08.000Z
OSBUILD: 15063
OSSERVICEPACK: 0
SERVICEPACK_NUMBER: 0
OS_REVISION: 0
SUITE_MASK: 272
PRODUCT_TYPE: 1
OSPLATFORM_TYPE: x64
OSNAME: Windows 10
OSEDITION: Windows 10 WinNt TerminalServer SingleUserTS
OS_LOCALE:
USER_LCID: 0
OSBUILD_TIMESTAMP: 2017-07-07 08:06:35
BUILDDATESTAMP_STR: 170317-1834
BUILDLAB_STR: rs2_release
BUILDOSVER_STR: 10.0.15063.0.amd64fre.rs2_release.170317-1834
ANALYSIS_SESSION_ELAPSED_TIME: 958
ANALYSIS_SOURCE: KM
FAILURE_ID_HASH_STRING: km:av_nt!miinsertpageinfreeorzeroedlist
FAILURE_ID_HASH: {779c7427-9286-2607-95ab-7b33d42c5f3a}
Followup: MachineOwner
*******************************************************************************
* *
* Bugcheck Analysis *
* *
*******************************************************************************
DRIVER_VERIFIER_DETECTED_VIOLATION (c4)
A device driver attempting to corrupt the system has been caught. This is
because the driver was specified in the registry as being suspect (by the
administrator) and the kernel has enabled substantial checking of this driver.
If the driver attempts to corrupt the system, bugchecks 0xC4, 0xC1 and 0xA will
be among the most commonly seen crashes.
Arguments:
Arg1: 0000000000002004, Code Integrity Issue: The image contains a section that is not page aligned.
Arg2: ffff90896c160ee8, The image file name (Unicode string).
Arg3: fffff80ab80701f0, The address of the section header.
Arg4: ffffdf01f0a4d0a8, The section name (UTF-8 encoded string).
Debugging Details:
------------------
DUMP_CLASS: 1
DUMP_QUALIFIER: 401
BUILD_VERSION_STRING: 15063.0.amd64fre.rs2_release.170317-1834
DUMP_TYPE: 1
BUGCHECK_P1: 2004
BUGCHECK_P2: ffff90896c160ee8
BUGCHECK_P3: fffff80ab80701f0
BUGCHECK_P4: ffffdf01f0a4d0a8
BUGCHECK_STR: 0xc4_2004
CPU_COUNT: c
CPU_MHZ: 101d
CPU_VENDOR: GenuineIntel
CPU_FAMILY: 6
CPU_MODEL: 3f
CPU_STEPPING: 2
CPU_MICROCODE: 6,3f,2,0 (F,M,S,R) SIG: 38'00000000 (cache) 38'00000000 (init)
DEFAULT_BUCKET_ID: WIN8_DRIVER_FAULT
PROCESS_NAME: System
CURRENT_IRQL: 0
ANALYSIS_SESSION_HOST: SONOFABITCH
ANALYSIS_SESSION_TIME: 07-18-2017 20:56:00.0701
ANALYSIS_VERSION: 10.0.15063.468 amd64fre
LOCK_ADDRESS: fffff80272b65f80 -- (!locks fffff80272b65f80)
Resource @ nt!PiEngineLock (0xfffff80272b65f80) Exclusively owned
Contention Count = 1
NumberOfExclusiveWaiters = 1
Threads: ffff908968b207c0-01<*>
Threads Waiting On Exclusive Access:
ffff9089691407c0
1 total locks
PNP_TRIAGE:
Lock address : 0xfffff80272b65f80
Thread Count : 1
Thread address: 0xffff908968b207c0
Thread wait : 0x130d
LAST_CONTROL_TRANSFER: from fffff80272f6d03f to fffff8027296d4c0
STACK_TEXT:
ffffdf01`f0a4cfd8 fffff802`72f6d03f : 00000000`000000c4 00000000`00002004 ffff9089`6c160ee8 fffff80a`b80701f0 : nt!KeBugCheckEx
ffffdf01`f0a4cfe0 fffff802`72a4ed9f : fffff802`72ab7d40 fffff802`72f649ca fffff802`72ab81f0 00000000`00000003 : nt!VerifierBugCheckIfAppropriate+0x6b
ffffdf01`f0a4d020 fffff802`72f6450f : 00000000`00000000 ffffdf01`f0a4d0c0 fffff80a`b80701f0 ffff0000`00450074 : nt!VfReportIssueWithOptions+0x103
ffffdf01`f0a4d070 fffff802`72f79a5f : ffff9089`6c160e90 ffff9089`6c160e90 00000000`00000001 ffff9089`6141afb0 : nt!VfCheckImageCompliance+0x297
ffffdf01`f0a4d0f0 fffff802`72f605c9 : ffff9089`6c160e90 00000000`00000000 fffff80a`b8070000 ffff9089`6c160e00 : nt!VfSuspectDriversLoadCallback+0x31f
ffffdf01`f0a4d130 fffff802`72c7f5fe : fffff80a`b8070118 ffffdf01`f0a4d270 fffff80a`b8070000 00000000`00000000 : nt!VfDriverLoadImage+0x869
ffffdf01`f0a4d170 fffff802`72c6dd4f : ffffdf01`f0a4d378 00000000`00000000 00000000`00000000 ffffde01`00000001 : nt!MmLoadSystemImageEx+0x40e
ffffdf01`f0a4d320 fffff802`72da218e : 00000000`00000000 00000000`00000000 00000000`00000004 ffffde01`00000004 : nt!IopLoadDriver+0x24b
ffffdf01`f0a4d500 fffff802`72c55745 : ffffdf01`f0a4da01 ffffdf01`f0a4d688 00000000`10000000 ffffdf01`f0a4d670 : nt!PipCallDriverAddDeviceQueryRoutine+0x1b6
ffffdf01`f0a4d5a0 fffff802`72c36321 : 00000000`00000000 00000000`00000014 00000000`10000000 ffff9089`61fdcd30 : nt!PnpCallDriverQueryServiceHelper+0xa1
ffffdf01`f0a4d610 fffff802`72c3767b : ffff9089`61fdcd30 ffffdf01`f0a4d8e0 ffff9089`61fdcd30 ffff9089`61f60d30 : nt!PipCallDriverAddDevice+0x2f5
ffffdf01`f0a4d7e0 fffff802`72dca5dd : ffff9089`6ab18fa0 ffffdf01`f0a4db19 ffff9089`6ab18fa0 00000000`00000000 : nt!PipProcessDevNodeTree+0x15f
ffffdf01`f0a4da60 fffff802`728d3b01 : ffff9001`00000003 fffff802`00000000 00000000`00000000 ffff9089`6ab18fa0 : nt!PiProcessStartSystemDevices+0x59
ffffdf01`f0a4dab0 fffff802`7283eca8 : ffff9089`68b207c0 fffff802`72b64a20 fffff802`72bf9380 ffff9089`69c36f98 : nt!PnpDeviceActionWorker+0x3c1
ffffdf01`f0a4db80 fffff802`728ddac7 : ffffdf01`ef982180 00000000`00000080 ffff9089`619ce680 ffff9089`68b207c0 : nt!ExpWorkerThread+0xd8
ffffdf01`f0a4dc10 fffff802`72972946 : ffffdf01`ef982180 ffff9089`68b207c0 fffff802`728dda80 1b1b1b1b`1b1b1b1b : nt!PspSystemThreadStartup+0x47
ffffdf01`f0a4dc60 00000000`00000000 : ffffdf01`f0a4e000 ffffdf01`f0a48000 00000000`00000000 00000000`00000000 : nt!KiStartSystemThread+0x16
STACK_COMMAND: kb
THREAD_SHA1_HASH_MOD_FUNC: 803c38680c1eea67c961a2628cbae0eebf27f443
THREAD_SHA1_HASH_MOD_FUNC_OFFSET: 64a8da8d7e59531325e5e9b3c799f6b8819c02ff
THREAD_SHA1_HASH_MOD: aaa5a324bf1bd3082ad2b464ee2ed2f6d50e564c
FOLLOWUP_IP:
nt!VerifierBugCheckIfAppropriate+6b
fffff802`72f6d03f cc int 3
FAULT_INSTR_CODE: 408b41cc
SYMBOL_STACK_INDEX: 1
SYMBOL_NAME: nt!VerifierBugCheckIfAppropriate+6b
FOLLOWUP_NAME: MachineOwner
MODULE_NAME: nt
IMAGE_NAME: ntkrnlmp.exe
DEBUG_FLR_IMAGE_TIMESTAMP: 595f24eb
BUCKET_ID_FUNC_OFFSET: 6b
FAILURE_BUCKET_ID: 0xc4_2004_VRFK_nt!VerifierBugCheckIfAppropriate
BUCKET_ID: 0xc4_2004_VRFK_nt!VerifierBugCheckIfAppropriate
PRIMARY_PROBLEM_CLASS: 0xc4_2004_VRFK_nt!VerifierBugCheckIfAppropriate
TARGET_TIME: 2017-07-18T18:45:32.000Z
OSBUILD: 15063
OSSERVICEPACK: 0
SERVICEPACK_NUMBER: 0
OS_REVISION: 0
SUITE_MASK: 272
PRODUCT_TYPE: 1
OSPLATFORM_TYPE: x64
OSNAME: Windows 10
OSEDITION: Windows 10 WinNt TerminalServer SingleUserTS
OS_LOCALE:
USER_LCID: 0
OSBUILD_TIMESTAMP: 2017-07-07 08:06:35
BUILDDATESTAMP_STR: 170317-1834
BUILDLAB_STR: rs2_release
BUILDOSVER_STR: 10.0.15063.0.amd64fre.rs2_release.170317-1834
ANALYSIS_SESSION_ELAPSED_TIME: f3f
ANALYSIS_SOURCE: KM
FAILURE_ID_HASH_STRING: km:0xc4_2004_vrfk_nt!verifierbugcheckifappropriate
FAILURE_ID_HASH: {be6bf10a-5b2c-7e28-d57e-2c19d438ebfc}
Followup: MachineOwner
---------

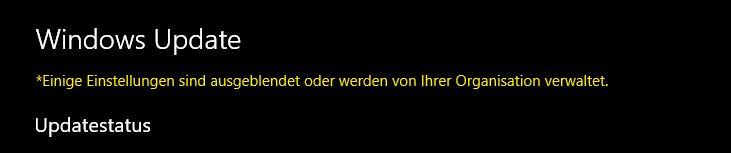

Das wird es wohl sein [emoji4] DankeO&O Shutup10 benutzt? Das Programm ändert ja in den Policen Einstellungen. Dann steht in Windows das Windows durch Organisation Verwaltet wird.
Scheint ja der Intel Grafiktreiber zu sein. Hast Du den manuell installiert? Wenn ja raus und den von Win10 nutzen. Vielleicht solltest Du auch die intel GPU deaktivieren, wenn du eine GraKa verbaut hast. Oder oder oder...
Windows 10-Update: Kein Support für bestimmte Atom-Prozessoren - Notebookcheck.com News
oh man. Wenn das jetzt nach jedem großen Update immer mal wieder Cpus betrifft dann prost Mahlzeit
Ist das jetzt ne Trollantwort? Wegen dem oder oder oder...
Dieser PC besitzt keine Intel GPU
asus x99-deluxe
i7-5820k
32 hyperfuryxram
980ti
soundblaster zxr
crucial mmx200 500 gb ssd
samsung 840 500 gb ssd
wd velocci raptor 300 gb x2 (wegen nostalgie immer noch im betrieb)
Ich sehe in dem Debug log nur "CPU_VENDOR GenuineIntel". Das hat mit GPU in der Tat erstmal nix zu tun. Leider ist das Debug log jetzt relativ wenig aussagekräftig. Memtest mal über Nacht laufen lassen?
