[Sammelthread] Gigabyte X570 Aorus Series – Informationssammlung, Erfahrungen, Tips und Tricks (AM4)

Die X570 Motherboards der Gigabyte Aorus Serie bestehen momentan aus 8 Modellen. Darunter gibt es das Modell Aorus X570 XTreme, das speziell für eine Wasserkühlung entwickelt wurde. In Verbindung mit Prozessoren der dritten Generation (Ryzen 3000) stehen mehrere PCIe 4.0 Steckplätze zur Verfügung.

Die Serie besteht aus folgenden Modellen:

Name und Link zur Website	X570 AORUS ELITE	X570 AORUS ELITE WIFI	X570 AORUS MASTER	X570 AORUS PRO	X570 AORUS PRO WIFI	X570 AORUS ULTRA	X570 AORUS XTREME	X570 GAMING X	X570 I AORUS PRO WIFI	X570 UD
Preisvergleich	Aktuelle Preise		Aktuelle Preise	Aktuelle Preise		Aktuelle Preise	Aktuelle Preise	Aktuelle Preise	Aktuelle Preise	Aktuelle Preise
Formfaktor	ATX; 30.5cm x 24.4cm	ATX; 30.5cm x 24.4cm	ATX; 30.5cm x 24.4cm	ATX; 30.5cm x 24.4cm	ATX; 30.5cm x 24.4cm	ATX; 30.5cm x 24.4cm	E-ATX; 30.5cm x 27.0cm	ATX; 30.5cm x 24.4cm	Mini-ITX; 17.0cm x 17.0cm	ATX; 30.5cm x 24.4cm
Unterstützte Prozessoren	Ryzen 3000 Ryzen 3000G Ryzen 2000 Ryzen 2000G TDP-Limit: 105W (Hersteller)	Ryzen 3000 Ryzen 3000G Ryzen 2000 Ryzen 2000G TDP-Limit: 105W (Hersteller)	Ryzen 3000 Ryzen 3000G Ryzen 2000 Ryzen 2000G TDP-Limit: 105W (Hersteller)	Ryzen 3000 Ryzen 3000G Ryzen 2000 Ryzen 2000G TDP-Limit: 105W (Hersteller)	Ryzen 3000 Ryzen 3000G Ryzen 2000 Ryzen 2000G TDP-Limit: 105W (Hersteller)	Ryzen 3000 Ryzen 3000G Ryzen 2000 Ryzen 2000G TDP-Limit: 105W (Hersteller)	Ryzen 3000 Ryzen 3000G Ryzen 2000 Ryzen 2000G TDP-Limit: 105W (Hersteller)	Ryzen 3000 Ryzen 3000G Ryzen 2000 Ryzen 2000G TDP-Limit: 105W (Hersteller)	Ryzen 3000 Ryzen 3000G Ryzen 2000 Ryzen 2000G TDP-Limit: 105W (Hersteller)	Ryzen 3000 Ryzen 3000G Ryzen 2000 Ryzen 2000G TDP-Limit: 105W (Hersteller)
VRM	7 reale Phasen (6+1), PWM-Controller: ISL69138 (max. 7 Phasen)		14 reale Phasen (12+2), PWM-Controller: XDPE132G5C (max. 16 Phasen)	8 reale Phasen (6+2), PWM-Controller: IR35201 (max. 8 Phasen)		8 reale Phasen (6+2), PWM-Controller: IR35201 (max. 8 Phasen)	16 reale Phasen (14+2), PWM-Controller: XDPE132G5C (max. 16 Phasen)	7 reale Phasen (5+2), PWM-Controller: ISL69147 (max. 7 Phasen)	8 reale Phasen (6+2), PWM-Controller: IR35201 (max. 8 Phasen)	7 reale Phasen (5+2), PWM-Controller: ISL69147 (max. 7 Phasen)
MOSFETs CPU	12x 50A SIC634		12x 50A IR3556	12x 40A IR3553		12x 40A IR3553	14x 70A TDA21472	10x 46A 4C10N/20x 4C06N	6x 70A TDA21472	10x 46A 4C10N/20x 4C06N
MOSFETs SoC	2x 46A 4C10N/4C06N		2x 50A IR3556	2x 46A 4C10N/4C06N		4x 46A 4C10N/4C06N	2x 70A TDA21472	4x 46A 4C10N/4C06N	2x 40A IR3553	4x 46A 4C10N/4C06N
Arbeitsspeicher	Ryzen 3000 Support for DDR4 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules Ryzen 3000G/Ryzen 2000/Ryzen 2000G Support for DDR4 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules	Ryzen 3000 Support for DDR4 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules Ryzen 3000G/Ryzen 2000/Ryzen 2000G Support for DDR4 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules	Ryzen 3000 Support for DDR4 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules Ryzen 3000G/Ryzen 2000/Ryzen 2000G Support for DDR4 3600(O.C.) / 3400(O.C.) / 3333(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules	Ryzen 3000 Support for DDR4 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules Ryzen 3000G/Ryzen 2000/Ryzen 2000G Support for DDR4 3600(O.C.) / 3400(O.C.) / 3333(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules	Ryzen 3000 Support for DDR4 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules Ryzen 3000G/Ryzen 2000/Ryzen 2000G Support for DDR4 3600(O.C.) / 3400(O.C.) / 3333(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules	Ryzen 3000 Support for DDR4 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules Ryzen 3000G/Ryzen 2000/Ryzen 2000G Support for DDR4 3600(O.C.) / 3400(O.C.) / 3333(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules	Ryzen 3000 Support for DDR4 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules Ryzen 3000G/Ryzen 2000/Ryzen 2000G Support for DDR4 3600(O.C.) / 3400(O.C.) / 3333(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules	Ryzen 3000 Support for DDR4 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules Ryzen 3000G/Ryzen 2000/Ryzen 2000G Support for DDR4 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules	Ryzen 3000 Support for DDR4 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules Ryzen 3000G/Ryzen 2000/Ryzen 2000G Support for DDR4 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules	Ryzen 3000 Support for DDR4 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules Ryzen 3000G/Ryzen 2000/Ryzen 2000G Support for DDR4 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Onboard Grafik	Integrated Graphics Processor: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version, HDCP 2.2, and HDR. Maximum shared memory of 16 GB Note: For 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors only.	Integrated Graphics Processor: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version, HDCP 2.2, and HDR. Maximum shared memory of 16 GB Note: For 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors only.		Integrated Graphics Processor: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version, HDCP 2.2, and HDR. Maximum shared memory of 16 GB Note: For 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors only.	Integrated Graphics Processor: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version, HDCP 2.2, and HDR. Maximum shared memory of 16 GB Note: For 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors only.	Integrated Graphics Processor: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version, HDCP 2.2, and HDR. Maximum shared memory of 16 GB Note: For 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors only.		Integrated Graphics Processor: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version, HDCP 2.2, and HDR. Maximum shared memory of 16 GB Note: For 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors only.	Integrated Graphics Processor: 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version. 2 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version, HDCP 2.2, and HDR. Support for up to 3 displays at the same time Maximum shared memory of 16 GB * For 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors only.	Integrated Graphics Processor: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version, HDCP 2.2, and HDR. Maximum shared memory of 16 GB Note: For 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors only.
Audio	Realtek® ALC1200 codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out	Realtek® ALC1200 codec High Definition Audio 2/4/5.1-channel Support for S/PDIF Out	Realtek® ALC1220-VB codec * The front panel line out jack supports DSD audio. ESS SABRE9118 DAC chip High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out	Realtek® ALC1220-VB codec * The back panel line out jack supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out	Realtek® ALC1220-VB codec * The back panel line out jack supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out	Realtek® ALC1220-VB codec * The back panel line out jack supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out	Realtek® ALC1220-VB codec * The front panel line out jack supports DSD audio. ESS SABRE9218 DAC chip High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out	Realtek® ALC887 codec High Definition Audio 2/4/5.1-channel	Realtek® ALC1220-VB codec * The back panel line out jack supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.	Realtek® ALC887 codec High Definition Audio 2/4/5.1-channel
LAN	Intel® GbE LAN chip (10/100/1000 Mbit)	Intel® GbE LAN chip (10/100/1000 Mbit)	1 x Intel® GbE LAN chip (10/100/1000 Mbit) (LAN1) 1 x Realtek® 2.5GbE LAN chip (10/100/1000/2500 Mbit) (LAN2)	Intel® GbE LAN chip (10/100/1000 Mbit)	Intel® GbE LAN chip (10/100/1000 Mbit)	Intel® GbE LAN chip (10/100/1000 Mbit)	1 x Aquantia GbE LAN chip (10 Gbit/5 Gbit/2.5 Gbit/1000 Mbit/100 Mbit) (LAN1) 1 x Intel® GbE LAN phy (10/100/1000 Mbit) (LAN2)	Realtek® GbE LAN chip (10/100/1000 Mbit)	Intel® GbE LAN chip (10/100/1000 Mbit)	Realtek® GbE LAN chip (10/100/1000 Mbit)
Wireless Communication Module		Wi-Fi 802.11 a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band BLUETOOTH 4.2 Support for 11ac wireless standard and up to 433 Mbps data rate * Actual data rate may vary depending on environment and equipment.	Wi-Fi 802.11a/b/g/n/ac/ax, supporting 2.4/5 GHz Dual-Band BLUETOOTH 5.0 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate * Actual data rate may vary depending on environment and equipment.		Wi-Fi 802.11a/b/g/n/ac/ax, supporting 2.4/5 GHz Dual-Band BLUETOOTH 5.0 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate * Actual data rate may vary depending on environment and equipment.	Wi-Fi 802.11a/b/g/n/ac/ax, supporting 2.4/5 GHz Dual-Band BLUETOOTH 5.0 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate * Actual data rate may vary depending on environment and equipment.	Wi-Fi 802.11a/b/g/n/ac/ax, supporting 2.4/5 GHz Dual-Band BLUETOOTH 5.0 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate * Actual data rate may vary depending on environment and equipment.		Wi-Fi 802.11a/b/g/n/ac/ax, supporting 2.4/5 GHz Dual-Band BLUETOOTH 5.0 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate * Actual data rate may vary depending on environment and equipment.
Erweiterungssteckplätze	Integrated in the CPU (PCIEX16): · 3rd Generation AMD Ryzen™ processors: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 · 2nd Generation AMD Ryzen™ processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. · 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 Integrated in the Chipset (PCIEX4/PCIEX1): 1 x PCI Express x16 slot, supporting PCIe 4.0*/3.0 and running at x4 (PCIEX4) * For 3rd Generation AMD Ryzen™ processors only. 2 x PCI Express x1 slots, supporting PCIe 4.0*/3.0 * For 3rd Generation AMD Ryzen™ processors only.	Integrated in the CPU (PCIEX16): · 3rd Generation AMD Ryzen™ processors: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 · 2nd Generation AMD Ryzen™ processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. · 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 Integrated in the Chipset (PCIEX4/PCIEX1): 1 x PCI Express x16 slot, supporting PCIe 4.0*/3.0 and running at x4 (PCIEX4) * For 3rd Generation AMD Ryzen™ processors only. 2 x PCI Express x1 slots, supporting PCIe 4.0*/3.0 * For 3rd Generation AMD Ryzen™ processors only.	Integrated in the CPU (PCIEX16/PCIEX8): 3rd Generation AMD Ryzen™ processors: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x8 (PCIEX8) 2nd Generation AMD Ryzen™ processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 (PCIEX16) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX8) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When using the 3rd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ processors, the PCIEX16 slot operates at up to x8 mode. 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX16) Integrated in the Chipset (PCIEX4/PCIEX1): 1 x PCI Express x16 slot, supporting PCIe 4.0*/3.0 and running at x4 (PCIEX4) * For 3rd Generation AMD Ryzen™ processors only. 1 x PCI Express x1 slot, supporting PCIe 4.0*/3.0 * For 3rd Generation AMD Ryzen™ processors only.	Integrated in the CPU (PCIEX16/PCIEX8): · 3rd Generation AMD Ryzen™ processors: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x8 (PCIEX8) · 2nd Generation AMD Ryzen™ processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 (PCIEX16) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX8) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When using the 3rd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ processors, the PCIEX16 slot operates at up to x8 mode. · 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX16) Integrated in the Chipset (PCIEX4/PCIEX1): 1 x PCI Express x16 slot, supporting PCIe 4.0*/3.0 and running at x4 (PCIEX4) * For 3rd Generation AMD Ryzen™ processors only. 2 x PCI Express x1 slots, supporting PCIe 4.0*/3.0 * For 3rd Generation AMD Ryzen™ processors only.	Integrated in the CPU (PCIEX16/PCIEX8): · 3rd Generation AMD Ryzen™ processors: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x8 (PCIEX8) · 2nd Generation AMD Ryzen™ processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 (PCIEX16) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX8) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When using the 3rd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ processors, the PCIEX16 slot operates at up to x8 mode. · 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX16) Integrated in the Chipset (PCIEX4/PCIEX1): 1 x PCI Express x16 slot, supporting PCIe 4.0*/3.0 and running at x4 (PCIEX4) * For 3rd Generation AMD Ryzen™ processors only. 2 x PCI Express x1 slots, supporting PCIe 4.0*/3.0 * For 3rd Generation AMD Ryzen™ processors only.	3rd Generation AMD Ryzen™ processors: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x8 (PCIEX8) 2nd Generation AMD Ryzen™ processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 (PCIEX16) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX8) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When using the 3rd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ processors, the PCIEX16 slot operates at up to x8 mode. 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX16) Integrated in the Chipset (PCIEX4/PCIEX1): 1 x PCI Express x16 slot, supporting PCIe 4.0*/3.0 and running at x4 (PCIEX4) * For 3rd Generation AMD Ryzen™ processors only. 2 x PCI Express x1 slots, supporting PCIe 4.0*/3.0 * For 3rd Generation AMD Ryzen™ processors only.	Integrated in the CPU (PCIEX16/PCIEX8): 3rd Generation AMD Ryzen™ processors: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x8 (PCIEX8) 2nd Generation AMD Ryzen™ processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 (PCIEX16) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX8) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When using the 3rd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ processors, the PCIEX16 slot operates at up to x8 mode. 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX16) Integrated in the Chipset (PCIEX4): 1 x PCI Express x16 slot, supporting PCIe 4.0*/3.0 and running at x4 * For 3rd Generation AMD Ryzen™ processors only.	Integrated in the CPU (PCIEX16): · 3rd Generation AMD Ryzen™ processors: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 · 2nd Generation AMD Ryzen™ processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. · 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 Integrated in the Chipset (PCIEX4/PCIEX1) 1 x PCI Express x16 slot, supporting PCIe 4.0*/3.0 and running at x4 (PCIEX4) * For 3rd Generation AMD Ryzen™ processors only. 3 x PCI Express x1 slots, supporting PCIe 4.0*/3.0 * For 3rd Generation AMD Ryzen™ processors only.	Integrated in the CPU (PCIEX16): 3rd Generation AMD Ryzen™ processors: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) 2nd Generation AMD Ryzen™ processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 (PCIEX16) 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX16) Integrated in the Chipset: 1 x M.2 Socket 1 connector for the wireless communication module (M2_WIFI)	Integrated in the CPU (PCIEX16): · 3rd Generation AMD Ryzen™ processors: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 · 2nd Generation AMD Ryzen™ processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. · 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 Integrated in the Chipset (PCIEX4/PCIEX1) 2 x PCI Express x16 slots, supporting PCIe 4.0*/3.0 and running at x4 (PCIEX4) * For 3rd Generation AMD Ryzen™ processors only. 2 x PCI Express x1 slots, supporting PCIe 4.0*/3.0 * For 3rd Generation AMD Ryzen™ processors only.
Multi-Graphics Technology	Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies Note: For 3rd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ processors only.	Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies Note: For 3rd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ processors only.	Support for NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI™ technologies Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies For 3rd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ processors only.	Support for NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI™ technologies Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies Note: For 3rd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ processors only.	Support for NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI™ technologies Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies Note: For 3rd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ processors only.	Support for NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI™ technologies Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies For 3rd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ processors only.	Support for NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI™ technologies Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies For 3rd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ processors only.	Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies Note: For 3rd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ processors only.		Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies Note: For 3rd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ processors only.
Storage Interface	Integrated in the CPU (M2A_SOCKET): · 3rd Generation AMD Ryzen™ processors: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) · 2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) Integrated in the Chipset (M2B_SOCKET): 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0*/3.0 x4/x2 SSD support) * For 3rd Generation AMD Ryzen™ processors only. 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10	Integrated in the CPU (M2A_SOCKET): · 3rd Generation AMD Ryzen™ processors: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) · 2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) Integrated in the Chipset (M2B_SOCKET): 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0*/3.0 x4/x2 SSD support) * For 3rd Generation AMD Ryzen™ processors only. 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10	Integrated in the CPU (M2A_SOCKET): 3rd Generation AMD Ryzen™ processors: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) 2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) Integrated in the Chipset (M2B_SOCKET/M2C_SOCKET): 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0*/3.0 x4/x2 SSD support) (M2B_SOCKET) * For 3rd Generation AMD Ryzen™ processors only. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 4.0*/3.0 x4/x2 SSD support) (M2C_SOCKET) * For 3rd Generation AMD Ryzen™ processors only. 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10 * Refer to "1-9 Internal Connectors," for the installation notices for the M.2 and SATA connectors.	Integrated in the CPU (M2A_SOCKET): · 3rd Generation AMD Ryzen™ processors: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) · 2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) Integrated in the Chipset (M2B_SOCKET): 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0*/3.0 x4/x2 SSD support) * For 3rd Generation AMD Ryzen™ processors only. 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10	Integrated in the CPU (M2A_SOCKET): · 3rd Generation AMD Ryzen™ processors: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) · 2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) Integrated in the Chipset (M2B_SOCKET): 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0*/3.0 x4/x2 SSD support) * For 3rd Generation AMD Ryzen™ processors only. 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10	Integrated in the CPU (M2A_SOCKET): 3rd Generation AMD Ryzen™ processors: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) 2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) Integrated in the Chipset (M2B_SOCKET/M2C_SOCKET): 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0*/3.0 x4/x2 SSD support) (M2B_SOCKET) * For 3rd Generation AMD Ryzen™ processors only. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 4.0*/3.0 x2 SSD support) (M2C_SOCKET) * For 3rd Generation AMD Ryzen™ processors only. 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10 * Refer to "1-8 Internal Connectors," for the installation notices for the M.2 and SATA connectors.	Integrated in the CPU (M2A_SOCKET): 3rd Generation AMD Ryzen™ processors: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) 2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) Integrated in the Chipset (M2B_SOCKET/M2C_SOCKET): 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0*/3.0 x4/x2 SSD support) (M2B_SOCKET) * For 3rd Generation AMD Ryzen™ processors only. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0*/3.0 x4/x2 SSD support) (M2C_SOCKET) * For 3rd Generation AMD Ryzen™ processors only. 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10 * Refer to "1-9 Internal Connectors," for the installation notices for the M.2 and SATA connectors.	Integrated in the CPU (M2A_SOCKET): · 3rd Generation AMD Ryzen™ processors: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) · 2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) Integrated in the Chipset (M2B_SOCKET): 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0*/3.0 x4/x2 SSD support) * For 3rd Generation AMD Ryzen™ processors only. 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10	Integrated in the CPU (M2A_SOCKET): 3rd Generation AMD Ryzen™ processors: 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 4.0 x4/x2 SSD support) 2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/x2 SSD support) Integrated in the Chipset (M2B_SOCKET): 1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2260/2280 SATA and PCIe* x4/x2 SSD support) * For 3rd Generation AMD Ryzen™ processors only. 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10	Integrated in the CPU: · 3rd Generation AMD Ryzen™ processors: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) · 2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) Integrated in the Chipset: 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10
USB	Integrated in the CPU: 4 x USB 3.2 Gen 1 ports on the back panel Chipset: 1 x USB Type-C™ port with USB 3.2 Gen 2 support, available through the internal USB header 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 4 x USB 3.2 Gen 1 ports available through the internal USB headers Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)	Integrated in the CPU: 4 x USB 3.2 Gen 1 ports on the back panel Chipset: 1 x USB Type-C™ port with USB 3.2 Gen 2 support, available through the internal USB header 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 4 x USB 3.2 Gen 1 ports available through the internal USB headers Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)	Integrated in the CPU: 2 x USB 3.2 Gen 2*/Gen 1 Type-A ports (red) on the back panel * For 3rd Generation AMD Ryzen™ processors only. 2 x USB 3.2 Gen 1 ports on the back panel Integrated in the Chipset: 1 x USB Type-C™ port with USB 3.2 Gen 2 support, available through the internal USB header 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 4 x USB 3.2 Gen 1 ports available through the internal USB headers Chipset+USB 2.0 Hub: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)	Integrated in the CPU: 3 x USB 3.2 Gen 1 ports on the back panel 1 x USB 3.2 Gen 2*/Gen 1 Type-A port (red) on the back panel * For 3rd Generation AMD Ryzen™ processors only. Chipset: 1 x USB Type-C™ port with USB 3.2 Gen 2 support, available through the internal USB header 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 4 x USB 3.2 Gen 1 ports available through the internal USB headers Chipset+USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)	Integrated in the CPU: 3 x USB 3.2 Gen 1 ports on the back panel 1 x USB 3.2 Gen 2*/Gen 1 Type-A port (red) on the back panel * For 3rd Generation AMD Ryzen™ processors only. Chipset: 1 x USB Type-C™ port with USB 3.2 Gen 2 support, available through the internal USB header 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 4 x USB 3.2 Gen 1 ports available through the internal USB headers Chipset+USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)	Integrated in the CPU: 3 x USB 3.2 Gen 1 ports on the back panel 1 x USB 3.2 Gen 2*/Gen 1 Type-A port (red) on the back panel * For 3rd Generation AMD Ryzen™ processors only. Chipset: 1 x USB Type-C™ port with USB 3.2 Gen 2 support, available through the internal USB header 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 4 x USB 3.2 Gen 1 ports available through the internal USB headers Chipset+USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)	Integrated in the CPU: 2 x USB 3.2 Gen 2*/Gen 1 Type-A ports (red) on the back panel * For 3rd Generation AMD Ryzen™ processors only. 2 x USB 3.2 Gen 1 ports on the back panel Integrated in the Chipset: 1 x USB Type-C™ port with USB 3.2 Gen 2 support, available through the internal USB header 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support 3 x USB 3.2 Gen 2 Type-A port (red) on the back panel 2 x USB 3.2 Gen 1 ports available through the internal USB header Chipset+USB 3.2 Gen 1 Hub: 2 x USB 3.2 Gen 1 ports available through the internal USB header 2 x USB 2.0/1.1 ports available through the internal USB header Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports on the back panel	Integrated in the CPU: 4 x USB 3.2 Gen 1 ports on the back panel Chipset: 4 x USB 3.2 Gen 1 ports available through the internal USB headers 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)	Integrated in the CPU: 4 x USB 3.2 Gen 1 ports on the back panel Integrated in the Chipset: 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 2 x USB 3.2 Gen 1 ports available through the internal USB header 2 x USB 2.0/1.1 ports available through the internal USB header	Integrated in the CPU: 4 x USB 3.2 Gen 1 ports on the back panel Chipset: 4 x USB 3.2 Gen 1 ports available through the internal USB headers 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Interne I/O Anschlüsse	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 2 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 2 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C™ port, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper 1 x Q-Flash Plus button	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 2 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 2 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C™ port, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper 1 x Q-Flash Plus button	1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 2 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 3 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C™ port, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x noise detection header 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 2 x temperature sensor headers 1 x power button 1 x reset button 2 x BIOS switches 1 x Clear CMOS jumper Voltage Measurement Points	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 2 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 2 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C™ port, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper 2 x temperature sensor headers 1 x Q-Flash Plus button	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 2 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 2 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C™ port, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper 2 x temperature sensor headers 1 x Q-Flash Plus button	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 2 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 3 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C™ port, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper 2 x temperature sensor headers 1 x Q-Flash Plus button	1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x OC PEG power connector 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 2 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 3 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C™ port, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 1 headers 1 x USB 2.0/1.1 header 1 x noise detection header 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 2 x temperature sensor headers 1 x power button 1 x reset button 2 x BIOS switches Voltage Measurement Points	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 2 x system fan headers 1 x CPU cooler LED strip/RGB LED strip header 2 x addressable LED strip headers 2 x RGB LED strip headers 6 x SATA 6Gb/s connectors 2 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper 1 x Q-Flash Plus button	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x addressable LED strip header 1 x RGB LED strip header 4 x SATA 6Gb/s connectors 2 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x speaker header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 2 x system fan headers 1 x RGB LED strip header 6 x SATA 6Gb/s connectors 1 x M.2 Socket 3 connector 1 x front panel header 1 x front panel audio header 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper
Rückseite I/O Panel	4 x USB 2.0/1.1 ports 1 x HDMI port 4 x USB 3.2 Gen 1 ports 2 x USB 3.2 Gen 2 Type-A ports (red) 1 x RJ-45 port 1 x optical S/PDIF Out connector 5 x audio jacks	4 x USB 2.0/1.1 ports 2 x SMA antenna connectors (1T1R) 1 x HDMI port 4 x USB 3.2 Gen 1 ports 2 x USB 3.2 Gen 2 Type-A ports (red) 1 x RJ-45 port 1 x optical S/PDIF Out connector 5 x audio jacks	1 x Q-Flash Plus button 1 x Clear CMOS button 2 x SMA antenna connectors (2T2R) 1 x USB Type-C™ port, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 2*/Gen 1 Type-A ports (red) * For 3rd Generation AMD Ryzen™ processors only. 1 x USB 3.2 Gen 2 Type-A port (red) 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 2 x RJ-45 ports 1 x optical S/PDIF Out connector 5 x audio jacks	1 x HDMI port 1 x USB Type-C™ port, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2*/Gen 1 Type-A port (red) * For 3rd Generation AMD Ryzen™ processors only. 1 x USB 3.2 Gen 2 Type-A port (red) 3 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 1 x optical S/PDIF Out connector 5 x audio jacks	2 x SMA antenna connectors (2T2R) 1 x HDMI port 1 x USB Type-C™ port, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2*/Gen 1 Type-A port (red) * For 3rd Generation AMD Ryzen™ processors only. 1 x USB 3.2 Gen 2 Type-A port (red) 3 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 1 x optical S/PDIF Out connector 5 x audio jacks	2 x SMA antenna connectors (2T2R) 1 x HDMI port 1 x USB Type-C™ port, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2*/Gen 1 Type-A port (red) * For 3rd Generation AMD Ryzen™ processors only. 1 x USB 3.2 Gen 2 Type-A port (red) 3 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 1 x optical S/PDIF Out connector 5 x audio jacks	1 x Q-Flash Plus button 1 x Clear CMOS button 2 x SMA antenna connectors (2T2R) 1 x USB Type-C™ port, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 2*/Gen 1 Type-A ports (red) * For 3rd Generation AMD Ryzen™ processors only. 3 x USB 3.2 Gen 2 Type-A ports (red) 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 2 x RJ-45 ports 1 x optical S/PDIF Out connector 5 x audio jacks	1 x PS/2 keyboard port 1 x PS/2 mouse port 1 x HDMI port 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks	1 x DisplayPort 2 x HDMI ports 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 3.2 Gen 1 ports 1 x USB Type-C™ port, with USB 3.2 Gen 2 support 1 x Q-Flash Plus button 1 x RJ-45 port 2 x SMA antenna connectors (2T2R) 3 x audio jacks	1 x PS/2 keyboard/mouse port 1 x HDMI port 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x Q-Flash Plus button 1 x RJ-45 port 3 x audio jacks
H/W Überwachung	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Overheating warning Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the fan you install.	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Overheating warning Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the fan you install.	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Overheating warning Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. Noise detection	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Overheating warning Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Overheating warning Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Overheating warning Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Overheating warning Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. Noise detection	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Overheating warning Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.	Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install.	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Overheating warning Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the fan you install.
BIOS	1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0	1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0	2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0	2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0	2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0	2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0	2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0	1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0	1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0	1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Sonstiges	Support for APP Center Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install	Support for APP Center Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install	Support for APP Center Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install	Support for APP Center Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install	Support for APP Center Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install	Support for APP Center Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install	Support for APP Center Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install	Support for APP Center Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install	Support for APP Center Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install	Support for APP Center Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install
User	blackbandt, derFireBird, Frankie36, kami1205, Machete, MrDanielVie, Talliostro, WombatMS		Child, Cyberbernd, Daniel N, DonGeilo, GuruSMI, Nightmare86, scrush	Alex2710, Daniel N, DerBayer89, Grainger, HSW, iTzMineCore, KopfWand, Marcool, Sepuko,		buyman, InkognitoGER, oNyX`, tStorm	Rabauke81		SeelBreaker
Testberichte	hothardware.com: Gigabyte Aorus X570 Motherboard And PCIe 4.0 SSD Preview: Ready To Rock Ryzen 3000	hothardware.com: Gigabyte Aorus X570 Motherboard And PCIe 4.0 SSD Preview: Ready To Rock Ryzen 3000	HW-LUXX: Gigabyte übertaktet den Ryzen 9 3950X auf 4,4 GHz und gibt Ausblick auf die Leistung hothardware.com: Gigabyte Aorus X570 Motherboard And PCIe 4.0 SSD Preview: Ready To Rock Ryzen 3000 gamezoom.net: Gigabyte X570 Aorus Master - Test/Review kitguru.net: Gigabyte X570 Aorus Master Motherboard Review guru3d.com: X570 Aorus Master motherboard tweaktown.com: GIGABYTE X570 Aorus Master (AMD X570) Motherboard Review bit-tech.net: Gigabyte X570 Aorus Master Review thinkcomputers.org: Gigabyte X570 AORUS Master Motherboard Review overclock3d.net: Gigabyte X570 Aorus Master Review	hothardware.com: Gigabyte Aorus X570 Motherboard And PCIe 4.0 SSD Preview: Ready To Rock Ryzen 3000 overclock3d.net: Gigabyte X570 Aorus Pro Review eteknix.com: Gigabyte X570 AORUS Pro Motherboard Review	hothardware.com: Gigabyte Aorus X570 Motherboard And PCIe 4.0 SSD Preview: Ready To Rock Ryzen 3000 overclockers.com: GIGABYTE X570 AORUS PRO WiFi Review proclockers.com: Gigabyte X570 AORUS Pro WIFI Motherboard Review	hothardware.com: Gigabyte Aorus X570 Motherboard And PCIe 4.0 SSD Preview: Ready To Rock Ryzen 3000	hothardware.com: Gigabyte Aorus X570 Motherboard And PCIe 4.0 SSD Preview: Ready To Rock Ryzen 3000 anandtech.com: The GIGABYTE X570 Aorus Xtreme Motherboard Review: Fanless AM4 hexus.net: Review: X570 Aorus Xtreme Motherboard tweaktown.com: GIGABYTE X570 Aorus Xtreme (AMD X570) Motherboard Review	hothardware.com: Gigabyte Aorus X570 Motherboard And PCIe 4.0 SSD Preview: Ready To Rock Ryzen 3000	HW Luxx: PCIe 4.0 im Kleinstformat: Gigabyte X570 I AORUS Pro WiFi im Test hothardware.com: Gigabyte Aorus X570 Motherboard And PCIe 4.0 SSD Preview: Ready To Rock Ryzen 3000 overclock3d.net: Gigabyte X570i ITX Aorus Pro WiFi Review bit-tech.net: Gigabyte X570 I Aorus Pro WiFi Review	hothardware.com: Gigabyte Aorus X570 Motherboard And PCIe 4.0 SSD Preview: Ready To Rock Ryzen 3000

Die aktuellen BIOS Versionen findet man entweder auf der jeweiligen Modellseite von Gigabyte oder in der Ultimativen AM4 UEFI/BIOS/AGESA Übersicht (15.11.19).

Ich hoffe auf rege Beteiligung. Es handelt sich um einen dynamischen Informationsprozess, der diesem Eingangspost auch erweitern soll. Deshalb bitte ich um Information, wenn bestimmte Informationen bereits in diesem Eingangspost erscheinen sollen.

FAQ:
1. BIOS Nomenklatur: Bei Gigabyte kann man anhand der Versionsnummer direkt erkennen, ob es sich um ein Release oder um eine Testversion handelt. Bei letzterer endet die Versionsnummer mit einem Buchstaben. (oNyX`)

2. meine NVMe PCIe 3.0 SSD geht nicht
Das Problem läßt sich im Allgemeinen dadurch beheben, daß man dem Board explizit mitteilt, daß es PCIe 3.0 zu verwenden hat. Der Eintrag nennt sich "PCI Slot Configuration) und kann manuell auf Gen1 bis Gen4 sowie Auto gestellt werden. Bitte beachtet, daß die Systemweit gilt und so z.B. auch eine 5700 unter dem eingestellten Wert läuft.

3. Meine PCIe x1 Karte geht nicht
Das ist momentan noch ein Bug im BIOS. Vereinzelt kann es auch zu Bootproblemen führen. Momentan ist der einzige Workaround, die Karte zu entfernen

4. PBO funktioniert nicht
Auch dies ist ein Bug um BIOS. Er tritt seit BIOS F10A/AGESA 1.0.0.4 auf. Das BIOS liest hierbei die Boardwerte für EDC nicht aus und deaktiviert daraufhin den PBO-Boost. Man kann dies momentan umgehen, indem man den EDC-Wert explizit auf 0 setzt. Bei den AMD-Performance -> PBO Einstelllungen muß eine EDC von Null eingetragen werden.

5. Ich habe ein CMOS Clear durchgeführt, aber es werden weiterhin die alten Settings verwendet.
Bei einem CMOS Clear sollten eigentlich alle Einstellungen auf Default zurückgesetzt werden. Das passiert auch fast komplett. Jedoch bleiben die Einstellungen im AMD-Overclocking Menübereich komplett erhalten und werden nach Start des Systems auch verwendet. Man muß dort die Werte händisch löschen!

6. Seriennummer-Nomenklatur:
Man kann anhand der Seriennummer das Produktionsdatum des Boards ermitteln. Lautet die Seriennummer am Beginn z.B. SN1928xxxxxxxx besagen die Stellen 3&4 (19) das Produktionsjahr, die Stellen 5&6 hingegen die Produktionswoche. Das Board mit obiger Seriennummer wurde alsoo in der Woche 28 des Jahres 2019 produziert.

Ich bitte dabei zu berücksichtigen, daß in Deutschland die erste Kalenderwoche unterschiedlich zu den USA ermittelt wird.

7. Wem das Sägen des CPU-Kühlers auf den Nerv geht, kann diesen an die Leine nehmen. Bei oNyX` zeigten sich folgende Werte als besonders hilfreich
1. 27% default
2. 30% 60c
3. 50% 70c
4. 75% 75c
5. 100% 80c
Diese Werte können direkt im Bios oder via SIV eingetragen werden.

8. Ich möchte hier darauf hinweisen, daß das Schreiben von Werten im Ryzen Master mit größter Vorsicht zu genießen ist. Es werden z.B. bei RAM-Werten Dinge direkt in den AGESA Bereich geschrieben, der für Mainboardhersteller gesperrt ist. Es kann und kam dabei dazu kommen, daß das Board nicht mehr lauffähig ist. Hat man bereits Werte geschrieben, kann man mit der Prozedur:
- BIOS inkl. Agesa neu flashen
- BIOS Hardware-Reset
das Board wieder in einen lauffähigen Zustand versetzen. Dies ist aber nicht garantiert. Auf OCN musstem mehrere Nutzer ihr Board trotz der Prozedur zurücksenden. Diese Warnung betrifft mWn ALLE X570 Boards.

9. AMD hat für hwInfo festgelegt, daß das Interwall zum Auslesen der Werte alle 500ms erfolgen soll. Standardmäßig sind hier 2 Sekunden parametrisiert. Ich bitte dies bei Benchmarks etc. zu berücksichtigen

10. Sollte das BIOS bei der Nutzung von Tastatur und/oder Maus ruckeln, kann man im BIOS mit dem Tastaturkürzel "Strg-Alt-F6 " die Auflösung bis zum nächsten Reboot auf den VGA Modus limitieren. Dies sollte den Eingabe-Lag beheben.

Hilfreiche Links:
1. Neben dem Einstieg über die Gigabyteseite kann man den Downloadbereich auch via Aorus.com erreichen.
2. ein weiterer guter Anlaufpunkt für die neueste Beta ist TweakTon's Forum GIGABYTE Latest Beta BIOS
3. Wer ein X570 Master besitzt und seinen Ryzen 3000 übertakten will, findet im Gigabyte X570 AORUS Master Overclocking Thread eine umfangreiche Anleitung
4. Eine weitere Anleitung zum Übertakten der Ryzen 3000 auf einem Gigabyte Board findet Ihr im GIGABYTE AMD X570 Ryzen Overclocking Guide

Danksagung:
Einen großen Dank an oNyX` und Dan Hot für die wertvollen Hints und Tips

--- History ---
2019 11 16 | GuruSMI | Initiale Version
2019 11 30 | GuruSMI | Anpassung wegen Kompatibilitätserweiterung (Ryzen 2000G)
2020 01 09 | GuruSMI | Einfügen hilfreicher Links, Aktualisierung der FAQ
2020 01 22 | GuruSMI | Änderung des Threadtitels
2020 01 22 | Emissary42 | Verschieben des Threads in das Unterforum "Mainboard-Sammelthreads"
2020 08 27 | GuruSMI | Erweiterung der FAQ



[iTzMineCore]

Habe das Aorus Pro Rev 1.0 und gestern auch mal den 31o drauf gemacht, dieser hat dann bei mir Audio Problem mit dem Steinberg UR22 verursacht, habe jetzt mal auf F30 zurück geflashed um zu schauen ob die weg sind oder es doch an der guten 5700 XT liegt die ich vor einigen Tagen wieder eingebaut habe.



[Hugo]

Ich habe das MB X570 AORUS ULTRA gekauft und bekomme es nicht zum laufen.
Es dreht sich nur der CPU Lüfter aber es kommt kein Bild. Außerdem leuchtet die LED MEM auf dem MB.

Mein Sys:
MB: X570 AORUS ULTRA
CPU: AMD Ryzen 5 2400G
RAM: 2x 8GB Kingston HyperX Predator DDR4 3000MHz

Was kann der Fehler sein bzw. was könnte ich noch ausprobieren?



[nscience]

Es scheint ja - speziell beim x570 Master aber auch bei anderen am4 GB Boards- gehäufte Probleme zu geben, dass das Board einfach nicht starten will manchmal.
Was auch Buildzoid in seinen kürzlichem Overview angesprochen hat.

Gute Problemübersicht:

Reddit - Dive into anything

www.reddit.com

--

Gigabyte X570 Aorus Master won't power on - (temporary) solution

Well guys, I've had a frustrating AF night. Thought I'd share just in case this can help someone else :) So backstory - A few years ago (like, 2015 maybe) I had a Corsair AX860i power supply crap out in my i7 6700K / Gigabyte Z170 Gaming 7 build. System would power on for a few seconds, then...

hardforum.com

--
Hier gibts dazu eine Petition, wo man unter anderem rausfinden möchte, wieviele User von dem Problem betroffen sind.

Gigabyte X570 Aorus Master power-on problem

With this petition, I would like to measure the number of customers that currently have power-on issues with their Gigabyte X570 chipset based motherboards. Problem description: after a regular power-down initiated via the Windows start button, the motherboard fails to start with the next power...

secure.avaaz.org

Falls die Links schon weiter vorne geposted wurden - sorry for doublepost then. Bin halt grad drübergestolpert im Rahmen einer Fehlerbehebung und fand die Thematik zu interessant um es nicht anzusprechen.



[Seadersn]

Das sollte man nicht machen!
Treiber OUT DATE und nicht von AMD empfohlen!

na, super, exakt aus dem grund hab ich's gemacht: win 10 treiber von 2008, amd von 2015 (oder '17), probleme mit "stutterings", die dem amd treiber nachgesagt werden, hatte ich gl.weise auch bisher hicht. hast du da einen weiterführenden link oder so, speziell zu der amd aussage vllt. sogar?

wg. plötzlich sterbender master boards: bitte nicht... da bleibt wohl nur abzuwarten. hab davon auch gelesen und trotzdem eines gekauft, die regel scheint es trotz allem ja nicht zu sein. häufig, aber nicht unbedingt regel. na, harren wir mal der dinge...



[thb]

na, super, exakt aus dem grund hab ich's gemacht: win 10 treiber von 2008,

Es sollte doch mittlerweile bekannt sein, dass die Datumsangabe der Win10 Treiber bewusst auf 2006 gesetzt ist. Die Treiber Version zeigt jedoch auf, dass sie regelmäßig angepasst werden.

Erklärung dazu gibt z.B. hier: https://www.borncity.com/blog/2017/03/04/warum-tragen-microsofts-treiber-das-datum-21-06-2006/



[Doenereater]

An die Xterme Besitzer: Kann mir jemand die Belegung der Frontpanel Extension geben und evtl. ein Foto der Mainboardseite des Kabel schießen? Habe meins Bulk gekauft und so wie es aussieht ist das nirgends nachzukaufen -.-



[Seadersn]

@Doenereater frag mal @The Professor, er hatte das selbe problem (hoffe, meine erinnerung ist korrekt und er war auch derjenige...).

Es sollte doch mittlerweile bekannt sein, dass die Datumsangabe der Win10 Treiber bewusst auf 2006 gesetzt ist. Die Treiber Version zeigt jedoch auf, dass sie regelmäßig angepasst werden.

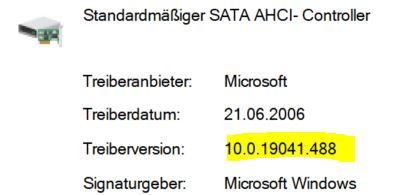

Anhang anzeigen 561181
Erklärung dazu gibt z.B. hier: https://www.borncity.com/blog/2017/03/04/warum-tragen-microsofts-treiber-das-datum-21-06-2006/

um diese treiber zB hab ich mich zuletzt zu meinen intel zeiten 2011 oder sowas gekümmert, kann schon sein dass das bekannt sein sollte mir nicht, thx dafür dann mal
edit: das mit dem treiberdatum von ms scheint ja sogar 'nen 'ernsthaften' grund und system zu haben okidoki, again what learned



[Monkito]

Ich hab folgendes Problem, ich nutze ein Ryzen 5900x und ein x570 Aorus Pro mit DDR 3600 und habe eine Idle Stromaufnahme (gemessen an der Steckdose) von 85-90 Watt. Cpu läuft mit korrekter Stromaufnahme. Stelle ich im Bios das XMP Profil auf aus habe ich ca 20 Watt weniger.



[User42]

Zeig mal deine Werte vom ryzen timing tool, oder ryzen master, wo die ganzen Spannungen stehen



[Monkito]



[Schnuppl]

An die Xterme Besitzer: Kann mir jemand die Belegung der Frontpanel Extension geben und evtl. ein Foto der Mainboardseite des Kabel schießen? Habe meins Bulk gekauft und so wie es aussieht ist das nirgends nachzukaufen -.-

Wurde dir geholfen?



[Doenereater]

Wurde dir geholfen?

Nein, weder via Gigabyte direkt, noch mit ner Mail an zubehoer@gigabyte -.- Bin gerade am zusammensuchen was für Stecker das ist und plane mal das selber zu bauen. Echt traurig!



[Schnuppl]

Nein, weder via Gigabyte direkt, noch mit ner Mail an zubehoer@gigabyte -.- Bin gerade am zusammensuchen was für Stecker das ist und plane mal das selber zu bauen. Echt traurig!

Wie ärgerlich.
Wenn Du irgendwelche Infos oder Fotos brauchst, sag bescheid.



[Doenereater]

Danke für dein Engagement! Ich habe jetzt nochmal an beide Seiten eine "böse" Mail bezüglich UVP des Boards und Ersatzteilsituation geschrieben - zudem der Verweis, dass hier @The Professor schon eine Anfrage gestellt hatte, wo ihm das Ersatzteil angeboten wurde. Telefonisch erreichbar ist da seit gestern keiner - immer wieder mit der Ansage, dass sie ab morgen 9:00 nach einer Schulung wieder erreichbar sind.

Wenns soweit ist, bräuchte ich die Belegung vom Stecker - also Durchgang von Pin zu Pin. Das Ding spreaded ja von 10 Pins Boardseitig auf 17 Pins auf, wobei ich 7 x + für Power Switch, Reset, HDD LED, Power LED, Case open, Speaker und einen weiteren Power LED zähle - der rest sollte entweder Masse oder spezielle Adern für irgend ein Signal zum Board zurück sein. Z.B. Power und Reset zurück zum Board und eine Masse gemeinsam für die LEDs und Speaker....



[Schnuppl]

Ich habe das Teil mal ausgebaut, kann aber auch nur bestätigen was du schon weißt bzw. was deine Bilder zeigen.
Man bräuchte jetzt ein Messgerät um zu messen, welcher Pin wo ankommt und welcher mehrmals ankommt. Das habe ich leider nicht.



[Doenereater]

Ahhh, bittere Pille Ja ich hoffe jetzt echt, dass die Gigabyte Leute das auf die Kette bekommen... Ansonsten muss ich selbst am Board direkt mitm Multimeter ran und die einzelnen Pins ausmessen, was bei der Rasterbreite schon echt eklig wird... Ich denke Power LED, Power Switch und Reset sollte ich aber mit einem Kabel auf Masse schnell finden können.



[Doenereater]

Gut, die wichtigsten Sachen habe ich schon rausgemessen

Der Oberhalb von PowerLED ist vermutlich der - davon.
Die restlichen 3 Pins sind vermutlich für Case Open + und Speaker +/- ?!

Power, Reset und Case Open Aschlüsse nutzen alle normale Masse, die LEDs und der Speaker eine "spezielle", welche einen keinen niederohmigen Durchgang zur Masse hat.

Vielleicht hilfts ja mal jemanden...

Update 16.12:
Gigabyte Support aus Hamburg hat sich nochmal gemeldet: Sie bestellen mir das Ersatzteil, jedoch dauert das 3 Wochen und da soll ich mich nochmal melden Immerhin



[Viper8]

Also mit dem F31 Final, geht bei mir nichts über 3666 (hab soviele SoC und VDDP/G Werte probiert)



[Coolsys]

Ist es schlechter als F31o oder "gleich"?



[Doenereater]

Ich fahre bis jetzt mit dem F31l am besten - IF2000, keine Reboots - ich glaube nur die USB 2.0 Ports sind instabil - nutze aber die 3.0 Ports



[Schnuppl]

Eine möglichkeit wäre:
msconfig->Start->Erweiterte Optionen..->Prozessoranzahl
da sollte kein haken drinn sein.

jenau das wärs ja! aber wie sich sowas verstellt ist dann noch die frage...

Ich noch mal, der mit dem 5950x und nur 8 Kernen.
Da das Teil ja eh nur rumgezickt hat und plötzlich nur noch 8 statt 16 Kerne hatte, hatte ich die CPU zur rma geschickt.
Mindfactory hat sie getestet und erstezt. Ich habe jetzt eine neue. Eingebaut. Wieder 8 Kerne. Daraufhin folgte ich deinem Rat @Chris1975 und guckte in msconfig. Dort war tatsächlich ein Häkchen an der Stelle. (auch wenn 16 Kerne ausgewählt waren) Häkchen raus. Jetzt sind es 16 Kerne.
Mal gucken ob das Teil besser läuft.
Danke noch mal.



[qiller]

... Defekte CPUs sind (eigentlich) verdammt selten.

tjoar^^. Aber vlt geht mit der neuen CPU dafür ein höherer IF.



[Viper8]

Ist es schlechter als F31o oder "gleich"?

Ich würde sagen, schlechter!

Auf der offiziellen Seite ist ja immernoch das F31o das neuste, hat wahrscheinlich seinen Grund



[qiller]

Also F31o und F31 waren auf dem X570 Xtreme identisch, hab da keinen Unterschied feststellen können. Musste jetzt aber auf der Downloadseite feststellen, dass sie das F31 final noch immer nicht veröffentlicht haben. Da steht tatsächlich immer noch das F31o. Nächste UEFI-Update gibts bei mir erst wieder mit Agesa 1.1.8.0 (F32?).



[Doenereater]

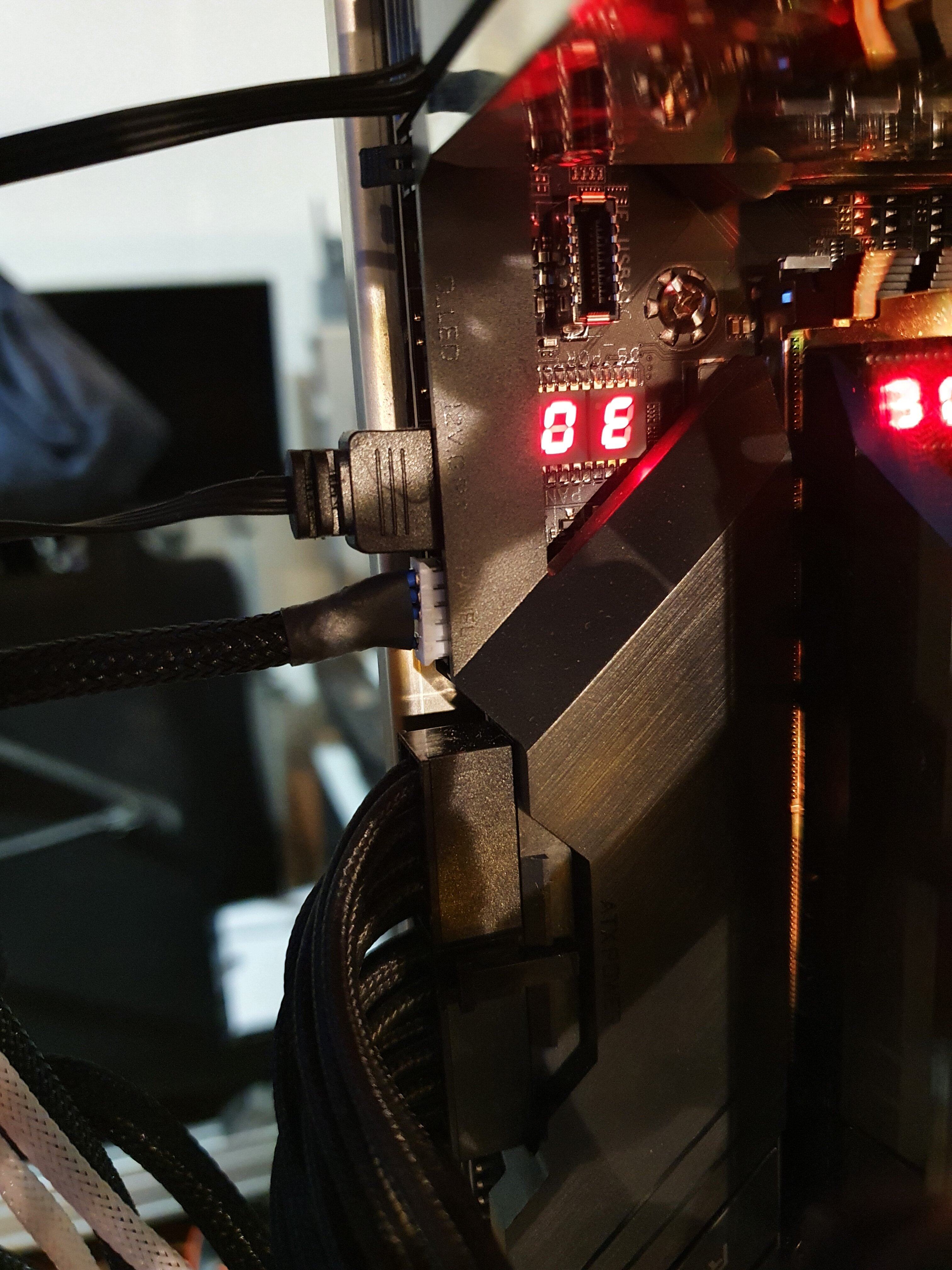

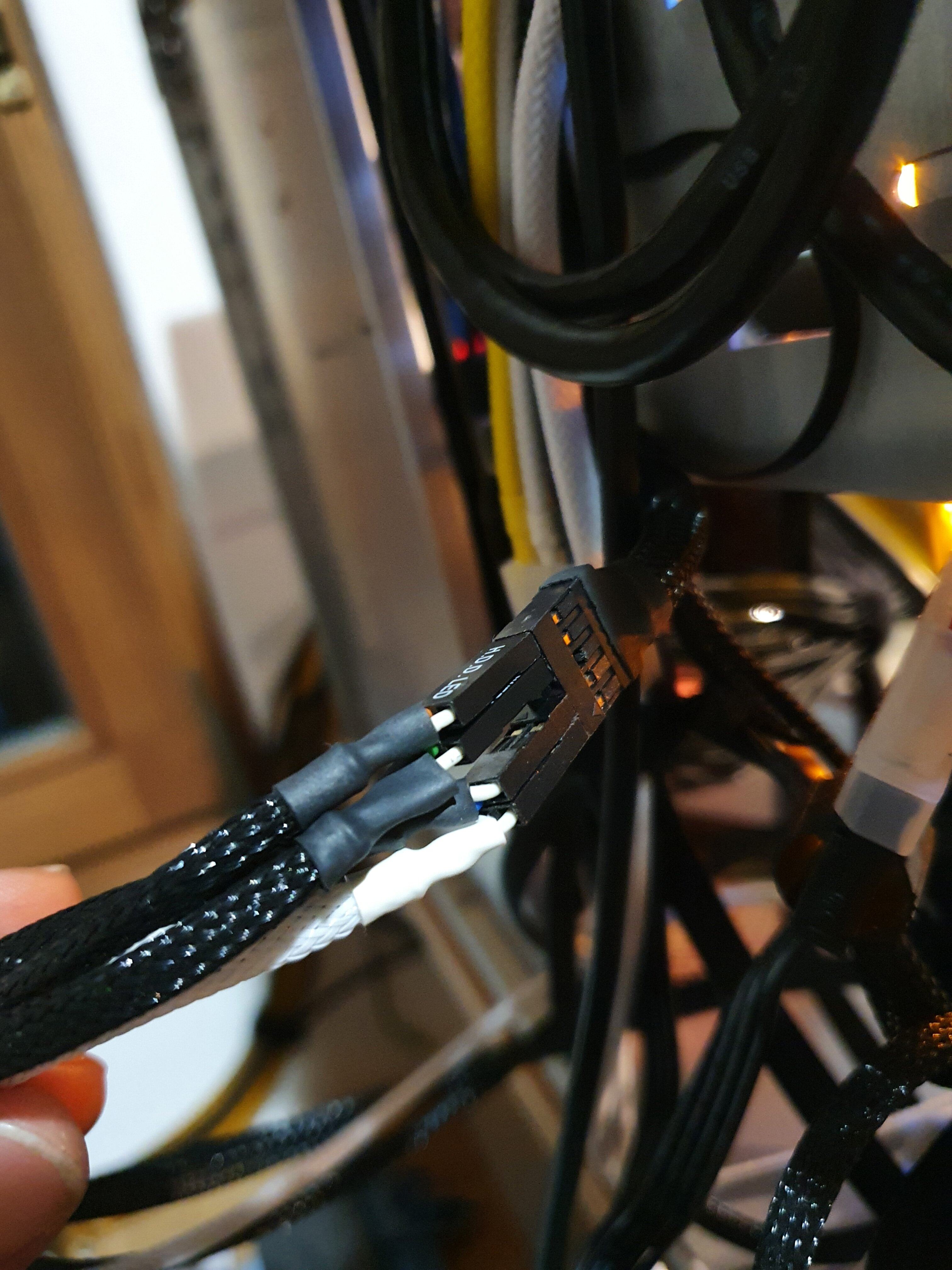

Update Front Panel:
Stecker vorerst selbst gebaut/gelötet - funktioniert



[Cyberbernd]

Hi zusammen

Wieder mal neue Biosse......

F31p

Habe ich gerade im test....läuft ebenso wie das F31 das wieder von der Gigabyte Seite entfernt wurde.

GIGABYTE Latest Beta BIOS - TweakTown Forums

Warning Some of beta BIOSes are still undergoing compatibility testing. GIGABYTE is sharing these BIOSes for testing purposes only and are not meant for general release. If you are not familiar with beta BIOS testing, then please only flash the recommended release BIOSes that are posted on the...

www.tweaktownforum.com

Ram auf 3800 läuft weiterhin....

Gruß Bernd



[tsw|Syrus]

Und schon das nächste Update auf F31q

GIGABYTE Latest Beta BIOS - TweakTown Forums

Warning Some of beta BIOSes are still undergoing compatibility testing. GIGABYTE is sharing these BIOSes for testing purposes only and are not meant for general release. If you are not familiar with beta BIOS testing, then please only flash the recommended release BIOSes that are posted on the...

www.tweaktownforum.com



[Cyberbernd]

lol

In der zeit des flashens von F31 auf 31p ...kommt schon 31q ..................

Wer braucht da noch Anwendungen oder Games...... Bios flashen als Vollbeschäftigung.

Gruß Bernd

ps

F31q läuft auch, Ram von 3800 auf 3866 mit Auto Timings gestellt.....harter Bios reset...ok...also lieber nicht. Bleibe bei 3800.



[tsw|Syrus]

Zumindest klingt das Feedback bei Tweaktown seit F31p ganz gut, vorher kamen ja immer recht schnell Fehlermeldungen.
Mal gucken, ob es die Tage noch was wird mit der Final, wenn man nur XMP einstellt und ansonsten nicht overclocked, kann man sich die Betas ja eigentlich sparen.
Den USB-Bug loszuwerden wäre allerdings schon ganz nice...



[buyman]

Jetzt geht ihnen bald das Alphabet aus. Naja, man kann ja bei F32a wieder neu beginnen...
