[Sammelthread] Offizieller AMD [[ RX6700 // RX 6700XT // 6750XT // X6800 // 6800XT // 6900XT // 6950XT]] Overclocking und Modding Thread [[ Wakü - Lukü - LN2]]

[Grindcore77]

Will check out snippets before I give these settings a run and will post the outcome...if I remember correctly my fclk were these settings when I completed a few runs...so I'm not leaning towards that...im sure the shutdowns happened when I tried to crank the watts/amps higher...which then may have put my hotspot over a threshold?



[ShirKhan]

Hast du auch die Temps die er hat?

Nein, du?

Hast du den min auch so hoch?

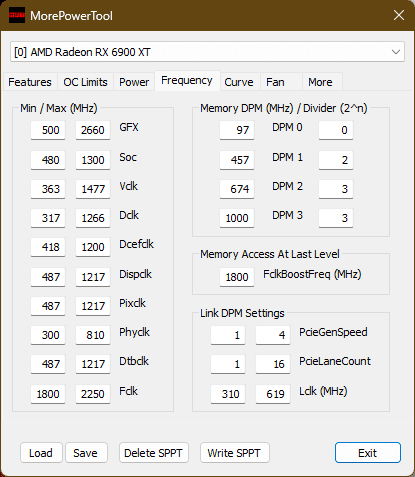

Derzeit hab ich's so:

Wenn es das Netzteil wäre hörst du ein Klick,

Is there a click sound at shutdown, @Grindcore77?

im sure the shutdowns happened when I tried to crank the watts/amps higher...which then may have put my hotspot over a threshold?

Graphics card shuts the system down for temp reasons? That is possible IIRR.



[Grindcore77]

I also remember with messing with gpu max frequency..from the 2713? Or whatever it is I would get a black screen and couldn't reboot into my benching os..so I had to modify the registry from my daily os...that was interesting...😆



[ApolloX]

@Grindcore77 your soc gets 1200 mV - why not more?
I typically have a smaller gap between core and soc voltage

yo have GFX_ULV and GFXOFF deactivated - I'd activate them, then the high voltage on the core and soc are not forced in idle



[Grindcore77]

@Grindcore77 your soc gets 1200 mV - why not more?
I typically have a smaller gap between core and soc voltage

yo have GFX_ULV and GFXOFF deactivated - I'd activate them, then the high voltage on the core and soc are not forced int

@Grindcore77 your soc gets 1200 mV - why not more?
I typically have a smaller gap between core and soc voltage

yo have GFX_ULV and GFXOFF deactivated - I'd activate them, then the high voltage on the core and soc are not forced into idle

Thank you! Ahh I thought that unchecking those was the way for no idea! My bad...
yes I didn't modify the soc voltages as yet was concentrating on the gpu first..but will definitely be doing that also

Beitrag automatisch zusammengeführt: 29.05.2022

Not sure about clicking the rig is pretty loud at full song! 😆 but I will try and recreate what happened and get some hwinfo results up...thank you all for helping me with this



[ShirKhan]

Das ist ja alles richtig und interessant und die Shutdowns sind auch spannend. Sicher würden ihr und ich ein paar Werte anders einstellen, aber seine Settings sind auch nicht völlig daneben. Da dort auf den ersten Blick keine groben Fehler zu erkennen sind, die den mittelmäßigen Score erklären würden, heißt es nun, auf den HWiNFO-Screenshot zu warten. Um dann wahrscheinlich wieder auf die zu hohen HS-Temps zu verweisen.



[Devcom]

Mit einem Hotspot von 90/100 was erwartest du. Ist eine GPU und kein Grill.



[Grindcore77]

Thank you all again...will post up info ASAP



[Butanding1987]

@ShirKhan Was that your FCLK for your 27k+ TS run? @Devcom Was that your FCLK for your 28k+ TS run?



[ShirKhan]

@ShirKhan Was that your FCLK for your 27k+ TS run?

No, this is my current daily setting. High score run was 2375 max IIRR.



[Butanding1987]

No, this is my current daily setting. High score run was 2375 max IIRR.

And min? I ask because my PC doesn’t boot to Windows if the min FCLK is too high.

Beitrag automatisch zusammengeführt: 29.05.2022

I’m stuck at the moment at 26k TS graphics score. Don’t know what else to do aside from getting more cold.

Beitrag automatisch zusammengeführt: 29.05.2022

I also noticed that setting max TDC too high (400-500a) gives me green screens and shutdowns.



[ShirKhan]

And min? I ask because my PC doesn’t boot to Windows if the min FCLK is too high.

1800 or 2000. Soc MHz 1300 or 1350.

I’m stuck at the moment at 26k TS graphics score. Don’t know what else to do aside from getting more cold.

26K Time Spy with a 6800 XT? That's too bad. You should give away that card.

BTW: What keeps you from uploading that 26K score?

3DMark.com search

3DMark.com search

www.3dmark.com



[Butanding1987]

@ApolloX What’s your max GFX and SOC TDCs for your best TS score? Same question for @ShirKhan and @Devcom. Thanks.

Beitrag automatisch zusammengeführt: 29.05.2022

26K Time Spy with a 6800 XT? That's too bad. You shuould give that card away.

BTW: What keeps you from uploading that 26K score?

Silly, 26k with the 6950 XT. LOL.



[ShirKhan]

800/600/60 GPU/GFX/Soc

Beitrag automatisch zusammengeführt: 29.05.2022

Silly, 26k with the 6950 XT. LOL.

Update "System" in your profile, mate.



[Butanding1987]

800/600/60 GPU/GFX/Soc

Beitrag automatisch zusammengeführt: 29.05.2022

Update "System" in your profile, mate.

Will do. Thanks.



[Devcom]

‎Ich glaube, es war auf 2369 max,
What temps have you?



[Butanding1987]

‎Ich glaube, es war auf 2369 max,
What temps have you?

Starting water temp (with my super-DIY air-con blast) is 20C, GPU at 23C.

Beitrag automatisch zusammengeführt: 29.05.2022

At the end of that 26k score, my max GPU temp was 51C, hotspot at 84C.



[Grindcore77]

Sorry another photo guys!



[Devcom]

I Think is to hot for more points.

Mir fehlen 200PKT für Platz 3 in der HOF mit Crossfire.
Brauch mehr auf der CPU ,geht aber nicht dann schalten die Netzteile aus.
Morgen klemm ich da noch ein 1300w Netzteil dran.
Mist das es so warm ist.



[Grindcore77]

Watts were down on this run and for the second graphics test fps were down...I know where they should start at etc...



[Devcom]

Watts were down

LM my Friend



[Grindcore77]

Looks like I have to go in for open heart surgery eh 😆😆

Beitrag automatisch zusammengeführt: 29.05.2022

Very big delta though...so def something not right...my best run that I posted here I hit 499 max watts and my HS was 101 I think....

So looking at these numbers I really only have one choice...haven't even messed with soc yet..so there is more heat coming 😆😆

Beitrag automatisch zusammengeführt: 29.05.2022

But all others numbers look ok? What's the max gpu voltage you would push?



[ShirKhan]

Da du dich aber auf Star Wars beziehst, habe ich keine Wahl. Meine RX 6600 hat tatsächlich einen BIOS-Switch, also werde ich mich sicher auch damit beschäftigen.

Das heißt, man muss nur dieses Wort verwenden, um MACHT über dich zu haben? Und du tust dann, was man dir sagt, so wie der T800-steh-auf-einem-Bein dem kleinen John Connor in "Judgement Day" gehorchen muss? Oder, um im Franchise zu bleiben: So wie die beiden Sturmtruppler-Wachen "sie dürfen passieren" sagen (und die Rebellen meinen), nur weil Obiwan ihnen das vorher zugemurmelt hat?



[Devcom]

Sieht so aus

For sure



[ApolloX]

@Butanding1987

Radeon RX 7000/6000: 3DMark Time Spy Rangliste

@ApolloX vielen Dank für deinen Guide ich wusste gar nicht welche Reserven noch drinn stecken, die ich jetzt abgerufen habe. UPDATE 14.911 XFX QICK 319 RX 6700 XT 2945/2820/2150 MHz 42°C/Luft 21.8.2 Ryzen 5 3600 2x8GB DDR4 @ 3600MHz @ 14 17 14 14 28 56 @4to cka3al

www.hardwareluxx.de

I already had 26,729 but at this run the system info was not updated and, thus, the score was not valid - so I didn't store the screenshots.



[Grindcore77]

Should I maybe also be changing my driver ro something else?



[ShirKhan]

There is nothing wrong with 21.10.2. Maybe try 21.11.3 and 22.5.1. And remember to report pls if you find any different behavior.



[Grindcore77]

Ok will do!!...my next step will be opening the card 😆😆 wish me luck 😑😁

Beitrag automatisch zusammengeführt: 29.05.2022

Any guides on opening up a gigabyte waterforce? 😆😆😆



[Butanding1987]

@Butanding1987

Radeon RX 7000/6000: 3DMark Time Spy Rangliste

@ApolloX vielen Dank für deinen Guide ich wusste gar nicht welche Reserven noch drinn stecken, die ich jetzt abgerufen habe. UPDATE 14.911 XFX QICK 319 RX 6700 XT 2945/2820/2150 MHz 42°C/Luft 21.8.2 Ryzen 5 3600 2x8GB DDR4 @ 3600MHz @ 14 17 14 14 28 56 @4to cka3al

www.hardwareluxx.de

I already had 26,729 but at this run the system info was not updated and, thus, the score was not valid - so I didn't store the screenshots.

Was this with EVC2? Thanks.



[ShirKhan]

Was this with EVC2?

Nein, du siehst doch, dass TDV aktiviert und hochgestellt ist. @ApolloX hat den EVC2 nur, weil er die Lötstellen so hübsch findet.
