I started recapping my Ultra D. I did the harder part first. Although 120W makes it easy, even on lower temps.
All solids are new.

I will probably recap all memory caps as well. They are from Nichicon but not taking any chances here as it will go on cold sooner or later.



[digitalbath]

I would replace all of the scum. All in.
Nice to hear, that the new Soldering iron works out for you. I need to replace mine sometime too.



[Sparksnl]

I probably will replace them all. I bought caps a year ago. Just to busy.
Yours looks nice.

Ican do those 6+2 caps for you if you want.
And yes, that soldering iron is great for me.



[digitalbath]

Ican do those 6+2 caps for you if you want.

Maybe worth for good RAM clocks? The board will last longer at least.



[Sparksnl]

Those caps are probably still good. I replaced mine just to be sure since I do cold.



[Sparksnl]

I would replace all of the scum. All in.
Nice to hear, that the new Soldering iron works out for you. I need to replace mine sometime too.

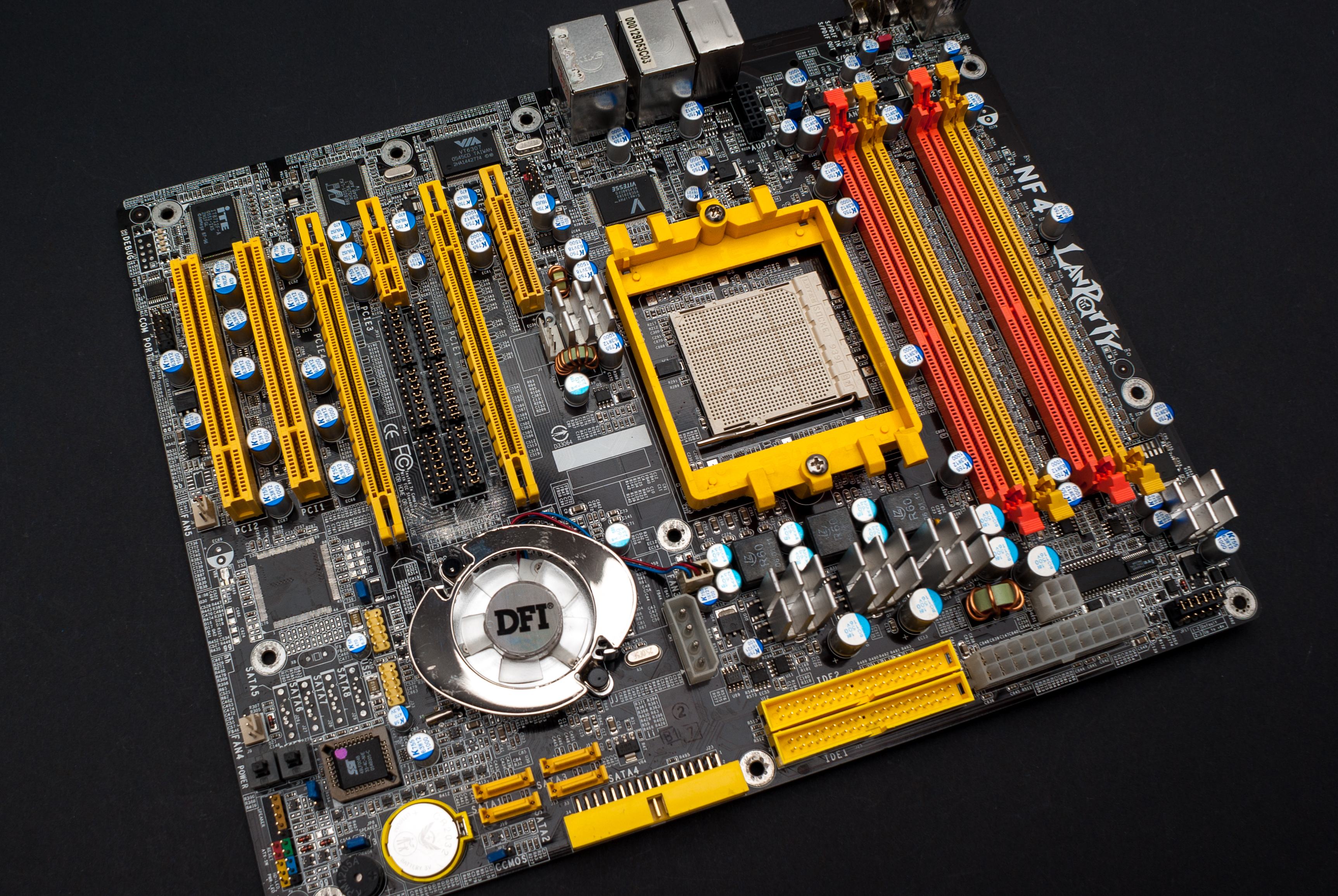

Anhang anzeigen 1064617

I had 90 more minutes which I could use for soldering…


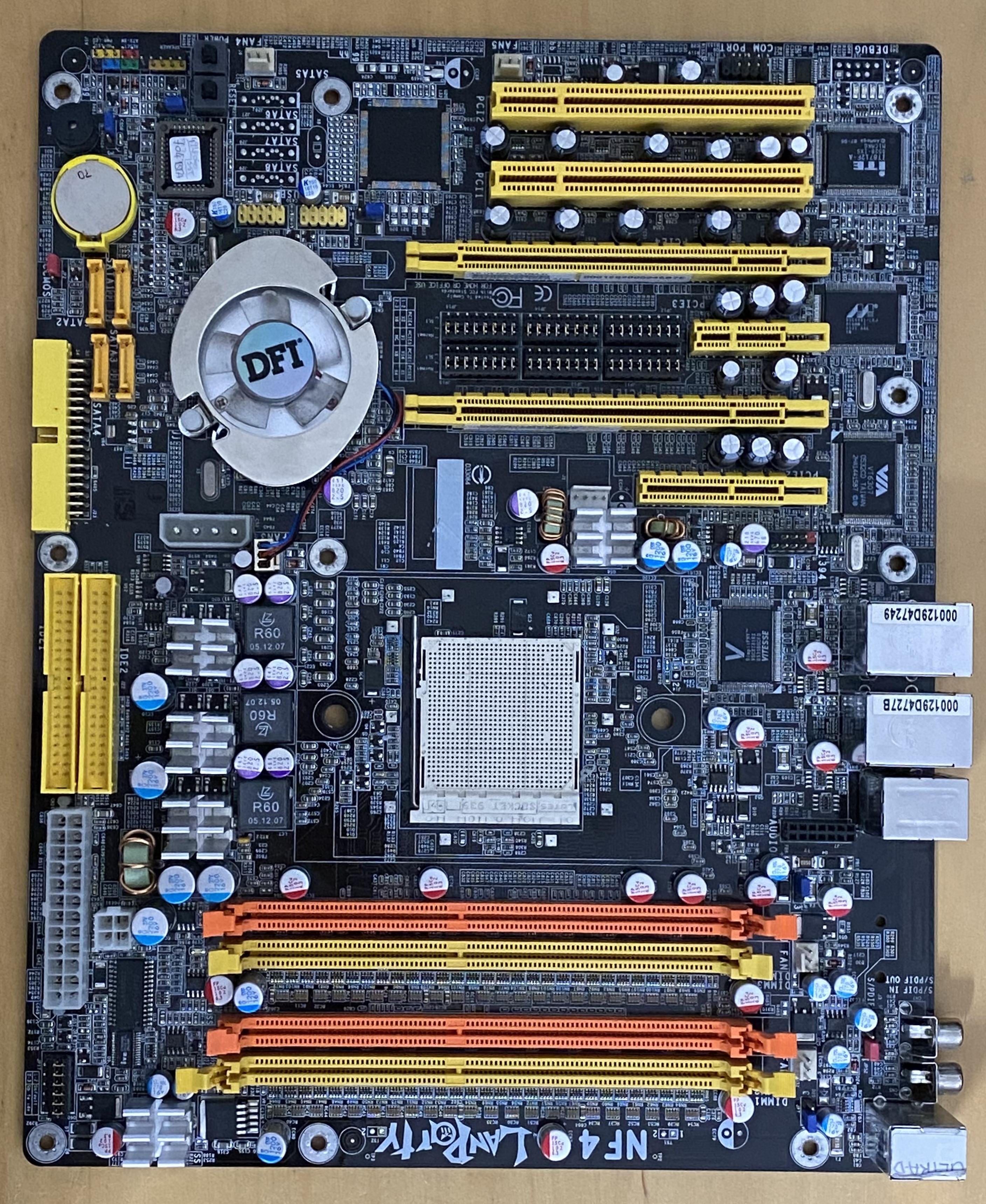

Fase 2:



[digitalbath]

looks good to me. Great! Time for gold with some cold?



[Sparksnl]

I will do the rest as well. But yes, this should do. And I want to test some BIOS versions. And for sure test dimms first.
So lot’s of work ahead.

And even then I still need to do cold on my golden 6000+ F3 as well. Taking gold for CB 11.5 proved I can take more.



[Sparksnl]

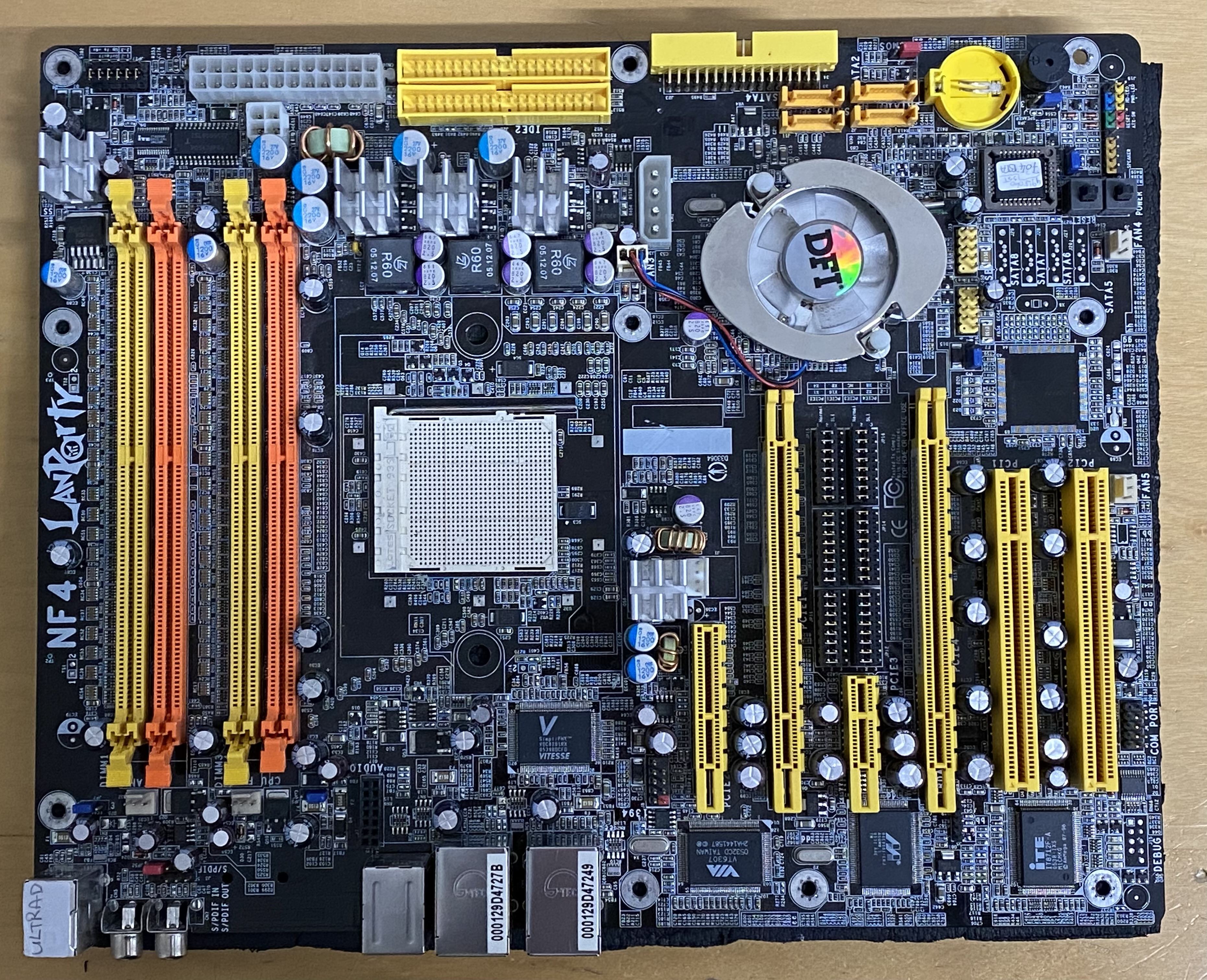

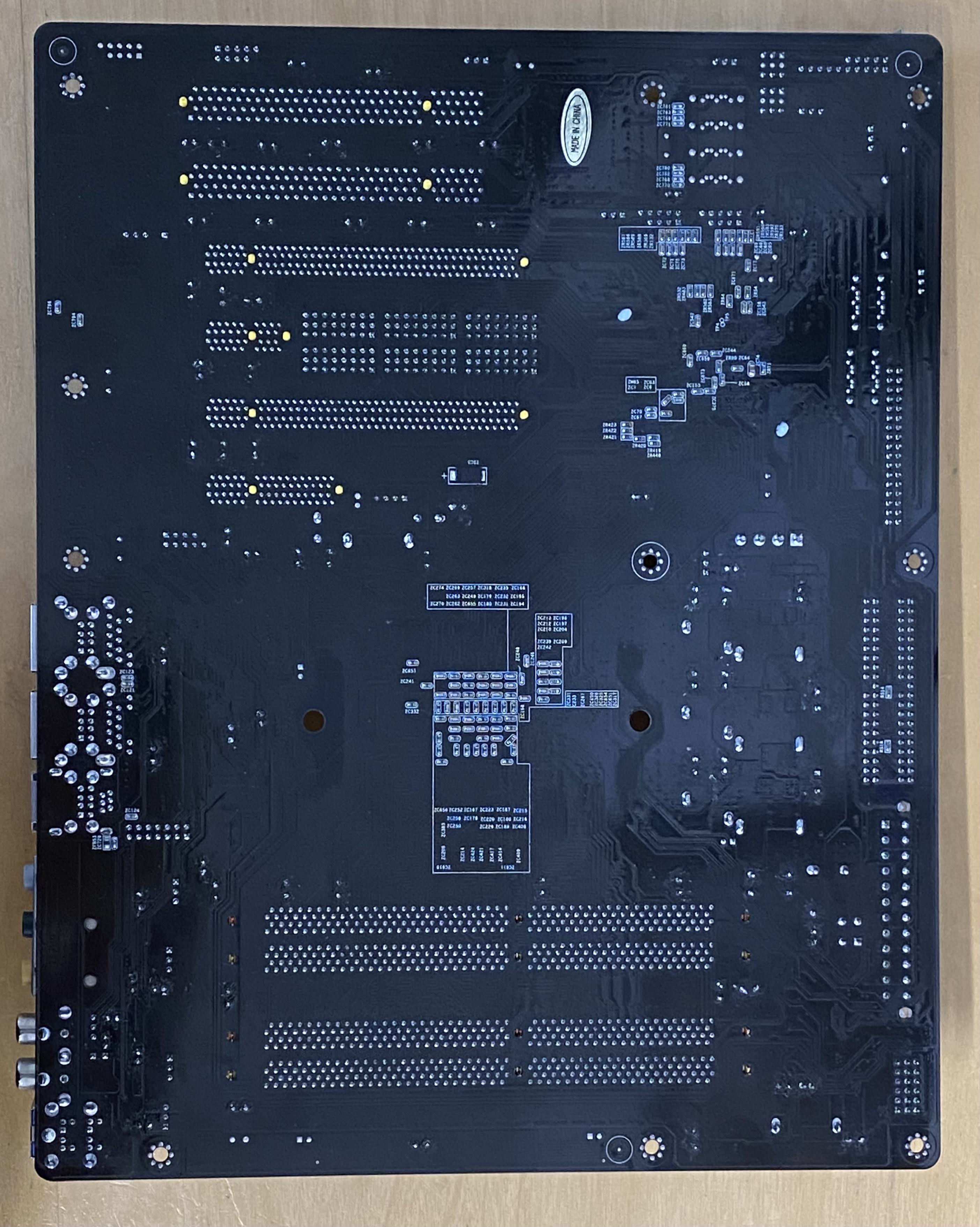

And it is ready to run again. Recapped.



[sda2]

Ich habe bei meinem A8R-MVP den Voltmod eingebaut, wie es im Internet steht, allerdings wird dadurch der Vdroop noch viel stärker.

Liegt last an ist die Vcore Spannung relativ genau mit +-0.01V, allerdings springt im IDle die Spannung von beispielsweise 1.52V auf 1.58V hoch, wenn wirklich garkeine Last anliegt.

Gibt es für den ADP3186 irgendwelche möglichkeiten, den Vdroop unter Last zu verringern?

Edit: Ich habe mal einige Vdroop Mods für AnalogDevices rausgesucht und es scheint mir, als würde immer zwischen CSSUM und CSCOMP ein 50kOhm gesetzt.

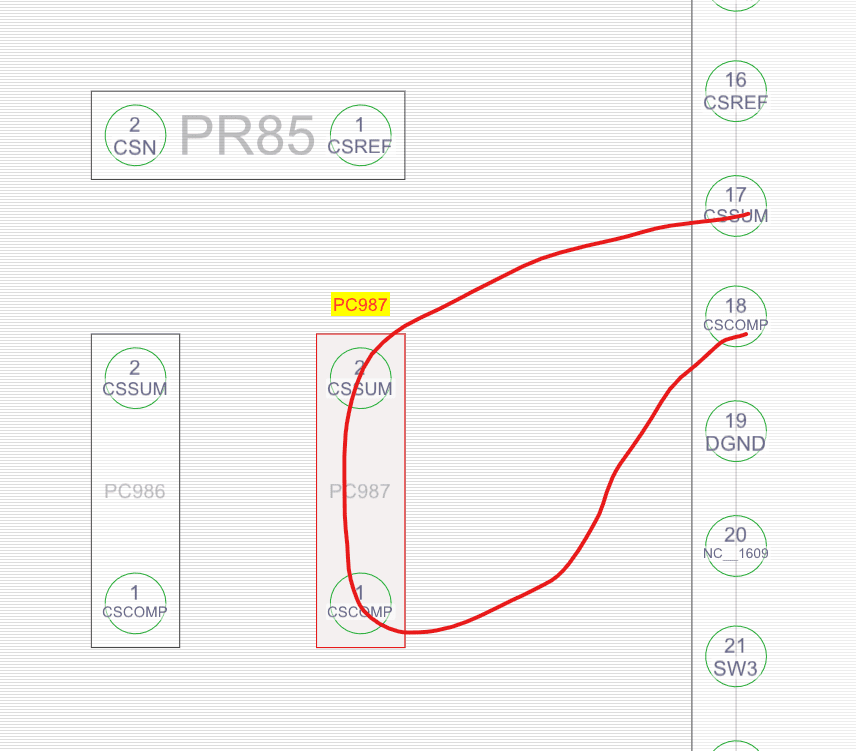

Beim A8R wäre das hier bei PC987:

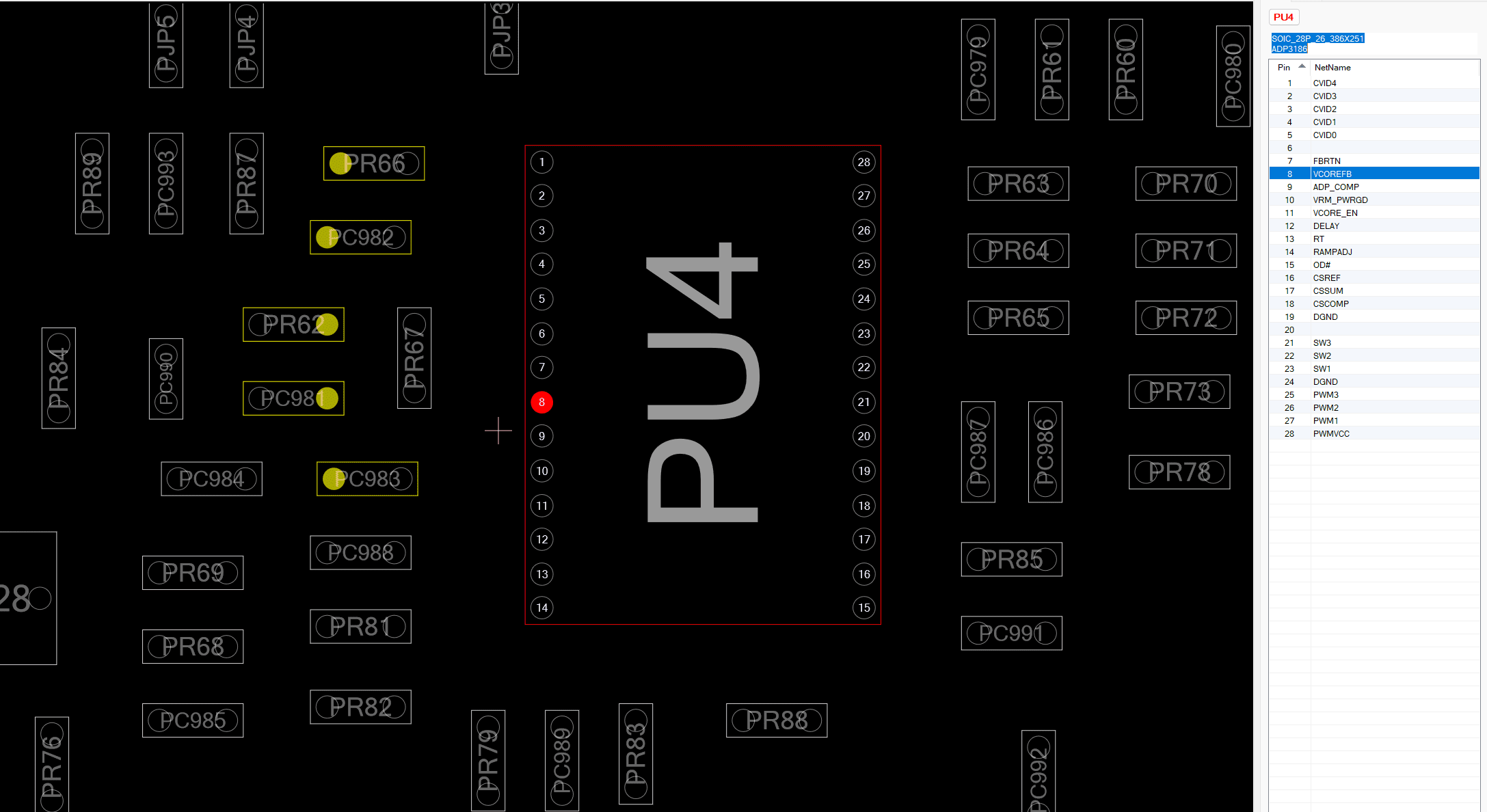

Da PC986 nicht bestückt ist, werde ich dort mal mein Glück versuchen und einen Trimmer setzen.



[Sparksnl]

The DFI NF4 Infinity (rev. B) came in.
Edit: I was wondering, how rare is this board? I mostly see DFI Lanparty boards.
Edit 2: I see there are 3 versions, NF4, NF4 Ultra and NF4 SLI. Is this the NF4 non ultra?

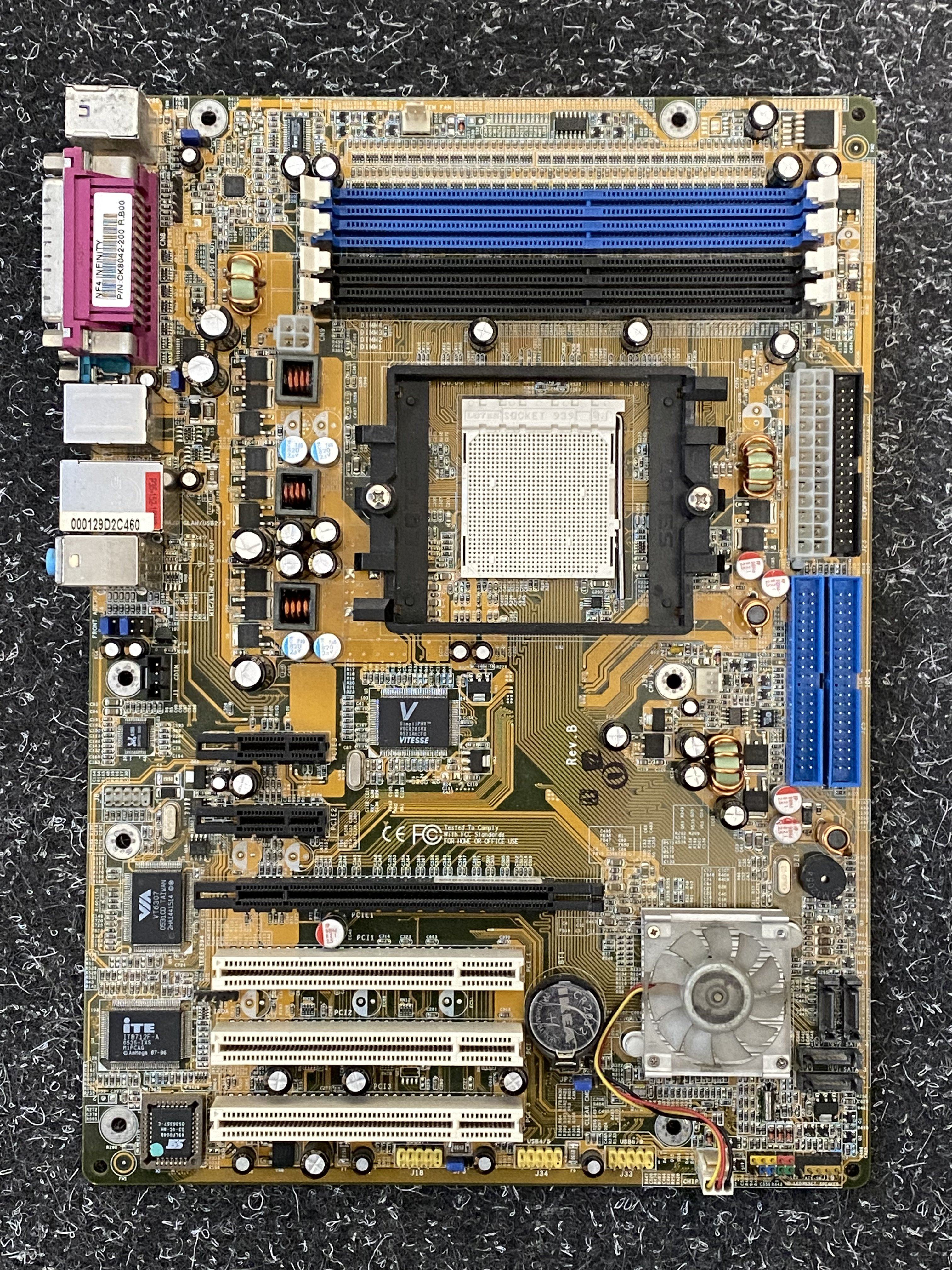

Board:

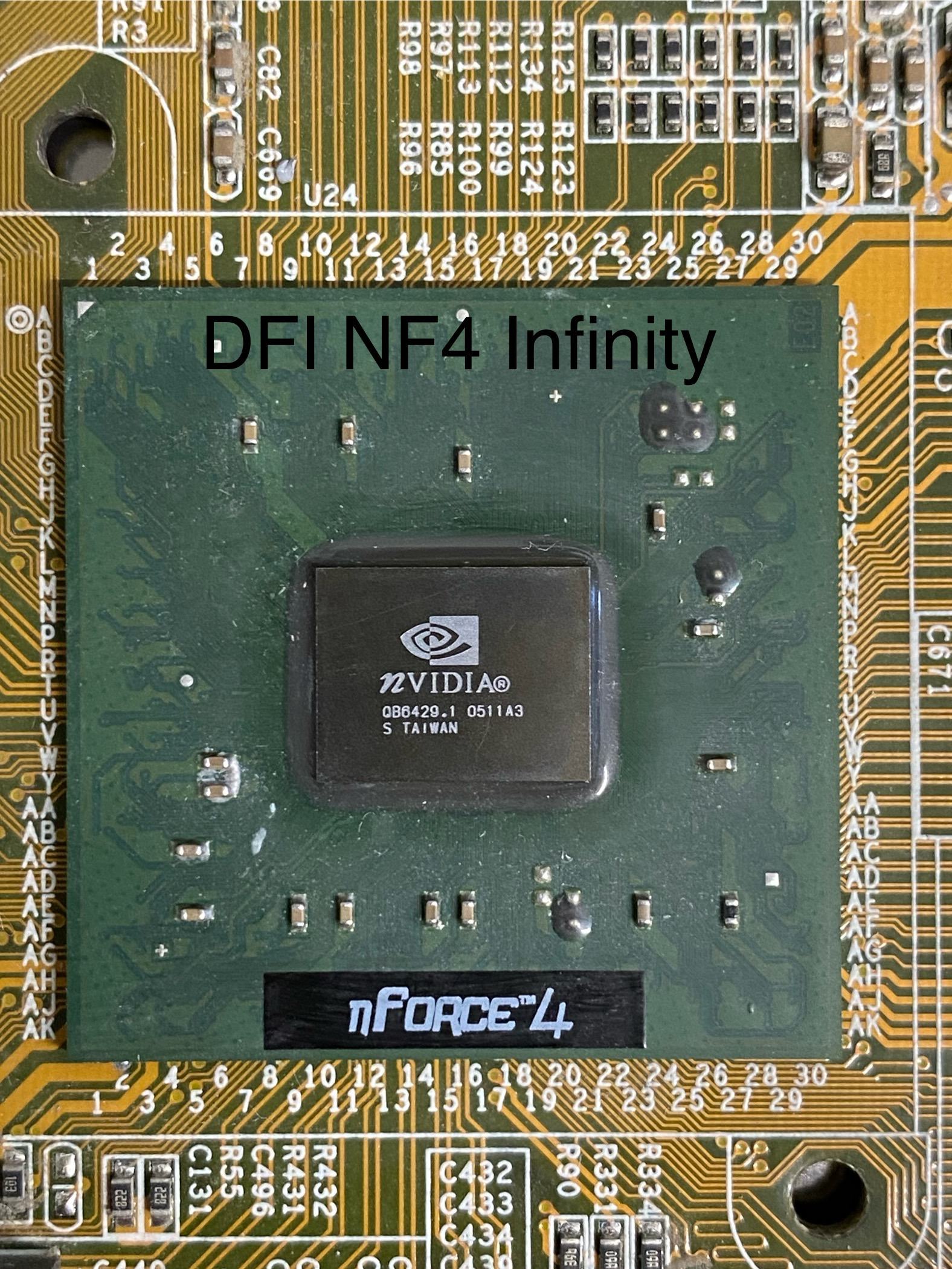

Chipset:



[Sparksnl]

So it is NF4 standard. That would mean SATA 150.
It would also mean 800MHz HTT, BUT I do have the 5x multi and was able to post with 1000MHz HTT (no OS yet).



[Tzk]

That would mean SATA 150.

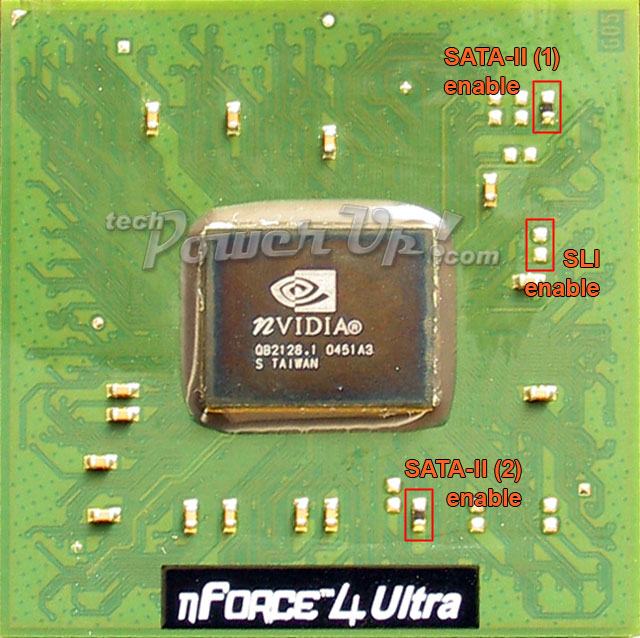

Well, sort of. I'd try to pencil mod it to enable sata 300.

TechPowerUp

www.techpowerup.com



[Sparksnl]

Thanks for the tip, I thought this was just for SLI only.
I will probably solder it then.
