Für FSB 500 und 8GB DDR2-1200
Robust Graphics Booster ...............: Auto
CPU Clock Ratio ..........................: 8
CPU Frequency ...........................: 4000
Clock Chip Control
Standard Clock Control
CPU Host Clock Control..................: Enabled
CPU Host Frequency (Mhz) ............: 500
PCI Express Frequency (Mhz) .........: 100
C.I.A. 2.......................................: Disabled
Advanced Clock Control [Press Enter]
CPU Clock Drive...........................: 800mV
PCI Express Clock Drive.................: 900mV
CPU Clock Skew (ps)....................: 0ps
MCH Clock Skew (ps)...................: 0ps
DRAM Performance Control
Performance Enhance...................:Turbo
Extreme Memory Profile (X.M.P.).....: Disabled
(G)MCH Frequency Latch...............: 333
System Memory Multiplier ..............: 3.20B
Memory Frequency (Mhz) ..............: 1200
DRAM Timing Selectable ................:Manual
Standard Timing Control
CAS Latency Time........................: 5
tRCD .........................................: 5
tRP'...........................................: 5
tRAS..........................................: 15

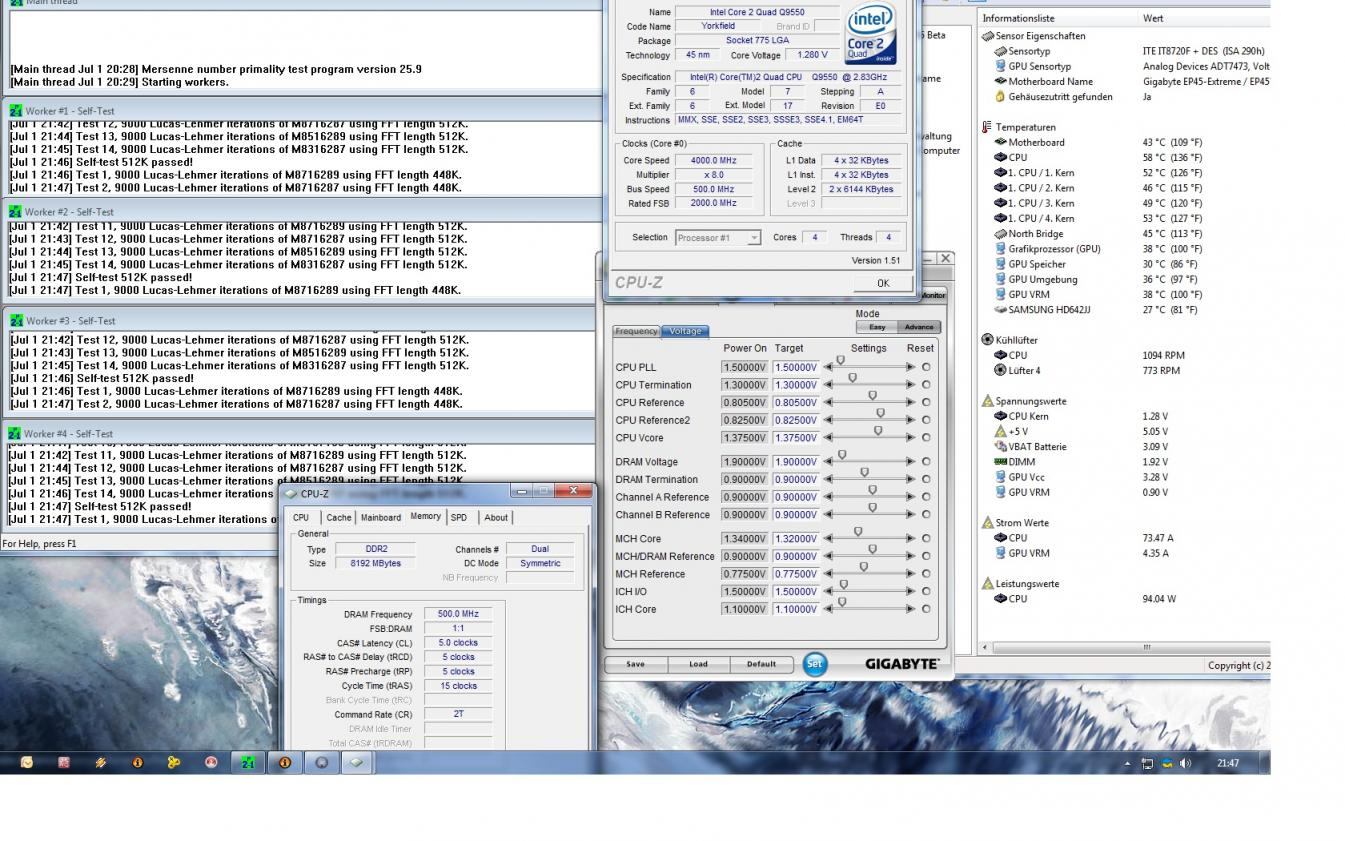

Motherboard Voltage Control:
Loadline Calibration.………................ Disabled
CPU Vcore….……….........................: 1,38125V
CPU Termination…..... 1.200V*.......: 1,30V
CPU PLL…………………....1.500V*.......: 1,50V
CPU Referen.…………....0.760V*.......: 0,863V 67%
MCH/ICH
MCH Core…………….....1.100V...........: 1,34V
MCH Reference….…….0.760V...........: 0,863V 67%
MCH/DRAM Ref.…......0.900V...........:0,93
ICH I/O……………….....1.550V............: 1,50V
ICH Core…………...……1.100V............: 1,10V
DRAM
DRAM Voltage ……....1.800V............: 1,86V
DRAM Termination .…0.900V............: 0,93V
Channel A Reference 0.900V............: 0,93V
Channel B Reference 0.900V............: 0,93V
PL 10
DIMM Clock Skews Channel A & B auf +600

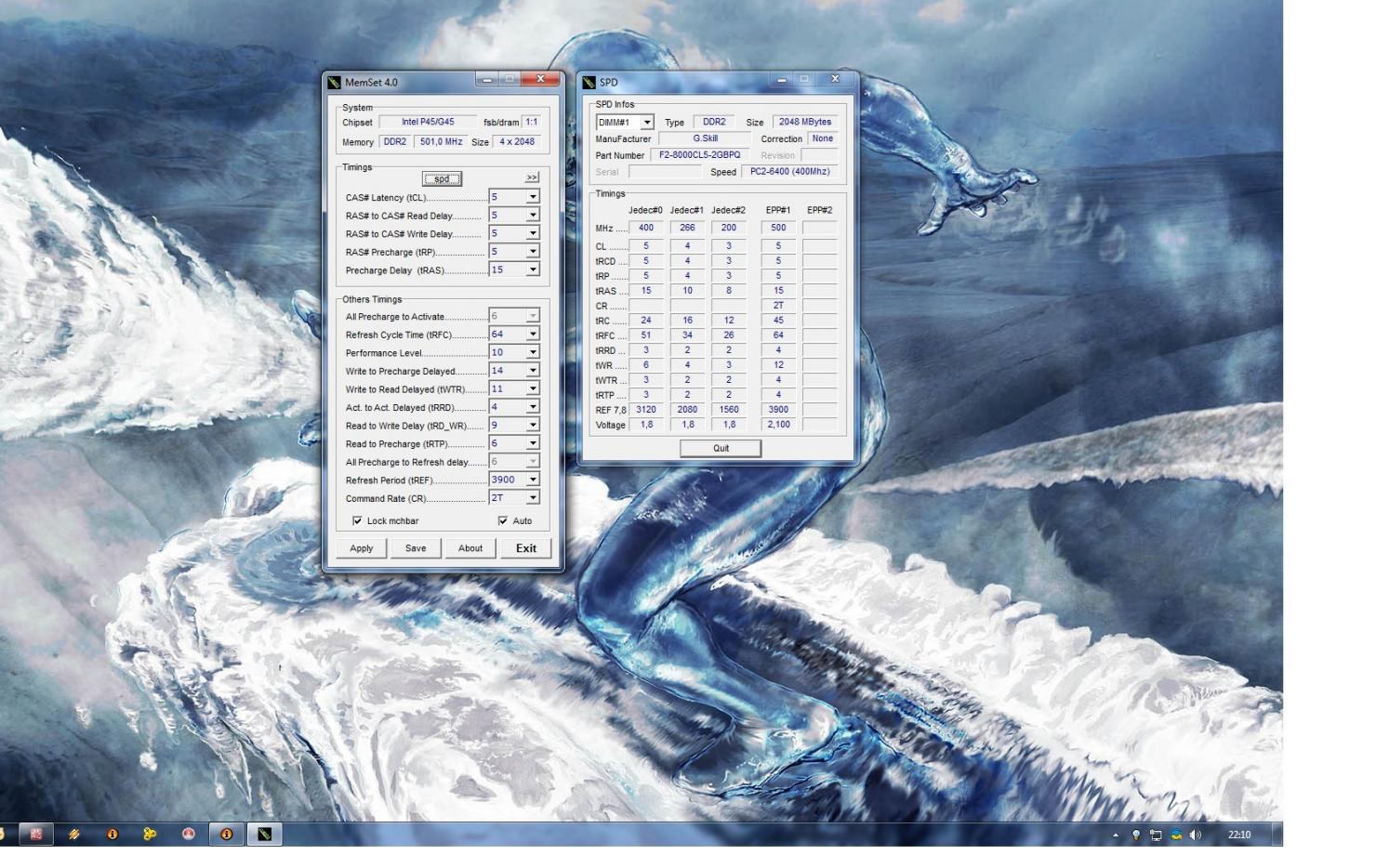

Subtimings weiß ich grad nicht.
Ist auch bischen viel jetzt
Aber für 1000 und 1066 (beides 5-5-5-15)hatte ich erstmal die Subs von JZ eingestellt.Also 4-4-8-63-4-A.(Statt 63 hatte ich aber auch schon mal 58)Puuuuh...
